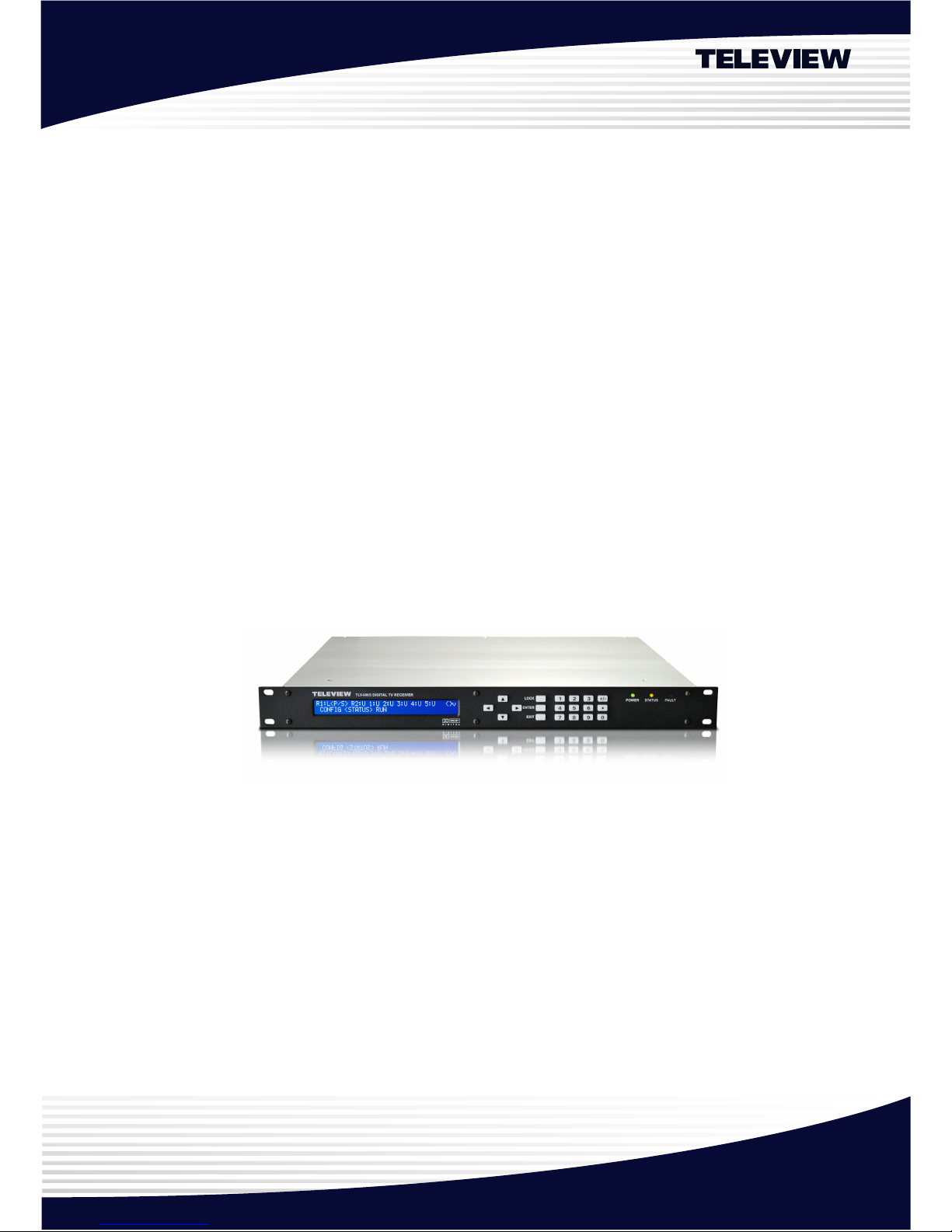

Teleview TLV-400S Manuale utente

H.264/MPEG-2 Professional Digital Television

Receiver

TLV-400 ™

User’s Manual

Version 1.8 (For FW V2.4.0, FPGA V2.7.3, DK

V1.0.0)

May 23, 2011

Teleview

Corporate Headquarter Teleview, Inc. 355-1 Yatap, Bundang, Seongnam, yeonggi, 463-828, Republic of Korea

E-mail: sales@teleview.com http://www.teleview.com

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

Table of Contents

1. OVERVIEW 7

1.1 INTRODUCTION 7

1.2 DELIVERED CONTENTS 8

1.3 FRONT PANEL OVERVIEW 8

1.3.1 Alphanume ic Display

9

1.3.2 Function Buttons

10

1.3.3 Nume ic Buttons

10

1.4 REAR PANEL OVERVIEW 11

1.4.1 Ove view

11

1.4.2 Video Output

12

1.4.3 Audio Output

12

1.4.4 Digital Output BNC Connecto s (AES3/DVB-ASI/SMPTE-310M)

13

1.4.5 DVB-ASI/SMPTE-310M Input BNC Connecto s

13

1.4.6 RF input Connecto s

13

1.4.7 Communication Po t

13

1.4.8 FAULT Output Po t

14

1.4.9 Powe Switch & Inlet

14

1.5 BNC CONFIGURATION 15

2. GETTING STARTED 16

2.1 INITIAL HOOK-UP 16

2.2 VERIFYING YPBPR OR RGB COMPONENT VIDEO OUTPUT (ONLY IF APPLICABLE DISPLAY IS ATTACHED) 16

2.3 VERIFYING SDI VIDEO OUTPUT (ONLY IF APPLICABLE DISPLAY IS CONNECTED) 17

2.4 VERIFYING COMPOSITE VIDEO OUTPUT (ONLY IF APPLICABLE DISPLAY IS CONNECTED) 20

2.5 VERIFYING DVB-S/S2 DIGITAL TV SIGNAL DECODING THROUGH RF INPUT (ONLY IF YOU HAVE DVB-S/S2 RF INPUT

AVAILABLE) 20

2.6 VERIFYING DIGITAL TV SIGNAL DECODING THROUGH DVB-ASI OR SMPTE-310M INPUT (ONLY IF YOU HAVE THIS

SOURCE AVAILABLE) 22

2.7 VERIFYING ANALOG AUDIO OUTPUT 23

2.8 USING BNC-OUT(DVB-ASI OR SMPTE-310M) TS OUTPUT 23

2.9 USING DIGITAL AUDIO OUTPUT 23

2.10 USING FAULT OUTPUT 23

2.11 SNMP NETWORK MANAGEMENT 23

2.12 SAVING CONFIGURATION 24

2.13 MENU USING OSD 24

3. MENU DICTIONARY 25

Version 1.8 2

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

3.1 OVERVIEW 25

3.2 CONFIG MENU 26

3.2.1 CONFIG menu ove view

26

3.2.2 CONFIG/MAIN sub-menu

27

3.2.3 CONFIG/SUB sub-menu

33

3.2.4 CONFIG/RF-IN1 sub-menu

34

3.2.5 CONFIG/RF-IN2 sub-menu

35

3.2.6 CONFIG/IP RX sub-menu

36

3.2.7 CONFIG/IP TX sub-menu

37

3.2.8. CONFIG/BNC INPUT(ASI/SMPTE310M)

38

3.2.9 CONFIG/BNC OUT(AES/ASI/SMPTE310M) sub-menu

39

3.2.10 CONFIG/SYSTEM sub-menu

40

3.2.11 CONFIG/NETWORK sub-menu

41

3.2.12 CONFIG/FAULT sub-menu

42

3.2.13 CONFIG/PRIORITY

43

3.2.14 CONFIG/AUTO SELECTION DELAY:

44

3.2.15 CONFIG/CVBS OUT

44

3.2.16 CONFIG/SI MODE

44

3.2.17 CONFIG/INPUT TS QUALITY

44

3.2.18 CONFIG/DESCRAMBLING

45

3.3 STATUS MENU 45

3.3.1 STATUS/MAIN sub-menu

46

3.3.2 STATUS/SUB sub-menu

49

3.3.3 STATUS/RF-IN1 and STATUS/RF-IN2 sub-menu

49

3.3.4 STATUS/INPUT sub-menu

50

3.3.5 STATUS/IP RX sub-menu

50

3.3.6 STATUS/VERSION sub-menu

51

3.3.7 STATUS/SERIAL NUMBER sub-menu

51

3.3.8 STATUS/MAC-ADDRESS sub-menu

51

3.3.9 STATUS/LICENSE LEVEL sub-menu

51

3.4 SAVE PROFILE MENU 52

3.5 RECALL PROFILE MENU 52

3.6 AUTO SEARCH MENU 52

3.7 DEFAULT MENU 52

3.7 DIAGNOSIS MENU 57

4. HOW TO UPGRADE FIRMWARE 59

4.1 FIRMWARE UPGRADE FROM TELEVIEW WEB SITE(TELEVIEW URL) 59

Version 1.8 3

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

4.2 FIRMWARE UPGRADE WITH FTP(TLVFTPD) 59

4.3 FIRMWARE UPGRADE WITH USB PORT(USB) 60

5. HELP 61

5.1 TROUBLE SHOOTING 61

6. SYSTEM STATUS LOG 62

7. SPECIFICATIONS1 63

8. INPUT AND OUTPUT SIGNAL SPECIFICATIONS2 65

8.1 AUDIO OUTPUT 65

8.2 MAIN VIDEO OUTPUT – COMPONENT 65

8.3 MAIN VIDEO OUTPUT – SDI 66

8.4 SUB VIDEO OUTPUT –COMPOSITE 67

8.5 USB 67

8.6 ETHERNET 67

8.7 SMPTE-310M INPUT 68

8.8 SMPTE-310M OUTPUT 68

8.9 DVB-ASI INPUT 68

8.10 DVB-ASI OUTPUT 69

8.11 RF INPUT 69

8.12 FAULT OUTPUT 69

8.13 POWER INLET 70

9. FACTORY OPTION 71

9.1 TLV-400S/M OPTION 71

9.2 DVB-T/T2 RECEPTION OPTION 71

9.3 8VSB/6MHZ QAM RECEPTION OPTION 71

9.4 ISDB-T RECEPTION OPTION 71

9.5 TLV400S 2ND AUDIO OPTION 72

REFERENCES 73

Version 1.8 4

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

IMPORTANT AFETY IN TRUCTION :

Important safety instructions shall be provided with each apparatus. These instructions shall be in a

separate booklet or sheet, or be located before any operating instructions in an instruction for

installation or use and supplied with the apparatus. This information shall be given in a language

acceptable to the country where the apparatus is intended to be used.

The important safety instructions shall be entitled "IMPORTANT SAFETY INSTRUCTIONS”. The

following safety instructions shall be include where applicable, and, when used, shall be verbatim

as follows. Additional safety information is not prohibited from being included by adding statements

after the end of the following safety instruction list. At the manufacturer’s option, a picture or

drawing that illustrates the intent of a specific safety instruction is not prohibited from being placed

immediately adjacent to that safety instruction.

Read these inst uctions.

Keep these inst uctions.

Heed all wa nings.

Follow all inst uctions.

Do not use this appa atus nea wate .

Clean only with a d y cloth.

Do not block any of the ventilation openings. Install in acco dance with the manufactu e 's inst uctions.

Do not install nea any heat sou ces such as adiato s, heat egiste s, stoves, o othe appa atus (including

amplifie s) that p oduce heat.

Do not defeat the safety pu pose of the pola ized o g ounding type plug. A pola ized plug has two blades

with one wide than the othe . A g ounding type plug has two blades and a thi d g ounding p ong. The wide

blade o the thi d p ong is p ovided fo you safety. When the p ovided plug does not fit into you outlet,

consult an elect ician fo eplacement of the obsolete outlet.

P otect the powe co d f om being walked on o pinched pa ticula ly at plugs, convenience eceptacles, and

the point whe e they exit f om the appa atus.

Only use the attachments/accesso ies specified by the manufactu e .

Unplug this appa atus du ing lightning sto ms o when unused fo long pe iods of time.

Refe all se vicing to qualified se vice pe sonnel. Se vicing is equi ed when the appa atus has been

damaged in any way, such as powe supply co d o plug is damaged, liquid has been spilled o objects have

fallen into the appa atus, the appa atus has been exposed to ain o moistu e, does not ope ate no mally, o

has been d opped.

The appa atus should not be exposed to wate (d ipping o splashing) and no objects filled with liquids, such

as vases, should be placed on the appa atus.

This equipment shall be connected to mains socket outlet with a p otective ea th connection.

Version 1.8 5

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

CAUTION : TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICIN TO

QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the

presence of uninsulated "dangerous voltage" within

the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

This symbol is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

License Notice:

“Dolby Pro Logic ΙΙ”, and the double-D Symbol are trademarks of Dolby Laboratories. Companies

planning to use this implementation in products must obtain a license from Dolby Laboratories

Licensing Corporation before designing such products.

THIS PRODUCT IS LICENSED UNDER THE MPE -4 VISUAL PATENT PORTFOLIO LICENSE

FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCONDIN

VIDEO IN COMPLIANCE WITH THE MPE -4 VISUAL STANDARD (“MPE -4 VIDEO”) AND/OR

(II) DECODIN MPE -4 VIDEO THAT WAS ENCODED BY A CONSUMER EN A ED IN A

PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO

PROVIDER LICENSED BY MPE LA TO PROVIDE MPE -4 VIDEO. NO LICENSE IS RANTED

OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDIN THAT

RELATIN TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSIN MAY

BE OBTAINED FROM MPE LA, LLC. SEE HTTP://WWW.MPEGLA.COM

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE

PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN

COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO

THAT WAS ENCODED BY A CONSUMER EN A ED IN A PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC

VIDEO. NO LICENSE IS RANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.

ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPE LA, L.L.C. SEE

HTTP://WWW.MPEGLA.COM

Version 1.8 6

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

1. OVERVIEW

1.1 INTRODUCTION

The Professional Digital Television Receiver TLV-400S receives digital broadcasting signal through

various sources and supplies demodulated / decoded video and audio in various industrial forms of

signal.

Designed to be compliant with versatile industrial standard such as MPE -II MP@ML/HL[1][2], DVB

(Digital Video Broadcasting ) and ATSC [3] (Advanced Television Systems Committee), the TLV-

400S offers easy connection to various digital televisions and receivers.

The TLV-400S comes with DVB-S2/S, DVB-T reception module for satellite and European

terrestrial digital broadcasting. (Default option is DVB-S2/S.)

The digital broadcasting signal is supported in the forms of DVB-ASI [4], SMPTE-310M[5], or it can

be a radio frequency (RF). The video output is supplied through composite video signal, Y/Pb/Pr

analog video signal with embedded sync and R BHV analog video signal. In addition, it supports

the SDI (Serial Digital Interface) digital video (SMPTE-292M[6] and SMPTE-259M[7]) with embedded

audio (PCM audio) for standard definition and high definition. The audio output can be analog

stereo output and digital AES3-id (Audio Engineering Society Standard 3) output.

The receiver has two sets of video, and one set of audio decoder, MAIN channel and SUB channel,

working independently (Dual MPE -2(HD/SD) decoding, single MPE -4/H.264 decoding). MAIN

channel video output is supplied through YPbPr/R BHV/SDI OUT BNC connectors and SUB

channel video output is supplied through CVBS (composite video base band signal) BNC

connector. CVBS output works at only 720x576 (480) interlaced mode. The MAIN audio output is

supplied through L1, R1, L2, R2 analog audio and AES3-id digital audio for both channel as well as

embedded audio in SDI output.

By supporting SNMP (Simple Network Management), the user can remotely monitor and control

the unit via Ethernet connection. The firmware could be updated easily to recent version via a USB

port and Ethernet. With its slim form factor 1U Rack mountable frame and easy maintenance

method the TLV-400S can be easily installed and operated.

Version 1.8 7

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

1.2 DELIVERED CONTENT

When you receive the TLV-400S from a distributor, the package comes with following contents:

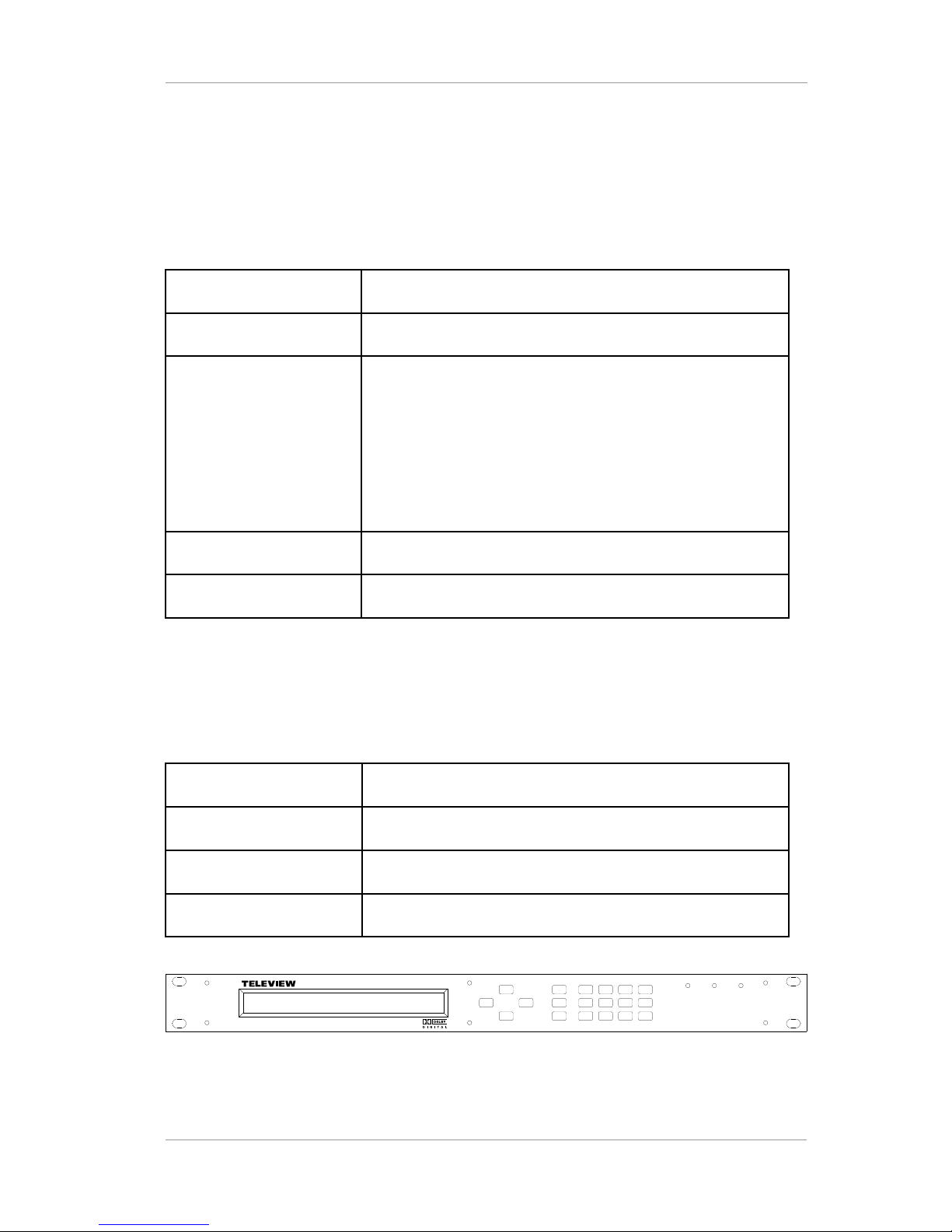

Table 1 Content in the carton box

Description Quantity

TLV-400S 1RU frame 1

AC power cord 1 North America type (Type B) plug and an IEC C13 line socket

or

1 Power cord featuring a CEE 7/4 plug (Type F, Schuko) and an

IEC C13 line socket.

Audio cable 1 D-Sub 9P to XLR cable assembly

User’s manual 1

1.3 FRONT PANEL OVERVIEW

The Front panel of TLV-400S can be divided into 4 main parts:

Table 2 Content in the carton box

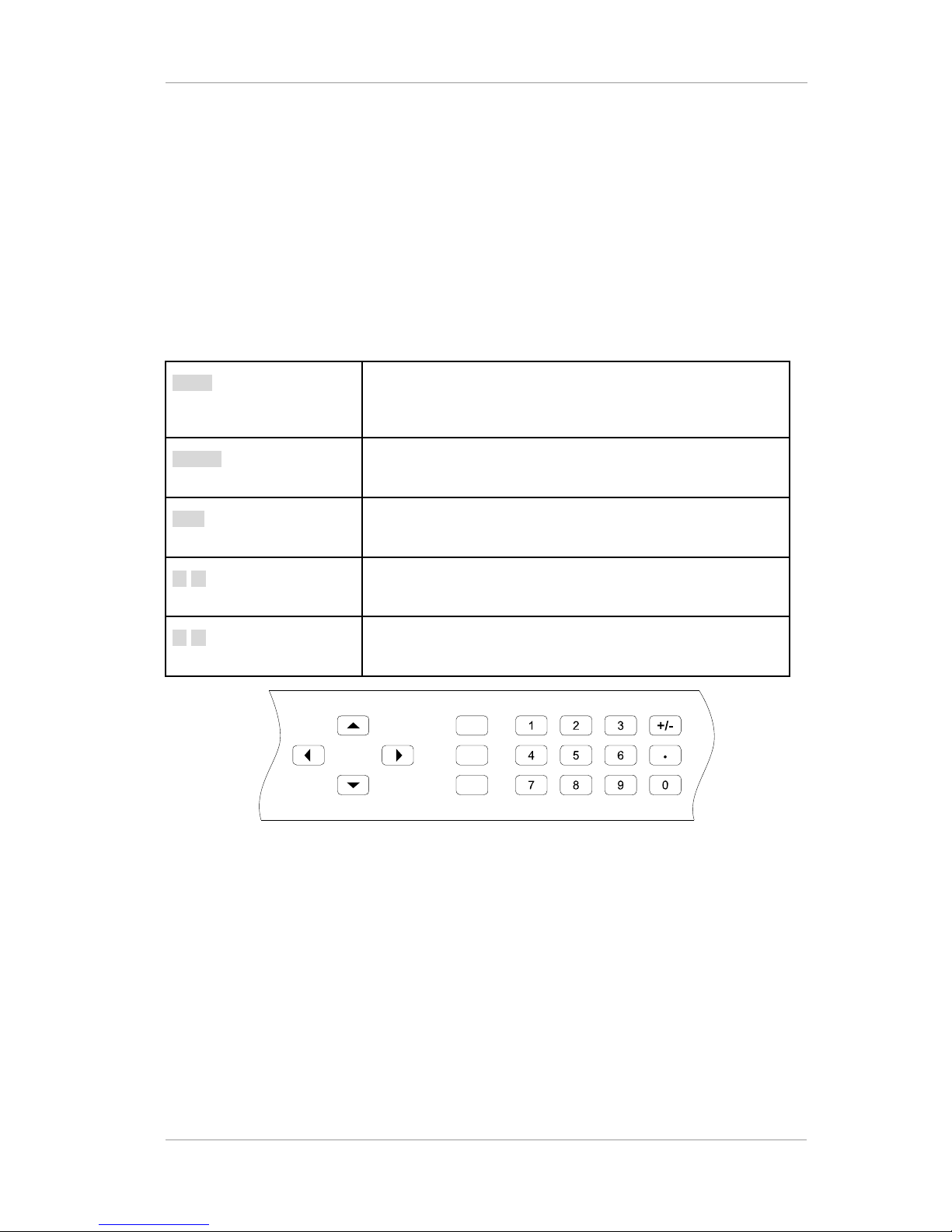

1 2 lines by 40 characters alphanumeric character display

2 Function buttons (Arrows, LOCK, ENTER, EXIT)

3 Numeric buttons

4 3 LEDs (POWER, STATUS, FAULT)

TLV400 DIGIT AL TV RECEIVER

LOCK

ENTER

EXIT

POWER TATU FAULT

Figure 1 Front Panel View of the TLV-400 Receiver

Version 1.8 8

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

1.3.1 Alphanumeric Display

The status display provides clear viewing of status and menu configuration with 2 lines by 40

characters. It is used to control the TLV-400S directly from the front panel.

11 8 .IF

-

SN 1-

B

1

: 4 B-

d .

B

0

B1

1C -L

- :

O DK 0x0:

-B3:2:

-R BV 8

- : 5

B

>

< >R :L 2 -R 1 :

Figure 2 Alphanumeric Display

Table 3 Regions in the alphanumeric display

1. Lock State In this upper line of the display, R1:L shows that RF input -1 is

in LOCK state, and R2:- means RF input – 2 is in UNLOCK

state.

B1:-,B2:-,B3:-,B4:-,and B5:- means BNC input -1~5 is UNLOCK

state.

In the bottom line of the display, RF-IN1: LOCK DVB-S2 18.1dB

1.00 x 10-8 shows that lock state, modulation system, SNR and

BER value of RF input – 1.

User can view the status information of RF-IN2, BNC 1~5 by

scrolling left/right using the <,> arrow buttons.

User can change the INPUT PORT STATUS format into MAIN

STATUS or SUB STATUS using the ^ arrow button.

In the MAIN STATUS, the upper line of the display – MAIN: RF-

IN1 shows that MAIN channel is taking input signal from RF-

IN1.

2. Applicable Button It displays available function buttons for current menu

[ex: ENTER/SLCT (select button); <, >, ^, v (arrow button)]

3. Menu Entries / Status

Bar

It displays sub menus, parameter, or status

Version 1.8 9

1. Lock tate 2. Applicable Button

Buttons

3. Menu Entries/ tatus Bar

TLV-400 H.264/MPEG-2 Professional Digital TV Receiver User’s Manual

1.3.2 Function Buttons

Front panel has buttons for easy control, which enable complete and simple control of the receiver.

The entire operation of the receiver can be carried out directly using the front panel buttons with the

alphanumeric display. Therefore, the user can easily control and change the settings. The four

direction buttons scroll through the different options within the menus or sub menus The

ENTER/SLCT and EXIT buttons are used to select through the menu options.

Table 4 Buttons in the front panel

LOCK Used to lock front buttons. If once pushed, users can not push

the front buttons. And If pushed again, the lock status of front

buttons is canceled.

ENTER Used to make selections in the menu system and go to the sub-

menu.

EXIT Used to exit the current menu level and return to the previous

one.

 Allow you to scroll through the different options within sub-

menus, or to move the cursor.

 Allow you to go to next/previous sub-menu within the menu, or

to change the parameter.

LOCK

ENTER

EXIT

Figure 3 Function Buttons and Numeric Buttons of TLV-400

1.3.3 Numeric Buttons

Numeric buttons allow you to enter the numbers instead of using the arrow buttons. For example,

instead of using the direction buttons to find program number ‘63’, the user enters the number ‘63’

with the numeric buttons and press ENTER to enter the program number directly. And the buttons

are used to set the channel frequency, channel numbers and etc.

Version 1.8 10

Teleview TLV-400S Manuale utente

Manuali Ricevitore TV popolari di altre marche
