Telstra 6100/6100a

Digital DECT Cordless Telephone

If you have any problems with your phone,

refer to the Help section of this User Guide or

call TecHelp on 1300 369 193.

User Guide

Introduction

to your Telstra 6100/6100a

Digital DECT Cordless Telephone

• 10 phone number memories

• Calling Number Display

• Flashing Message Indicator

• 5 last number redial

As a Digitally Enhanced Cordless Telecommunications (DECT) product, your Telstra

6100/6100a provides: -

• Digital clarity

• Digital range

• Digital security

See Things you need to know on page 26 for important information.

IMPORTANT

This equipment is not designed for making

emergency telephone calls when the power

fails. Alternative arrangements should be made

to access emergency services.

This User Guide provides you with all the

information you need to get the most from your

phone.

Before you make your first call you will need

to set up your phone. Follow the simple

instructions in “Getting Started”, on the next

few pages.

Need help?

If you have any problems setting up or using

your Telstra 6100/6100a please contact TecHelp

on 1300 369 193.

Alternatively, you may find the answer in the

‘Help’ section at the back of this guide.

Got everything?

• Telstra 6100/6100a handset

• Telstra 6100/6100a base unit

• 2 x AAA NiMH rechargeable batteries

• AC power adaptor

• Telephone line cord

• Telephone adaptor plug

If you have purchased a Telstra 6100/6100a

Multi-pack you will also have the following

items for each handset:

• Telstra 6100/6100a handset

• Telstra 6100/6100a charger unit

• 2 x AAA NiMH rechargeable batteries

• AC power adaptor (red plug)

In this guide

Getting started 4

Setting up 4

Telstra 6100/6100a Multi-pack (only)

setting up 6

Wall mounting your 6100/6100a 7

Getting to know your 6100/6100a 8

Handset buttons 8

Handset display icons 9

Base unit 10

Using the phone 11

Switch handset on/off 11

Making and receiving calls 11

Preparatory dialling 11

To receive a call 11

Earpiece volume 11

Mute 11

Redial 12

Paging 12

Keypad lock 12

To store a number in the memory 12

To dial a number in the memory 13

To delete a number in the memory 13

Internal calls 13

Transfer a call 13

Handset settings 14

Program menu 14

Ringer melody and volume 14

Date and time setting 14

Base melody and volume 14

Telstra Network Services 15

Using Calling Number Display 15

Missed calls indicator 15

View and dial from the calls list 15

MessageBank® and

Telstra Home Messages 101® 15

To listen to your messages 15

Flashing Message Indicator 16

Using Call Waiting 16

To answer an incoming call

whilst you are on the phone 16

3-way chat 16

Using the answering machine

(6100a only) 17

Message playback 17

Switching the answering machine on/off 17

Outgoing messages 18

Answer and Record 18

Answer Only 18

Reinstate pre-recorded outgoing

messages 18

Setting the day on your

answering machine 18

Memory full 19

Answer delay 19

To set the number of rings 19

Call screening 19

Record a memo 19

Delete individual messages 20

To delete all messages 20

Remote access 20

To change the security code 20

To set a new security code 20

For remote access 20

Help 21

Problem and possible cause 21

General information 23

Replacing the handset batteries 23

Safety information 23

Cleaning 24

Environmental 24

Technical information 24

How many telephones can I have? 24

Connecting to a switchboard 24

Inserting a pause 24

Recall 25

To alter the Recall setting 25

Product warranty and Customer service 26

Things you need to know 26

Wall mounting template 27

Getting started

Location

You need to place your Telstra 6100/6100a close enough to a mains power and telephone socket so that

the cables will reach. Make sure it is at least 1 metre away from other electrical appliances to avoid

interference.

WARNING Do not place your Telstra 6100/6100a in the bathroom or other humid areas.

Your Telstra 6100/6100a works by sending radio signals between the handset and base. The strength of

the signal depends on where you site the base. Putting it as high as possible can help to provide the best

signal

Handset range The handset reception range from the base is up to 300m outdoors and up to 50m indoors.

Thick walls can severely affect the range.

Range indicator The symbol on your handset display indicates when you are in range of the base. If the

symbol flashes and you hear a warning beep, you are out of range and will need to move closer to the base.

Setting up

1. Plug the mains power cable into the base. Then plug the power adaptor into the mains wall socket

and switch the power on. The light on the base lights up.

IMPORTANT Do not connect the telephone line until the handset(s) is fully charged. The base must be plugged

into the mains power at all times.

Which socket? Power socket Telephone line socket

Getting started

2. Remove the battery compartment cover and insert the 2 x AAA NiMH batteries supplied into the

handset. Slide the battery compartment cover back into place.

3. Charge the handset for at least 16 hours by placing it on the base. The charging indicator light on

the base comes on. The screen will show the standby display and a scrolling battery icon to show

that the handset is charging.

4. After 16 hours, plug the telephone line cord into your Telstra6100/6100a base unit and the other end

into the wall socket.

6SXO-Y\N

Your Telstra 6100/6100a is now ready for use.

Battery performance When batteries are fully charged the display shows the battery is full. To keep your batteries

in the best conditions, leave the handset off the base for a few hours at a time (after the initial 16 hour charge).

Please note however, that new NiMH batteries do not reach full capacity until they have been in normal use for

several days. Running the batteries right down at least once a week will help them last as long as possible. The

charge capacity of rechargeable batteries will reduce with time as they wear out, so reducing the talk/standby

time of the handset. Eventually they will need to be replaced. New batteries can be purchased through TecHelp on

1300 369 193 or from your local electrical retailer.

Battery low warning When the battery charge is low the handset battery icon will show empty.

Place the handset back on the base to recharge.

Replacing batteries Use only rechargeable 550mAh or higher AAA NiMH batteries.

Talk/Standby time Under ideal conditions, fully charged handset batteries should give up to 10 hours

talk time or 100 hours standby on a single charge.

Getting started

Telstra 6100/6100a Multi-pack (Only) setting up

If you have purchased a Telstra 6100/6100a Multi-pack you will need to install the additional handset(s)

charger(s) as follows: -

Location

You need to place your Telstra 6100/6100a charger unit close enough to a mains power socket so that

the cable will reach.

Setting up the charger

1. Plug the power adaptor cable (red AC adaptor plug) into the underside of the charger unit.

2. Plug the power adaptor into the mains socket and switch the power on.

3. Install the batteries supplied and charge as per the instructions on page 5.

Wall mounting your Telstra 6100/6100a

Your Telstra 6100/6100a main base unit (or extension handset charger if you have purchased one) can

be wall mounted directly on to a wall.

1. Remove the desk stand from the back of the base unit or extension charger by pressing down on clip

(A) and slide forward (B) the desk stand to reveal the mounting holes located under the base unit or

charger.

2. Using the template on page 27, drill 2 holes in your desired location. These holes should be made

25mm deep using a 3mm diameter drill.

NOTE: Check and ensure before drilling that you will not be drilling into any hidden wiring or pipes.

3. Insert the wall plugs and insert a screw into each hole. Leave 3mm between the head of the screw and

the wall.

4. Position the base unit or extension charger on to the screws and slide down to secure.

Getting to know your 6100/6100a

Handset

buttons

1. Mute

Used to activate

and deactivate the

microphone.

2. Program/

(Phonebook)

Use to access

Phonebook memories

and phone settings.

3. Talk

Use to make a call.

4. MessageBank®

For one-touch access

to MessageBank® or

Telstra Home Messages

101®.

5. Call Waiting

Long press: For one-

touch access to Call

Waiting.

6. Recall(R)/

Intercom(Int)

Use to make internal

calls between handsets

& transfer external calls.

7. Redial/Pause

You can redial up to 5 of

the last numbers called.

8. Calls List / UP

scroll

Use to scroll up

through menu options,

Phonebook entries and

the Calls list.

9. End call

Use to end a call.

10. DOWN scroll

Use to scroll down

through menu options,

Phonebook entries.

11. Keypad

Use to enter digits and

characters.

12. Messages

6100 - use to access

MessageBank®

6100a - use to access

the answering machine

13. 3-way chat

Long press: For one-

touch access to 3-way

chat.



]



]









;











Handset display icons

Getting to know your 6100/6100a

0VK]RSXQ$CY_RK`OXOaWO]]KQO] KYXVc

0VK]RSXQ\KZSNVc$+X]aO\SXQWKMRSXOWOWY\cS]P_VV KYXVc

=^OKNc$>ROKX]aO\SXQWKMRSXOS]YX KYXVc

0VK]RSXQ$CY_K\O\OMOS`SXQKXOb^O\XKVMKVV

=^OKNc$CY_K\OWKUSXQKXOb^O\XKVMKVV

0VK]RSXQ$CY_K\O\OMOS`SXQKXSX^O\XKVMKVV

=^OKNc$CY_K\OWKUSXQKXSX^O\XKVMKVV



>RS]X_WLO\SX^ROMKVVO\VS]^S]KWS]]ONMKVV

>RS]X_WLO\SX^ROMKVVO\VS]^aK]KV\OKNc^KUOX

=^OKNc$3XNSMK^SYXYPLK^^O\cMKZKMS^c

-cMVSXQ^R\Y_QR^RO]OQWOX^]$>RORKXN]O^S]LOSXQMRK\QON



AROX^RO:RYXOLYYUS]LOSXQ_]ON

AROXSXWOX_YZO\K^SYX

>ROUOcZKNVYMUS]KM^S`K^ON

=^OKNc$>ROMYXXOM^SYX^Y^ROLK]O_XS^S]]K^S]PKM^Y\c

0VK]RSXQ$,K]O_XS^S]Y_^YP\KXQO

>ROX_WLO\S]VYXQO\^RKXNSQS^]

0VK]RSXQ7O]]KQO3XNSMK^Y\

Getting to know your 6100/6100a

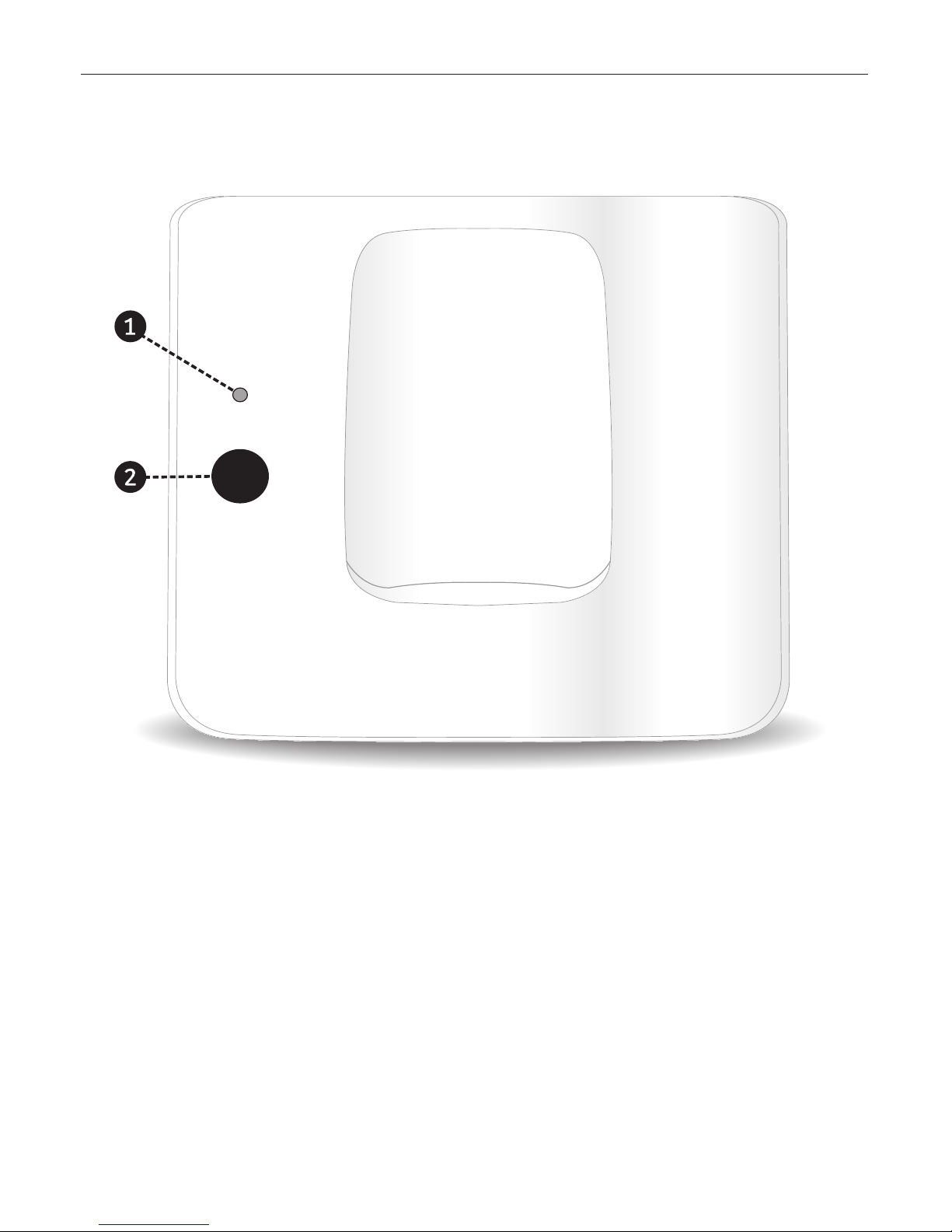

Base unit

:YaO\3X_]O

>OV]^\K K

:KQO

1. Power / In Use LED

6100

On: - indicates there is power to the base.

Flashes: - when the handset is in use; when receiving an incoming call; during registration mode.

Flashes: - when message left on MessageBank®.

6100a

On: - indicates the answering machine is switched on.

Flashes: - when the handset is in use; when receiving an incoming call; during registration mode.

Flashes: - when message left on answering machine.

2. Page button

Press and release to page handset(s).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Telstra Telefono senza fili

Telstra

Telstra 8100 Manuale utente

Telstra

Telstra F2400 Manuale utente

Telstra

Telstra EASY CONTROL 202 Istruzioni per il montaggio

Telstra

Telstra 9400 Manuale utente

Telstra

Telstra 8200 Manuale utente

Telstra

Telstra Telstra 7300a Manuale utente

Telstra

Telstra Colombo Manuale utente

Telstra

Telstra 5400 Manuale utente

Telstra

Telstra 13650 Manuale utente

Telstra

Telstra V1600 SMS Colour Screen Manuale utente

Telstra

Telstra TCG301 Istruzioni per il montaggio

Telstra

Telstra V850a Manuale utente

Telstra

Telstra Easy View 3400 Twin Manuale utente

Telstra

Telstra V950a Manuale utente

Telstra

Telstra TEC-C Manuale utente

Telstra

Telstra 12500 Manuale utente

Telstra

Telstra 13500 Manuale utente

Telstra

Telstra 7200 Manuale utente

Telstra

Telstra Voice Control TVC-C Istruzioni per il montaggio

Telstra

Telstra 7400 Manuale utente

Telstra

Telstra Outdoor 900 Manuale utente

Telstra

Telstra Slim Touch 9650 Manuale utente

Telstra

Telstra 5200a Manuale utente

Telstra

Telstra f5000 Manuale utente

Manuali Telefono senza fili popolari di altre marche

3Com

3Com NBX Manuale utente

Panasonic

Panasonic KX-TGK210HK Manuale utente

Panasonic

Panasonic KX-TCA181EX Manuale utente

BT FREESTYLE 3200 Manuale utente

AT&T

AT&T CL84102 Manuale utente

BREZZICNI

BREZZICNI CL-3622 Manuale utente

Panasonic

Panasonic KX-TG1831NZ Manuale utente

Panasonic

Panasonic KX-TG7301E Manuale utente

Furuno

Furuno FM-4721 Manuale utente

Sanyo

Sanyo CLT-J70 Manuale utente

Amplicomms

Amplicomms BigTel 201 Manuale utente

GE 26992 Manuale utente

AT&T

AT&T E1812B Manuale utente

Sanyo

Sanyo CLT-670 Manuale utente

GE 15432970 Manuale utente

Curtis

Curtis TC595 Manuale utente

Gigaset

Gigaset Gigaset 3000 Micro Manuale utente

Poly

Poly VVX D230 Guida all'installazione
