Teltonika FM3602 Manuale utente

FM3602/FM3612 User Manual

V0.7




Table of contents
1INTRODUCTION ..................................................................................................................... 6
1 ATTENTION............................................................................................................................ 6
2 INSTRUCTIONS OF SAFETY ......................................................................................................... 6
3 LEGAL NOTICE........................................................................................................................ 7
4 ABOUT DOCUMENT ................................................................................................................. 7
2BASIC DESCRIPTION ............................................................................................................... 8
1 PACKAGE CONTENTS ................................................................................................................ 8
2 BASIC CHARACTERISTICS ........................................................................................................... 8
3 TECHNICAL FEATURE .............................................................................................................. 10
4 ELECTRICAL CHARACTERISTICS.................................................................................................. 11
5 ABSOLUTE MAXIMUM RATINGS............................................................................................... 13
6 TECHNICAL INFORMATION ABOUT INTERNAL BATTERY................................................................... 13
3CONNECTION, PINOUT, ACCESSORIES.................................................................................. 14
1 HOW TO INSERT SIM CARD AND ATTACH BATTERY INTO FM3602/FM3612 DEVICE:........................ 14
2 INSTALLING FM3602/FM3612 DRIVERS ................................................................................. 16
3 NAVIGATE LED..................................................................................................................... 17
4 MODEM LED....................................................................................................................... 17
5 STATUS LED .............................................................................ERROR!BOOKMARK NOT DEFINED.
6 FM3602/FM3612 SOCKET 26* ......................................................................................... 18
7 USB................................................................................................................................... 19
8 ACCESSORIES........................................................................................................................ 19
4FIRMWARE .......................................................................................................................... 24
5OPERATIONAL BASICS.......................................................................................................... 25
1 OPERATIONAL PRINCIPALS....................................................................................................... 25
2 SLEEP MODES....................................................................................................................... 26
2.1 Sleep mode ............................................................................................................. 26
2.2 Deep Sleep mode .................................................................................................... 26
3 VIRTUAL ODOMETER.............................................................................................................. 27
4 FEATURES............................................................................................................................ 27
4.1 Scenarios ................................................................................................................ 27
4.2 Trip.......................................................................................................................... 28
4.3 Geofencing.............................................................................................................. 29
4.4 iButton list .............................................................................................................. 29
5 CONFIGURATION.............................................................................................................. 29
6 CONFIGURATOR.................................................................................................................... 29
7 READ RECORDS..................................................................................................................... 32
8 SYSTEM SETTINGS.................................................................................................................. 33
9 RECORDS SETTINGS................................................................................................................ 35
10 GSM SETTINGS,GPRS PART................................................................................................... 35
11 GSM SETTINGS,SMS PART .................................................................................................... 36
12 GSM SETTINGS,OPERATOR LIST .............................................................................................. 37
13 DATA ACQUISITION MODE SETTINGS ........................................................................................ 37
14 FEATURES SETTINGS............................................................................................................... 42
14.1 Scenarios settings................................................................................................... 42
14.2 Trip settings ............................................................................................................ 43
14.3 Geofencing settings ................................................................................................ 44
14.4 SMS events ............................................................................................................. 47
15 I/O SETTINGS ....................................................................................................................... 52
15.1 Monitoring.............................................................................................................. 57
15.2 Event Generating.................................................................................................... 57
15.3 Hysteresis ............................................................................................................... 58




6SMS COMMAND LIST ........................................................................................................... 58
1 SMS COMMAND LIST............................................................................................................. 58
1.1 getstatus................................................................................................................. 60
1.2 getweektime........................................................................................................... 60
1.3 getops..................................................................................................................... 60
1.4 getcfgtime .............................................................................................................. 60
1.5 getgps..................................................................................................................... 61
1.6 ggps ........................................................................................................................ 61
1.7 getver ..................................................................................................................... 61
1.8 getinfo .................................................................................................................... 62
1.9 getio........................................................................................................................ 62
1.10 readio #................................................................................................................... 62
1.11 setdigout ## Y1 Y2 .................................................................................................. 63
1.12 getparam #### ....................................................................................................... 63
1.13 setparam ####........................................................................................................ 63
1.13. getparam 1271 X/212 X ......................................................................................... 63
1.14. setparam 1271 X/212 X .......................................................................................... 63
1.15 readops #................................................................................................................ 63
1.16 flush #,#,#,#,#,#,# ................................................................................................... 63
1.17 sn # ......................................................................................................................... 64
1.18 banlist..................................................................................................................... 64
1.19 crashlog .................................................................................................................. 64
1.20 lvcangetprog........................................................................................................... 64
1.21 lvcansetprog # ........................................................................................................ 64
1.22 lvcangetinfo............................................................................................................ 64
7DEBUG MODE ...................................................................................................................... 65
8PARAMETER LIST ................................................................................................................. 65
1 PARAMETERS VALUE TYPES...................................................................................................... 65
2 SYSTEM PARAMETERS ............................................................................................................ 66
2.1 Sleep Mode (ID=1000) ............................................................................................ 66
2.2 Sleep timeout (ID=200) ........................................................................................... 66
2.3 Analog Input value range (ID=1001) ...................................................................... 66
2.4 Stop Detection Source (ID=1002)............................................................................ 66
2.5 Static Navigation (ID=1003) ................................................................................... 66
2.6 Ignition Source (ID=1004) ....................................................................................... 67
2.7 Ignition Detection(ID=1008) ................................................................................... 67
2.8 Ignition Detection Timeout(ID=1009) ..................................................................... 67
2.9 GNSS FIX Timeout for Time Synchronization via NTP (ID=1007)............................. 67
2.10 Saving/Sending without time synchronization (ID=201) ........................................ 68
2.11 GNSS System (ID=202) ............................................................................................ 68
3 RECORDS PARAMETERS .......................................................................................................... 68
3.1 Sorting (ID=1010) ................................................................................................... 68
3.2 Active Data Link Timeout (ID=1011)....................................................................... 68
3.3 Server Response Timeout (ID=1012)....................................................................... 68
4 GSM PARAMETERS ............................................................................................................... 69
4.1 GPRS content activation (ID=1240) ........................................................................ 69
4.2 APN Name (ID=1242).............................................................................................. 69
4.3 APN username (ID=1243) ....................................................................................... 69
4.4 APN Password (ID=1244)........................................................................................ 69
4.5 Domain (ID=1245) .................................................................................................. 69
4.6 Target Server Port (ID=1246).................................................................................. 70
4.7 Protocol (ID=1247).................................................................................................. 70
4.8 Use 2G only (ID=1248) ........................................................................................... 70
4.9 SMS Login (ID=1252) .............................................................................................. 70
4.10 SMS Password (ID=1253)........................................................................................ 70
4.11 SMS Time Zone (ID=1254)....................................................................................... 70




4.12 SMS data sending settings (ID=1250)..................................................................... 71
4.13 SMS Data send week time schedule (ID=1273) ...................................................... 71
4.14 Authorized phone numbers (ID=1260-1269) .......................................................... 71
4.15 SMS Event PreDefined Numbers (ID=5000-5009)................................................... 71
4.16 Operator List (ID=1271 X) ...................................................................................... 71
5 DATA ACQUISITION MODES PARAMETERS.................................................................................. 72
5.1 Home Network GSM operator code “Vehicle on STOP” parameters ...................... 72
5.2 Home Network GSM operator code “Vehicle MOVING” parameters..................... 73
5.3 Roaming Network GSM operator code “Vehicle on STOP” parameters ................. 74
5.4 Roaming Network GSM operator code “Vehicle MOVING” parameters ................ 75
READ CHAPTER 8.5.1.4...................................................................................................................... 77
5.5 Unknown Network GSM operator code “Vehicle on STOP” parameters ................ 77
5.6 Unknown Network GSM operator code “Vehicle MOVING” parameters ............... 77
6 FEATURES PARAMETERS ......................................................................................................... 79
6.1 Green Driving scenario (ID=1600)........................................................................... 79
6.2 Max Acceleration Force (ID=1602) ......................................................................... 79
6.3 Max Braking Force (ID=1603) ................................................................................. 79
6.4 Max Cornering Force (ID=1604) ............................................................................. 79
6.5 Max allowed Speed (ID=1605)................................................................................ 80
6.6 OverSpeeding scenario (ID=1601) .......................................................................... 80
6.7 Jamming detection scenario (ID=1606) .................................................................. 80
6.8 Immobilizer scenario (ID=1607).............................................................................. 80
6.9 Immobilizer ignition timeout(ID=1609) .................................................................. 80
6.10 iButton list checking scenario (ID=1608) ................................................................ 80
6.11 Excessive Idling detection (ID=1610) ...................................................................... 81
6.12 Time to stationary (ID=1611).................................................................................. 81
6.13 Time to movement (ID=1612)................................................................................. 81
6.14 Trip (ID=1280)......................................................................................................... 81
6.15 Start Speed (ID=1281)............................................................................................. 81
6.16 Ignition Off Timeout (ID=1282)............................................................................... 81
6.17 Trip distance mode (ID=1283) ................................................................................ 82
6.18 Enable odometer value setting (ID=1284) .............................................................. 82
6.19 Continuous odometer value (ID=1285)................................................................... 82
6.20 Remember iButton ID, while trip is detected(ID=1286).......................................... 82
6.21 Geofencing.............................................................................................................. 82
6.22 AutoGeofencing...................................................................................................... 84
6.23 iButton List (ID=7000-7499).................................................................................... 85
7 I/O PARAMETERS.................................................................................................................. 85
7.1 I/O#1 Priority (ID=2000) ......................................................................................... 85
7.2 I/O#1 High level (ID=2001) ..................................................................................... 85
7.3 I/O#1 Low level (ID=2002) ...................................................................................... 86
7.4 I/O#1 event generation type (ID=2003).................................................................. 86
7.5 I/O#1 averaging length (ID=2004).......................................................................... 86
8 LV-CAN FEATURES ............................................................................................................... 87
8.1 CAN Mode............................................................................................................... 87
8.2 I\O Send as 0 when ignition is off ........................................................................... 88
9 SMS EVENT CONFIGURATION .................................................................................................. 88
9.1 I/O#1 element SMS event configuration (ID=5100)................................................ 88
9FM3602/FM3612 WITH LIGHT VEHICLES CAN ADAPTER LV-CAN200/ALL-CAN300 ............... 90
1 PURPOSE OF LIGHT VEHICLES CAN ADAPTER LV-CAN200/ALL-CAN300 ...................................... 90
2 LV-CAN200/ALL-CAN300 PROGRAM NUMBER SELECTION........................................................ 91
2.1 LV-CAN200/ALL-CAN300 program number configuration via SMS command ....... 91
2.2 Selecting LV-CAN200/ALL-CAN300 program number manually............................. 91
2.3 Program number logic change ............................................................................... 92
3 CONNECTING FM3602/FM3612 WITH LIGHT VEHICLES CAN ADAPTER ........................................ 93
4 CONNECTING LIGHT VEHICLES CAN ADAPTER............................................................................. 93
5 FM3602/FM3612 CONFIGURATION...................................................................................... 94




5.1 SCAN function......................................................................................................... 94
5.2 Offline configuration .............................................................................................. 95
6 PARAMETERS ID ................................................................................................................... 96
7 SMS CONFIGURATION......................................................................................................... 102
8 CAN PROGRAM NUMBER REQUEST BY SMS............................................................................ 104
9 GET LV-CAN INFO BY SMS.................................................................................................. 104
10 REFERENCES....................................................................................................................... 104
MOUNTING RECOMMENDATIONS ................................................................................ 105
1 CONNECTING WIRES............................................................................................................ 105
2 CONNECTING POWER SOURCE............................................................................................... 105
3 CONNECTING IGNITION WIRE................................................................................................ 105
4 CONNECTING GROUND WIRE................................................................................................ 105
5 MODULE INSTALLATION........................................................................................................ 106
CHANGE LOG............................................................................................................................. 107

1INTRODUCTION

1.1 Attention

Do not disassemble the device. If the device is

damaged, the power supply cables are not isolated or

the isolation is damaged, before unplugging the power

supply, do not touch the device.

All wireless data transferring devices produce

interference that may affect other devices which are

placed nearby.

The device must be connected only by qualified

personnel.

The device must be firmly fastened in the predefined

location.

The programming must be performed using a second

class PC (with autonomic power supply).

The device is susceptible to water and humidity.

Any installation and/or handling during a lightning

storm are prohibited.

FM3602/FM3612 has USB interface;

Please use cables provided with FM3602/FM3612

device.

Teltonika is not responsible for any harm caused by

using wrong cables for PC <-> FM3602/FM3612

connection.

1.2 Instructions of safety

This chapter contains information on how to operate FM3602/FM3612 safely. By following

these requirements and recommendations, you will avoid dangerous situations. You must read

these instructions carefully and follow them strictly before operating the device!

This device uses SELV limited power source. The device could be supplied with 10 V...30 V

DC power supply. The nominal voltage is 12 V DC. The allowed range of voltage is 10 V...30 V DC.

To avoid mechanical damage, it is advised to transport the FM3602/FM3612 device in an

impact-proof package. Before usage, the device should be placed so that its LED indicators are

visible, which show the status of operation the device is in.

When connecting the connection (2x6) cables to the vehicle, the appropriate jumpers of

the power supply of the vehicle should be disconnected.

Before dismounting the device from the vehicle, the 2x6 connection must be disconnected.

The device is designed to be mounted in a zone of limited access, which is inaccessible for

the operator. All related devices must meet the requirements of standard EN 60950-1.

The device FM3602/FM3612 is not designed as a navigational device for boats.

1.3 Legal Notice

storage of part or all of the contents in this document in any form without the prior written

permission of Teltonika is prohibited.

Other products and company names mentioned here may be trademarks or trade names

of their respective owners.

The manufacturer reserves the right to make changes and/or improvements at any time in

design, functionality, parameters and electrical characteristics without any prior notice and

without incurring obligations.

1.4 About document

This document contains information about the architecture, possibilities, mechanical

characteristics, and configuration of the FM3602/FM3612 device.

Acronyms and terms used in document

PC –Personal Computer.

GPRS –General Packet Radio Service

GNSS –Global Positioning System

GSM –Global System for Mobile Communications

SMS –Short Message Service

AC/DC –Alternating Current/Direct Current

I/O –Input/Output

Record –AVL data stored in FM3602/FM3612 memory. AVL data contains GNSS and I/O

information

AVL packet –data packet that has been sent to server during data transmission. AVL packet

contains from 1 to 50 records.

2BASIC DESCRIPTION

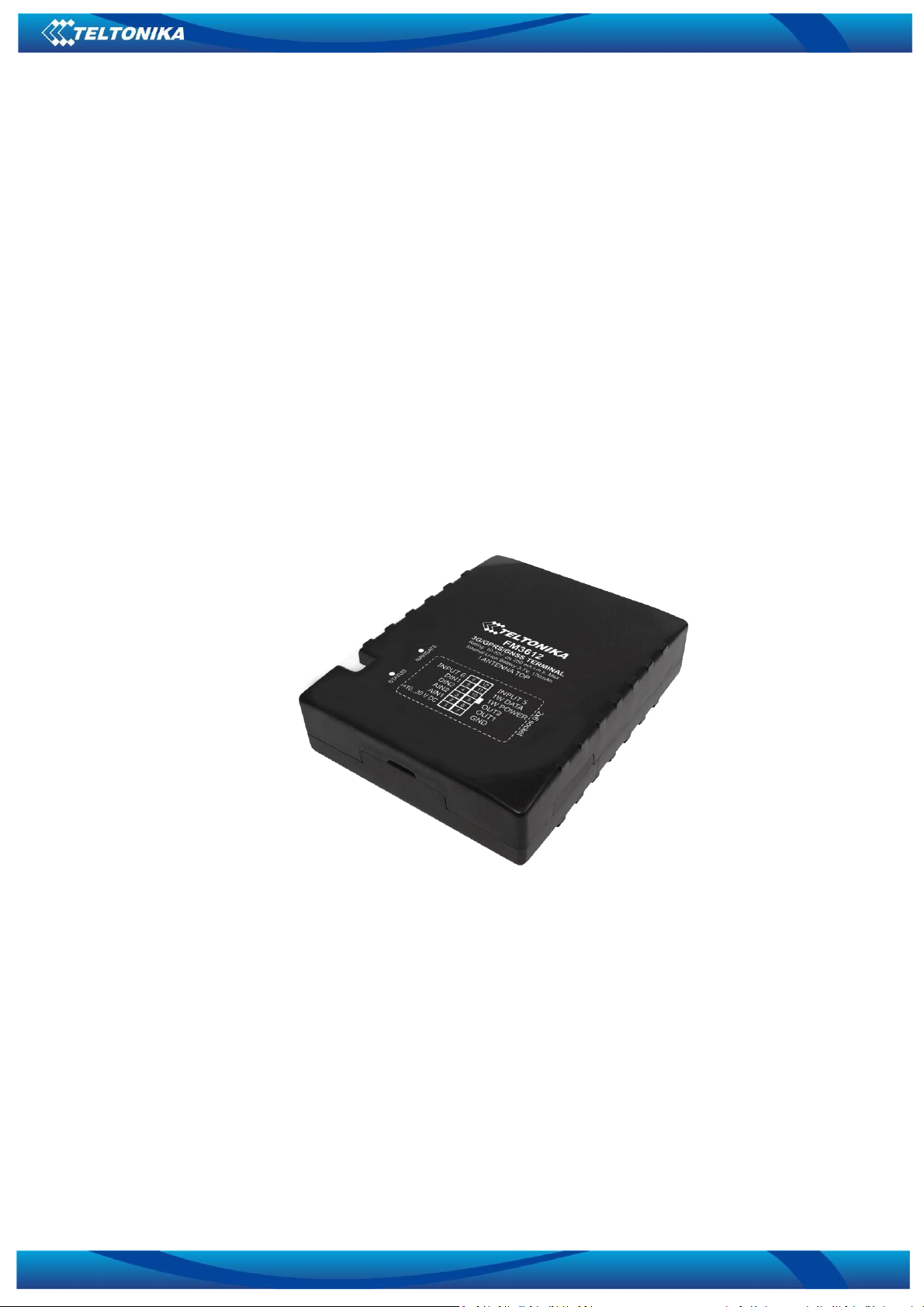

FM3602/FM3612 is a terminal with GPS/GLONASS and GSM/3G connectivity with backup

battery, which is able to collect device coordinates and other useful data and transfer them via

the GSM/3G network. This device is perfectly suitable for applications where location

acquirement of remote objects is needed. It is important to mention that FM3602/FM3612 has

additional inputs and outputs, which let you control and monitor other devices on remote

objects. FM3602/FM3612 also has a USB port for device status log output and configuration.

2.1 Package contents

The FM3602/FM3612 device is supplied to the customer in a cardboard box containing all

the equipment that is necessary for operation. The package contains:

FM3602/FM3612 device;

Input and output power supply cable with a 2x6 connection pins;

USB cable;

Li-Po battery 3.7, 170mAh

2.2 Basic characteristics

FM3602 Interface features:

•Power supply: 10 ÷ 30V;

•2 digital inputs;

•2 analog/digital input;

•2 open collector Digital output;

•1 Wire interface:

oTemperature sensor

oiButton

•Internal backup battery;

•2 Status LEDs:

oNavigate

oStatus

•Internal USB port;

•External GSM/GPRS/3G antenna;

•External GNSS antenna;

•Interface for LVCAN;

FM3612 Interface features:

•Power supply: 10 ÷ 30V;

•2 digital inputs;

•2 analog/digital input;

•2 open collector Digital output;

•1 Wire interface:

oTemperature sensor

oiButton

Package content depends on Order Code, and can be customized by customer needs.

•Internal backup battery;

•2 Status LEDs:

oNavigate

oStatus

•Internal USB port;

•Internal GSM/GPRS/3G antenna;

•Internal GNSS antenna;

•Interface for LVCAN;

Hardware features:

•Cortex®-M3 processor;

•8 Mbit internal Flash memory;

•Built-in accelerometer sensor.

GSM / GPRS / 3G features:

•UMTS/HSPA+, GSM/GPRS/EDGE module

•UMTS/HSPA+ bands depending on module:

oUC20-G 850/900/1700/1900/2100 MHz

•HSUPA rate up to 5.76 Mbps, HSDPA rates up to 14,4 Mbps

•UMTS Uplink/Downlink up to 384 kbps

•EDGE Uplink/Downlink up to 236.8 kbps

•GPRS and EDGE class 12;

•SMS (text, data).

GNSS features:

•TG1000 engine for GNSS, GLONASS, Galileo and QZSS;

•33channel GPS/GLONASS receiver;

•Protocol NMEA-0183: GGA, GGL, GSA, GSV, RMC, VTG;

•-165 dBm Tracking Sensitivity

Special features:

•Any element event triggers (external sensor, input, speed, temperature, etc.);

•Highly configurable data acquisition and sending;

•Multiple Geo-fence areas;

•Sleep mode;

•Deep sleep mode;

•Configurable scenarios available;

•Real-time process monitoring;

•Authorized number list for remote access;

•Firmware update over GPRS or USB port;

•Configuration update over GPRS, SMS or USB port;

•TCP/IP or UDP/IP protocol support;

•Up to 3854 records storing;

•Radio frequency jamming detection.

•Records exporting using USB;

•Offline working mode;

Overvoltage protection

Description

Voltage

Duration

Normal operation

10-30V

Unlimited

Protection turns on, device turns off.

34V

Unlimited

Maximum voltage

<70V

Unlimited

Maximum voltage impulse

90V

5 milliseconds

2.3 Technical feature

Part name

Physical specification

Technical details

System LED

LED

Power supply 10...30 V DC

2W Max

Energy consumption:

GPRS: 150 mA r.m.s Max.,

Nominal: average 50 mA r.m.s,

GNSS Sleep2: average 18 mA

Deep Sleep: average less than 5 mA3

Battery charge current: 100 mA

Rated input current: 250 mA Max.

Operation temperature:

-25⁰C ... +55⁰C

Storage temperature:

-40⁰C ... +70⁰C

Storage relative humidity 5 ... 95 % (no

condensation)

Internal fuse: 3A, 125V

Navigation LED

LED

Socket 2x6

Tyco Micro MATE-N-LOK™

4-794628-0 or similar

USB

Micro USB socket

Table 1. FM3602/FM3612 specifications

When in Sleep mode, FM unit turns OFF GNSS module.

When in Deep Sleep mode no data storing and sending is activated.
