Teltonika FM3001 Guida all'installazione

Quick Manual

v1.2

Advanced OBDII tracker

FM3001

FM3001 | Wiki

Table of Contents

Know your device .......................................................................... 3

Pinout................................................................................................. 4

Set up your device......................................................................... 5

How to insert Micro-SIM card and connect the battery................ 5

PC Connection (Windows)................................................................ 6

How to install USB drivers (Windows)............................................. 6

Configuration (Windows) ................................................................. 6

Quick SMS configuration.................................................................. 8

LED indications .............................................................................. 9

Basic characteristics ..................................................................... 9

Safety information...................................................................... 11

Certification and Approvals ....................................................... 12

Warranty ...................................................................................... 13

Warranty Disclaimer ....................................................................... 13

FM3001 | Wiki

Know your device

Figure 1 FM3001 device view

FM3001 | Wiki

Pinout

Table 1 OBDII pinout

Pinnumber

Pinname

Description

PWM_BUS+/VPW

GND (-)

Ground

GND (-)

Ground

CAN_H

CAN high

K-Line

PWM_BUS-

CAN_L

CAN low

L-Line

VCC (10 - 30)V DC(+)

Power supply (+10-30 V DC)

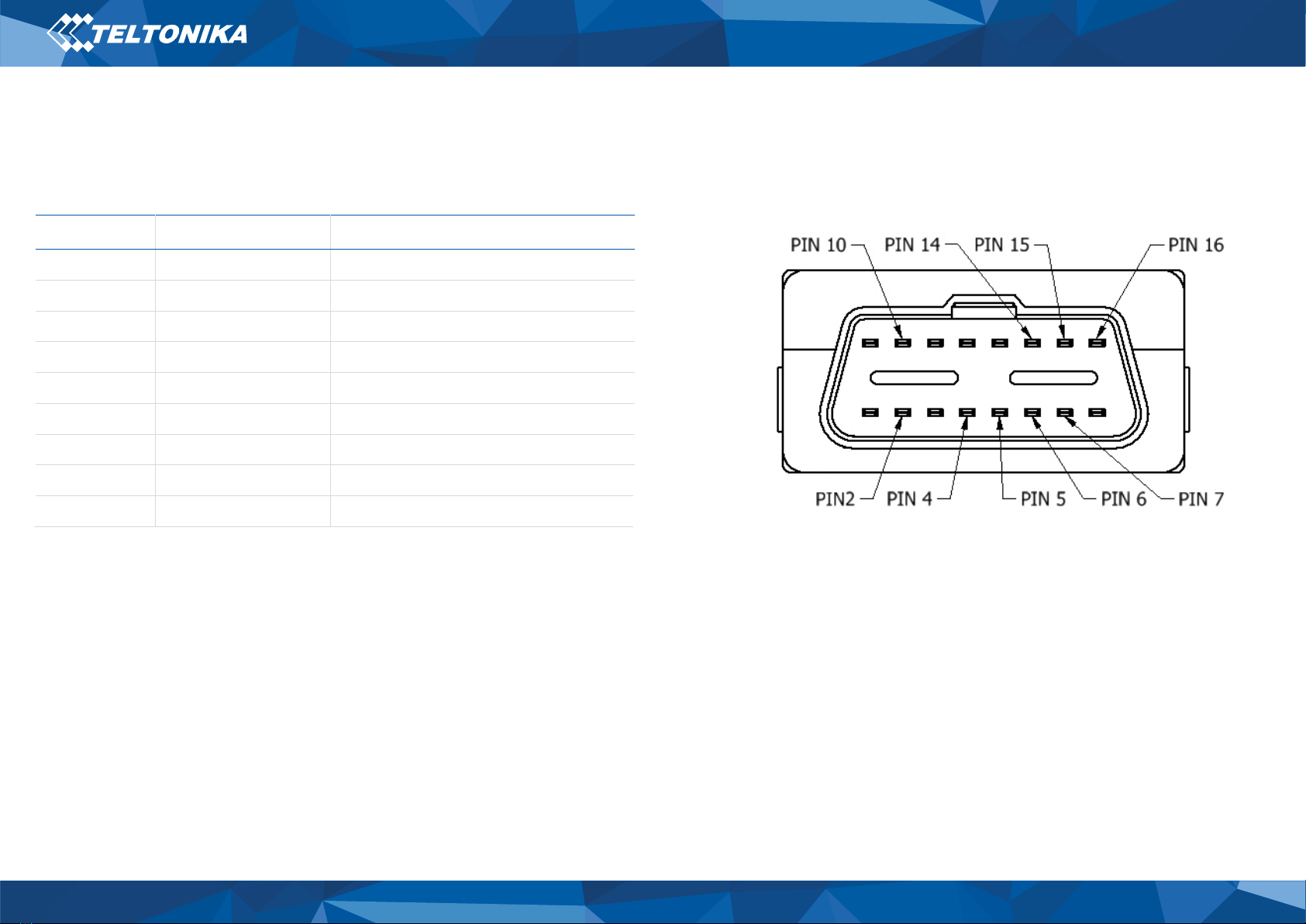

Figure 2 FM3001 OBDII socket pinout

FM3001 | Wiki

Set up your device

How to insert Micro-SIM card and

connect the battery

1. Gently remove FM3001 cover using plastic pry tool from both

sides.

2. Insert Micro-SIM card as shown with PIN request disabled or

read our Wiki how to enter it later in Teltonika Configurator.

Make sure that Micro-SIM card cut-off corner is pointing

forward to slot.

3. Connect battery as shown to device. Position the battery in

place where it does not obstruct other components.’

4. Attach device cover back.

Device is ready to be connected.

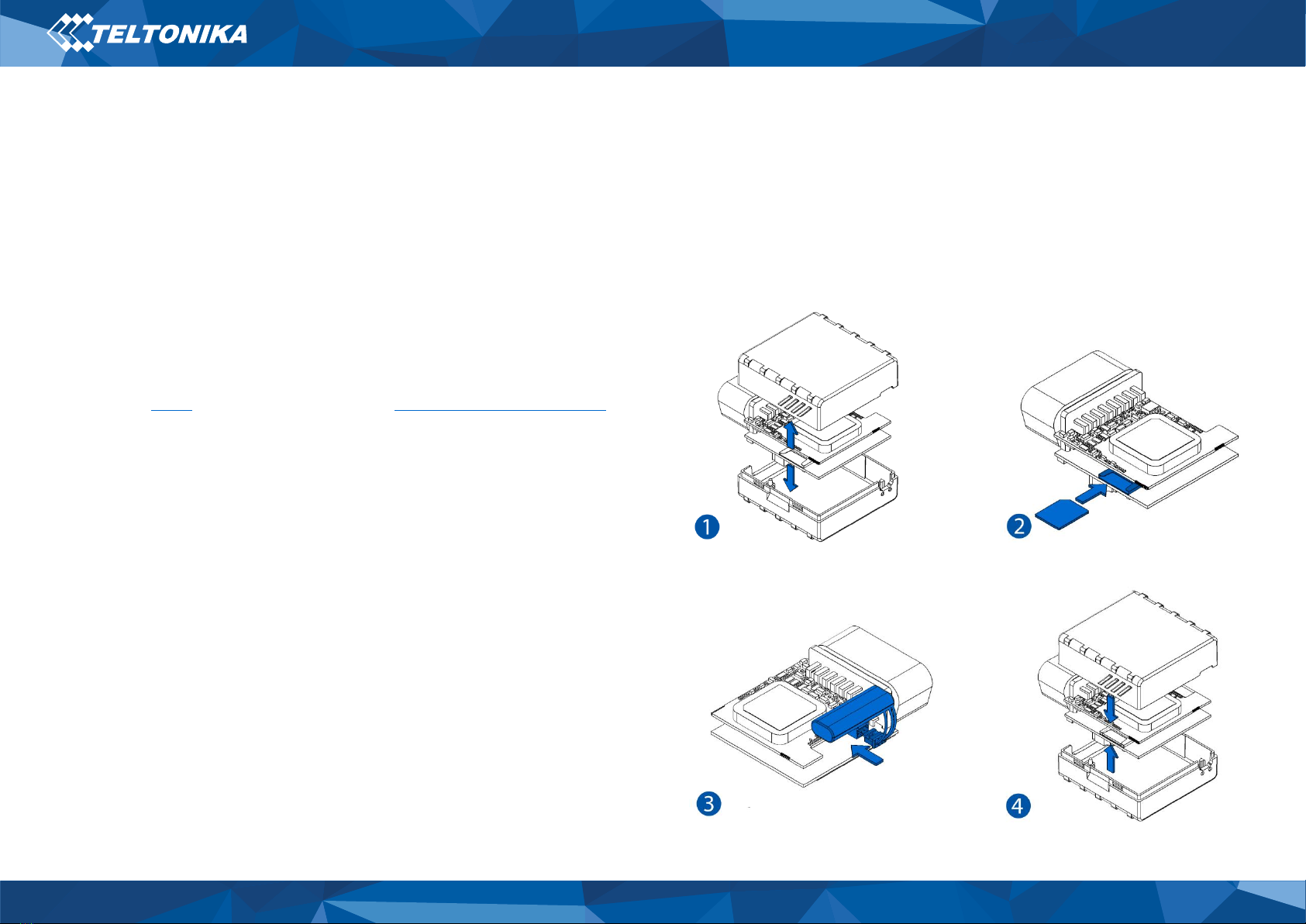

Figure 3 Cover removal

Figure 4 Micro-SIM card insert

Figure 5 Battery connection

Figure 6 Attaching cover back

FM3001 | Wiki

PC Connection (Windows)

1. Power-up FM3001 with DC voltage (10 –30 V) power supply

using supplied power cable. LED’s should start blinking, see

“Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:



2001

–APN

–APN username (if there

2002

are no APN username, empty

field should be left)

–APN password (if there

2003

are no APN password, empty

field should be left)

Server settings:

–Domain

2004

–Port

2005

–Data sending protocol

2006

(0 –TCP, 1 –UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will

be detected by

accelerometer

Ignition will be detected

by vehicle power voltage

between 13,2 –30 V

Device makes a record On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record On Stop if:

1 hour passes while

vehicle is stationary

and ignition is off

Records sending to server:

If device has made a

record it is sent to the

server every 120

seconds

After successful SMS configuration, FM3001 device will

synchronize time and update records to configured server.

FM3001 | Wiki

Time intervals and default I/O elements can be changed by using

Teltonika Configurator or SMS parameters.

FM3001 | Wiki

2. LED indications”.

3. Connect device to computer using Micro-USB cable or

Bluetooth connection:

Using Micro-USB cable

▬You will need to install USB drivers, see “How to install

USB drivers (Windows)”

Using Bluetooth

▬FM3001 Bluetooth is enabled by default. Turn on

Bluetooth on your PC, then select Add Bluetooth or

other device > Bluetooth. Choose your device named –

“FM3xxx_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then

select Done.

4. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first FM3001 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 2 MS .NET requirements

MS.NETrequirements

Operating

system

MS .NET Framework

version

Version

Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2

32 and 64 bit

www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 7

Language selection).

FM3001 | Wiki

Configuration process begins by pressing on connected device

(Figure 8 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 9 Configurator Status window).

Various Status window tabs display information about GNSS,

GSM,I/O, Maintenance and etc. FM3001 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device –loads configuration from device.

2. Save to device –saves configuration to device.

3. Load from file –loads configuration from file.

4. Save to file –saves configuration to file.

5. Update firmware –updates firmware on device.

6. Read records –reads records from the device.

7. Reboot device –restarts device.

8. Reset configuration –sets device configuration to

default.

Most important configurator section is GPRS –where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about FM3001 configuration using Configurator can

be found in our Wiki.

Figure 8 Device connected via USB

Figure 7 Language selection

Figure 9 Configurator Status window

FM3001 | Wiki

Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:



2001

–APN

–APN username (if there

2002

are no APN username, empty

field should be left)

–APN password (if there

2003

are no APN password, empty

field should be left)

Server settings:

–Domain

2004

–Port

2005

–Data sending protocol

2006

(0 –TCP, 1 –UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will

be detected by

accelerometer

Ignition will be detected

by vehicle power voltage

between 13,2 –30 V

Device makes a record On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record On Stop if:

1 hour passes while

vehicle is stationary

and ignition is off

Records sending to server:

If device has made a

record it is sent to the

server every 120

seconds

After successful SMS configuration, FM3001 device will

synchronize time and update records to configured server.

Time intervals and default I/O elements can be changed by using

Teltonika Configurator or SMS parameters.

" setparam :APN;

2001

:APN_username;

2002

:APN_password;

2003

:Domain;

2004

:Port;

2005

;0"

2006
