Legal Notice
Copyright © 2012 Teltonika. ll rights reserved. Reproduction, transfer, distribution or
storage of part or all of the contents in this document in any form without the prior written
permission of Teltonika is prohibited.
Other products and company names mentioned here may be trademarks or trade names of
their respective owners.
The manufacturer reserves the right to make changes and/or improvements at any time in
design, functionality, parameters and electrical characteristics without any prior notice and
without incurring obligations.
2
Safety Introductions
This chapter contains information on how to operate device safely. By following these
requirements and recommendations, you will avoid dangerous situations. You must read these
instructions carefully and follow them strictly before operating the device!
The device uses a 10 V...30 V DC power supply. The nominal voltage is 12 V DC. The allowed range
of voltage is 10 V...30 V DC.
To avoid mechanical damage, it is advised to transport the device in an impact-proof
package. Before usage, the device should be placed in position where all its LED indicators would
be visible. LED indicators shows status of operation the device is in.
When connecting the connection cables to the vehicle, the appropriate jumpers of the
vehicle power supply should be disconnected.
Before dismounting the device from the vehicle, the plug must be disconnected.
The device is designed to be mounted in a zone of limited access, which is inaccessible for
the operator. ll related devices must meet the requirements of standard EN 60950-1.
Teltonika is not responsible for vehicle damage caused by installation of adapter.
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
4/16
3
Purpose of Light Vehicles Can Adapter LV-CAN 00
LV-C N100 is used to listening data from light vehicles. With this adapter FM1100 device is
able to collect and send vehicle data.
FM1100 shares the same USB port for connecting adapter and configuring device with PC.
LV-C N100 Technical characteristics:
P R METER V LUE
Supply voltage 10 to 30V
Power supply current 10m
Working temperature -40..85 ºC
Max working humidity 60 % (non condensate)
3.1 LV-CANBOOT 0 bootloader driver installation
Drivers for the LV-C N100 adapter can be downloaded from:
http://www.ftdichip.com/Drivers/VCP.htm
Please note that drivers are different for 32 bit and 64 bit Windows operating systems.
Please note that steps below are described for Windows XP operating system, for newer operating
systems, such as Windows Vista or 7, steps are similiar.
1. Connect LV-C NBOOT10 bootloader adapter to the PC using supplied USB cable.

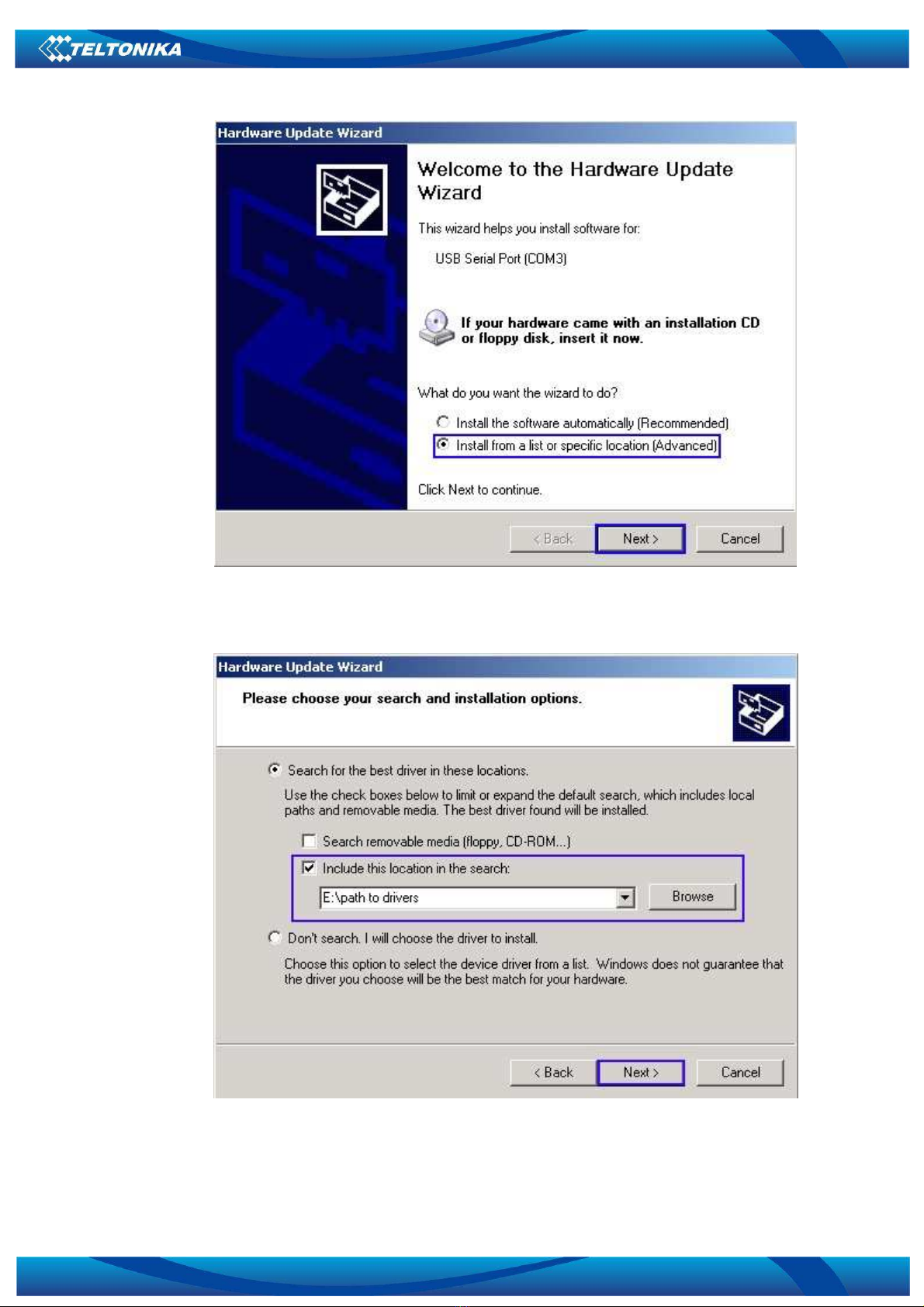

2. Windows “Hardware update wizard” or similar dialog box should appear. In this window
select „Install from a list or specific location ( dvanced)” tab and press next.
CAR CAN L H
ECU1
LV
-
CAN100
FM1100
ECU2
Figure Connection block diagram
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
5/16
3. In next window you must enter path to drivers or browse to the folder which contains
drivers and click next.
4. In last window press „Finish“ button.
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
6/16
To check on which COM port USB serial adapter is assigned open „Device manager“ program. In
Ports (COM & LPT) tab find USB Serial Port line. In this example USB Serial Port is COM3.
Please note that “Teltonika LV-C N100 Bootloader” application supports COM ports numbers not
higher than 12. If USB Serial Port is assigned to COM port 13 or higher please follow these steps:
1. In “Device manager” right click on USB Serial Port and select “Properties” tab.
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
7/16
2. Then select “Port Settings” tab and press “ dvanced...” button.
3. In opened tab select COM port number not higher than 12 and press OK.
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
8/16
3.2 LV-CAN 00 configuration
Connect bootloader USB adapter to computer and LV-C N100 device.
Figure 2 LV-CANBOOT 0 bootloader adapter
Start “Teltonika LV-C N100 Bootloader” application. If you did not receive this application
please contact Teltonika sales manager.
Figure 3 Teltonika LV-CAN 00 Bootloader software
1. In “Teltonika LV-C N100 Bootloader” application select port that was assigned to
USB Serial Port.
2. Click „Open“ file button in „Command“ section and select firmware file for LV-
C N100. Which firmware you must to use for your car is described in “Light Vehicles
Can adapter supported cars” document, column Software Group.
3. Click „Write“ button below and wait until massage “Finished” will be displayed.
4. In “Light Vehicles Can adapter LV-C N100 Supported cars” document find C N
program number and min/max fuel level values for your selected light vehicle
5. Press “Reading” button in EEPROM section.
6. In “C N program” section enter C N program number from STEP 4.
7. In “Calibration value of the fuel level” section fill:
a. Min. value – value from STEP 4
b. Max. value – value from STEP 4
c. For fuel averaging we suggest to use value 10
8. Click Saving button in EEPROM section and wait until “Finished” message will be
displayed.
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
9/16
3.3 LV-CAN 00 Signaling Led Description
LED name Description
PROG-LED 1. When C N program number is set, the LED indicates program number
actual digit value.
2. When the module is working, the LED flashing indicates the correct
validation of received data.
Behavior:
Validation is correct:
Prog red LED is on, blinks;
Validation is bad:
Prog red LED is off.
C N-Bus - Rx The LED flashing indicates reception of C N data.
Behavior:
Reception is good: C N bus RX green is on;
Reception is not available: C N bus RX green is off;
C N-Bus ctive The LED indicates correct connection of module C N-bus wires to car C N-bus
wires.
Behavior:
If good connection:
C N bus active green LED is on;
If bad connection:
C N bus active green LED is off.
IGN Status The LED indicates that the ignition is turned on
RS-232: Green-TX
The LED indicates that the module is in car C N-bus communication mode
Behavior:
Module on:
RS232 green LED is on;
Module off: RS232 green LED is off.
RS/U RT-TX The LED flashing indicates sending C N data
Behavior:
Sending is executed
: U RT green LED is on, blinks;
Sending is not available:
U RT green LED is off.
Figure 4 dapter signaling led
Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved
10/16
4Connecting FM 00 with Light Vehicles Can adapter
Connect USB Plug to FM1100 device, connect Light Vehicles Can adapter to other end of the
cable.
Connect Light Vehicles Can adapter Pin 1 and Pin 2 to cars C N bus. C N interface location
of the supported light vehicles are described in “Connection of LV-C N100” manual.
Connect car power supply lines to Pin 16 positive, Pin 8 Negative.
For exact pinout see sticker on Light Vehicles Can adapter.
Attention! For detailed connection diagram of adapter to light vehicle please
contact Teltonika, LTD sales representative and provide CAR manufacturer,
model and year information.
Attention! Do not swap CAN L and CAN H lines.
Do not swap power supply lines. Make sure that voltage do not exceeds 30V.
Power supply lines should be connected at the end of installation work.
CAR Can H PN6
Pin 1 Orang
-
Gr n
CAR Can L PN14
Pin 2 Orang
-
Brown
Pow r +12V
Pin 16 RED
GND
Pin 8
Black
Mini
USB
To FM1100
Figure 5 LV-CAN 00 Adapter connection cable pinout
PGR
switch
PGR
LED
