Teltonika RUT104 HSUPA Manuale utente

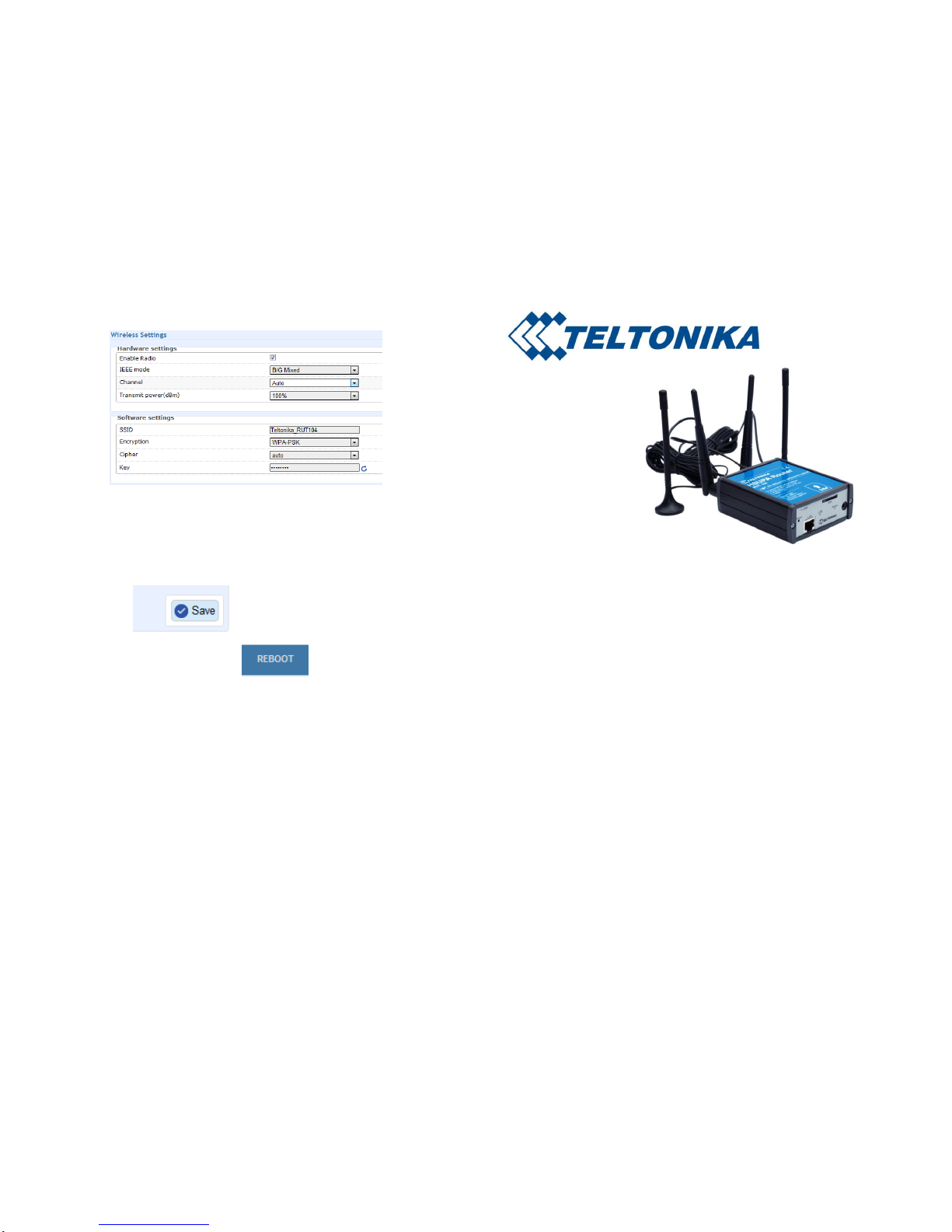

STEP 6. Configure wireless network settings

It is recommended to use WPA-PSK- TKIPor WPA-PSK-AES data encryption. The passphrase

for data encryption must be 8-63 characters long. Passphrase can include symbols (!?*&) and spaces. This

passphrase must be the same as Network key in the PC wireless network security settings.

Note: If Open system will be chosen it will let anyone within the range and with proper equipment to

connect to your network.

STEP 7. Save settings

Press save button:

Reboot the device by pressing the Reboot button:

RESTORING FACTORY DEFAULT SETTINGS

To restore factory defaults settings press reset button for 20 seconds with the router powered on.

The process will take a few minutes. Dot not plug the power out during reset to factory default as otherwise

router internal software may be corrupted.

LEGAL NOTICE

storage of part or all of the contents in this document in any form without the prior written permission of

TELTONIKA Ltd is prohibited.

Other product and company names mentioned herein may be trademarks or trade names of their

respective owners.

TELTONIKA

3G HSPA+ Mobile Router (RUT104)

Quick Start guide v4.1

Thank you for purchasing our device! We hope it will satisfy your expectations and you will

enjoy its particular features. Please find some minutes to read this Quick Start guide before beginning

operate RUT104. This would make the installation and use of the device easier.

This quick setup guide describes how to quickly setup your 3G HSPA+ Mobile Router. For

advanced setup and configuration, please refer to device User Manual. The manual may be downloaded from

the Teltonika WEB page (www.teltonika.eu).

PACKAGE CONTENTS CHECKLIST

3G HSPA+ Mobile Router

Detachable external Wireless LAN antenna

Detachable external GSM antenna

AC/DC Power adapter

Leaflet “Quick Start Guide”

2 3

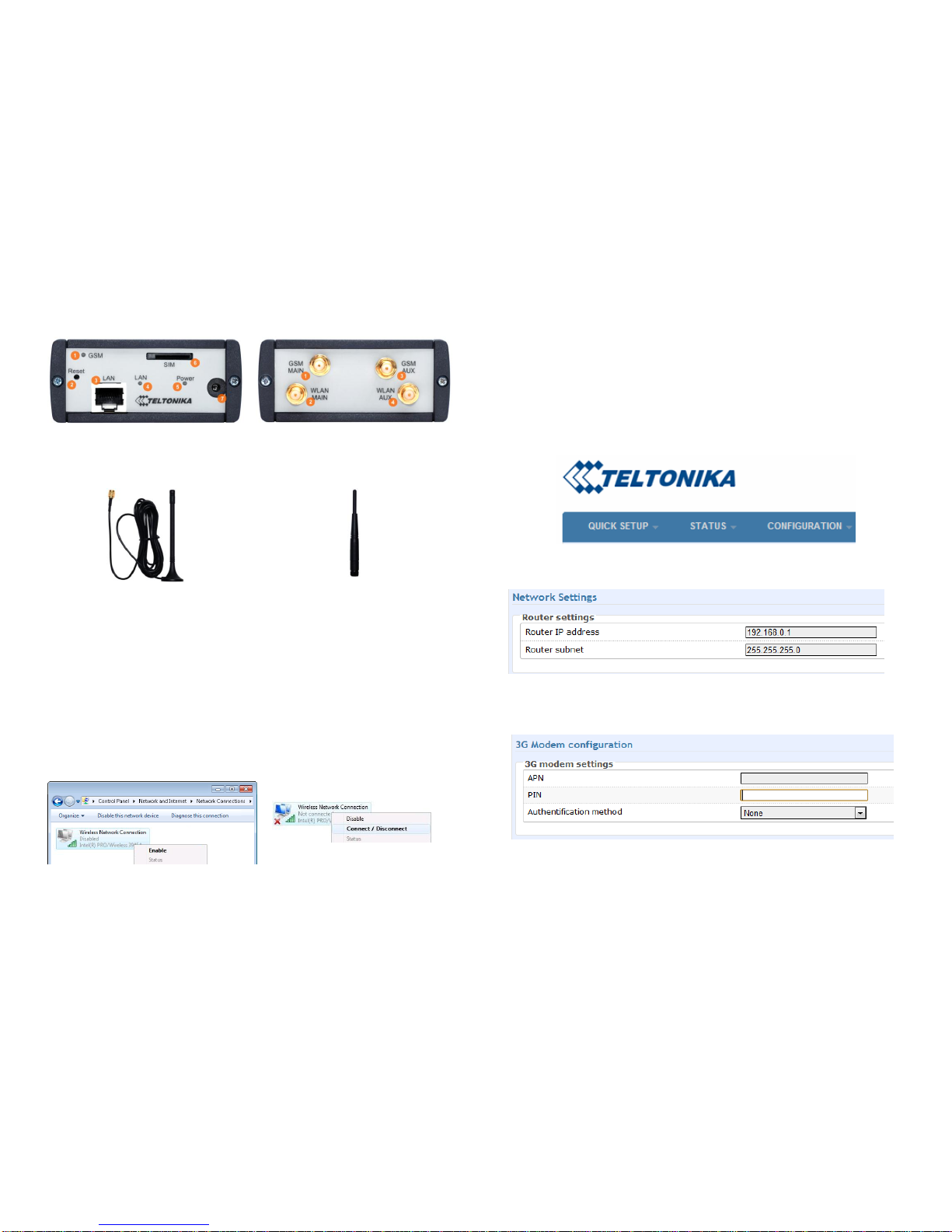

FRONT PANEL

BACK PANEL

1. GSM main antenna connection

2. Wireless LAN main antenna connection.

3. GSM auxiliary antenna connection.

4. Wireless LAN auxiliary antenna connection.

1. GSM LED.

2. Reset button.

3. Ethernet socket.

4. Ethernet LED.

5. Power LED.

6. SIM card socket.

7. Power socket.

GSM antenna

Wireless LAN antenna

STEP 1. Preparing 3G Mobile Router

1. Attach Wireless LAN and GSM antennas

Main antenna is required.

Auxiliary is optional. If attached it improves data throughput.

2. Insert the SIM card which was given by your ISP (Internet Service Provider).

3. Connect the power adapter to the receptor on the front panel of 3G Mobile Router. Then plug the

other end of the power adapter into a wall outlet or power strip.

STEP 2. Configure your computer

1. Enable the wireless network connection. (Go to Start > Control Panel > Network and Internet

> Network and Sharing Center. In the left pane click Change adapter settings link. Right click

on Wireless Network Connection and select Enable.

2. Right click on Wireless Network Connection to see available wireless networks.

3. Choose the wireless network Teltonika_RUT104 from the list.

STEP 3. Access device WEB configuration tool

1. Open the WEB browser and type IP address 192.168.0.1.

2. Enter the 3G Mobile Router administrator login details to access the WEB management:

The default administrator login settings are:

Password: admin01

The main WEB management menu is displayed after successful login into the system. To start

quick setup wizard click on QUICK SETUP button.

STEP 4. Configure router network settings

STEP 5. Configure GSM network settings

The configuration data must be provided by your internet service provider.
