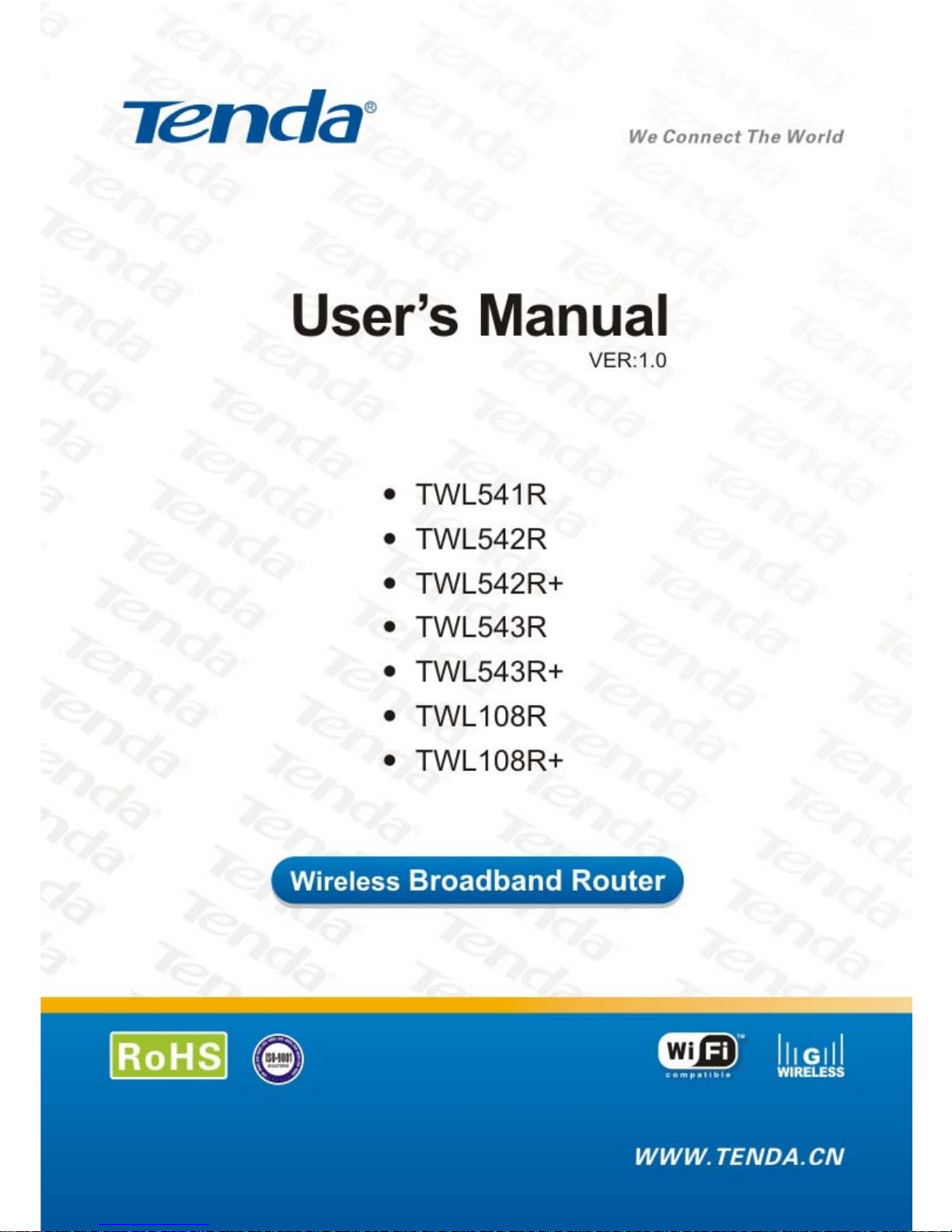

Tenda TWL542R Manuale utente
Copyright Declaration
is the registered trademark of Shenzhen Tenda
Technology Co., Ltd. Other trademark or trade name mentioned
herein are the trademark or registered trademark of the company.
Copyright of the whole product as integration, including its
accessories and software, belongs to Shenzhen Tenda
Technology Co., Ltd. Without the permission of Shenzhen Tenda
Technology Co., Ltd, individual or party is not allowed to copy,
plagiarize, imitate or translate it into other languages.
All the photos and product specifications mentioned in this
manual are for references only, as the upgrading of
software and hardware, there will be changes. And if there
are changes, Tenda is not responsible for informing in
advance. If you want to know more about our products
information, please visit our website at www.tenda.cn
Brief Contents
Chapter 1 Introduction.............................................................1
1.1 Product Features ..........................................................1
1.2 Applications...................................................................2
1.3 Package Contents.........................................................3
Chapter 2 Hardware Installation..............................................4
2.1 Front Panel LED Indication...........................................4
2.2 Operating Environment.................................................5
2.3 Hardware Installation Steps ..........................................5
Chapter 3 Configuration Guide................................................7
3.1 Log in............................................................................7
3.2 Wizard...........................................................................8
3.3 Running Status............................................................ 10
3.4 Quick configuration Wizard.........................................12
3.5 Advanced Config.........................................................12
3.6 WLAN Setting .............................................................14
3.7 DHCP Server..............................................................17
3.8 Virtual Server..............................................................19
3.9 Security Setting...........................................................22
3.10 Routing Table............................................................ 28
3.11 System Tool............................................................... 30
Instruction Manual Wireless Broadband Router
Chapter 1 Introduction
Thank you for choosing Wireless Broadband Router series
(TWL541R/542R/542R+/543R/543R+/108R/108R+). This Wireless
Broadband Router is a cost-effective IP Sharing Router that enables
multiple users to share the Internet through an ADSL or cable modem.
Simply configure your Internet connection settings in the Wireless
Broadband Router and connect your PC to the LAN port then you're ready
to access the Internet. As your network grows, you can connect another hub
or switch to the router's LAN ports, allowing you easily expand your network.
Our Wireless Broadband Router provides a total solution for the Small and
Medium-sized Business (SMB) and the Small Office/Home Office (SOHO)
markets, giving you an instant network today, and the flexibility to handle
tomorrow's expansion and speed.
1.1 Product Features
zWireless Access Point, Router, 4-port Switch and Firewall, 4-in1
solution;
542R+/543R+/108R+ support detachable antenna;
zTransmission rate up to 54Mbps(TWL108R/108R+,support
108Mpbs), 54/48/36/24/18/12/9/6Mbps or 1/5.5/2/1Mbps
Auto-Fallback;
zSupport IEEE802.11g, IEEE802.11b, IEEE802.3a IEEE802.3u
standard;(TWL108R/108R+, support Super G mode)
zSupport CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP, NAT
protocol;
zOne 10/100M auto-sense port for the connection to WAN;
zFour 10/100M auto-sense ports for the connection to LAN;Support
1
Instruction Manual Wireless Broadband Router
xDSL/Cable MODEM for fixed or dynamic IP;
zLong distance transmission，indoor up to 100m,max 300m outdoor;and
TWL108R/R+ up to 850m（Limited by the enviroment）.
zRemote Web Management;
zSupport 64/128 bit WEP ,WPA WPA2 encryption security
authentication protocol;
zMulti-Channel Roaming;
zSupport 802.11b/802.11g auto-accommodated mode or setting by
manual;
zAuto MDI/MDIX functions;
zSupport Win2000/WinXP, Linux, Novell, Mac Operation System;
zSupport SSID broadcast control and access control based on MAC
address;
zSupport UPnP, DDNS function;
zProvide system security log, recording the operation status;
zSupport internal users’ filter function at access to the internet
zSupport virtual server, DMZ host;
zInternal Firewall, Prevent Hacker Attack;
1.2 Applications
TWL541R/542R/542R+/543R/543R+/108R/108R+ is designated for
the fast Ethernet, economical choice, and reliable quality, catering for
the following applications:
zIdeal meet up with the demand of more extensive area in the office, or
factory ,
zIdeal meet up with the area that need Non-cable or frequently Routing
2
Instruction Manual Wireless Broadband Router
server shifting required, such as Square, airport, and hot-spot
sightseeing area.
zEasy install required for some special circumstances, such as
Construction zone, Temple, and Remote Scenery surveillance
zTo avoid expensive cable and installation charges in the residential
area, SOHO carrier.
1.3 Package Contents
Carefully open the enclosure and pay attention to find the following items
enclosed, if it's no included, please demand for them or call us if need.
z54M Wireless Broadband Router ×1
zPower adapter ×1
zInstructionmanual ×1
zFastInstallationGuide ×1
zInstallationCD-R ×1
zQCPasscertificate ×1
3
Instruction Manual Wireless Broadband Router
Chapter 2 Hardware Installation
2.1 Front Panel LED Indication
LED Description
POWER Power Indication
Twinkle Indicating that the wireless part are
working
SYS
Light Indicating connection have
established with wireless device
WAN Light
Indicating correct connection of WAN
port
WLAN Twinkle Indicating the radio signal is right
Light Indicating correct connection of LAN
ports
LAN(1/2/3/4)
Twinkle Indicating transmitting or receiving data
Rear Panel Interface Description
LAN 10/100
4 Ports
Connect to 10/100BaseT Ethernet or
Connect to HUB/switch
RESET
Notice: If you press RESET more than 7
seconds, all you data you have set up
will be changed to the factory default.
WAN Connect to ADSL or Cable MODEM
AC9V AC9V/1.0A Power Jack
4
Instruction Manual Wireless Broadband Router
2.2 Operating Environment
zEthernet and wireless networking available
zTwist-cable connects the LAN port with the Local Network Area
(LAN)'s PC terminals, for wireless Series Adapter, please refer to
the user’s manual.
zXDSL/Cable Model or broadband inlet the outer internet services
to the Port “WAN” of this device.
zIE5.5 ,Netscape 6.1 or higher
zSupport Windows, Linux, Netware Platform,which complied with
TCP/IP protocol.
zLay down the device horizonly
zKeep it away from any heat sources.
zKeep it dry away from dust, moisture
2.3 Hardware Installation Steps
1) Please connect the LAN port of ADSL/CABLE Modem to the WAN port
of the Wireless Broadband Router（WAN LED Indicator light when
properly connected .）
2) Please connect the LAN port of Wireless Broadband Router to
Hub/Switch. (LAN LED Indicator light when properly connected).
3) Please connect your computer to Hub/Switch or connect your computer
to the LAN port by Ethernet cables directly.
4) You can connect wireless router by wireless LAN adapters. To do that
please search the wireless router through the configuration software of
wireless LAN adapter or WINDOWS XP ‘s “Search the available
wireless network” function and establish the connection with the
5
Instruction Manual Wireless Broadband Router
wireless router.

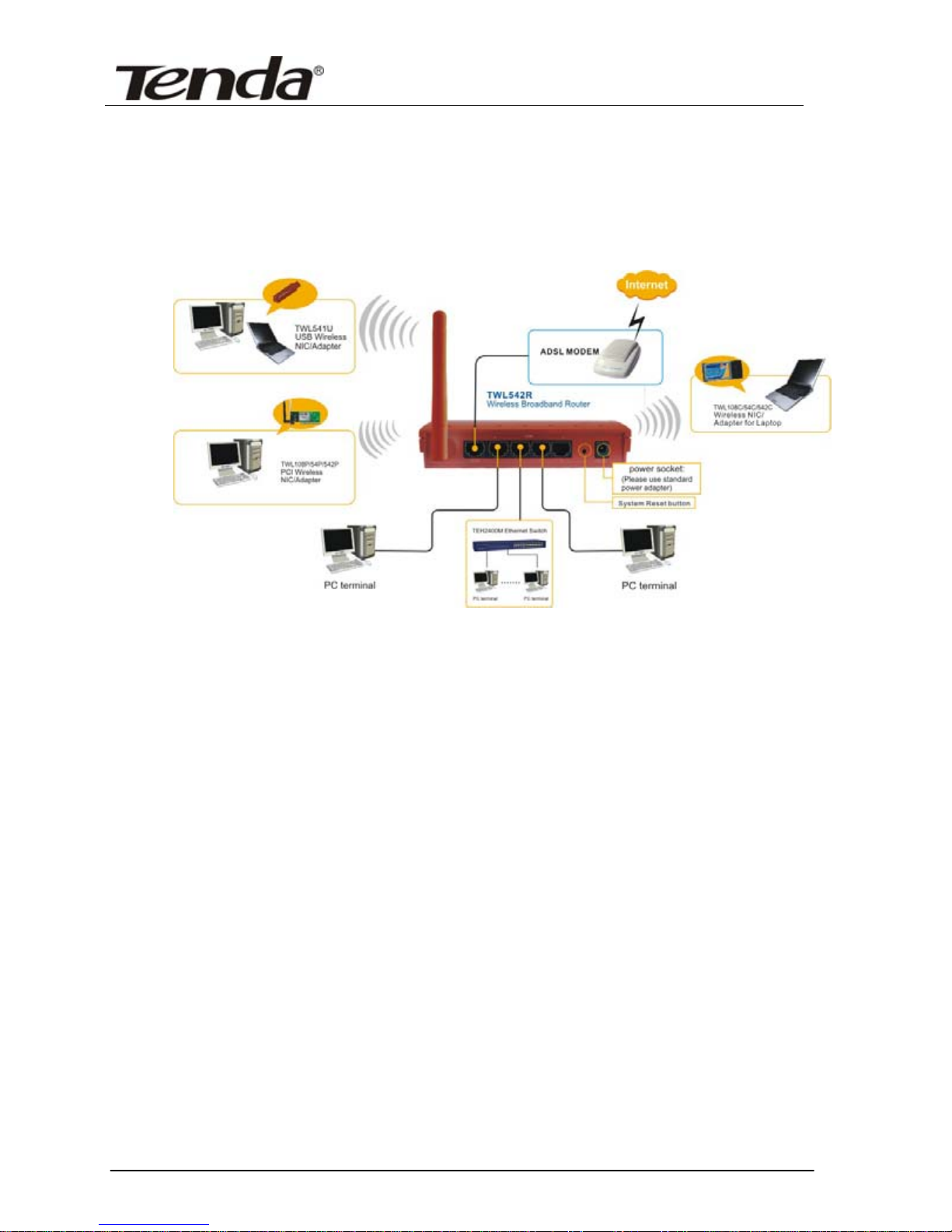

The follow is the network topology:
6
Instruction Manual Wireless Broadband Router
Chapter 3 Configuration Guide
3.1 Log in
After connecting the wireless router with PC, please click Internet
Explore and input http://192.168.0.1 (The default IP of the router) then
the following login screen will appear .The default user name and
password all “admin”

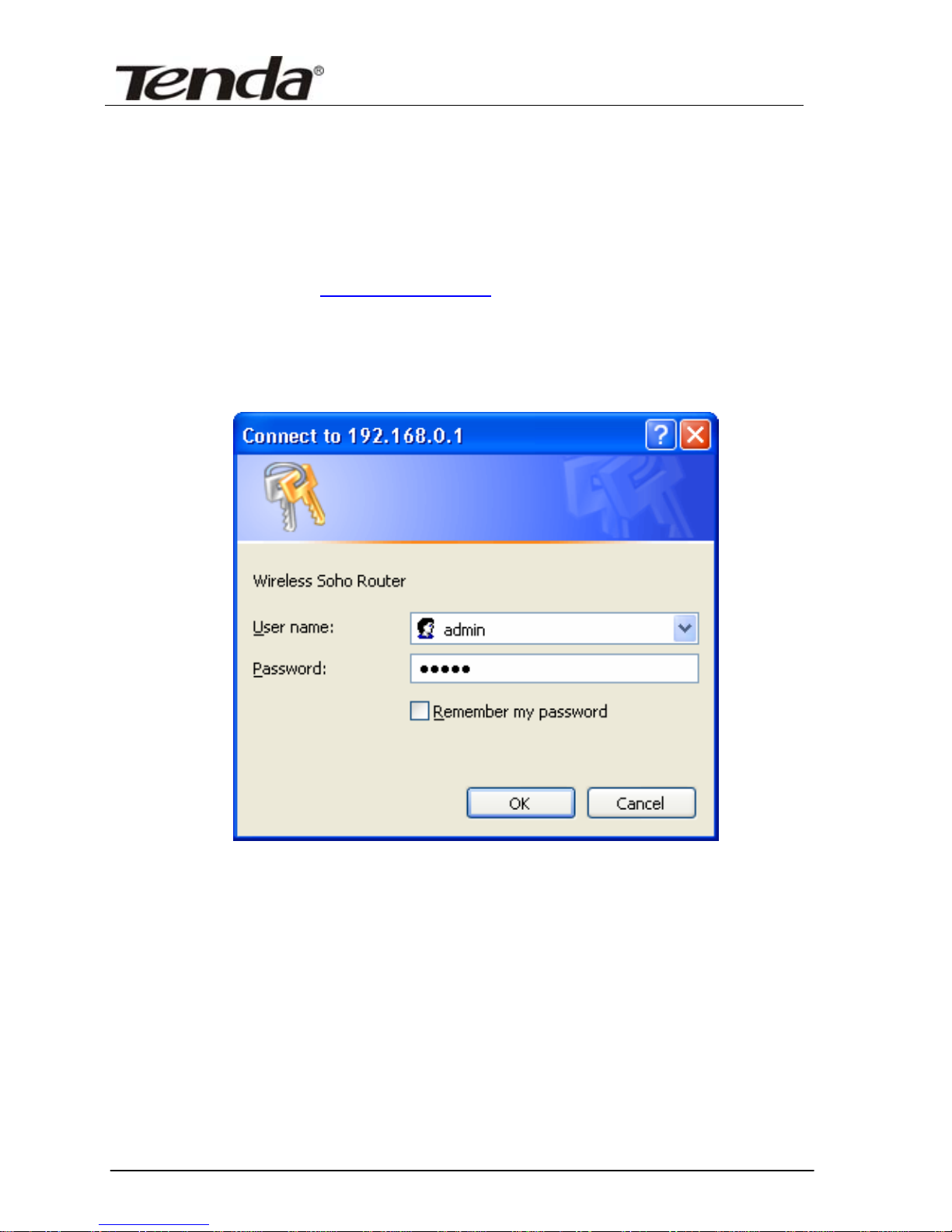

Fig 1
If this page doesn’t appear, please check your PC as following;
¾Please check your PC to make sure if there are WinGate, SyGate
software etc. If so, please delete such software(s);
¾Please change the Internet browser settings of tools-internet
optional-connection as Never Dial Up and uncheck all the 3 options of
LAN settings;
¾Make sure that the IP address 192.168.0.1 isn’t occupied by other PC
7
