Tepex RLF 320 Manuale utente

Doc. No.: TEPEx.RS.122

Ver: 1

Date: 03. 2023.

RLF 320 LED

Upute za uporabu

User manual

U P O Z O R E N J E

Upute za uporabu sadrže osnovne informacije o proizvodu.

Montaža, instaliranje, uporaba i održavanje trebaju biti

izvedeni prema ovoj Uputi kako bi bio osiguran siguran rad

unutar nazivnih karakteristika. Ovu Uputu nadopunjuju

nacionalni Pravilnici i norme. Odgovorna osoba korisnika je

dužna osigurati njihovo provođenje. Neprovođenje može

umanjiti protueksplozijsku zaštitu uređaja i dovesti u opasnost

ljude, imovinu i okoliš. Svako neispravno i nedozvoljeno

postupanje kao i nepoštivanje odredbi ove Upute isključuje

svaku odgovornost proizvođača.

Prije ugradnje/puštanja u pogon:

-Pažljivo pročitati cijelu Uputu za uporabu,

-Izvršiti odgovarajuću obuku odgovornog osoblja,

-Provjeriti da je sadržaj ove Upute u potpunosti razumljiv

odgovornim osobama,

-Uvjeriti se da su primijenjeni svi zahtjevi nacionalnih Pravilnika

i posebne sigurnosne mjere ukoliko postoje.

U slučaju nejasnoća:

-Kontaktirati proizvođača.

Tijekom pogona:

-Osigurati da ove Upute za uporabu i druge radne upute

korisnika budu vidljivo istaknute i dostupne odgovornom

osoblju cijelo vrijeme,

-Provjeravati provođenje ove Upute i svih drugih sigurnosnih

uputa korisnika.

W A R N I N G

The user manual contains basic information about the product.

Mounting, installation, usage and maintenance should be

carried out under this user manual to provide and ensure safe

operation within the nominal characteristics. This user manual

complement national Regulation and Standards. The

responsible person shall ensure their implementation. Failure

to implement this user manual can reduce explosion protection

and endanger people, property and the environment. Any

improper and illegal actions as well as non-compliance with the

provisions of this user manual excludes all responsibility by

manufacturer side.

Before installation/commissioning:

-Carefully read all instructions,

-Execute proper training of responsible personnel,

-Check that the contents of these instructions is fully

understandable by the responsible personnel,

-Make sure that all the requirements and national Regulations

as well as all special security measures are applied.

In lack of understanding:

-Contact the manufacturer.

During operation:

-Ensure that this user manual and other work instructions are

available to the responsible staff all the time,

-Check the implementation of these instructions and all other

safety user’s instructions.

Medarska 69, Zagreb, Croatia

XMade in Croatia

tel. 00385 49 222 900

fax. 00385 49 426 450

e-mail: [email protected]

web: www.tepex.hr

0722

SADRŽAJ:

1. Namjena………………….……………….……………….……………….

2. Sukladnost proizvoda….………………………………………………

3. Tehnički podaci…………...……………………………………………..

4. Tipna oznaka………………….……………………………………………

5. Montaža………………………...…………………………………………..

6. Dimenzije……..................................................................

7. Pregled, održavanje, popravak, obnavljanje…………………

8. Rezervni dijelovi ……………….…….………………………………….

9. Odgovornost i ovlaštenja…………………..………………………..

10. Skladištenje i transport….……………………………………………

11. Jamstvo proizvođača………….……………………………………….

12. Označavanje……………………………………………………………….

CONTENT:

1. Purpose…………………………………...…………....………………….

2. Product conformity………..………..………………………………..

3. Technical data……………………………………………………………

4. Types …………………………….…………………………………………..

5. Installation………………………….……………………………..........

6. Dimensions…………………………………………………………….....

7. Inspection, maintenance, repair and overhaul……………

8. Spare parts.………………………………………………………………..

9. Responsibility and authorization.……………………………….

10. Storage and transport…………………………………………………

11. Manufacturer's warranty.…………………………………………..

12. Marking……..………………………………………………………........

1. NAMJENA

Protueksplozijski zaštićeni LED reflektor tip RLF 320 LED-./.,

namijenjen je za opću rasvjetu, u industrijskim prostorima na

mjestima s potencijalno eksplozivnom atmosferom plinova, para

i prašine u zonama opasnosti 1, 2, 21, 22 sukladno normama

EN IEC 60079-10-1:2021 i EN 60079-10-2:2015.

2. SUKLADNOST PROIZVODA

Konstrukcija reflektora sukladna je s normama EN IEC 60598-

1:2021, EN 62262, EN 60529/A1/A2 i svim povezanim normama.

Proizvod je sukladan Pravilniku o opremi i zaštitnim sustavima

namijenjenim za uporabu u potencijalno eksplozivnim

atmosferama, NN br. 33/16.

Proizvod je sukladan ATEX Direktivi 2014/34/EU i normama:

-EN IEC 60079-0:2018,

-EN 60079-1:2014,

-EN IEC 60079-7:2015+A1:2018,

-EN 60079-31:2014.

Proizvod je razvijen, proizveden i ispitan prema postojećem

stanju tehnike sukladno normama ISO 9001, ISO/IEC 80079-34

i EN ISO 14001.

Proizvod je sukladan LVD Direktivi 2014/35/EU.

Proizvod je sukladan RoHS Direktivi 2011/65/EU.

Proizvod je sukladan EMC Direktivi 2014/30/EU.

3. TEHNIČKI PODACI

Certifikat

FIDI 23 ATEX 0004

Oznaka kategorije i

protueksplozijske

zaštite uređaja:

II 2G Ex db eb IIC T4 Gb

II 2D Ex tb IIIC T100°C Db

Temperatura

okoline:

-40°C ≤Ta≤+40°C/+50°C

Mehanička

zaštita:

IP 66

Otpornost na

udar:

IK 08

Klasa zaštite:

I (PE - zaštitno uzemljenje)

Nazivni napon Un:

230 V AC ± 10% / 50 - 60Hz

Radni napon:

90 - 305 V AC / 127 - 420 V DC

Nazivna snaga Sn:

250 VA/ 320 VA

Faktor snage:

> 0,98 pri 230V / 50 Hz i 320 VA

1. PURPOSE

Explosion protected LED floodlight type RLF 320 LED-./., is

intended for general lighting in areas with a potentially

explosive atmosphere of gases, vapors and dust in hazardous

areas 1, 2, 21, 22, according to EN IEC 60079-10-1:2021 and

EN 60079-10-2:2015.

2. PRODUCT CONFORMITY

The construction of the floodlight complies with EN IEC 60598-

1:2021, EN 62262, EN 60529/A1/A2 and all related standards.

The product complies with the ATEX Directive 2014/34 EU and

standards:

-EN IEC 60079-0:2018,

-EN 60079-1:2014,

-EN IEC 60079-7:2015+A1:2018,

-EN 60079-31:2014.

The product has been developed, manufactured and tested

according to the existing state of technique accordance with the

standards ISO 9001 and ISO/IEC 80079-34 and ISO 14001.

The product is in compliance with the LVD Directive 2014/35 EU.

The product is in compliance with the RoHS Directive 2011/65 EU.

The product is in compliance with EMC Directive 2014/30/EU.

3. TECHNICAL DATA

Certificate:

FIDI 23 ATEX 0004

Category and

explosion

protection:

II 2G Ex db eb IIC T4 Gb

II 2D Ex tb IIIC T100°C Db

Ambient

temperature:

-40°C ≤ Ta≤+40°C/+50°C

Mechanical

protection:

IP 66

Resistance to

shock:

IK 08

Class of protection:

I (PE - protective earthing)

Rated voltage Un:

230 V AC ± 10% / 50 - 60 Hz

Service voltage:

90 - 305 V AC / 127 - 420 V DC

Rated power Sn:

250 VA/ 320 VA

Power factor:

> 0,98 at 230V / 50 Hz and 320 VA

LED izvor:

LEDEx 04, TEPEx d.o.o.

FIDI 23 ATEX 0002U

Prenaponska zaštita:

10 kV L/N-PE, 6 kV L-N, IEC 61000-4-5

LED driver:

BLD-320-C140-TRS-A00000,

uPowerTek, Hangzhou, Kina

Svjetlosni tok:

24500 lm na Ta= 25°C za 250 VA,

31000 lm na Ta= 25°C za 320 VA

Temperatura boje

svjetlosti:

4000 K

Indeks uzvrata boje

(CRI):

>80

Očekivana životna

dob:

130 000 h / Ta≤25 °C (Tc= 70 °C),

40,000 h na Tamax. (Tc= 90 °C)

Priključne stezaljke:

Stezaljke za spajanje faznog,

neutralnog i zaštitnog vodiča L1, L2,

L3, N, PE; max. 4 mm2sol (r), sol (s), f,

Moment pritezanja stezaljke: 1,2 Nm

Proizvođač: Connectwell Pvt. d.o.o,

Indija,

Certifikat: CSANe 21ATEX3017U

Oznaka kategorije i protueksplozijske

zaštite: II 2G Ex eb IIC Gb ili Ex ib IIC Gb

Vanjske stezaljke za

uzemljenje:

Stezaljke za vanjsko uzemljenje i

izjednačavanje potencijala, max. 2 x 6

mm2sol(s), f

Uvodi:

Dva uvoda Ø25,5

Momenti pritezanja:

Pritisna matica Ex eb uvodnica: 2,5 Nm,

Tijelo Ex eb uvodnice i čepa: 3,5 Nm,

Vijci poklopca priključne komore: 2 Nm,

Vijci kućišta (okvir stakla i hladilo): 5 Nm,

Vijci stremena: 5 Nm

Masa:

≈21,5 kg bez nosača

≈24 kg s nosačem

Vijčani raspori (prema EN 60079-1:2014, članak 5.3):

- M20x1,5 –6g/6H, srednja tolerancija prema ISO 965-1/98, navoj

ISO 965-3, 8 punih navoja,

- M85x1,5 –6g/6H, srednja tolerancija prema ISO 965-1/98, navoj

ISO 965-3, 9 punih navoja.

LED light source:

LEDEx 04, TEPEx d.o.o.

FIDI 23 ATEX 0002U

OVP protection:

10 kV L/N-PE, 6 kV L-N, IEC 61000-4-5

LED driver:

BLD-320-C140-TRS-A00000,

uPowerTek, Hangzhou, China

Rated luminous

flux:

24500 lm at Ta = 25°C for 250 VA,

31000 lm at Ta= 25°C for 320 VA

Light colour:

4000 K

Refractive index

(CRI):

>80

Estimated

service life:

130 000 h / Ta≤25 °C (Tc= 70 °C),

40,000 h na Tamax. (Tc= 90 °C)

Connection

terminal:

Terminals for phase, neutral and

earthing conductors L1, L2, L3, N, PE;

max. 4 mm2sol(r), sol(s), f,

Torque screw for terminals: 1,2 Nm

Manufacturer: Connectwell Pvt. Ltd.,

India,

Certificate: CSANe 21ATEX3017U

Category and explosion protection:

II 2G Ex eb IIC Gb or Ex ib IIC Gb

Connection

terminal for

grounding:

Terminal for external grounding,

equipotential bounding,

max. 2 x 6 mm2sol(s), f

Cable entries:

Two cable entries Ø25,5

Tightening

torques values:

Pinch nut of the Ex eb cable glands: 2,5 Nm,

body of the Ex eb gland and plug: 3,5 Nm,

connection chamber cover screws: 2 Nm,

enclosure screws: 5 Nm,

bracket screws: 5 Nm

Weight:

≈21,5 kg without steel bracket

≈24 kg with steel bracket

Threaded joints (According to EN 60079-1:2014, clause 5.3):

- M20x1,5 –6g/6H, medium tolerance according ISO 965-

1/98, thread ISO 965-3/98, 8 full threads,

- M85x1,5 –6g/6H, medium tolerance according to ISO 965-

1/98, thread ISO 965-3, 9 full threads.

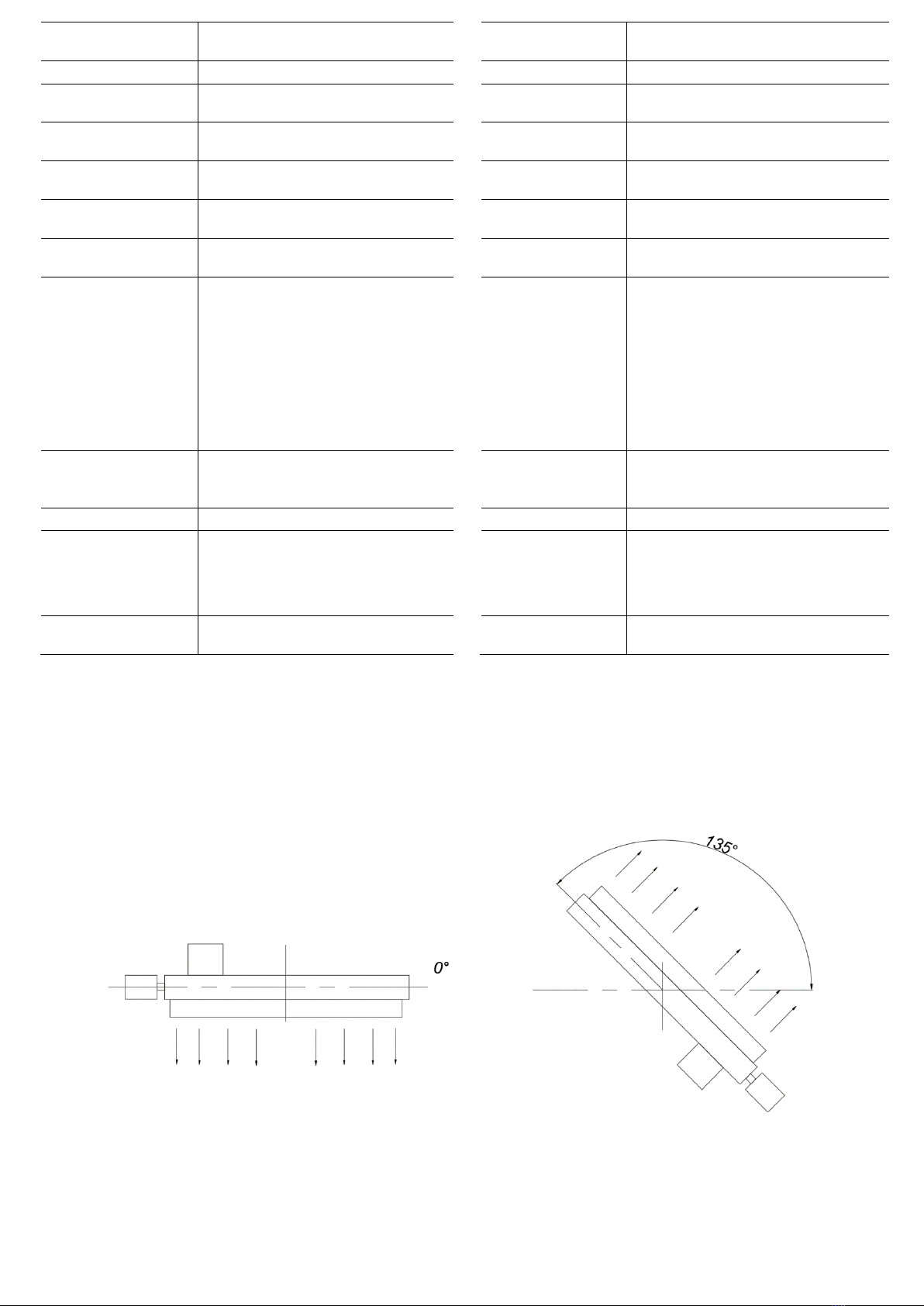

Radni položaji (od 0˚ do 135˚): Working positions ( from 0˚to 135˚):

4. TIPNA OZNAKA

4. TYPES

RLF 320 LED-./.

Prvi broj = Nazivna snaga

–1–250 VA,

–2–320 VA,

Drugi broj = Krivulja zračenja

–1–široki snop (120˚/±60˚ - 50% Imax)

–2–uski snop (20˚/±10˚ - 50% Imax)

RLF 320 LED-./.

First number = Rated power

–1–250 VA,

–2–320 VA,

Second number = Radiation curve

–1–broad beam (120˚/±60˚ - 50% Imax)

–2–narrow beam (20˚/±10˚ - 50% Imax)

5. MONTAŽA

5. INSTALLATION

Montaža i instaliranje reflektora izvodi se prema podacima na

natpisnim pločicama na reflektoru, ovim i dodatnim uputama

proizvođača, nacionalnim Propisima i Pravilnicima, kao i prema

općenito priznatim pravilima tehnike. Samo uz taj uvjet osigurana

je tipnim certifikatom potvrđena protueksplozijska zaštita

reflektora.

Kvaliteta upotrijebljenih materijala jamči funkcionalnost sukladnu

normi, u «normalnoj» industrijskoj atmosferi.

Za posebne uvjete pogona molimo kontaktirati proizvođača.

Montaža reflektora na podlogu vrši se preko nosača vijčanim

priborom M8 ili M10.

Priključni kabel se uvodi u priključnu komoru kroz predviđenu

uvodnicu. Pri tome treba provjeriti da su kabeli čisti i neoštećeni.

Posebnu pažnju treba posvetiti odabiru unutarnjeg brtvenog

prstena uvodnice prema vanjskom promjeru kabela. Pritisnu

maticu uvodnice i tijelo uvodnice treba pritegnuti nazivnim

momentom. Neiskorišteni uvod, na isti način, obavezno treba

zatvoriti čepom.

Napajanje reflektora ostvaruje se priključkom kabela napajanja na

priključne stezaljke (L, NE, PE) i stezaljku za unutarnje i vanjsko

uzemljenje.

Installation and putting into operation have to be done according

to technical and certification data on warning label on the

floodlight, this user manual, national regulations and laws. Only

with that, explosion-proof protection of the floodlight is ensured

with type certificate.

The quality of the materials ensures compliance with standard

functionality in standard industrial atmosphere.

For special operating conditions please contact the manufacturer.

Installation of the floodlight is done with steel bracket with M8 or

M10 screws.

The power cable is inserted into the connection chamber through

the provided cable gland. Before that, you should check whether

the cables are clean and undamaged.

Special attention must be dedicated to selection of the inner

gasket sealing ring of the cable glands according to diameter of

connecting cable. The pressure nut and the intermediate gland

must be tightened with nominal torque. The unused cable entries

must be closed with a plug. The electrical connection is

performing by connecting power supply cable (L, NE, PE) on the

connection terminals and terminal for internal and external

grounding.

6. DIMENZIJE

6. DIMENSIONS

7. PREGLED, ODRŽAVANJE, POPRAVAK I OBNAVLJANJE

7. INSPECTION, MAINTENANCE, REPAIR AND OVERHAUL

Potrebno je obavljati preglede i održavati sve dijelove uređaja o

kojima ovisi protueksplozijska zaštita sukladno normi EN 60079-

17:2014, općim i posebnim uputama proizvođača i Pravilnicima

korisnika, a naročito:

da su hladilo, okvir stakla, zaštitno staklo i brtve, kućište

drivera i poklopci bez puknuća i oštećenja,

da je sklop hladila s okvirom stakla i zaštitnim staklom

potpuno zatvoren, kao i kućište drivera s poklopcima,

da su uvodnica, čep, vijci poklopca priključne komore i vijci

stezaljki za uzemljenje pritegnuti nazivnim momentom.

Popravak, obnavljanje ili pregradnju reflektora obavlja proizvođač ili

od proizvođača ovlaštena pravna osoba, originalnim dijelovima

prema proizvodnoj dokumentaciji, a sve sukladno normi EN IEC

60079-19:2019.

Inspections are carried out in accordance with EN 60079-17:2014,

general and special conditions of manufacturer and users

Regulations and includes supervision of parts on which the

explosion protection depends, especially:

that the enclosure, glass frame, protective glass and

gaskets, driver enclosure and covers are without rupture

and damage,

that the enclosure assembly with the glass cover and

protective glass itself is completely closed, as well as the

driver enclosure with covers,

that the cable gland, plug, connection chamber screws and

connecting terminals screws are tightened with nominal

torque.

All the repairs must be performed by the manufacturer or the

manufacturer's authorized personal using the original parts

Ukoliko popravak i/ili obnavljanje i/ili pregradnju vrši treća osoba,

prestaje svaka odgovornost proizvođača za proizvod, a izjava

sukladnosti proizvođača postaje nevažeća.

according to the product documentation, all in accordance with EN

IEC 60079-19:2019.

If repair or any other procedure are performed on the product by

unauthorized person, all producer responsibility for the product and

the warranty and the manufacturer's Declaration of conformity

becomes invalid.

8. REZERVNI DIJELOVI

8. SPARE PARTS

Rezervni dijelovi /

Spare parts or

accessories

Description/

Opis

Code/

Kod pozicije

Rezervni dijelovi /

Spare parts or

accessories

Description/ Opis

Code/

Kod

pozicije

RLF 320 LED

Sklop okvira

stakla/

The glass

protective

framework,

set

RLF 320 LED

10-110

RLF 320 LED

Stremen/

Bracket for wall

and ceiling

mounting,

set

RLF 320 LED

10-160

RLF 320 LED

Brtva okvira

stakla/

Gasket

RLF 320 LED

10-120

RLF 320 LED

Set za montažu

na cijev/

Pipe mounting set

RLF 320

LED

20-110

LED

LEDEx 04

Ex eb plastična

uvodnica/

Ex-eb cable gland

ISO25, set

SPU 25

RLF 320 LED

LED driver

RLF 320 LED

10-130

Ex eb plastični

čep/

Ex-eb plug ISO25,

set

SPC 25

Priključna

komora/

Connection

chamber, set

RLF 320 LED

10-140

Ex db/eb tb

metalna

uvodnica/

Ex db/eb tb metal

cable gland ISO25

RLF 320

LED

10-170

Set priključnih

stezaljki/

Connecting

terminals

5 x 0,5 –4 mm2,

set

RLF 320 LED

10-150

Ex db/eb tb

metalni čep/

Ex db/eb metal

plug M25

RLF 320

LED 10-180

9. ODGOVORNOSTI I OVLAŠTENJA

9. RESPONSIBILITY AND AUTHORIZATION

Ova Uputa predstavlja najvažniju informaciju o proizvodu.

Nadopunjuju ju odgovarajući nacionalni zakoni i propisi.

Proizvodnja, uporaba, certifikacija i nadzor određene su na

nacionalnoj razini:

Pravilnikom o opremi i zaštitnim sustavima namijenjenim

za uporabu u prostorima ugroženim eksplozivnom

atmosferom (NN br. 33/16, odnosno EU Direktiva ATEX

2014/34/EU) i

Pravilnikom o najmanjim zahtjevima sigurnosti i zaštite

zdravlja radnika te tehničkom nadgledanju postrojenja,

opreme, instalacija i uređaja u prostorima ugroženim

eksplozivnom atmosferom (NN br. 39/06, 106/07.),

odnosno EU Direktivi 1999/92/EC (ATEX 137).

Odgovorna osoba dužna je osigurati njihovo provođenje u

pogonu.

This instruction is the basic information about the product. It is

completed by the corresponding national laws and regulations.

Production, use, certification and supervision are determined at the

national level:

Regulations concerning equipment and protective systems

intended for use in potentially explosive atmospheres EU

directive 2014/34/EU and

Regulations on minimum requirements for safety and health

protection of workers and technical inspection of facilities,

equipment, installations and equipment in hazardous areas

EU directive 1999/92/EC (ATEX 137).

The responsible person shall ensure their implementation at the

working facility.

10. SKLADIŠTENJE I TRANSPORT

10. STORAGE AND TRANSPORT

Transport i skladištenje treba vršiti samo u originalnoj ambalaži,

na način istaknut na kartonskoj kutiji.

Transportation and storage of the floodlight is only allowed in the

original packaging, as indicated on a cardboard box.

11. JAMSTVO PROIZVOĐAČA

11. MANUFACTURER'S WARRANTY

Proizvođač izdaje jamstvo na proizvod u trajanju od 5 godina

prema odredbama Zakona o obveznim odnosima. Ova izjava ima

snagu Jamstvenog lista.

The manufacturer provides a warranty on the product for a period

of five years under the provisions of this user manual and the law

on obligations. This statement has the force of Warranty sheet.

12. OZNAČAVANJE

12. MARKING

Protueksplozijski zaštićeni LED reflektor tip RLF 320 LED-./.

označen je s dvije vanjske natpisne pločice, s tri pločice

upozorenja i s natpisnom naljepnicom unutar Ex eb komore.

Explosion protected floodlight RLF 320 LED-./. is marked with

two external labels with technical data, three warning labels

and with technical data sticker inside Ex eb chamber.

Vanjska natpisna pločica s nazivnim podacima na okviru stakla:

External label with nominal data on the glass frame:

Vanjska natpisna pločica s nazivnim podacima i upozorenjem na

priključnoj komori reflektora:

External label with nominal data and warning on the floodlight

connection chamber:

Natpisna naljepnica unutar Ex eb komore:

Technical data sticker inside Ex eb chamber:

Vanjska pločica upozorenja na okviru stakla:

External warning label on the glass frame:

Vanjske pločice upozorenja na kućištu LED drivera:

External warning labels on the LED driver enclosure:

Indice

Altri manuali Tepex Attrezzatura di illuminazione

Tepex

Tepex PLFM 100 Series Manuale utente

Tepex

Tepex 0403.24/LED Manuale utente

Tepex

Tepex PSF 218 Manuale utente

Tepex

Tepex FLXE 118 LED-N Manuale utente

Tepex

Tepex FLXE 118 LED 0 Series Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
