TerraKing 45-0563 Manuale utente

PRINTED IN USA FORM NO. 3-47 rev. (12/16/21)

45-0563

29 19

22 23

45-0563

REF QTY PART NO DESCRIPTION

1 2 28793 ROD, FLOW CONTROL

2 2 28791-001 TUBE, HANDLE

3 2 2-20 BRACE, HOPPER

4 1 28814 SUPPORT, HOPPER

5 2 28788-001 TUBE, HANDLE EXTENSION

6 13 47810 NUT, HEX .312-18 NYLOC

7 4 736-0142 WASHER, .281 X .625 X .065

8 1 28807 HOPPER, SMALL

9 1 2-112 GATE TRANSITION

10 1 28808 DISPENSER GATE

11 1 2-102 OUTER GATE

12 2 23625 SPACER, .380ID X .620OD

X .27

13 2 28785 BEARING

14 1 69887 SLEEVE WELDMENT (RH)

15 1 69890 SLEEVE WELDMENT (LH)

16 2 28801-001 TUBE, LOWER

17 6 43085 BOLT, HEX 5/16-18 X 1-1/2

18 1 2-263 SHAFT, AXLE SPREADER

19 2 47212 HOUSING, LARGE GEAR

20 1 47204 YOKE, LARGE

21 1 43010 PIN, COTTER 1/8 X 1-1/4

22 1 47209 GEAR, LARGE

23 1 47205 GEAR, SMALL

24 2 49897 CLIP, HAIRPIN 7/8

25 1 49898 CLIP, HAIRPIN 5/8

26 1 2-264 SHAFT, SPREADER

27 1 46055 PIN, SPRING 1/8 X 1

28 8 R19212016 WASHER, .656 X 1.25 X .059

29 3 43093 PIN, COTTER 1/8 X 1-1/2

30 1 46855 PIN, COTTER 3/16 X 2

31 2 28789 TUBE, KICKSTAND

32 2 2-381 PLUG

33 4 1509-90 BOLT, HEX 1/4-20 X 1-1/4

GR5

34 5 48015 WASHER, NYLON

35 4 47134 PIN, HAIR COTTER

.08 X 1.58

REF QTY PART NO DESCRIPTION

36 2 49907 WHEEL, POLY 5/8"ID 13/5.0-6

37 1 28794 SPREADER IMPELLER

38 1 28790 BRACKET, PIVOT

39 1 2-226 BRACKET, PIVOT (OPEN/

CLOSE)

40 2 46446 GRIP, HANDLE 1"

41 2 49449 PLUG, 1"OD TUBE

42 8 43012 BOLT, HEX 1/4-20 X 3/4 GR5

43 12 47189 NUT, HEX 1/4-20 NYLOC

44 5 44292 BOLT, HEX 5/16-18 X 2-1/2

GR5

45 2 46782 BOLT, HEX 5/16-18 X 3 GR5

KIT 1 6-204 KIT, SPREADER

DEFLECTOR (kit includes

items 46 through 53)

46 1 2-228 TUBE, DEFLECTOR FRAME

47 2 2-229 DEFLECTOR, SIDE

48 1 2-230 DEFLECTOR, FRONT

49 6 4-11 CLAMP, RUBBER SLEEVE

50 10 43866 BOLT, HEX 1/4-20 X 5/8 GR5

51 2 43661 BOLT, HEX .25-20 X 1 GR5

52 12 47189 NUT, HEX 1/4-20 NYLOC

53 2 2-221 BRACKET, SS DEFLECTOR

MOUNT

54 2 48365 PIN, CLEVIS 1/4 X 1.11

55 1 43037 PIN, CLEVIS 3/8 X 2-3/4

56 1 43055 PIN, HAIR 3/32 X 1.8

57 1 42651 KNOB, 1/4-20

58 1 43849 KNOB, PLASTIC 1/4"-20

59 1 40526 SPRING, SS EXTENSION

60 1 45346 WASHER, NYLON .28 X 1.0

X .06

61 1 42977 WASHER, .28 X 1.0 X .06

62 1 46594 BOLT, CARR 5/16-18 X 2-3/4

63 1 4-18 WINGNUT, 5/16 - 18

64 1 44685 SPACER, SHOULDER

65 1 28812 GRATE

66 1 2-1 HOPPER COVER

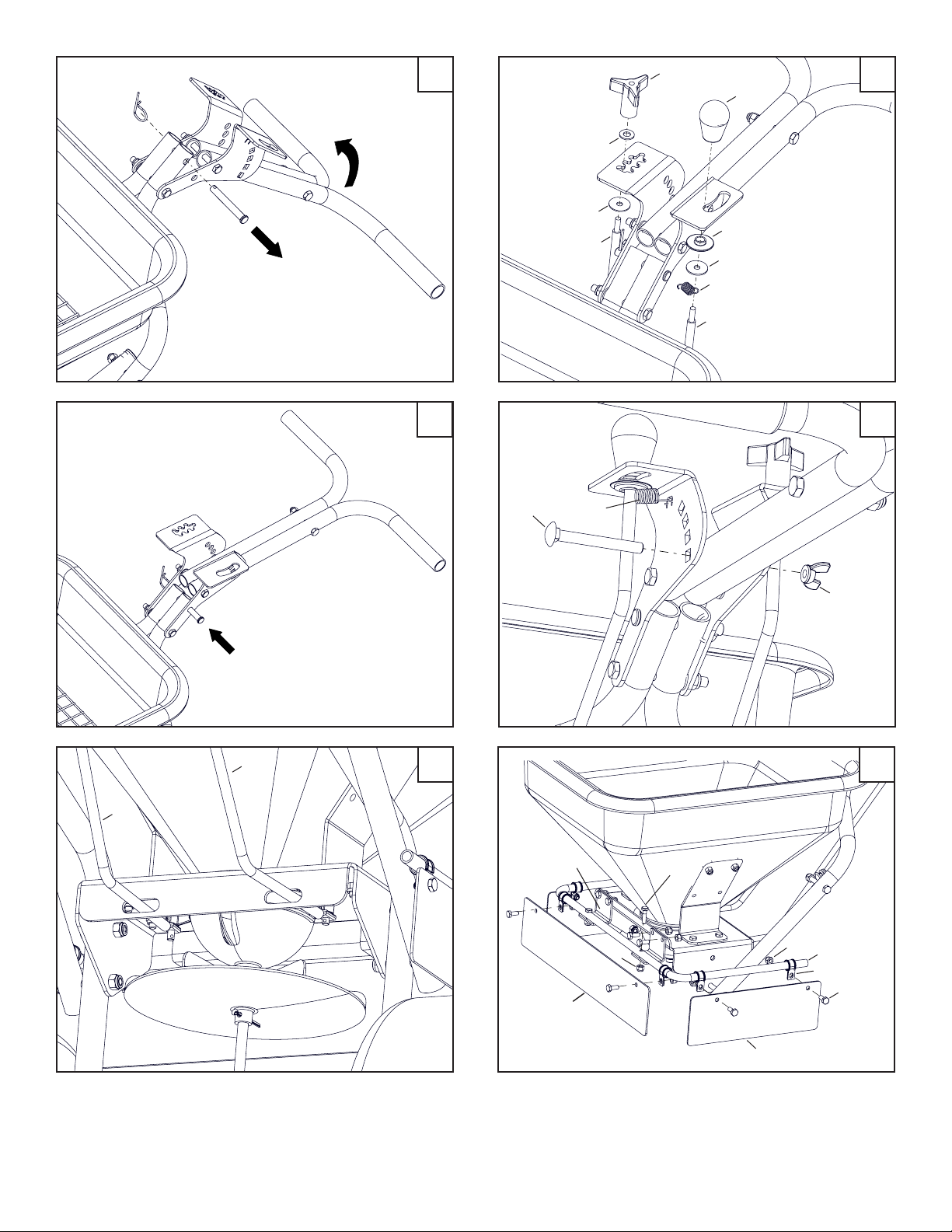

43849

42977

47189

4366143866

4-18

x10

x12

x1 N

42651

45346

44685

40526

4-11

48015

46594

2-228

28793

2-229

2-230

2-221

3 5

4b2

SAFETY INFORMATION

1. Read the information on the chemical package for

instructions and cautions on handling and applying.

2. Wear eye and hand protection when handling and

when applying lawn or garden chemicals.

3. Never allow children to operate the spreader.

WARNING: Over-inated tires can explode,

causing serious injury. To avoid injury, NEVER

inate tires beyond the maximum pressure

printed on the sidewall of the tire. ALWAYS

use a hand pump to safely inate tires.

MAINTENANCE

1. Apply a light coating of grease to the gears as

needed.

2. Before each use make a thorough visual check of

the spreader for any bolts and nuts which may have

loosened. Retighten any loose bolts and nuts.

5. Make sure the tires are adequately inated. Do not

inate beyond the maximum pressure printed on the

tire.

TYPESETTINGSPREAD WIDTH

MATERIAL AT 3 MPH IN FEET

FERTILIZER

Powder 3 - 5 3 - 4

Granular 3 - 5 8 - 10

Pelleted 3 - 5 10 - 12

Organic 6 - 8 6 - 8

GRASS SEED

Fine 3 - 4 6 - 7

Coarse 4 - 5 8 - 9

APPLICATION TIPS

Recommended speed:

3 MPH (100 feet in 23 seconds)

(Reduce flow setting for slower speed,

and increase for higher speed).

Always move flow control arm to the "OFF" position

while filling spreader and when STOPPING or TURNING,

to prevent excess fertilizer being released.

Spreaders operate best with solid materials.

Distribution of powders may vary from this table

in both spread width and coverage.

HOW TO USE YOUR SPREADER

1 Set flow gauge on #0 position and push

control arm to the "OFF" position.

2 Move tractor and/or spreader onto flat

surface.

3 Before filling spreader,

refer to chart guidelines:

ROCK SALT

ICE MELT

5 - 6 14-16

4 - 5 12-14

AGRI-FAB LIMITED WARRANTY ON TERRA KING COMMERCIAL-GRADE SPREADERS

WHO IS COVERED: This Warranty covers the original purchaser of a TERRA KING-branded commercial-

grade spreader manufactured by Agri-Fab, Inc. It is not transferable to subsequent purchasers or end-users,

with one exception: if the product is purchased to be sold at retail, this Warranty will automatically be trans-

ferred to the original retail purchaser.

HOW LONG DOES COVERAGE LAST: This Warranty remains in force for 5 years from the date of purchase

with respect to the spreader hopper and metal gears, and 1 year from the date of purchase for all other com-

ponents; provided, however, that if the product is used for rental purposes, this Warranty remains in force for

only 90 days from the date of purchase with respect to all components. This Warranty will not be extended for

additional time if Agri-Fab replaces or repairs the product.

WHAT IS COVERED: Any defect in material or workmanship of your TERRA-KING Commercial-Grade

Spreader product or component.

WHAT IS NOT COVERED: Damage caused by transportation, storage, misuse, excessive use, accident,

neglect, modication, normal wear and tear, natural oxidization, or the corrosive e󰀨ects of fertilizers, ice melt

products, powdered metals or other materials placed in the spreader. This Warranty also does not cover any

parts which may need to be replaced due to normal use of the product such as, but not limited to, tires.

WHAT AGRI-FAB WILL DO: Repair or replace your TERRA-KING Commercial-Grade Spreader product or

component.

HOW TO GET SERVICE: Deliver the TERRA KING Commercial-Grade Spreader or component to Agri-Fab’s

local authorized service dealer or distributor. If you do not know the dealer or distributor in your area, please

contact the Customer Service Department of Agri-Fab, Inc. by phone, email or letter (see contact info. below).

The return of a product or part to Agri-Fab will not be accepted unless prior written permission has been ex-

tended by Agri-Fab.

FOR CONSUMER TRANSACTIONS COVERED BY THE MAGNUSON-MOSS WARRANTY ACT, THE DURA-

TION OF ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

IS LIMITED TO THE DURATION OF THE ABOVE EXPRESS WARRANTY. FOR ALL OTHER TRANSAC-

TIONS, AGRI-FAB IMMEDIATELY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. THIS EXPRESS WARRANTY SUPERSEDES ALL PRIOR OR

CONTEMPORANEOUS ORAL OR WRITTEN REPRESENTATIONS CONCERNING THE PRODUCTS. NO

AGRI-FAB EMPLOYEE, DEALER OR ANY OTHER PERSON IS AUTHORIZED TO MODIFY THIS WARRAN-

TY OR MAKE ANY OTHER WARRANTY IN ADDITION TO THE WARRANTIES SET FORTH IN THIS DOCU-

MENT. IN NO EVENT SHALL AGRI-FAB BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,

WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY. SOME STATES DO NOT

ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR OF INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

This Warranty gives you specic legal rights, and you may also have other rights which vary from state to state.

Contact Information for Agri-Fab, Inc.

Phone: 1-800-448-9282

Email: [email protected]

Address: 809 S. Hamilton St., Sullivan, Illinois 61951

Website: www.Agri-fab.com

Parts: www.Speedepart.com

the fastest way to purchase parts

www.speedepart.com

REPAIR PARTS

Agri-Fab, Inc.

809 South Hamilton

Sullivan, IL. 61951

800-448-9282

www.agri-fab.com

This document (or manual) is protected under the U.S. Copyright Laws and the copyright laws of foreign countries, pursuant to the

Universal Copyright Convention and the Berne convention. No part of this document may be reproduced or transmitted in any form or

by any means, electronic or mechanical, including photocopying or recording, or by any information storage or retrieval system, without

the express written permission of Agri-Fab, Inc. Unauthorized uses and/or reproductions of this manual will subject such unauthorized

user to civil and criminal penalties as provided by the United States Copyright Laws.
