TerraTec HomeArena MX 2.1 Manuale utente
Quick Start Guide (English)
Version: 08.09.04
CE Declaration
We:
TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany
hereby declare that the product:
HomeArena MX 2.1
to which this declaration refers are in compliance with the following standards or standardiz-
ing documents:
EN 55013, EN 55022, EN 60065
The following are the stipulated operating and environmental conditions for said compliance:
residential, business and commercial environments and small-company environments.
This declaration is based on:
Test report(s) of the EMC testing laboratory
The information in this document is subject to change without notice and shall not be deemed as a warranty by the
seller. No warranties, express or implied, are made with regard to the quality, suitability or accuracy of this docu-
ment. The manufacturer reserves the right to change the contents of this document and/or the associated products
at any time without the provision of prior notice to specific persons or organizations. The manufacturer shall not be
held liable for damages of any kind arising from the use, or the inability to use this product or its documentation,
even if the possibility of such damage is known. The information in this document is subject to copyright. All rights
are reserved. No part of this manual may be reproduced or transmitted in any form or for any purpose without the
express written permission of the copyright holders. Product and brand names contained in this document are used
for identification purposes only. All registered trademarks, product designations or brand names used in this
document are the registered property of their respective owners.
©TerraTec®Electronic GmbH, 1994-2004. All rights reserved (08.09.04).
2 HomeArena MX 2.1 (Deutsch)
Welcome!
We're pleased that you have chosen a TerraTec speaker system and would like to congratulate
you on this decision.
We're convinced that our HomeArena MX 2.1 system will provide you with a great deal of en-
tertainment and reliable service in the coming years.
Your TerraTec Team
Unpacking the system:
After you have unpacked the system, please ensure that it is complete.
You should have the following items:
· 2 satellite speakers (3 m cable length)
· 1 subwoofer
· 2 wall mounts
· 1 audio connector cable, 3.5 mm jack/RCA (1.8m)
· 1 audio connector cable, 3.5 mm jack/3.5m jack (1.8m)
· 1 video game console adapter (3.5 mm female jack to female RCA)
· 1 printed Quick Start Guide (D, NL, F, GB, I, ES)
· 1 customer service card
Service
In case you encounter unexpected problems during the installation, our support team is
available by phone from Monday to Friday between 1:00 pm to 8:00 pm, Central European
Time.
For more information, please refer to the included customer service card.
We would also be pleased to answer your questions online. For further information, please
visit http://www.terratec.net/support.
Should it become necessary to return the product to our service department, please follow the
detailed instructions on the customer service card. Thank you.
HomeArena MX 2.1 (Deutsch) 3
Design & operation:
Please ensure that the power is off when connecting any of the components. This will protect
you from any possible - albeit weak - electrical shocks, as well as protecting your speakers
and your hearing from sudden peaks.

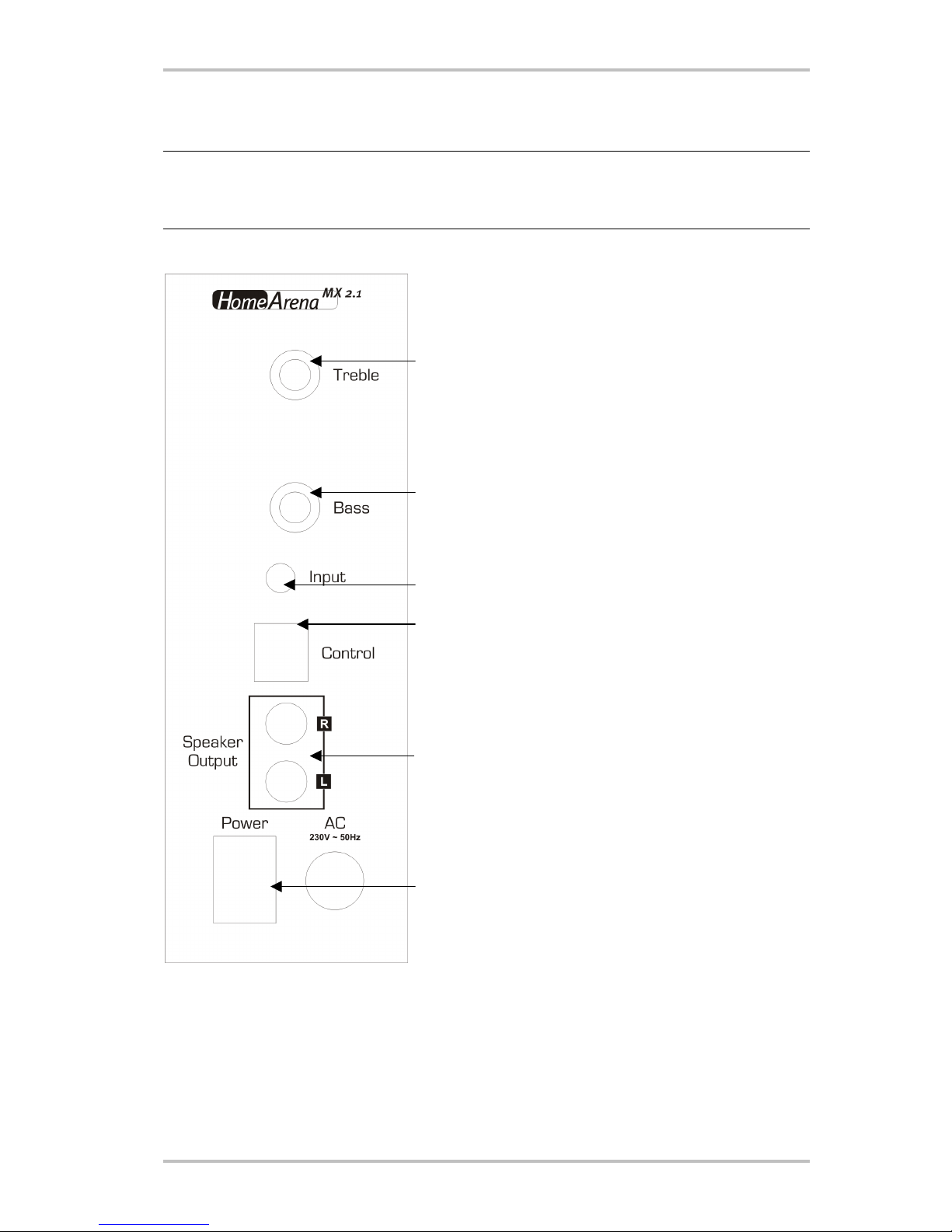

Please refer to the diagram below for the connectors and controls of your HomeArena MX 2.1.
Control input
3.5 mm stereo audio input (line)
Bass
Treble
Speaker output
Power switch
Please note that the speaker cables are color-coded.
Rot = right speaker with controls
White = left speaker
4 HomeArena MX 2.1 (Deutsch)

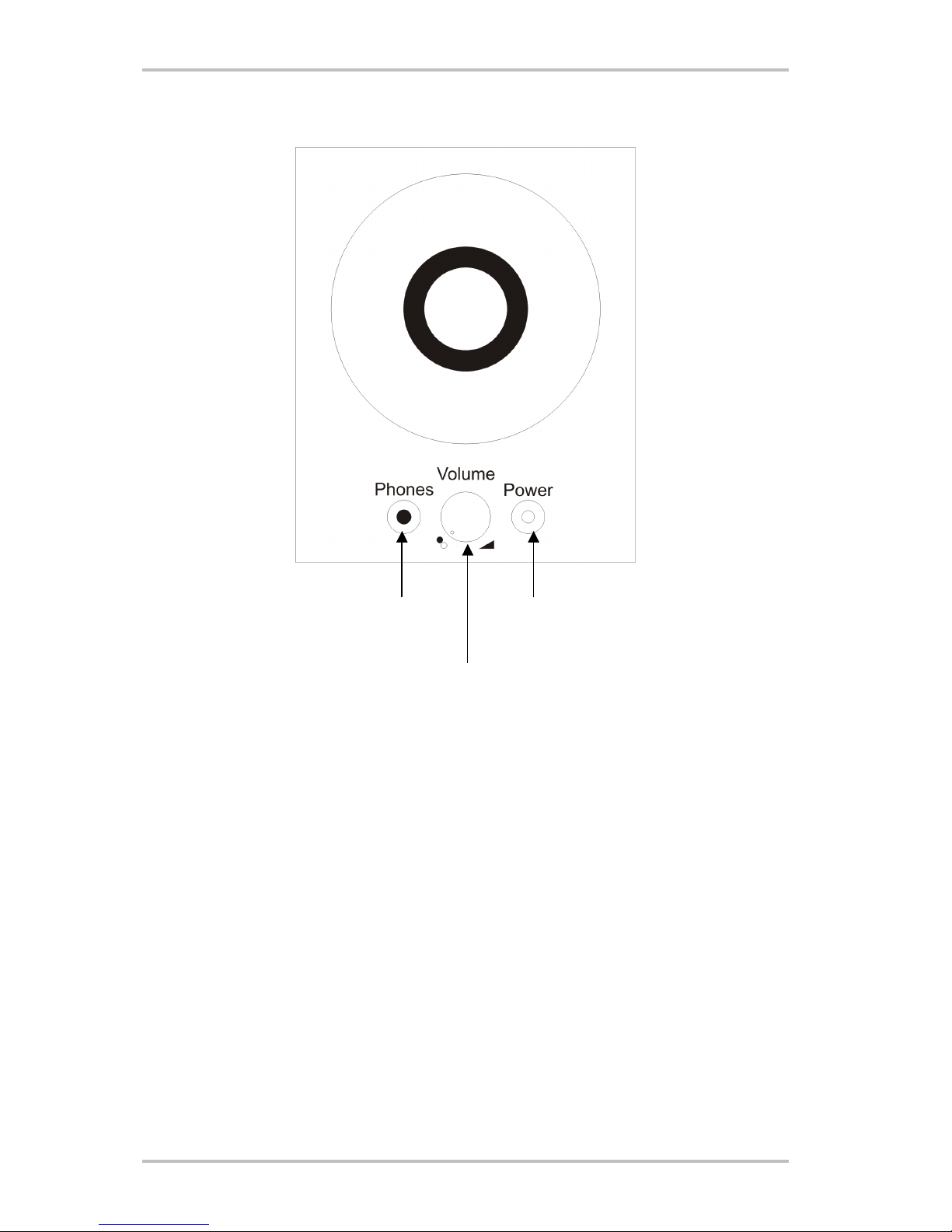

The speaker with controls:
Headphones (3.5 mm female jack) Power LED
Volume + On/Off switch
HomeArena MX 2.1 (Deutsch) 5
Specifications:
Total output power: 22 watts RMS
Frequency response: 20 Hz – 20 KHz
Input impedance: 10 kOhm
Subwoofer:
· 1 x 4" (10.16 cm) subwoofer
· 12 watts RMS
· 4 ohms impedance
· Wooden bass reflex enclosure
· Integrated amplifier
· Stereo input (3.5 mm jack)
· Audio controls (bass and treble)
· Power cable (1.8 m)
Satellites
· 2 x 2.5" (6.35 cm) speakers
· 5 watts RMS each
· HIPS enclosures
· 4 ohms impedance
· Audio controls on one speaker
· Headphone socket, 3.5 mm jack
· Volume control and power switch
Dimensions
· Subwoofer (W/H/D) : 130 x 267 x 255 mm
· Satellites (W/H/D): 85 x 110 x 105 mm
Power supply:
· 230V/50Hz, integrated in subwoofer
System requirements
· PC with sound card or other audio source (MP3 player, DVD player, video game console)
with line level output
6 HomeArena MX 2.1 (Deutsch)
HomeArena MX 2.1 (Deutsch) 7
Safety notes
1. Do not connect the subwoofer's outputs to an external amplifier
2. Do not open the housing, high voltages occur inside
3. Do not expose to direct sunlight, protect against rain or spray
4. Switch off and unplug the AC power supply of the HomeArena MX 2.1 if you are not going
to use it for extended periods.
