TERSUS TC50 Manuale utente

User Manual

Version V1.0-20210409

Sales Enquiry: [email protected]

Technical Support: [email protected]

More details, please visit www.tersus-gnss.com

User Manual for Tersus TC50 Controller v1.0

Revision History

Version

Revision Date

Change summary

1.0

20210409

Initial Release

User Manual for Tersus TC50 Controller v1.0

Notices

FCC Radiation Exposure Statement:

This device meets the government's requirements for exposure to radio waves.

The guidelines are based on standards that were developed by independent

scientific organizations through periodic and thorough evaluation of scientific

studies. The standards include a substantial safety margin designed to assure

the safety of all persons regardless of age or health. The SAR limit of USA

(FCC) is 1.6 W/kg averaged. Device types: Portable Device (FCC ID:

2AMDJ-TC50) has also been tested against this SAR limit. SAR information on

this and other pad can be viewed on‐line at http://www.fcc.gov/oet/ea/fccid/.

Please use the device FCC ID number for search. This device was tested

simulation typical 10mm to body. To maintain compliance with FCC RF

exposure requirements, use accessories should maintain a separation

distance between the user's bodies mentioned above, use accessories should

not contain metallic components in its assembly, the use of accessories that do

not satisfy these requirements may not comply with FCC RF exposure

requirements, and should be avoided.

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause

undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits

User Manual for Tersus TC50 Controller v1.0

are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by

the party responsible for compliance could void the user's authority to operate

the equipment.

User Manual for Tersus TC50 Controller v1.0

Caution:

Intended for sale and application in a business environment.

Use the Product in the environment with the temperature Between -20℃and

35℃; Otherwise, it may damage your product. Products can only be used

below 2000m altitude

For the following equipment:

Product Name: TD-LTE Wireless Data Terminal

Model No.: TC50 Brand Name: Tersus

Tersus GNSS Inc

E-mail: [email protected]

hereby declares that this [Name: TD-LTE Wireless Data Terminal, Model:

TC50] is in compliance with the essential requirements and other relevant

provisions of Directive 2014/53/EU.

The product shall only be connected to a USB interface of version USB2.0 and

that the connection to a power USB is allowed.

Use careful with the earphone maybe possible excessive sound pressure from

earphones and headphones can cause hearing loss.

Adapter shall be installed near the equipment and shall be easily accessible.

Only can use adapter as below:

Power Adapter Model: GQ24-090200-AX

INPUT:AC100-240V, 50/60Hz, 1.0A; Output:DC9V, 2.0A

Dong Guan City GangQi Electronic Co.,Ltd.

The plug considered as disconnect device of adapter.

User Manual for Tersus TC50 Controller v1.0

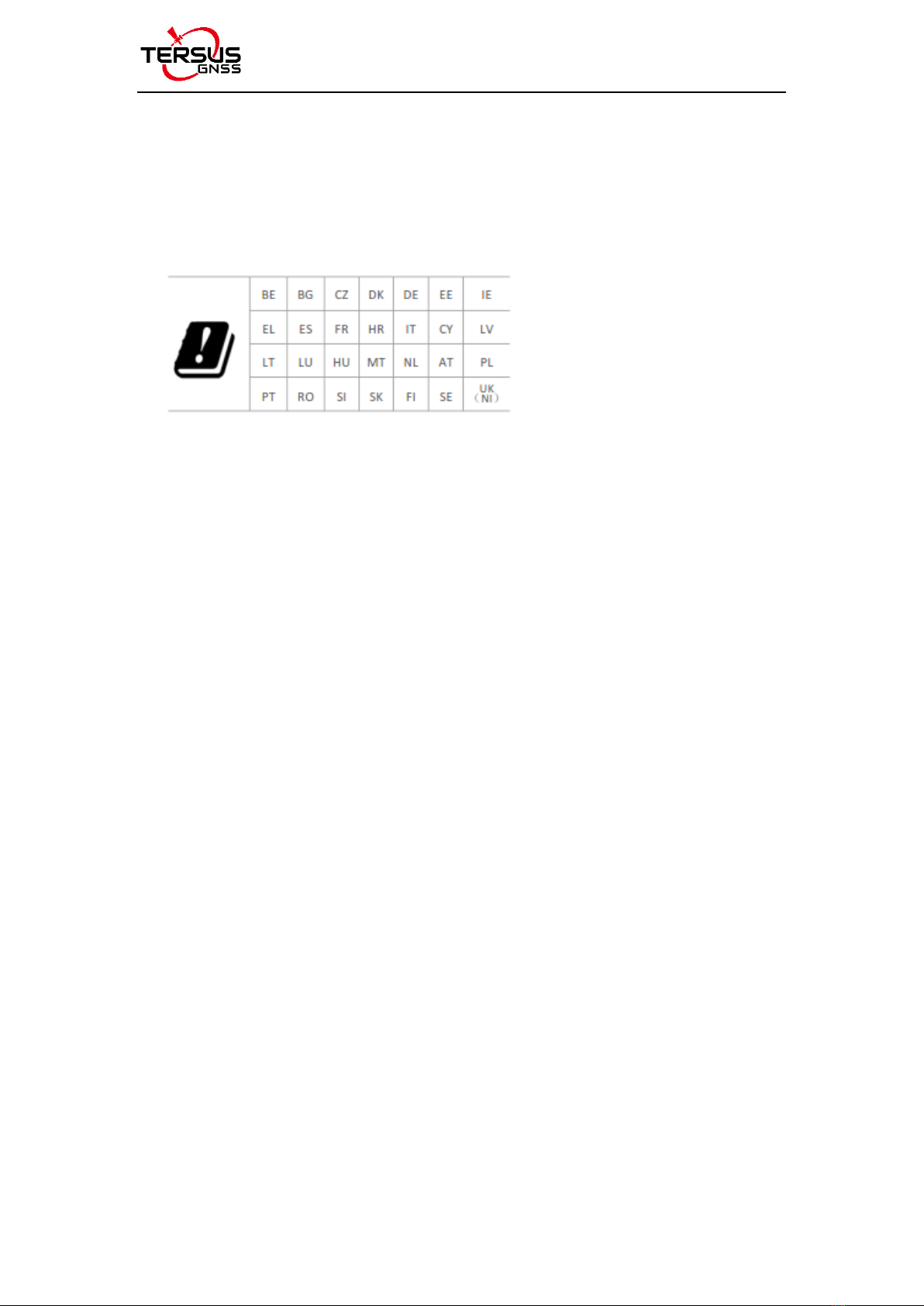

This product is intended for sale and application in a business environment.

RED Article 10 2

-This product can be used across EU member states

RED Article 10 10

The device is restricted to indoor use only when operating in the 5150 to 5350

MHz frequency range.

The RF distance between body and product is 5mm

Support Networks: GSM, GPRS, EDGE

Support Bands:GSM900, DCS1800

Frequency Range:

GSM900: Tx: 880-915MHz, Rx: 925-960MHz

DCS1800: Tx: 1710-1785MHz, Rx: 1805-1880MHz

RF Output Power:

GSM900: 32.31dBm, GSM1800: 28.80dBm;

EDGE900: 27.16dBm, EDGE1800: 25.68dBm

Support Networks: WCDMA, HSDPA, HSUPA

Support Bands:WCDMA Band 1, WCDMA Band 8

Frequency Range:

WCDMA Band 1: Tx: 1920-1980MHz, Rx: 2110-2170MHz

WCDMA Band 8: Tx: 880-915MHz, Rx: 925-960MHz

RF Output Power: WCDMA Band 1: 23.05dBm, WCDMA Band 8: 23.37dBm

User Manual for Tersus TC50 Controller v1.0

Support Bands:FDD-LTE Band1, 3, 7,8, TDD-LTE Band 38, 40

Frequency Range:

FDD-LTE Band 1: Tx: 1920-1980MHz, Rx: 2110-2170MHz

FDD-LTE Band 3: Tx: 1710-1785MHz, Rx: 1805-1880MHz

FDD-LTE Band 7: Tx: 2500-2570MHz, Rx: 2620-2690MHz

FDD-LTE Band 8: Tx: 880-915MHz, Rx: 925-960MHz

TDD-LTE Band 38: Tx: 2570-2620MHz, Rx: 2570-2620MHz

TDD-LTE Band 40: Tx: 2300-2400MHz, Rx: 2300-2400MHz

Max.RF Output Power:

FDD-LTE Band 1: 21.49dBm, FDD-LTE Band 3: 22.68dBm,

FDD-LTE Band 7: 22.78dBm, FDD-LTE Band 8: 23.41dBm,

TDD-LTE Band 38: 22.54dBm,TDD-LTE Band 40: 22.01dBm

Bluetooth

Bluetooth Version: Bluetooth V4.1

Frequency Range: 2402-2480MHz

Max.RF Output Power: 6.96dBm (EIRP)

Wi-Fi (2.4G)

Support Standards:802.11b, 802.11g, 802.11n-HT20/40

Frequency Range:

2412-2472MHz for 802.11b/g/n(HT20); 2422-2462MHz for 802.11n(HT40)

Max.RF Output Power: 16.17dBm (EIRP)

Wi-Fi (5G)

Support Standards:802.11a, 802.11n-HT20/40

RF Output Power: Max. 13.98dBm (EIRP)

Operation Frequency:

Band 1: 5180-5240MHz, Band 2: 5260-5320MHz, Band 3: 5500-5700MHz,

User Manual for Tersus TC50 Controller v1.0

5.8G SRD

Support Standards:802.11a, 802.11n(HT20/40)

RF Output Power Max. 13.81dBm (EIRP)

Operation Frequency: 5745-5825MHz

NFC

Frequency Range: 13.56MHz

Radiated H-Field: 4.29dBuA/m(@3m)

GPS

Frequency Range: 1575.42MHz Receiving

User Manual for Tersus TC50 Controller v1.0

Table of Content

Revision History...........................................................................................................1

Notices.........................................................................................................................2

Table of Content ..........................................................................................................8

List of Figures ..............................................................................................................9

List of Tables................................................................................................................9

1. Introduction.........................................................................................................10

1.1 Overview............................................................................................... 10

1.2 Specification......................................................................................... 11

2. General Operation ..............................................................................................13

2.1 Insert SIM card and SD card................................................................ 13

2.2 Reboot the device................................................................................. 13

2.3 Forced restart....................................................................................... 14

2.4 Charge the battery................................................................................ 14

2.5 Cautions ............................................................................................... 14

3. Terminology........................................................................................................16

User Manual for Tersus TC50 Controller v1.0

List of Figures

Figure 1.1 TC50 controller......................................................................10

Figure 1.2 TC50 outlook .........................................................................12

Figure 2.1 Insert SIM card and SD card .................................................13

List of Tables

Table 1 TC50 technical specification.......................................................11
