Tesla Smart TRV Manuale utente
Tesla Smart TRV
Thermostat Radiator Valve
User guide
Set-up and control
EN
CZ
2
1. Information about this manual 3
2. Product Description 3
3. Device Overview 4-5
4. Start-up 6
4.1 Before we get started. 6
4.2 Inserting(replacing) batteries 6
4.3 Set date and time 7
5. Installation of the radiator thermostat 7
6. Interface screen 12
7. Software Installation 13
8. Voice Control 14
8.1 Amazon Alexa 14
8.2 Google Home 15
9. Product features 16
9.1 Auto Mode 17
9.2 Manual Mode 17
9.3 Holiday Mode 17
9.4 Open Window Detection 18
9.5 Offset Temperature 18
9.6 Eco and Comfortable Temperature 19
9.7 Child Lock 19
9.8 Anti-Freezing Mode 20
9.9 Heating stop (Power Saving) Mode 20
9.10 Anti-Calcification (Descaling) Protection 21
9.11 Boost 21
10. Setting 22
10.1 Date 22
10.2 Week Programming Stage 22
10.3 Open Window 23
10.4 Comfortable Temperature 24
10.5 ECO Temperature 24
10.6 Offset 24
10.7 Holiday Setting 25
11. Low Battery 25
12. Reset 26
13. Troubleshooting and maintenance 26
14. Technical Data 27
15. Package contents 27
16. Instructions for disposal 27
TABLE OF CONTENTS
3
1. Information about this manual
Please read this manual completely and carefully before
starting to use the device. The manual contains impor-
tant information about the intended use of the device.
Especially observe the safety notes. Keep the manual
for later consultation. If you hand over the device to
other persons for use, please hand over the operating
manual as well.
2. Product Description
The device moves a valve to intelligently control the
flow of heat to the radiator. With the Tesla Smart
Thermostat Radiator Valve you can conveniently adjust
the room temperature between 5-30 °C, and save more
than 15% of energy.
The device is part of the Tesla Smart system and works
with the ZigBee 3.0 protocol. All devices on the system
can be configured comfortably and individually with
the Tesla smartphone app. The temperature can be
controlled individually, room by room.
The radiator thermostat fits to all common radiator
valves and is easy to mount-without having to drain any
water or intervene in the heating system. The additional
boost function enables the radiator to be heated up
quickly for a brief period of time by opening the valve
for 5 minutes. There will be a pleasant room temperatu-
re right away because of the radiated heat.
TABLE OF CONTENTS
4
3. Device Overview
5
6
4. Start-up
4.1 Before we get started.
• 2 x AA batteries are required for TRV to work, please
get prepared.
• A smart gateway hub is required for the TRV to work.
• Temperature is shown in degrees Celsius.
4.2 Inserting(replacing) batteries
• Pull off the battery compartment cover on the under-
side of the device.
• Insert 2 new LR6(AA) batteries in the battery
compartment, making sure they are the right way
round.
• Reattach the battery compartment cover and latch it
into place.
The service life of new alkaline batteries is approximately
1.5 years. A battery symbol( ) on the display indicates that
the batteries need to be replaced.
After removing the empty batteries, wait approx.
1 minute before inserting the new ones. This device does
not support operation with rechargeable batteries.
7
4.3 Set date and time
If batteries are inserted or replaced, the date and time
is automatically requested after a brief display of the
firmware version number.
• Set the year,month,day,hour and minute with the +/-
button, and confirm with Menu button. You can press
the Boost button to return to the previous menu during
the setting of date and time.
• The display of ‚ InS ‚ with the rotating ‚ ‚ shows that the
motor is still travelling back.
• When ‚ AdA ‚ is shown in the display, the radiator ther-
mostat can be installed on the valve. After installation,
press the Boost button to run adaptive
• The display of ‚ AdA‘ with the rotating ‚ ‚ shows that an
adapting run to adapt the thermostat to the valve.
If the adapting runs is initiated before installation,
press Boost button and the motor travels back to the ‚
InS ‚ position. If an error message(F1,F2,F3) is displayed,
press the Pair/Boost button and the motor similarly
travels back to the ‚ InS ‚ position.
5. Installation of the radiator thermostat
The radiator thermostat is easy to install and can be
done without draining heating water or intervening in
the heating system. No special tools are required, nor
does the heating have to be switched off.
The ring nut attached to the radiator thermostat can be
used universally and without accessories for all valves
8
with a thread size of M30 x 1.5 from the most popular
manufacturers such as
• Danfoss
• Heimeier
• MNG
• Junkers
• Landis&Gyr (Duodyr)
• Honeywell-Braukmann
• Oventrop
• Schlösser
• Comap
• Valf Sanayii
• Mertik Maxitrol
• Watts
• Wingenroth (Wiroflex)
• R.B.M
• Tiemme
• Jaga
• Siemens
• Idmar54
By means of the adapters in the delivery, the device
can be installed on radiator valves of type Danfoss RA,
Danfoss RAV and Danfoss RAVL.
5.1 Unscrew your existing radiator thermostat.
No worries, water will not leak during this process.
9
5.2 M30 x 1.5
5.2.1 Screw the TRV smart radiator thermostat di-
rectly onto the radiator if the connector type is M30
x 1.5(picture shown as below). You can adjust the
angle to make the screen facing the viewer properly.
5.2.2 Rotate the thermostat dial to the maximum
value, the max value may be 6 or 8.
5.2.3 Check the is active
5.2.4 Install the device.
5.3 Danfoss RAVL Valve
5.3.1 Check the is active
5.3.2 The valve bodied have elongated notches
around their circumference, which ensure that the
adapter is properly seated when it snaps on: snap on
the adapter completely,so that the pins inside the
10
5.4 Danfoss RAV Valve
5.4.1 Rotate the thermostat dial to the maximum
value, the max value may be 6 or 8
5.4.2 Check the is active.
5.4.3 The valve bodied have elongated notches
around their circumference, which ensure that the
adapter is properly seated when it snaps on: snap on
the adapter completely,so that the pins inside the
adapter are lined up with the notches on the valve.

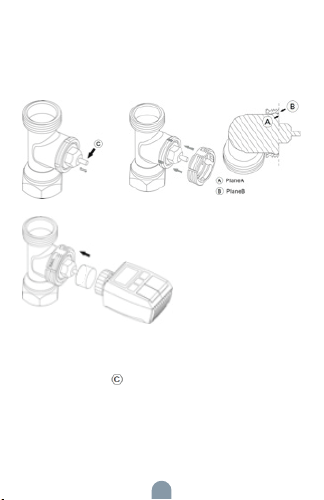

5.4.4 Install the adapter,Plane A is aligned with
adapter are lined up with the notches on the valve.
5.3.3 Install the adapter,Plane A is aligned with
Plane B.
5.3.4 Install the round tube into the device
5.3.5 Install the device
