IAQ tripod
Application information
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Pos: 1 /TD/Kurzanleit ungen/testo 480/I AQ-Stativ 0554 0743 @ 9\mod_13 09446849507_79.doc @ 81383 @ 5555 @ 1
Use

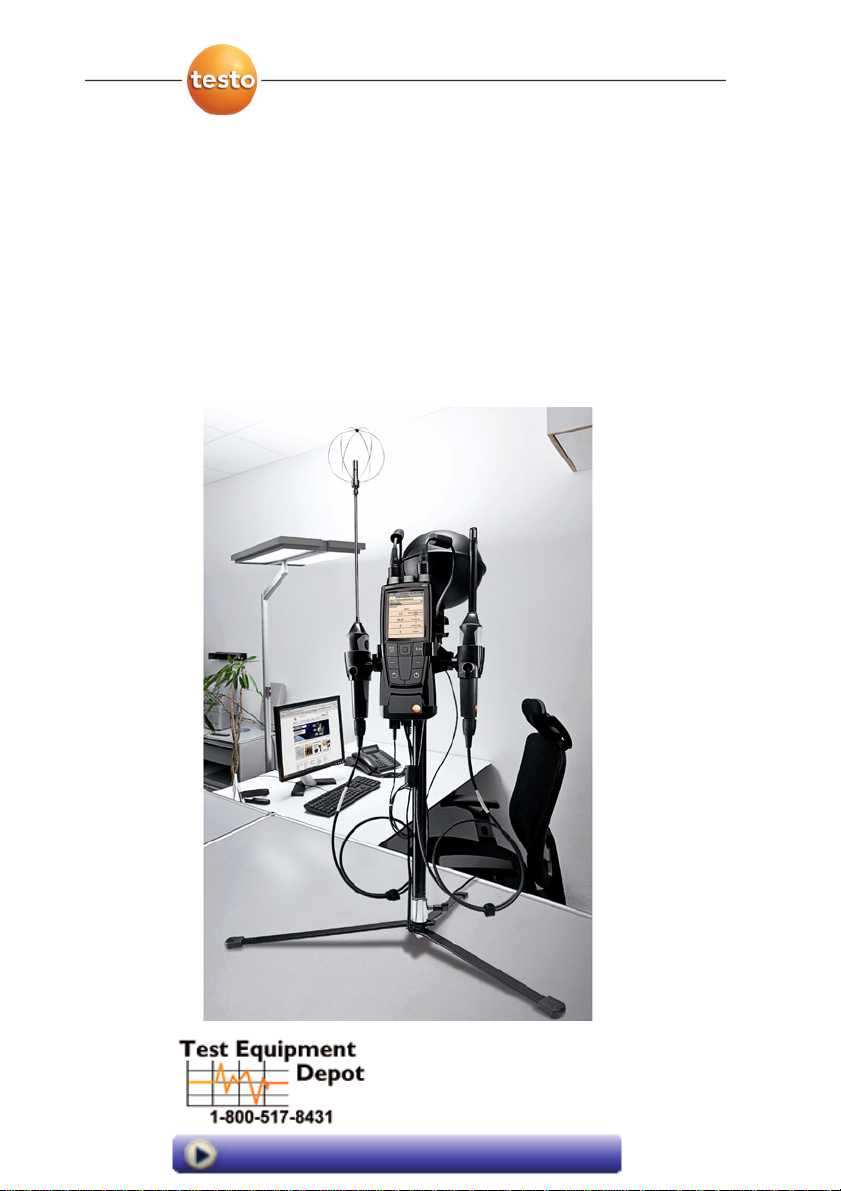

The tripod for comfort level measurement 0554 0743 is used to
secure the hand instrument and various probes for long-term
comfort level measurement.
Overview
1 Tripod adapter
2 Tripod holder
3 Tripod tube with two threaded connections (1/4' and 5/16')
4 Hand instrument holder
5 Transportation protection cap for thread
6 Tripod grip
7 Probe holder with 1/4' threaded connection
8 Replacement thread
Setting up the tripod
1. Screw the tripod tube into the tripod holder so that 1/4' threaded
connection is accessible (thicker end of the tripod tube pointing
up, see overview diagram).
2. Remove transportation protection cap from 1/4' threaded
connection.
3. Place tripod adapter (1) on tripod tube.
4. Fit knurled nuts (2).
5. Click hand instrument holder (3) into place in tripod adapter (1).
6. To attach additional probes, clamp the tripod grip (4) in the
required position on the tripod tube (e.g. for measuring
turbulence at ankle height).
7. Secure the probe holder (5) to the tripod adapter, hand
instrument holder and tripod grip in the required position
(horizontal/vertical).
8. Slide the testo 480 into the hand instrument holder and the
required probe into the probe holder, and feed the probe cable
through the guide (6).
Additional applications
The tripod tube can be used as an extension, for example for wheel
measuring head 100 mm (with optional spherical head art. no. 0554
0489 e.g. for measurements at ceiling vents).
