Testrite Visual Charisma Frame XSM Series Manuale utente
Page 1 of 2Version: 2
For proper assembly, it is important to notice that two frame-sides have brackets premounted, and two sides do not.
1. Using the screws provided, attach the two frame-sides without bracket to the rst frame side with brackets.
2. Connect the second frame-side with brackets to the assembled portion of the frame.
3. To install the graphic, take the corner with the pull tag on it and press about 6”-10”of silicone into the frame channel
corner A. Repeat for the opposite corner B. Repeat for the next corner C. Lastly, repeat for the nal corner D.
4. After all corners are pressed in, press the silicone into the frame channel at the mid-points on all four sides.
5. Press silicone into frame evenly between the corners and midpoints.
This prevents the graphic from bunching up or stretching too much and will ensure a smooth and tight t.
6. To remove the graphic from the frame, simply pull up on the pull tag.
7. FOR XSMB SERIES ONLY: Repeat graphic installation for reverse side (not shown).
NOTE: For assembly purposes, product shown below is a generic frame. Although the number of support bars and size
of frame may dier, instructions remain the same.
Charisma Frame™ - XSM Series
2.
3. 4.
1.
pull tag
pull tag
A
B
C
D
5. 6.
XSMA, Single-Sided Frame
XSMB, Double-Sided Frame
Floor Mounted Frame
Single Brackets for
Wall Mount
Double Brackets for
Floor Mount

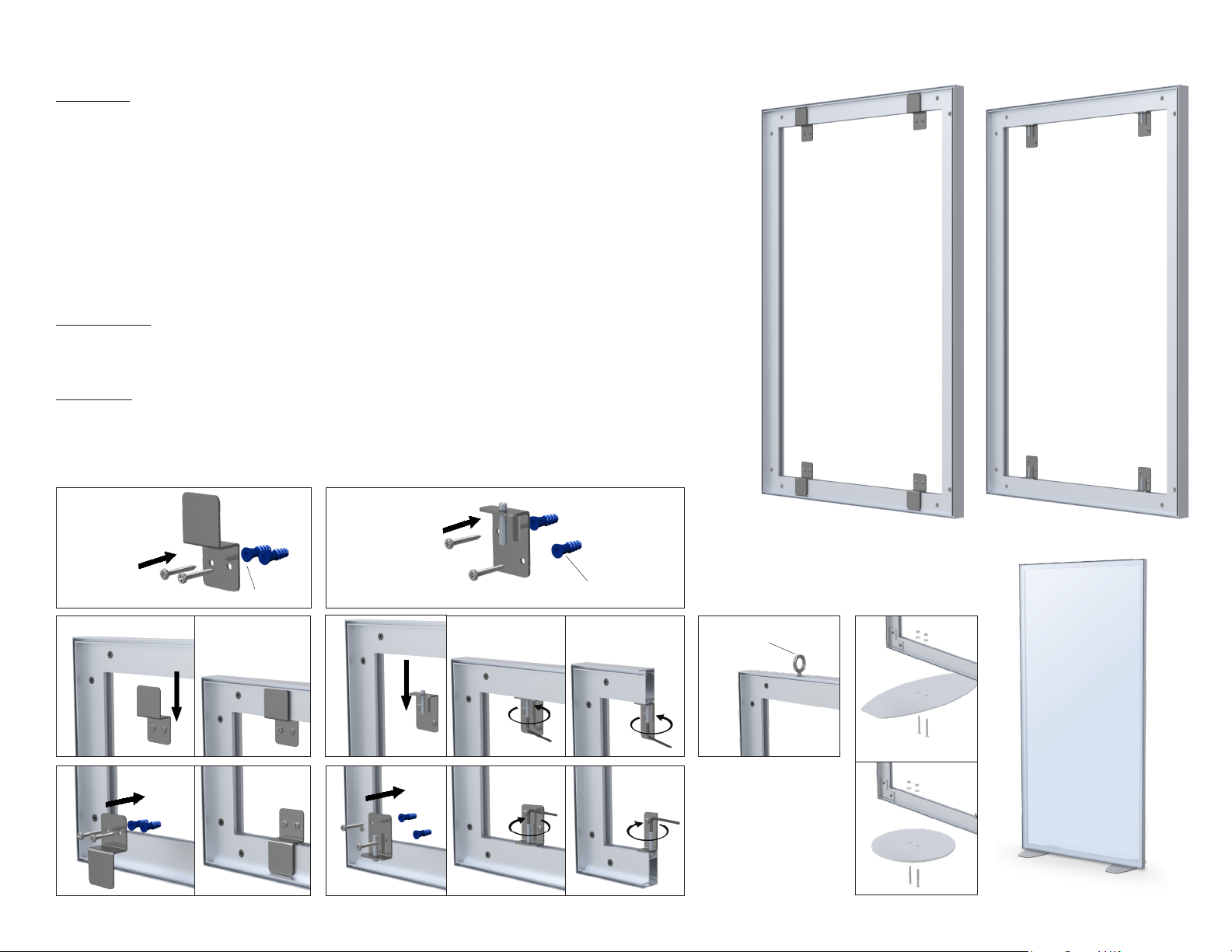

Page 2 of 2Version: 2
Wall Mount
Wall Mount Brackets
1. Mount top brackets onto wall. Use optional molly anchors if mounting to drywall.
2. Slide frame onto top brackets.
3. Mount bottom brackets to wall to secure frame. Use optional molly anchors if mounting to drywall.
Distortion Brackets - For leveling frame and eliminating sagging.
4. Mount top brackets onto wall. Use optional molly anchors if mounting to drywall.
5. Slide frame onto top brackets tighten adjustable screw so that it rests inside the frame channel.
6. Mount bottom brackets to wall to secure frame. Use optional molly anchors if mounting to drywall.
Tighten adjustable screw so that it rests inside the frame channel.
Ceiling Mount
XSMA (Single-Sided Frame) and XSMB (Double-Sided Frame)
7. Connect hanging wires to eyebolts on frame.
Base Mount
XSMA (Single-Sided Frame) and XSMB (Double-Sided Frame)
8. Determine base style. Attached the base to the frame using the Phillips screws provided.
NOTE: Size of frame may dier, instructions remain the same.
Charisma Frame™ - XSM Series Mounting Options
XSMA w/Standard Brackets XSMA w/Distortion Brackets
XSMA/XSMB with Base Plates
molly anchors molly anchors
Cut View
Wall Mount
Bracket
Distortion
Bracket
2.
3.
1. 4.
5.
6.
Base Mount
8.
Ceiling Mount
Cut View
Eyebolt
7.
