Tevion TSD-DR40HD Manuale utente

Tevion TSD-DR40HD User Guide

Document Id: SE080325

Written by

Sven Eriksen, Melbourne, Australia

Email: svencsh@optushome.com.au

Revision 1.3

http://members.optusnet.com.au/democsh/documents/tevion-tsddr40hd-userguide.pdf

Last saved:

18-Sep-08

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.docTevion TSD-DR40HD DVR User Guide.doc 18/9/08 Page ii

Change Register for this document

Date Revision Description of Change Changed By

20-May-08 1.0 Initial version Sven Eriksen

03-Jun-08 1.1 Added section on transferring a video tape cassette recording

from VCR to DVD

Sven Eriksen

09-Jul-08 1.2 Updated Section 3.1 which is now called “Searching for

Australian Free-to-Air TV Channels

Sven Eriksen

31-08-08 1.3 Updated Section 5.4.2 Compiling a DVD by copying from HDD

to DVD

Sven Eriksen

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.docTevion TSD-DR40HD DVR User Guide.doc 18/9/08 Page iii

Contents

1. Introduction..............................................................................................................1

1.1 Purpose.................................................................................................................................................................. 1

1.2 Home Entertainment System Components............................................................................................................ 1

1.3 Home Entertainment System Remote Controls..................................................................................................... 1

1.4 The Tevion TSD-DR40HD Digital Video Recorder (DVR) ................................................................................. 1

1.5 Some Technical Terms.......................................................................................................................................... 2

1.6 Front Panel ............................................................................................................................................................ 3

1.7 Rear Panel ............................................................................................................................................................. 3

1.8 Power/Mode Indicator........................................................................................................................................... 3

1.9 Display Panel ........................................................................................................................................................ 4

1.10 System Messages................................................................................................................................................... 4

1.11 Remote Control ..................................................................................................................................................... 5

2. Connections ..............................................................................................................6

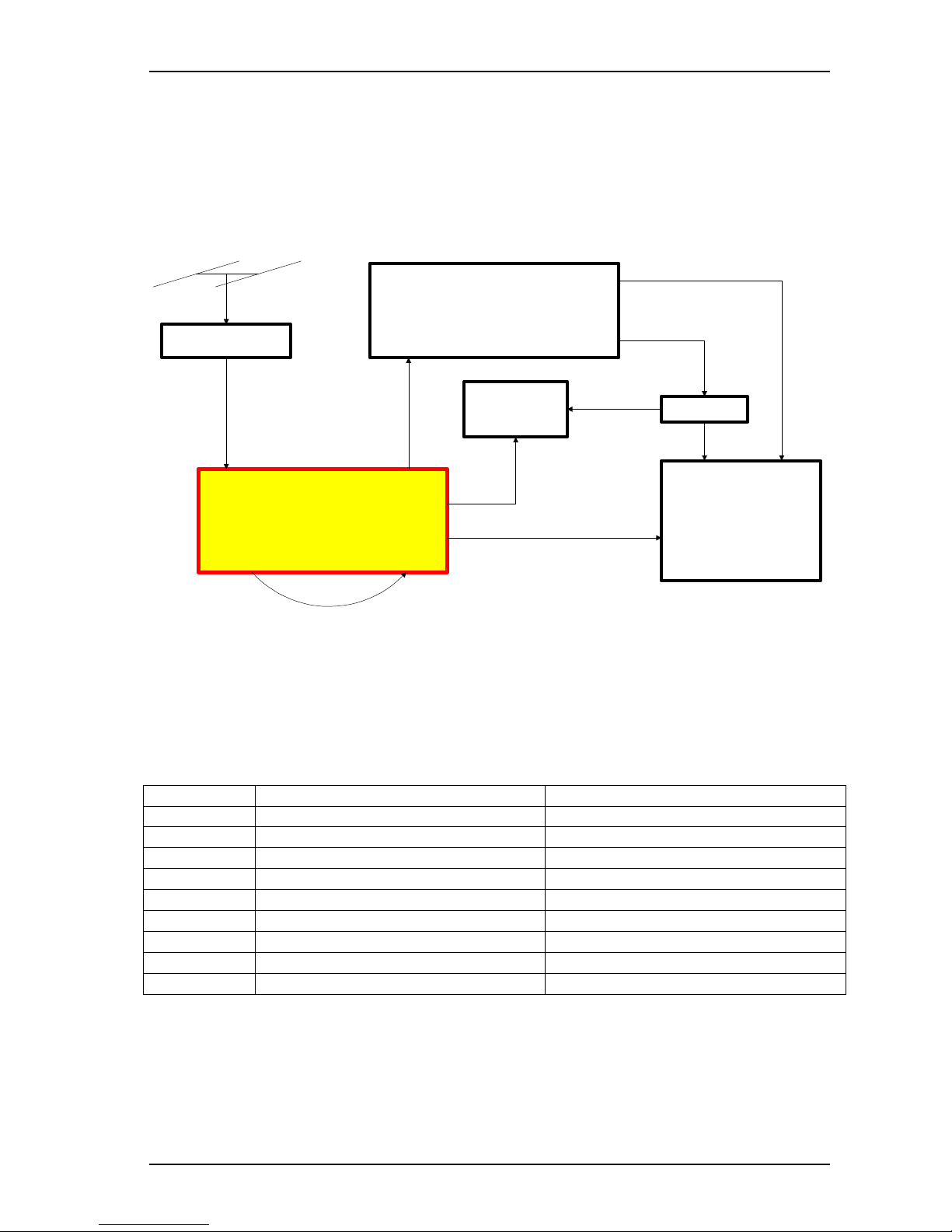

2.1 Connection Diagram ............................................................................................................................................. 6

2.2 Connection Details ................................................................................................................................................ 6

3. Initial DVR Set Up Procedure ................................................................................7

3.1 Searching for Australian Analogue TV Channels ................................................................................................. 7

3.2 Searching for Australian Digital TV Channels...................................................................................................... 8

3.3 Complete List of Australian TV Channels found by Scan..................................................................................... 8

3.4 Deleting a TV Channel from List .......................................................................................................................... 9

3.5 Reassigning Program Numbers for TV Channels in List .................................................................................... 10

3.6 Renaming Australian TV Channels in List.......................................................................................................... 11

4. DVR Set Up Menus in Detail ................................................................................12

4.1 Setup Menu – Recording..................................................................................................................................... 12

4.2 Setup Menu – Video............................................................................................................................................ 13

4.3 Setup Menu – Audio ........................................................................................................................................... 14

4.4 Setup Menu – Language...................................................................................................................................... 14

4.5 Setup Menu – Date/Time .................................................................................................................................... 14

4.6 Setup Menu – Preferences................................................................................................................................... 15

4.7 Setup Menu – Time Shifting and Hard Disk Management.................................................................................. 15

4.8 Setup Menu – DVB............................................................................................................................................. 16

5. Using the DVR........................................................................................................17

5.1 Watching TV Live............................................................................................................................................... 17

5.1.1 Watching a TV Program (Digital Video Brodcast) Live............................................................................................. 17

5.1.2 Time-Shifting while Watching a TV Program (Digital Video Brodcast) Live............................................................ 17

5.2 Playing Discs....................................................................................................................................................... 18

5.2.1 Playing CDs................................................................................................................................................................ 18

5.2.2 Playing DVDs............................................................................................................................................................. 18

5.3 Using the Hard Disk Drive.................................................................................................................................. 19

5.3.1 Watching a TV Program from HDD........................................................................................................................... 19

5.3.2 Recording a TV Program (DVB) Live on HDD.......................................................................................................... 19

5.3.3 Scheduling the Recording of a TV Program on HDD................................................................................................. 20

5.3.4 Deleting a TV Program Recorded on HDD ................................................................................................................ 22

5.3.5 Changing the Title of a TV Program Recorded on HDD ............................................................................................ 23

5.3.6 Changing the Index Picture of a TV Program Recorded on HDD............................................................................... 24

5.3.7 Hiding Unwanted Segments from a TV Program Recorded on HDD......................................................................... 25

5.4 Using the DVD Recorder .................................................................................................................................... 26

5.4.1 Scheduling the Recording of a TV Program on DVD................................................................................................. 26

5.4.2 Compiling a DVD by Copying from HDD to DVD.................................................................................................... 28

5.4.3 Transferring a Video Tape Cassette Recording to DVD............................................................................................. 29

5.4.4 Finalising a DVD for External Use............................................................................................................................. 31

6. Troubleshooting, Warranty and Technical Support..........................................32

6.1 Troubleshooting Guide........................................................................................................................................ 32

6.2 Warranty.............................................................................................................................................................. 33

6.3 Customer Service from Pebble Electronics ......................................................................................................... 33

6.4 Help Line Queries ............................................................................................................................................... 34

7. Conclusion ..............................................................................................................36

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 1

1. Introduction

1.1 Purpose

The purpose of this document is to explain setup, performance and common usage of the

Tevion DVR TSD-DR40HD Digital Video Recorder (DVR).

The DVR was purchased from Aldi, Brandon Park Shopping Centre, Glen Waverley, Victoria,

on the 20th March 2008 for inclusion in our home entertainment system.

1.2 Home Entertainment System Components

Our Home Entertainment System now includes the following components:

•Roof-top Television Antenna providing TV/FM signal

•Television Antenna Booster providing stronger TV/FM signal to two devices

•Three-Way Splitter for feeding TV antenna signal to three devices

•Bang & Olufsen Beomaster 7000 Radio/Amplifier (for quality sound)

•Bang & Olufsen Beocord 8000 Audio Tape Cassette Player

•Toshiba 2918DH Television (TV)

•Panasonic NV-HV60 Video Cassette Recorder (VCR)

•Tevion TSD-DR40HD Digital Video Recorder & DVD/HDD Recorder (DVR)

1.3 Home Entertainment System Remote Controls

Our Home Entertainment System includes the following remote control devices:

•Bang & Olufsen Beolink 7000 Remote Control (large BRC for complete control)

•Bang & Olufsen Beolink 1000 Remote Control (small BRC for partial control)

•Toshiba 2918DH Television Remote Control (TRC)

•Panasonic NV-HV60 Video Cassette Recorder Remote Control (VRC)

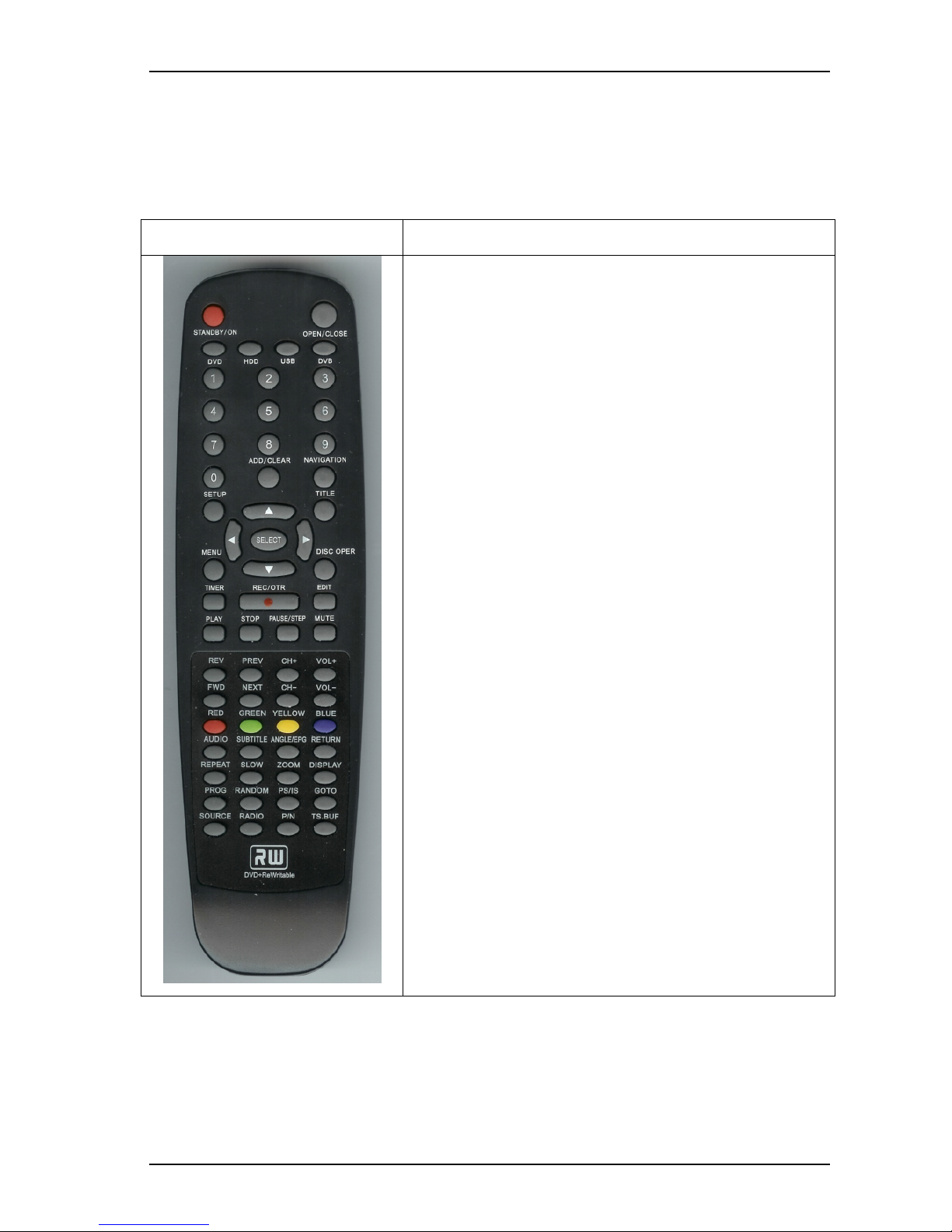

•Tevion TSD-DR40HD Digital Video Recorder Remote Control (DRC)

•Logitech Harmony 880 Universal Remote Control (LRC)to replace all of the above

1.4 The Tevion TSD-DR40HD Digital Video Recorder (DVR)

The DVR is capable of processing and recording various video signals into high quality DVD

disc and HDD, such as the input signals of TV stations, ordinary disc players and Digital Video

cameras.

In addition, the machine has all the functions of an ordinary DVD player. It can record on hard

disk and DVD and it can copy from hard disk to DVD.

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 2

1.5 Some Technical Terms

TERM MEANING

BRC Beomaster Remote Control (s). Small one in bedroom and large one in

lounge room.

Button A button on a Remote Control (shown in Bold Face, e.g. DVB) or

displayed on screen.

Chapter and Track Each title can contain one or more “Chapters” or “Tracks”

DRC DVR Remote Control

DVD Digital Versatile Disk. A removable storage device for video and data

files. We make a distinction between:

•DVD-R or DVD+R, disks that can be recorded once only.

•DVD-RW or DVD+RW, disks that are rewritable.

Recordings on rewritable DVD disks can be done in several sessions

(prior to disk finalisation).

DVDs recorded can always be played back on this device, but to make a

recorded DVD playable on a computer and other DVD players a process

of “Disk Finalisation” needs to be performed.

DVR Digital Video Recorder. A machine that can record video using digital

(rather than analogue) technology. This term is perhaps not used as

much as PVR, but is probably the better term.

HDD Hard Disk Drive. A storage device for large amounts of data. The

Tevion DVR has an HDD capacity of 400Gb,

Key A key on a Remote Control (shown in Bold Face, e.g. HDD)

PVR Personal Video Recorder. A machine that can record video not just for

you but for anyone else who is around.

Recording Quality This device can record on HDD and DVD in six different densities

giving rise to six different levels of recording quality each taking up

increasing amounts of space:

SPEED DVD HDD QUALITY

SLP (Super Long Play) 6 hrs 562 hrs Low

EP (Extended Play) 4 hrs 371 hrs Moderate

LP (Long Play) 3 hrs 261 hrs Normal

SP+ (Standard Play +) 2.5 hrs 221 hrs Good

SP (Standard Play) 2 hrs 191 hrs Very Good

HQ (High Quality) 1 hrs 94 hrs Best

Title Each recording is called a “Title” or a “program”. The term “Title” is

also used for a text field associated with a recorded TV program in

which you can enter a textual name to identify the program.

TRC TV Remote Control

VCR Video Cassette Recorder. Amachine that can record video on video

tape cassettes.

VRC VCR Remote Control

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 3

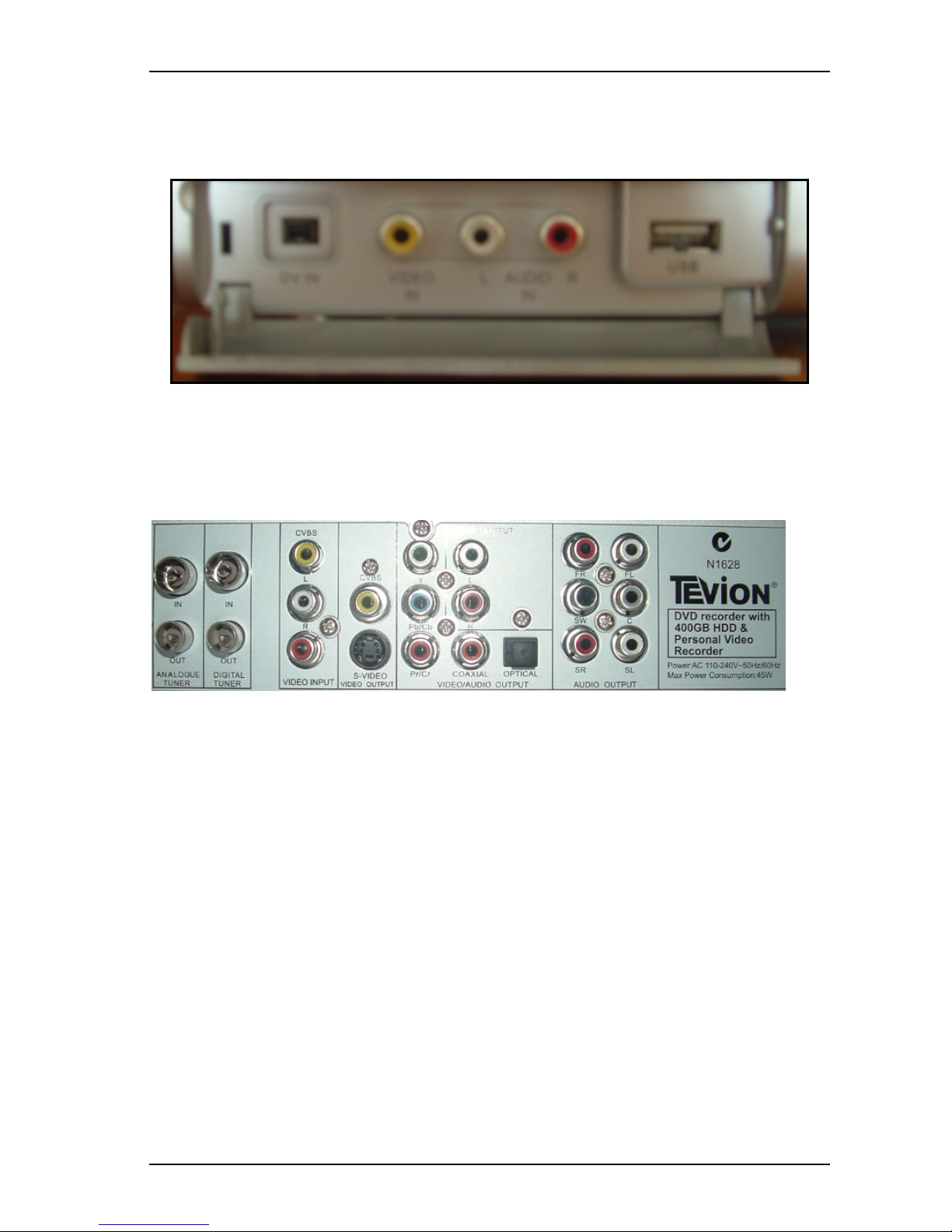

1.6 Front Panel

The Front Panel of the DVR allows basic operation without the use of the Remote Control.

On the left is a door leading to some further connection sockets:

1394 DV IN VIDEO IN AUDIO IN USB IN

1.7 Rear Panel

The Rear Panel of the DVR contains a number of sockets allowing connection to other

television and hi-fi equipment.

1.8 Power/Mode Indicator

Alarge circular Power Indicator is located at the right corner on the front of the unit. When the

unit is plugged in and powered on, the power indicator will be lit in one of three different

colours, depending on the current mode of operation:

Red Unit is in stand by mode, meaning the unit is currently not in use. Press STAND

BY/ON button to place it into playback mode.

Blue Unit is in playback mode, meaning the unit is ready for normal operation, such as

watching a TV program or playing a DVD.

Purple Unit is in recording mode, meaning the unit is currently recording a program on

HDD or DVD. The unit cannot be used for any other purpose (except watching the

program being recorded) until the current recording task has been completed.

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 4

1.9 Display Panel

The Display Panel of the DVR makes use of a number of Indicators to provide information

about what the unit is currently being used for (media type, chapter/track, elapsed time, etc.).

The Display panel will be blank, if the unit has been powered off.

1DVD Indicator 8 Pause Indicator

2 SVCD/VCD/CD Indicator 9 Chapter Indicator

3 MP3 Indicator 10 Elapsed Time Indicator

4Timer Recording Indicator 11 Dolby Digital Indicator

5 Recording Indicator 12 Surround Sound Indicator

6 Play Back Control (PBC) Indicator 13 TV Indicator

7Play Indicator 14 Time Shift Indicator

1.10 System Messages

As a result of tasks being initiated by the user, system status and other messages will be

displayed on the TV screen.

For example, a couple of minutes prior to a scheduled hard disk recording actually starting, the

following message will appear on screen:

Notice:

Atimer recording task is preparing to be executed.

Please wait…. Only STOP key can terminate this.

When the recording actually starts, the following system status message will be displayed on

screen:

Sys. State: RECORDING

Record To: Hard Disk AS: EP(50min/GB)

Elapsed time: hh:mm:ss Remain Time: hh:mm:ss

When the recording has stopped, the following system status message will be displayed on

screen:

Sys. State: STOP

Record To: Hard Disk AS: EP(50min/GB)

Elapsed time: 00:00:00 Remain Space: xx:xx:xx

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 5

1.11 Remote Control

The DVR Remote Control (DRC) allows operational control of the DVR for television viewing

and recording (on DVD or HDD), playing CDs and DVDs as well as recording from/to USB

and/or DV devices attached at the front or rear of the unit.

REMOTE CONTROL BUTTON FUNCTION

STANDBY/ON

OPEN/CLOSE

DVD

HDD

USB

DVB

Buttons 0-99

ADD/CLEAR

NAVIGATION

SETUP

TITLE

SELECT

DISC OPER

TIMER

REC/OTR

EDIT

PLAY

STOP

PAUSE/STEP

MUTE

REV

FWD

CH+/CH-

VOL+/VOL

RED

GREEN

YELLOW

BLUE

AUDIO

SUBTITLE

ANGLE/EPG

RETURN

REPEAT

SLOW

ZOOM

DISPLAY

PROG

RANDOM

PS/IS

GOTO

SOURCE

RADIO

P/N

TS/BUF

Turn DVR Off Red Light) or On (Blue Light)

Open or close DVD tray

Use DVD for playback or recording

Use Hard Disk for playback or recording

Use USB device for playback or recording

Use TV Tuner(s) for playback or recording

Select Program n for playback or recording

Mark programs for copying from HDD to DVD

Enter On-Screen Display (OSD) Navigation Menus

Enter Setup Menus

Show list of programs, or edit program title

Select current choice (also Up, Down, Left, Right)

Enter Menu system

Enter DVD editing menus

Enter Timer Recording Menus

Each Press gives 30 mins of One Touch Recording

Enter Edit menu for DVD recordings

Start or resume playback

Stop playback (twice to “rewind”)

Pause or move forwards in steps (frames)

Turn speakers off or back on

Reverse through current program (DVD or HDD)

Go forwards in current program (DVD or HDD)

Go to previous chapter or track (DVD or HDD)

Go to next chapter or track (DVD or HDD)

Change channel up or down (DVB)

Change volume up or down (DVB, DVD, HDD)

Use for Digital Channel setup and management

Select an audio track on a disk

Enter subtitle language menu (some DVDs)

Change viewing angle (some DVD) or Open EPG (Radio)

Return to upper level menu

Enter Repetition menus (DVD)

Slow down HDD/DVD video display speed/Sort HDD program list

Enlarge screen image (3 sizes)

Show timeline for a few seconds

Edit program playlist (does not appear to work?)

Play DVD or CD tracks in random sequence

Hold down for 3 secs to toggle TV output format between PS and IS

Use with DVD for repositioning by title, chapter or time

Enter Source Selection menu

Select from list of digital radio stations

Toggle TV system between PAL and NTSC

Enter time shift mode (does not appear to work?)

The PROG and the TS/BUF buttons do not appear to work. Further investigation or technical

support is required to resolve this.

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 6

2. Connections

2.1 Connection Diagram

The following diagram provides a pictorial view of the equipment and connections used in our

Home Entertainment System.

Toshiba TV

Roof-top TV/FM

Antenna

Tevion TDS-DR40HD

Hard Disk / DVD

Digital Video Player /

Digital Video Recorder

Bang & Olufsen

Beomaster 7000

Radio/Amplifier

Panasonic

VCR

3-Way Splitter

Booster

Audio

Output

FR/FL

Digital Tuner IN

Digital Tuner OUT Analog Tuner IN

Analog Tuner OUT

RF IN RFOUT

S-Video

OUT S-Video IN

TV/AUX

Antenna IN Video 1 IN

Video/Audio OUT

RCA

COAX

2.2 Connection Details

Cable connections are shown below to facilitate reconnections should that be required. Most

cables are Quad Shielded Radio Frequency (RF) Coaxial type. By utilising the “pass-

through/loop” features on both DVR and VCR, the cabling has been made as simple as possible

giving priority to the DVR and VRC and leaving only Radio/Amplifier and TV to be connected

via a splitter. One socket on Booster and one socket on Splitter are still unused.

Cable Type Connect One End of Cable To Connect Other End of Cable To

RF/Coaxial Antenna socket in wall Antenna socket on Antenna Booster

RF/Coaxial TV OUT socket 1 on Booster Digital Tuner IN socket on DVR

RF/Coaxial Digital Tuner OUT socket on DVR Analogue Tuner IN socket on DVR

RF/Coaxial Analogue Tuner OUT socket on DVR RF IN socket on VCR

RF/Coaxial RF OUT socket on VCR IN socket on 3-Way Splitter

RCA Video/Audio OUT socket on VCR Video-1 IN on Toshiba TV

RF/Coaxial Out socket 1 on 3-Way Splitter FM Antenna IN on Beomaster 7000

RF/Coaxial Out socket 2 on 3-Way Splitter Antenna IN on Toshiba TV

RCA/DIN Audio Output FR/FL on DVR TV/Aux socket on Beomaster 7000

Computer System HyperTools Tevion TSD-DR40HD User Guide

F:\Our Files\Our Computers\User Guides\Tevion (Wintal)\Tevion TSD-DR40HD DVR User Guide.doc 18/9/08 at 21:49 Page 7

3. Initial DVR Set Up Procedure

After all device connections have been accomplished a number of initial setup procedures will

need to be performed. Areas shaded in grey may or may not be needed as part of the procedure

(they are mostly to do with our particular procedures for powering devices up or down).

3.1 Searching for Australian Free-to-Air TV Channels

Since we are (in Australia) still using analogue TV signals, the available channels need to be

configured:

1. On TRC press Power button to turn on the TV (if not already on).

2. On TRC press button until

is shown.

3. On DRC press STANDBY/ON button to turn on the DVR and wait until “No disc”

message is shown.

4. On DRC press SETUP button to enter “Setup” menus and display the “Setup Menu –

Recording”.

5. On DRC press Right Arrow button to actually enter “Setup Menu – Recording”.

6. On DRC press Down Arrow button to “Auto Scan Channel” option and press SELECT

button.

7. On DRC if prompted to confirm the action just press SELECT button.

8. On DRC in “Scan Channels” screen press SELECT button leaving “Tuner input source”

set to “Air”.

9. On DRC press SELECT button to start a search for Analogue TV Channels.

10. The actual scanning will take a minute or two and will probably find six Fre-to-Air TV

channels. Each channel found is identified by a program number (Pxxx) and a channel

number (CHzzz).

11. On DRC press Down Arrow button to “Program Table”. Then press SELECT button to

enter the “Sort” screen where the list of program numbers and channel names will be

visible. The list is as follows:

P003 CH002 (should be renamed ABC01)

P009 CH007

P011 CH009

P013 CH010

P025 CH028 (should be renamed SBS28)

P028 CH031

12. On DRC press Down Arrow button to get to P003 CH002 then press the SELECT

button to enter the “Modify channel information” screen.

13. On DRC press Down Arrow button to move down to the Name field and change it one

character at a time to the desired name (e.g. CH002 changed to ABC01) and leaving all

other settings as they are.

14. Repeat Steps 11-13 renaming CH028 to SBS28.

15. On DRC press SETUP button to exit “Setup” menus.

Altri manuali per TSD-DR40HD

Indice

Altri manuali Tevion Registratore digitale

Tevion

Tevion TSD-DR40HD Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
