Texas Instruments TPS650231EVM Manuale utente

User's Guide

SLVU394–October 2010

TPS65023B/TPS650231EVM

The characteristics, operation, and use of the TPS65023B/TPS650231EVM-664 evaluation module (EVM)

are described in this document. This EVM is designed to help the user evaluate and test the various

operating modes of the TPS65023B/TPS650231. This user’s guide includes setup instructions for the

hardware and software, a schematic diagram, a bill of materials, and PCB layout drawings for the

evaluation module.

Contents

1 Introduction .................................................................................................................. 1

2 Electrical Performance Specification ..................................................................................... 2

3 Input/Output Connector Description ...................................................................................... 3

4 Board Layout ................................................................................................................ 6

5 Schematic and Bill of Materials .......................................................................................... 11

List of Figures

1 Assembly Layer ............................................................................................................. 6

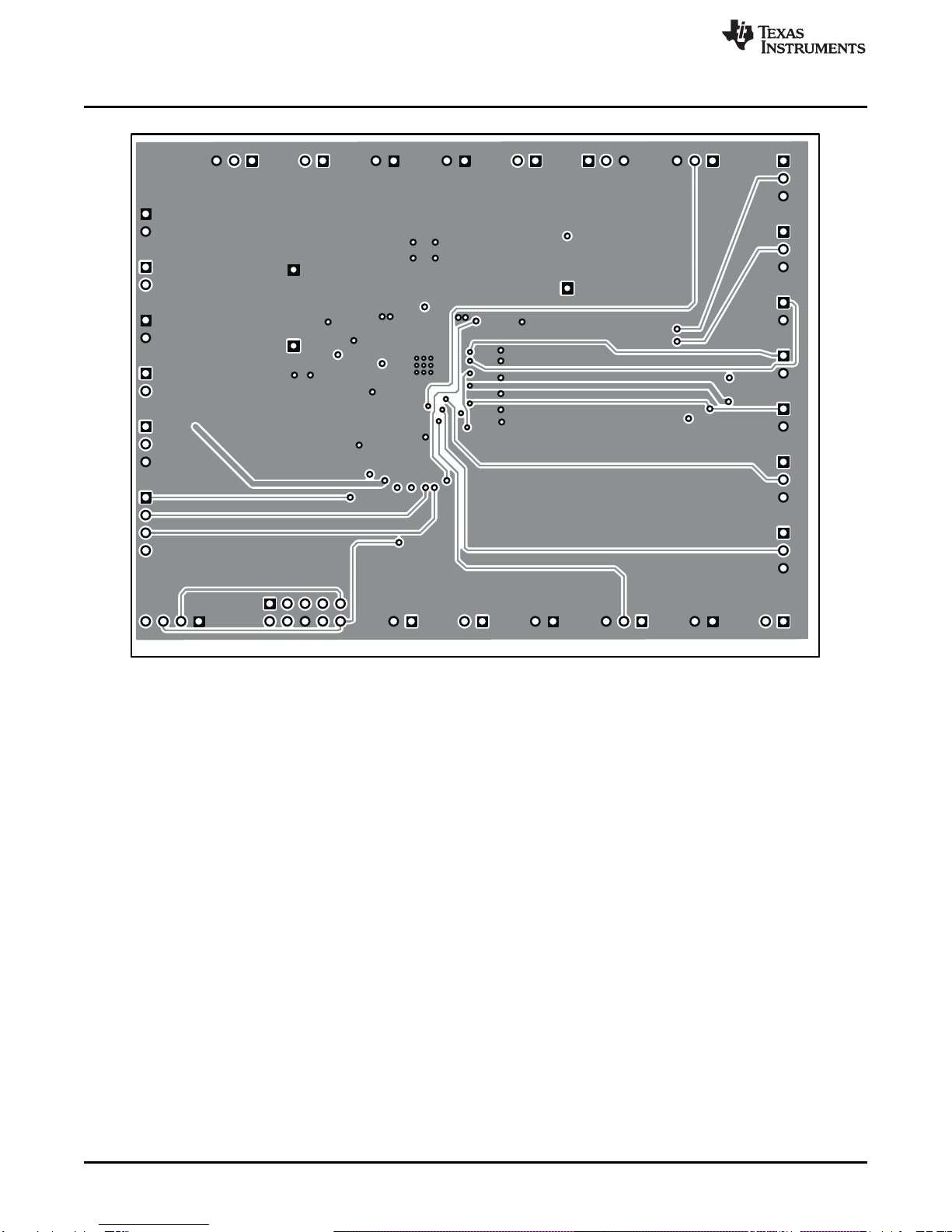

2 Top Layer Routing .......................................................................................................... 7

3 Layer-2 Routing, GND Plane.............................................................................................. 8

4 Layer-3 Routing, Vin Plane................................................................................................ 9

5 Bottom Layer Routing..................................................................................................... 10

6 TPS65023B/TPS650231EVM-664 Schematic......................................................................... 11

List of Tables

1 EVM Ordering Options ..................................................................................................... 2

2 Default LDO Output Voltages TPS65023B.............................................................................. 2

3 Default LDO Output Voltages TPS650231 .............................................................................. 2

4 TPS65023B/TPS650231EVM-664 Bill of Materials................................................................... 12

1 Introduction

The Texas Instruments TPS65023B/TPS650231EVM is an integrated power management integrated

circuit (IC) for applications that are powered with one Li-ion or Li-polymer cell and require multiple power

rails. The TPS65023B/TPS650231 contains three highly efficient switching step-down converters, two

LDOs, and additional status and I/O pins. The device is controlled via an I2C interface (HPA172).

1.1 Requirements

In order for this EVM to operate properly, the following components must be connected and properly

configured.

1.1.1 Personal Computer

A personal computer with a USB port is required to operate this EVM. The TPS65023B/TPS650231

interface software, which is run on the personal computer (PC), communicates with the EVM via the PC

USB port. The user sends commands to the EVM as well as reads the contents of the

TPS65023B/TPS650231 internal registers through the USB port.

SLVU394–October 2010 TPS65023B/TPS650231EVM

Electrical Performance Specification

www.ti.com

1.1.2 Printed-Circuit Board Assembly

The TPS65023B/TPS650231EVM-664 PCB contains the TPS65023B/TPS650231 IC and its required

external components. This board contains several jumpers and connectors that allow the user to

customize the board for specific operating conditions.

1.1.3 USB-to- I2C Adapter

The USB-to-I2C Adapter, also known as the HPA172, is the link that allows the PC and the EVM to

communicate. The adapter connects to the PC with the supplied USB cable on one side and to the EVM

though the supplied ribbon cable on the other. When the user writes a command to the EVM, the interface

program, which is run from the PC, sends the command to the PC USB port. The adapter receives the

USB command and converts the signal to an I2C protocol. It then sends the I2C signal to the

TPS65023B/TPS650231 board. When the user reads a status register from the EVM, the PC sends a

command to read a register on the EVM. When the EVM receives the command, it reports the status of

the register via the I2C interface. The adapter receives the information on the I2C interface, converts it to a

USB protocol, and sends it to the PC.

1.1.4 Software

Texas Instruments provides software to assist the user in evaluating this EVM. To install the software, go

to the Texas Instruments Web page and download the latest software version from the TPS65023B or

TPS650231 product folder. Once you have downloaded the software, execute the setup file, and follow

the instructions given.

1.2 Features

• Three high-efficiency DC/DC step-down converters (1.7 A/1.2 A/1 A)

• 2 x 200-mA low-dropout (LDO) regulators

• 30-mA RTC (Reel Time Clock) LDO

• I2C Interface (100-ns setup and hold time)

• Dynamic voltage scaling DCDC1

2 Electrical Performance Specification

Table 1. EVM Ordering Options

Default Output Voltages

Orderable EVM Device Part

Number Number DCDC1 DCDC2 DCDC3 LDO1 LDO2

TPS65023BEVM-664 TPS65023B 1.2V / 1.6V 1/8V / 3.3V 1.8V / 3.3V SeeTable 2 SeeTable 2

TPS650231EVM-664 TPS650231 1.2V / 1.6V n/a 1.8V / 3.3V See Table 3 See Table 3

Table 2. Default LDO Output Voltages TPS65023B

DEFLDO2 DEFLDO1 VLDO1 VLDO2

0 0 1.3 V 3.3 V

0 1 2.8 V 3.3 V

1 0 1.3 V 1.8 V

1 1 1.8 V 3.3 V

Table 3. Default LDO Output Voltages TPS650231

DEFLDO2 DEFLDO1 VLDO1 VLDO2

0 0 1.3 V 3.3 V

0 1 2.8 V 3.3 V

1 0 1.3 V 1.8 V

1 1 2.1 V 3.3 V

2TPS65023B/TPS650231EVM SLVU394–October 2010

Submit Documentation Feedback

www.ti.com

Input/Output Connector Description

3 Input/Output Connector Description

This section describes the jumpers and connectors on the EVM, as well as how to properly connect, set

up, and use the TPS65023B/TPS650231EVM-664.

J1 – VINInput voltage from external power supply, recommended maximum 5.5 V. Input current depends

on load but typically is less than 2 A.

J2 – GND

This is the return connection for VIN.

J3 – VINLDO/GND

Input voltage and return for LDO1 and LDO2. Resistor R20 connects this pin to VIN. If an

external power supply is used, remove R20. Recommended maximum input voltage is 5.5 V.

J4 – VSYSIN/GND

Input voltage and return for VSYSIN, one of the input voltages for RTC. Resistor R21 can be

used to connect this input to VIN. If an external power supply is used, remove R21.

Recommended maximum input voltage is 4 V.

J5 – VBACKUP/GND

Input voltage and return for VBACKUP, one of the input voltages for RTC. There are no onboard

connections to a voltage input. Recommended maximum input voltage is 4 V.

J6 – VRTC/GND

Output voltage from RTC circuit.

J7 – Fault Outputs

Four fault outputs are available on this connector:

PWRFAIL – Fault occurs when input voltage is less than 3 V. Pulled up to VRTC when safe; low

for fail.

INT – Fault occurs when a fail is on an input or output voltage; acts as a sum fail. Pulled up to

VIN when safe; low for fail.

RESPWRON – Low reset signal is controlled by SW1, 144 ms. Pulled up to VIN normally.

LOWBAT – Fault occurs when input voltage is less than 3.6 V. Pulled up to VIN when safe; low

for fail.

J8 – I2CThis header duplicates the I2C signals from the J20 interface connector. I2C data (SDA) and

clock (SCL) can be accessed on this header

J9 – VDCDC1

Output from DCDC1 switching regulator maximum output current 1.7 A; default voltage setting is

3.3 V.

J10 – GND

Return for VDCDC1.

J11 – VDCDC2

Output from DCDC2 switching regulator; maximum output current 1.2 A.

J12 – GND

Return for VDCDC2

J13 – VLDO1

Output from low-dropout regulator VLDO1; maximum output current 200 mA.

J14 – GND

Return for VLDO1

J15 – VLDO2

Output from low-dropout regulator VLDO2; maximum output current 200 mA.

J16 – GND

Return for VLDO2.

SLVU394–October 2010 TPS65023B/TPS650231EVM

Input/Output Connector Description

www.ti.com

J17 – VDCDC3

Output from switching regulator DCDC3; maximum output current 1 A.

J18– GND

Return for VDCDC3.

J19 – J19 is the interface connector for the I2C interface. Connect a 10-pin ribbon cable between J13

and the USB-to-GPIO interface.

JP1 – DEF1

Sets default voltage for DCDC1, 1.2 V or 1.6 V.

JP2 – DEF2

Sets default voltage for DCDC2, 3.3 V or 1.8 V, in TPS65023B (HPA664-001) configuration. In

the TPS650231, no default output voltage options are available. In this case, the output voltage

is adjustable with an external voltage divider R3, R2. The default setup is 1.2 V in the factory

EVM (HPA664-002) configuration. See section x for advanced voltage scaling options..

JP3 – DEF3

Sets default voltage for DCDC3, 3.3 V or 1.8 V.

JP4 – DCDC1 ON/OFF

EN for DCDC1 converter; default setting is ON

JP5 – DCDC2 ON/OFF

EN for DCDC2 converter; default setting is ON.

JP6 – DCDC3 ON/OFF

EN for DCDC3 converter; default setting is ON.

JP7 – LDO ON/OFF

EN for both LDO1 and LDO2 regulators; default setting is ON.

JP8 – DEFLDO1

Sets default voltage for LDO1 and LDO2 in combination with DEFLDO2. (See Table 2 for

TPS65023B and Table 3 for TPS650231 - defaults LDO output voltages.)

JP9 – DEFLDO2

Sets default voltage for LDO1 and LDO2 in combination with DEFLDO1. (See Table 2 for

TPS65023B and Table 3 for TPS650231 - defaults LDO output voltages.)

S1 – HOT_RST

S1 is a normally open, momentary pushbutton switch that, when pressed, connects the

HOT_RST input of the TPS650231 to GND, generating the HOT_RESET pulse. HOT_RESET

pin is pulled up externally.

3.1 Setup

The following steps must be followed before the EVM can be operated.

1. Install the TPS65023B/TPS650231EVM software.

2. Connect input voltages and loads to the EVM.

3. Configure all EVM jumpers to factory setting.

JP4–ON JP1–1.6V JP3–1.8V

JP2–1.8V JP5–ON JP6–ON

JP7–ON JP9–High JP8–High

4TPS65023B/TPS650231EVM SLVU394–October 2010

Submit Documentation Feedback

)

()VLDOREF_V())

(REF_VDCDC_Vout 3

12 ´-++´=

www.ti.com

Input/Output Connector Description

4. Connect the ribbon cable between the EVM and the USB-TO-GPIO (HPA172) adapter.

5. Connect the USB cable between the computer and the HPA172EVM.

6. Turn on all supplies.

7. Run the TPS65023B/TPS650231EVM software

3.2 Modifications

3.2.1 Setting the Output Voltage

The TPS65023B features two default output voltages. These output voltages can be selected by pulling

DEFDCDC2 high – selecting the higher default output voltage – or pulling DEFDCDC2 low – selecting the

lower default output voltage.

In addition, the output voltage of DCDC2 can be externally adjusted with the resistor divider network R3

and R6. The default configuration of the TPS65023BEVM-664 is that R3 and R6 are not assembled. The

default output voltage of DCDC2 can be selected with JP2.

Note that the default output voltage is selected once at startup of the device. Changing logic level of

DEFDCDC2 during operation does not affect the output voltage and is not allowed.

3.2.2 Setting the Output Voltage for DCDC2, TPS650231

The TPS650231 does not feature these default output voltages. The output voltages of DCDC2 is

externally adjustable only. The default configuration of the TPS650231EVM-664 is that R3 and R6 are not

assembled. JP2 is not assembled.

TPS650231 does not have the default output voltage feature, and this provides the benefit of external

voltage scaling options.

3.2.3 Simple Two-Point Voltage Scaling, TPS650231

DCDC2 does not have the previously described preset default output voltages. An external voltage scaling

circuit is on the EVM, and the output voltage of DCDC2 can be switched between two preset voltages.

This useful feature reduces the power consumption of an application processor in Low Power mode.

The voltage scaling circuit consists of JP2,Q1, R3, R6, and R24. The circuit uses a transistor (Q1) to

connect a resistor (R24) in parallel to the lower resistor of the feedback network (R6) of DCDC2.

Modifying the resistor network by paralleling R24 and R6 reduces the overall resistance of the lower

resistor and therefore increases the output voltage of the DC/DC converter. See Equation 1 and

Equation 2 to design R24. In the factory configuration, the components JP2, Q1, and R24 are not

assembled on the board.

3.2.4 Scaling the Output Voltage of DCDC2 From LDO2

Another approach to scale the DC/DC converter output voltage is to use an external adjustable voltage.

Any external adjustable voltage source can be used, e.g., output voltage of an digital-to-analog converter.

In the TPS65023B/TPS650231, LDO1 and LDO2 can be adjusted via I2C. The TPS65023B/TPS650231

provides the ability to feed the output voltage of LDO2 back to the resistor divider network, using R25, and

therefore scale the output voltage of DCDC2 based on the LDO2 output voltage.

In this configuration, R25, R3, and R6 need to be assembled. R24, R26, Q1, and R3 need to be removed.

(1)

From Equation 2 it can be seen that maximum DCDC1 output voltage occurs for minimum VLDO2, and

minimum DCDC1 output voltage occurs for maximum VLDO2.

To ensure that the desired DCDC1 output voltages can be adjusted, design the resistors R25, R3, and R6

according to and Equation 2 and Equation 2.

SLVU394–October 2010 TPS65023B/TPS650231EVM

)

(max),VLDOREF_V())

(REF_Vmin,DCDC_Vout 3

12 ´-++´=

)

(min),VLDOREF_V())

(REF_Vmax,DCDC_Vout 3

12 ´-++´=

Board Layout

www.ti.com

(2)

(3)

The most straight forward way is to choose a value for R6 according to the recommendations in the

converter data sheet.

4 Board Layout

This section provides the TPS65023B/TPS650231EVM-664 board layout and illustrations.

4.1 Layout

Board layout is critical for all switch mode power supplies. Figure 1 through Figure 5 show the board

layout for the TPS65023B/TPS650231EVM-664 PCB. The nodes with high switching frequencies and

currents are short and are isolated from the noise-sensitive feedback circuitry. Careful attention has been

given to the routing of high-frequency current loops. See the data sheet for specific layout guidelines.

Figure 1. Assembly Layer

6TPS65023B/TPS650231EVM SLVU394–October 2010

Submit Documentation Feedback

www.ti.com

Board Layout

Figure 2. Top Layer Routing

SLVU394–October 2010 TPS65023B/TPS650231EVM

Board Layout

www.ti.com

Figure 3. Layer-2 Routing, GND Plane

8TPS65023B/TPS650231EVM SLVU394–October 2010

Submit Documentation Feedback

www.ti.com

Board Layout

Figure 4. Layer-3 Routing, Vin Plane

SLVU394–October 2010 TPS65023B/TPS650231EVM

Board Layout

www.ti.com

Figure 5. Bottom Layer Routing

10 TPS65023B/TPS650231EVM SLVU394–October 2010

Submit Documentation Feedback

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Texas Instruments Hardware per computer

Texas Instruments

Texas Instruments SimpleLink CC3200 Wi-Fi Manuale utente

Texas Instruments

Texas Instruments AM57 Series Manuale utente

Texas Instruments

Texas Instruments CC1101DK Manuale utente

Texas Instruments

Texas Instruments DAC8803/14 EVM Manuale utente

Texas Instruments

Texas Instruments UCC217 QDWEVM-054 Series Manuale utente

Texas Instruments

Texas Instruments Tiva TM4C123G Manuale utente

Texas Instruments

Texas Instruments TPS65941213-Q1 Manuale utente

Texas Instruments

Texas Instruments DS250DF810EVM Manuale utente

Texas Instruments

Texas Instruments TMAG5170D Manuale utente

Texas Instruments

Texas Instruments TPS65910A Series Manuale utente

Texas Instruments

Texas Instruments OMAP5912 Manuale utente

Texas Instruments

Texas Instruments THVD1454EVM Manuale utente

Texas Instruments

Texas Instruments SimpleLink Wi-Fi CC3 20 Series Manuale utente

Texas Instruments

Texas Instruments bq78350-R1 Manuale utente

Texas Instruments

Texas Instruments TMS320F2807 Series Manuale utente

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-ADS7142-Q1 Manuale utente

Texas Instruments

Texas Instruments TIDA-010243 Guida

Texas Instruments

Texas Instruments TPS65981EVM Manuale utente

Texas Instruments

Texas Instruments TPS3801 Manuale utente

Texas Instruments

Texas Instruments PGA309EVM Manuale utente

Texas Instruments

Texas Instruments DRV8811EVM Manuale utente

Texas Instruments

Texas Instruments TPS40193EVM-001 Manuale utente

Texas Instruments

Texas Instruments TI-Nspire CX Manuale utente

Texas Instruments

Texas Instruments TMS320DM646x Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
