1.Machine Introduction
1.1 Power and cable requirements
In view of the power of the vacuum pump is different, electric power
at 220V or 380V can be used according to the actual situation. The
total power of the machine is at least 14KW, so the cable cross section
requires at least 8mm².
Items
Peak power
Machine
3KW
Vacuum Pump
11KW
Air Compressor
1.2KW
1.2 Introduction

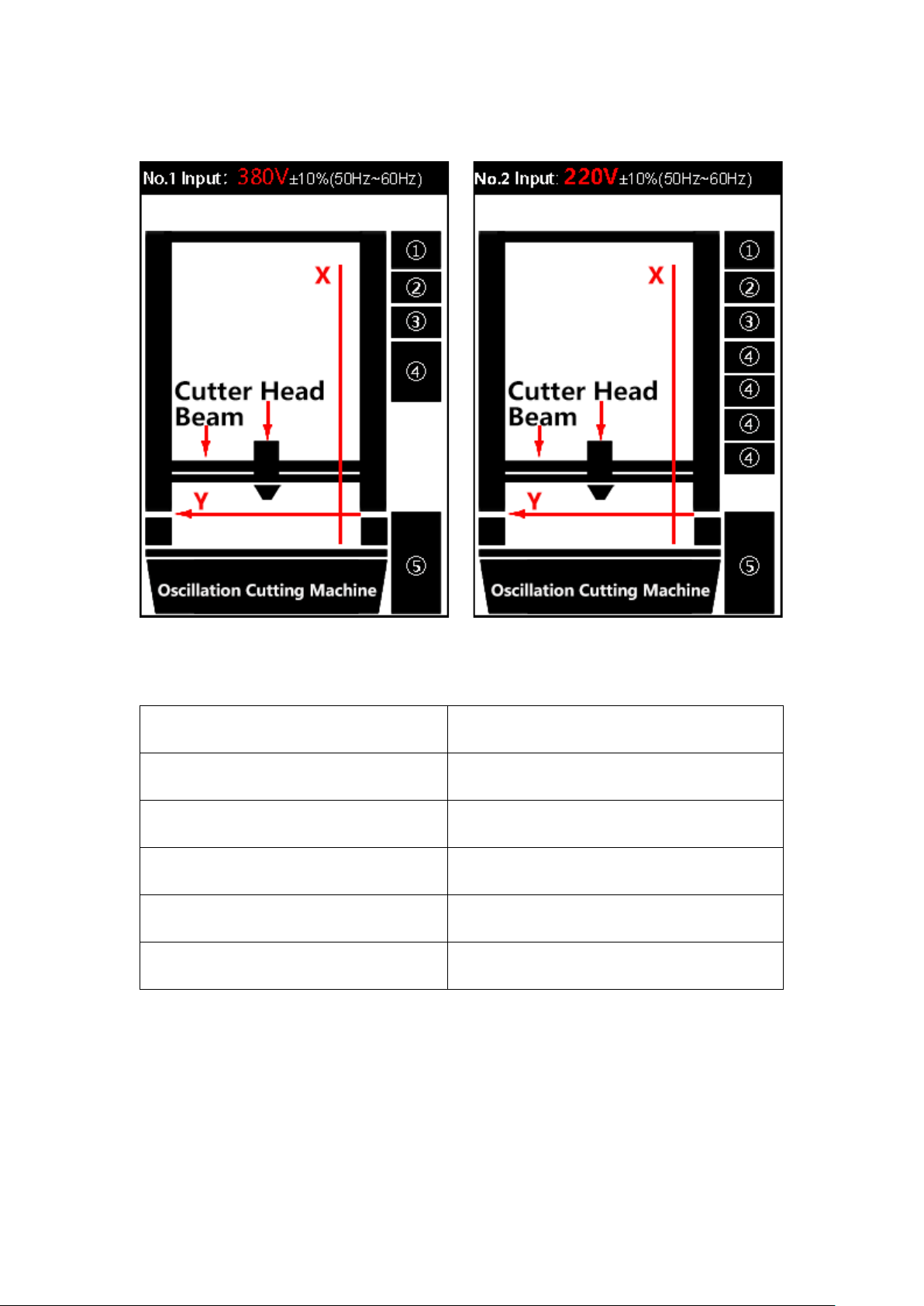

(1)The left one is the 380V model machine and its accessories.
(2)The right one is the 220V model machine and its accessories.
Number
Item
①
Distribution Box
②
Returning-air Box
③
Air Compressor
④
Vacuum pump
⑤
Control Box
（Note：
1.When 380V voltage is used for power supply, only three live wires
need to be used, and there is no need to use the null wire.
2.For models without transformer, it is necessary to provide 220V power
supply system for equipment other than vacuum pump.
3.No returning-air box for the machine which has no auto-feeding system.
4.There is no air compressor for the machine without using it.
5.Some models have no distribution box, only a certain number of AC
contactors are attached.）
2.Accessories Installation
2.1 380V
(1)Distribution Box
①.Input

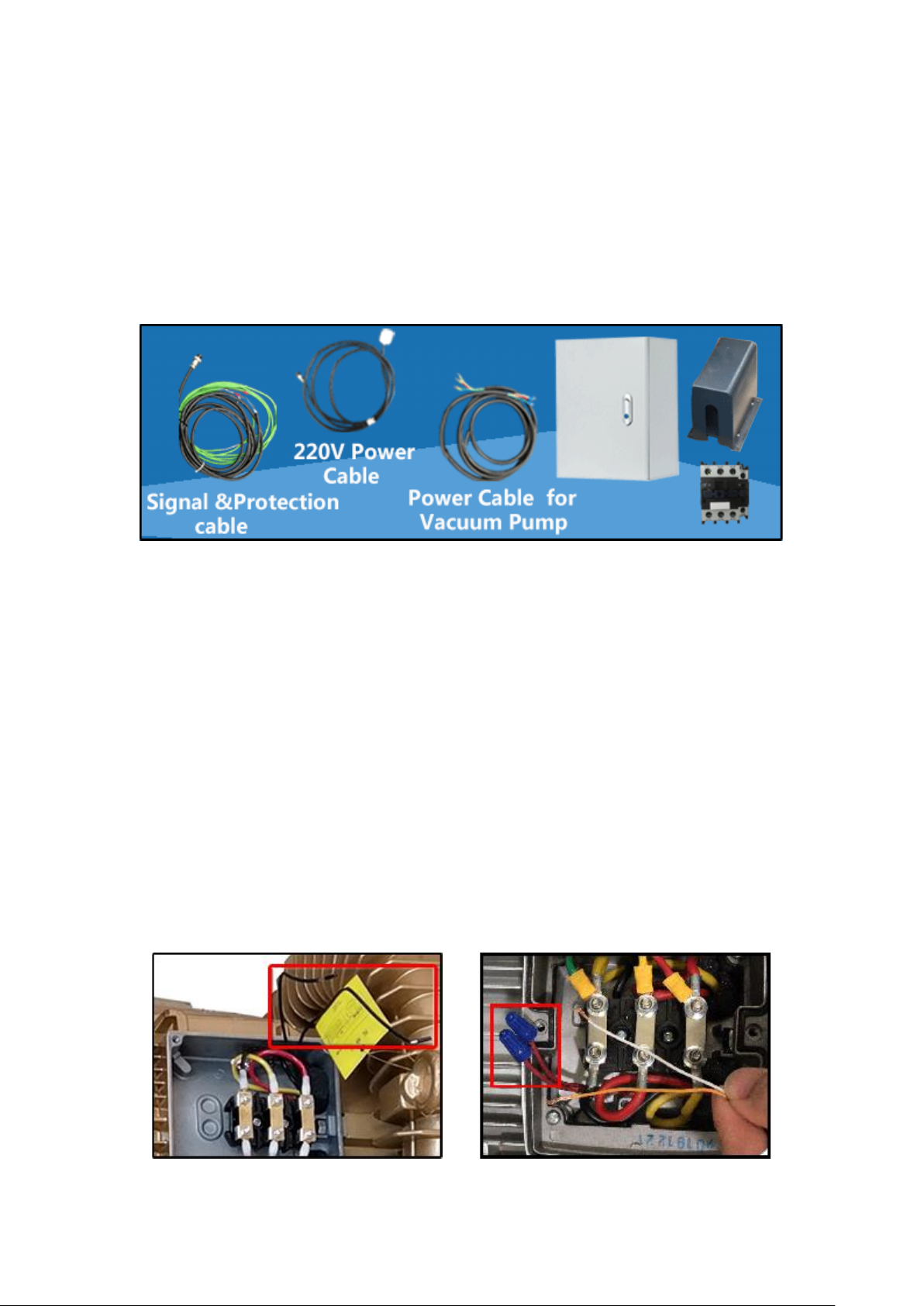

A.Connect the U-shaped terminals of the Signal&Protection cable to the
A1&A2 of the AC contactor.
B.Connect the three live wires of the 380V three-phase electricity to
the 1/L1，3/L2，5/L3 of the AC contactor separately.(Note:If the fan
reverses, the position of two live wires can be changed arbitrarily)
C.Connect the 220V Power Cable to the 220V power supply socket.
②.Output
A.Connect the aviation plug of the Signal&Protection cable to the “Air
Pump”port on the machine.
B.Connect the green cable which has the white wire connectors to the
protector wires on the vacuum pump，as shown in the red frame below:
or

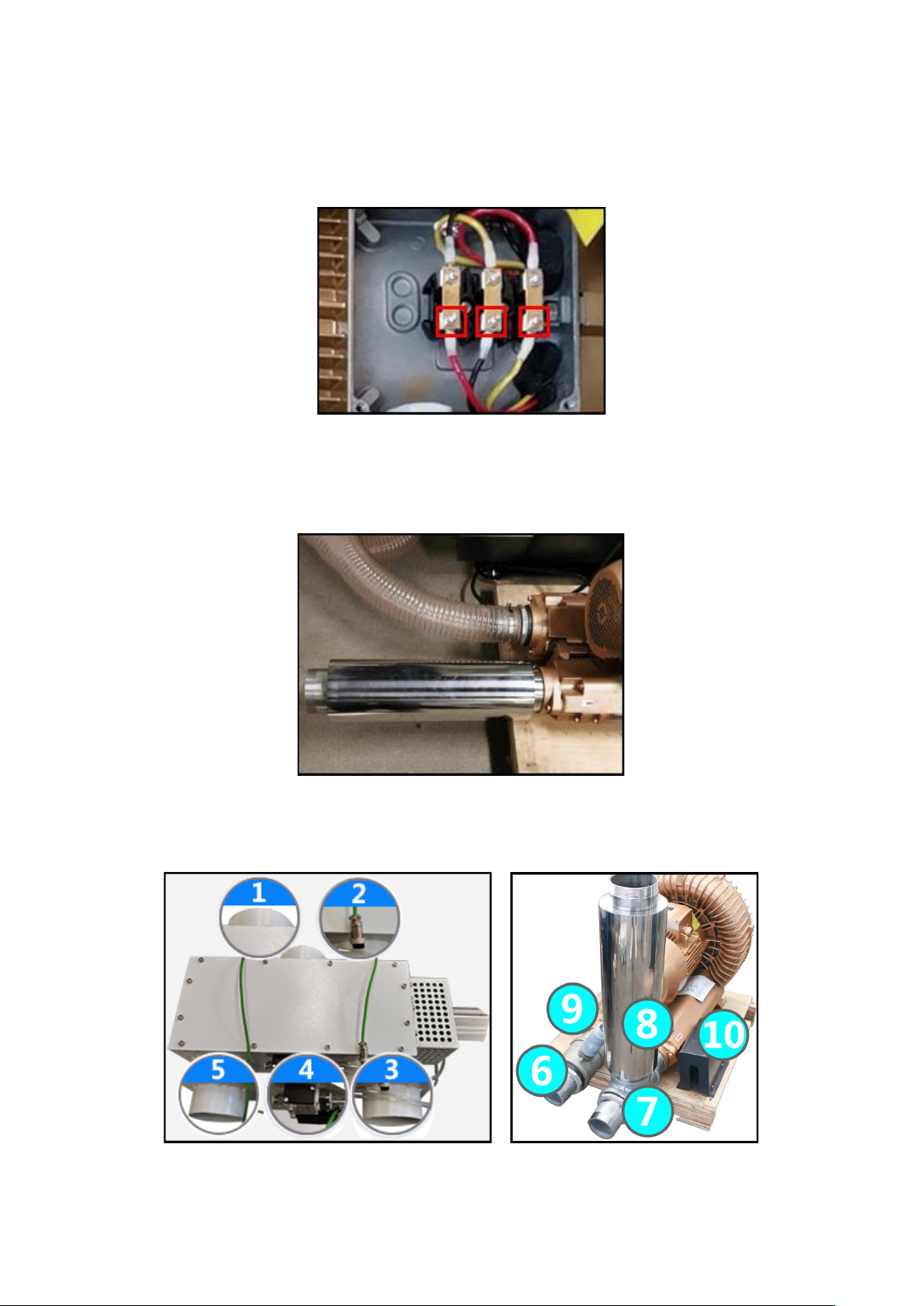

C.Connect one end of the Power Cable for the Vacuum Pump to the 2/T1，
4/T2,6/T3 of the AC contactor and connect another end to the vacuum
pump, as show in the red frames below:
D.Connect the aviation plug of the 220V Power Cable to the machine or
the control box.(Note:Subject to the actual model.)
(2)Vacuum Pump of the Digital Knife Cutting Machine with Flat Table
(3)Vacuum Pump and Returning-air Box of the Auto-feeding Digital Knife
Cutting Machine.(Note:There is no returning-air box for the non auto-
feeding model machine.)

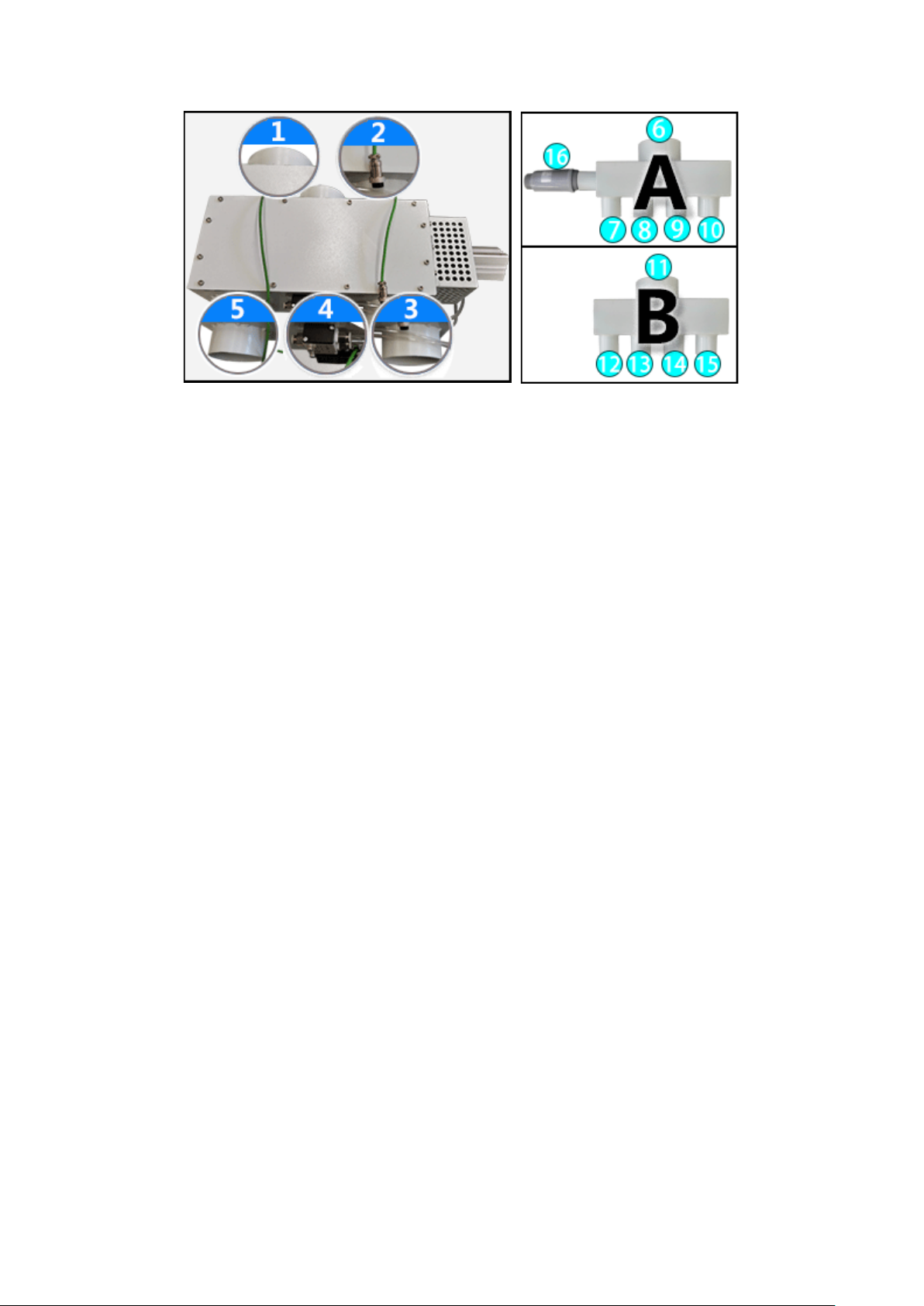

①Connect No.1 to the air pipe which comes out of the machine.
②Connect No.2(The signal cable of the returning-air box) to the
“Returning Air Box”port on the machine.
③Connect No.3 to the No.6(The inlet of the vacuum pump) by the air
pipe.
④Connect No.4(Solenoid valve) to the oil water separator(Pneumatic
valve) on the machine by the air tube.
⑤Connect No.5 to the No.7(The outlet of the vacuum pump) by the air
pipe.
⑥No.8 is the Hush pipe, No.9 is the pressure relief valve, it must
be installed onto the reducer which is connected to the inlet of the
vacuum pump. No.10 is the mini distribution box.
After connection finished，as shown below：
2.2 220V
(Note:Take the auto-feeding machine as an example)

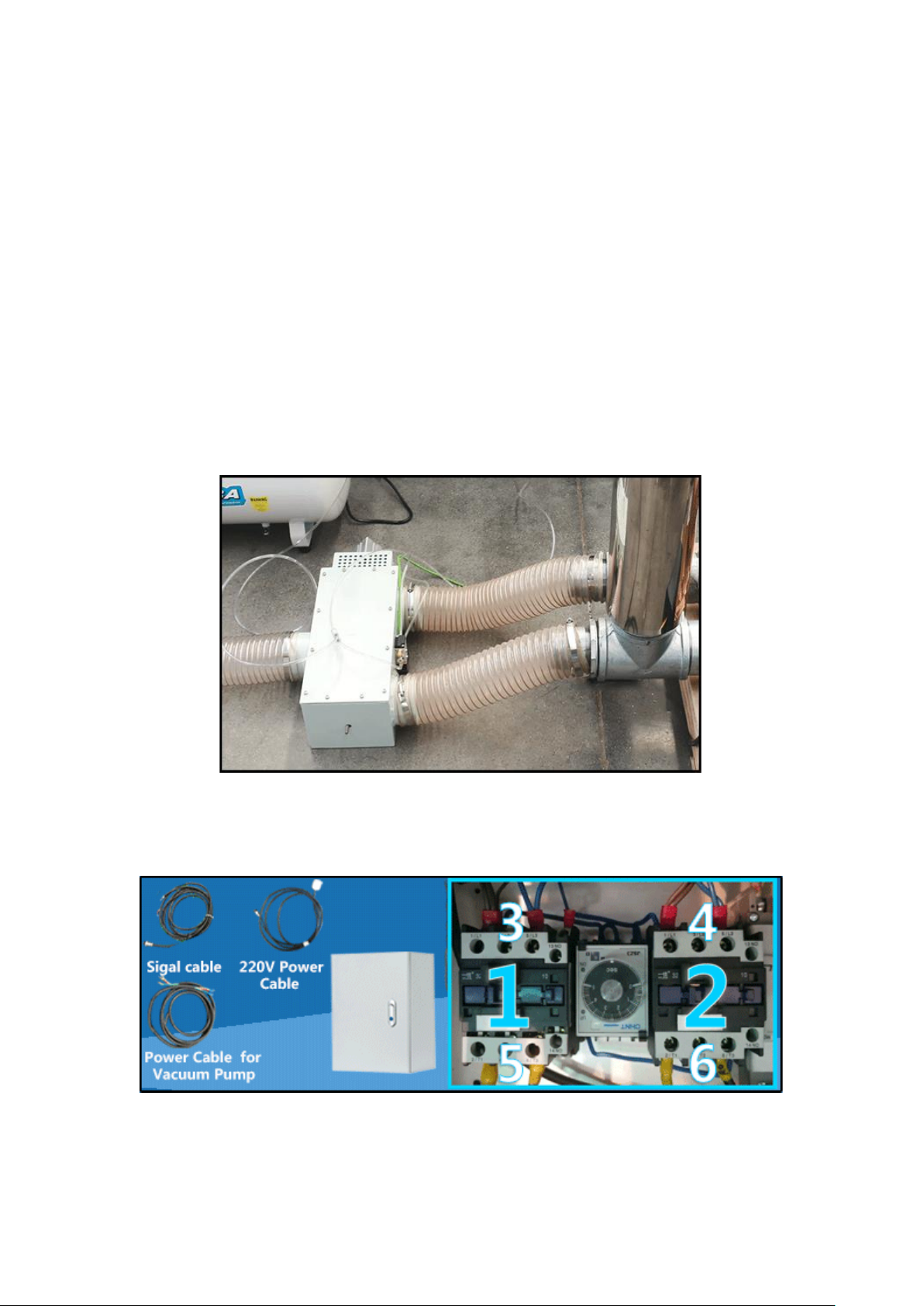

(1)Distribution Box
①Input
A.Connect the U-shaped terminals of the Signal&Protection cable to the
A1&A2 of the No.1 AC contactor.
B.Connect the 220V power supply cables to the 2/T1 and 6/T3 of the
No.1 and No.2 AC contactors separately(Note:No.5 and No.6 are connected
to the 220V cables.You need to prepare 220V power supply cables by
yourself)
C.Connect the 220V Power Cable to the 220V power supply socket
(Note:The 220V power supply cables which are connected to the
distribution box must can bear at least 10KW power, the 220V Power
Cable which is sent with the machine is only supply the electricity to
the machine and control box, and the power of the machine is about
2500W)
②Output
A.Connect the aviation plug of the Signal Cable to the “Air Pump”
port on the machine.

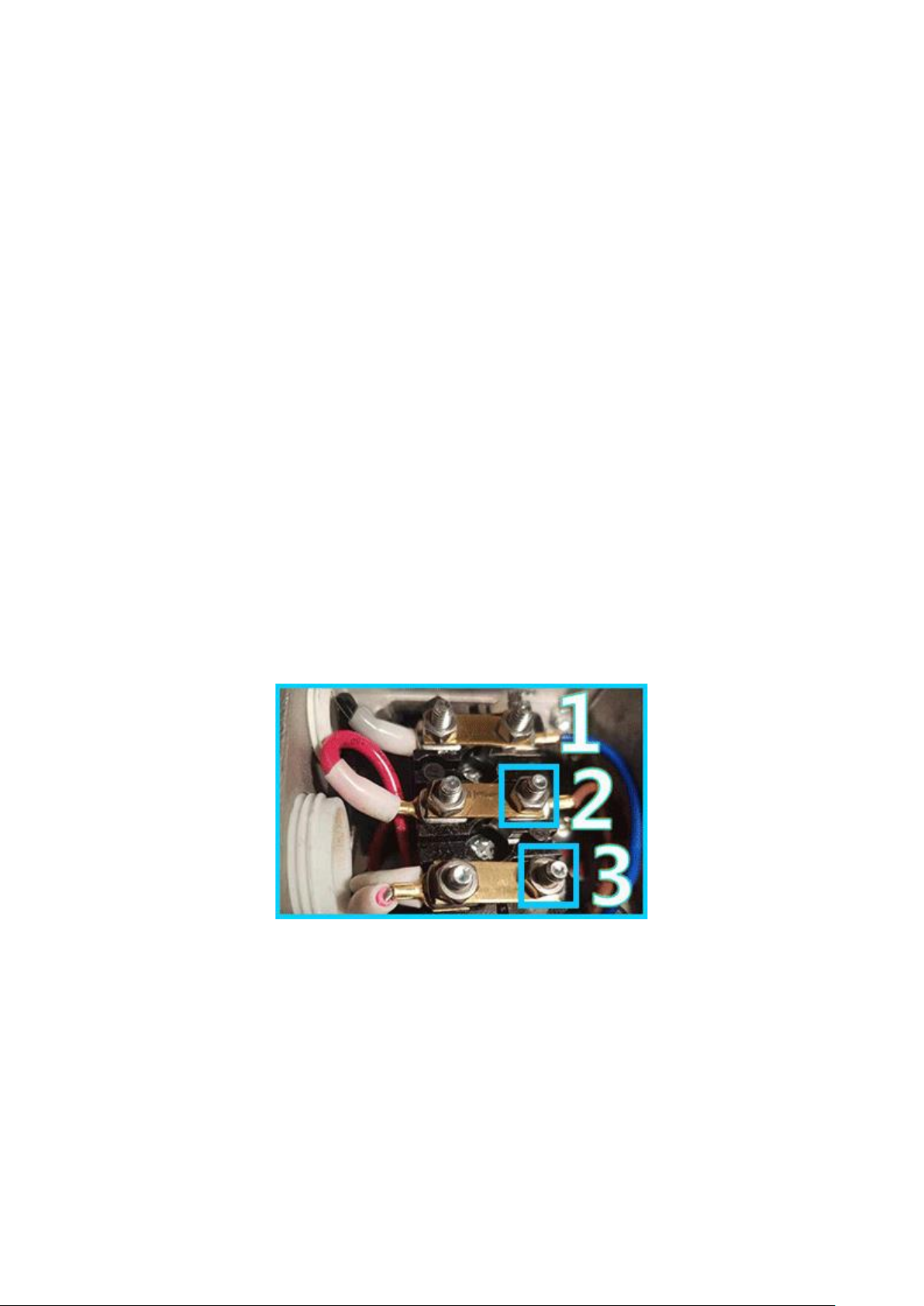

B.Connect the two groups of Vacuum Pump Power Cables to 1/L1 and
5/L3(Note:No.3 and No.4 of the AC contactors are connected to the
vacuum pumps) of No.1 and No.2 AC contactors separately, and connect
the other end of each vacuum pump power cable to No.2 and No.3 feet or
No.1 and No.3 feet of each vacuum pump separately,as shown below:
(2)Vacuum Pump and Returning-air Box of the Auto-feeding Digital
Knife Cutting Machine.(Note:There is no returning-air box and Part B
for the non auto-feeding model machine.)
(Note:Part A is connected to the inlet of the vacuum pump and Part B
is connected to the outlet of the vacuum pump)
①Connect No.1 to the air pipe which comes out of the machine.
②Connect No.2(The signal cable of the returning-air box) to the
“Returning Air Box”port on the machine.
③Connect No.3 to the No.6 by air pipe, and connect the No.7,No.8,No.9
and No.10 of the Part A to the inlet of every vacuum pump.
④Connect No.4(Solenoid valve) to the oil water separator(Pneumatic
valve) on the machine by the air tube.
⑤Connect No.5 to the No.11 by air pipe, and connect the No.12,No.13
and No.14 of the Part B to the outlet of every vacuum pump.
⑥The No.16 is the pressure relief valve，the arrow on the pressure
relief must face the Part A, and it to the Part A by the tape firmly.

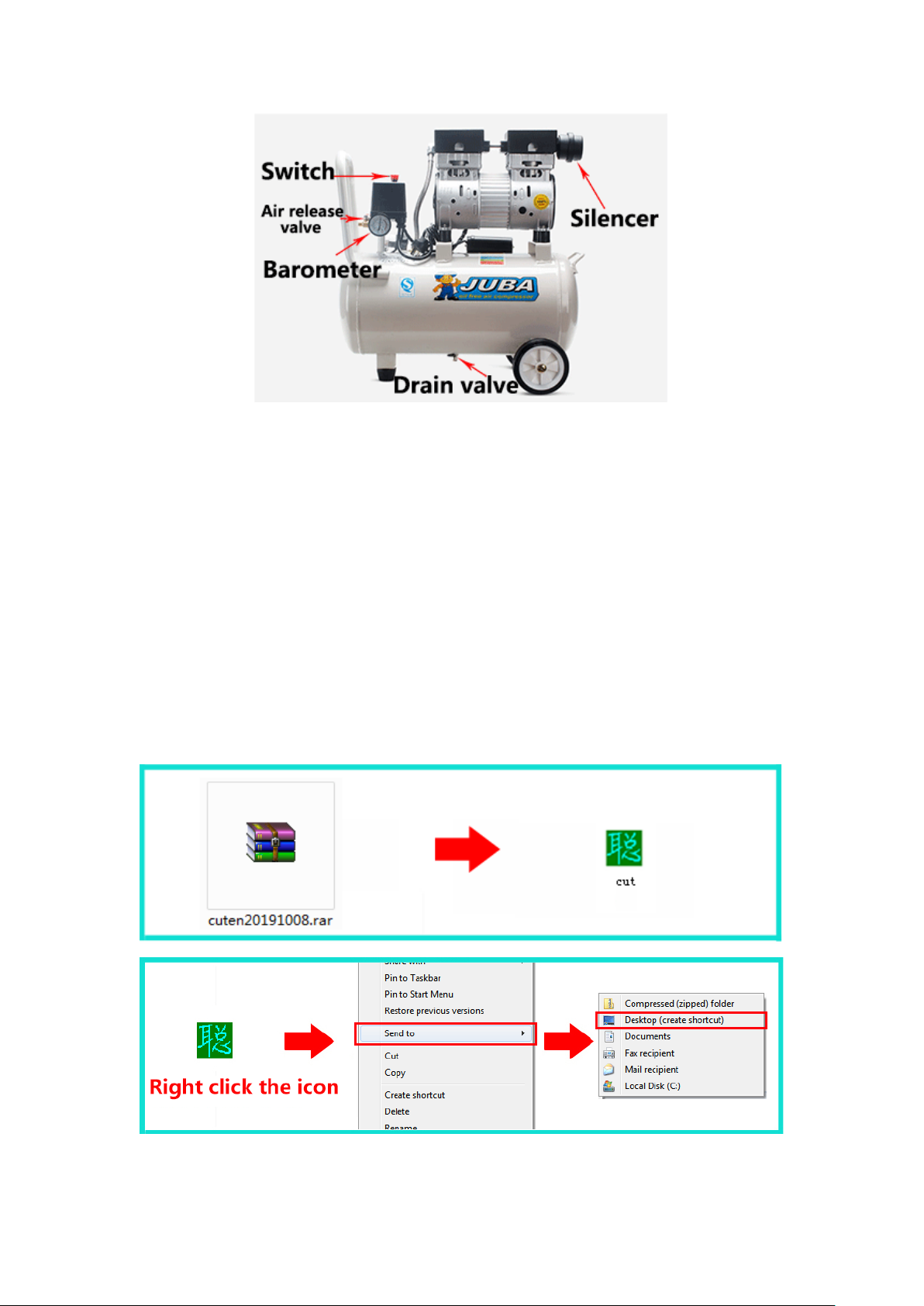

2.3 Air Compressor
（Note:1.Air compressor with power over 7.5kW is required for the
Pneumatic oscillating Knife Tool and you need to prepare it by yourself.
2.There is no air compressor for the machine without using it.）
（Note:It is recommended to discharge water once every one to seven
days）
3.Installation of CUT Software & IP Settings
3.1 Introduction
Cut is a cutting service software for editing and cutting tasks. It
can be well matched with mainstream graphic design software. The
software can be used for drawing simple graphs. You can also use CAD,
CorelDraw,AI and other graphic design software. Then send graph to the
machine for cutting via Cut.
3.2 Installation
