Texsport 01111 Manuale utente

INSTRUCTIONS

Item 01111

Meadow Breeze Screen Porch Tent

Thank you for purchasing this Texsport tent. Please read and understand each step of the set-up instructions. We encourage you to set-up this tent

at least once prior to your camping trip, ensuring that you have a satisfactory understanding of the set-up process. We hope you enjoy your new

tent and that it will give you many years of camping pleasure.

Do not apply excessive force to this product.

PAR S LIS :

A......ent skin

B......3 Sets of tent poles taped with black

C......2 Sets of window arch poles taped

with red

D......1 Porch roof pole taped with blue

E......2 Sets of porch legs

F......Stakes, guy ropes and clews.

NO E:

Prepare your camp site by removing all sharp stones,

twigs, etc. he site should be flat and have no depres-

sions that could collect rain water.

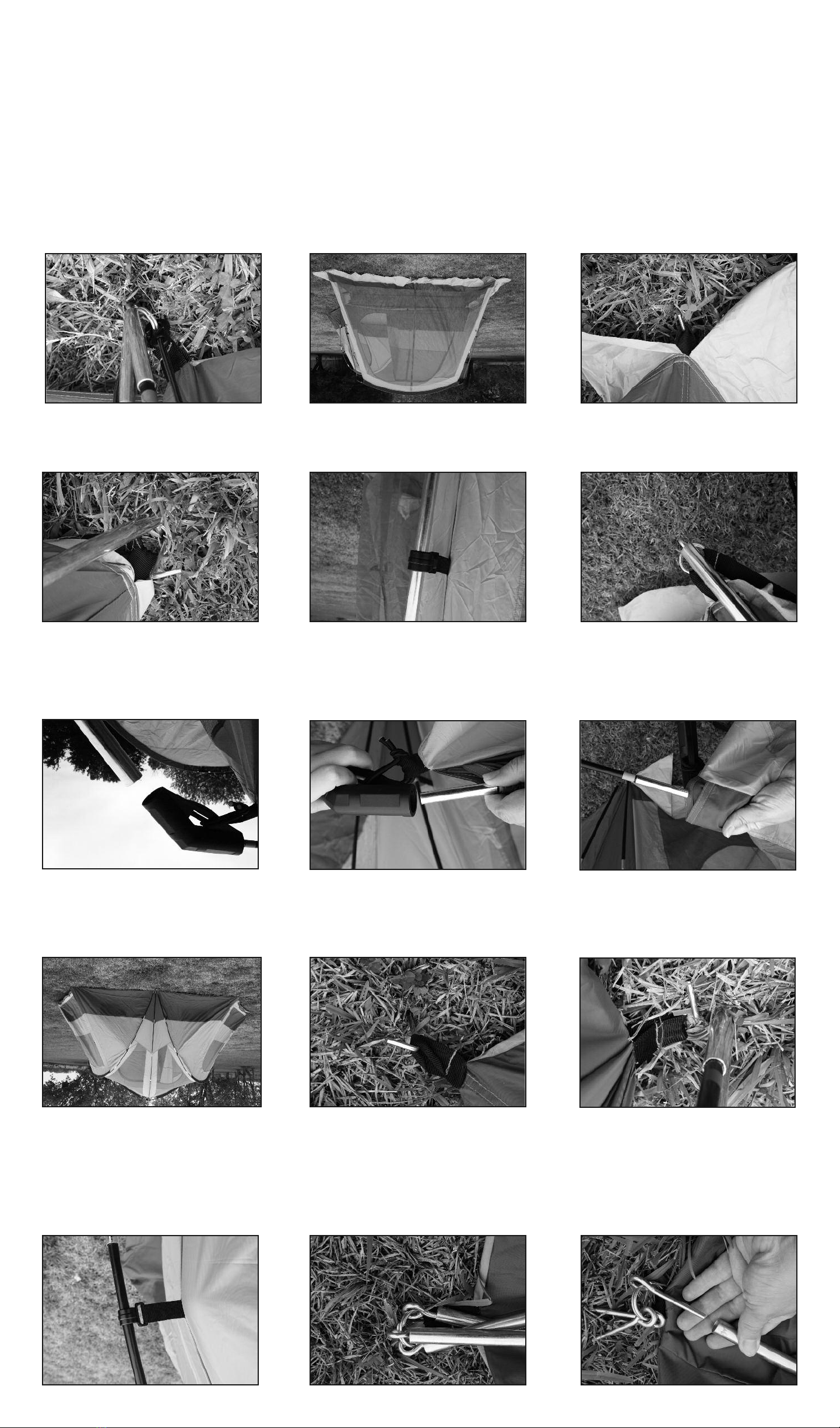

S EP 1 - Spread out tent skin. S EP 2 - Assemble the red taped

tent poles (C) and insert through

the window arch tent sleeves.

S EP 3 - Your poles should form

an X as shown above.

S EP 5 - Insert the other end of

the pole (B) into the attached

center hub.

S EP 4 - Assemble the black

taped tent poles (B) and insert

through back center sleeve.

S EP 6 - Repeat step 4 for the

side/roof sleeves.

S EP 7 - Insert the side/roof

poles (B) into the center hub.

S EP 8 - his is how your poles

should look.

S EP 9 - Insert the pin and ring

into the red taped pole (C) on

the side of the tent skin first.

hen repeat with the black

taped pole (B).

S EP 10 - hen insert the pin

and ring into the other end of

the red taped pole (C) at the

rear of the tent skin.

S EP 11 - Repeat steps 8 and 9

for the other red and black

taped poles (B & C). he poles

should overlap each other as

shown above at the ring.

S EP 13 - Stake down all rings

around the sides and rear of

the tent.

S EP 12 - Attach speed clips to

pole frame.

S EP 14 - Stake out the side

doors of the tent with the tabs

provided.

S EP 15 - his is what your tent

should look like so far.

S EP 16 - Assemble the blue

taped tent poles (D) and insert

through the porch arch sleeve.

S EP 17 - Insert into the small

opening of theattached molded

corner joint.

S EP 18 - Assemble the porch

legs (E) and insert into the open

end of theattached molded cor-

ner joint.

SEP 19 - Insert the pin and

ring of the porch skin into the

porch leg poles.

S EP 20 - Attach speed clips to

porch legs.

S EP 21 - Stake down at the

rings on both sides.

SEP 22 - Stake porch down

with the tabs provided.

SEP 23 - his is what your

porch should look like.

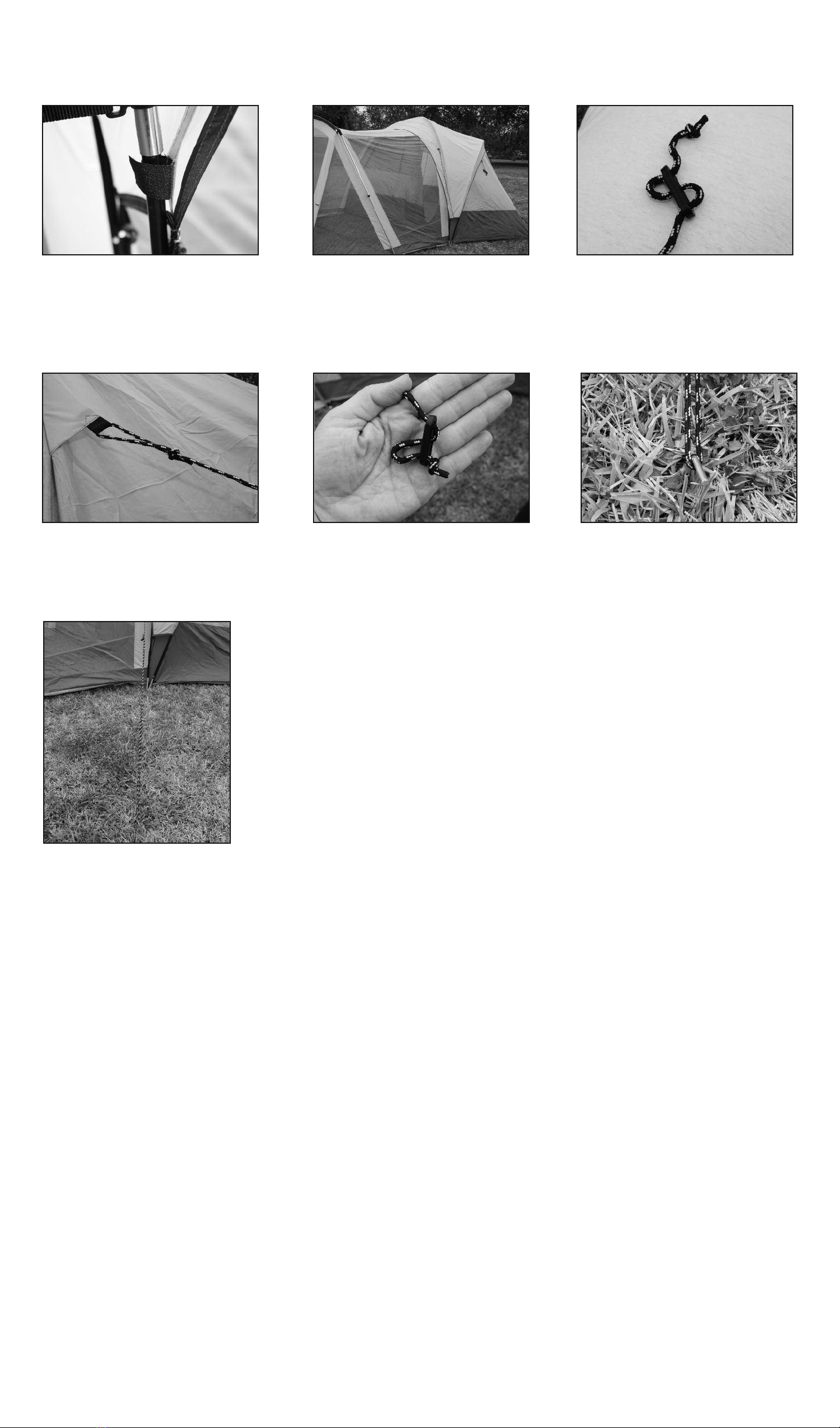

SEP 24 - Drape the fly over the

tent and secure by attaching

the hooks onto the pin and

ring.

S EP 25 - Secure fly by attach-

ing the velcro to the frame.

S EP 26 - his is what your tent

should look like.

S EP 27 - It is recommended in

windy weather to secure your

tent with guy ropes. Insert the

guy rope into clew as shown

above.

SEP 28 - ie the other end of

the guy rope to the tabs on the

fly.

SEP 29 - Loosen the guy rope

as shown to wrap around a

stake.

S EP 30 - Stake down the guy

rope.

S EP 31 - Adjust the tension on

the guy rope by sliding the clew

up or down.
