Textron Klauke EK 425CL Manuale utente

EK 425CL

HE16791_A © 11/2016 R&D-2

Verbindungen mit System

The Power of Partnership

Gustav Klauke GmbH • Auf dem Knapp 46 • D-42855 Remscheid

Telefon ++49 +2191-907-0 • Telefax ++49 +2191-907-141 • www.klauke.com

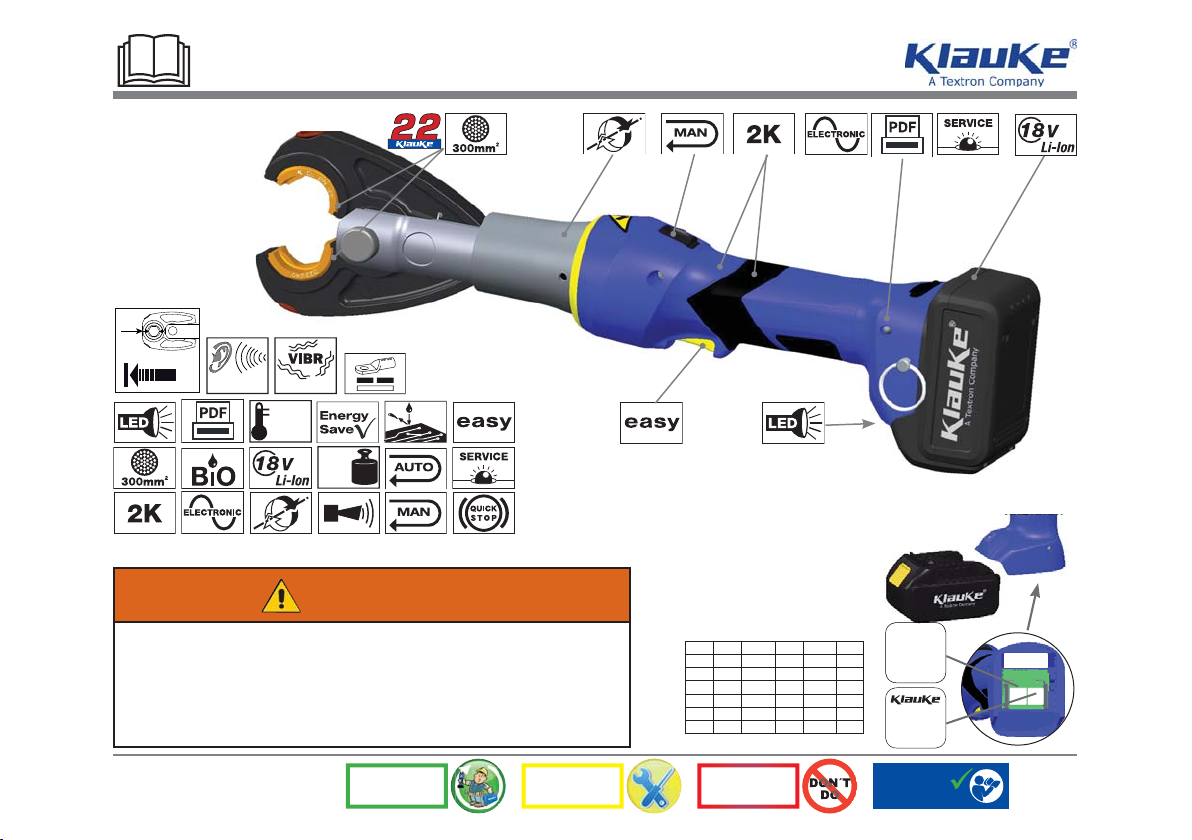

Serialnumber

HE.16759_B

Next Generation

EK 425CL

HE16791_A © 11/2016

ACHTUNG! Garantiesiegel

Bei Beschädigung Garantieverlust

ATTENTION! Warranty seal

If broken loss of Warranty

HE.17537

WORK SERVICE DON´T DO General

safety rules

H2O

batch# e.g. 304711

datecode e.g. K = 2016; S = May

consecutive# e.g. „142“ = tool # 142

datecode

Year Code Month Code Month Code

2016 K Jan. N July V

2017 L Feb. P Aug. W

2018 M Mar. Q Sept. X

2019 N Apr. R Oct. Y

2020 P May S Nov. Z

2021 Q June T Dec. 1

kN <70dB <2,5m/s2

+40°C

-10°C

2,9 kg

Auf dem Knapp 46

D-42855

Remscheid

304711

142

WARNING

Read all safety warnings, instructions, illustrations

and speciﬁcations provided with this power tool.

Failure to follow all instructions listed below may result in

electric shock, ﬁre and/or serious injury.

Save all warnings and instructions for future reference.

EK 425CL

HE16791_A © 11/2016

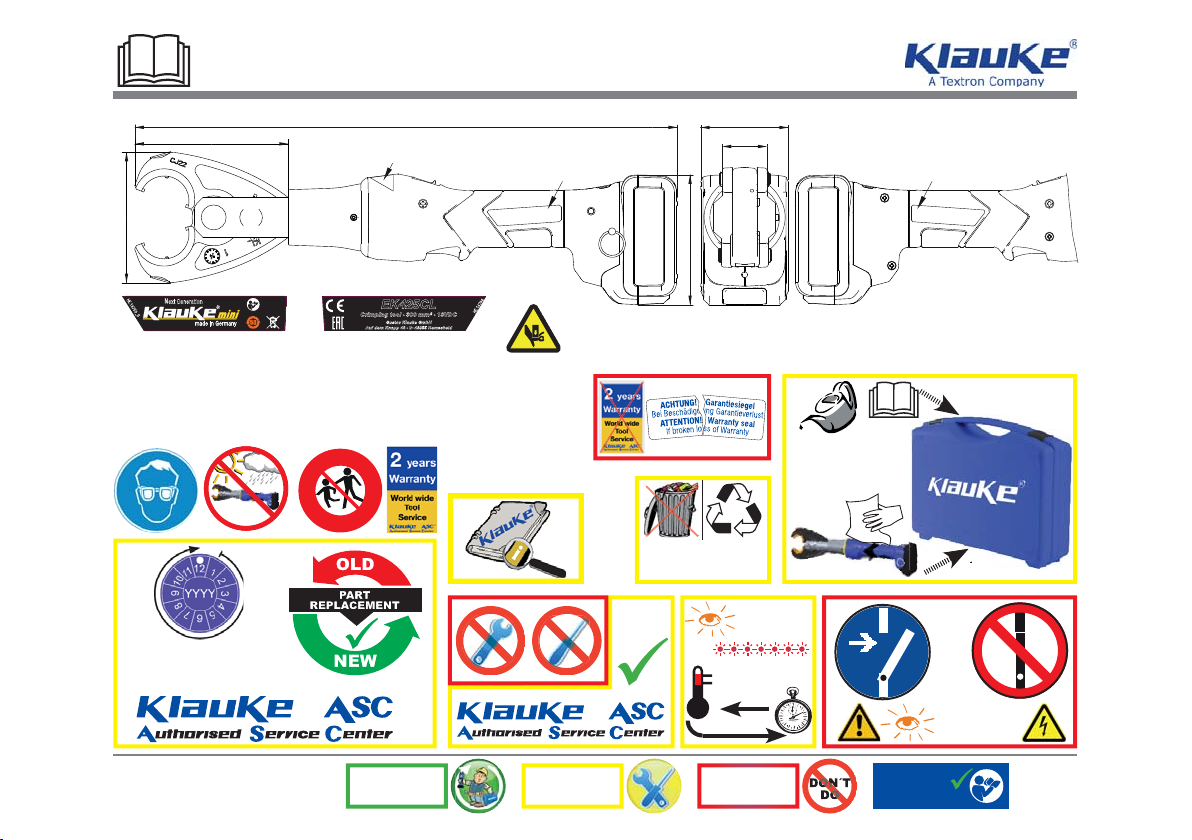

31 2

478,5

136

115

114,5

HE.16794

EK425CL

Crimping toolt300 mm²t18VDC

Gustav Klauke GmbH

Auf dem Knapp 46tD-42855 Remscheid

WORK SERVICE DON´T DO General

safety rules



EN 50110

15 min.

20 sec/5Hz

page VIII

RESTART

OIL

2. 3.



MAIL TO:

WEEE-Abholung@

Klauke.Textron.com

SAFETY

1 year or

10.000 cycles

1 2 3

HE.16759_B

Next Generation

HE.17537

EK 425CL

HE16791_A © 11/2016

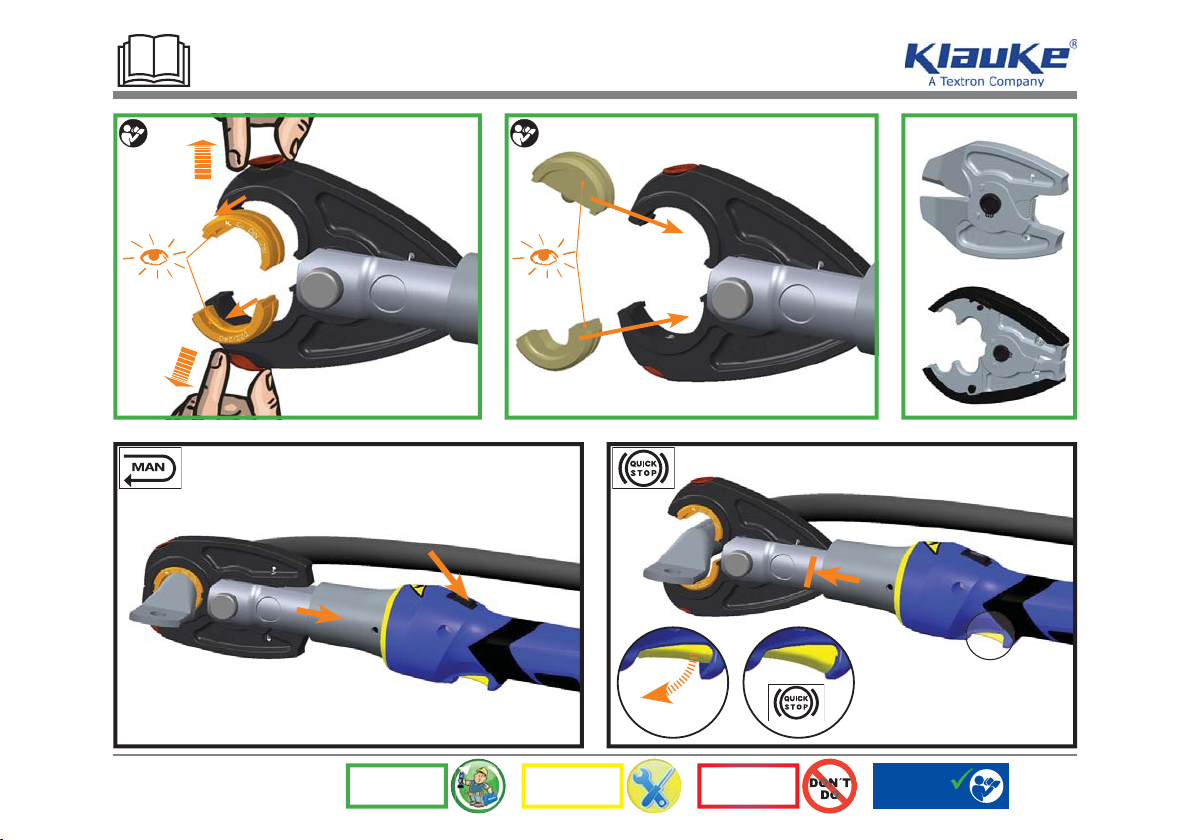

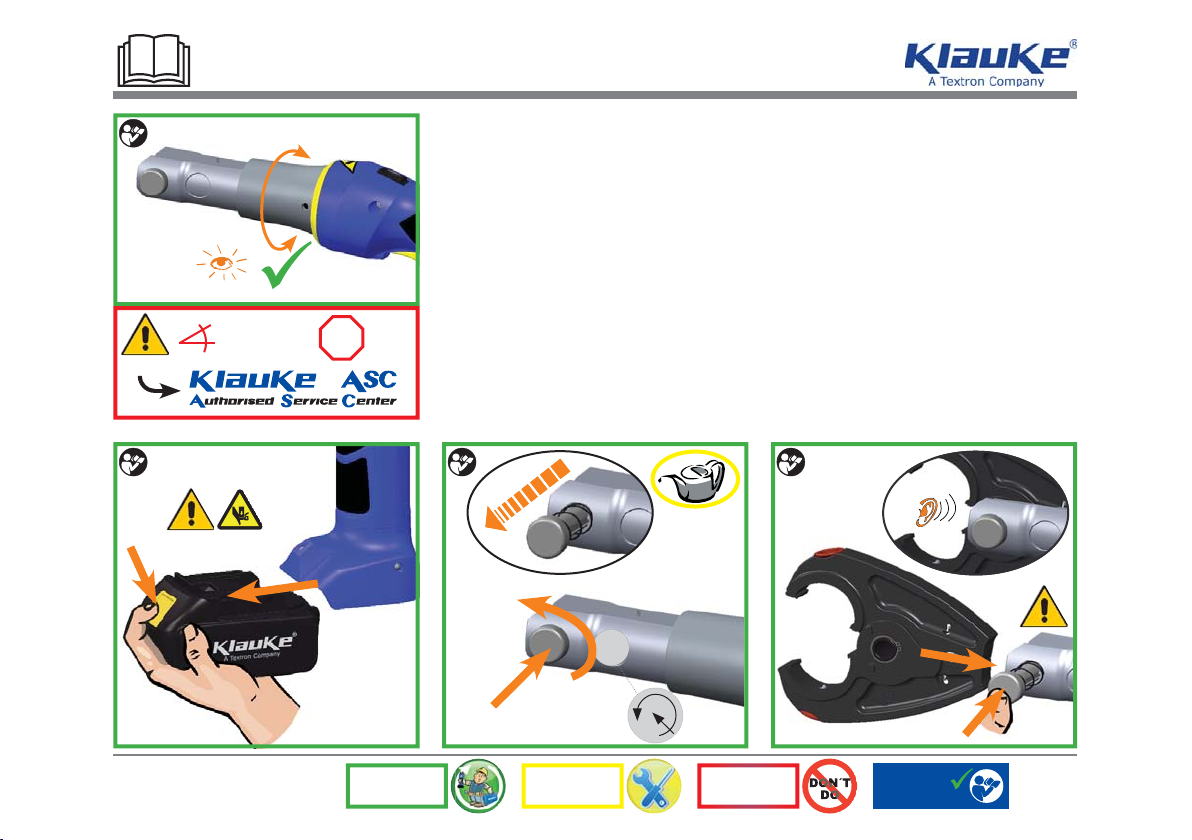

1. 2.



45°

CLICK

III

WORK SERVICE DON´T DO General

safety rules

330° max.

STOP

>330°

OIL

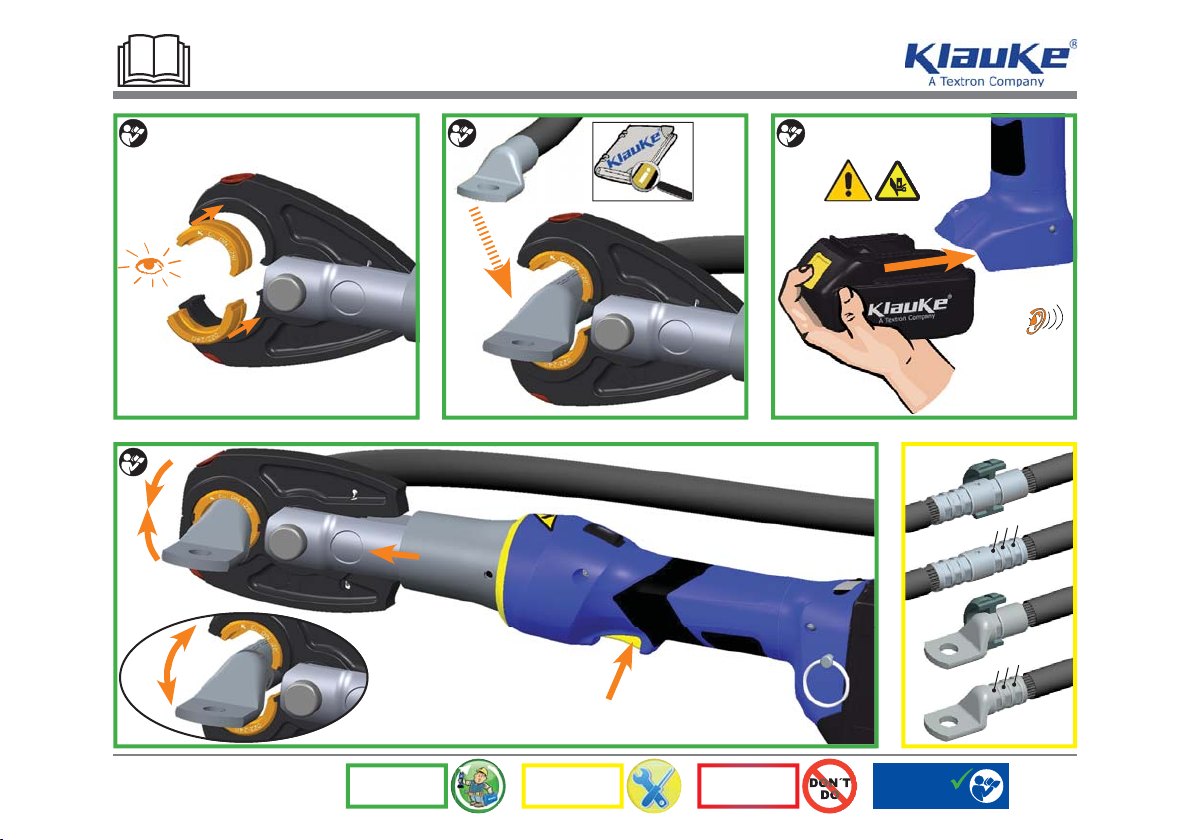

EK 425CL

HE16791_A © 11/2016

CLICK

PRESS



CLICK

Tab. 2

WORK SERVICE DON´T DO General

safety rules

1.2.3.

EK 425CL

HE16791_A © 11/2016

Tab. 2 Tab. 2

CJB

CJD3O

WORK SERVICE DON´T DO General

safety rules

PRESS

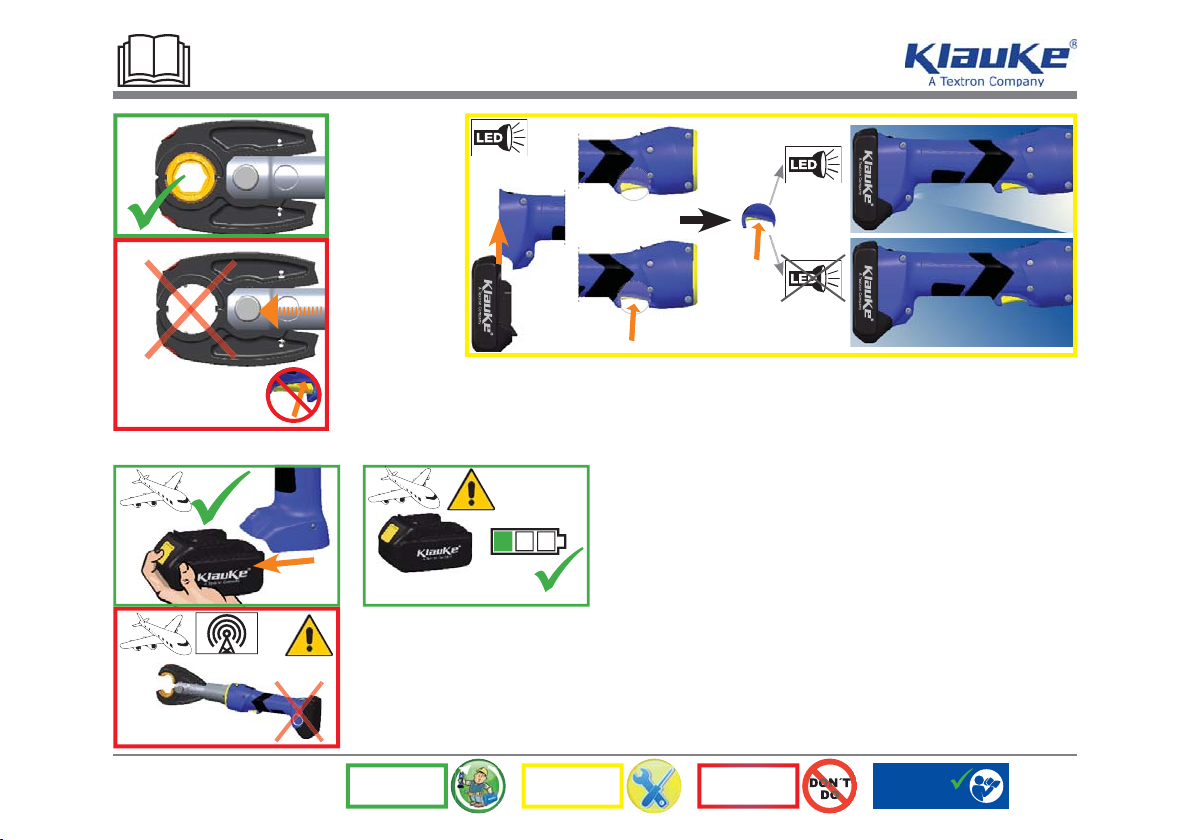

EK 425CL

HE16791_A © 11/2016

on/off

PRESS

WORK SERVICE DON´T DO General

safety rules

30% max.

EK 425CL

HE16791_A © 11/2016

Alle Bedienungsanleitungen auch

unter www.klauke.de abrufbar

All manuals are also available

on www.Klauke.com

HE.16980_D

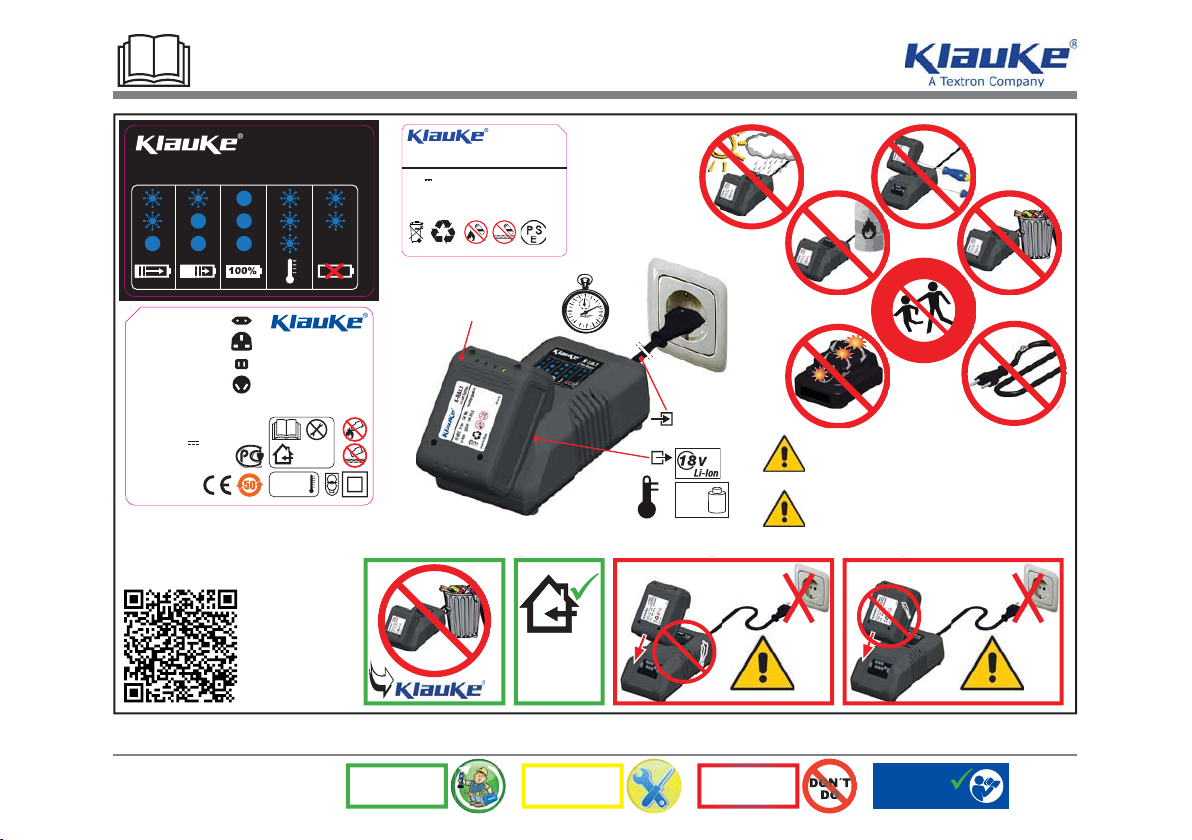

Li-Ion Charger

Charging:

0°- 40°C

RoHS

COMPLIANT

{LGLK1

{LGLK1UK

{LGLK1US

{LGLK1AU

Input: 100-240V~

50-60Hz 110W

Output: 18 V

Charge current: 3 A

Made in China

Class 2 Battery Charger

Gustav Klauke GmbH

Auf dem Knapp 46

D-42855 Remscheid

Made in China HE.17840_C

RALK2

Li-Ion Battery

18 V 3 Ah 54 Wh Rechargeable

Li-Ion 5S2P UN 38.3

5INR 19/65-2

Gustav Klauke GmbH

Auf dem Knapp 46

D-42855 Remscheid

0-40°C

RALK2 60 min.

100-240V~

50-60Hz

600 g

LGLK1

Li-Ion Charger

HE.16990_B

LGLK1:

100-240V~

50-60Hz

WARNING

Do not charge non-rechargable batteries.

If the supply cord is damaged, it must be re-

placed by a special cord or assembly availab-

le from the manufacturer or its service agent.

VII

WORK SERVICE DON´T DO General

safety rules

EK 425CL

HE16791_A © 11/2016 VIII

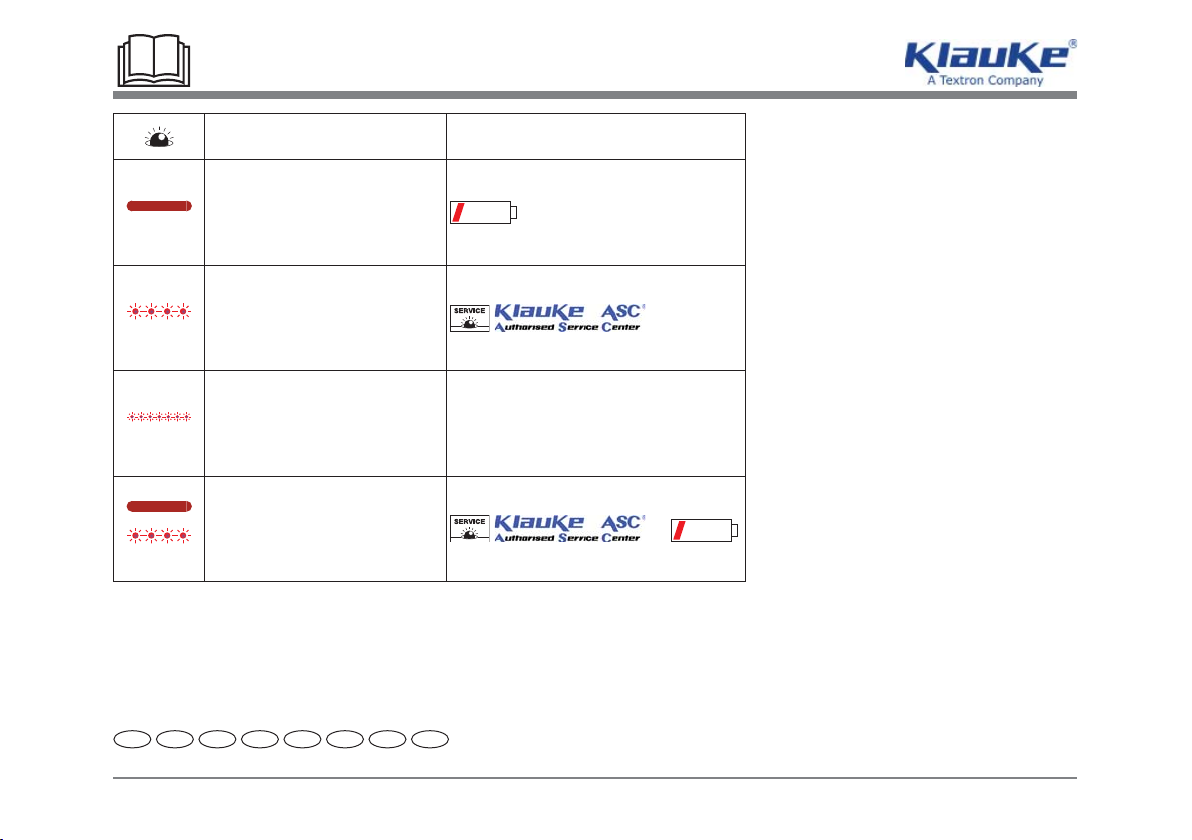

D GB F E

Wann/When/Quand/Quando/

cuándo/Wanneer/

Когда это происходит/Kiedy

Warum/Why/Pourqoui/Porquê/

¿por qué?/Waarom/

Причина/Dlaczego

20 sec

nach Arbeitsvorgang

after working cycle

après opération de travail

Después del proceso de trabajo

após o processo de trabalho

na bedrijfscyclus

после цикла опрессовки

po zakończeniu pracy

20 sec/2Hz

nach Arbeitsvorgang

after working cycle

après opération de travail

Después del proceso de trabajo

após o processo de trabalho

na bedrijfscyclus

после цикла опрессовки

po zakończeniu pracy

20 sec/5Hz

während der Übertemperatur

while exceeding the temp. limit

pendant surchauffe

en caso de temperatura excesiva

durante a temperatura excessiva

tijdens te hoge temperatuur

при высокой температуре внутри корпуса

przy przegrzaniu

Werkzeug zu heiß

Unit too hot

outil surchauffé

Herramienta demasiado caliente

ferramenta demasiado quente

gereedschap te heet

Перегрев инструмента

urządzenie za gorące

20 sec

20 sec/2Hz

nach Arbeitsvorgang

after working cycle

après opération de travail

Después del proceso de trabajo

após o processo de trabalho

na bedrijfscyclus

после цикла опрессовки

po zakończeniu pracy

NLP RUS PL

EK 425CL

HE16791_A © 11/2016 IX

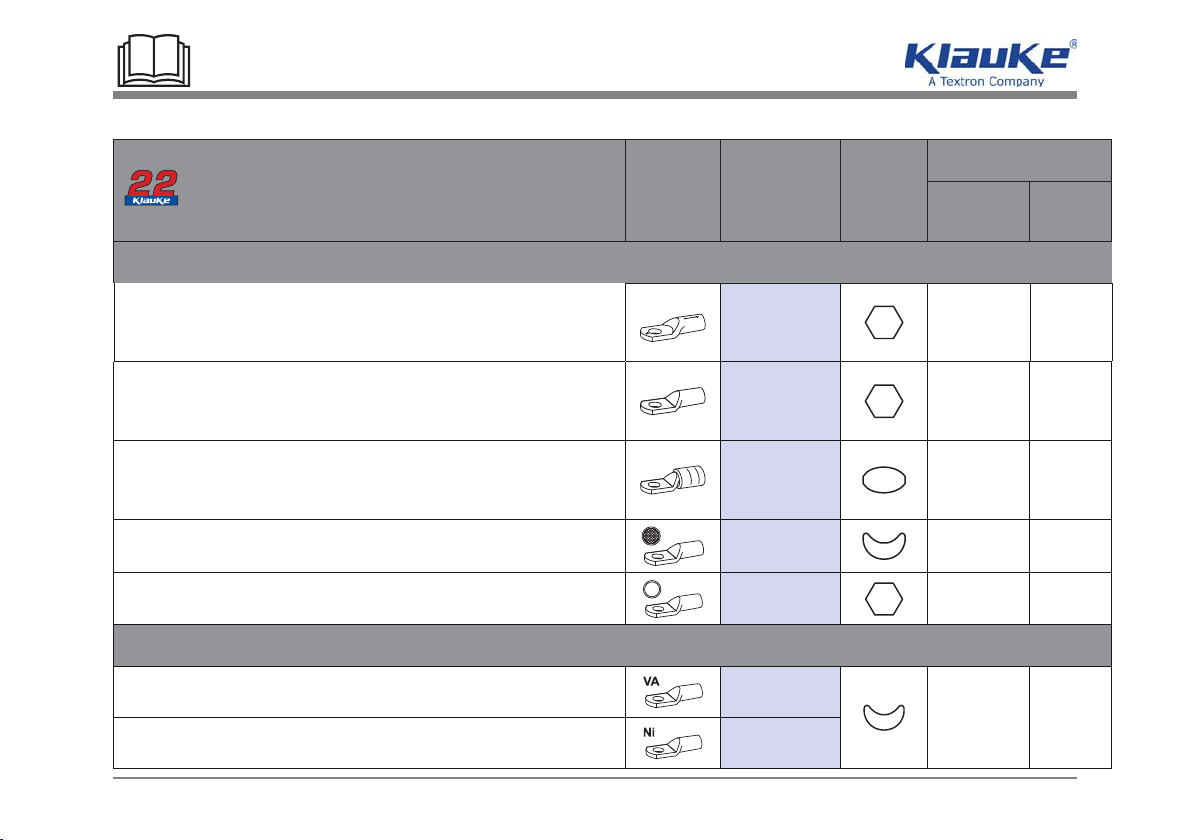

Tab. 2

geeignet für

suitable for

Verb.

material

Connection

material

Pressbereich

mm²

Crimping

range mm²

Press-

form

Crimping

mold

Kennzeichnung

Marking

außen

outside

Pres-

sprofil

Profile

Rohrkabelschuhe und Verbinder - Cu (gelb chromatiert, Pressbreite 5 mm)

Copper tubular cable lugs and connectors - Cu (chrome plated, crimping width 5 mm)

Rohrkabelschuhe und Verbinder blue connection®,

für verdichtete Leiter nach VDE 0295 Klasse 2

Tubular cable lugs and connectors

Tubular cable lugs and connectors blue connection®,

for compacted conductors acc. to VDE 0295, class 2

blue connection 6 - 300

QS B

press .... x

QS B

Rohrkabelschuhe und Verbinder „Normalausführung“,

Rohrkabelschuhe für Schaltgeräteanschlüsse

Tubular cable lugs and connectors, „standard type“,

tubular; cable lugs for switchgear connections

6 - 300 Cu,Cu, QS QS

Isolierte Rohrkabelschuhe und Verbinder „Normalausführung“,

Isolierte Stiftkabelschuhe

Insulated cable lugs and compression joints, „standard type“,

insulated pin terminals

10 - 150 IS, QS QS

Rohrkabelschuhe und Verbinder für feindrähtige Leiter

Tubular cable lugs and connectors for fine stranded conductors 10 - 70 F, QS QS

Rohrkabelschuhe und Verbinder für Massivleiter

Tubular cable lugs and connectors for solid conductors 1.5 - 16

Rohrkabelschuhe und Verbinder - Ni, VA (blau verzinkt, Pressbreite 5 mm)

Tubular cable lugs and connectors, Nickel and stainless steel (blue zinc, crimping width 5 mm)

Rohrkabelschuhe und Verbinder - Edelstahl

Stainless steel tubular cable lugs and connectors - VA 0,5 - 16

Ni, QS --

Rohrkabelschuhe und Verbinder - Ni

Nickel tubular cable lugs and connectors - Ni 10 - 50
