Owner’s Manual

COM-DB90Mobile Radio &

S4S Stereo Intercom

Premium UTV Communication System

Congratulations on your purchase and welcome to the COMplete Radio InterCOM

COMmunication family. We thank you for your purchase with care the unit should give you good

service.

Please read these instructions carefully, by doing so you will get full use of the products

This Manual is broken up into parts:

1. Radio manual

2. Intercom manual

Email if you have any questions or concerns that this manual does not address.

www.utvcom.com

info@utvcom.com


ii

Contents
COM-DB90 Dual Band Mobile Radio ............................................................................................ 1
Features................................................................................................................................... 1
Info & Warnings......................................................................................................................... 1
FCC Notice ................................................................................................................................. 2
RF Energy Exposure................................................................................................................... 2
Getting to Know The COM-DB90 ............................................................................................. 4
Front of the Radio................................................................................................................... 4
Back of the Radio.................................................................................................................... 6
Hand Mic ................................................................................................................................ 7
Screen Icons............................................................................................................................ 8
Antenna....................................................................................................................................... 9
Mounting Tips......................................................................................................................... 9
Antenna Ground Wire............................................................................................................. 9
Powering TheCOM................................................................................................................... 10
Turing off the Mobile Radio................................................................................................. 10
Operations................................................................................................................................. 10
Adjusting the volume............................................................................................................ 10
Receiving & Transmitting a Call.......................................................................................... 10
Selecting a Channel............................................................................................................... 10
Toggling between Bands A/B/C/D....................................................................................... 11
Function Menu.......................................................................................................................... 12
Other Settings and Options....................................................................................................... 18
Programing............................................................................................................................ 18
Keypad Lock-out .................................................................................................................. 18
PTT ID.................................................................................................................................. 18
Scanning Modes.................................................................................................................... 18
Troubleshooting TheCOM-DB90............................................................................................. 19
Specifications............................................................................................................................ 20
Technical Specifications....................................................................................................... 20
Receiver Specifications......................................................................................................... 20
Transmit Specifications ........................................................................................................ 20
Frequency List .......................................................................................................................... 21
S4S Stereo Intercom..................................................................................................................... 24


iii

Introduction............................................................................................................................... 24
Main Features............................................................................................................................ 25
Installing TheCOM................................................................................................................... 26
General Install Guidelines..................................................................................................... 26
Headsets.................................................................................................................................... 27
Installing Helmet Headsets................................................................................................... 27
Mic Placement ...................................................................................................................... 27
Fitting the headset parts to your helmet................................................................................ 27
Front Keypad Controls.............................................................................................................. 29
Power On / Off...................................................................................................................... 29
Volume Controls................................................................................................................... 29
VOX...................................................................................................................................... 29
Rear Intercom Ports .................................................................................................................. 30
Power Wires.......................................................................................................................... 30
PTT ....................................................................................................................................... 30
Radio..................................................................................................................................... 30
Audio Out.............................................................................................................................. 30
Phone / Audio In................................................................................................................... 31
HS-1...................................................................................................................................... 31
HS-2...................................................................................................................................... 31
HS-3...................................................................................................................................... 31
HS-4...................................................................................................................................... 31
Bluetooth................................................................................................................................... 32
Troubleshooting the S4S........................................................................................................... 32
Contact Info .............................................................................................................................. 33


COM-DB90 Dual Band Mobile Radio

Features

TheCOM-DB90 mobile 2-way radio is unique for its compact body, powerful output and

frequency range design. It's also designed with new and personalized operation menu to give you

easy-to-use and exceptional operation experience. We believe its mini size and cost-effective

price will allow the off-road community the ability to install the radio in more locations without

having to modify their vehicles.

Before operation and to obtain the best performance, we recommend that you read this user

manual carefully to become familiar with the features.

➢Frequency range VHF 136-174 MHz / UHF 400 –480 MHz

➢Color Display

➢Simple plug and play connection to the S4S intercom

Info & Warnings

IMPORTANT! Changes or modifications to this unit not expressly approved by TheCOM could

void your right to operate this unit. Your radio is set up to transmit a regulated signal on an

assigned frequency. It is against the law to alter or adjust the settings inside the mobile radio to

exceed those limitations. Any adjustment to your radio must be made by qualified technicians.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions;

1. this device does not cause any harmful interference, and

2. this radio must accept any interference that may cause undesired operations.

Use only “TheCOM” supplied or approved accessories, cables and headsets.

Turn off your radio prior to entering any area with flammable materials. Do not operate or turn

on your mobile radio at a gas station or while fueling your vehicle.

Do not mount your radio in the area over an air bag deployment area if equipped or in a location

that obstructs the drives sight.

Do not expose the radio to direct sunlight for prolonged periods of time, nor place it close to a

heat source.

Do not transmit for long intervals, as it may overheat the mobile radio.

Do not pressure wash your COM for any reason. To clean, blow off as much dust and debris then

wipe with a damp cloth while the unit is in the OFF position. Allow to dry for several hours then

operations may resume.

If the unit emits smoke or an odor, you should immediately cut off the power supply. Then

Protect your unit as much as possible from dusty, damp and wet conditions and never submerge

TheCOM

Use the correct power supply. TheCOM is designed to operate at about 12.0 to 13.8V; do not use

24V power supply to TheCOM or mobile radio.

If there's any electromagnetic interference, please keep the mobile radio away from the sources

such as TV set, engine generator etc.

FCC Notice

The COM-DB90 operates on UHF/VHF frequencies, which require a Federal Communications

Commission (FCC) license (learn more here https://www.fcc.gov/). You must be licensed prior

to operating. Serious penalties may result from unlicensed use or operation in violation of FCC

rules, as stipulated in the Communications Act’s Sections 501 and 502 (amended). You will be

issued a call sign by the FCC that should be used for station identification when operating your

radio. You should also cooperate by engaging in permissible transmissions only, avoiding

channel interference with other users, and being prudent with the length of your transmission

time.

To obtain a license or ask questions about the license application, contact the FCC at 1-888-

CALL FCC or go to the FCC’s website: https://www.fcc.gov/

Request form 605.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation

The scanning receiver in this equipment is incapable of tuning, or readily altered, by the user to

operate within the frequency bands allocated to the Domestic public Cellular

Telecommunications Service in Part 22.

WARNING: Modification of this device to receive cellular radiotelephone service signals is

prohibited under FCC rules and federal law.

RF Energy Exposure

The COM-DB90 is designed to comply with the following national and international standards

and guidelines regarding exposure of human beings to radio frequency electromagnetic energy.

➢United States Federal Communications Commission (FCC), Code of Federal

Regulations: 47 CFR part 2 sub-part J

➢To control your exposure and ensure compliance with the general population or

uncontrolled environment exposure limits, transmit no more than 50% of the time. The

radio generates measurable RF energy exposure only when transmitting.

➢The consumer must maintain a minimum safe separation distance of 2 ft from the antenna

when transmitting.

Getting to Know The COM-DB90

Please check the packaging of your radio for any signs of damage. Carefully open the box, if you

find the radio or the included accessories are damaged or lost, immediately contact your dealer or

us at [email protected]

Front of the Radio

1. V/M Mode Switch (Channel/Frequency)

2. Monitor (Moni) function

3. Call key

4. FM radio function key

5. Power, On/Off (Press) & Volume Knob (Rotate)

6. Exit Menu, Toggle A/B/C/D bands

7. Display screen

8. RJ-45 Microphone Connector

9. Channel Selector (rotate) Menu Knob (Press) Confirm Key (Press)

Toggle between

Memory & Channel

mode (for simple

channel driven radio

leave on memory

mode)

Current band indicator

(similar to AM and FM on

your car radio

Radio Volume &

press and hold to

power down or

power up

Channel

Selector or

press to

enter radio

Toggle between

bands A, B, C & D

Back of the Radio

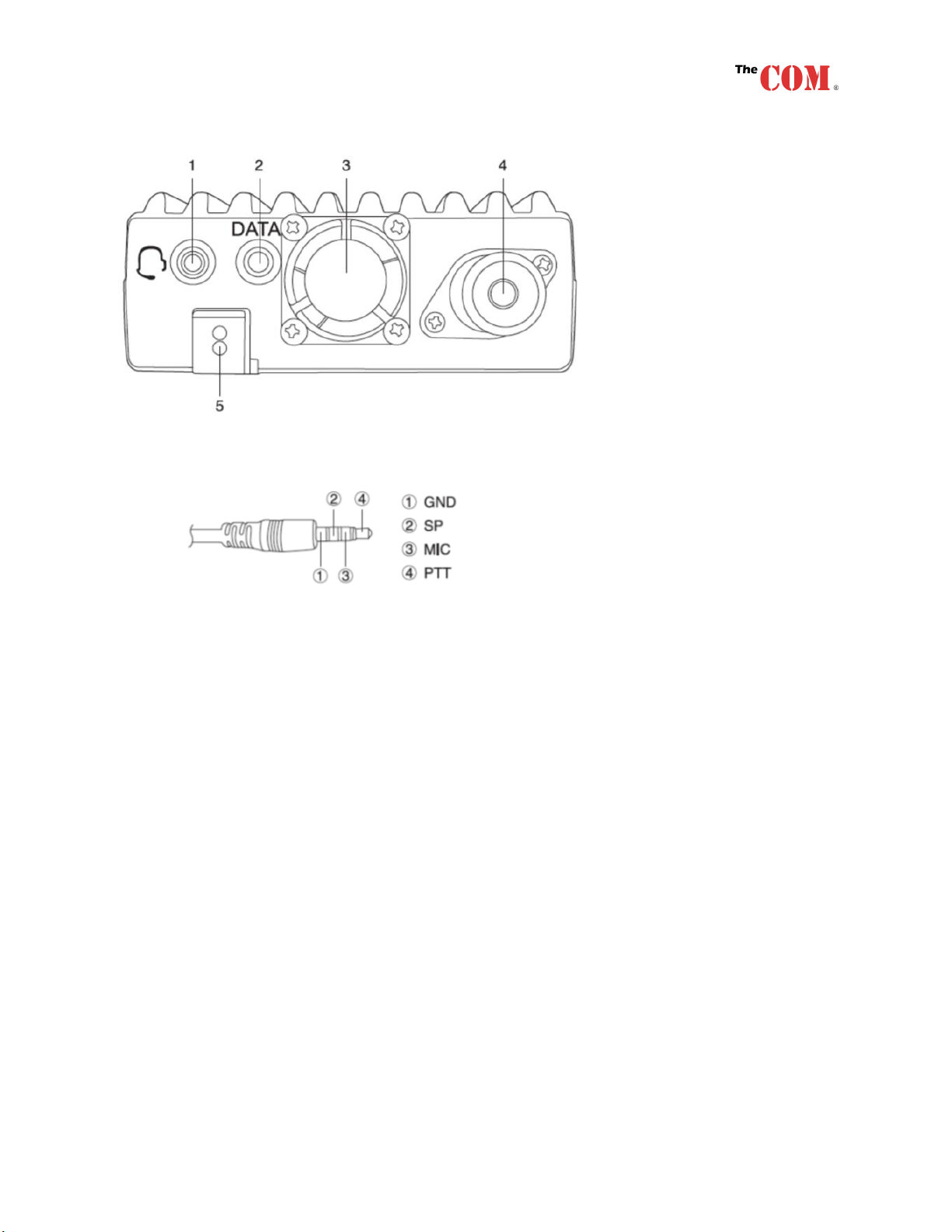

1. TRRS 3.5 mm connection for S4S intercom connection –Pinout diagram below:

2. DATA, Programming Jack TRS 3.5 mm: (Restricted to comply with FCC Part 90)

3. Cooling Fan

4. SO-239 RF Antenna Connector: Connects to PL-259 Antennas

5. 12V DC Power supply (13.8 Volts –7 Amps peak)
