TH-332 4*100W COB LED Blinder
USER MANUAL
CE RoHS
Notice: because the policy of improve the products quality of our company. Maybe some data in the
instructions will change in future. By that time, we won’t inform you about the changed matters. The-One
company reserve the right of changing correlative specification when improve the products. Publisher of
the instruction will not responsible for veracity of information and some correlative results caused by this
information.
MODE
NO.
TH-332
NAME
2x2 COB Led Blinder
1
Technical Parameter:
•LED: 4 pcs* 100W COB LED
•Light Color: Single color warm white or cool white
•LED Life Time: over 50,000 hours
•Voltage :AC100V-240V 50-60Hz
•Power consumption :260/520W
•Beam Angle: 30 degree
•Dimmer: 0~100% linearly adjustable
•Strobe effect: Variable speed (1-30Hz)
•Refresh rate : 11700Hz! 100% Flicker Free for film and TV camera
•Color effect feature: With individual control effect
•Power input : Powercorn connector
•House Material: Metal
•House Color: Black
•Control mode: DMX512,Master/Slave, Auto Run, Stand alone, Sound active
•DMX Channel: 4/8CH
•Working temperature: -30°C~40°C
•Cooling: Two low noise fans
•IP Grade: IP20
•Net Weight: 5kgs
•Gross Weight: 7kgs
1. Description
1.1. Character
4 control mode
External control mode
DMX512 controller controller mode （2 kind of DMX Channel）
Master/slave
Auto mode
Built-in Program
Different kind of Gradual change& Random change
Different kind of strobe：speed (slow to fast)、fix color( Strobe
+color、Strobe +Gradual change)……
Setting Program
It can setting the program without the controller , it can setting
2
Gradual change、jump change、strobe ...(different effect)
And the program data can be down load from master light to
slave light
Static model
It can fix the color without the controller ,also can be choose the
color with strobe
Sound model
Included 2 kinds of commonly used sound model
“Software cutting ”
In the STAR mode , working built-in program /setting program ,the light
would be turn off when the dimmer channel as "0"（procedure would
keep working)
The difference with “BLACKOUT” key(controller keys) &"Software
cutting" ：only work this light , and do not clear up the controller data .
White color
Setting different color temperature of white color
Screen Protection
Without operate key in 30 seconds , it enter black screen. Press any
keys then it can quit screen protection.
Temperature Protection
It can set to protect the temperature .
Speed of the Fan
The fan will be worked when the working temperature reach 40 degree,
and the speed will get the faster as the temperature get high.
Can be showed reverse display
3
1.2.Multi-light working in the same time
When using controller to control several lights , and using strobe , auto
mode, the controller just send the channel data . Those effect( strobe ,auto
running ,fix color)would be showed by itself. And should be attention for the
follow situation:
1. There will be many situation make the light become not synchronization
in the beginning. (For example: the different time of opening the light will make
them connect the controller in different time) . And you can change the
controller table puller data( from 20 to 0, and back to 20), then it can be
synchronization.
2. Due to different lights crystal frequency are not exactly equal, so it will
become not synchronization after long time.
3. If need to be synchronization for long time, there is 2 approaches:
A. Using the controller to make program make the strobe, auto run
effect to be synchronization.
B. Using the Maser/Slave model
4
2.Operation
2.1 Key operation
Menu：
The first list is the main menu (press MENU to
exchange), the second list is submenu (press
ENTER to get in or exchange)
If the menu include the decimal point, that’s the
data, and it can be set by the Key of Up/Down.
Key operation：
Key of “MENU” (Press it and can save the data)
If it’s the main menu, it will exchange to next
main menu.
If it’s the submenu , it will back to main menu.
Key of “ENTER” (Press it and can save the data)
If it’s the main menu and it have submenu, it will
enter the submenu.
If it’s the submenu, it will exchange to the next
submenu
Key of “UP/DOWN”
It’s no function if the menu not include the
decimal point.
If the menu include the decimal point, it can set
the data after the decimal point. And it need to
press “ENTER” to save the data.
5

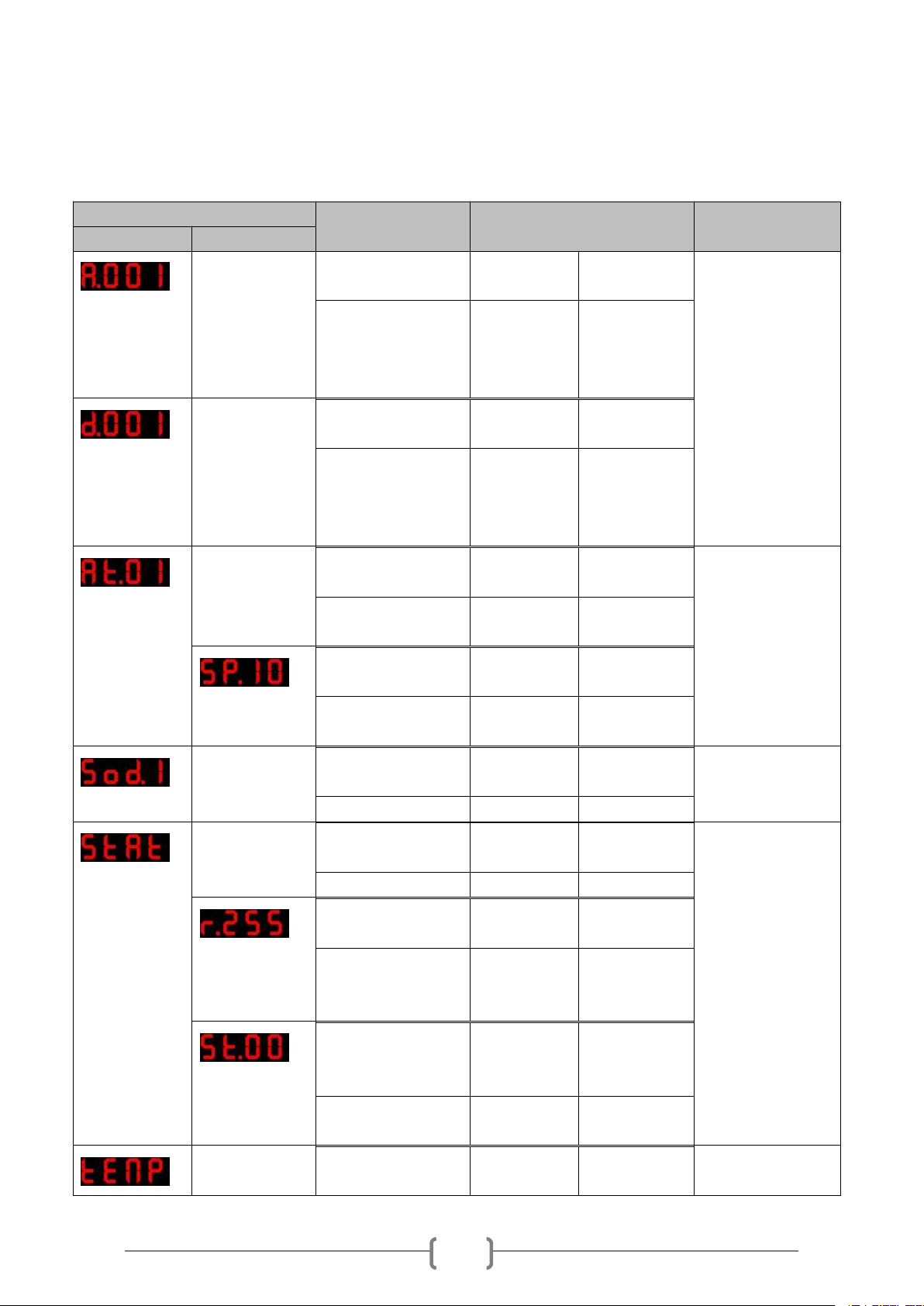

2.2 Menu Data
Menu
State
Operation
Remark
Main Menu
Vice Menu
No vice menu
A: advance
UP/DOWN
adjust ID
adress
disconnect the
controller and
connect the
master light, then it
will follow the
master light.
It will flicker if no
signal.
External control
mode
(standard channel
model)
ENTER
save the ID
address
No vice menu
d: dmx
UP/DOWN
adjust ID
adress
External control
mode
(Basic channel
model)
ENTER
Save the ID
address
One vice menu
At: auto
UP/DOWN
Choose
program
Auto run
ENTER
Enter vice
menu
SP: speed
UP/DOWN
Adjust the
speed
select the speed of
auto run
ENTER
Save data
None
Sod: sound
UP/DOWN
change to
Sound control
Sound mode
ENTER
Save data
With multi-vice
menus
StAt: static
ENTER
Enter vice
menu
Static model
……
r、G、b、W……
UP/DOWN
Change the
value of led
Led set
ENTER
Save data
and change to
vice menu
St: strobe
UP/DOWN
Change the
value of
strobe
Strobe and the
speed
ENTER
Save data
and change
2 vice menu
tEMp: temperature
ENTER
enter the vice
menu
6
temperature control
current temperature
ENTER
change to
vice menu
t: top
UP/DOWN
change the
data of
temperature
protect
set the protect
temperature
ENTER
save and
change
With menus
Wt: white
UP/DOWN
Color temperature
setting
ENTER
Enter the vice
menu
……
r、G、b、W……
UP/DOWN
Change the
value of led
Change the value of
color temperature
ENTER
Sace data
and change to
vice menu
No vice menu
diSP: display
ENTER
reverse the
display
set to show reverse
display
No vice menu
rESt: reset
ENTER
enter the
interface of
key
the password is
“UP DONW UP
DOWN”
return Initial State
7
2.3 Channel data
2.3.1 Channel
Channel
Data
Function
1
0~255
Dimmer
2
0~255
Led 1
3
0~255
Led 2
4
0~255
Led 3
5
0~255
Led 4
6
0~30
No effect
Can be set via menu of
“WT.xx”
31~255
Dimmer
7
0~10
No strobe
This channel can control the
speed when run the inner
program
11~255
The speed of strobe (255 is fasterest)
8
0~20
Speed of dimmer 4 (slowest and
softest)
21~40
Speed of dimmer 3
41~60
Speed of dimmer 2
61~80
Speed of dimmer 1
81~99
Speed pf dimmer off (no delay)
100~109
Inner program 1
......
......(each 10 data is a program)
190~199
Inner program 10
200~240
Change light led by sound model
241~255
Strobe by sound model
Channel
Data
Function
1
0~255
Led 1
2
0~255
Led 2
3
0~255
Led 3
4
0~255
Led 4
8
3.Photographic Chart
3.1 Spectrogram
3.2 CRI
9
3.3 Lumen
