The Singing Machine SMG-903 Manuale utente

SMG-903

Professional Recording Karaoke System

ENGLISH

THIS APPLIANCE SHOULD NOT BE EXPOSED TO OR PLACED NEAR, DRIPPING,

SPLASHING WATER OR OBJECTS FILLED WITH LIQUIDS (SUCH AS VASES.)

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

ENGLISH

This class[B] digital apparatus complies with Canadian ICES-003.

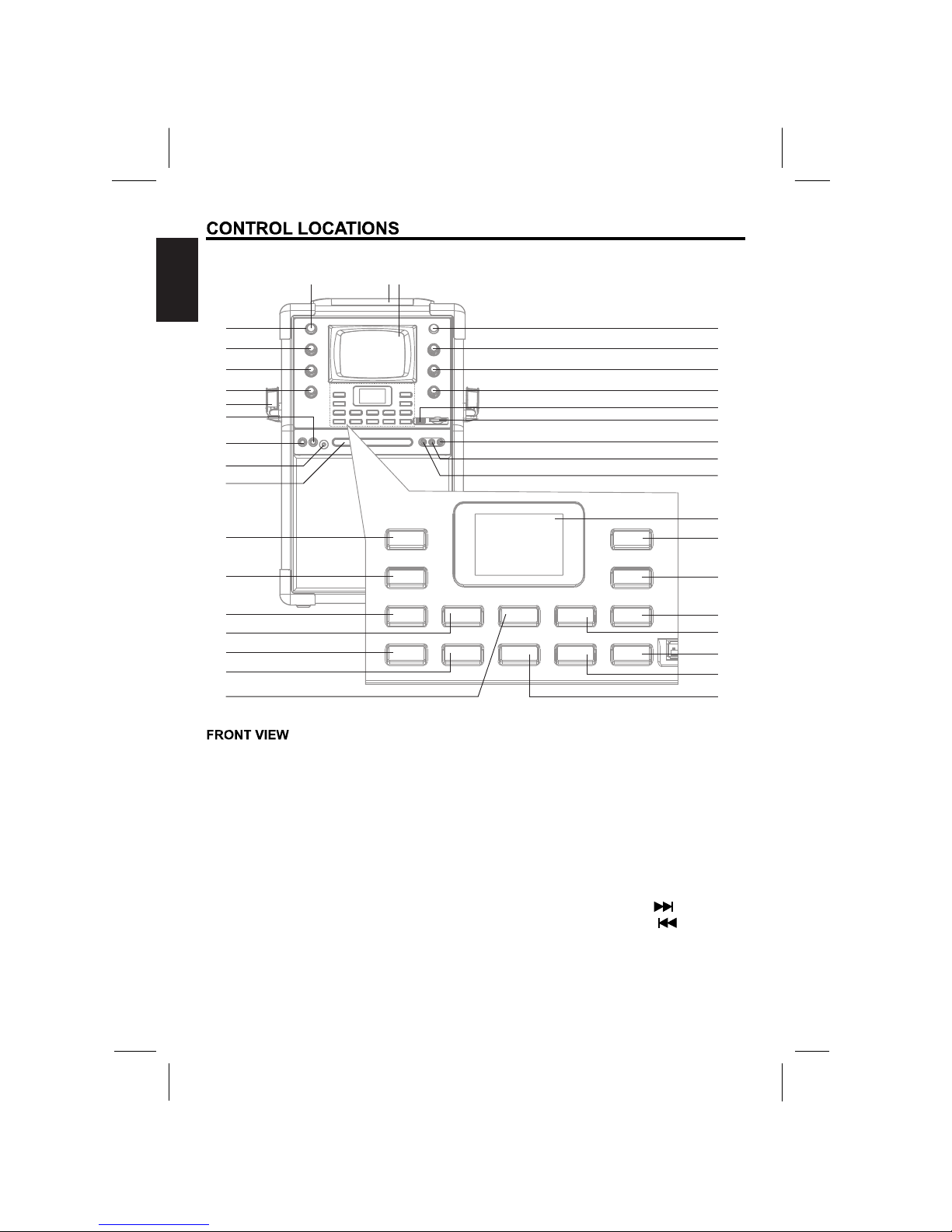

1. 16. KEY/ECHO button 27. AUX OUT Jack (R)

2. Handle 17. RECORD button 28. AUX OUT Jack (L)

3. Monitor 18. PROGRAM/DISPLAY 29. LCD DISPLAY

button

4. ON/OFF LED 30. PLAY/PAUSE button

19. KEY/ECHO/FOLDER -

5. MIC 1 Volume Control 31. STOP button

button

6. MIC 2 Volume Control 32. REPEAT/RANDOM

20. MONITOR ON/OFF button

7. Auto Voice Control button 33. KEY/ECHO/FOLDER +

8. Mic Holder 21. MASTER VOLUME button

9. MIC 2 Jack Control 34. OPEN/CLOSE button

10. MIC 1 Jack 22. BALANCE Control 35. SKIP button

11. EXTERNAL INPUT Jack 23. EXTERNAL INPUT 36. SKIP button

Volume Control

12. CD Door 24. USB Port

13. Function Selector 25. SD/MMC Card Slot

14. SYNC RECORD button 26. VIDEO OUT Jack

15. DELETE button

ON/OFF button

ENGLISH

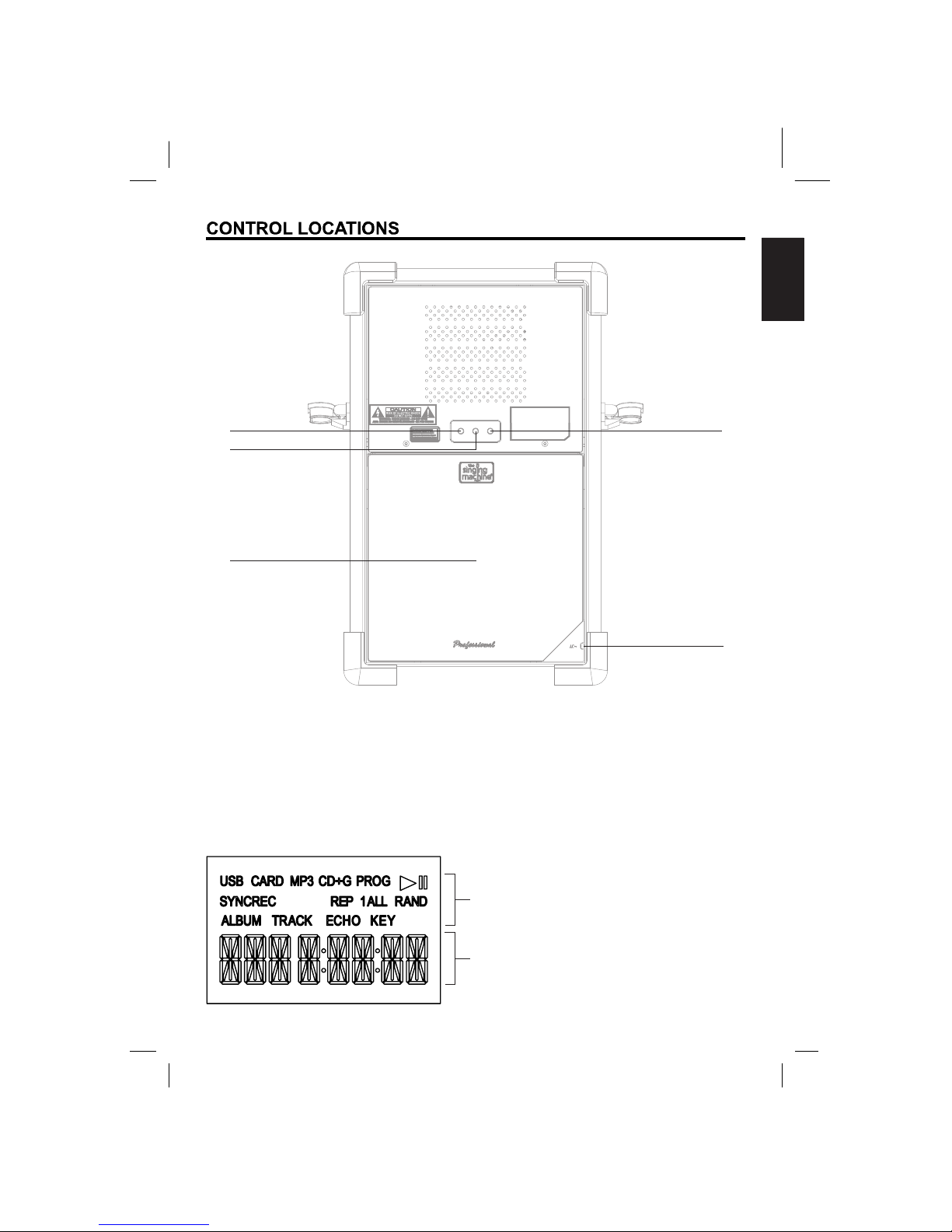

REAR VIEW

37. BRIGHTNESS Control

38. CONTRAST Control

39. Loudspeaker

4 VERTICAL HOLD Control0.

41. AC Power Cord

LCD DISPLAY

Function Icons

Album, Track, Echo

& Key Display

MAKING THE CONNECTIONS

ENGLISH

CONNECTING POWER

You can power the system from a standard AC outlet by using the

supplied power cord.

CAUTION: The supplied AC power cord has a polarized plug that fits into

the wall outlet only one way. If the plug does not fit properly, turn it over and

try again. Do not force it.

CONNECTING TO YOUR TV OR VCR/DVD PLAYER

Your Singing Machine is designed to connect to your TV the same way you would connect most video

cameras, VCR/DVD players or video game consoles.

We have provided RCA cables to connect your unit to a TV, VCR/DVD player, video device or an external

audio/sound system. The RCA cables have three connections at each end (white and red are for left and

right audio connections and the yellow is for video connection).

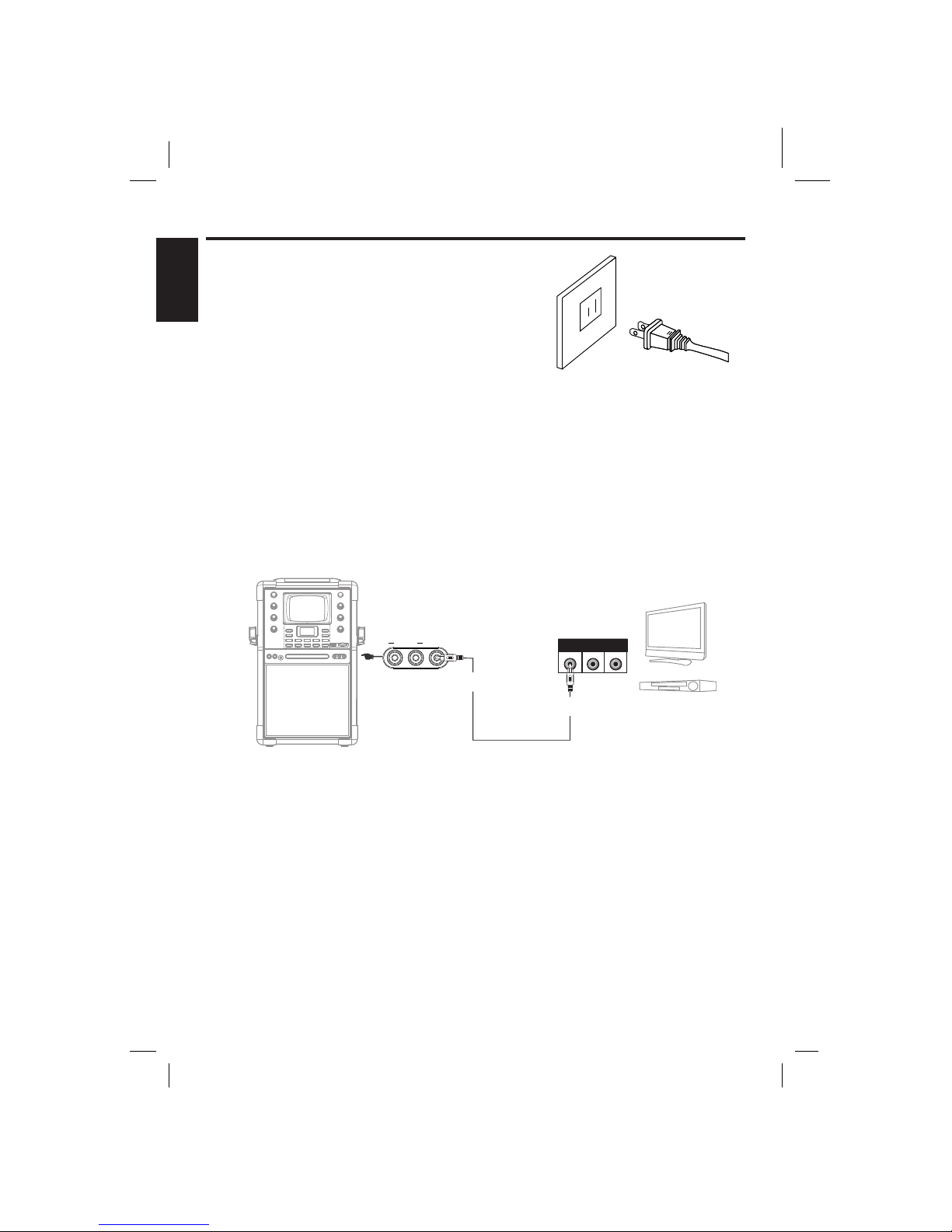

Please follow the steps below to display CD+G lyrics on the TV screen:

(1) Locate the multi-colored RCA cables.

(2) Connect video cable (yellow) to the VIDEO OUT jack of the front of the Singing Machine.

(3) Connect the other end of the video cable (yellow) to the video input on your TV or VCR/DVD

Player

AUDIO OUT

VIDEO OUT

VIDEO INPUT

(Yellow Jack)

VIDEO OUTPUT

(Yellow Jack)

FRONT VIEW OF

SINGING MACHINE

VIDEO

INPUT AUDIO

INPUT

R L

REAR VIEW OF TV OR VCR

MAKING THE CONNECTIONS

ENGLISH

SELECTING YOUR SINGING MACHINE AS YOUR SOURCE/INPUT

Selecting your Singing Machine as a source/input on your TV is very similar to connecting a VCR/DVD or

Satellite system.

We’ve listed below the most common ways of selecting the source from your TV or VCR/DVD Player:

(1) In the set up menu of the TV or VCR/DVD player there may be an option for “Input Select” where

you can choose between “Cable/Ant., Video 1, Video 2, etc.” as the input source.

(2) Look for a TV channel between the highest and lowest channel on your TV or VCR/DVD player

(i.e. AUX, EXT, LINE 1 or LINE IN)

(3) Your remote control for either your TV or VCR/DVD player may have source input selections as

detailed below:

“VIDEO, VIDEO 1, GAME, AUX, EXT or LINE-IN.“ Choosing one of those in most cases should

display the lyrics from your Singing Machine as well.

AUDIO CONNECTION

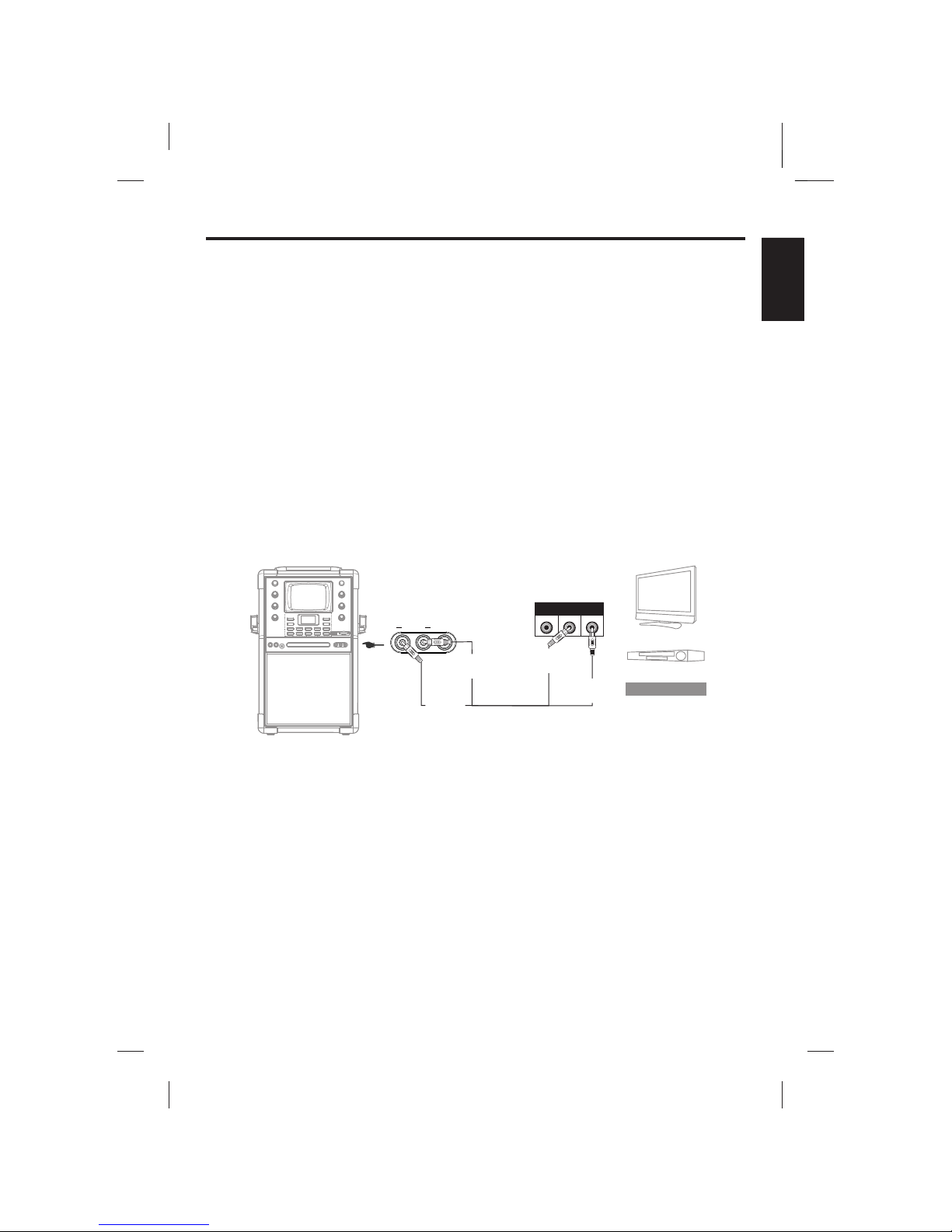

Please follow the steps below to connect the unit to your TV or VCR or home stereo system:

(1) Locate the multicolored RCA cables.

(2) Connect audio cables (White and Red) to the Audio Out (White-Left and Red-Right)of the front of

the Singing Machine.

(3) Connect the other end of the audio cables to the audio/auxiliary input on your TV or VCR or home

stereo system.

AUDIO OUT

VIDEO OUT

AUX OUTPUT

(Red Jack)

VIDEO

INPUT AUDIO

INPUT

R L

REAR VIEW OF TV OR VCR

OR HOME STEREO SYSTEM

Home Stereo System

AUX OUTPUT

(White Jack)

AUX INPUT

(Red Jack)

AUX INPUT

(White Jack)

FRONT VIEW OF

SINGING MACHINE

VIDEO OUT

This unit is designed to play CDs and CD+Gs bearing the identification logo . If the disc does not

conform to the standard, it may not play properly.

TURNING POWER ON/OFF

! To power the karaoke center ON; press the ON/OFF button. The LCD will illuminate.

! To power the karaoke center OFF; press the ON/OFF button again. The LCD will no longer be

illuminated.

FUNCTION SELECT

Press the FUNCTION SELECTOR to CD.

LOADING A DISC

!Press the OPEN/CLOSE button to open the CD door, place a CD or CD+G disc in the compartment with

the printed side facing upward and the shiny side facing down.

!Press the OPEN/CLOSE button again to close the CD door. The LCD window will display the total

number of tracks. (If no disc is loaded, it will display “NO DISC”. If a CDG is loaded, the CD+G indicator

will light up.)

Note: - Never place anything except a compact disc in the disc tray. Foreign objects can damage the unit.

- Only place one disc on the disc tray at a time.

(Refer to the Trouble Shooting Guide “If a disc is loaded but the total tracks do not appear”.)

PLAY/PAUSE

!Adjust MASTER VOLUME control on your unit to adjust TV or audio system to a comfortable level.

!To start playing, press the PLAY/PAUSE button. The first track [ ] and the PLAY( ) icon will appear on

the LCD.

!To temporarily stop playing, press the PLAY/PAUSE button. The PAUSE ( ) icon will be displayed on

the LCD.

!To resume play, press this button again.

Note: - Pressing pause repeatedly when a CD+G is playing may cause distorted lyrics on your TV screen. Any distortion will

remain on the TV screen until it is refreshed either during an instrumental break or when the song is stopped and/or

when the song is started from the beginning.

STOP

If the STOP button is pressed in the course of playing, the disc will cease to play. (The total number of tracks

will be shown on the LCD window.)

MASTER VOLUME

Rotate to the MASTER VOLUME control to obtain the desired sound level.

Note: When using the microphone, the MIC Volume must be adjusted simultaneously with the master volume

level.

SKIP (For both CD and CDG discs)

!During STOP mode, you can skip forward or back to your desired track number by pressing the

SKIP buttons( - SKIP - ).

!To resume playing the selected song, press PLAY/PAUSE button.

SEARCH (For audio CD disc only)

When playing any audio CD, press and hold the SKIP button ( -SKIP- ). The CD will search at high

speed in the forward or backward direction. Normal play will continue when you release the button.

respectively

CD OR CD+G OPERATION

ENGLISH

CD OR CD+G OPERATION

REPEAT

!To repeat the track currently playing, press the REPEAT button once. The REP 1 icon will be displayed on

the LCD.

!To repeat all tracks, press the REPEAT button twice. The REP ALL icon will be displayed instead of REP

!To clear the REPEAT function, press the REPEAT button two or three times until REPEAT & RANDOM

icons on LCD turn off.

PROGRAM

!Use this button to program and play back songs in a preselected order.

Step 1: Programming should be done in the stop mode only. Press the PROGRAM button until the

PROG icon is displayed on the LCD, the track will read [ ].

Step 2: Press the double arrow keys ( -SKIP- ) to select a desired track.

Step 3: Press the PROGRAM button to confirm entry. You can repeat the same steps up to a maximum of

20 tracks.

Step 4: Press the PLAY button when you have completed programming and you are ready to begin

singing.

!Press the STOP button twice to clear all the programmed entries.

RANDOM

!Press the REP/RAND button three times to activate the random play function. Press play to start the

random play. The RAND icon will be displayed on the LCD.

! Press the STOP button to clear the random function.

MONITOR ON/OFF

!Set MONITOR ON/OFF switch to ON if you want to display a CDG lyrics on the Singing Machine’s

monitor.

!Adjust the BRIGHTNESS, CONTRAST and VERTICAL HOLD Controls at the back of the Singing

Machine to have the best picture quality.

Your Singing Machine is designed to connect your favorite Digital Music device (e.g. iPod/MP3 player, etc.)

and Professional musical instruments (e.g. Electrical Guitar or Electronic Keyboard).

You can connect your device by using an appropriate cable (not included). We have also provided a Jack

Adaptor ( 6.3mm to 3.5mm) if your device is connecting by 6.3mm plug.

FUNCTION SELECT

Press the FUNCTION SELECTOR to AUX IN.

EXTERNAL INPUT VOLUME

Rotate the EXTERNAL INPUT Volume control to a certain level (one third of the full range) in order to make

sure there is adequate volume input to amplify.

DWarning - To avoid over load to the built in speakers on your Singing Machine we recommend

adjusting the external input volume to no more then one third of its’ capability at the beginning.

MASTER VOLUME

Rotate to the MASTER VOLUME control to obtain the desired sound level.

EXTERNAL INPUT OPERATION

ENGLISH

UPLOAD AND PLAY DATA TO/FROM YOUR MEMORY DEVICE

Insert a USB thumb drive, SD or MMC card into their corresponding ports. Press the FUNCTION

SELECTOR buttons; the USB or CARD icons will appear on the LCD display. In the event the correct

memory device has not been selected the LCD will display “NO USB” or “NO CARD”.

1. Press the PLAY/PAUSE button of the system to play the music from the memory device.

2. Press the PLAY/PAUSE button again to pause play, press again to resume play.

3. Press the skip button to skip forwards ( ) or backwards ( ) through recorded files (tracks), or hold

the corresponding buttons to fast forward or rewind.

4. Press the KEY/ECHO/ + or – button to skip to the next or previous album/folder on the memory device

that has more than one album/folder.

NOTE: “UNSUPPORTED MP3” will display when an error has occurred with the memory device (e.g. memory

format type is different).

RECORDING SING ALONG

SYNCHRONIZE RECORDING

You can record your favorite CD track(s) and/or your voice into a MP3 format and store them onto your

memory device through the USB or SD/MMC ports.

1. Press the FUNCTION SELECTOR button to select CD+G function.

2. Press the SKIP / button to select the track that you want to record.

3. Press the SYNC REC button to confirm the CD will begin playing the preselected track and record to the

device. Press the SYNC REC button one more time and the recording will begin at the selected track and

continue recording to the last track.

4. Press the STOP button to stop the synchronize recording. It will take a few seconds to save the recorded

file onto the memory device. Please DO NOT remove the memory device until “WRITING” disappears

from the LCD display.

5. “FULL” will be displayed when the memory device has reached its capacity. If this is the case, please

transfer your recordings to another storage device (e.g. computer) which will allow additional recordings

to be stored onto your memory device.

6. For each synchronized recording, a new folder will be created under the RECORD\ CDSyncRec folder

and all the tracks will be saved under a new folder with the name “TRK001.MP3” through “TRK999.MP3”

Note: The recorded file volume depends on the original CD volume instead of the Singing Machine volume.

USB AND CARD OPERATIONS

ENGLISH

Indice

Altri manuali The Singing Machine Sistema Karaoke

The Singing Machine

The Singing Machine SMC273BK Manuale utente

The Singing Machine

The Singing Machine SML682BTBK Manuale utente

The Singing Machine

The Singing Machine SMG303 Manuale utente

The Singing Machine

The Singing Machine SMG-158 Manuale utente

The Singing Machine

The Singing Machine STVG-502 Manuale utente

The Singing Machine

The Singing Machine KIDS SMK250 BG Manuale utente

The Singing Machine

The Singing Machine SMG303 Manuale utente

The Singing Machine

The Singing Machine SML650 Manuale utente

The Singing Machine

The Singing Machine SML363BTBK Manuale utente

The Singing Machine

The Singing Machine SML625BTW Manuale utente

The Singing Machine

The Singing Machine SMVG-608 Manuale utente

The Singing Machine

The Singing Machine iSM990 Manuale utente

The Singing Machine

The Singing Machine Bratz SMB-567 Manuale utente

The Singing Machine

The Singing Machine SMG-901 Manuale utente

The Singing Machine

The Singing Machine SML505 Manuale utente

The Singing Machine

The Singing Machine iSM1060BT Manuale utente

The Singing Machine

The Singing Machine SMI-1222 Manuale utente

The Singing Machine

The Singing Machine STVG-519 Manuale utente

The Singing Machine

The Singing Machine STVG-1009 Manuale utente

The Singing Machine

The Singing Machine SMK264 Manuale utente

The Singing Machine

The Singing Machine iSM1090 Manuale utente

The Singing Machine

The Singing Machine SML-383P Manuale utente

The Singing Machine

The Singing Machine iSM1080 Manuale utente

The Singing Machine

The Singing Machine SMK470 Manuale utente

Manuali Sistema Karaoke popolari di altre marche

Memorex

Memorex MKS2430 Manuale utente

Tosing

Tosing 008 Manuale utente

Karma

Karma KSTATION Manuale utente

LG HT902TR-XK Manuale utente

Karaoke Warehouse

Karaoke Warehouse Player 2000 Manuale utente

VocoPro

VocoPro DVG-888K II Manuale utente

ION

ION DISCOVER KEYBOARD USB Manuale utente

Singsation

Singsation CENTER STAGE FREESTYLE Manuale utente

RSQ

RSQ NEO K-2 Manuale utente

VocoPro

VocoPro BRIDGE Manuale utente

MASINGO

MASINGO Illuminato Q4 Manuale utente

auna

auna DisGo Manuale utente

auna

auna Karaoke Star 2 Manuale utente

DAPAudio

DAPAudio DVMP-150 Manuale utente

CAVS

CAVS DK3 Manuale utente

WOW! Videoke Premium

WOW! Videoke Premium WOW Mabuhay Plus 2 Manuale utente

GRAND VIDEOKE

GRAND VIDEOKE TKR-373MU Manuale utente

Disney

Disney FROZEN 2 Manuale utente
