The Wings Maker SZD-45 OGAR Manuale utente

GM048XMPO28181206

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of electric powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

Warning ! This model is not a toy.

THE WINGS MAKER

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

* Specifications are subject to change without notice.*

www thewingsmaker com. .

SpecificationsSpecifications

Before commencing assembly please read these instructions thoroughly, .

INSTRUCTION MANUAL

Wing Span: 98.5 in / 2500 mm

Wing Area: 667 sq in / 43 sq dm

Flying Weight: 48 oz / 1360 g

Fuselage Length: 45 in / 1145 mm

Requires: 4-channel radio w/ 4 micro servos. Outrunner

Motor KM0283010 w/ Propeller Adaptor HW2340100

20A Brushless ESC, 3 cells 11.1V 15C 1800 mAh Li-Po

battery & charger.

6='2*$5 (GM048XM)

GM048XMPO28181206

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P.1

P.2

P.3-P.9

P.9

P.1

Check all parts. If you find any defective or missing parts contact your local dealer. Please

DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.

Any parts you find to be defective after the gluing process may be difficult to remove for

warranty replacement. The manufacturer will replace any defective parts, but will not extend

to the parts that are good before gluing to defective parts during assembly. Warranty will

not cover any parts modified by customer. For pre-assembled kits, please check proper

functions of all servos on the ground before flying. Servo gears could be damaged when

control surfaces are hit during transportation of models. The manufacturer will replace any

servos due to manufacturer`s defect, but will not cover plane crashes due to damaged

servos not detected before flying.

Symbols used throughout this instruction manual comprise of the following :-

Read through the manual before you begin, so you will have an overall idea of what to do.

Cut off shaded portion.

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Peel off shaded portion

covering film.

Pay close attention here!

Apply epoxy glue.

Must be purchased separately !

Drill holes with the specified

diameter (here: 3mm). Pierce the shaded portion

covering film.

3mm

Do not overlook this symbol !

Warning!

Apply thread locker

SZD-45 OGAR

GM048XMPO28181206

P.2

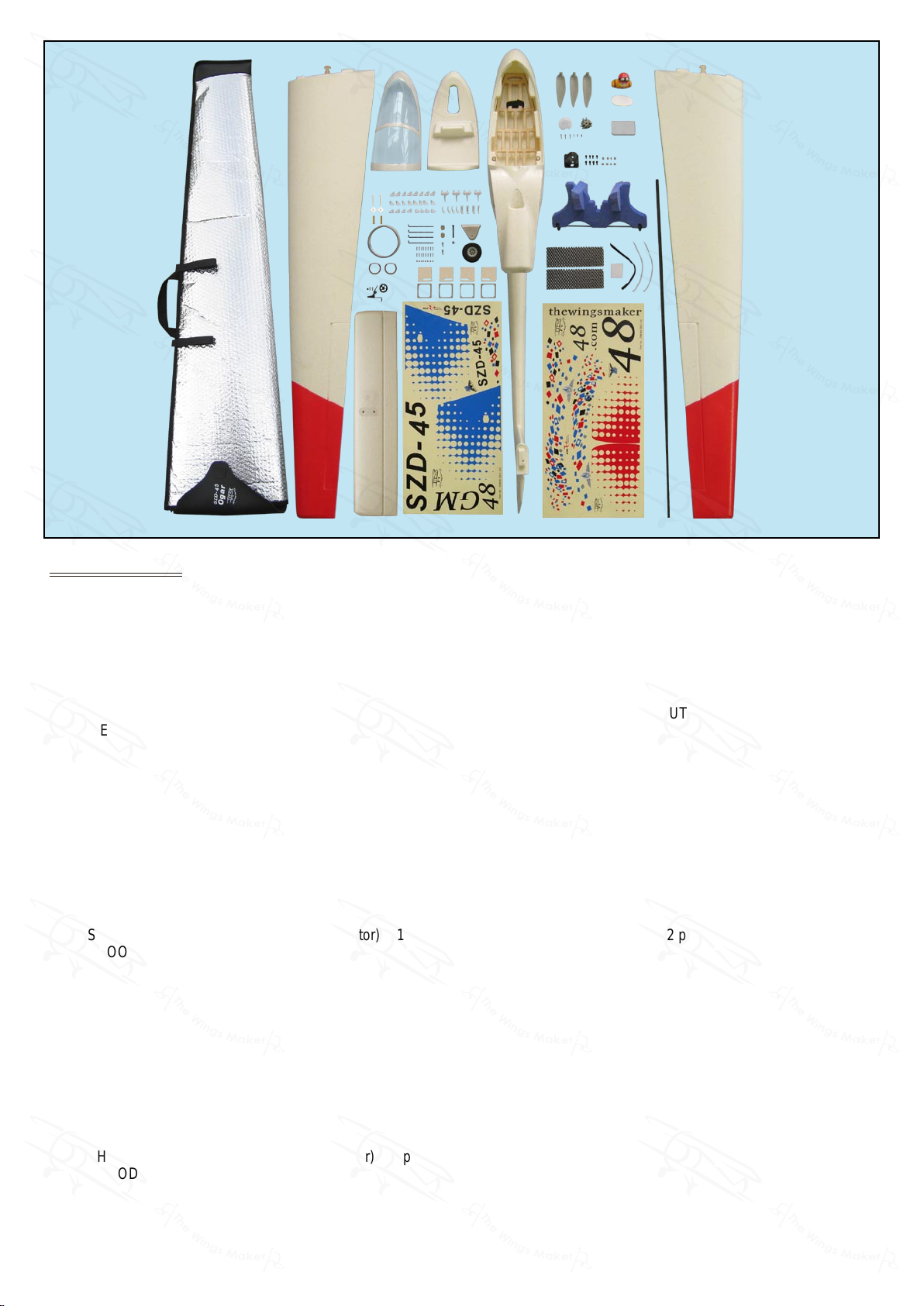

Parts List

1.MAIN WING -- 1 pair

MICRO AILERON SERVO MOUNT PL5310020 -- 1 pair

STRAPER PL4112106 -- 2 pcs

CLEVIS PL4112105 -- 2 pcs

FUEL TUBE d2xD4x4mm -- 4 pcs

HORN PL4113103 -- 2 pcs

PUSHROD Ø1.4x60mm w/ Threads (ForAileron) -- 2 pcs

SCREW PA1.7x8mm -- 8 pcs

FIBRE TAPE 17x435mm -- 2 pcs

PLYWOOD 36.5x36.5x2mm -- 2 pcs

2.FUSELAGE -- 1 set

STABILIZER & ELEVATOR -- 1 set

FIBRE TAPE 17x525mm -- 1 pc.

SCREW PA1.7x8mm -- 4 pcs

MICRO AILERON SERVO MOUNT PL5310020(R) -- 1 pc.

STRAPER PL4112106 -- 1 pc.

CLEVIS PL4112105 -- 1 pc.

FUEL TUBE d2xD4x4mm -- 2 pcs

HORN PL4113103 -- 1 pc.

PUSHROD Ø1.4x33mm w/ Threads (For Elevator) -- 1 pc.

PLYWOOD 36.5x36.5x2mm -- 1 pc.

NYLON BOLT M3x25mm PL6510202 -- 2 pcs

NYLON WASHER d3.1XD11mm PL6610202 -- 2 pcs

TUBES -- 2 pcs

3.FIBRE TAPE 17x185mm -- 1 pc.

SCREW PA1.7x8mm -- 4 pcs

MICRO AILERON SERVO MOUNT PL5310020(L) -- 1 pc.

STRAPER PL4112106 -- 1 pc.

CLEVIS PL4112105 -- 1 pc.

FUEL TUBE d2xD4x4mm -- 2 pcs

HORN PL4113103 -- 1 pc.

PUSHROD Ø1.4x42mm w/ Threads (For Rudder) -- 1 pc.

PLYWOOD 36.5x36.5x2mm -- 1 pc.

4.TAIL LANDING GEAR PL3410030 --1 set

SCREW PA2x8mm -- 2 pcs

5.MAIN LANDING GEAR -- 1 pc.

MAIN WHEEL Ø50mm PL3111500-- 1 pc.

PLASTIC COLLAR d4xD8x3mm -- 1 pc.

COLLAR Ø3.1mm w/ Set Screw -- 1 set

SCREW PA3x10mm -- 2 pcs

SOCKET HEAD SCREW M3x30mm -- 1 pc.

WASHER d3.2xD12mm -- 2 pcs

M3 NYLON INSERT LOCK NUT -- 1 pc.

6.MOTOR MOUNT PL5440000 -- 1 pc.

SOCKET HEAD SCREW M3x8mm -- 4 pcs

SOCKET HEAD SCREW M2.5x8mm -- 4 pcs

SCREW PM2x12mm -- 3 pcs

SCREW PA1.7x8mm -- 3 pcs

WASHER d3xD7mm -- 4 pcs

WASHER d2.5xD6mm -- 4 pcs

SPINNER Ø36mm SP28036WH0 -- 1 set

9x6 FOLDING PROPELLER(3 BLADE) PL6314051 -- 1 set

7.WING TUBE Ø8x900mm -- 1 pc.

RUBBER BAND 2.5x4mm -- 2 pcs

HOOK -- 1 pc.

BATTERY MAT 2x50x150mm (For Radio Equipment & Battery) -- 2 pcs

BATTERY TIE 200mm -- 1 pc.

RECEIVER TIE 160mm -- 1 pc.

CABLE TIE 150mm(For Brushless ESC) -- 1 pc.

9.COCKPIT -- 1 pc.

CANOPY -- 1 pc.

PILOT PC101050A-- 1 set

10.DECALS: GM048 DEC -- 1 set

11.FIELD STAND -- 1 set

GM048XMPO28181206

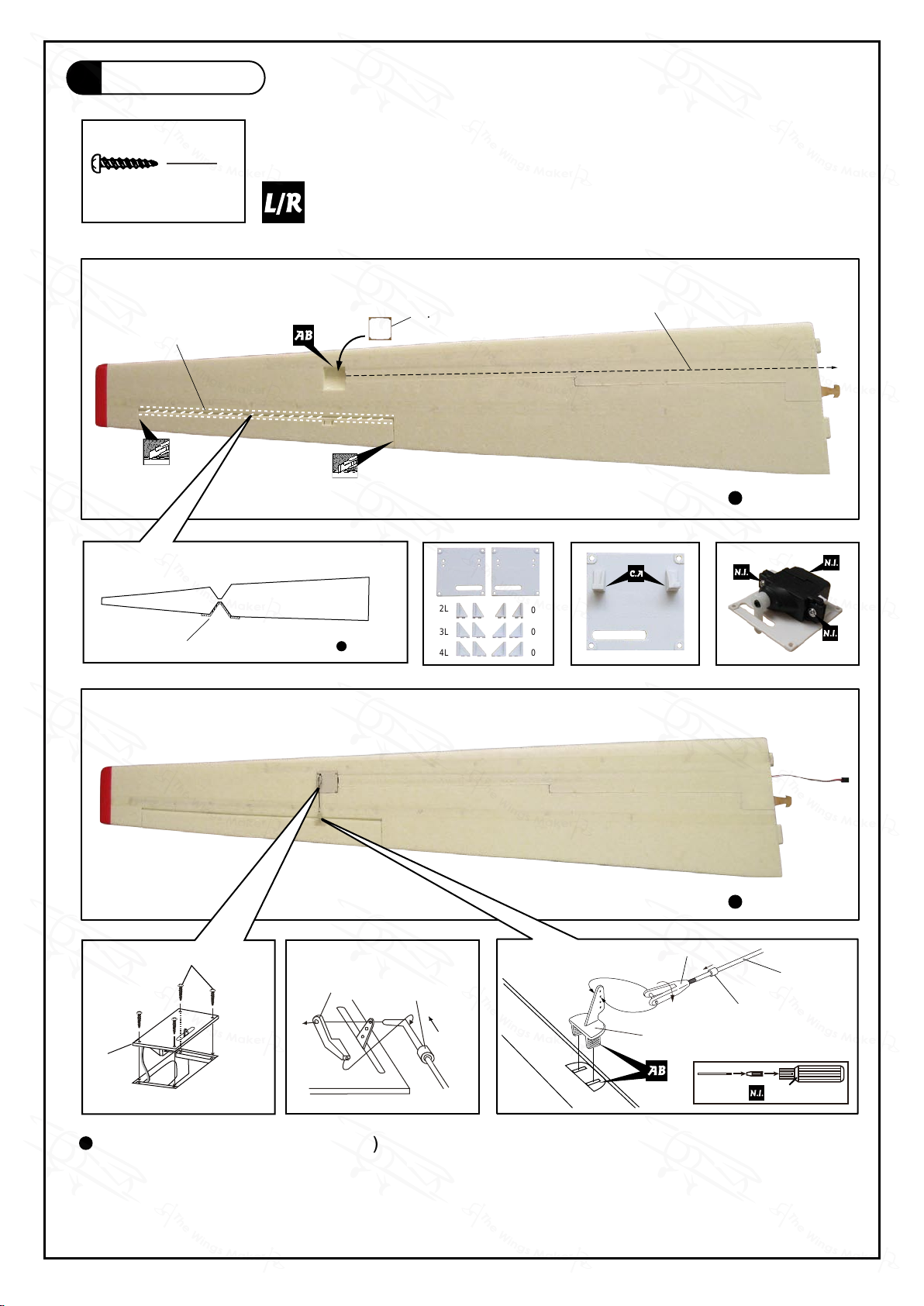

P.3

Please choose either (02L&02R) or (03L&03R) or (04L&04R) that suits your servo.

Aileron Servo

PA1.7x8mm Screw

Plywood

36.5x36.5x2mm Aileron Servo Lead

02L

03L

04L

02R

03R

04R

Bottom View

TWM PL8210010

CLEVIS WRENCH

Clevis Pushrod

Ø1.4x60mm

Fuel Tube

d2xD4x4mm

Horn

Straper Fuel Tube

d2xD4x4mm

PA1.7x8mm

Fibre Tape Bottom

Fibre Tape

17x435mm

GM048XMPO28181206

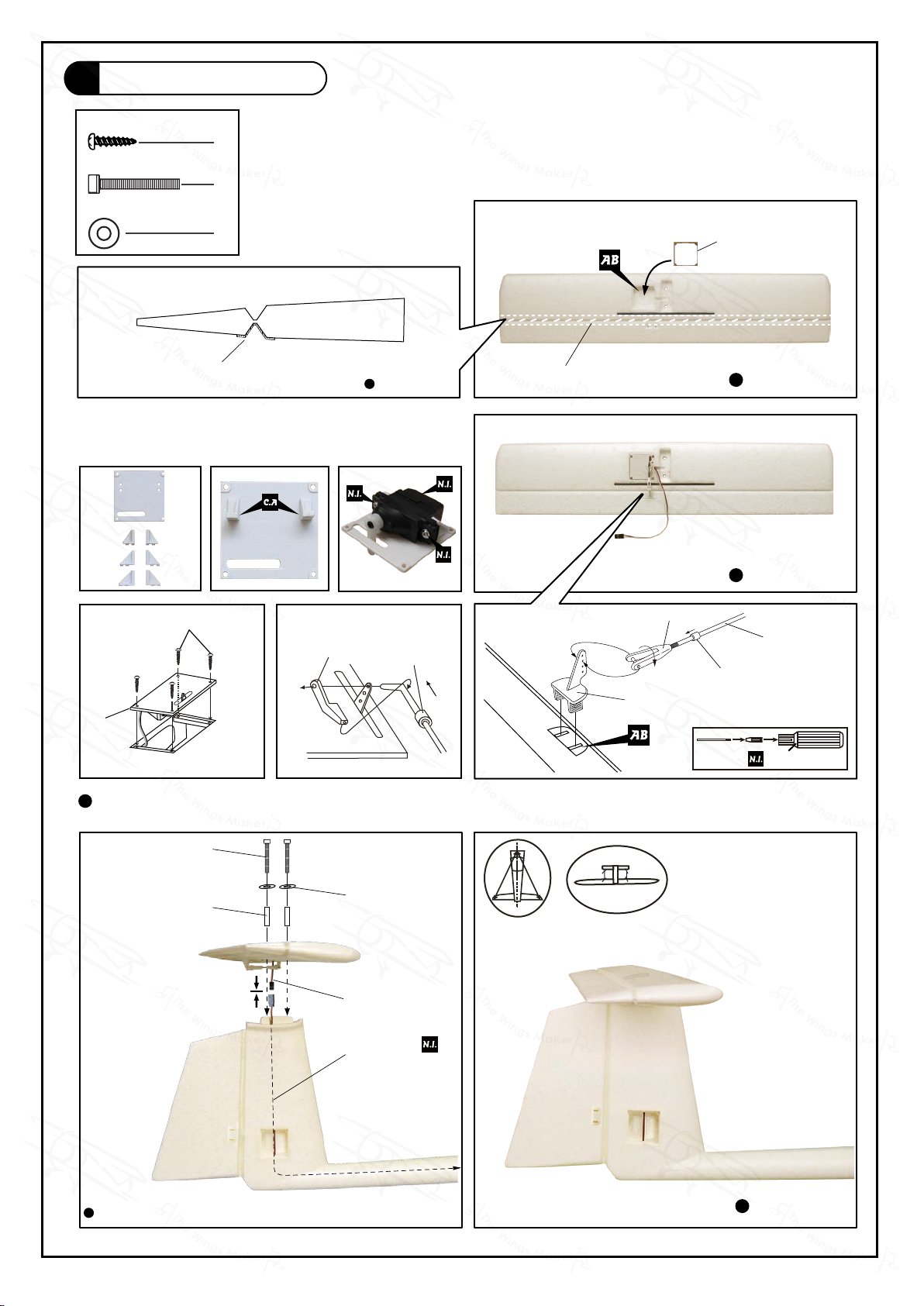

P.4

Please choose either (02L&02R) or (03L&03R) or (04L&04R) that suits your servo.

Don`t over tighten screws,too much force will deform the foam.

Stabilizer & Elevator

PA1.7x8mm Screw

M3x25mm Screw

d3.1xD11mmWasher

02L

03L

04L

02R

03R

04R

Completed

Bottom View

Straper Fuel Tube

d2xD4x4mm

PA1.7x8mm

Plywood

36.5x36.5x2mm

Fibre Tape

17x525mm

Fibre Tape Bottom

TWM PL8210010

CLEVIS WRENCH

Clevis Pushrod

Ø1.4x33mm

Fuel Tube

d2xD4x4mm

Horn

Elevator Servo Lead

Washer

d3.1xD11mm

Tubes

M3x25mm

Extension cords

A A'

A=A'

(Stabilizer)

(Main Wing)

B B'

B=B'

Temporary install the mainwing,

adjust leveling of the stabilizer

to make it as parallel to the main

wing as possible

GM048XMPO28181206

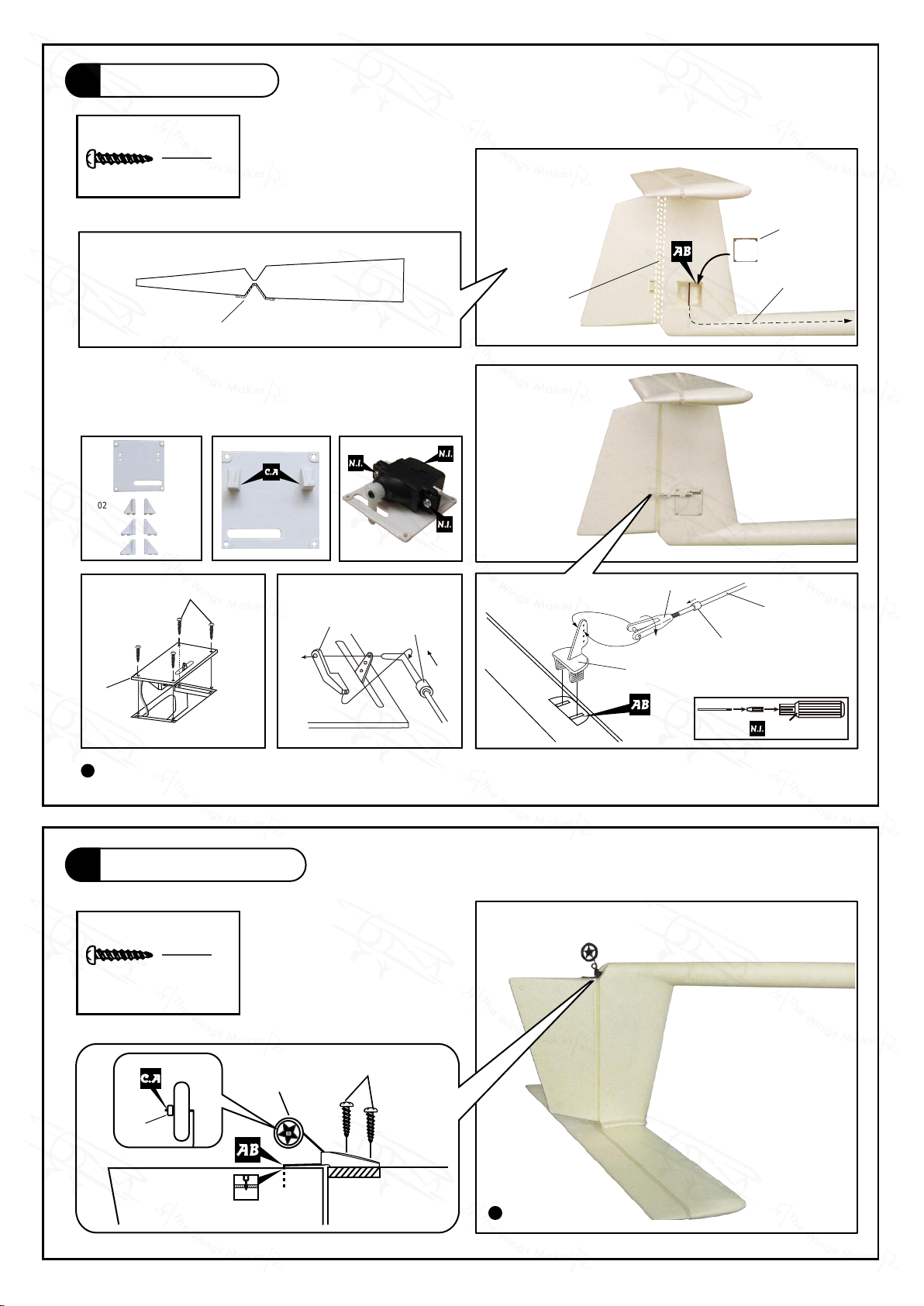

P.5

Please choose either (02L&02R) or (03L&03R) or (04L&04R) that suits your servo.

Rudder Servo

Tail Landing Gear

PA1.7x8mm Screw

Rudder Servo Lead

Straper Fuel Tube

d2xD4x4mm

PA1.7x8mm

Fibre Tape

17x185mm

Fibre Tape

TWM PL8210010

CLEVIS WRENCH

Clevis Pushrod

Ø1.4x42mm

Fuel Tube

d2xD4x4mm

Horn

Plywood

36.5x36.5x2mm

02L

03L

04L

02R

03R

04R

PA2x8 mm Screw

Plastic

Collar

Wheel Ø23mm PA2x8mm

1.2mm

Bottom View

GM048XMPO28181206

P.6

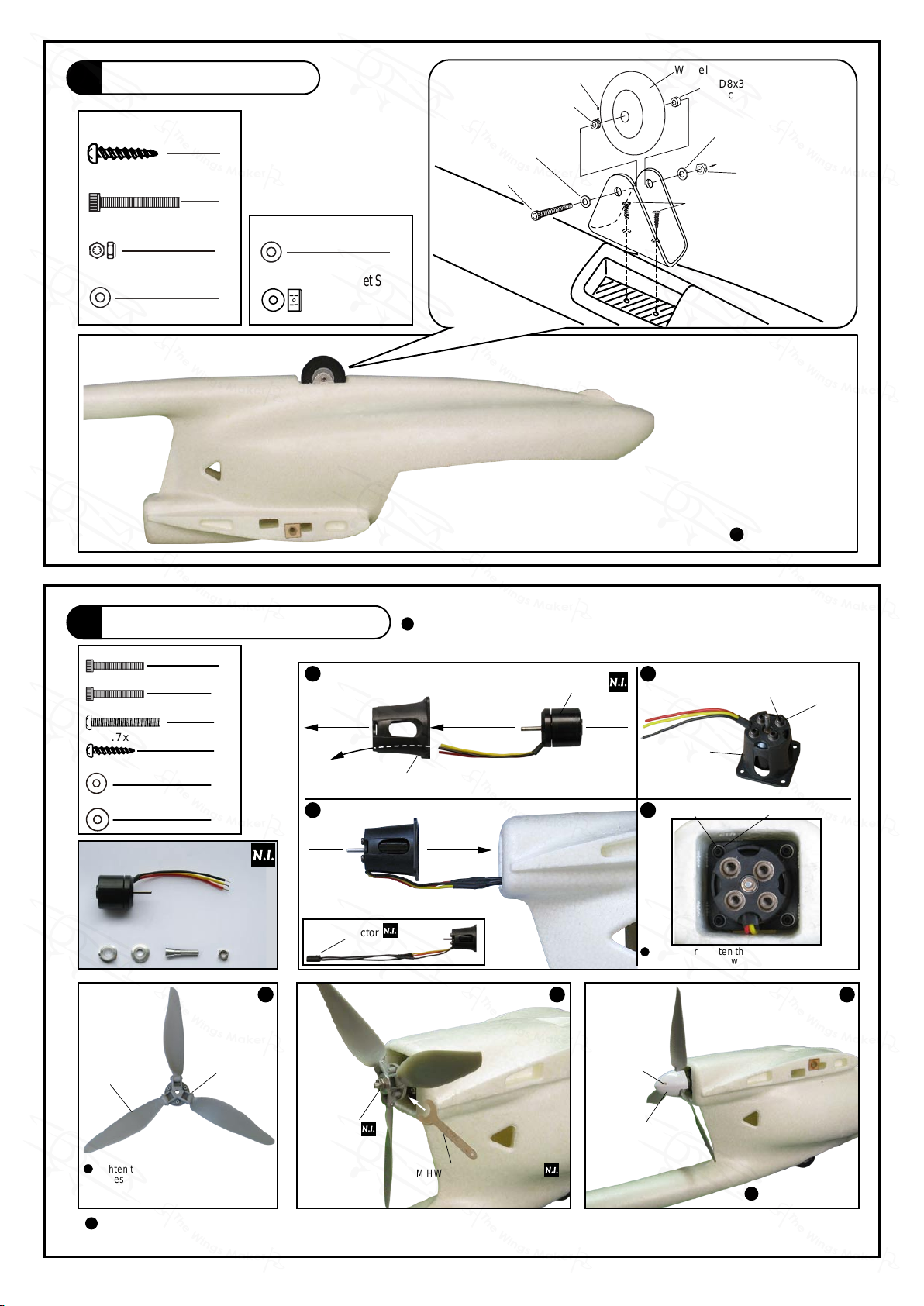

Main Landing Gear

Outrunner Motor / Spinner

PA3x10mm

d3.2xD12mm

Screw

Bottom View

Completed

M3x30mm

PA3x10mm

d3.2xD12mm

Washer

d4xD8x3mm

Plastic Collar

M3 Nylon Insert

Lock Nut

Motor Mount PL5440000

EZ Connector

Outrunner Motor M3x8mm

Motor Mount

PL5440000

M2.5x8mm

PA1.7x8mm

d3xD7mm

Washer

d2.5xD6mm Washer

d3.2xD12mm

Washer

M3x3mm Set Screw

3.1mmCollar

Wheel Ø50mm

M3x30mm

SocketHeadScrew

NylonInsertLockNut

Washer

d4xD8x3mm

Plastic Collar

M2.5x8mm

SocketHeadScrew

M3x8mm

SocketHeadScrew

PM2x12mm Screw

PA1.7x8mm Screw

d2.5xD6mm Washer

d3xD7mm Washer

Optional Parts

Outrunner Motor 28/ 30

KM0283010

PropellerAdaptor

(d3xD5) HW2340100

Optional Parts

1 2

3 4

5 6 7

9x6Folding

Propeller(3Blade)

6314051

PM2x12mm

Spinner

Ø36mm

TWM HW3111400

PROPELLERADAPTOR WRENCH

M5 Nut

Tighten the PM2 screws so the propeller

blades cannot swing freely, but don`t

over-tighten the screws,let the propeller

blades align themselves when spinning .

Don't over-tighten the M2.5 screws, too much

stress on the screws could split the firewall.

Make sure rotating motor casing is not in contact

with wirings or anything.

3.1mm

Collar w/ Set Screw

If you notice that the three propeller blades have not aligned themselves in one plane before flying, align them visually and

advance the throttle slowly to full throttle. The propeller blades will be self-aligned.

GM048XMPO28181206

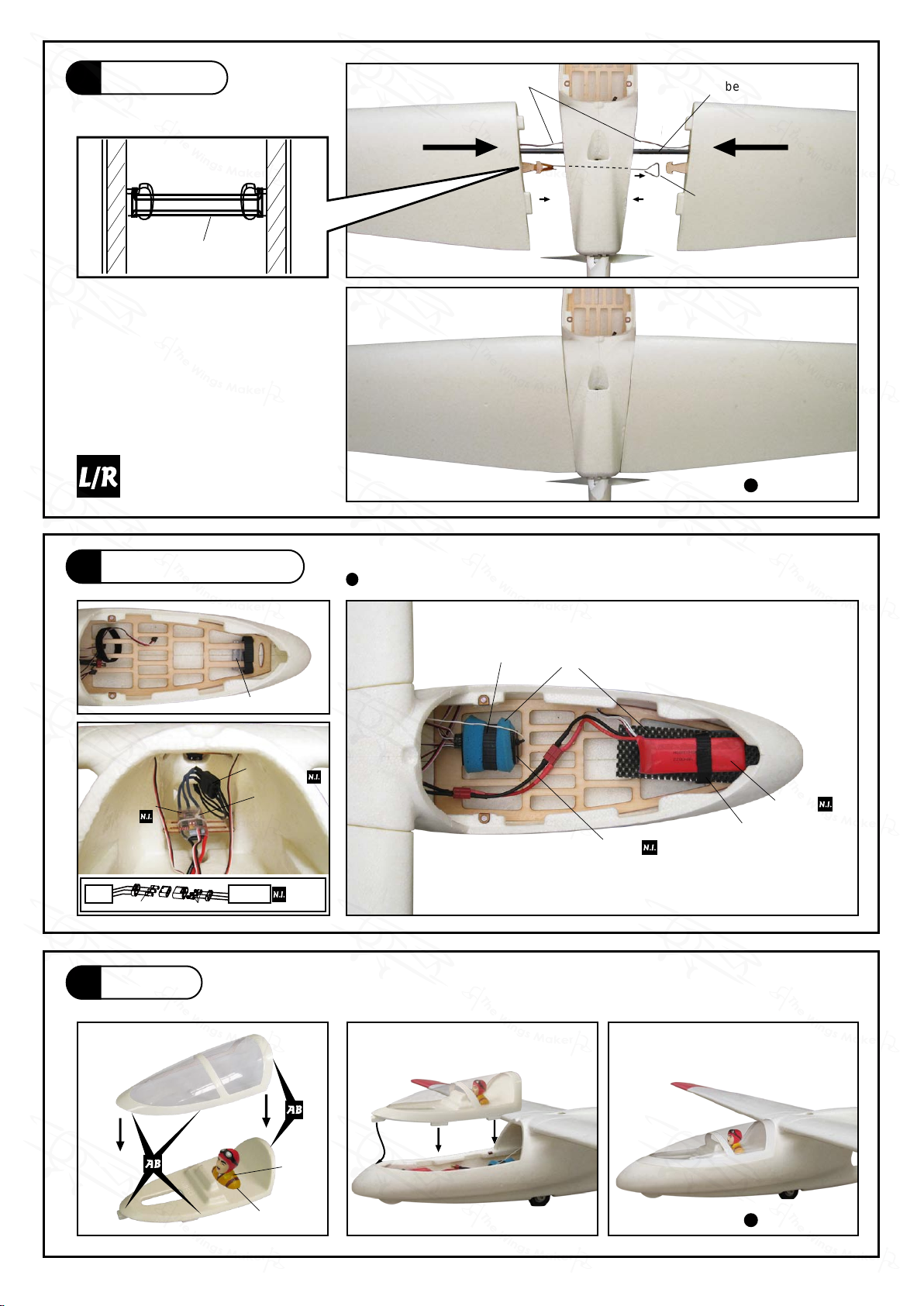

P.7

Main Wing

Radio Equipment

Completed

Rubber Band

Aileron Servo Lead

Receiver Tie

Battery Tie

Cable Tie

ESC Connector

Brushless ESC

Iron

Battery Mat

Receiver

Battery

Wing Tube

Ø8x900mm

Hook

Install and arrange the equipment as shown in the picture.

Double Sided Tape

Pilot

Canopy

Solder Solder

TWM

KP0011310

ESC

Motor

GM048XMPO28181206

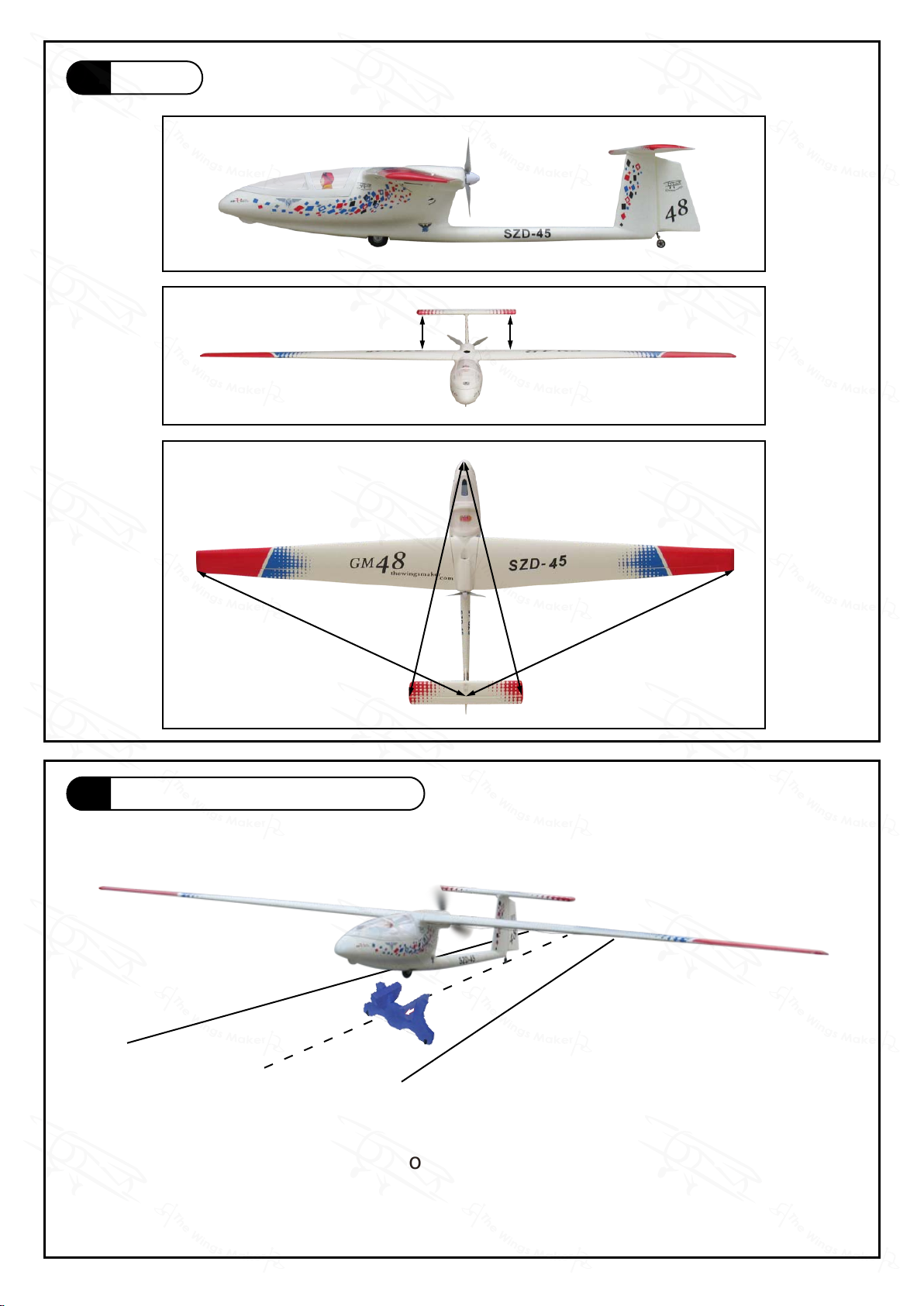

P.8

Decals

Field Stand / Launching Pad

A=A’

C=C’

C C’

B=B’

B B’

A A’

The field stand can be used as a launching-pad if you are flying on paved

runways. Place the on the stand, point it into the wind, check

your controls and advance the throttle. When the gets enough

air speed, pull the elevator gently and the will fly off the field

stand and get airborne gracefully.

6='2*$5

GM048XMPO28181206

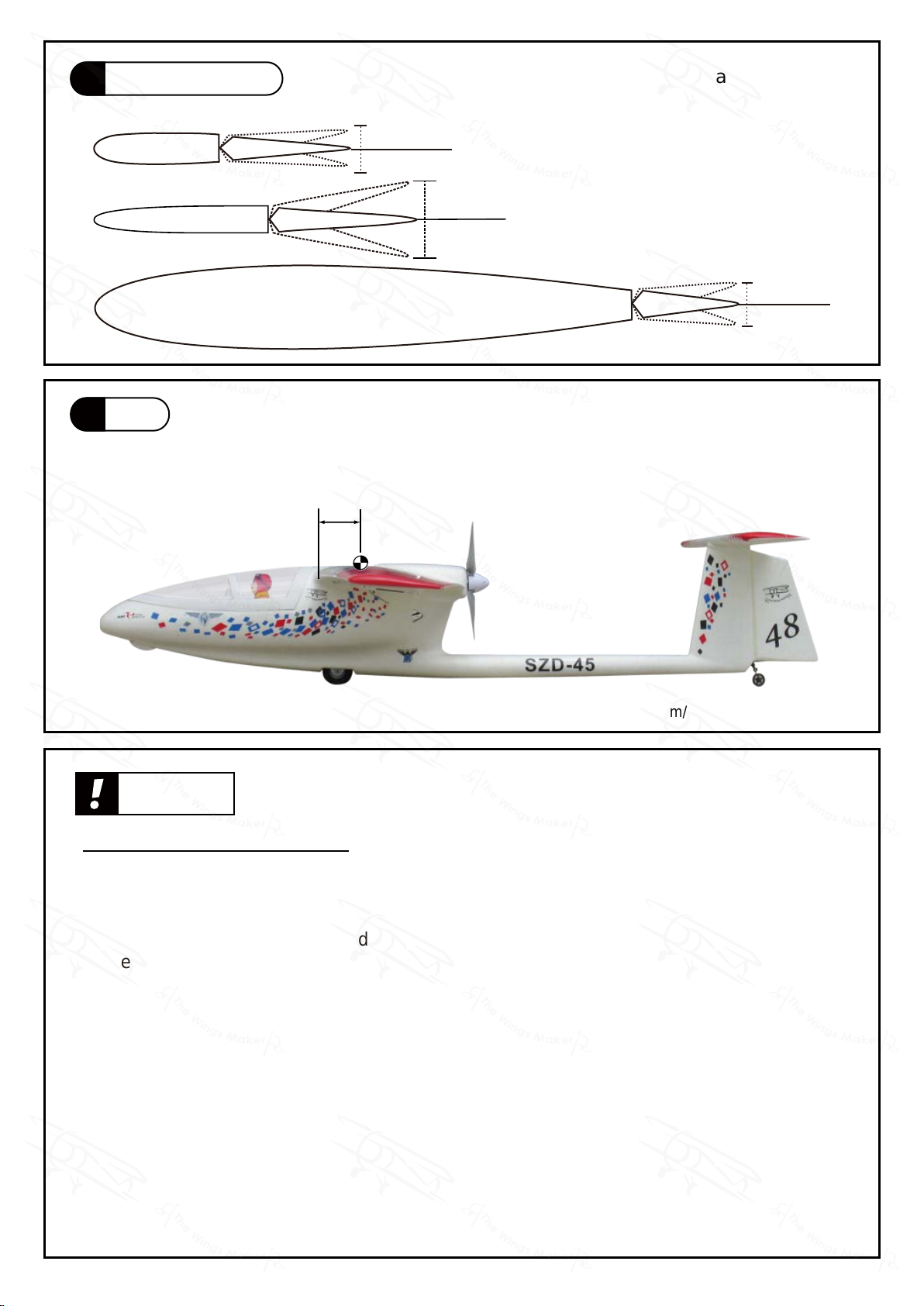

P.9

Control Throws

Adjust the control throws as shown in

the diagram. These throws are good for

general flying. You can adjust according

to your personal preference.

Ailerons

15mm

Elevator 12mm

12mm

Rudder 30mm

30mm

C.G.

The ideal C.G. position is 65mm (2.56in.) behind the leading edge

measured at where the wing meets the fuselage. In order to obtain

the C.G. specified, add weight to the fuselage or move the battery

position. Check the C.G. before flying.

65mm

2.56in

C.G.

Important Safety Precautions

# First time flyer should never fly by himself / herself. Assistance from experienced flyer

is absolutely necessary.

# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly

pre-adjusted aircraft.

# is specially designed to be powered by KM0283010 Outrunner Motor.

# Make sure the air field is spacious, never fly the plane too close to people and never get

too close to a running propeller. Extreme caution should be exercised when working with

electric powered models. Make sure the propeller is cleared of all objects, especially your

hands before connecting the battery to the model. Make sure you understand the

operation of the ESC (Electronic Speed Control) by studying the ESC manual. Once you

plug in the battery for electric powered model, always treat the propeller as a rotating one,

as accidental movement of the throttle stick will spin the propeller and could cause injuries.

# Check and re-tighten up all factory assembled screws, use thread locker if necessary.

Warning!

szd-45 ogar

http://www.thewingsmaker.com/instructionManuals.php

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali The Wings Maker Giocattolo

The Wings Maker

The Wings Maker Piper J-3 CUB 26 Manuale utente

The Wings Maker

The Wings Maker FAIRCHILD PT-26 40 Manuale utente

The Wings Maker

The Wings Maker Slick 540 Manuale utente

The Wings Maker

The Wings Maker CLIPPED WING CUB - 48 Manuale utente

The Wings Maker

The Wings Maker 1/4 SUPER CUB GA036 Manuale utente

The Wings Maker

The Wings Maker DF-032 Manuale utente

The Wings Maker

The Wings Maker Wingman II Manuale utente

The Wings Maker

The Wings Maker Handyman Twins Manuale utente

The Wings Maker

The Wings Maker SkyNova Manuale utente

The Wings Maker

The Wings Maker ARF Ultimate EP Manuale utente

The Wings Maker

The Wings Maker Wingman I Manuale utente

The Wings Maker

The Wings Maker Blue Bird EP Manuale utente

The Wings Maker

The Wings Maker Flyboy 50 Manuale utente

The Wings Maker

The Wings Maker Wingsman II Manuale utente

The Wings Maker

The Wings Maker FAIRCHILD PT-26 40 Manuale utente

The Wings Maker

The Wings Maker ZERO FIGHTER 60 Manuale utente

The Wings Maker

The Wings Maker ULTIMATE 40 Manuale utente

The Wings Maker

The Wings Maker FC-1 Manuale utente

The Wings Maker

The Wings Maker Slick 540 Manuale utente

The Wings Maker

The Wings Maker Piper J-3 CUB 26 Manuale utente

The Wings Maker

The Wings Maker J-11 B FIGHTER Manuale utente

The Wings Maker

The Wings Maker SPITFIRE 160 Manuale utente

The Wings Maker

The Wings Maker X Fighter Manuale utente

The Wings Maker

The Wings Maker Spitfire EP Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
