THE WORLD MODELS Nemesis 52 Manuale utente
A282PO25351012
Wing Span
Wing Area
Flying Weight
Fuselage Length
56 in / 1420 mm
524 sq in / 33.8 sq dm
5.2 Ibs / 2360 g
49 in / 1240 mm
Warning! This model is not a toy.
Requires : 4-channel radio w/ 5 standard servos
Specifications
*Specifications are subject to change without notice.*
INSTRUCTION MANUAL
0.52-0.56 cu. in. displacement 4-stroke
NEMESIS 52
It is designed for maximum performance. Please seek advice if one is not familiar with this
kind of engine powered precision model. Operating this model without prior preparation may
cause injuries. Remember, safety is the most important thing. Always keep this instruction
manual at hand for quick reference.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A282PO25351012
P. 1
INDEX
BEFORE YOU BEGIN
P.1
PARTS LIST
P.2
SAFETYPRECAUTIONS
P.12
BEFOREYOU BEGIN
ASSEMBLY
P.3-P.12
Checkall parts. Ifyoufindanydefectiveormissing parts contactyour localdealer. PleaseDRYFIT
and checkfordefectsforall partsthatwill requireCAorEpoxy forfinalassembly. Any partsyou
findtobedefectiveafterthegluingprocessmaybedifficult toremove for warrantyreplacement. The
manufacturerwillreplace any defective parts, but will not extendtothepartsthataregood before
gluing todefective partsduring assembly.
Warrantywillnotcover any partsmodifiedbycustomer.
Readthrough the manualbefore you begin,soyou will haveanoverallideaofwhat todo.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
NEMESIS 52
3mm
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
Applythreadlocker
Warning!
A282PO25351012
P.2
1. MAIN WING -- 1 pair
2. SCREW PB2x20mm -- 4 pcs
CLEVIS PL4112103 -- 2 pcs
STRAPER PL4112102 -- 2 pcs
FUEL TUBE Ø6x5mm -- 4 pcs
HORN (L) PL4113101 -- 2 sets
SCREW PWA2x8mm -- 8 pcs
SERVO MOUNTING PANEL PL5310000 -- 1 pair
PUSHROD Ø1.8x90mm w/ Threads (ForAileron) -- 2 pcs
3. WING JOINER 9.5x28x120mm -- 1 pc.
4. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
5. TAIL LANDING GEAR PL7100001 -- 1 set
COLLAR Ø2.1mm w/ set screw -- 1 set
WHEEL Ø25mm PL3111250 -- 1 pc.
SCREW PA3x12mm -- 2 pcs
6. VERTICAL FIN & RUDDER -- 1 set
7. SCREW PB2x12mm -- 4 pcs
CLEVIS PL4112103 -- 2 pcs
HORN (L) PL4113101 -- 2 sets
FUEL TUBE Ø6x5mm -- 2 pcs
PUSHROD Ø1.8x475mm w/ Threads (For Elevator) -- 2 pcs
8. SCREW PB2x12mm -- 2 pcs
CLEVIS PL4112103 -- 1 pc.
HORN (L) PL4113101 -- 1 set
FUEL TUBE Ø6x5mm -- 1 pc.
PUSHROD Ø1.8x620mm w/ Threads (For Rudder) -- 1 pc.
9. MAIN LANDING GEAR -- 1 pair
WHEEL PANTS -- 1 pair
SCREW KA2.3x8mm -- 4 pcs
SCREW PM4x40mm -- 2 pcs
SOCKET HEAD SCREW M3x14mm -- 6 pcs
WASHER d3xD7mm -- 6 pcs
WASHER d4xD9mm -- 4 pcs
M4 NUT-- 2 pcs
WHEEL Ø58mm PL3111580 -- 2 pcs
COLLAR Ø4.1mm w/ set screw -- 4 sets
ALUMINUM
PLATE 1mm --- 1 pair
QUICK RELEASE NYLON RIVETPL1208042 -- 4 pcs
10. ENGINE MOUNT PL5111050 -- 1 set
SOCKET HEAD SCREW M4x25mm -- 4 pcs
WASHER d4xD9mm -- 4 pcs
11. FUELTANK 320cc PL1111320 -- 1 set
DOUBLE_SIDE TAPE 40x100mm -- 1 pc.
CABLE TIE 1.5x4x100mm -- 1 pc.
12. SOCKET HEAD SCREW M3.5x30mm -- 4 pcs
WASHER d3.5xD8mm -- 8 pcs
M3.5 NUT -- 8 pcs
THROTTLE PUSHWIRE Ø1.2x460mm -- 1 set
PLASTIC TUBE d2xD3x300mm -- 1 pc.
13. LINKAGE CONNECTOR Ø2.1mm HW7111060 -- 1 set
14. STRAPER PL4112102 -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
PUSHROD Ø1.8x65mm (For Elevator) -- 1 pc.
PUSHROD CONNECTOR PL4410010 (For Elevator) -- 1 set
SPONGE 70x80x60mm MS7113080 -- 1 pc.
15. SCREW HM4x25mm -- 2 pcs
WASHER d4xD12mm -- 2 pcs
PLYWOOD 2x30x114mm (Wing Protection) -- 1 pc.
16. CANOPY -- 1 pc.
SCREW PWA2.3x8mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm PL1265035 -- 4 pcs
17. COWLING -- 1 pc.
TRANSPARENT 3D TEMPLATE -- 1 pc.
SCREW PWA2.6x12mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm PL1265035 -- 4 pcs
SPINNER Ø70mm PL2111070 -- 1 set
18. DECALS: A282DEC -- 1 set
TOUGHLON STL 100 WHITE
LIGHTEX SGX 203 LIGHT GRAY
LIGHTEX SGX 550 PEARL BLUE
COVERING:--
Parts List
A282PO25351012
P.3
Main Wing
1
Aileron Servo
2
Bottom View
Completed
PB2x20mm Screw
4
PWA2x8mm Screw
8
Apply instant type CA glue to both sides of each hinge.
Bottom View
Aileron Servo Lead
PB2x20mm
Clevis
Horn
Pushrod
Ø1.8x90mm
Fuel Tube
Ø6x5mm
1mm
PWA2x8mm Pushrod
Ø1.8x90mm
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
PWA2x8mm
1mm
Straper Fuel Tube
Ø6x5mm
1mm
TWM PL8210010
CLEVIS WRENCH
A282PO25351012
P.4
Main Wing
3
Stabilizer & Elevator
4
Completed
Apply instant type CA glue to
both sides of each hinge.
Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main
wing as possible. *Also refer to step 18 Wing Setting.
(Stabilizer)
(Main Wing)
B
B=B
B
A=A
A A
1
2 3
Please dry fit wing joiner into left and right wing to make sure they fit with the
proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to
both sides of all surfaces in contact. Use a stick to apply the glue to inner side
of wing joiner sleeve, and apply the glue to wing joiner before putting them
together. Wing joiner not glued properly will lead to wing failure and plane crash.
Completed
Wing Joiner
A282PO25351012
P.5
Tail Landing Gear
5
PA3x12mmScrew
2.1mmCollar
2
1
Vertical Fin & Rudder
6
Completed
Apply instant type CA
glue to both sides of
each hinge.
C C’
C=C’
1
23
PA3x12mm
Bottom View
1.5mm
3mm
set screw
3mm set screw
PA3x12mm
Elevator Pushrod
7
Bottom View
PB2x12mmScrew
4
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
≈190mm
≈26mm
PM2x8mm
Clevis
Horn
Fuel Tube
Ø6x5mm
Pushrod
Ø1.8x475mm
PB2x12mm
TWM PL8210010
CLEVIS WRENCH
A282PO25351012
P.6

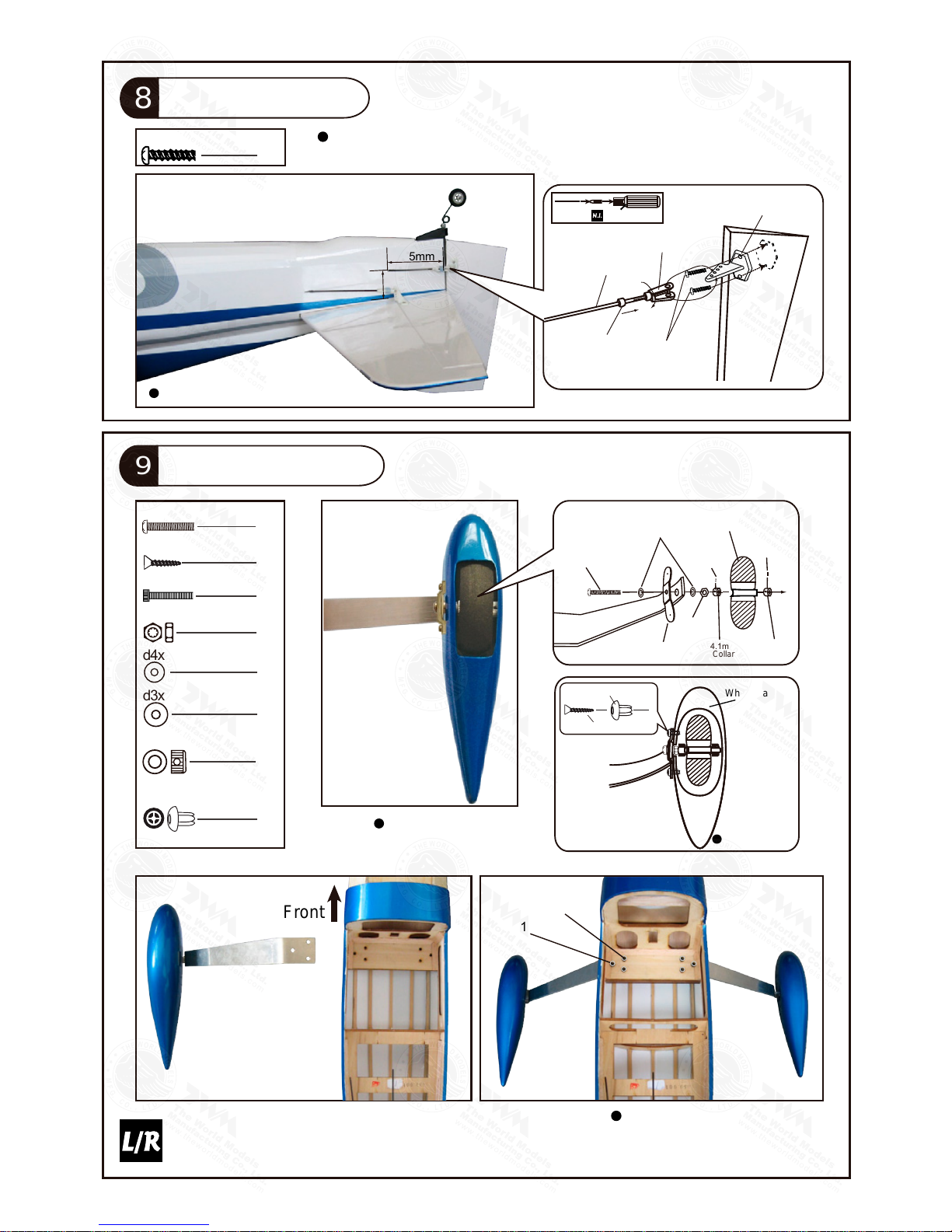

Rudder Pushrod
8
Bottom View
PB2x12mmScrew
2
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
≈75mm
≈36mm
Clevis
Fuel Tube
Ø6x5mm PB2x12mm
Pushrod
Ø1.8x620mm
Horn
Main Landing Gear
9
Bottom View
d3xD7mm
Washer
M3x14mm
Front
Completed
PM4x40mm Screw
d4xD9mm Washer
4
d3xD7mm Washer
6
d2xD8mm
QuickReleaseNylonRivet
4
4.1mm WheelCollar
4
2
M4 Nut
2
M3x14mm SocketHeadScrew
6
KA2.3x8mm Screw
4
PM4x40mm
Plate 1mm
d4xD9mm Washer
Wheel
Ø58mm
3mm
Set Screw
3mm
Set Screw
4.1mm
Collar
4.1mm
Collar
M4 Nut
Completed
Wheel Pant
KA2.3x8mm
Quick Release Nylon Rivet
d2xD8mm
TWM PL8210010
CLEVIS WRENCH
A282PO25351012
P.7
M4x25mmSocketHeadScrew
4
M4x25mm
SocketHeadScrew
EngineMount
PL5111050
d4xD9mmWasher d4xD9mm
Washer
4
Fuel Tank
11
Engine Mount
10
Blind nuts are off-centered to keep
the spinner at the fuselage axis.
Fuel Tank
320cc
Cable Tie
1.5x4x400mm
Fuel Tank
320cc
UP
1
2
3Double_side Tape
40x100mm
A282PO25351012
P.8
Engine
12
M3.5x30mm
M3.5x30mm
4
8
8
M3.5 Nut
M3.5 Nut
d3.5xD8mm Washer
d3.5xD8mm
Washer
115 mm
4.53 in.
Installed Engine Position
Throttle Pushrod
Ø1.2x460mm Plastic Tube
d2xD3x300mm
Socket Head Screw
A282PO25351012
P.9
Radio Equipment
14
Completed
Front
Install and arrange the servos as shown in the diagram.
Sponge
Receiver
Battery
Elevator Pushrod
Rudder Pushrod
Fuel Tube
Ø6x5mm
Servo Set
13
3x3mm SetScrew
M2 Nut
Linkage Connector
1
1
1
2
2mm Washer
Throttle Pushwire
Please refer to the attached sheet for linkage connector installation.
2mm
3mm
2mm
M2 Nut
Throttle Servo
Elevator Servo
Pushrod Connector
Elevator Servo
Rudder Servo
Straper
Throttle Servo
Throttle Pushrod
Ø1.2x460mm Elevator Pushrod
Ø1.8x65mm
Elevator Pushrod
Ø1.8x65mm
KM2x8mm
M2 Nut
J1
J2
J1(Pushrod Ø1.8x65mm)
J2(Pushrod Ø1.8x475mm)
1.5mm
Included with the radio Set.
