RAMSES BLE OT
8509150
307347
Clock thermostat
EN
1. Basic safety information 3
2. Proper use 3
Disposal 3
3. Installation 4
Mounting the clock thermostat4
Dismounting the clock
thermostat 6
4. Connection 6
Terminal layout 7
5. Manual setting at the clock
thermostat 7
2
1. Quick selection of comfort or
eco mode 8
2. Pairing 8
3. Reset 8
6. Settings and functions –
operation via Theben app 9
Is my smartphone BLE
capable? 9
RAMSES BLE app 9
Connecting clock thermostat and
smartphone (via app) – pairing 10
Program 12
Info 14
Settings 15
7. Technical data 25
8. Contact 25
3
1. Basic safety information
Connection and installation should only be carried
out by a qualied electrician!
Before installation/dismounting, disconnect the
power supply!
NOTE
•The clock thermostat conforms with EN 60730-2-9 if
correctly installed
•Corresponds to type 1 STU in accordance with IEC/EN
60730-2-7
•Operation and programming only via RAMSES BLE app
•With external input (SELV, programmable)
2. Proper use
•Heating control for time-dependent monitoring and
control of room temperature in single-family houses,
ofces etc.
•Use in dry rooms with normal levels of domestic
cleanliness
Disposal
Dispose of device in environmentally sound manner
4
3. Installation

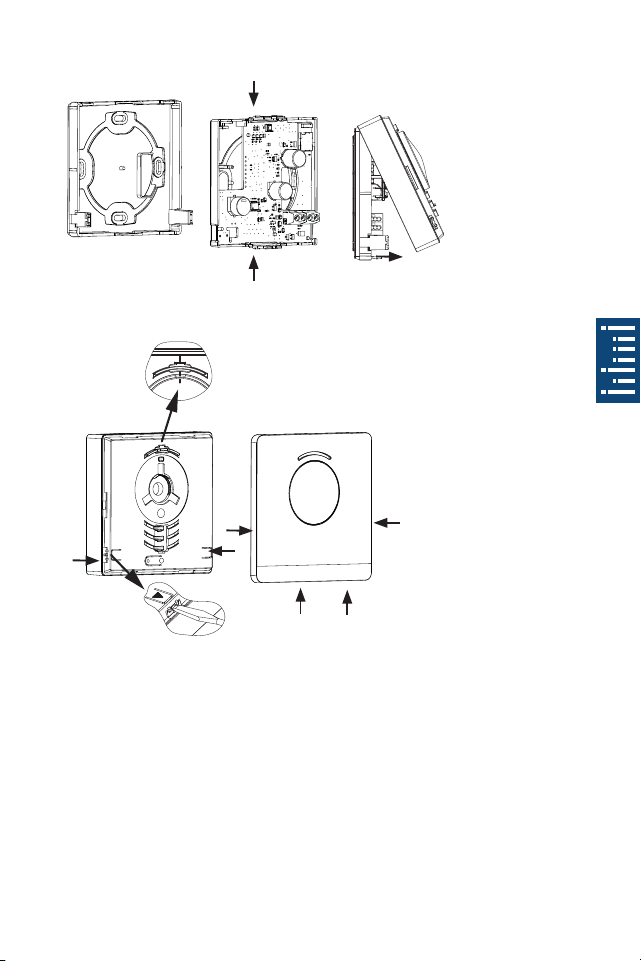

Mounting the clock thermostat
Electrostatic discharge!
Caution, sensitive electronic components!
When tting, observe ESD safety measures (elect-
rostatic discharge).
!Position the clock thermostat on an internal wall, at
about eye level.
!Avoid drafts or heat emission.
LFor wall mounting
5
Attach the mounting plate above the wall outlet of the
OpenTherm line .
Engage and wire the circuit board carrier .
First, hook in the upper part of the clock thermostat on top,
then engage .
Put on the cover .
6
Dismounting the clock thermostat
Using a screwdriver, loosen the front panel at the two side
and bottom openings .
Then release the catches on the left and right and remove
the upper part of the housing .
Loosen the plug-in connectors and press the circuit board
carrier together at the top and bottom .
Remove the circuit board carrier through the front.
4. Connection
•The power supply from the thermostat to the boiler is
provided via OpenTherm.
•The two-wire connection (OpenTherm) is not polarised,
i.e. the wires can be connected to the boiler as required.
!Disconnect the boiler from mains supply before connec-
ting the thermostat.
!Faulty connections will damage the device.
!Without interference, the bus line can be extended up to
50 m.
!In order to eliminate the possibility of EMC interference,
always lay the feed of the supply voltage separate from
the mains cables.
7

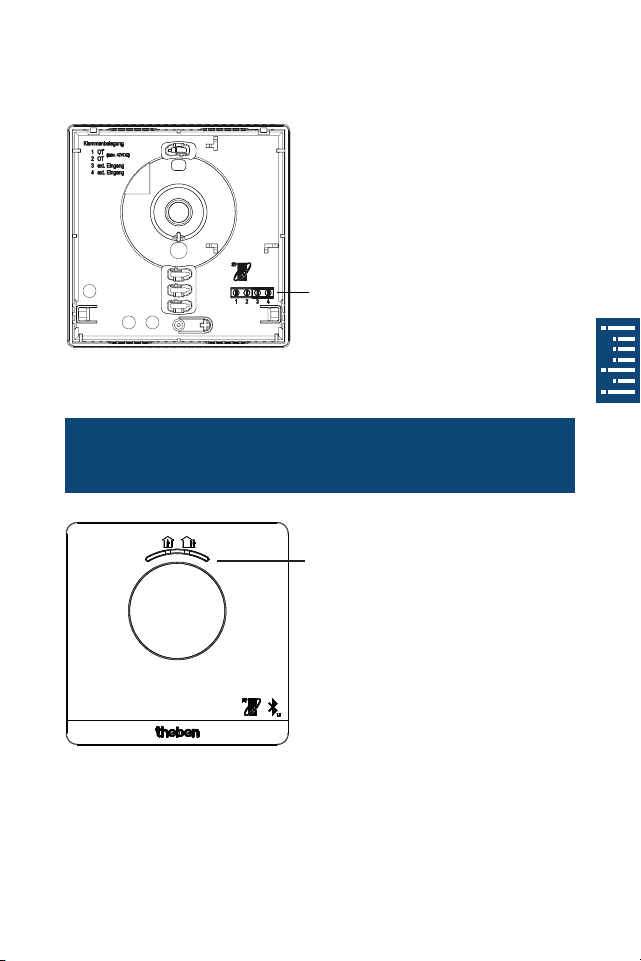

Terminal layout
1 OT
2 OT
3 ext. input
4 ext. input
5. Manual setting at the clock
thermostat
Button with LED display for setting
– Comfort mode (green LED on)
– ECO mode (green LED off)
By using the button, the following functions can be set:
8
1. Quick selection of comfort or eco mode
Press the button
▻ Comfort mode or eco mode will be set.
At the next switching time, the quick selection will be reset.
2. Pairing
Press the button for 3 s
▻RAMSES BLE OT can be connected with a smartphone/
tablet (paired) for 5 min. (green LED ashes). If pairing
is successful, the LED goes out.
Delete pairing
Press the button for 6 s
▻All connections saved in the RAMSES BLE OT (pairing)
will be deleted (red LED ashes)
Delete the connection/pairing also on the smartphone/
tablet (Settings →Bluetooth pairing →delete respective
device (RAMSES BLE OT)).
The PIN will be reset to 0.
3. Reset
Press the button for 12 s
▻Hardware reset (the red LED goes out)
9
6. Settings and functions –
operation via Theben app
Is my smartphone BLE capable?
Download Bluescan app for Android and iOS
The app can be used to check whether a device is BLE capa-
ble or not.

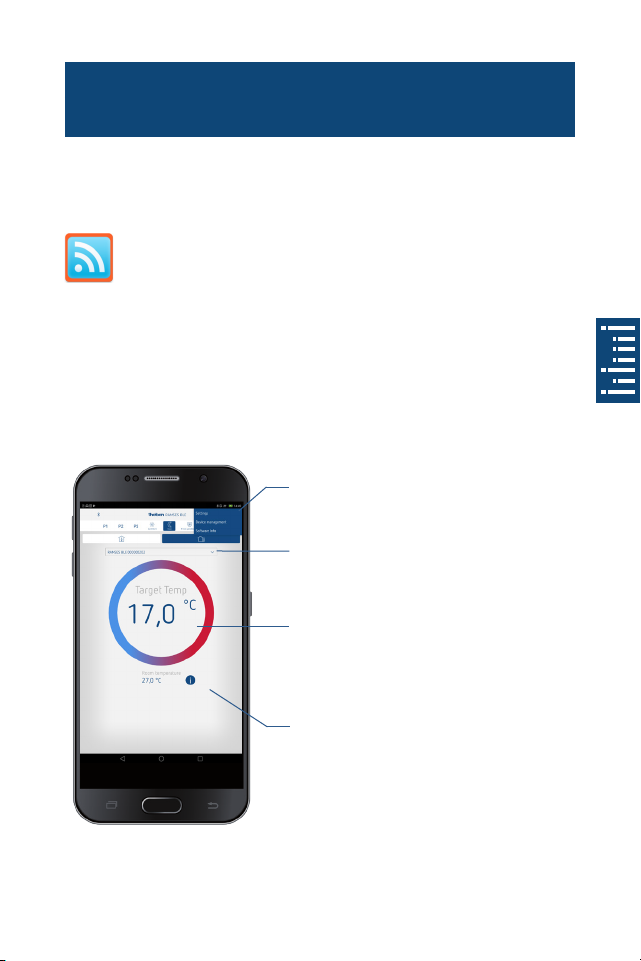

RAMSES BLE app
Set temperature, adjustable in
increments of 0.2 °C (2 °C
– 30 °C)
Selection of OpenTherm
device
Settings, device management
Software info
Info: External input, ame,
PIN etc.
10

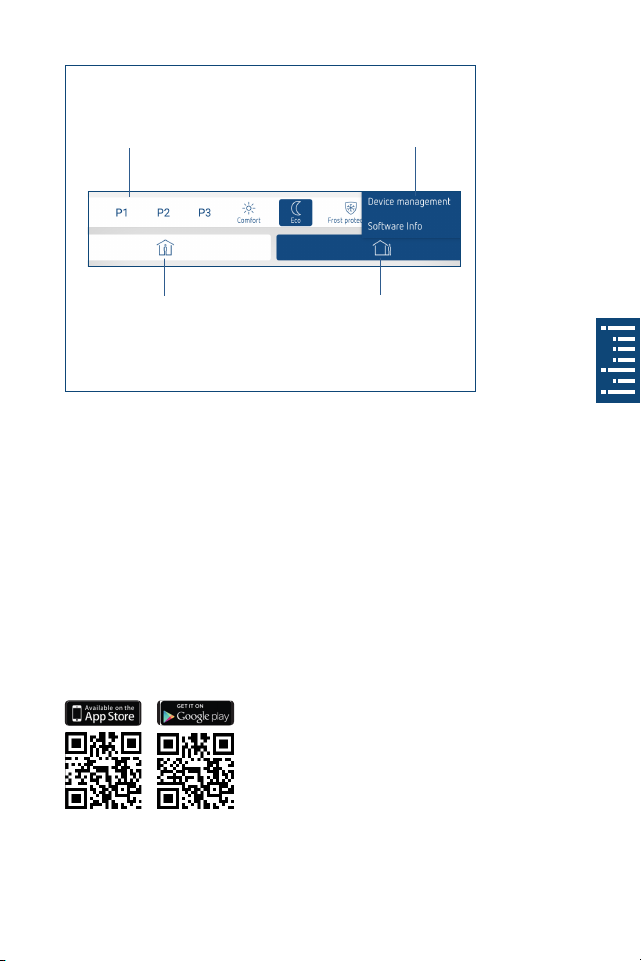

Programming of
switching times
Operating modes:
– Programs P1 – P3
– Comfort, reduction, frost
Quick selection
Comfort mode*
Quick selection
Eco mode*
*until the next switching time
Connecting clock thermostat and smart-
phone (via app) – pairing
The clock thermostats can be programmed using an app
(from Android 4.3, iOS 5) on a mobile end device. Communica-
tion takes place via Bluetooth BLE.
Download the RAMSES BLE app from the App Store or
Google Play Store
