Thermalright Macho 120 Rev.A Manuale utente

Thermalright

Macho 120 Rev.A

× 1

× 1 × 2

× 1

× 4

× 7

× 5

Chill Factor 2g

× 4

× 1× 1

× 1

Macho 120 Rev.A

Assembly Package

Macho 120 Rev.A

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Heatsink Body 120mm Fan

Clip

120mm Fan

Screw Nut

Mylar Film

Anti-Vibration Pads

Mounting Plate

M3 L6 Screw

Anchoring Mount

Metal Back Plate

Backplate cap

Intel Washer

(small)

M3 L10 Screw

Intel 775/1150/1151/1155/1156/1366

The Ultimate Cooling Solutions!

www.thermalright.com

Component

3 4

7 8

1514

1716

12 1311

Heatsink Body ×1

Screw Nut ×4

Anti-Vibration Pad ×4

Mylar Film ×1

120mm Fan ×1

120mm Fan Clip ×2

Thermal paste ×1

Intel Washer (small) ×4

Metal Back Plate ×1

LGA2011 Type B

Screw Pillars x4

AMD Washer (big) ×4

Anchoring Mount ×1

Mounting Plate ×1

M3 L6 Screw ×7

Chill Factor 2g

M3 L10 Screw ×5

Backplate Cap ×1

Screw driver ×1

Installation Instructions:

Step 1:

Step 2:

Step 4:Step 3:

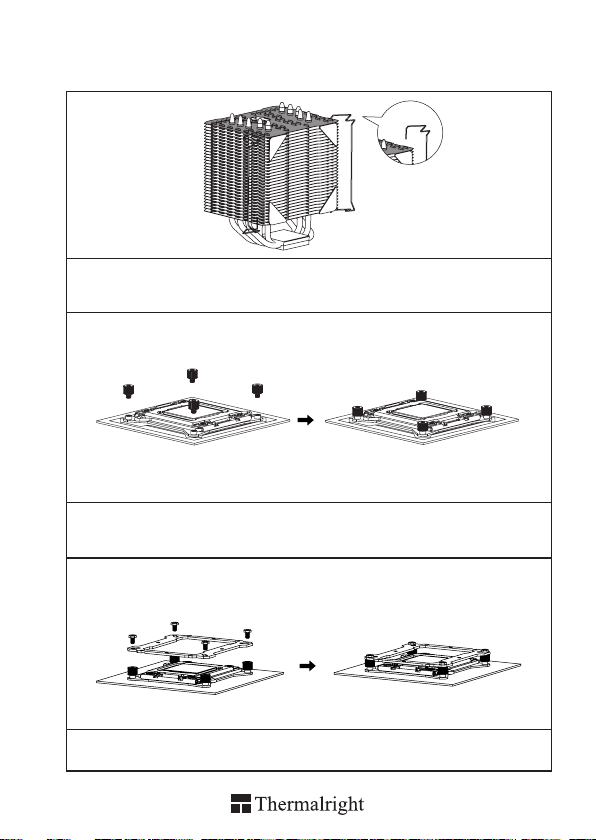

Step 1 : Take out Macho cooler from the paper box.

Remove the 120mm Fan from the cooler by pulling the Fan Clips upwards in order to give room for ease

of installation. And leave the Fan Clips on the Heatsink Body. Do not remove them.Apply Anti-Vibration

Padding to 4 corners on the Heatsink Body.

Step 2 : Backplate Installation

Choose the platform (775/1150/1151/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars

go through the Metal Back Plate and the Mylar lm from bottom towards top. And then place the Metal

Back Plate on the table. Put the four Washers (for Intel) around the Screw Pillars.

Step 3 : 775 Back Plate Cap

Note: When installing on a 775 platform, please

rst insert the Back Plate Cap into the opening on

the Back plate, make sure you have the Cap facing

downwards. (Only for LGA775 platform, all other

platforms go directly to Step 3.).

Step 4 : Screw Cylinder Installation

Take one M3L10 screw and put one washer for

Intel around the screw pillar. Snap it through

one of holes around CPU socket from bottom

towards top. Cap the screw pillar with the screw

nut included and then tighten up. Now repeat this

installation for the other three screw pillars in a

criss-cross pattern.

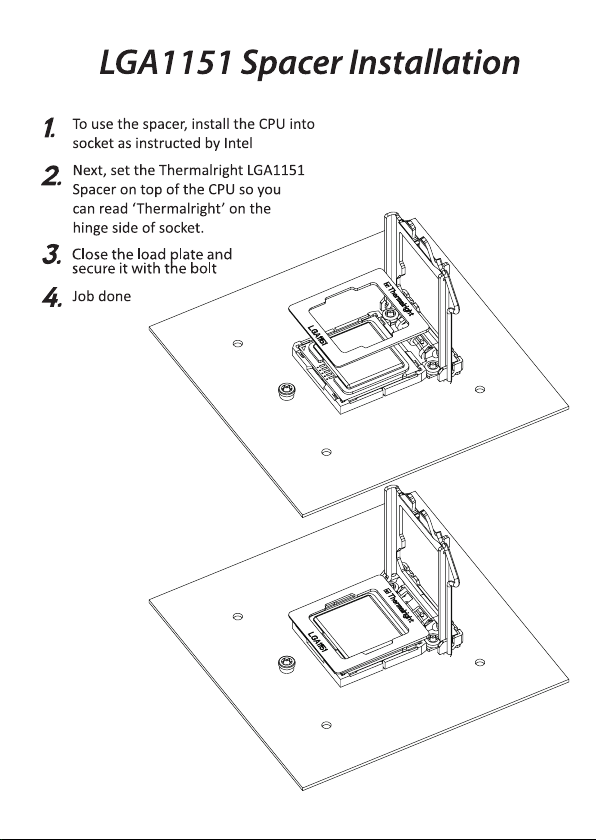

1366

775

1150

1151

1155

1156

The Ultimate Cooling Solutions!

www.thermalright.com

Step 5: Step 6:

Step 7:

Step 6 : Applying Thermal Paste

Apply the Thermal Paste to the base of the

Heatsink and the surface of the CPU evenly.

Step 4 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw Nuts.

Use the four M3L6 Screws to x the Anchoring

Mount on to the Screw Nuts.

Step 7: Mounting Plate Installation

Place the Heatsink Body on top of the CPU.

Make the Mounting Plate go through the Heatsink

Body. Then use the supplied Screw Driver

to fasten the two M3L6 Screws to Secure the

Mounting Plate.

Step 8: Easy Access

Pass the supplied Screw

Driver through the central

hole of the Heatsink Body,

for easier access to the M3L6

Screw underneath the cooler.

Step 9: Step 10:

Step 9 : Fan Installation

Place the included 120mm fan onto the Heatsink

Body. And then secure it with the 120mm Fan

Clips, by pulling the Fan Clips to place the four

ends at the four holes on the 120mm Fan.

Step 10 : Installation completed

Plug in the fan connector to the CPU PWM Fan

socket on the motherboard. Installation complete.

Step 8:

Chill Factor

Macho 120 Rev.A

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

120mm Fan Clip

120mm Fan

Mounting Plate

M3 L6 Screw

Anchoring Mount

LGA2011 Type B

Screw Pillars

Anti-Vibration Pads

Heatsink Body

Intel 2011/2011-3/2066

The Ultimate Cooling Solutions!

www.thermalright.com

Component

3 4

7 8

1514

1716

12 1311

Heatsink Body ×1

Screw Nut ×4

Anti-Vibration Pad ×4

Mylar Film ×1

120mm Fan ×1

120mm Fan Clip ×2

Thermal paste ×1

Intel Washer (small) ×4

Metal Back Plate ×1

LGA2011 Type B

Screw Pillars x4

AMD Washer (big) ×4

Anchoring Mount ×1

Mounting Plate ×1

M3 L6 Screw ×7

Chill Factor 2g

M3 L10 Screw ×5

Backplate Cap ×1

Screw driver ×1

Installation Instructions:

Step 1:

Step 2:

Step 3:

Step 1 : Take out Macho cooler from the paper box.

Remove the 120mm Fan from the cooler by pulling the Fan Clips upwards in order to give room for ease

of installation. And leave the Fan Clips on the Heatsink Body. Do not remove them.Apply Anti-Vibration

Padding to 4 corners on the Heatsink Body.

Step 2 : Install the four screw pillars.

Take one M3L10 screw and put one washer for Intel around the screw pillar. Snap it through one of

holes around CPU socket from bottom towards top. Cap the screw pillar with the screw nut included and

then tighten up. Now repeat this installation for the other three screw pillars in a criss-cross pattern.

Step 3 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw Nuts. Use the four M3L6 screws to x the Anchoring Mount on

to the Screw Nuts.
