Thermaltake Armor-VA8000SWA Manuale utente

User's ManualUser's Manual

www.thermaltake.com

RMOR

RM OR

User's Maunal

Chapter1 Product Introduction

1.1 Specification 1

Chapter3 Motherboard & Leads Installation

3.1 Motherboard Installation 18

3.2 Case LED connections 19

3.3 USB2.0 & IEEE1394 Firewire connection 20

3.4 Ear & Mic Connections 22

Chapter4 Other

4.1 Silent Purepower power supply (optional) 23

Contents

Chapter2 Case Mechanical Operation

2.1 How to open the side panel 3

2.2 Installing 5.25" Device 4

2.3 Installing 3.5" HDD 5

2.4 Removable 12cm Fan cage with 3HDD 6

2.13 PCI slot tool-free function operation 17

2.5 Installing 3.5" HDD For 12cm Fan Cage 7

2.6 5.25" to 3.5" Drive Tray Device Installation 8

2.7 Installing 3.5" Device to Drive Tray

With Power Button 10

2.8 Installing Power Supply 12

2.9 Installing the Fan on Top of the Case 13

2.10 How to Remove the Fan & Fan Holder 14

2.11 Air Cooling System 15

2.12 BTX Upgraded Kits 16

RM OR

User's Maunal

VA8000SWA

Chapter1 Product Introduction

1.1 Specification

Micro ATX, ATX, Extend ATX, BTXMotherboards

Transparent side panel

Side Panel

7.5 Kg

Net Weight

SRM / Rear plate

Armor --- VA8000SWA

Front (intake) : 120 x 120 x25 mm blue LED fan,

Rear (Exhaust) : 120 x 120 x25 mm blue LED fan,

1300rpm,17dBA &90 x 90 x 25mm,1800rpm,19dBA

530 x 220 x 560 mm (H*W*D)

Silver

Super TowerCase Type

7Expansion Slots

BTX upgraded kits

color

Chassis: 1.0 mm Aluminum

Front bezel: Aluminum

Material

Up to 10 x 5.25 , 2 x 3.5

6 x 3.5

Drive Bays

-Front Accessible

-Internal

Cooling

System

Dimension

Model

Micro ATX, ATX, Extend ATX, BTXMotherboards

Transparent side panel

Side Panel

7.5 Kg

Net Weight

SRM / Rear plate

Armor --- VA8000SWA

Front (intake) : 120 x 120 x25 mm blue LED fan,

1300rpm, 17dBA

Rear (Exhaust) : 120 x 120 x25 mm blue LED fan,

Top (Exhaust) : 90 x 90 x 25mm, 1800rpm, 19dBA

530 x 220 x 560 mm (H*W*D)

Silver

Case Type

7Expansion Slots

BTX upgraded kits

color

Chassis: 1.0 mm Aluminum

Front bezel: Aluminum

Material

Up to 10 x 5.25" , 2 x 3.5"

6 x 3.5"

Drive Bays

-Front Accessible

-Internal

Cooling

System

Dimension

Model

Micro ATX, ATX, Extend ATX, BTXMotherboards

Transparent side panel

Side Panel

16.2Kg

Net Weight

SRM / Rear plate

Armor---

Front (intake) : 120 x 120 x25 mm blue LED fan,

Rear (Exhaust) : 120 x 120 x25 mm blue LED fan,

530 x 220 x 560 mm (H*W*D)

Super TowerCase Type

7Expansion Slots

BTX upgraded kits

color

Chassis: 1.0 mm

Front bezel: Aluminum

Material

Up to 10 x 5.25 , 2 x 3.5

6 x 3.5

Drive Bays

-Front Accessible

-Internal

Cooling

System

Dimension

Model

Micro ATX, ATX, Extend ATX, BTXMotherboards

Transparent side panel

Side Panel

Net Weight

SRM / Rear plate

Armor---VA8000BWS

Front (intake) : 120 x 120 x25 mm blue LED fan,

1300rpm, 17dBA

Rear (Exhaust) : 120 x 120 x25 mm blue LED fan,

1300rpm,17dBA & 90x90 x25mm,1800rpm,19dBA

Top (Exhaust) : 90 x 90 x 25mm, 1800rpm, 19dBA

530 x 220 x 560 mm (H*W*D)

Black

Case Type

7Expansion Slots

BTX upgraded kits

color

Chassis: 1.0 mm SECC

Front bezel: Aluminum

Material

Up to 10 x 5.25" , 2 x 3.5"

6 x 3.5"

Drive Bays

-Front Accessible

-Internal

Cooling

System

Dimension

Model

VA8000BWS

(option :A9358) (option :A9358)

RM OR

User's Maunal

Chapter2 Case Mechanical Operation

2.1 How to open the side panel

Tofind out the side panel

key from theback side of

the case thenopen it as

the picture. 1

Make sure theside panel

lock is opened. 2

Push the buttonthen swing

out the sidepanel. 3

2.2 Installing 5.25" Device

Squeeze and pull out-ward the tool-free clip

Remove the drive bay cover from the selected position,

then insert the device into the 5.25" drive bay

Squeeze and push in-ward the

tool-free clip.

Finish installation

RM OR

User's Maunal

2.3 Installing 3.5" HDD

Secure HDD withScrew

Push down and hold the metal tab,

then pull theHDD cage out-ward

to remove fromchassis.

Unscrew the thumb screw

for removable HDD cage

2.4 Removable 12cm Fan cage with 3HDD

Squeeze and pull out-ward the

tool-free clip

Note: Remove 12 cm fan cage is secured

with 3 tool-free clips. Be sure to free all

3 tool-free clips

After loosen tool-free clip,

remove 3 drivebay covers

located in front of the

12 cm fan cage.

Then slide the fan

cage out-ward to remove.

Remove another 3drive

bay covers at desired

location for 12 cm fan cage.

Squeeze and pullout-ward

the tool-free clip at desired

location

Insert the 12 cm fan cage

into the desired location by

sliding the cagein-ward

from the front of chassis.

RM OR

User's Maunal

2.5 Installing 3.5" HDD ( For 12cmFan Cage )

Squeeze and pullout-ward

the tool-free clip at desired

slot.

Insert HDD by sliding HDD

into the 12 cm fan cage.

Secure HDD by tightening

screw to HDD

Squeeze and pushin-ward

the tool free clip tosecure

the HDD in the 12 cm fan cage.

Squeeze and push in-ward the tool free clip to secure the

12 cm fan cage.

Replace back the 3 drive bay covers previously removed

2.6 5.25" to 3.5" Drive Tray Device Installation.

Squeeze and pull out-ward the tool-free clip securing the drive tray

Remove drive bay cover in front of the drive tray. Then slide out

the device tray.

Insert HDD drive into device tray. Secure HDD with screw from the

side of device tray labeled HDD.

Insert back the device tray and replace back the

drive bay cover.

RM OR

User's Maunal

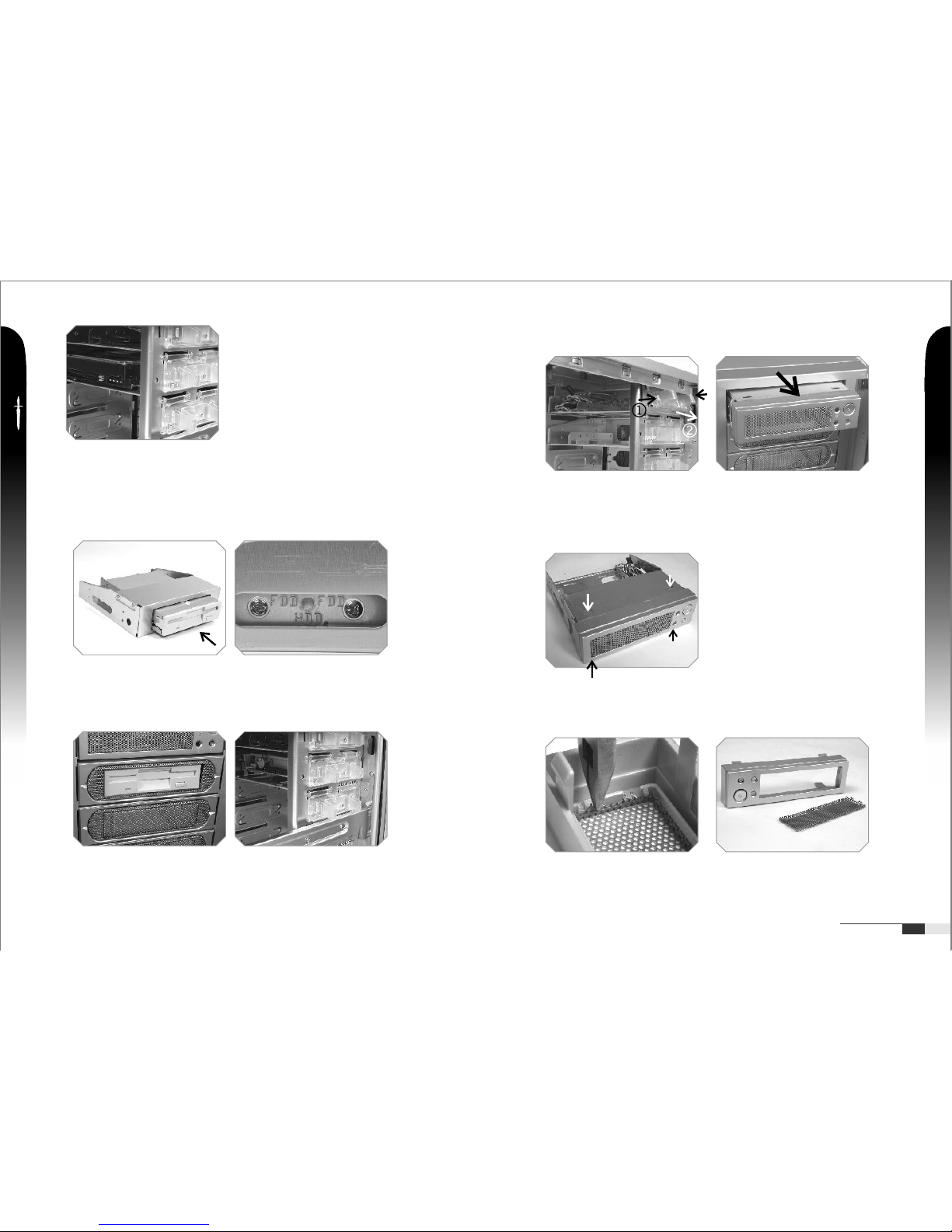

Squeeze and push in-ward the

tool free clip to secure the

device tray.

Remove device trayand insert floppy disk drive into

device tray. Secure FDD with screw from the side of

device tray labeled FDD.

Insert back device tray. Remove mesh on drive bay cover.

Then replace back drive baycover. Squeeze and push

in-ward the tool free clip to secure the device tray

Installing Floppy Disk Drive to Device tray

2.7 Installing 3.5" Device to Drive Tray With

Power Button

Squeeze and pull out-ward the tool-free clip securing the

drive tray with power button. Remove and slide drive bay

out-ward to remove.

Squeeze both top and bottom

portion of drivetray cover picture

to the left to remove cover.

Remove mesh from cover

910

RM OR

User's Maunal

Drive tray with Power Button can be

placed at any drive bay desired.

Insert back the device tray pictured above. Squeeze and

push in-ward the tool free clip to secure the device tray

Place cover backto drive

tray to its original position.

Insert 3.25" device and

secure device with screw.

2.8 Installing Power Supply

Locate the hook of PSU supporter on the hole

which is circledin photo above

Install power supply unit as shown in pictures

Swing the supporter to its proper

position as shownin photo above

RM OR

User's Maunal

Secure the supporter with screw

Press-in 2 clips on the side of fan

Align all clipswith mounting holes,

then push-in the fan against case body

to secure it.

2.9 Installing the fan on top of the case

Push fan clip upward to loose fan,

then remove fan holder from inside

2.10 How to remove the fan & fan holder

To remove fan & fan holder by press-in clips then pull

both from inside. Please see above picture

12 cm rear fan

9 cm rearfan

RM OR

User's Maunal

2.11 Air Cooling System

-Front (intake) :

120 x 120x25 mm

blue LED fan,

1300rpm, 17dBA

-Top (Exhaust):

90 x 90x 25mm,

1800rpm, 19dBA

-Rear (Exhaust) :

120 x 120x25 mm blueLED fan,

1300rpm

-90 x 90x 25mm, 1800rpm,19dBA

-Rear HDD cooling

2.12 BTX Upgraded Kits

BTX rear plate

BTX SRM

(Supported Retention Module)

BTX upgraded kit box

4-pin connector:

connect to PSU

3-pin signal connector:

connect to M/B
