Thermaltake Pacific A2 Ultra Manuale utente

Pacific A2 Ultra Memory Water Block

CL-W333-CU00SW-A

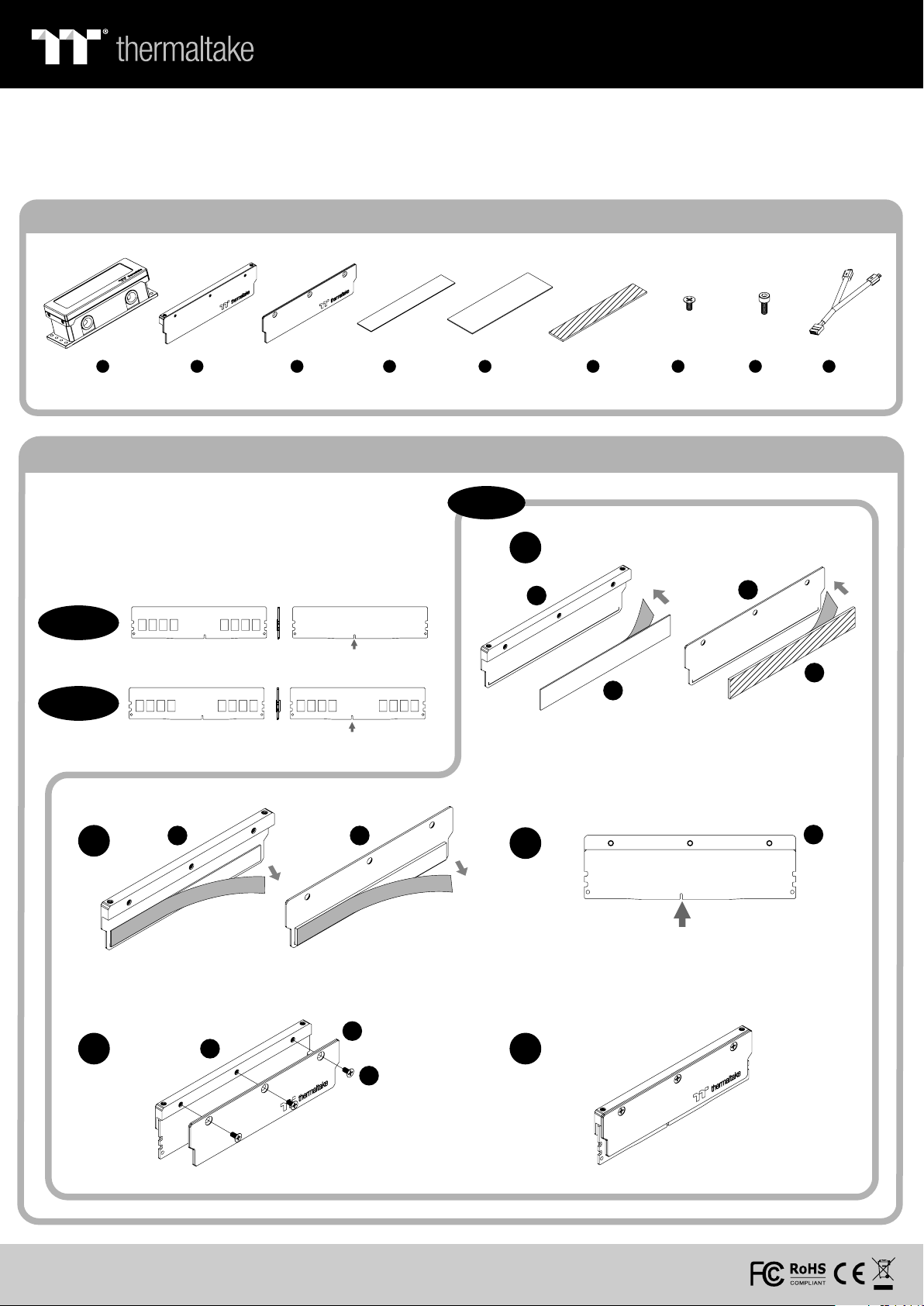

Memory Module Installation Guide

Parts List

Type 1

Type 2

Please confirm the RAMs are single sided or double

sided,single sided please refer to Type 1,

double sided please refer to Type 2.

Remove the protective film of Thermal Pad on Heat Sink(B) and Heat Sink(C). Install the RAMs on Heat Sink(B).

Please be aware of the direction and the position.

Attach Thermal Pad(D)

to the Heat Sink(B)

Attach Thermal Pad(G)

to the Heat Sink(C)

Use the Screws(H) to enclose the

HeatSink(B) and HeatSink(C). Finished

Type 1

A x 1 D x 8 E x 1 G x 4 H x 12 I x 8

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment.

Before you start using this product please follow these basic guidelines:

1. Please read carefully through the instruction manual before beginning the installation process.

2. Please remove your graphics card from your motherboard to ensure the safest process and in order to prevent any possible damages to your CPU and motherboard.

3. It is strongly recommended using market proven pre-mix coolant, such as Thermaltake Coolant 1000.

Water Block

B x 4

Heat Sink

C x 4

Heat Sink Thermal Pad Thermal Pad Thermal Pad

(Thick) Screw Screw

J x 1

Controller Cable

Thick

Pacific A2 Ultra Memory Water Block

CL-W333-CU00SW-A

Installation Guide

Memory Module Installation Guide

2 3

Plug the complete memory module to

the DDR4 slot on the motherboard.

Please refer to the motherboard manual

for the installation location.

Remove the protective

film of Thermal Pad

from the Water Block(A).

Attach Thermal Pad(E)

to the Water Blcok .(A)

Tighten the Screws(I)

until memory module

are securely attached.

Connect the Controller

Cable to Water Block

Type 2

Remove the protecive film of Thermal Pad

from Heat Sink(B) and Heat Sink(C)

Attach Thermal Pad(D)

to the Heat Sink(B)

Attach Thermal Pad(D)

to the Heat Sink(C)

Install the RAMs on Heat Sink(B).

Please be aware of the direction and the position.

B C

B4 5

Finished

Use the Screws(H) to enclose the

HeatSink(B) and Heat Sink(C).

B C

Install your fittings and tubes
