VG8000BNS Manual

VG8000BNS

Manual

1l2

Chapter 1. Product Introduction

Chapter 2. Case Mechanical Operation

Specification

Chapter3 Motherboard & Lends Installation

Motherboard installation

Case LED connections

USB2.0 connection

Audio connection

2-1

2-2

2-3

2-4

2-5

2-6

2-7

How to open the side panel

External 5.25" device installation

External 3.5" device installation

HDD installation

Front fan installation (Optional)

PCI slot usage

How to install PSU

1-1

3-1

3-2

3-3

3-4

Chapter4 RSI Cooler and Power Supply

RSI Cooler (Optional)

RSI Power Supply (Optional)

4-1

4-2

Specification

Chapter 1. Product Introduction

ContentS

Model

Case Type

Net Weight

Dimension

(H*W*D)

Cooling System

Drive Bays

- Accessible

- Hidden

Material

Color

Expansion Slots

Motherboards

VG8000BNS

Middle Tower

4.60 kg ; 10.14 lb

415 x 190 x 480 mm

16.3 X 7.5 X 18.9 inch

Front (Intake) :

120 x 120 x 25 mm (optional)

Rear (Exhaust) :

120 x 120 x 25 mm, 1300rpm, 17dBA

4 x 5.25", 1 x 3.5"

5 x 3.5"

SECC

Black

Micro ATX , Standard ATX

I/O Ports Dual USB 2.0, MIC & Speaker

VG8000BNS Manual

VG8000BNS

Manual

3l4

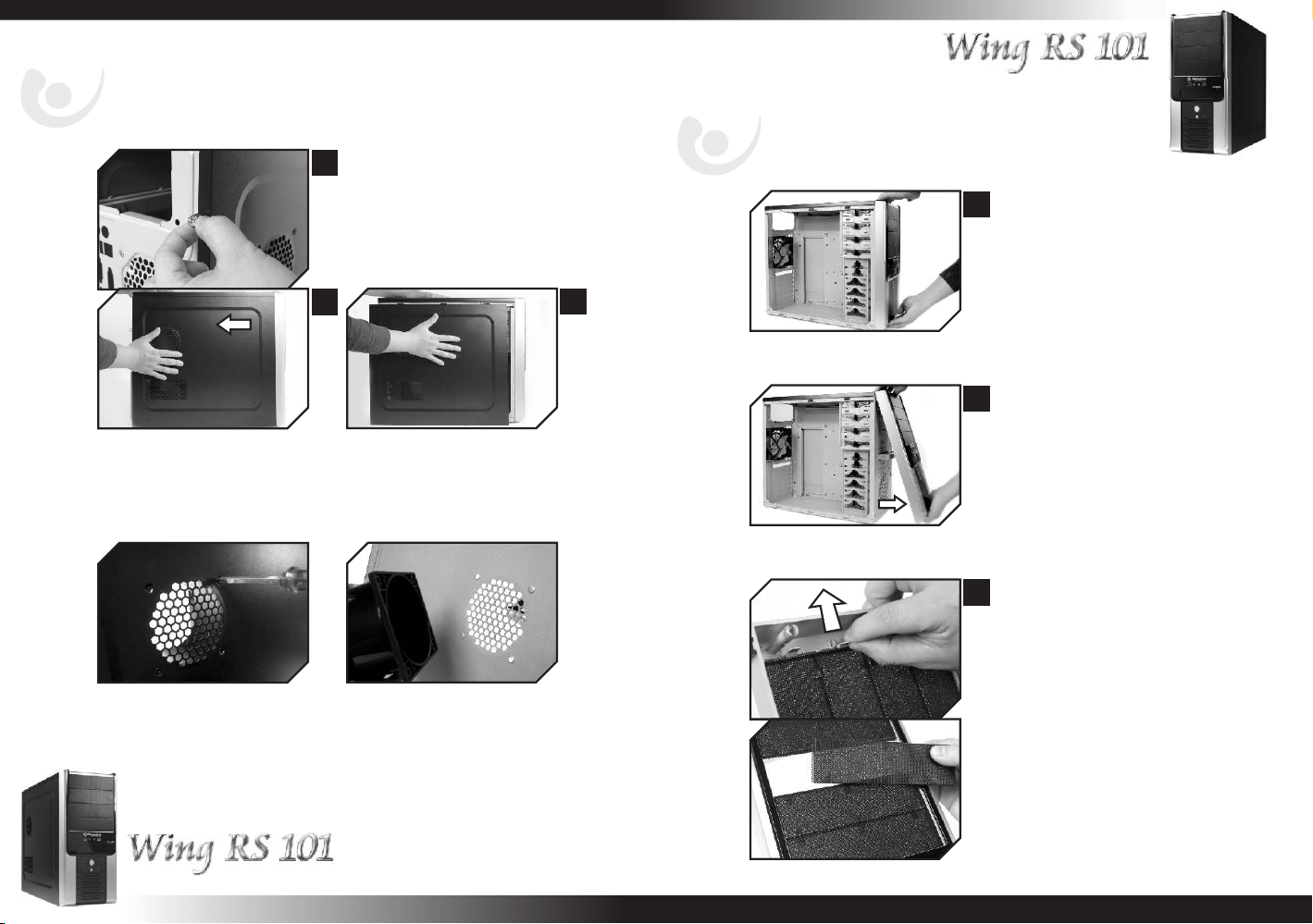

2-1 How to open the side panel

Chapter 2. Case Mechanical Operation

To remove the side panel, please

remove upper and bottom thumb

screws on the back of the case.

Remove the side panel,

please refer to the

orientation of the

picture.

Open the side panel

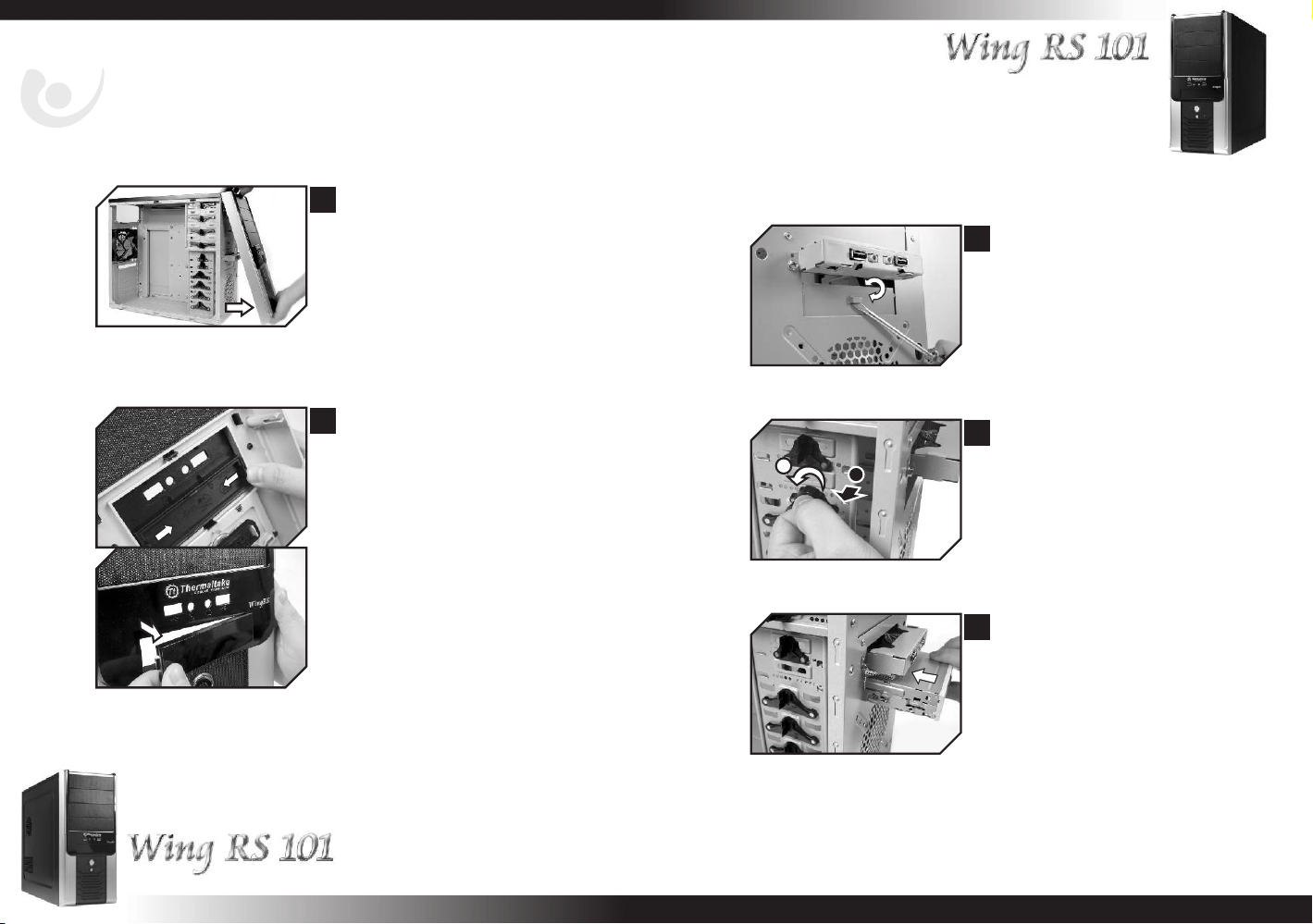

2-2 External 5.25" device installation

Remove the front panel

Pull out the front panel

as shown

Remove the 5.25"

drive bay cover

Important Notice:

If the air guide interferes with CPU cooling fan,

please remove the CPU air guide as shown.

VG8000BNS Manual

VG8000BNS

Manual

5l6

Remove the 5.25" drive bay

metal cover

Place 5.25" device into the

drive bay

Find the proper openings

Put back the lock device and

turn lock device clockwise to

lock

5.25" device installation

complete

Turn lock device

counterclockwise to unlock

Remove lock device

VG8000BNS Manual

VG8000BNS

Manual

7l8

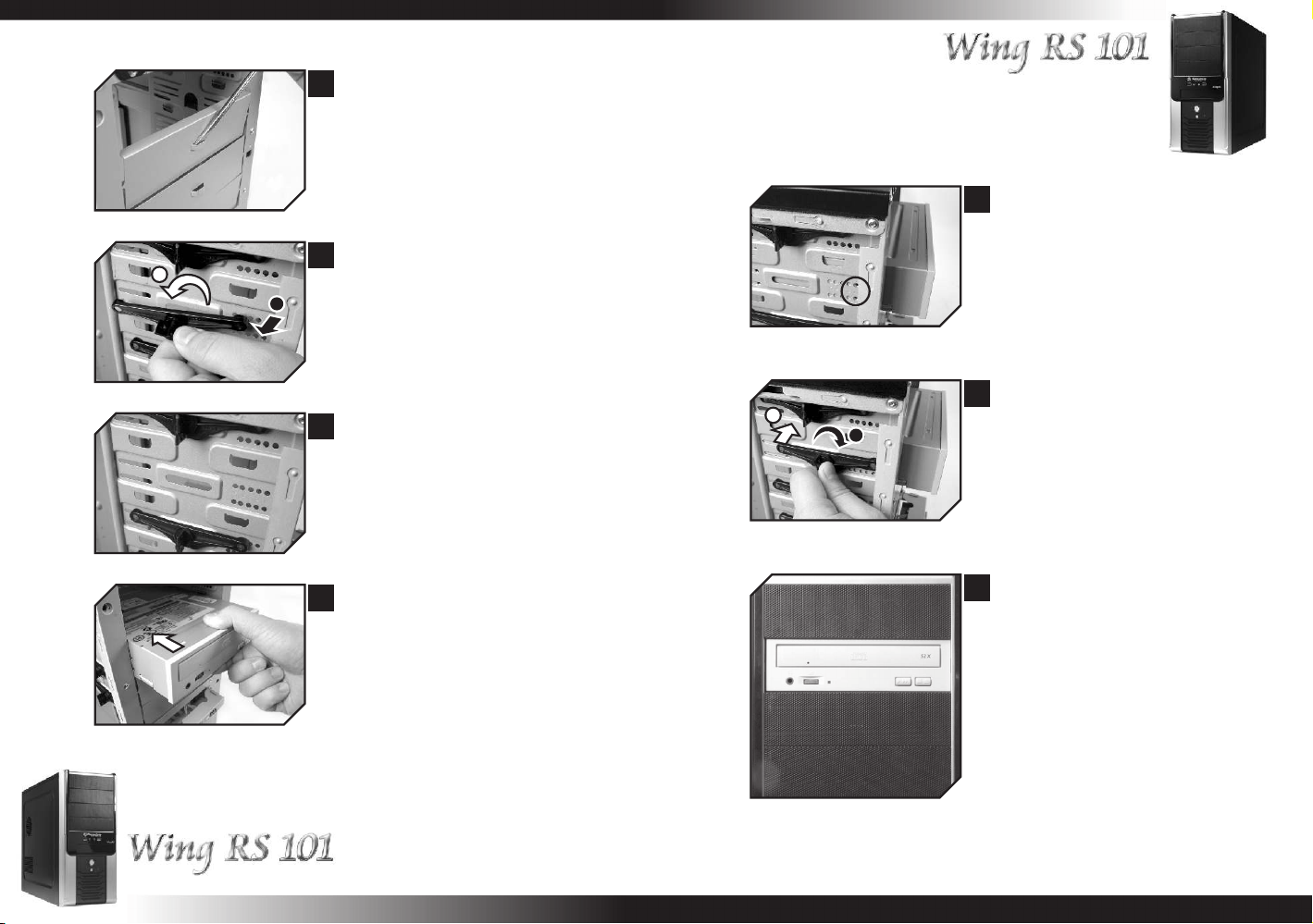

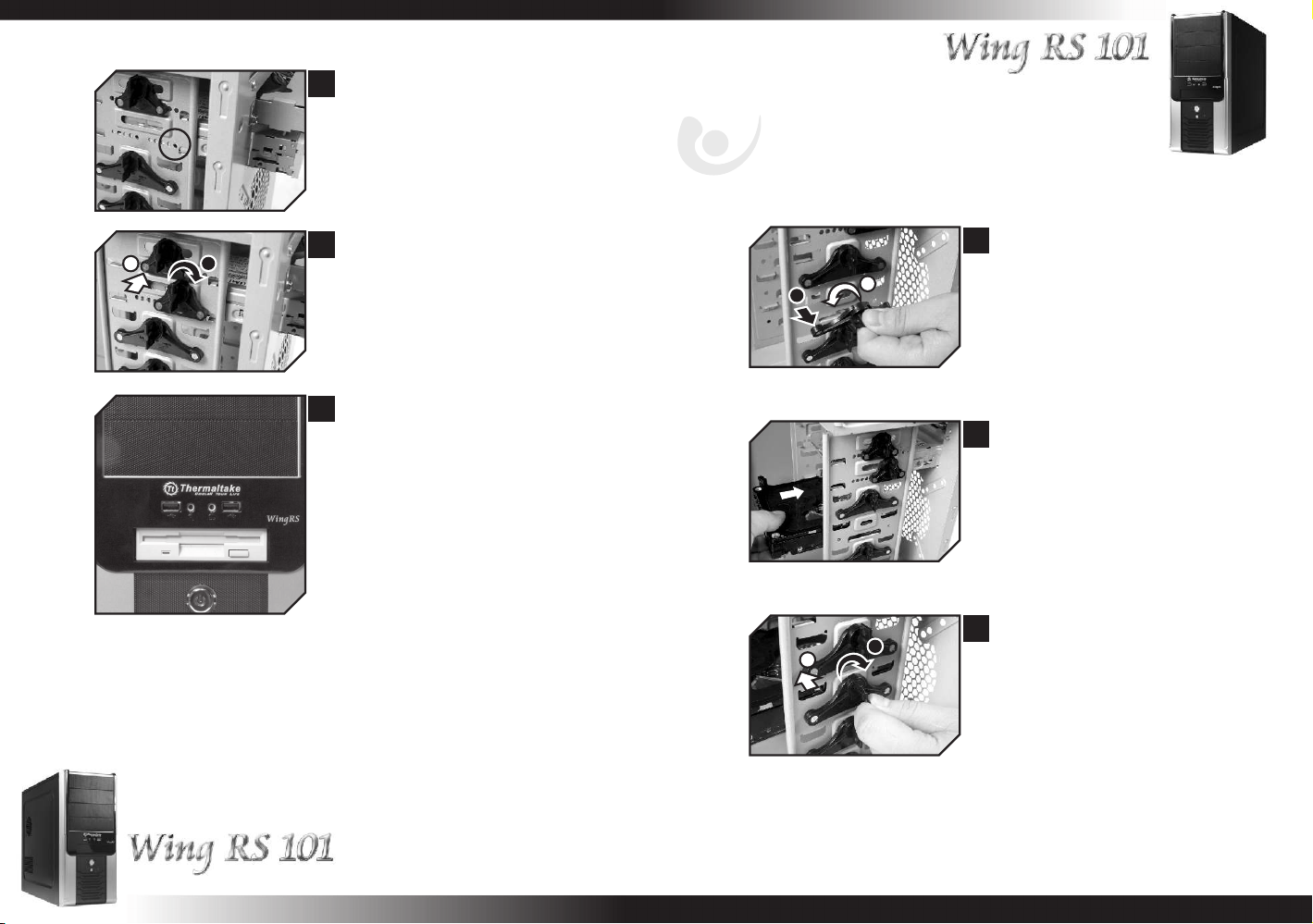

2-3 External 3.5" device installation

Pull out the front

panel as shown

Remove the 3.5"

drive bay plastic cover

Remove the 3.5" drive bay

metal cover

Turn lock device counter-

clockwise to unlock

Remove lock device and

insert the device into the

3.5" drive bay

VG8000BNS Manual

VG8000BNS

Manual

9l10

Find the proper openings

Put back the lock device

and turn clockwise to

secure the drive

3.5" device installation

complete

2-4 HDD installation

Turn lock device counter-

clockwise to unlock

Remove lock device then

place HDD into drive bay

Put back the lock device and

turn lock device clockwise to

secure the HDD

Important Notice:

The upper 3.5" external drive bay is not compatible with FDD,

but HDD is able to be installed in it. While installing HDD,

please remove the tool-free kit and secure HDD by screws.

VG8000BNS Manual

VG8000BNS

Manual

11l12

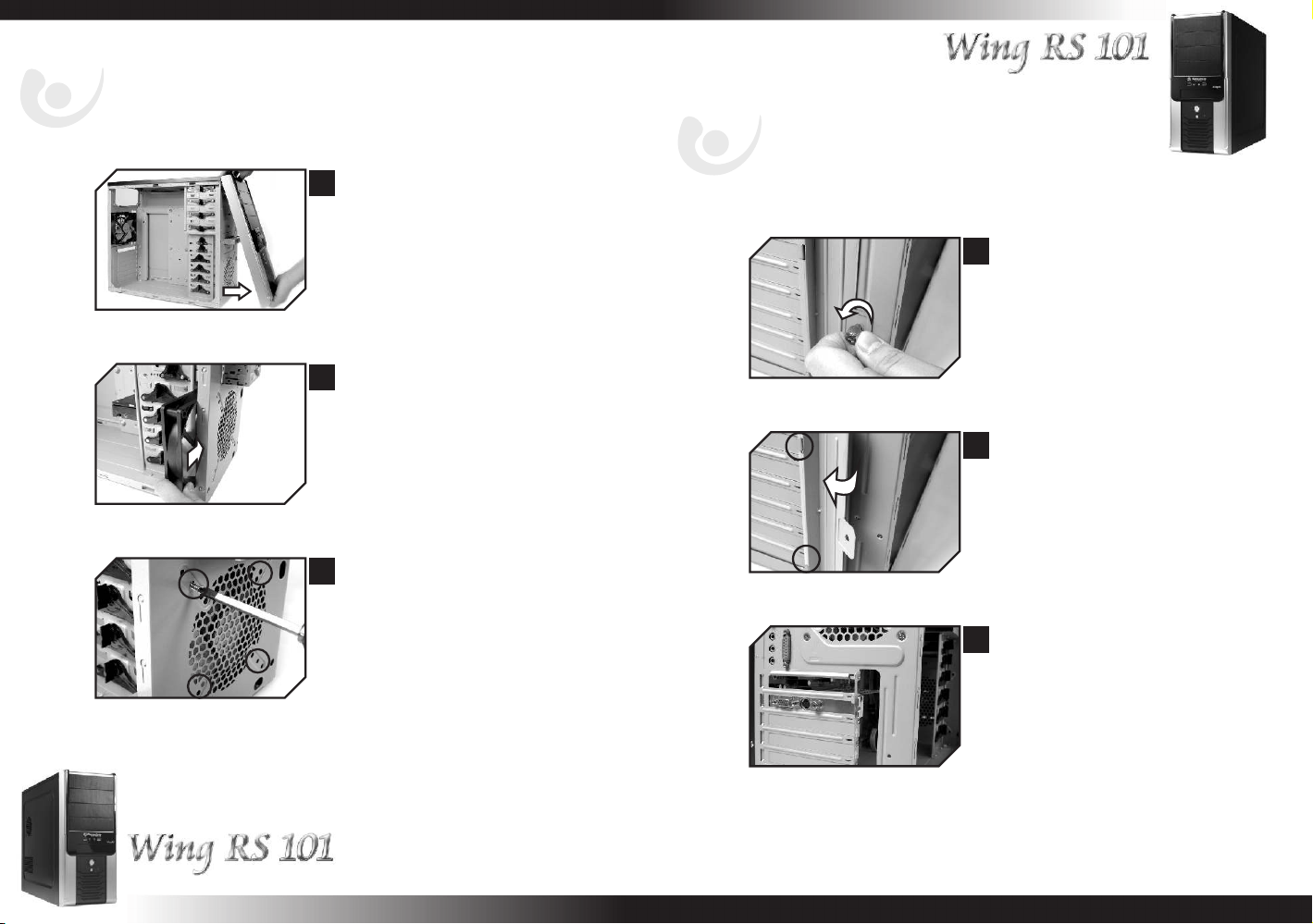

2-5 Front fan installation (optional)

Remove the front panel

Place the fan as shown

Secure the fan by screws

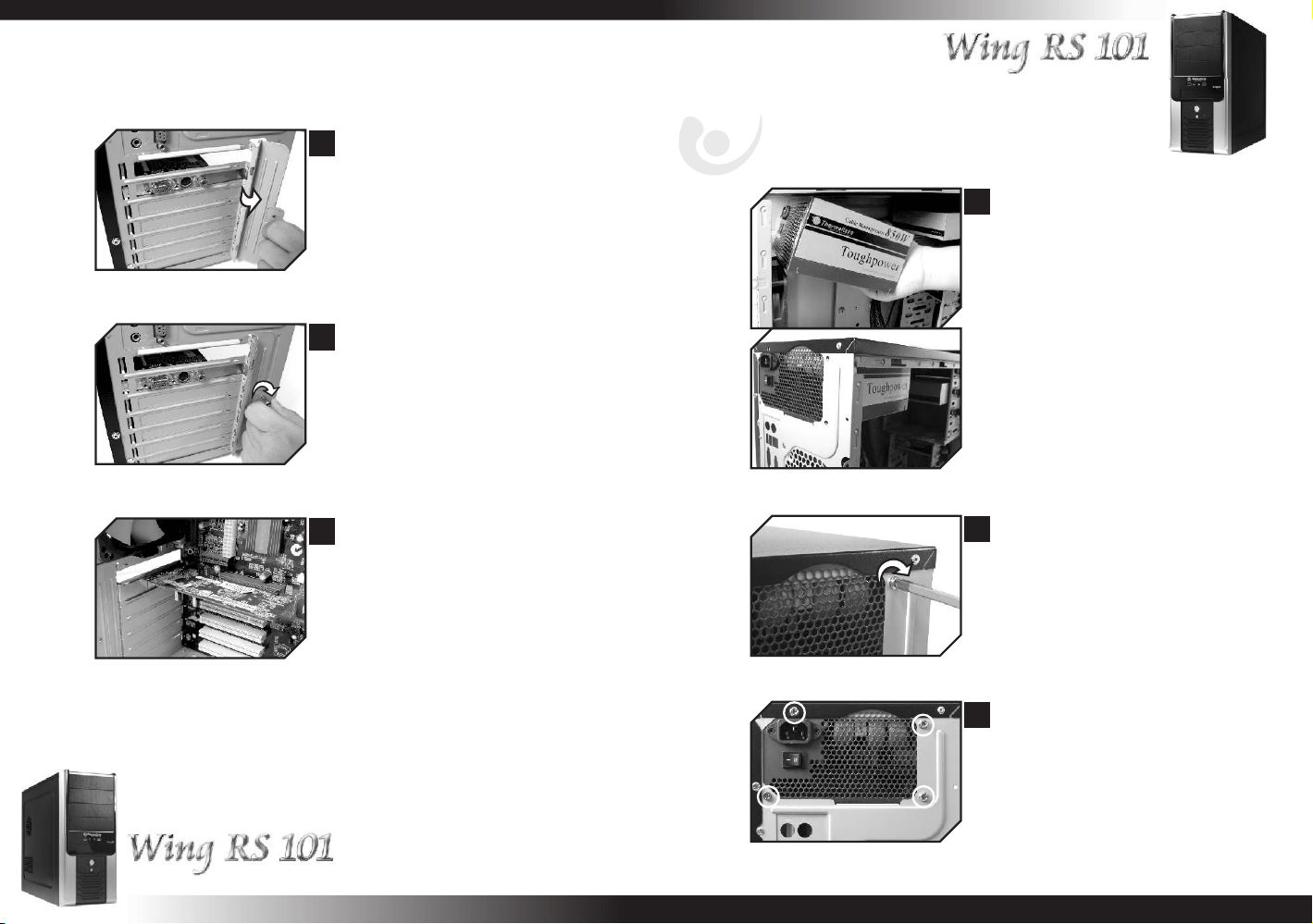

2-6 PCI slot usage

Remove thumb screw from

PCI slot bracket

Take off the PCI slot

bracket as shown

Insert the PCI device

into PCI slot

VG8000BNS Manual

VG8000BNS

Manual

13l14

Put back the PCI slot bracket

Screw the thumb screw

as shown

Finish installation

2-7 How to install PSU

Place the PSU over the

location as shown

Secure it by screws

Finish installation

VG8000BNS Manual

VG8000BNS

Manual

15l16

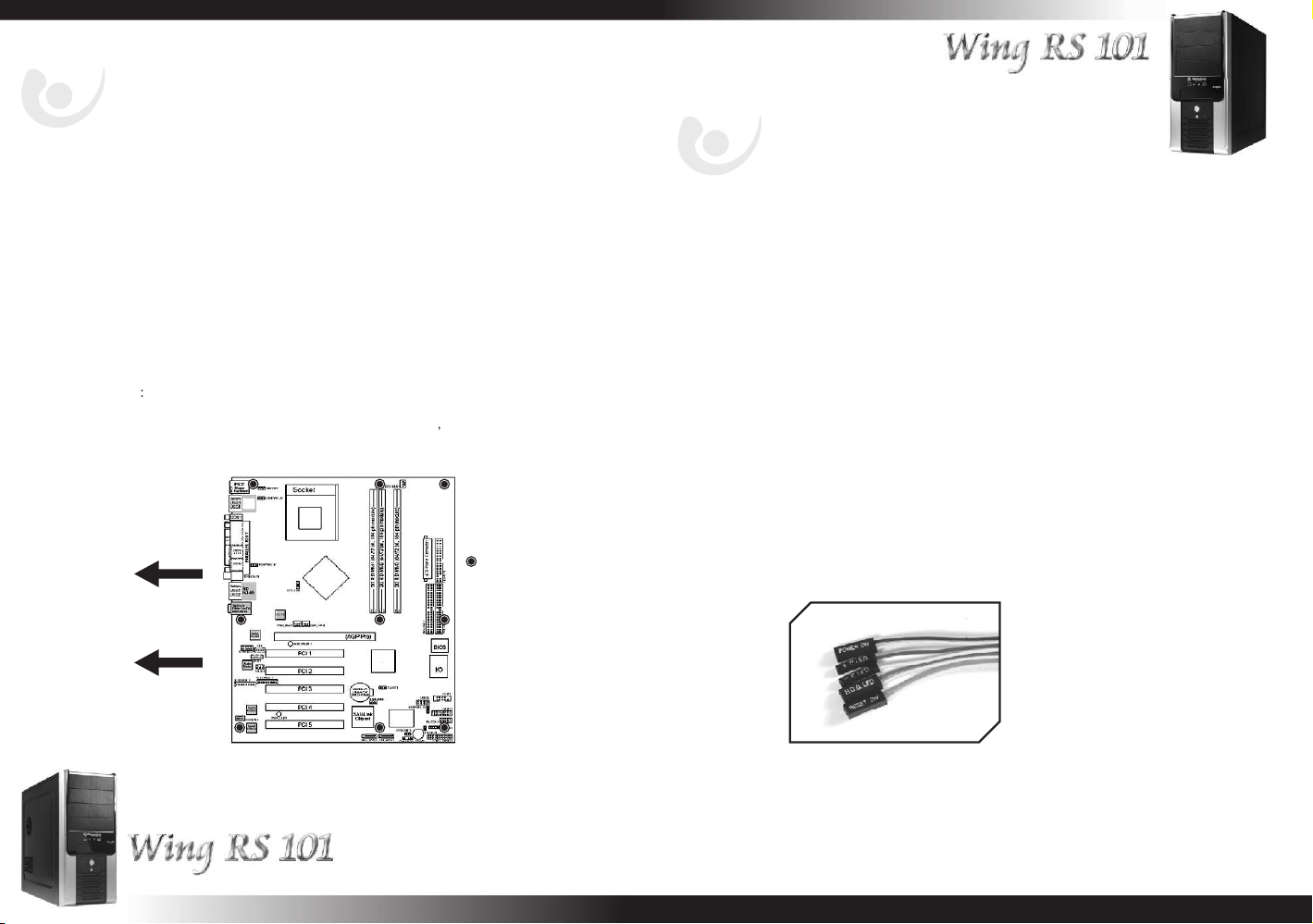

3-1 Motherboard Installation

Chapter.3 Motherboard & Leads Installation

Each motherboard has different standoff layout. It is highly suggested

that you refer to your motherboard's manual when installing

motherboard into the Case. The cases are applicable with Standard ATX,

Micro ATX motherboards. Your motherboard may require a special I/O

Panel, which should be included with your motherboard.

Placement Direction:

When installing the motherboard, make sure you follow the direction

provided by your motherboard manufacturer. On most standard

motherboards, the edge with external ports goes to the rear part of the

chassis. It is highly recommended that you install CPU, heat sink and

modular components before fixing the motherboard inside the chassis.

Note

Due to the variety of motherboards on the market, the majority of the

motherboards come with their own I/O plates. It s necessary for you

to remove the fan holder before install the I/O plates.

478

The locations of the

screw holes. Note

these locations and

place included

standoffs on the

chassis first.

Above illustration is a sample of what the motherboard's

layout. For more detail screw hole placement, please refer

to your motherboard manual.

This side towards

the rear of the

chassis

3-2 Case LED connections

On the front of the case, you can find some LEDs and

switch leads (POWER SW*1, POWER LED*1, H.D.D.

LED*1, RESET SW*1).

Please consult user manual of your motherboard

manufacturer, then connect these leads to the panel

header on the motherboard. These leads are usually

labeled; if not, please trace them back to the case

front to find out their source.

- POWER LED

connects to your M/B at the PLED

- POWER SW

connects to the PWR connector on the motherboard.

- H.D.D LED

connects to the 2-pin labeled HDD LED connector.

- RESET SW

connects to the RSW connector on the motherboard,

VG8000BNS Manual

VG8000BNS

Manual

17l18

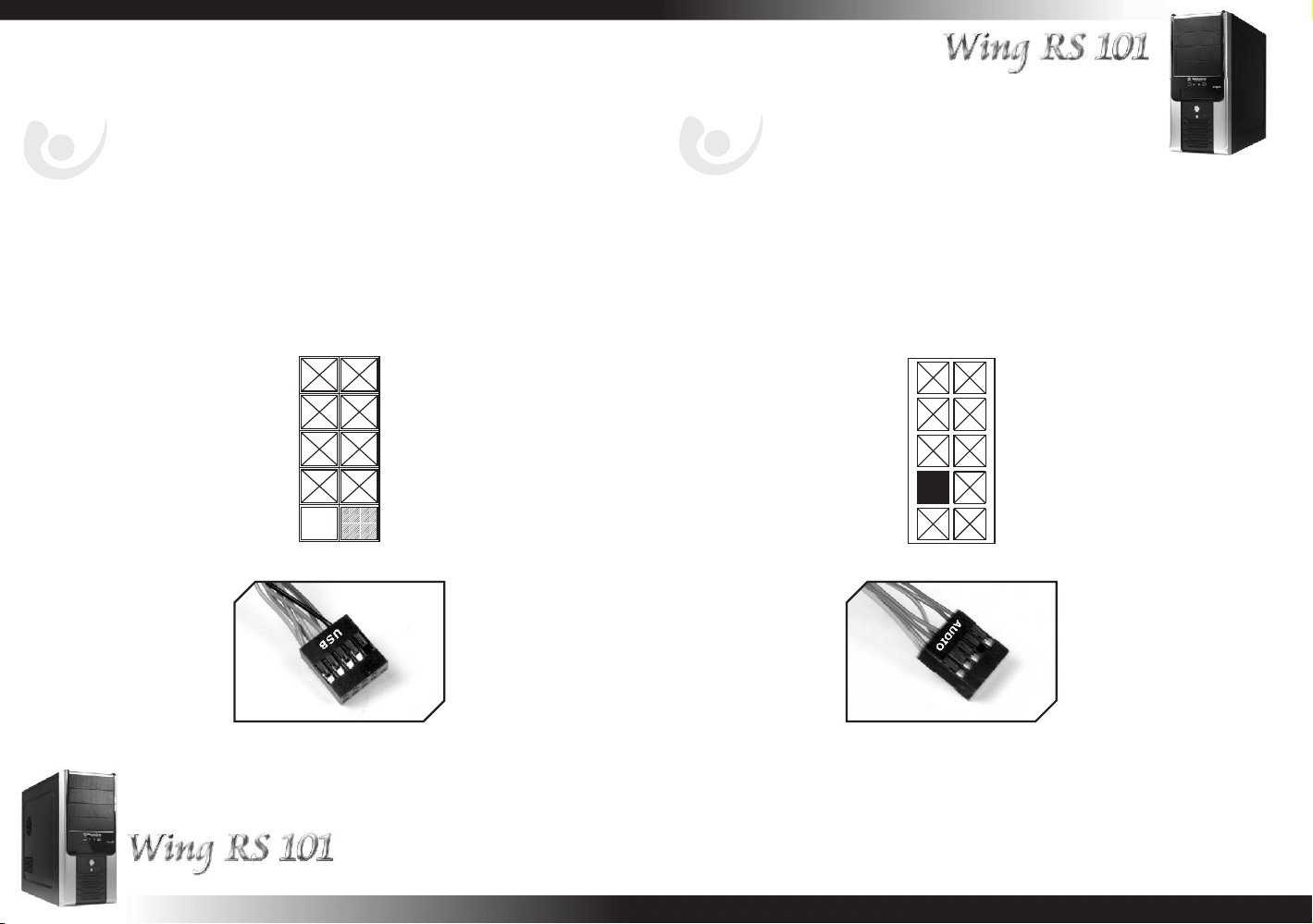

USB connection

Please consult your motherboard manual to find

out the section of "USB connection".

3-3 USB2.0 connection

Please consult your motherboard manual

to find out the section of "front panel

audio connector".

3-4 Audio connection

USB

VCC1

D1-

D1+

GND

VCC2

D2-

D2+

GND

KEY

AUDIO

AUD_GND

FP_RET_R

KEY

FP_RET_L

MIC

MIC_BIAS

FP_OUT_R

AUD_VCC

FP_OUT_L
