Thermax CP3 Manuale del proprietario
CP3
PROFESSIONAL HOT WATER EXTRACTION CLEANING SYSTEM
OWNER/
OPERATOR
MANUAL
Products for a Healthier Indoor Environment
ThermaxRentalsInc.com
1-855-THERMAX
TABLE OF CONTENTS
Message from the Corporate Ofce ...................................................................... 2
Identifying Features............................................................................................... 3
Inspection Upon Delivery....................................................................................... 4
Important Safety Information ................................................................................. 4
Set-Up Procedure.................................................................................................. 5
Extraction Cleaning Procedure.............................................................................. 5
System Clean-Up .................................................................................................. 6
General System Maintenance ............................................................................... 6
Optional Package and Accessories....................................................................... 7
Cleaning Solutions................................................................................................. 8
CP3 Specications ................................................................................................ 9

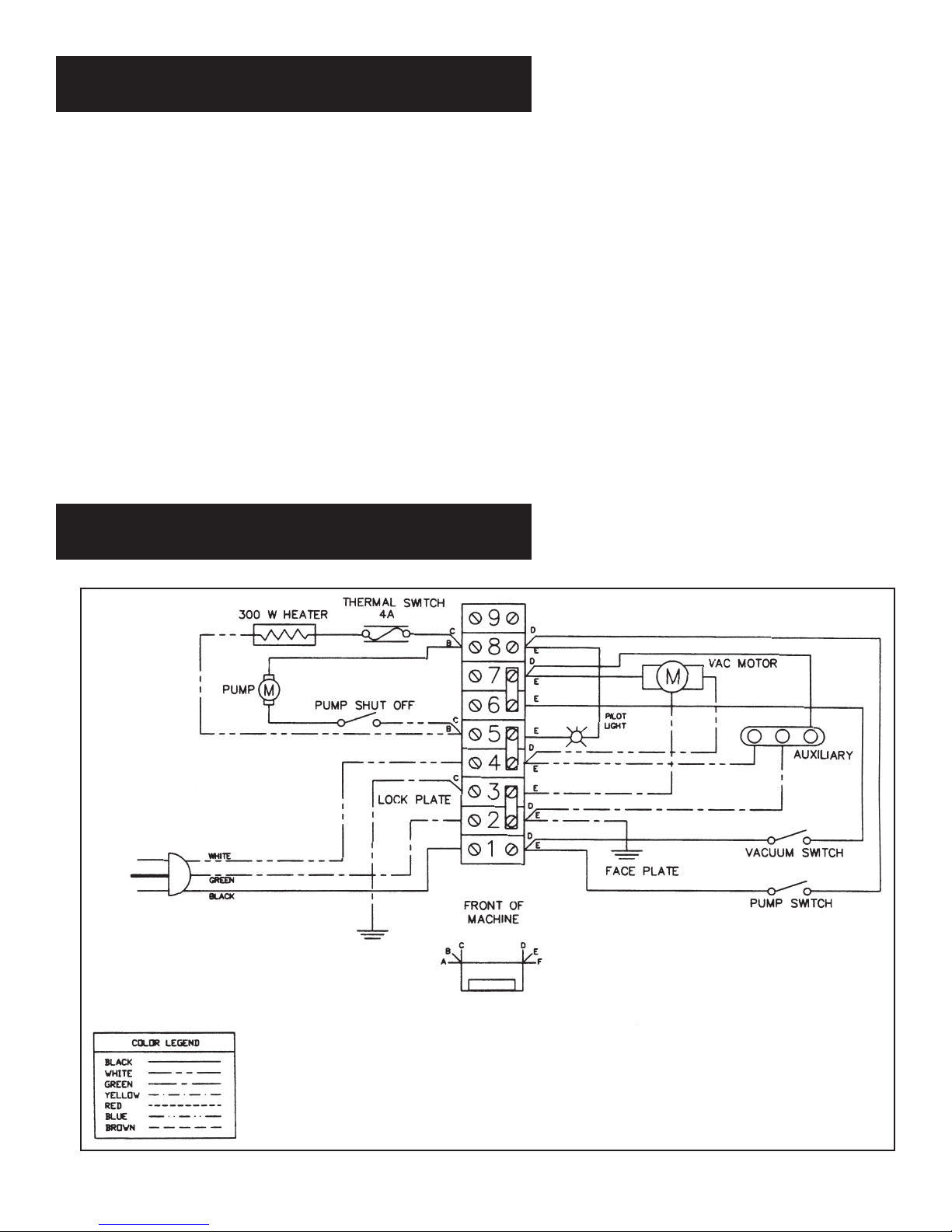

CP3 Wiring Diagram.............................................................................................. 9
Troubleshooting................................................................................................... 10
CP3 Base Unit Schematic ....................................................................................11
CP3 Base Unit Parts List..................................................................................... 12
Floor Wand Schematic ........................................................................................ 13
Floor Wand Parts List .......................................................................................... 14
Upholstery Wand Schematic ............................................................................... 15
Upholstery Wand Parts List ................................................................................. 16
Power Brush Schematic ...................................................................................... 17
Power Brush Parts List........................................................................................ 18
Rental Center Benets ........................................................................................ 19
Thermax Warranty.............................................................................................. 20
1
Congratulations on the purchase of your new Thermax CP3 Professional Hot
Water Extraction Cleaning System! In 1971, Thermax founder Carl Parise
developed the world’s rst UL approved carpet steam cleaner for the U.S.
market, and has since produced over 500,000 units sold worldwide. Thermax is
rapidly becoming a household name, synonymous with the industry.
In a world full of competition and choices, we at Thermax are grateful for your
wise choice of the Thermax CP3, and we look forward to a lasting relationship as
we service all of your cleaning needs.
Your new CP3 is a high performance workhorse. When maintained and operated
in accordance with this Owner/Operator Manual, it will give you years of quality
service.
For over four decades, Thermax has produced ne quality, portable, hot water
extraction cleaning systems for the rental, hotel/motel, auto detail, janitorial, as
well as other commercial and residential markets. The Thermax CP3 portable
extractor pioneered the do-it-yourself rental steam cleaner* industry, introducing
America to a new way to clean carpets and upholstery.
Our company and staff subscribe to the philosophy that our relationship with you
the customer doesn’t end with the sale, it only begins.
If there is any area in which we can be of service, please call the Thermax
Customer Support Center at 855-THERMAX (843-7629) or email
Thank you for joining the ever-growing family of Thermax owners. Here’s to many
years of use and, most importantly, here’s to a healthier indoor environment.
*Steam cleaning is the generic terminology used to describe the hot water
extraction process of cleaning carpet.
MESSAGE FROM THE CORPORATE OFFICE
2
1) Clean Water Solution Tank
2) Stationary Lid with Solution Tank Fill Hole
3) Recovery/Waste Tank
4) Recovery Tank Dome and Vacuum Seal
5) Power Cord
6) Brass Female Quick Connect Coupling
for the Solution Hose
7) Auxiliary Female Outlet for the
Optional Power Brush
8) Vacuum Inlet/Vacuum Hose Connector
9) Pump/Heater Switch
10) Vacuum Switch
11) Easy Pull Handle
IDENTIFYING FEATURES
11
8
4
2
1
6
7
3
9
10
5
3
INSPECTION UPON DELIVERY
Carefully unpack and inspect the Thermax CP3 and be sure all components
ordered are included. Orders might be packed in more than one box.
NOTE: Contact the carrier immediately regarding any damage incurred during
shipping as it is your responsibility to le a damage claim with the carrier.
IMPORTANT SAFETY INFORMATION
1) To prevent the possibility of electrical shock, always unplug the system from
the main power source before physically inspecting or attempting to repair
the system.
2) Inspect system daily, especially when used by someone else. Inspect for
damaged components such as loose wires, frayed cords, missing ground
pin, etc.
3) Only operate system when it is properly grounded. Improper grounding could
result in serious or fatal shock!
4) When operating the system around water, during ood restoration, etc.,
always outt yourself properly with rubber-soled shoes or rubber boots and
do not set system in standing water.
5) To keep from voiding your warranty, use only those cleaning solutions
manufactured by Thermax and never use solvent based products.
6) After use, always thoroughly rinse and clean both recovery and solution
tanks. If using recovery tank to store hoses, or other miscellaneous items,
always clean items before storing them in tanks.
7) Do not operate solution pump dry.
8) Do not store where temperatures drop below freezing, as this may damage
the pump.
9) Always use defoamer in recovery tank to prevent the motor from being
damaged from overfoaming.
10) Extension cord should have a minimum rating of 12/3 (#12 cord). Extension
cord should not exceed 50 feet.
11) Never open up the system when there is water in either the solution or
recovery tank. Remove the solution and waste water rst.
4
SET-UP PROCEDURE
1) Pre-mix cleaning solution as required for specic application in a three gallon (11.4 liter) pail. Pour pre-mixed solution
through solution ll hole of system (page 3, #2).
NOTE: This system has a built-in maintenance heater for the solution. Start with hot water when possible. Hot water is
hygienic and maximizes cleaning potential.
2) Add appropriate amount of defoamer to the recovery tank (page 3, #3).
3) Connect end of the vacuum hose to the vacuum inlet connector (page 3, #8) and the other end of the vacuum hose to the
tool.
4) Connect male end of the solution hose to female quick-connect coupling (page 3, #6), and female end of solution hose to
the male end of the cleaning wand.
5) With solution tank full and vacuum and solution hoses properly connected, plug main power cord (page 3, #5) into properly
grounded outlet.
NOTE: Plug the cord into an outlet that will be out of the way of the cleaning path, ideally a 20 amp circuit when available.
6) Your system is now ready for operation.
7) Once pre-spray, furniture removal and other carpet preparation is complete, proceed to clean carpet and/or upholstery.
EXTRACTION CLEANING PROCEDURE
1) With solution tank full and all hoses appropriately attached, activate pump switch to the “ON” position (page 3, #9), then
activate the vacuum switch (page 3, #10) to the “ON” position.
2) Start in area of the room opposite from where you want to end.
3) Place wand about 4 feet in front of you.
4) Activate the solution spray trigger of wand.
5) Laying down an even spray of solution, pull the wand back towards you slowly.
6) Release the solution spray trigger and move the wand slowly forward over the same area just cleaned to recover additional
solution left behind. Repeat this process several times depending on the degree of carpet soiling then move over the width
of the wand, overlapping slightly to prevent streaking. For best results, work in approximately 4 foot wide sections and
always be sure to remove as much solution from the carpet as possible as this will minimize drying time.
7) When solution tank is empty and needs relling, shut system down and repeat step 1 of “Set Up Procedure”.
8) Remove, empty and replace recovery tank. (page 3, #3).
NOTE: Always empty and replace recovery tank at the same time you rell the solution tank.
9) Add more defoamer into the recovery tank (step 2 of “Set Up Procedure”).
NOTE: With solution tank full and recovery tank empty, the system is now ready to continue cleaning. Continue the
process until cleaning is complete.
5
SYSTEM CLEAN-UP
When the carpet cleaning process is complete, it’s time to clean the system. Turn all switches to “OFF” position.
1) Empty solution tank.
a. To empty solution tank of unused solution, turn vacuum switch to “ON” position and pump switch to “OFF” position.
b. With vacuum hose still connected to the inlet and vacuum running, drop the end of the vacuum hose (opposite the end plugged
into the vacuum inlet) down through the solution tank ll hole (page 3, #2) and SLOWLY remove the unused solution from the
solution tank until empty. The system will transfer the solution to the recovery tank for disposal. In the process, the solution
cleans out the inside of the vacuum hose.
NOTE: Take caution to remove the solution SLOWLY! Make sure to rinse solution tank with the plain hot water to minimize
chemical build-up. After rinsing solution tank, transfer rinse water in the same manner mentioned above.
c. Turn off and unplug the system
2) Remove vacuum and solution hose from system. Wipe down all exterior areas of the system.
3) Empty, clean, rinse and dry recovery tank.
4) Your CP3 system is now ready for storage until the next job!
GENERAL SYSTEM MAINTENANCE
NOTE: To prevent shock hazard, remember to unplug main power source before inspection or repair of the system.
DAILY (At the conclusion of each work day)
1) Empty, rinse and clean solution & recovery tanks with plain hot water thoroughly cleaning dirt and obstructions from inside the
tanks.
2) Run plain hot water through solution tank and pump to prevent any chemical build-up.
3) Clean vacuum and solution hoses thoroughly.
4) Wipe down all exterior surfaces with an all-purpose type cleaner.
5) Inspect the solution tank lter, recovery tank dome lter and vac motor screen lter for hair and debris. The lters should always
be kept clean and unobstructed.
6) Inspect electrical cord for damage or fraying and repair as necessary.
7) Store unit away from direct sunlight and freezing temperature.
MONTHLY
1) Apply a light coat of vinyl protectant to all exterior surfaces.
2) Lubricate couplings, hinges and wheels with silicone-type spray.
3) Inspect internally for:
a. Loose nuts and/or screws
b. Leaking hoses
c. Loose wiring
d. Anything that doesn’t appear correct
4) Flush the system with 2 cups white vinegar per gallon of hot water solution. Follow by circulating plain hot water through the
system via the solution tank. This helps reduce and neutralize any alkalai and chemical build-up.
ANNUALLY
We recommend that your system be inspected once a year by an authorized Thermax service technician. For the location of your
nearest Service Center, call 1-855-THERMAX or go to ThermaxRentalsInc.com.
6

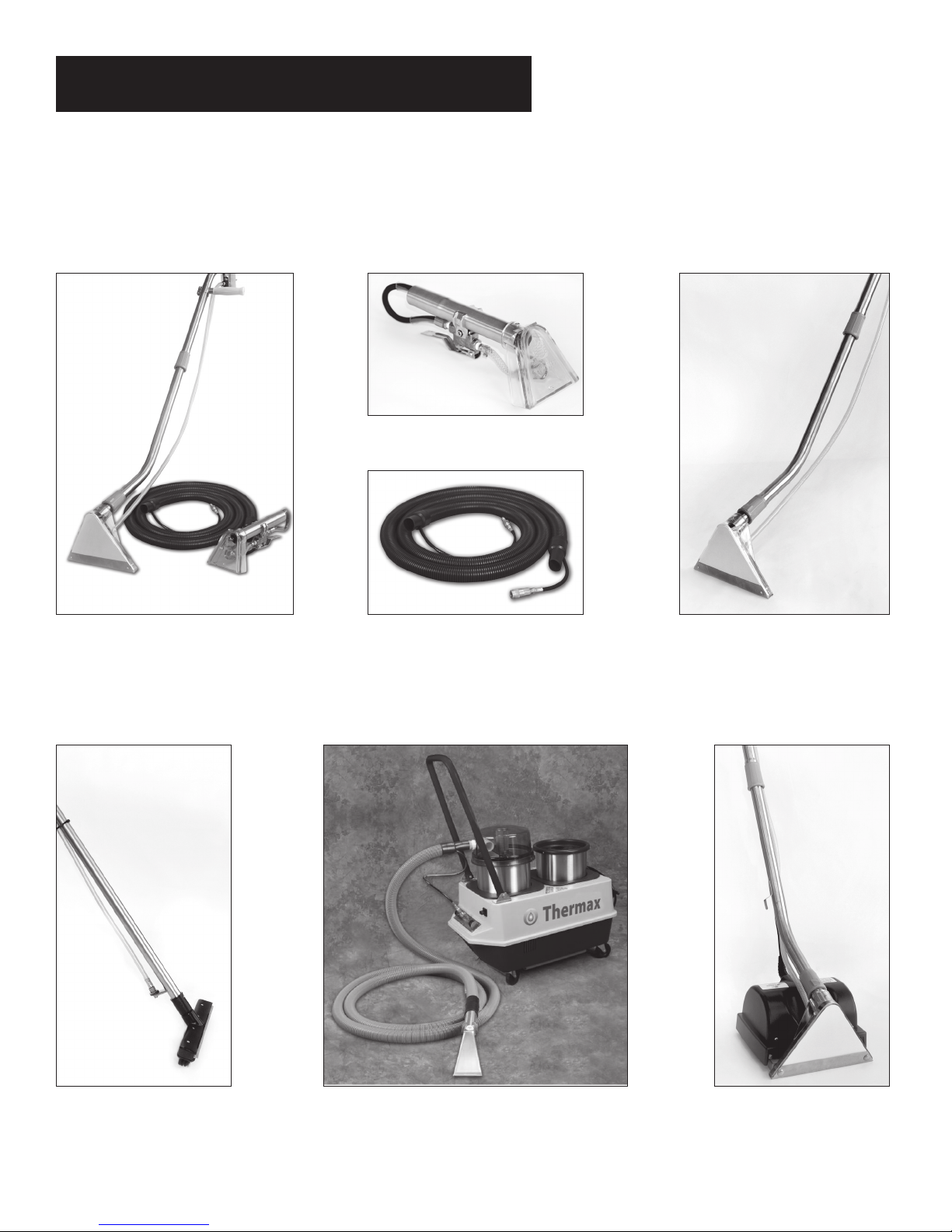

OPTIONAL PACKAGES & ACCESSORIES
The following optional packages and accessories do not come standard with your CP3. Contact
your local distributor or the Corporate Ofce to receive details on how to purchase these items.
7
CLEAR VIEW FLOOR WAND
PART # 29-760-325-1
PB309 – OSCILLATING
POWER BRUSH
PART # 80-012-121
SQUEEGEE
PART # 3-SQU-CP3
15’ HIDE-A-HOSE W/ BUILT-ON DETAILER
PART # U1570-15-CP3
(CP3 BASE UNIT NOT INCLUDED)
UPHOLSTERY WAND
PART # 35-255-004
10’ HIDE-A-HOSE
PART # 10-HAH-3
DELUXE RENTAL PACKAGE
PART # 32-700-HAH
Includes: Clear View Floor
Wand, Upholstery Wand,
10’ Hide-A-Hose & Mesh Bag
8
LIQUID CARPET & UPHOLSTERY
CLEANER ( B-360-32): (32oz. or 1 gal.)
Designed for any extraction type machine,
this product is designed to lift oils, stains,
and deeply embedded soils from carpets
and upholstery for easy extraction.
Professionally formulated to dispense
a perfect blend of gentle yet eective cleansing
agents for cleaning carpets, upholstery, vehicles,
boats & RV’s. Cleans and brightens leaving surfaces
soft to the touch with no “soapy” residue.
CITRUS DEODORIZER (B-350-32):
(32oz.) Citrus Deodorizer can be used alone or
mixed with ermax Carpet & Upholstery Cleaner
to neutralize and remove oensive odors from
carpets, upholstery, draperies and bed mattresses at
their source…especially pet urine, smoke and other
organic matters. Eliminates bothersome odors and
leaves rooms with a fresh, pleasant citrus scent.
PRE-SPOTTER W/BIO-ENZYMES-
STAIN & PET ODOR ELIMINATOR
(B-390-32): (32oz.) ermax Pre-Spotter w/
Bio-Enzymatic Formulation is designed to treat
spots, stains and odors caused by pets and other
organic materials. Pre-Spotter uses naturally
occurring Bio-Enzymatic digesters to attack and
remove spots, stains and odors.
Use as a pre-treat solution before cleaning or
alone as a spotter. It can also be used to clean and
deodorize bathrooms, kitchens, laundries, and
liquies solid waste in drain lines and pipes.
COMBI-CLEAN, ALL-IN-ONE
CLEANER (B-361-32): (32oz. & 1 gal.)
ermax Combi-Clean is an All-in-One cleaner!
is unique formula 1) Cleans, 2) Deodorizes,
3) Defoams, 4) Protects carpets and upholstery
from resoiling and 5) Revitalizes the appearance
of carpets and upholstery using a single product!
DEFOAMER (B-310-32): ermax
Defoamer is designed to eliminate foaming
action in the return tanks of carpet extraction
machines during cleaning. Use of Defoamer
will improve the performance of the extraction
machine giving better results and is required for
use in the recovery tank to control the
potentially damaging foam build-up within the
tank from overowing into the motor.
Every carpet being cleaned contains foreign matter
and/or left over residue from a previous cleaning
within its bers which has a tendency to excessively
foam when extracted into the recovery tank.
CARPET GUARD PROTECTOR
(B-523): (32oz.) Protects against stains and
makes your carpet & upholstery much easier to
clean and maintain, keeping them looking newer
longer. is product is a non-staining liquid
which provides soil and water resistance to
fabrics. By partially inhibiting fabric friction, it
also increases the life of the fabric and carpeting.
SEP 900, SOIL EXTRACTION
POWDER (19-075-08): (8oz. & 50lb.)
Powerful, yet safe, and formulated to meet the
most demanding cleaning requirements of today’s
modern carpets & upholstery. It does it all in one
proprietary formula, leaving your carpets &
upholstery clean and fresh. Safe on New
Generation stain resistant and wool carpeting.
STEAM CLEANING SOLUTIONS
Over forty years of extensive eld use and renement have proven our safe and eective cleaning solution formulas. For use in
both home & rental machines, ermax has a product for essentially every carpet and upholstry cleaning application.
THERMAX CP3 SPECIFICATIONS
DIMENSIONS:
• Length ...............28”
• Width .............. 17.5”
• Height.............. 24.5”
• Weight ............40 lbs.
ELECTRICAL:
• 120 Volt AC
• 14.2 AMP
• 50/60 HZ
• CE
RECOVERY TANK:
• Hygienic Stainless Steel
• 3 U.S. Gallons
VACUUM MOTOR:
• 2-Stage By-Pass
• 110” Water Lift
SOLUTION TANK:
• Hygienic Stainless Steel
• 3 U.S. Gallons
• 300 Watt Heating Element
PUMP:
• 60 P.S.I.
Note: Ideal to operate system on a 20 amp circuit when available.
THERMAX CP3 WIRING DIAGRAM
9
Altri manuali per CP3
1
Indice
Altri manuali Thermax Macchina per pavimenti
