Thinklogical VelocityKVM T-Series Manuale utente

VelocityKVM T-Series Chassis, Rev. D 2 November, 2014

Thinklogical, LLC®

100 Washington Street

Milford, Connecticut 06460 U.S.A.

Telephone: 1-203-647-8700

All trademarks and service marks are property of their respective owners.

Subject: VelocityKVM T-Series Chassis Product Manual

Revision: D, November, 2014

T-Series Chassis

& Modules ®

VelocityKVM T-Series Chassis, Rev. D 3 November, 2014

Table of Contents

PREFACE.....................................................................................................................................................4

About Thinklogical......................................................................................................................................4

Note and Warning Symbols .......................................................................................................................5

Class 1 Laser Information ..........................................................................................................................5

1. THE T-4200 MODULAR CHASSIS..........................................................................................................6

1.1 Chassis Features..........................................................................................................................7

1.1.1. Additional System Features...............................................................................................8

1.1.2. Technical Specifications ....................................................................................................8

1.2 Applications..................................................................................................................................9

1.2.1. Application 1..........................................................................................................................9

1.2.2. Application 2........................................................................................................................10

1.2.3. Application 3........................................................................................................................11

1.2.4. Application 4........................................................................................................................12

1.3. Hardware ....................................................................................................................................12

1.3.1. Physical Connections.........................................................................................................12

1.3.2. Desktop or Rack Mount ......................................................................................................12

1.3.3. Cooling .................................................................................................................................13

1.3.4. Hot Swappable Power Supplies.........................................................................................13

1.3.5. Dry Contact Alarm...............................................................................................................14

1.3.6. Display Rocker Switch........................................................................................................14

1.3.7. Front Panel Display and Buttons.......................................................................................14

2. FIRMWARE UPGRADES.......................................................................................................................15

3. FRONT PANEL USAGE.........................................................................................................................15

3.1 Initial Power-Up ..........................................................................................................................15

3.2 Saving Changes..........................................................................................................................19

3.3 Restoring Factory Defaults .......................................................................................................20

3.4 Naming the Transmitter Unit.....................................................................................................21

4. REGULATORY & SAFETY COMPLIANCE...........................................................................................22

4.1 Safety Requirements..................................................................................................................22

4.1.1 Symbols Found on the Product.........................................................................................22

4.1.2 Regulatory Compliance......................................................................................................22

North America ...........................................................................................................................22

Australia & New Zealand ..........................................................................................................22

European Union.........................................................................................................................23

Declaration of Conformity...................................................................................................23

4.1.3 Standards with Which the Products Comply ...................................................................23

4.2 Supplementary Information.......................................................................................................23

4.2.1 Product Serial Number .......................................................................................................24

4.2.2 Connection to the Product .................................................................................................24

5. HOW TO CONTACT US.........................................................................................................................24

5.1 Customer Support......................................................................................................................24

Website........................................................................................................................................24

Email............................................................................................................................................25

Telephone....................................................................................................................................25

Fax ...............................................................................................................................................25

5.2 Product Support.........................................................................................................................25

5.2.1 Warranty...............................................................................................................................26

5.2.2 Return Authorization...........................................................................................................26

Our Address ...............................................................................................................................26

APPENDIX A: VelocityKVM T-Series Ordering Information..................................................................27

APPENDIX B: Thinklogical KVM Extenders ...........................................................................................29

VelocityKVM T-Series Chassis, Rev. D 4 November, 2014

PREFACE

About Thinklogical

Thinklogical, LLC®

100 Washington St.

Milford, CT 06460

2014

2013

We, the Thinklogical team, are committed to understanding and

exceeding our customers’ requirements, the first time and every time.

Thinklogical is the leading manufacturer and provider of fiber optic KVM, video,

audio, and peripheral extension and switching solutions used in video-rich, big-data

computing environments.

Thinklogical offers the only fiber optic KVM matrix routers in the world

that are accredited to The Common Criteria, EAL4 and TEMPEST.

Governments, entertainment, scientific and industrial customers worldwide rely on

Thinklogical’s products and solutions for security, high performance, continuous

operation and ease of integration. Thinklogical products are designed and

manufactured in the USA and are certified to the ISO 9001-2008 standard.

Thinklogical is headquartered in Milford, Connecticut and is privately held by

Riverside Partners, LLC, Boston, MA (http://www.riversidepartners.com). For more

information about Thinklogical products and services, please visit

www.thinklogical.com.

Follow Thinklogical on LinkedIn at http://www.linkedin.com/company/thinklogical

and on Facebook at http://www.facebook.com/ThinklogicalUSA

VelocityKVM T-Series Chassis, Rev. D 5 November, 2014

Note and Warning Symbols

Throughout this manual you will notice certain symbols that bring your attention to

important information. These are Notes and Warnings. Examples are shown below.

Note: Important Notes appear in blue text preceded by a yellow

exclamation point symbol, as shown here.

A note is meant to call the reader’s attention to helpful information at a point in the text

that is relevant to the subject being discussed.

Warning! All Warnings appear in red text, followed by blue text, and

preceded by a red stop sign, as shown here.

A warning is meant to call the reader’s attention to critical information at a point in the

text that is relevant to the subject being discussed.

BEFORE STARTING ANY PROCEDURE, IT IS RECOMMENDED

THAT YOU READ THE INSTRUCTIONS THOROUGHLY!

Class 1 Laser Information

All Q-Series modules are

designed and identified as

Class 1 LASER products

CLASS 1 LASERS do not require any special

precautions under conditions of normal use.

SFP

Modules

Fiber-Optic

Cables

Class 1 Lasers

VelocityKVM T-Series Chassis, Rev. D 6 November, 2014

enter

PO W E R PO W E R Velocitykvm T- 4200

Four S in gle -Link DVI D ispla ys

D IS PLA Y

M OD U LE 2 M OD U LE 1

The VelocityKVM T-4200 Chassis

1.THE T-4200 MODULAR CHASSIS

The Logical Solution: Modular KVM Extension / DVI and SDI Support in One Unit

The VelocityKVM line of extenders continues to evolve and add value with exciting new

capabilities. The VelocityKVM T-4200 Chassis Line is a high reliability, rack-space-saving

solution housing the same extension capabilities in a 1U chassis that used to require 2U.

VTM-004200: Featuring a dual interface and current sharing power supplies, each 1U chassis

supports two separate interface modules, allowing users to combine module options within one

chassis. Install Transmitters, Receivers or one of each.

VTM-Q04200: A T-4200 chassis modified to accommodate a T-Series KVM module and up to 2

Q-Series modules* (or one double-size Q-Series module) for DVI and SDI support.

Available modules support a variety of video display options and all T-Series modules support

PS2, full duplex stereo audio, stereo emitter, serial (RS-232), USB 2.0 (up to 480 Mbps)

and/or USB 1.0 HID. Q-Series modules support a variety of display and peripheral features.

Contact Thinklogical for the full list of supported formats and features.

Using multi-mode or single-mode fiber, the system allows users to securely locate a display

device and peripherals up to 40 kilometers away from the controlling computer without loss of

resolution.

In addition, all high-speed peripherals function with no latency, making it ideally suited for a wide

range of applications in the broadcast and post-production field, command and control centers,

universities, air traffic control, energy production and exploration, and most other commercial

KVM applications.

*Q-Series modules support DVI, SDI and KMASS. Visit our website to see the complete line of Q-Series products at

www.thinklogical.com

VelocityKVM T-Series Chassis, Rev. D 7 November, 2014

1.1 Chassis Features

Each VTS-004200 Chassis includes the following features:

Hot swappable, current sharing power supplies

Supports two hot swappable interface modules. Features include:

one single-link DVI display

one single-link DVI or RGB display

one dual-link DVI display

two single-link DVI displays

four SD/HD/SDI signals

two 3G/SDI dual-link signals

Display rocker selects which module controls the front panel LCD.

Fully compatible with all of Thinklogical’s VXRouter line of products.

Simple plug and play

DVI Modules use single-mode or multi-mode fiber optics, support PS2,

full duplex stereo audio, stereo emitter, serial (RS-232), USB 2.0 and USB 1.0 HID

enter

POWE R POWE R Velocitykvm T- 4200

Four S in g le -Li nk DVI D ispla ys

D IS PLA Y

MODU LE 2 M OD U LE 1

Each VTS-Q04200 Chassis includes the following features:

Hot swappable, current sharing power supplies

Supports one hot swappable T-Series Module

Supports one or two hot swappable Q-Series Modules

Display rocker selects which module controls the front panel LCD.

Fully compatible with all of Thinklogical’s VXRouter line of products

Simple plug and play

Modules use single-mode or multi-mode fiber optics and support a variety of display

and peripheral functions

Front Panel Update Port

VelocityKVM T-Series Chassis, Rev. D 8 November, 2014

1.1.1. Additional System Features

T-Series and Q-Series Modules sold separately

DDC2B/EDID compliant

MRTS technology’s 6.25Gbps allows for full frame rate of transmission of uncompressed

DVI with no RF interference

Flawless image quality with no frame dropping

A Dry Contact Annunciator on each module provides an alarm warning in case of power or

fan failure, or an over-heating condition

Front panel status monitoring and control

Display rocker switch to select which module controls the LCD

All models available with standard LC-type connectors

1.1.2. Technical Specifications

Each Thinklogical T-Series Chassis is designed to the following specifications:

Operating Temp

and Humidity

0° to 50°C (32° to 122 °F), 5% to 95% RH, non-condensing

Dimensions

Rack size: EIA 19”

Height: 1.79” (4.5cm) ± .039”; .100cm

Depth: 14.02” (35.6cm)* ± .039”; .100cm

Width: 17.49” (44.4cm) ± .039”; .100cm

Weights

Weight: 11 lbs. (4.99kg) each

Shipping Weight: 27 lbs (12.25 kg) Transmitter and Receiver

Supply Voltage

100-240 VAC, 47-63 Hz, Universal AC power supply

Power

Consumption

<40 Watts per unit

Compliance

Approvals for US, Canada, and European Union

Warranty

12 onths from date of delivery. Extended warranties available.

VelocityKVM T-Series Chassis, Rev. D 9 November, 2014

1.2. Applications

1.2.1. Application 1

T-4200 Transmitter Chassis, Dual Modules, Two Single-Link DVI/KVM Extenders

through two VX160 Routers.

Two functional source computers connected to one VelocityKVM T-4200 Chassis

equipped with dual VEL-24 interface modules, extending video and peripherals to two

separate VelocityKVM-24 (stand-alone) Receiver destinations at separate workstations.

Signals are routed through two Thinklogical VX160 Routers. The T-4200 unit connects

to the CPU with supplied peripheral device cables.

VelocityKVM T-Series Chassis, Rev. D 10 November, 2014

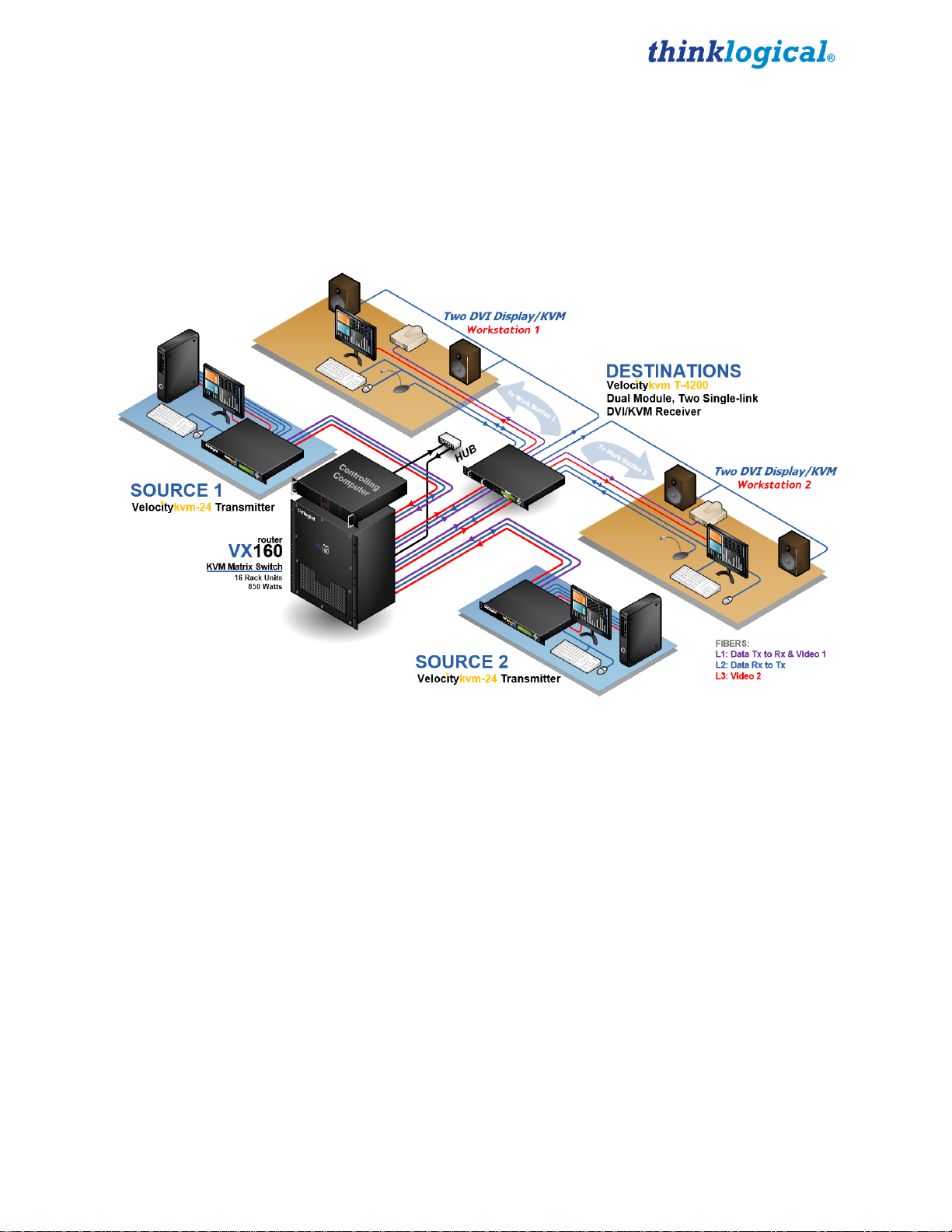

1.2.2. Application 2

T-4200 Transmitter and Receiver Chassis, Dual Modules, each with 2 Single-Link

DVI/KVM Extenders, using one VX160 Router.

Two function source computers, located at separate workstations, each connected to

one VelocityKVM T-4200 Transmitter Chassis equipped with VEL-24 interface

components, extending video and peripheral signals to a VelocityKVM T-4200 Receiver

Chassis with destinations at separate workstations. Signals are routed through a

Thinklogical VX160 Router.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Thinklogical Telaio

Thinklogical

Thinklogical Q-Series Manuale utente

Manuali Telaio popolari di altre marche

Advantech

Advantech IPC-623 Series Manuale utente

IMC Networks

IMC Networks iMcV/18 Manuale utente

Chenbro

Chenbro RB13804N4WFT Manuale utente

Lenovo

Lenovo ThinkSystem SR665 V3 Manuale utente

Wuntronic

Wuntronic PCI4DRQ Manuale utente

EtherWAN

EtherWAN EMC400 Manuale utente

Overland Storage

Overland Storage SnapSAN S1000 Guida

Philips

Philips LC4.1E A Manuale utente

Supermicro

Supermicro SCF418 Series Manuale utente

Chenbro

Chenbro RM437 Series Manuale utente

Pickering

Pickering 40-914 Manuale utente

HP A7503-S Istruzioni per il montaggio

Supermicro

Supermicro SC823MTQ-R700LPB Manuale utente

SilverStone

SilverStone RMS08 Series Manuale utente

NI cRIO-FRC II Manuale utente

Pickering

Pickering 65-200 Manuale utente

Allied Telesis

Allied Telesis AT-MMCR18 Manuale utente

Hisense

Hisense MSD6586 Manuale utente
