thomann Millenium MPS-1000 Manuale utente
MPS-1000
e-drum set
assembly instructions
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
24.09.2021, ID: 511732 (V2)
Table of contents
1 Safety instructions.......................................................................................................................................................................................................... 4
2 Scope of delivery.............................................................................................................................................................................................................. 5
3 Assembly.............................................................................................................................................................................................................................. 7
4 Protecting the environment.................................................................................................................................................................................... 14
Table of contents
MPS-1000
3
1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.
Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke!
Never let children unattended use electrical devices.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum,
laminate or PVC oor and after some time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad oor protectors or a carpet.
Safety instructions
e-drum set
4
2 Scope of delivery
Before you assemble your drum set, make sure the contents of package is complete according to the following list.
Qty.
1 e-drum module Millenium MPS-1000
1 e-drum module stand
1 Hi-hat pad (13", dual zone)
2 Crash pad (15", dual zone, with choke function)
1 Ride pad (18", triple zone, with choke function)
1 Tom pad (10", dual zone, mesh head)
1 Tom pad (12", dual zone, mesh head)
1 Floor tom (14", dual zone, mesh head)
1 Bass drum pad (20", mesh head)
1 Bass drum pedal
1 Snare pad (13", dual zone, mesh head)
1 Hi-hat pedal
1 Hi-hat stand
2 Tom holder
1 Tom holder mount for bass drum
1 Snare stand
3 Boom cymbal stand
3 Floor tom spur
2 Bass drum spur
1 Clamp with short tube
1 Module plate with clamp
1 Multiple cable for connecting the pads as well as bass drum and hi-hat pedals to the e-drum module
1 additional jack cable for the second Crash pad
1 Square spanner
1 Power adapter
Scope of delivery
MPS-1000
5
Qty.
1 User manual e-drum module
1 Assembly instructions e-drum set
Scope of delivery
e-drum set
6
3 Assembly

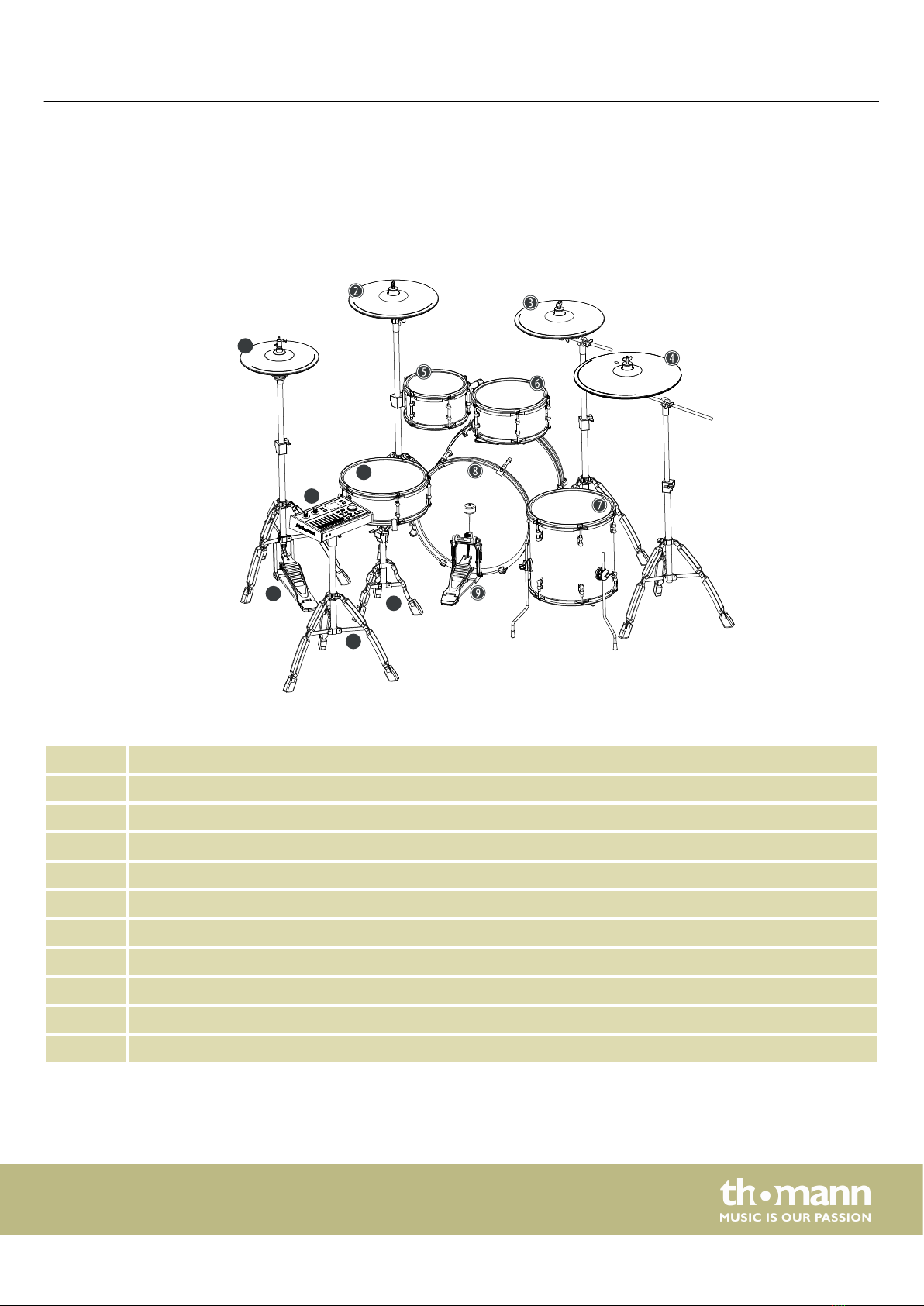

Overview
Loosen the screws of the individual clamps before assembling. Mount the various elements in the specied sequence. The nal
positions of the components are shown in the illustration below.
ö
,
/+
.
-
1 Hi-hat pad (13", dual zone)
2, 3 Crash pad (15", dual zone, with choke function)
4 Ride pad (18", triple zone, with choke function)
5 Tom pad (10", dual zone, mesh head)
6 Tom pad (12", dual zone, mesh head)
7 Floor tom (14", dual zone, mesh head)
8 Bass drum pad (20" mesh head)
9 Bass drum pedal
10 Snare stand
11 Snare pad (13", dual zone, mesh head)
12 e-drum module Millenium MPS-1000
Assembly
MPS-1000
7
13 e-drum module stand
14 Hi-hat pedal

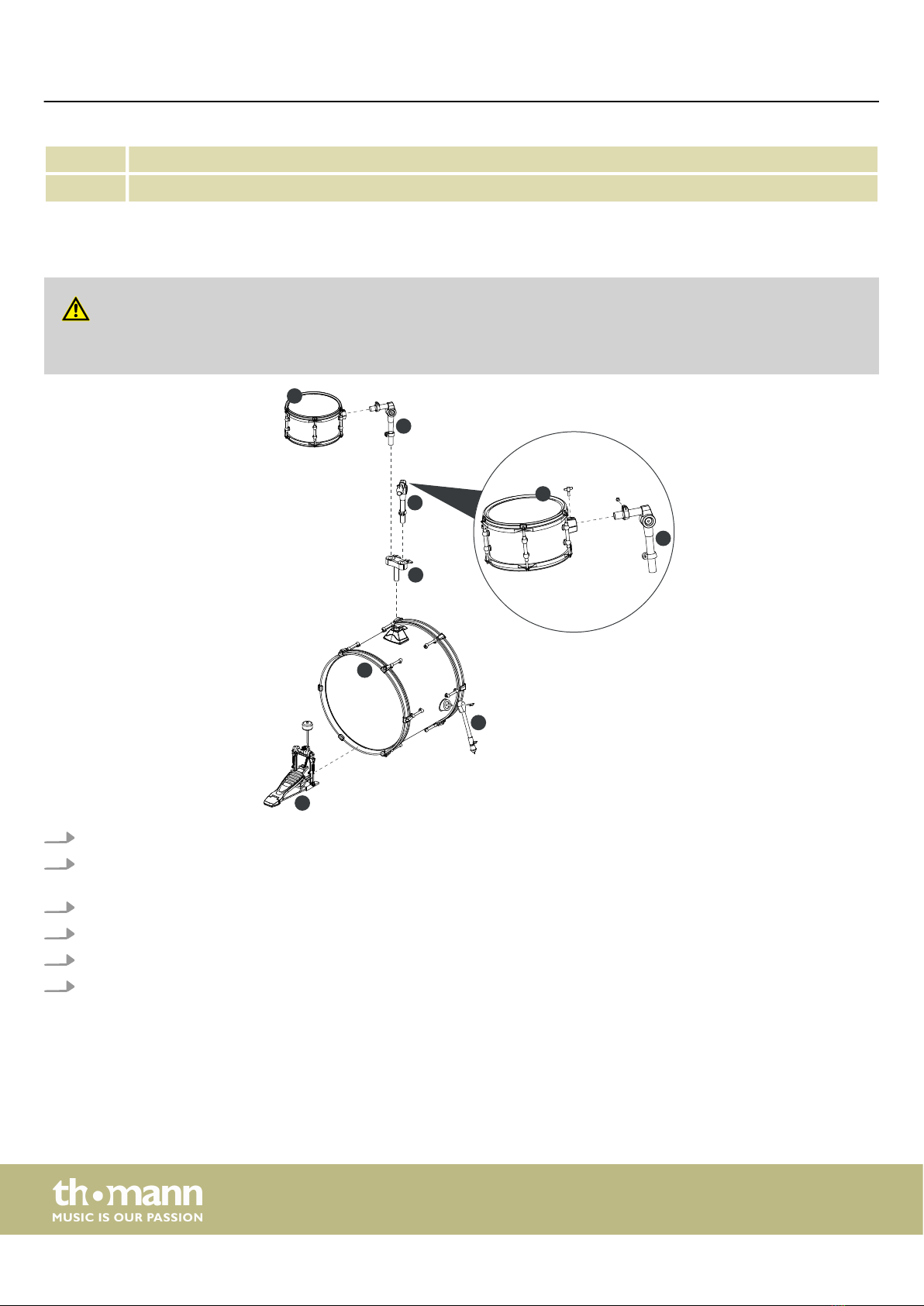

Bass drum and Tom pads
CAUTION!
Danger of cuts on hands and ngers
When connecting the parts, take care for sharp edges on the stands, screws etc.
ö
%
&
#
&
(
'
$
&
1. Fasten the two bass drum spurs (1) to the bass drum (2) with the wing nuts of the fastening clamps.
2. Fasten the bass drum pedal (3) to the hoop of the bass drum (2), place the pedal in the appropriate position and attach it to
the pedal with the wing nut.
3. Attach the tom holder mount (4) in the recess provided in the bass drum (2) with the wing nut of the fastening clamps.
4. Attach the tom holders (5) in the tom holder bracket (4) and hand-tighten the screws of the fastening clamps.
5. Place the tom pads (6, 7) in the tom holder (5) and hand-tighten the screws of the fastening clamps.
6. Align the tom pads according to your needs and then tighten the screws of the tom holder mount (4) and tom holder (5)
evenly.
Assembly
e-drum set
8
Floor tom
)
*
1. Fasten the three oor tom spurs (8) to the tom (9) with the wing nuts of the fastening clamps and hand-tighten them.
2. Align the oor tom spurs (8) according to your needs and then tighten the wing nuts of the fastening clamps evenly.
Snare pad
+
-
,
.
1. Loosen the wing nut of the spurs of the snare stand (10), align it according to your needs and then tighten the wing nut
again.
2. Open the arms of the snare stand (11), place the snare pad (12) on the arms and then tighten the fastening clamp (13) to x
the snare pad in place.
Assembly
MPS-1000
9
Hi-hat pad
2
/
1
1
0
3
4
5
8
6
7
9
1. Unscrew the wing nut (14) from the bracket (15) and remove the felt washers (16) and the round nuts (18) from the bracket.
2. Place the two felt washers (16), the hi-hat pad (17) and the round nuts (18) on the holder one after the other, as shown in
the illustration.
3. Then tighten the wing nut (14).
4. Unscrew the wing nut (20) of the hi-hat stand (19) with pedal (21) and open up the legs. Then tighten the wing nut (20)
again.
5. Insert the hi-hat rod (22) into the Hi-Hat Stand (19) as shown in the illustration and turn the holder clockwise to secure it.
6. Adjust the height of the hi-hat rod according to your needs and then tighten the wing nut (23) of the hi-hat stand (19).
7. Attach the hi-hat pad (24) to the hi-hat rod (22) with the associated wing nut.
Assembly
e-drum set
10
