thomann Millenium Transformer E-A Manuale utente
Millenium Transformer E-A
drum set
assembly instructions
Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
19.03.2013
Table of contents
1 Safety instructions.......................................................................................................................................................................................................... 4
2 Unpacking........................................................................................................................................................................................................................... 5
3 Setting up the rack.......................................................................................................................................................................................................... 7
4 Mounting the pads.......................................................................................................................................................................................................... 8
5 Mounting the cymbals, hi-hat controller Mine and bass drum pedal (bundle).............................................................................. 10
6 Mounting and cabling the drum module (bundle)....................................................................................................................................... 12
7 Protecting the environment.................................................................................................................................................................................... 14
Table of contents
Millenium Transformer E-A
3
1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.
Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke!
Never let children unattended use electrical devices.
Safety instructions
drum set
4
2 Unpacking
Assigning
The following guide makes it easy for you to completely assemble and correctly set up the drum set.
The Millenium-Transformer-E-A Set is supplied in two cardboard boxes. It is supplied dismantled in its individual parts. We recom‐
mend that you first sort the individual parts that belong together.

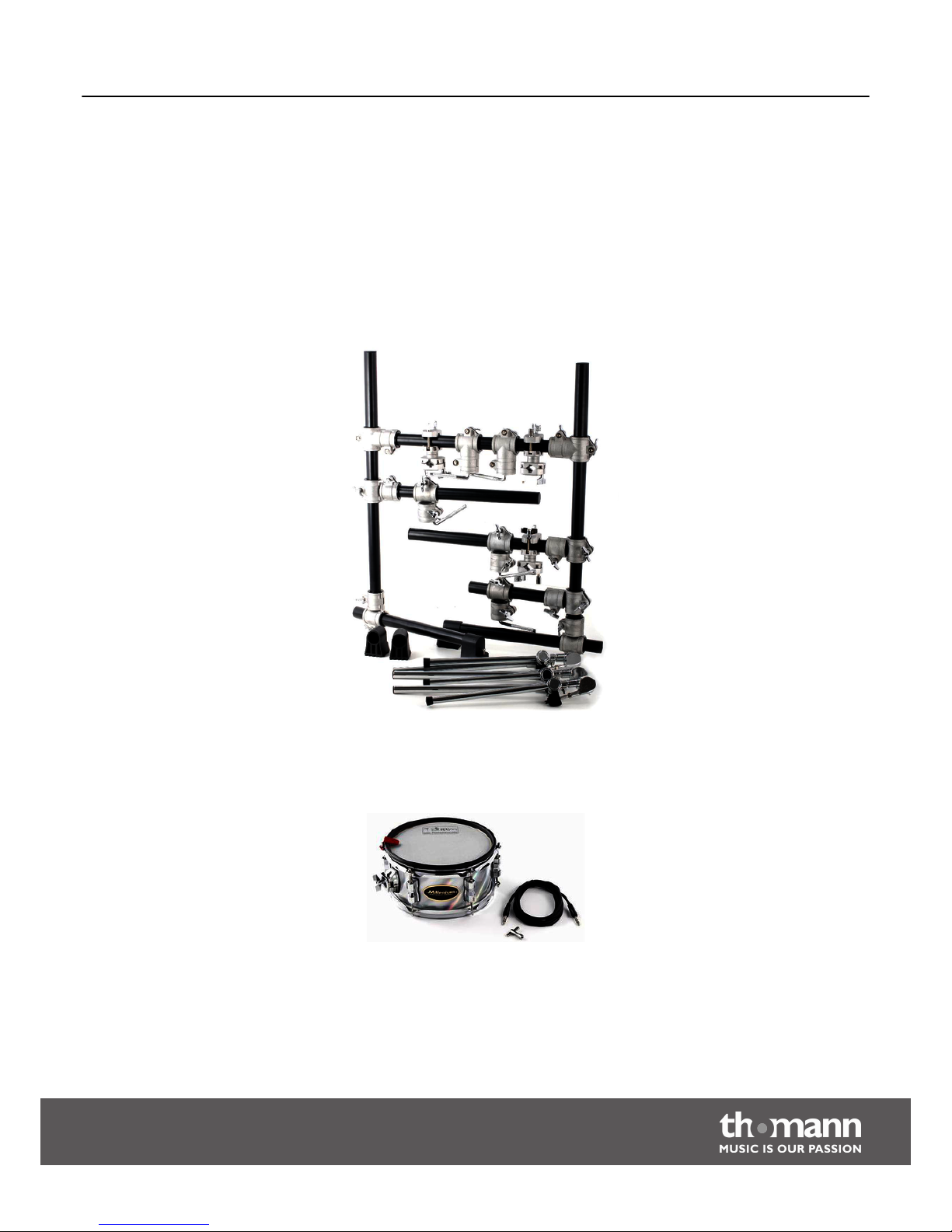

Package 1
The long, thin package contains the complete rack (stand system) including three cymbal arms and two rubber feet.
Package 2
The second package contains the following individually packed items:
nTwo ten-inch diameter transformer pads
nTwo twelve-inch diameter transformer pads
nOne twelve-inch diameter transformer bass drum pad
Unpacking
Millenium Transformer E-A
5
Appropriate cables and holders are included for all the pads.

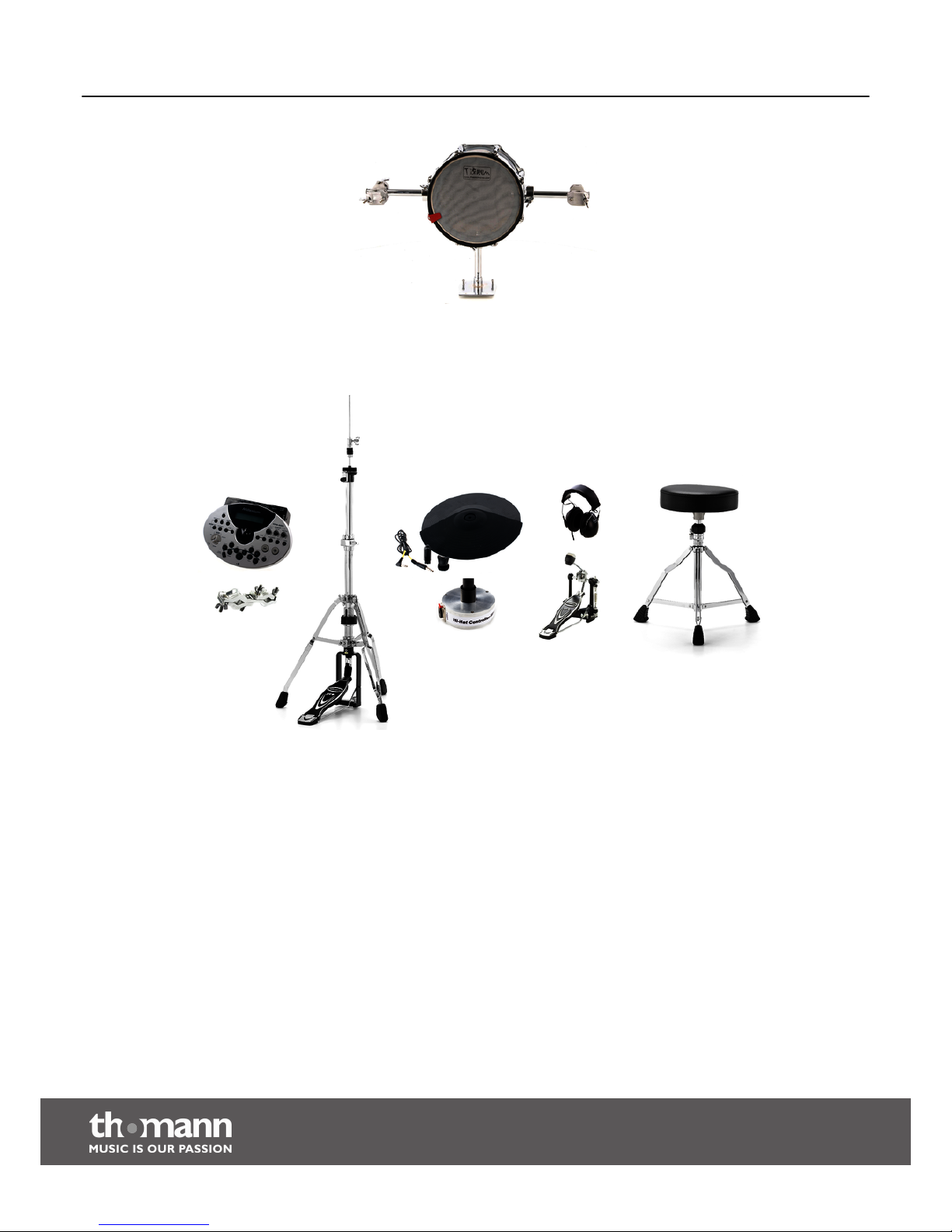

Package 3 for Millenium Transformer Bundle
The third package for the Millenium Transformer Bundle contains:
nMPS-600 drum module
nHi-hat stand and pedal
nHi-hat controller Mine
nFour Millenium cymbal pads
nMulticlip for fastening the drum module
nStool, headphones and pedal for the bass drum.
Unpacking
drum set
6

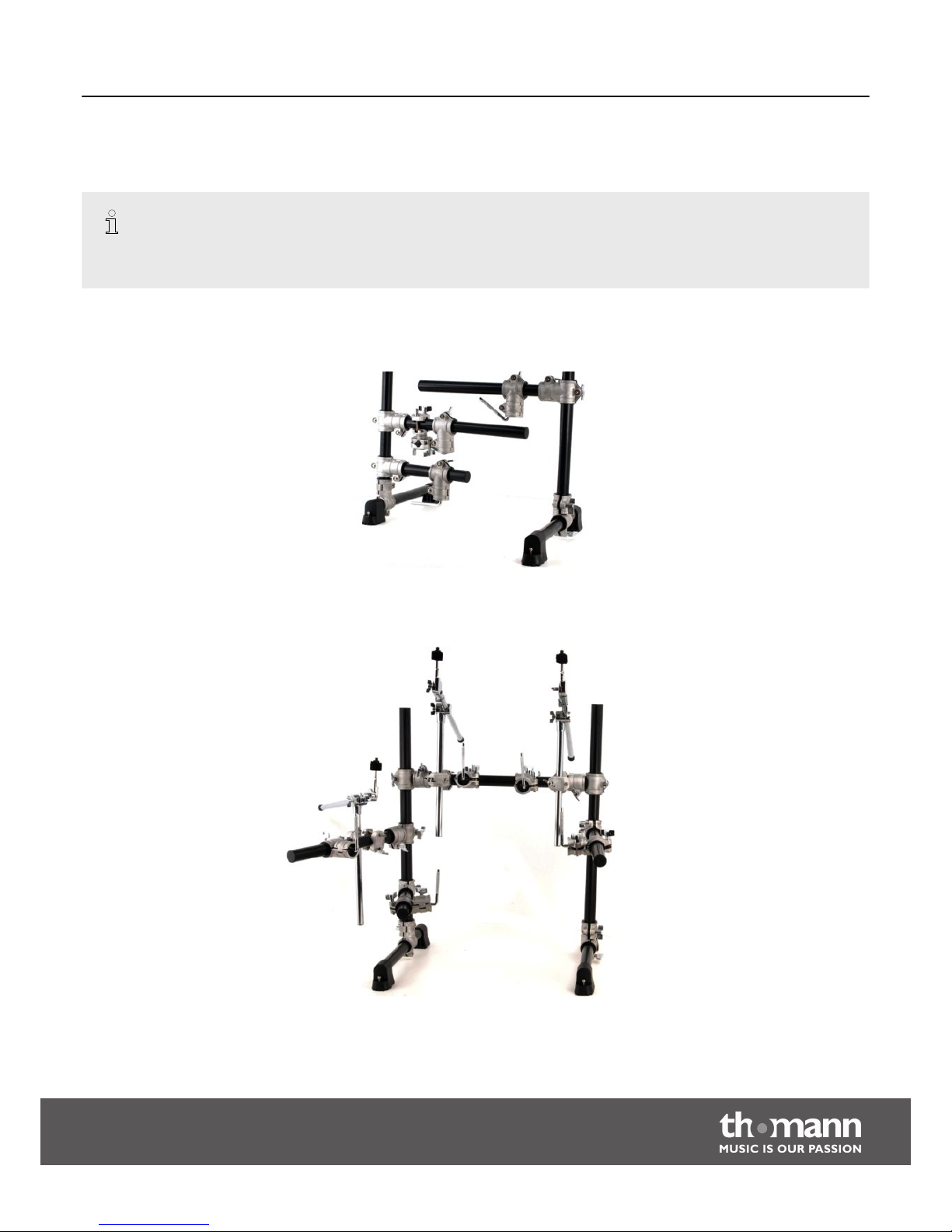

3 Setting up the rack
Please note that this guide only contains suggestions. It is not intended to dictate categorically the height at which you set up the
pads. You can adjust or move all the parts of the set in any way that your like.
The manufacturer supplies the rack virtually completely assembled. From the drummer's point of view, the vertical rack rod on
which the three horizontal rods are fastened is the left-hand side of the rack.
Insert the two supplied rubber feet onto the bottom two cross-bars on which rubber feet have already been mounted.
Turn the feet outwards such that the longer part points inwards as shown on the right-hand side of this picture.
Now you can turn all the horizontal rack rods to the side and fasten the cymbal arms to the clips that are intended for this on the
rack.
In addition, you can point all the L-pieces of the tom holders upwards and also set the height of the horizontal rods.
Setting up the rack
Millenium Transformer E-A
7
4 Mounting the pads
The pads are all individually packed in the second package. The matching cables are also included.
In all the pads, electronic drums are integrated on one side and acoustic ones on the other side. By means of a variable pad
holding system, you can turn each shell and play the drum set as an acoustic or an electronic one.
Bass drum pad
Scope of supply includes:
nPad
nOne short and two long tubes
nFoot plate
nTwo rack connection clips
The bass drum has a total of three seats for rack tubes. Fasten the short tube on one side in the foot plate using the small square-
head screw and on the other in the centre hole in the shell.
Insert the two longer rods in the two adjacent seats. Fasten the connecting clips on the ends of the rods.
The screws on both ends of the clips are of different lengths. Fasten the clips such that the ends of the clips with the shorter screws
are located on the horizontal tubes to the bass drum. Otherwise, the other ends of the clips do not fit onto the rack tube.
After you have assembled everything, the pad should look like this:
Now you can use the two outside connecting clips to fasten the pad on the vertical rods of the rack. If necessary, you must push
the two tubes in the bass drum further into the pad so that the clips are on a level with the rack tube.
Mounting the pads
drum set
8
You just hang the tom and snare pads on the L-pieces.
Now, the whole set should look like this:
Mounting the pads
Millenium Transformer E-A
9
5 Mounting the cymbals, hi-hat controller Mine and bass drum pedal
(bundle)
Cymbals
You mount the cymbals just like you would normal ones on the cymbal stands. Screw off the plastic screw and put the cymbal
between the two felts that are located below the screw. Then screw the screw back onto the thread.
Hi-hat controller Mine
The Millenium hi-hat controller Mine can be mounted on any hi-hat stand. It does the job of a typical hi-hat controller and allies it
to the feel of a real hi-hat.
Insert the hi-hat controller onto the hi-hat stand where the bottom hi-hat cymbal is usually located. You insert the electronic
cymbals like acoustic ones between the felts of the hi-hat clutch.
Mounting the cymbals, hi-hat controller Mine and bass drum pedal (bundle)
drum set
10
