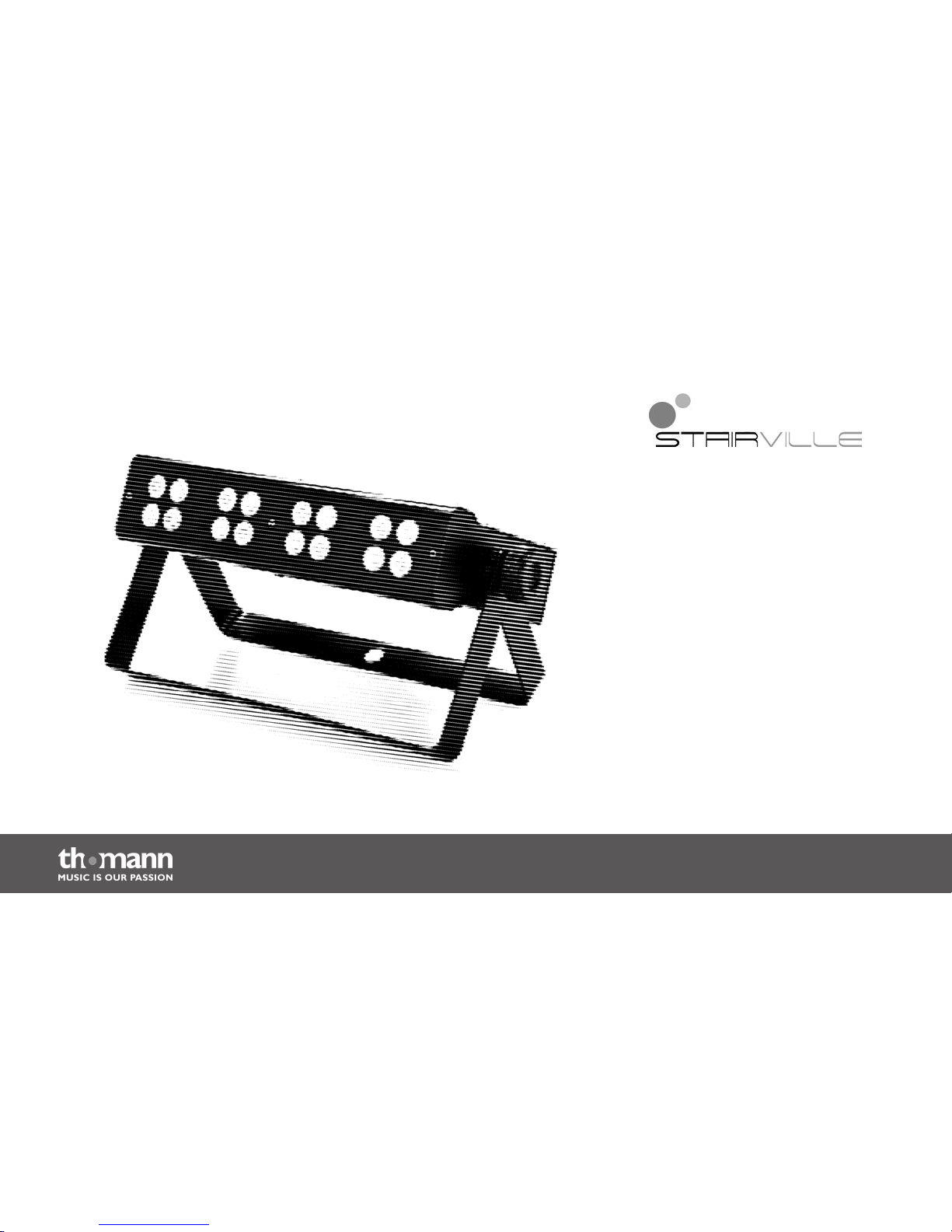

thomann xBrick Full-Colour 16x3W Manuale utente
xBrick Full-Colour
16×3W
LED floodlight
user manual
Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (9546) 9223-0
E-mail: [email protected]
Internet: www.thomann.de
02.05.2014, ID: 259187
Table of contents
1 General notes............................................................................................................................................... 5
2 Safety instructions..................................................................................................................................... 8
3 Installation.................................................................................................................................................. 12
4 Starting up.................................................................................................................................................. 15
5 Operating elements and functions................................................................................................. 18
6 Operating.................................................................................................................................................... 21
6.1 Starting the device........................................................................................................................... 21
6.2 Main menu.......................................................................................................................................... 21
6.3 Menu overview................................................................................................................................. 27
6.4 Functions in 5-channel DMX mode........................................................................................... 28
6.5 Functions in 13-channel DMX mode........................................................................................ 29
7 Troubleshooting...................................................................................................................................... 31
8 Cleaning....................................................................................................................................................... 33
9 Technical specifications....................................................................................................................... 34
Table of contents
xBrick Full-Colour 16×3W
3
10 Protecting the environment.............................................................................................................. 35
Table of contents
LED floodlight
4
1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
xBrick Full-Colour 16×3W
5
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
General notes
LED floodlight
6
Warning signs Type of danger
Warning – danger zone.
General notes
xBrick Full-Colour 16×3W
7
2 Safety instructions
Use the device only as described in this user manual. Any other use or use under other oper‐
ating conditions is considered to be improper and may result in personal injury or property
damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
LED floodlight
8
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
xBrick Full-Colour 16×3W
9
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
LED floodlight
10
