THOMSON TWG850 Manuale utente

Residential Voice Gateway

Quick Start Guide

1. Introduction

THOMSON TWG850 is a residential gateway which will give you broadband Internet access, telephone connection

and wireless networking all in one unit.

This residential gateway can connect to cable systems using the DOCSIS or EuroDOCSIS standards (please

check with your cable provider for compliance), allowing broadband Internet access.

The THOMSON TWG850 has an 802.11b/g access point that gives you wireless connection to the Internet. It has a

USB interface and also a high performance Ethernet port which further expands the Local Area Network (LAN)

capabilities.

If you have subscribed to phone services from your cable operator then you will be able to place normal phone

calls using your analogue phone and/or fax machine. The THOMSON TWG850 provides two RJ-11 connectors for

your phone or home phone system.

This residential gateway offers Parental Control and Firewall for additional protection and security.

Package Contents

Thomson Residential Voice Gateway x1

Ethernet Cable x1

USB Cable x1

Linear PowerAdaptor x1

Internal antennas x1

Quick Start Guide x1

CD-ROM with driver software CD and Instruction Booklet x1

2. Hardware Connection

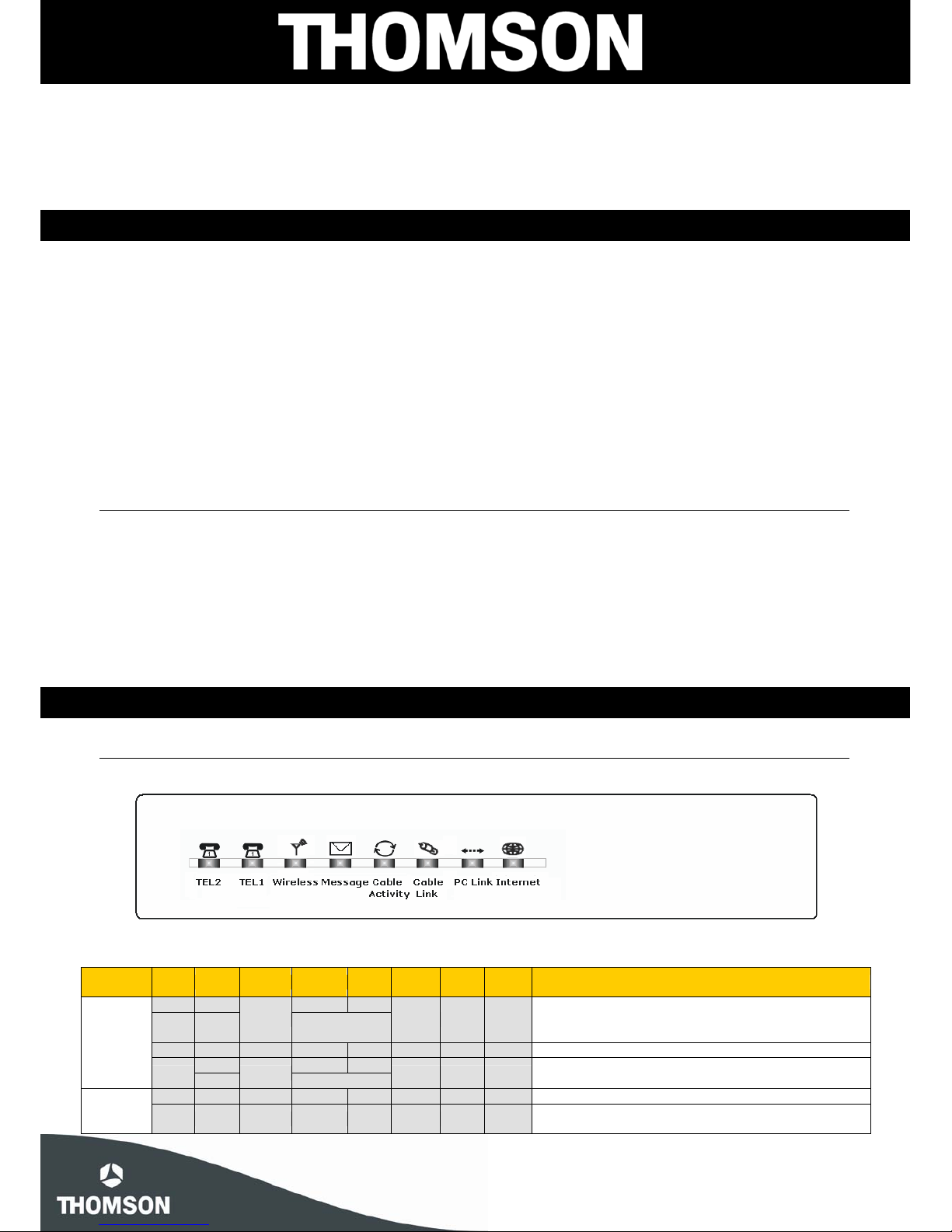

Front Panel

The following illustration shows the front panel:

The LEDs on the front panel are described in the table below (from left to right):

Tel 2 Tel 1 Wireless Message Cable

Activity Cable

Link PC

Link Internet Description

ON ON ON ON

ON 0.25

sec ON 0.25 second ON ON ON Power on 0.25 sec

ON FLASH X FLASH FLASH X X X From power ON to system initialization complete

ON ON ON

Boot-up

Operation

ON 1 sec X 1 second X X X Following system initialization complete to (before) DS

scanning

X X X OFF OFF OFF OFF FLASH Tuning (Searching downstream signal)Start-up

Operation X X X OFF OFF OFF FLASH FLASH Ranging - Awaiting Response (DS carrier acquire, ranging in

process but RNG-RSP has not been detected)

Tel 2 Tel 1 Wireless Message Cable

Activity Cable

Link PC Internet Description

Link

X X X OFF OFF OFF FLASH FLASH Any RNG-RSP detected

(Normalizing power level and timing offset)

X X X OFF OFF FLASH FLASH FLASH Connecting (Ranging complete, DHCP in progress)

X X X OFF FLASH FLASH FLASH FLASH Configuring (DHCP complete, configuration file download in

process)

X X X FLASH FLASH FLASH FLASH FLASH Registering and Baseline Privacy Initializing

(configuration file download complete, initialize BPI if BPI is

ON, registration in process)

X X Enter Normal Operation Mode Registration complete

X X X X X X X FLASH

ON NO Cable Link

CM is registered

X X X X X X OFF

FLASH

ON X NO Ethernet/USB carrier present

Ethernet/USB TX/RX traffic

Ethernet/USB carrier present, no traffic

X X X X X OFF

FLASH

ON X X NO Cable Link

Cable BSS/OSS has set the CM into de-activated state

CM is registered

X X X X OFF

FLASH X X X Internet ON-OFF switch off/No RF DS/US network traffic

RF DS/US network traffic

X X X

OFF

FLASH X X X X

No message is delivered by the MSO

Email is available fro the user on the server

(Implementation of the message waiting LED will be via

Proprietary MIB)

Normal

Operation

X X OFF

FLASH X X X X X Wireless initiate fail or disable

Wireless initiate success or enable

TX/RX Wireless Traffic

X X X X X Wink X XNo service

Operation X X X 3 seconds ON followed by a flash OFF NACO =OFF

BPI unauthorized (when BPI is ON)

OFF FLASH MTA DHCP

FLASH OFF MTA SNMP/TFTP

MTA

Initialization FLASH FLASH RSIP

ON ON Both Lines On-Hook

ON FLASH Tel1 Off-hook, Tel2 On-hook

FLASH ON Tel1 On-hook, Tel2 Off-hook

MTA

Operation FLASH FLASH

Both Lines Off-Hook

X X X FLASH FLASH FLASH FLASH FLASHSW

Download

Operation X X X From Right to Left

A software download and while updating the FLASH memory

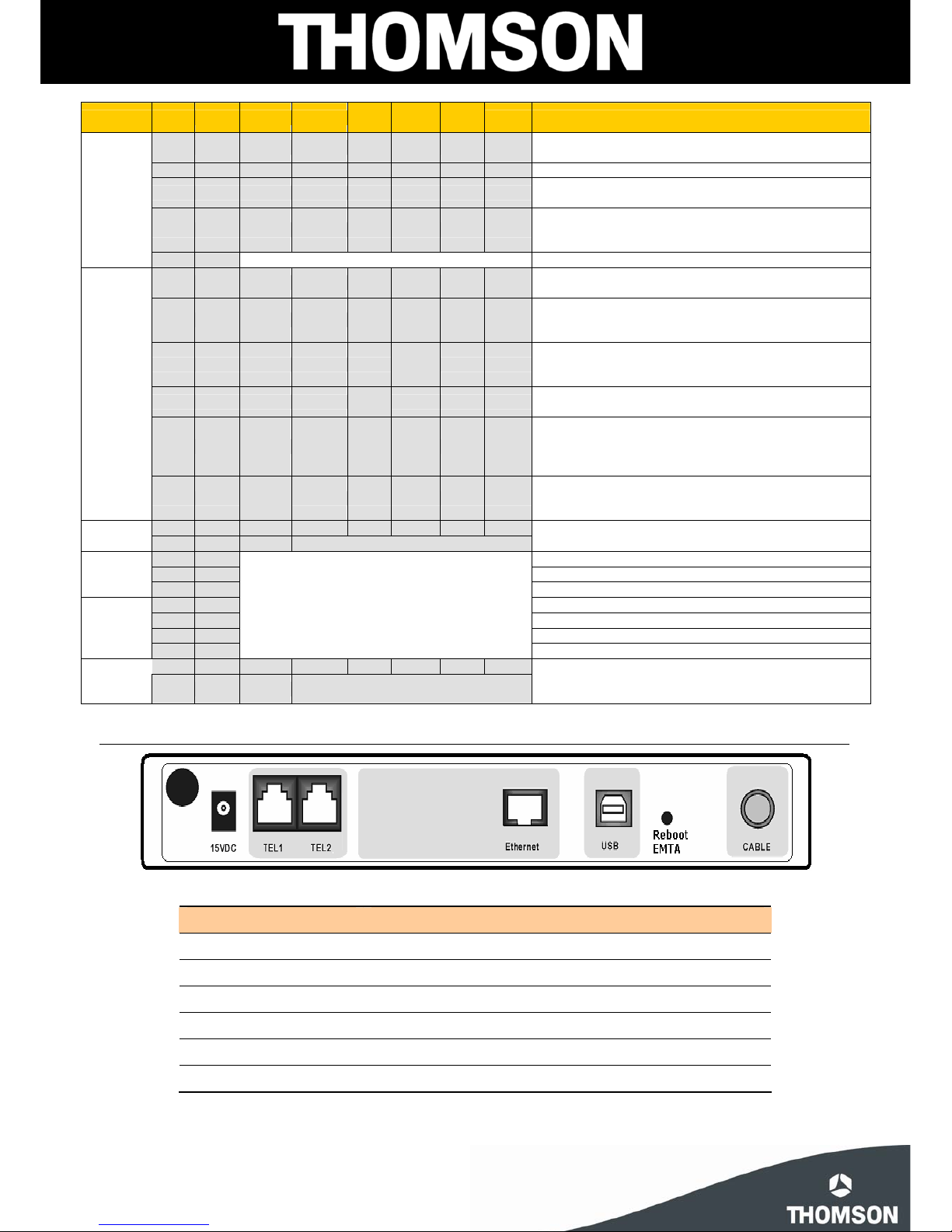

Rear Panel

Connector Description

15VDC 15V DC-IN Power connector

TEL 1 and TEL 2 Telephony RJ-11 connector

ETHERNET Ethernet 10/100BaseT RJ-45 connector

USB USB Connector

REBOOT EMTA Reboot this Residential Voice Gateway

CABLE F-Connector

3. Connecting the Residential Voice Gateway to Your Computer

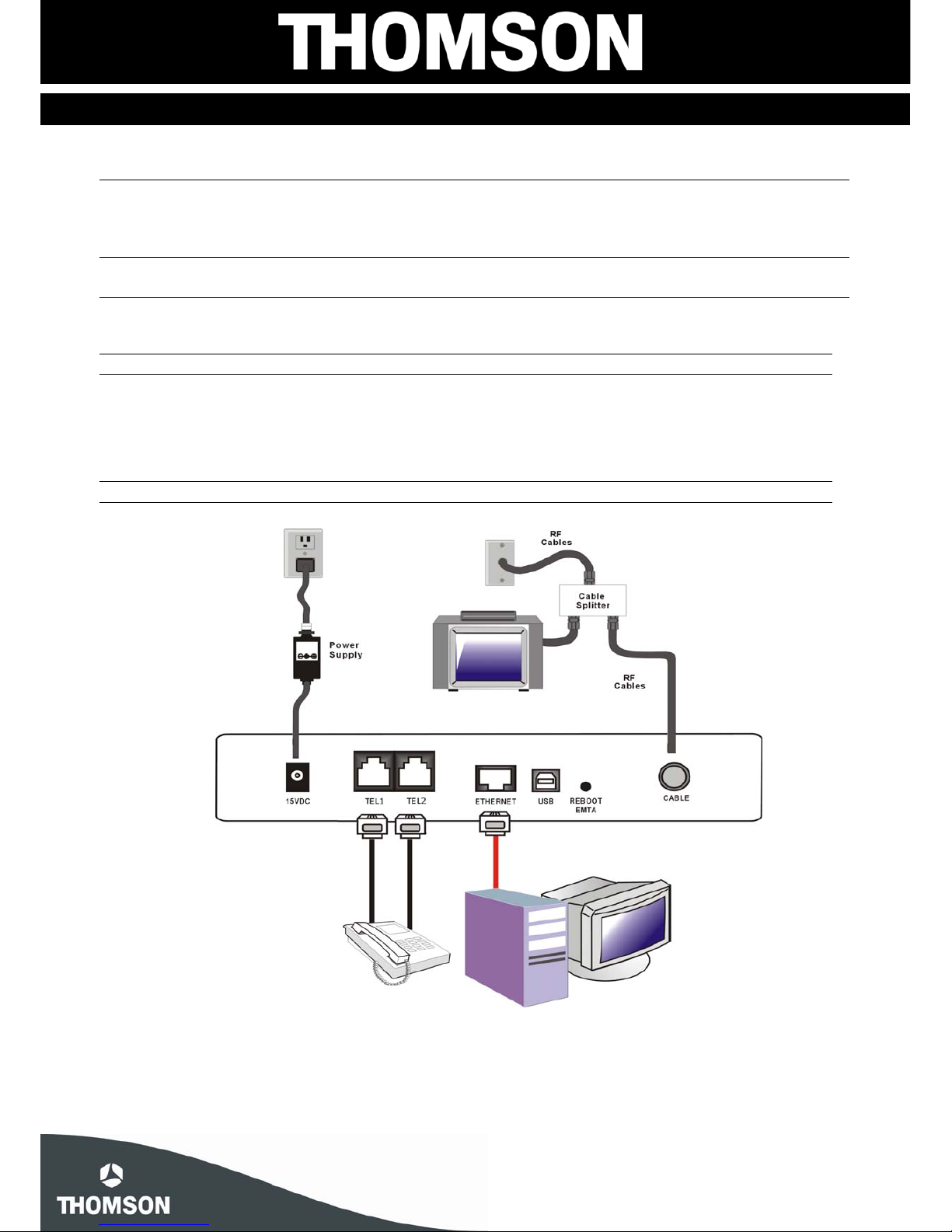

Installation Procedure for Ethernet Interface

Follow the steps below for proper installation:

1. Connect one end of the coaxial cable to the CABLE connection in the wall, and the other end to the CABLE

jack on the TWG850.

Note: To speed up the registration process of cable modem, the coaxial cable should be connected to the

modem before connecting the power cable.

2. Connect the plug from the AC power supply into the POWER AC ADAPTER jack on the TWG850, and plug

the power supply into anAC outlet.

Note: Use only the power supply that accompanied this unit. Using other adapters may damage the unit.

3. Connect one end of the Ethernet cable to the Ethernet port on the back of your computer, and the other end

to the ETHERNET port on the TWG850.

4. The TWG850 will look for the proper cable modem signal in the Cable Television network and process the

initial registration. The voice gateway is ready for data transfer after the LED “Cable Link” is lit solid green.

Note: The REBOOT button at the rear panel is for maintenance purposes only. You don’t need to use it.

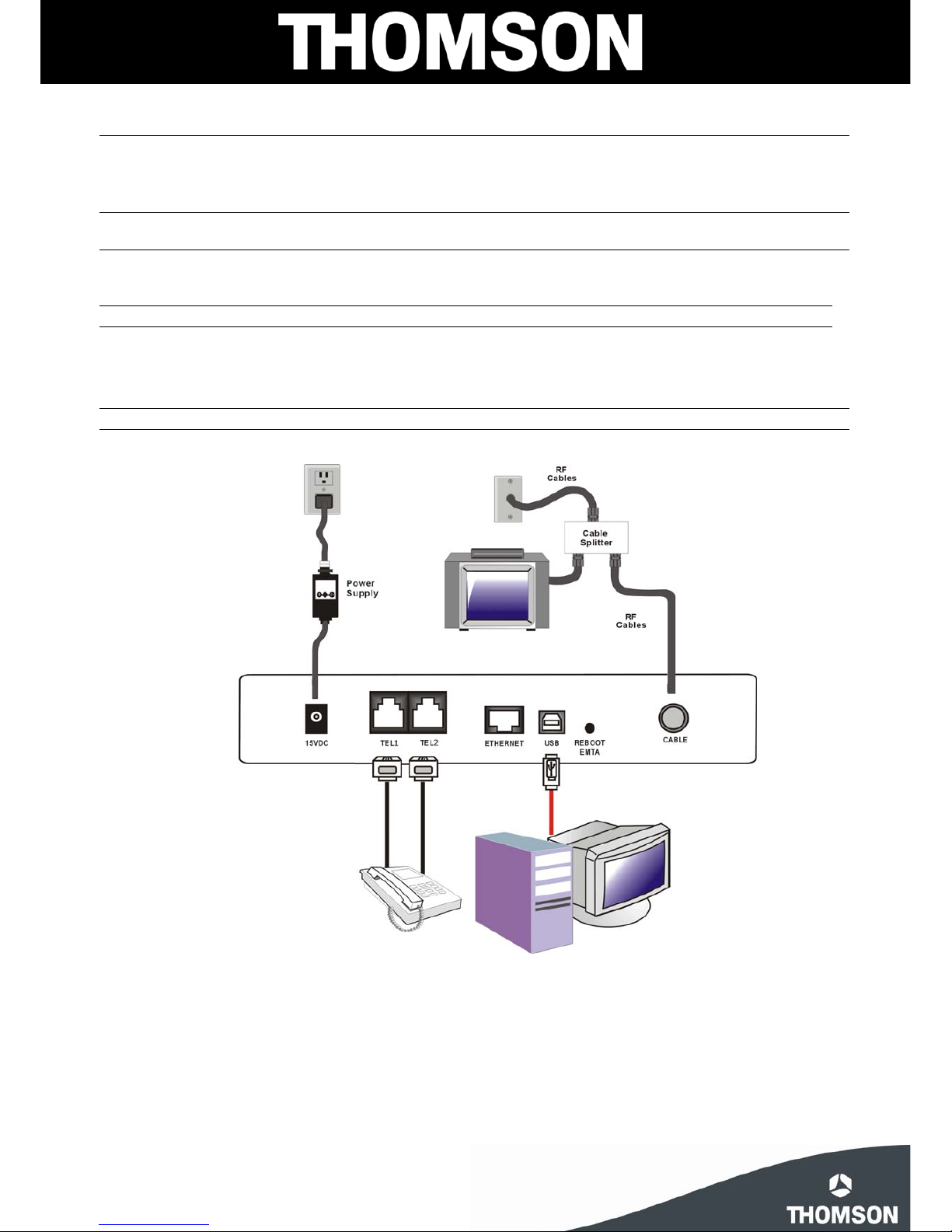

Installation Procedure for USB Interface

Follow the steps below for proper installation:

1. Connect one end of the coaxial cable to the CABLE connection in the wall, and the other end to the CABLE

jack on the TWG850.

Note: To speed up the registration process of cable modem, the coaxial cable should be connected to the

modem before connecting the power cable.

2. Connect the plug from the AC power supply into the POWER AC ADAPTER jack on the TWG850, and plug

the power supply into a power outlet.

Note: Use only the power supply that accompanied this unit. Using other adapters may damage the unit.

3. Connect the USB cable to the USB connector on the voice gateway.

4. The TWG850 will look for the proper cable modem signal in the Cable Television network and process the

initial registration. The voice gateway is ready for data transfer after the LED “Cable Link” is lit solid green.

Note: The REBOOT button at the rear panel is for maintenance purposes only. You don’t need to use it.

4. USB Driver Installation

For Windows 98SE/Me

1. Wait until the voice gateway is running in the operational state (registration O.K.). Plug the USB cable into your PC USB port.

You will see the next page. Click the “Next” button.

2. Select Search for the best drivers for your device and click the Next button.

3. Check Specify a location and browse CD-ROM. Click the Next button.

4. Select The updated driver... and click the Next button (Click back if Windows finds and proposes the USB.INF driver)

5. Click the Next button.

6. This completes the installation. Click the Finish button.

7. The system will ask you to restart your computer. Click Yes to complete the installation.

For Windows 2000/XP

1. Wait until the voice gateway is running in the operational state (registration O.K.). Plug the USB cable into your PC USB port.

2. You will see a popup window appear. Click the Next button.

3. Select Search for a suitable driver for my device and click the Next button.

4. Insert the driver CD into CD-ROM. Select “CD-ROM drive” and click the Next button.

5. Click the Next button.

6. This completes the installation. Click the Finish button.

For more detailed information, please refer to the user’s manual on the CD-ROM.

This symbol affixed on your product guarantees that this apparatus

complies with the requirements of the European Directives

89/336/CEE, 73/23/CEE, 93/68/CEE, which cover the,

EMC, safety and marking aspects.
