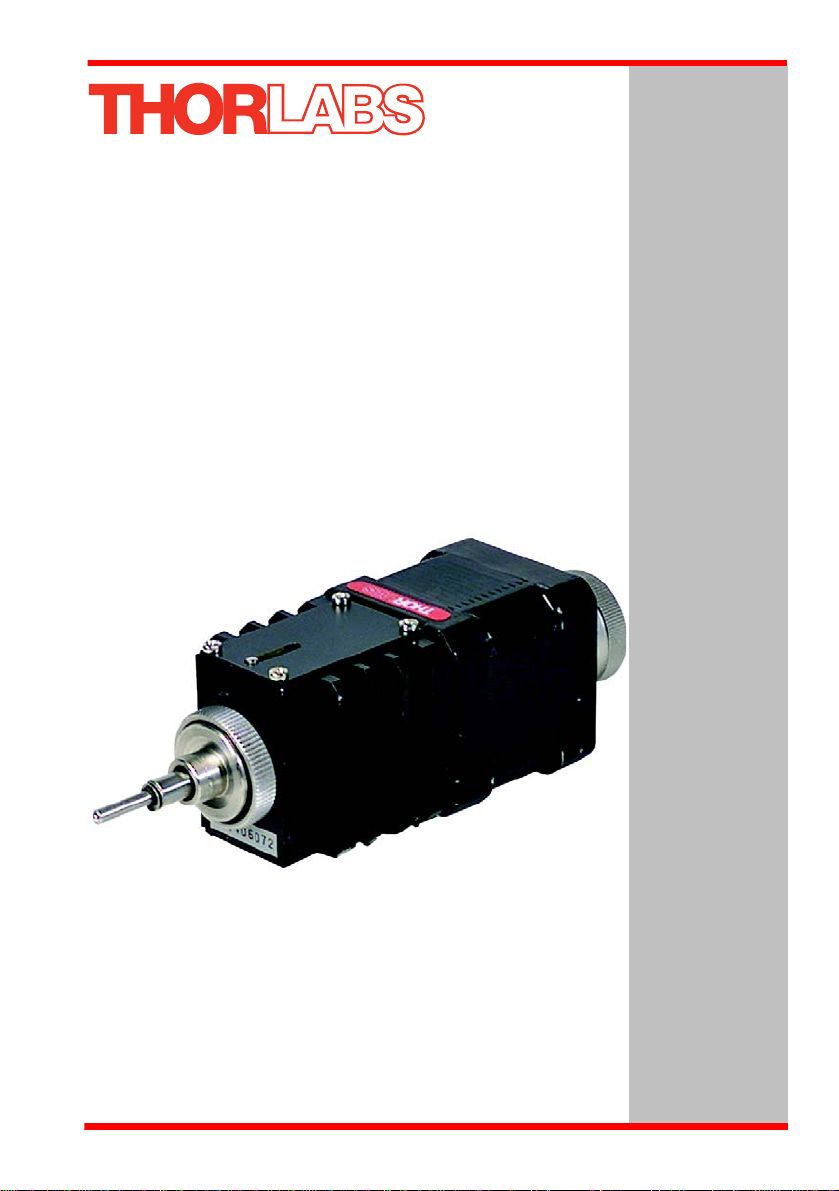

THORLABS DRV001 Manuale utente

DRV001

Stepper Motor Actuator

User Guide

Original Instructions

2 HA0149T Rev 7 Sept 2016

Contents

Chapter 1 Overview ........................................................................................3

1.1 Introduction ............................................................................................. 3

Chapter 2 Operation and Maintenance .........................................................4

2.1 Initial Set Up ........................................................................................... 4

2.2 Dimensions ............................................................................................. 5

2.3 Maintenance ........................................................................................... 5

2.4 Using the MCA Modular Quick Connect Adapters ................................. 6

2.5 Motor Connector Pin Out ........................................................................ 6

Chapter 3 Specification ................................................................................. 7

Chapter 4 Regulatory ..................................................................................... 8

4.1 Declarations Of Conformity .................................................................... 8

4.1.1 For Customers in Europe ................................................................................... 8

4.1.2 For Customers In The USA ................................................................................ 8

Chapter 5 Thorlabs Worldwide Contacts ................................................... 11

Chapter 1 Overview

1.1 Introduction

These Stepper Motor Actuators were designed for use with Thorlabs stages

compatible with modular drives (such as our NanoMax300 and 600 series). However,

they can be fitted to other stages by using a Modular Quick Connect Adapter (MCA1

for Ø3/8” mounting or MCA2 for Ø10mm mounting).

When driven by a Thorlabs BSC20x series stepper motor controller, this actuator is

capable of speeds as high as 4mm/sec and offers 8mm of travel. The powerful

stepper motor is capable of handling a load capacity of up to 21.8 Kg (48lb).

Bidirectional repeatability of 0.5µm.

4 HA0149T Rev 7 Feb 2015

Chapter 2 Operation and Maintenance

2.1 Initial Set Up

To ensure that a particular stage is driven properly by the system, a number of parameters

must first be set. These parameters relate to the physical characteristics of the stage being

driven (e.g. min and max positions, leadscrew pitch, homing direction etc.).

To assist in setting these parameters correctly, it is possible, using the APT Config utility,

to associate a specific stage type and axis with the motor controller channel. Once this

association has been made, suitable default parameter values are applied automatically

on boot up of the APT software.

To ensure correct operation, it is important to select the correct stage type for your

controller. If using a BSC20x series controller, select the appropriate ‘HS NanoMax’

option. If using a legacy BSC0xx or BSC10x controller, choose an option without the ‘HS’

prefix.

1) Shut down all applications using the APT s erver (e.g. APT User or y our own

custom application).

2) Run the APT Config utility - Start/All Programs/Thorlabs/APT Config/APT Config.

3) From the 'APT Configuration Utility' window, click the 'Stage' tab.

Fig. 2.1 APT Configuration Utility - Stage Tab

4) In the ‘Motor’ field, select the serial number of the stepper motor controller to be

configured (this number can be found on the rear panel of the controller unit).

DRV001 Stepper Motor Actuators

5) In the ‘Stage’ field, select your actuator type from the li st displayed (e.g. HS

NanoMax 300 X Axis).

6) Click the 'Add Stage Association' button.

7) A default configuration is set at the factory and stored in the non-volatile memory

of the motor controller. The server reads in the stage and controller information on

start up. See the handbook supplied with the stepper motor controller for further

information.

2.2 Dimensions

Fig. 2.2 Dimensions

2.3 Maintenance

After prolonged use, and particularly in applications where small movements are

continually repeated, the grease on the drive shaft may build up in ridges. This may

cause rough or noisy movement, vibration and excessive heating.

It is good practise to run the motor periodically from one end of travel to the other

several times in order to redistribute the grease.

Note

To ensure correct operation, it is important to select the correct stage

type for your controller. If using a BSC20x series controller, select the

appropriate ‘HS NanoMax’ option. If using a legacy BSC0xx or BSC10x

controller, choose an option without the ‘HS’ prefix.

Selecting an incompatible stage type could result in reduced velocity

and resolution. Furthermore, joystick functionality may be lost.

42.0

(1.65)

112.5 (4.43)

26.0 ±4

(1.02 ±0.16)

nominal

reach

all dimensions in millimetres (inches)

6 HA0149T Rev 7 Sept 2016

Chapter 2

2.4 Using the MCA Modular Quick Connect Adapters

Modular quick connect adapters allow the DRV001 actuators to be fitted to stages

with standard mounting clamps (MCA1 for Ø3/8” mounting or M CA2 for Ø10mm

mounting).

Simply remove the circlip from the end of the drive rod, remove the washers, then

screw on the adapters.

Fig. 2.3 Circlip and Washers

2.5 Motor Connector Pin Out

The ‘Motor’ connector provides connection to the stepper motor controller. The pin

functions are detailed in Fig. 2.4.

Fig. 2.4 Motor Connector Pin Descriptions

Pin Description Pin Description

1 Limit Switch Ground 9

2 Not Connected 10

3CW Limit Switch11

4 Phase B -ve 12

5 Phase B +ve 13 Not Connected

6 Phase A -ve 14

7 Phase A +ve 15 Ground

11 15

Chapter 3 Specification

Specification DRV001

Travel Range 8 mm

Lead Screw Pitch 0.5 mm

Bidirectional Repeatability 0.5 µm

Max Load Capacity 21.8 kg (48 lbs)

Velocity Range 40.0 µm/s to 4 mm/s

Full Step Angle 1.8°

Step Angle Accuracy 5%

Rated Phase Current 1 A

Phase Resistance 4.6 Ω

Phase Inductance 0.6 mH

Holding Torque 23.1 N•cm

Detent Torque 1.7 N•cm

Rotor Inertia 32 g•cm2

Insulation Class B

Feedback None

Limit Switches Ceramic-Tipped Mechanical

Lead Screw Pitch 0.5 mm

Microsteps per Revolution of Leadscrew 409,600

Motor Type 2-Phase Stepper

Minimum Incremental Movement 60 nm

Compatible Controllers BSC201

MST602

8 HA0149T Rev 7 Feb 2015

Chapter 4 Regulatory

4.1 Declarations Of Conformity

4.1.1 For Customers in Europe

In accordance with the following Directive(s):

2006/42/EC Machinery Directive (MD)

2004/108/EC Electromagnetic Compatibility (EMC) Directive

2011/65/EU Restriction of Use of Certain Hazardous Substances (RoHS)

this equipment has been tested and is in conformity with the applicable requirements

of the following documents:

EN ISO 12100 Safety of Machinery. General Principles for Design, Risk Assessment

and Risk Reduction 2010

EN 61326-1 Electrical Equipment for Measurement, Control and Laboritory Use -

EMC Requirements 2013

4.1.2 For Customers In The USA

This equipment has been tested and found to comply with the limits for a Class A

digital device, persuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a c ommercial environment. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by th e company could void the

user’s authority to operate the equipment.

DRV001 Stepper Motor Actuators
