User Manual

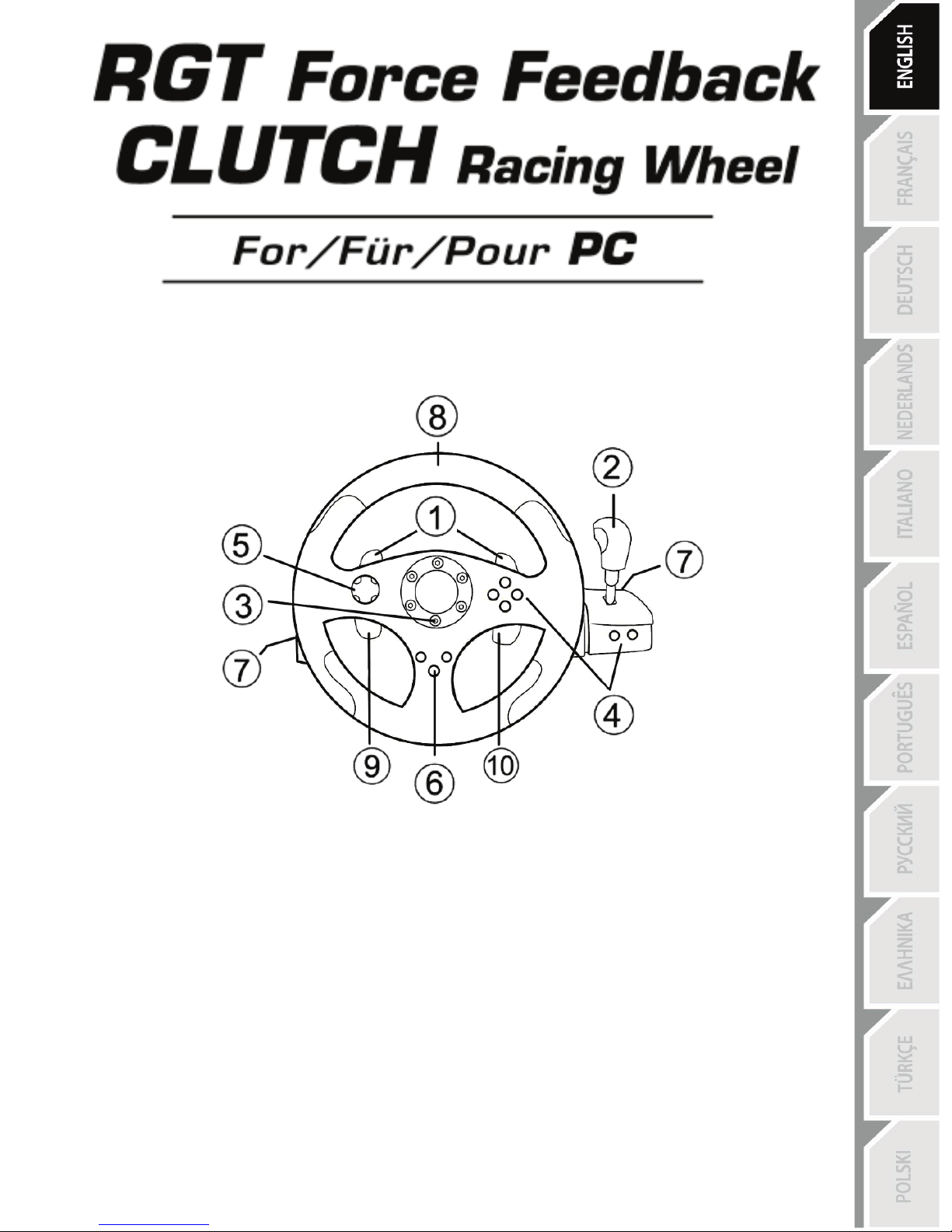

TECHNICAL FEATURES

1 2 digital gearshift levers

2 Digital gearshift knob

3Mode LED

4 Digital action buttons

5Digital D-pad

6Force button

7 2 connectors for 3 pedals pedal set

8 Axis 1: Analog steering wheel

9 Axis 4: Progressive left lever

10 Axis 5: Progressive right lever

2/12

11 Axis 4: Progressive clutch pedal

12 Axis 3: Progressive brake pedal

13 Axis 2: Progressive gas pedal

14 Table clamp

15 USB PC connector

16 Pedal set cable (with switch)

17 2 RJ45 connectors for pedal set

18 Power adapter connector

19 Power adapter

INSTALLING THE WHEEL

Fixing the wheel in place

1. Place the wheel on a table or other flat surface.

2. Place the clamp screw in the table clamp (14) and then screw the clamping unit counter-clockwise into

the hole on the underside of the wheel until firmly fixed in place.

3/12

Connecting the “3 Pedals” pedal set to the wheel

1. Connect cable 1 to connector 1 located at the back of the wheel.

2. Connect cable 2 to connector 2 located behind the gearshift knob.

Using the switch

The switch, located on the cable of the “3 Pedals” pedal set, allows you at any time (even during the course of a

game) to enable (or disable):

-either the third pedal (C)

-or the 2 progressive levers located behind the wheel.

Switch set to “2 L”

The 2 progressive levers are enabled (and the third pedal disabled).

Switch set to “3 P”

The third pedal is enabled (and the 2 progressive levers disabled).

IN THE “3 P” POSITION, YOUR WHEEL AUTOMATICALLY SWITCHES TO “5 AXIS” MODE.

Connecting the wheel

Connect the power adapter (19) to the adapter connector (18) and plug the adapter into an electrical

outlet.

4/12

PLAYSTATION3

On PlayStation®3, in the general menu, use your official gamepad (not your racing wheel) to navigate and

start your games. The wheel will work only when the game is started.

INSTALLATION FOR PC

System requirements: PC (Windows 98 SE, Me, 2000, XP, Vista or 7) equipped with USB port.

INSTALLING THE DRIVERS

The CD-ROM included with this product allows you to install the Force Feedback drivers.

1. Insert the installation CD-ROM into your CD-ROM drive. Follow the on-screen instructions to install

the Force Feedback drivers. Once the installation is complete, click Finish and restart your computer.

2. Once your computer has restarted, connect the USB connector (15) to one of your computer’s USB

ports. Windows 98/Me/2000/XP/Vista/7 will automatically detect the new device. (If you are

connecting a USB device for the first time, Windows may ask you to insert the Windows CD-ROM

during the installation procedure in order to install the required system files.)

3. Driver installation:

Windows 98: the Add New Hardware Wizard will search for the appropriate drivers. Click Next.

Follow the on-screen instructions to complete the installation.

Windows Me/2000/XP/Vista/7: the drivers are installed automatically.

4. Select Start/All Programs/Thrustmaster/Force Feedback driver/Control Panel.

The Game Controllersdialog box displays the wheel’s name with OK status.

5. In the Control Panel, click Properties to configure your wheel:

•Page 1 = Test input: allows you to test and view the buttons, D-pad and 5 axes (wheel, brake

pedal, gas pedal, clutch pedal, left and right progressive levers).

•Page 2 = Test forces: allows you to test 8 Force effects and configure the Force Feedback and

automatic re-centering settings.

AUTOMATIC CALIBRATION OF WHEEL AND PEDALS

The wheel auto-calibrates independently once the power adapter and USB connector have been

connected (this involves the wheel making movements on its own). The pedals auto-calibrate once they

have been pressed a few times.

You can also carry out manual calibration by downloading the “Thrustmaster Calibration Tool v 1.03”

software from our website:

http://ts.thrustmaster.com

5/12

AXIS SELECTION (2, 3 or 5 AXES)

•Axis selection via “Software” (page 1 of the “Control Panel”)

Click the mode you wish to use and then click OK.

•Axis selection via “Hardware”

Press the gas and brake pedals and the Force button simultaneously (13) + (12) + (6).

Axis selection via hardware must always be carried out outside of the Control Panel!

This allows you to select your mode directly in your game’s “Controls” option.

AXIS SELECTION VIA “HARDWARE” IS ONLY AVAILABLE

WHEN THE SWITCH ON YOUR PEDAL SET IS IN THE “2 L” POSITION

•2 AXIS mode (LED is orange)

In this mode, your wheel’s gas and brake controls function in “combined” mode (and are combined with

the 2 progressive levers):

- Axis 1 = X axis (Steering wheel)

- Axis 2 = Y axis (Pedals/progressive levers)

•3 AXIS mode (LED is red)

In this mode, your wheel’s gas and brake controls function in “separate” mode.

= the pedals are combined with the 2 progressive levers (switch set to “2 L”)

= the clutch pedal is combined with the brake pedal (switch set to “3 P”)

- Axis 1 = X axis (Steering wheel)

- Axis 2 = Y axis (Brake pedal / Progressive left lever / Clutch pedal)

- Axis 3 = RZ axis (Gas pedal / Progressive right lever)

•5 AXIS mode (LED is green)

In this mode, your wheel’s gas and brake controls function in “separate” mode, as do the 2 progressive

levers and the clutch pedal, which are independent:

Option 1

(with pedal set switch set to “2 L”)

-Axis 1 = X axis = Steering wheel

-Axis 2 = Y axis = Brake pedal

-Axis 3 = RZ axis = Gas pedal

-Axis 4 = Slider 1 axis = Progressive right lever

-Axis 5 = Slider 0 axis = Progressive left lever

6/12

Option 2

(with pedal set switch set to “3 P”)

-Axis 1 = X axis = Steering wheel

-Axis 2 = Y axis = Brake pedal

-Axis 3 = RZ axis = Gas pedal

-Axis 4 = Slider 1 axis = Disabled

-Axis 5 = Slider 0 axis = Clutch pedal

The exclusive 5 axis mode allows you to enjoy all of the advanced options offered in most simulation-type

racing games. For the first time ever, you can now manage these new functions “progressively” (as

opposed to digitally), providing full immersion for fans of car racing simulations!

Various examples:

- Assignment of the clutch pedal or progressive left lever to the “clutch” function

(in “manual gearshift with manual clutch” mode)

- Assignment of the progressive right lever or clutch pedal to the “handbrake” function

- Assignment of the progressive left lever to the “left interior view” function

- Assignment of the progressive right lever to the “right interior view” function

Note:

- When you select 2 axis mode, the LED is Orange.

- When you select 3 axis mode, the LED is Red.

- When you select 5 axismode, the LED is Green.

If your game does not accept all 5 axes, switch your wheel to “3 axis” mode

(or “2 axis” mode, if the problem persists).

7/12

RE-CENTERING FUNCTION SETTING

Wheel re-centering (Auto-center) is disabled by default.

Most recent games now offer their own re-centering mode.

You are strongly advised to disable wheel re-centering (in most cases), to allow the game to handle it. The

Force Feedback will then be of greater quality.

When enabled, re-centering mode is especially useful in games that do not feature Force Feedback or

which use weak re-centering.

•Setting via “Software” (page 2 of the “Control Panel”)

- to disable re-centering, click “By the game”.

- to enable re-centering, click “By the wheel”.

In this mode, you can adjust re-centering intensity from 0 to 100%.

•Setting via “Hardware”

To enable or disable re-centering directly in your game, simply press your wheel’s Force button (6). When

enabled, the intensity of re-centering corresponds to the percentage selected previously in the “By the

wheel” setting of the “Control Panel”.

Note :

- When Auto-center is enabled, the LED flashes.

- When Auto-center is disabled, the LED does not flash

(Recommended mode for Force Feedback games)

FORCE FEEDBACK EFFECTS SETTING (page 2 of the “Control Panel”)

4 settings can be set from 0 to 150 %:

- Master Forces

- Static Forces

- Dynamic Forces

- Aggressiveness

PROGRAMMING THE “GEARBOX” (page 1 of the “Control Panel”)

This function allows you to “separate” (default mode) or “combine” the digital gearshift levers (1) and the

digital gearshift knob (2).

Note :

Always remember to completely close the “Control Panel” before staring your game!

You are now ready to play!

8/12

ADJUSTING THE PEDALS:

Each of the 3 aluminum pedals can be positioned to your liking in either a “Standard” or “Vertical” setting. This

adjustment allows you to adapt your pedal set not only to your style of driving (using “heel-and-toe style” or

not), but also to your seating position (“seat” or “cockpit “style).

1. Using a small screwdriver, unscrew the two screws (one short and one long) for the pedal you wish to

adjust.

2. Set the pedal into the position of your choice.

3. Replace the 2 screws.

Note: In the “Standard” position, place the large screw on the bottom; in the “Vertical” position, place the large

screw on top.

Examples: D = “Standard” gas / “Vertical” brake and clutch

E = “Vertical” gas, brake and clutch

F = “Standard” gas, brake and clutch

G = “Vertical” gas / “Standard” brake and clutch

9/12

TROUBLESHOOTING

- My wheel doesn’t work correctly or appears to be improperly calibrated. Switch off your PC,

completely disconnect your wheel, reconnect all the cables (including power adapter and pedal set),

switch your PC back on and restart the game.

If the calibration problem persists, download the “Thrustmaster Calibration Tool v 1.03 ” manual calibration

software available on our website: http://ts.thrustmaster.com

- My wheel moves by itself during the game. This is normal and is the re-centering function featured in

some games. To stop these movements, just place your hands on the wheel or reduce the Force

Feedback intensity.

- My wheel stays turned to one side (left or right) after launching a game. This is normal in some

games. The wheel will re-center itself once you have identified it as a wheel in the game’s setup options.

- My wheel is detected by my computer but doesn’t work in the game. Access your game’s options

interface to configure your wheel. Please refer to your game’s user manual or online help for more

information.

- My game doesn’t accept 5 axis mode.

Select 3 axis mode (or 2 axis mode, if the problem persists), then configure your wheel again in your

game’s options interface.

- Force Feedback doesn’t react properly.

In the Thrustmaster Control Panel, reset all forces to their default values (= to 100%) and disable

automatic re-centering (the LED should not be flashing).

In some games you will also have to reverse the forces (select “Negative Forces” in the game’s options or

set the slider to “-100%”). In other games forces should not be reversed (in this case select “Positive

Forces” or “+100%”).

- My pedals or levers are not functioning properly.

Your game does not accept the axis mode you have selected. Exit the game and select a new axis mode.

Re-launch the game and then configure your wheel again in your game’s options interface.

SAFETY RECOMMENDATIONS AND INFORMATION

- When connecting the wheel and during auto-calibration: to prevent any incorrect calibration,

never turn the wheel, press the pedals or buttons.

- When not in use for extended periods and to avoid any unwanted power consumption or

deterioration, disconnect the wheel’s power adapter. Reconnect it before going back to the

game.

- Your wheel features Force Feedback: NEVER leave the wheel within the reach of young

children, especially during the auto-calibration phases.

For safety reasons, never use the pedal set with bare feet or while wearing only socks

on your feet.

THRUSTMASTER®DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING

FROM USE OF THE PEDAL SET WITHOUT SHOES.

Indice

Lingue:

Altri manuali Thrustmaster Controller per videogiochi

Thrustmaster

Thrustmaster eSwapX 2 PRO Manuale utente

Thrustmaster

Thrustmaster RUN'N'DRIVE WIRELESS 3-IN-1 Manuale utente

Thrustmaster

Thrustmaster TS-XW RACER Sparco P310 Competition Mod Manuale utente

Thrustmaster

Thrustmaster TH8A Manuale utente

Thrustmaster

Thrustmaster TCA Sidestick Airbus Edition Manuale utente

Thrustmaster

Thrustmaster TS-PC Racer Ferrari 488 Challenge Edition Manuale utente

Thrustmaster

Thrustmaster Red Legend Edition Manuale utente

Thrustmaster

Thrustmaster Ferrari GT Experience Manuale utente

Thrustmaster

Thrustmaster T-Wireless Black Manuale utente

Thrustmaster

Thrustmaster dual trigger Manuale utente

Thrustmaster

Thrustmaster Ferrari Manuale utente

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 RUMBLE FORCE Manuale utente

Thrustmaster

Thrustmaster 360 Spider Istruzioni per l’uso

Thrustmaster

Thrustmaster 360 modena Force GT Istruzioni per l’uso

Thrustmaster

Thrustmaster RUN'N'DRIVE WIRELESS 3-IN-1 Manuale utente

Thrustmaster

Thrustmaster Ferrari GT Experience Manuale utente

Thrustmaster

Thrustmaster Rechargeable Wireless Dual Trigger 2-in-1 Manuale utente

Thrustmaster

Thrustmaster T.Flight Hotas X Manuale utente

Thrustmaster

Thrustmaster Ferrari F430 Manuale utente

Thrustmaster

Thrustmaster T Flight Stick X Manuale utente

Thrustmaster

Thrustmaster TWCS Throttele Manuale utente

Thrustmaster

Thrustmaster 360 Modena Force GT Manuale utente

Thrustmaster

Thrustmaster T.FLIGHT STICK X Manuale utente

Thrustmaster

Thrustmaster TCA Sidestick X Airbus Edition Manuale utente

Manuali Controller per videogiochi popolari di altre marche

Wasp

Wasp SL-6610 Manuale utente

JKG

JKG JKG2022A Manuale utente

Marvo

Marvo MG08 Manuale utente

Belkin

Belkin F8GBPC001 Manuale utente

GameSir

GameSir Z2 Manuale utente

Laser

Laser PCO-AGAMEC-BK Manuale utente

Cortex

Cortex VEXnet Manuale utente

Gioteck

Gioteck HF-1 Manuale utente

Nacon

Nacon DAIJA ARCADE STICK Manuale utente

SHAKS

SHAKS S1+ Manuale utente

YCCTEAM

YCCTEAM Joy Con Manuale utente

Hyperkin

Hyperkin Smartboy Manuale utente

Nerf

Nerf DuraGrip Manuale utente

MoveMaster

MoveMaster MoveMaster Manuale utente

WinWing

WinWing Super Libra J1 Manuale utente

ECCI

ECCI Trackstar 6000 Series Manuale utente

Logitech

Logitech 963291-0403 - Attack 3 Joystick Manuale utente

Pelican

Pelican Afterglow PL-678 Manuale utente
