Thule 1278 Manuale utente
611•3DF/8F/501-1278-02
Box 69, 330 33 Hillerstorp, SWEDEN
www.thule.com
544
596
588
NNNN
NNNNNN
NNNNNNNN
ONE
KEY
SYSTEM
40
0
130
km/h
80
7 Kg
+
xx kg
=
Max.
75 kg
Follow me...
TÜV Rheinland
geprüfte
Sicherheit
RAPID
SYSTEM
RAPID
SYSTEM

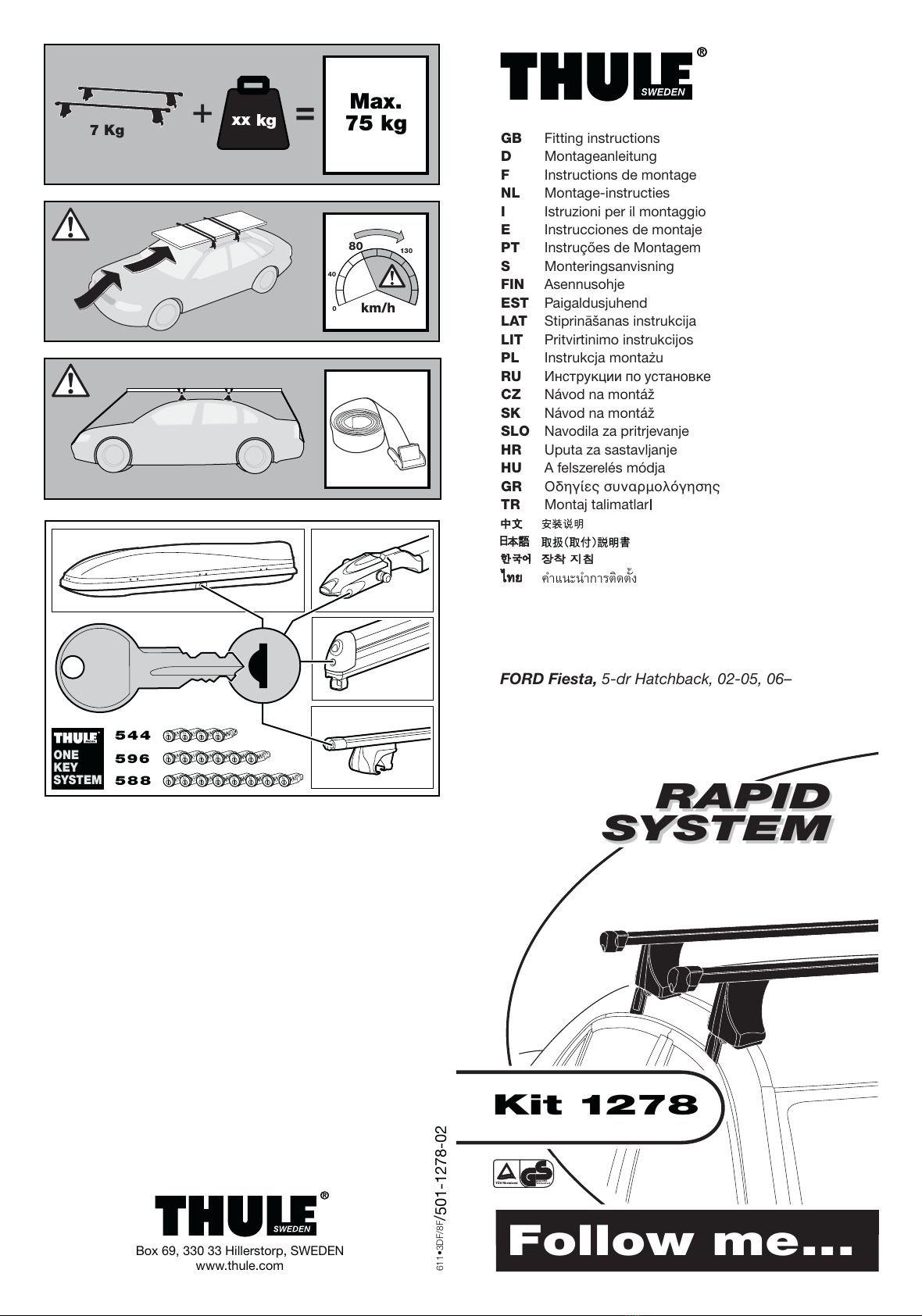

Kit 1278
GB Fitting instructions
DMontageanleitung
FInstructions de montage
NL Montage-instructies
I
Istruzioni per il montaggio
EInstrucciones de montaje
PT
Instruçőes de Montagem
SMonteringsanvisning
FIN Asennusohje
EST
Paigaldusjuhend
LAT
Stiprināšanas instrukcija
LIT
Pritvirtinimo instrukcijos
PL Instrukcja montażu
RU
Инструкции по установке
CZ Návod na montáž
SK
Návod na montáž
SLO
Navodila za pritrjevanje
HR
Uputa za sastavljanje
HU
A felszerelés módja
GR
Οδηγες συναρμολγησης
TR
Montaj talimatlar
¤Óá¹Ð¹Ó¡ÒõԴµÑé§
FORD Fiesta, 5-dr Hatchback, 02-05, 06–
All manuals and user guides at all-guides.com
2
368
x2
x 4
x 4
x 1

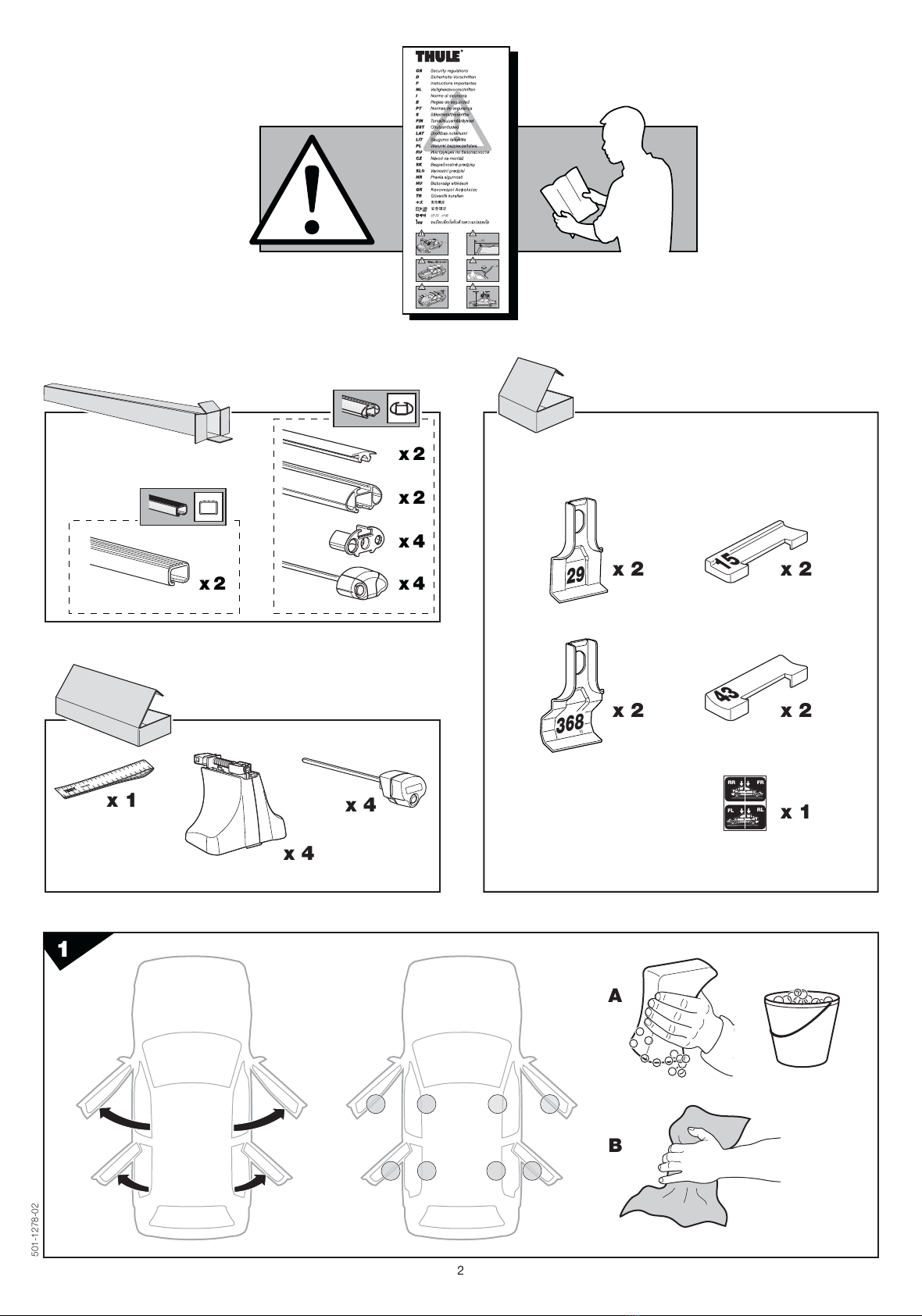

1
x4
x2
x2
x4
A
B
501-1278-02
FR
RR
RL
FL x 1
x 2
x 2
x 2
x 2
29
MAX
PRODUCTNO.:1200PRODUCTNO.:1200
PRODUCTWEIGHTPRODUCTWEIGHT:7KG:7KG
15
43
All manuals and user guides at all-guides.com
3
501-1278-02

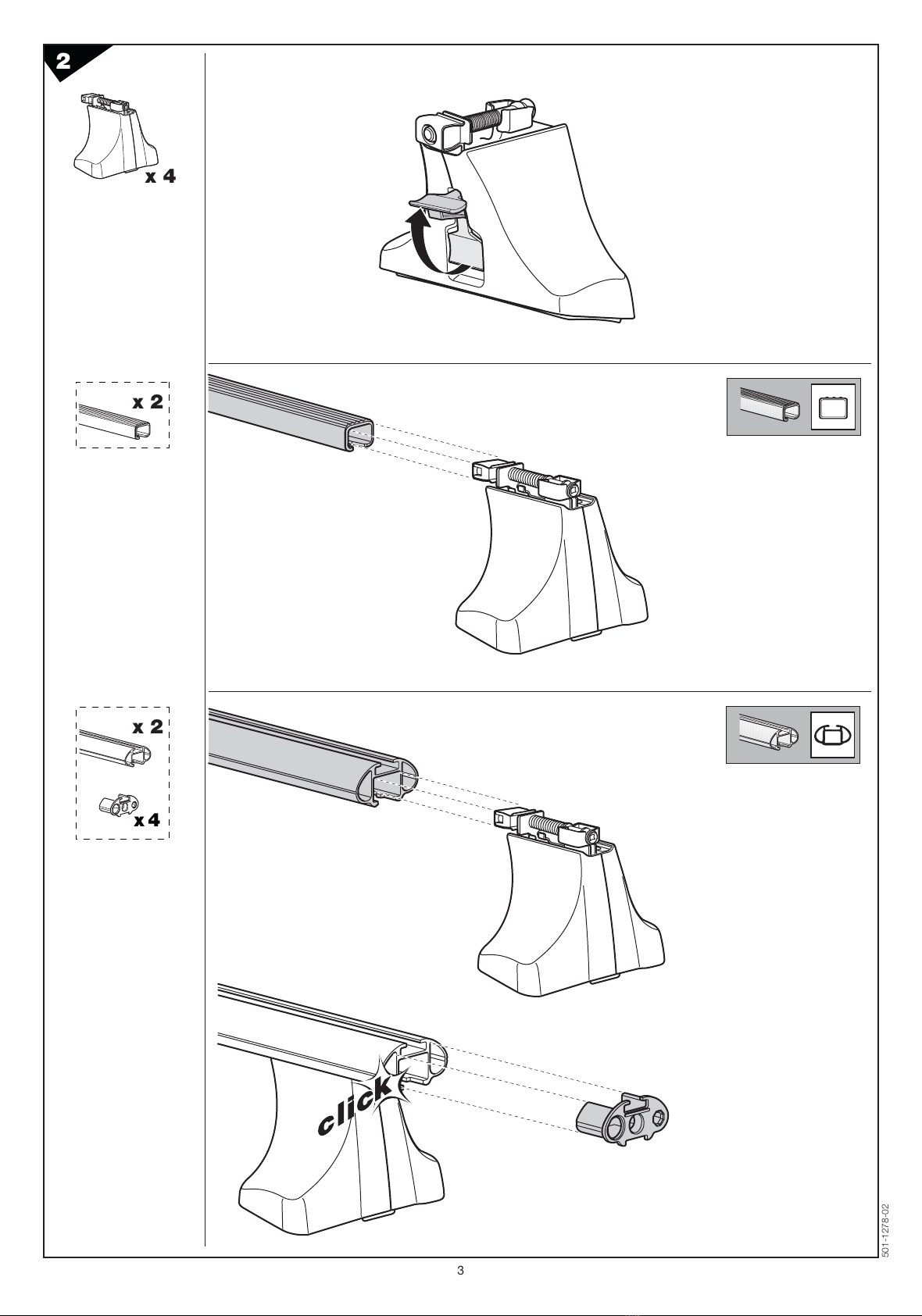

2
x 4
x 2
x 2
x4
All manuals and user guides at all-guides.com
4
x4
x4
4
x2
3X

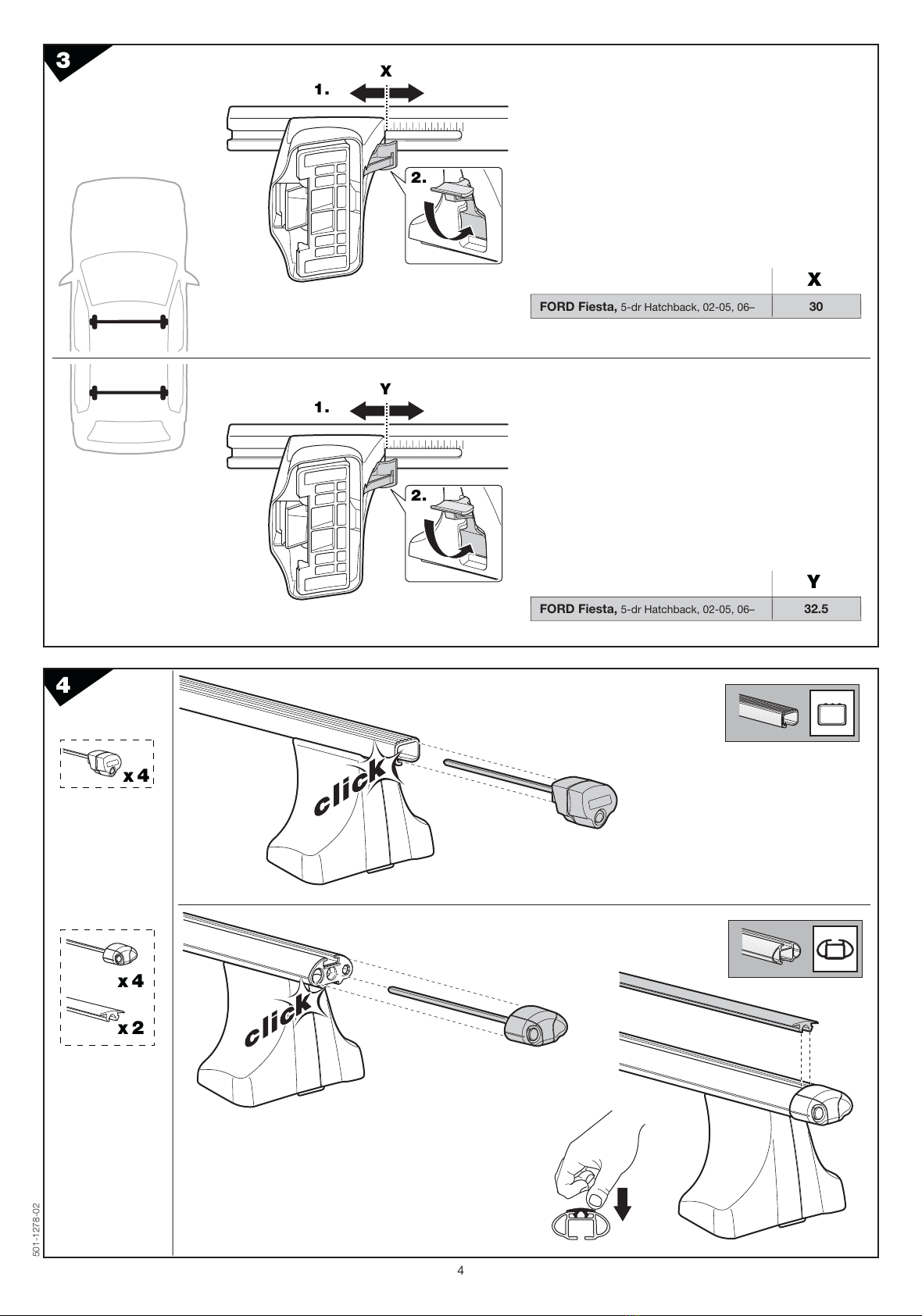

1.
2.
Y
1.
2.
501-1278-02
FORD Fiesta, 5-dr Hatchback, 02-05, 06– 30
X
FORD Fiesta, 5-dr Hatchback, 02-05, 06– 32.5
Y
All manuals and user guides at all-guides.com
5
501-1278-02

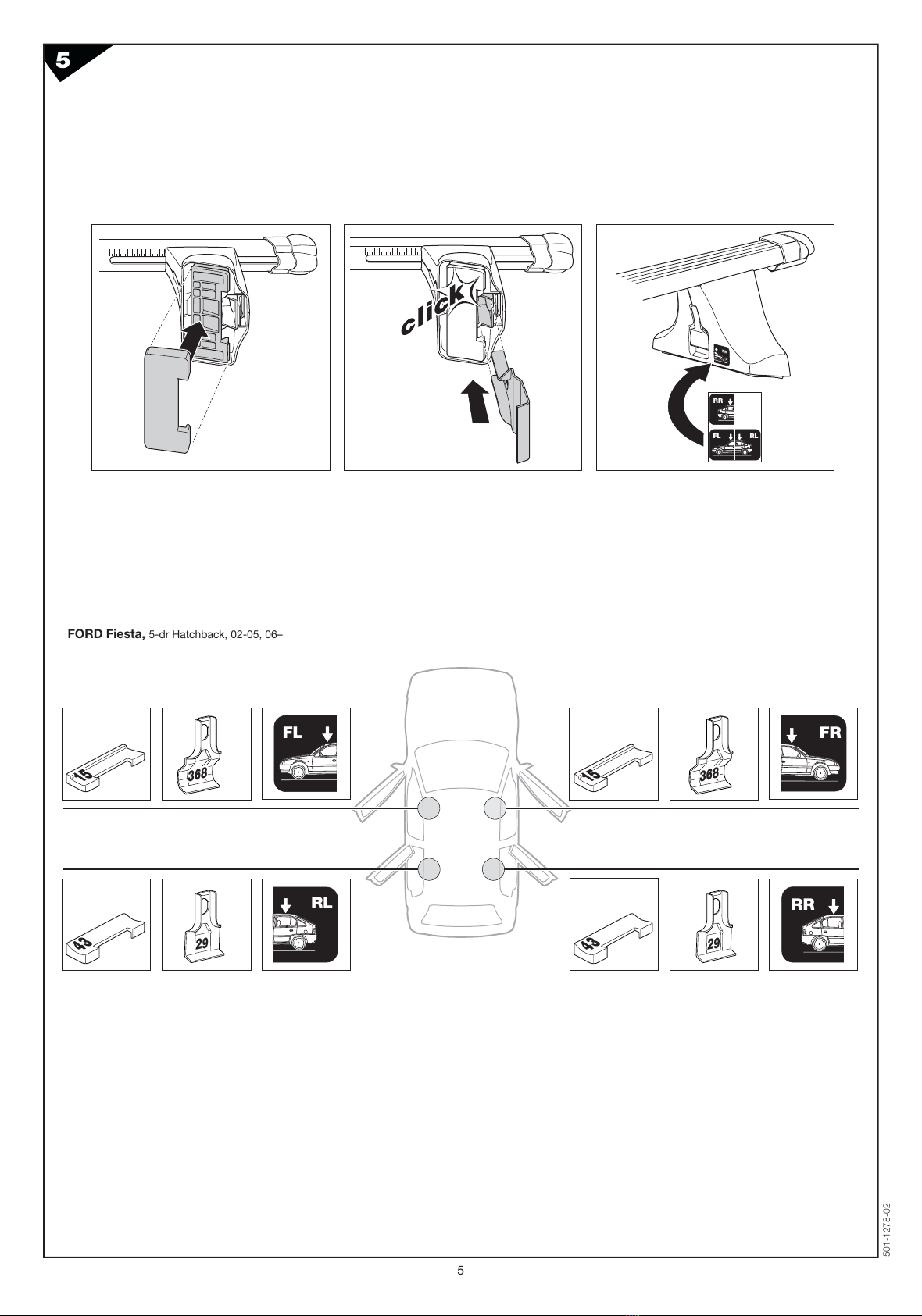

5
FR
RR
RL
FL
FR
FL
RL
FR
RR
368
29
368
29
15
43
15
43
FORD Fiesta, 5-dr Hatchback, 02-05, 06–
All manuals and user guides at all-guides.com
6
6

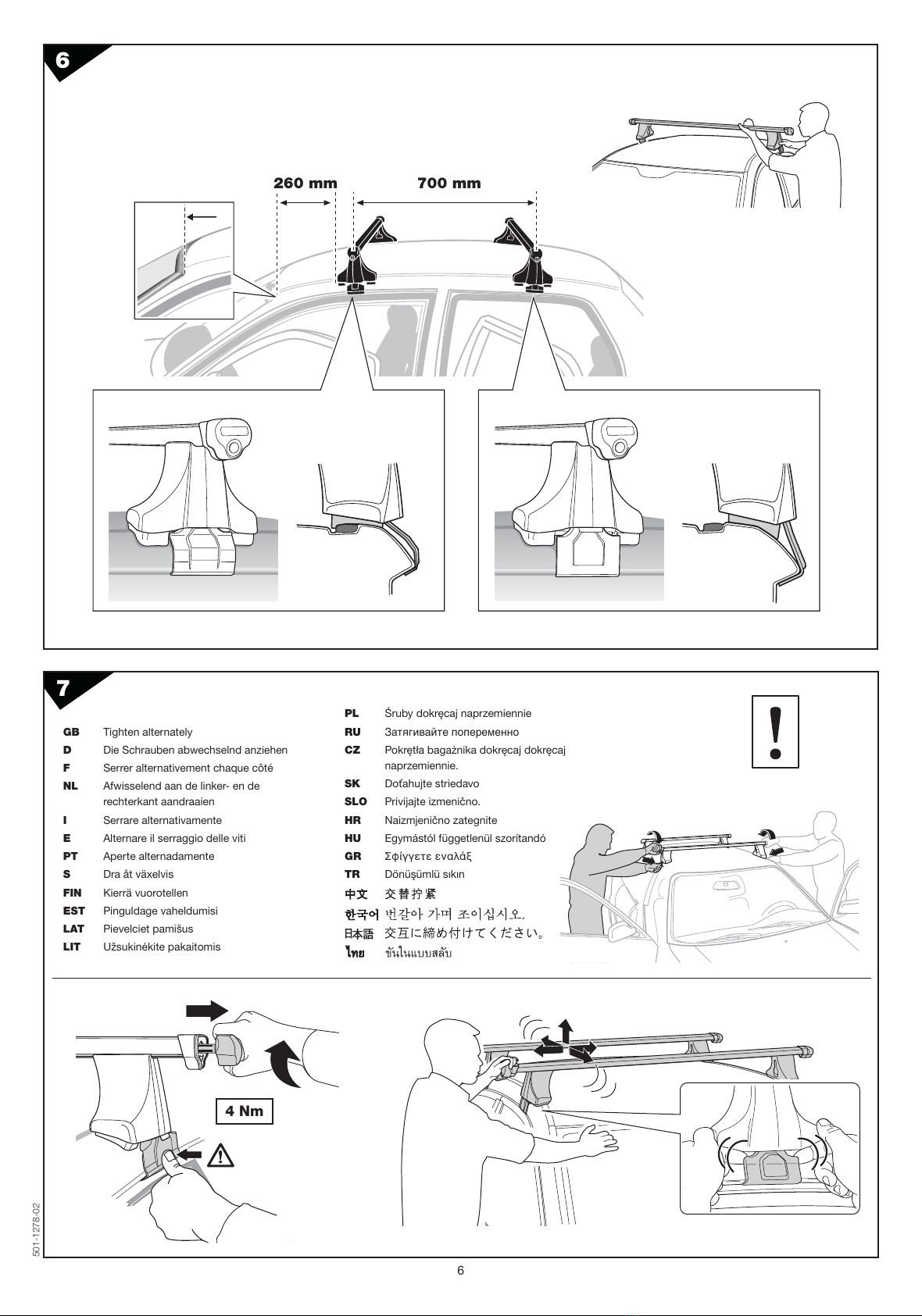

7
501-1278-02
4 Nm
GB Tighten alternately
DDie Schrauben abwechselnd anziehen
FSerrer alternativement chaque côté
NL Afwisselend aan de linker- en de
rechterkant aandraaien
ISerrare alternativamente
EAlternare il serraggio delle viti
PT
Aperte alternadamente
SDra åt växelvis
FIN Kierrä vuorotellen
EST Pinguldage vaheldumisi
LAT
Pievelciet pamīšus
LIT
Užsukinėkite pakaitomis
PL Śruby dokręcaj naprzemiennie
RU Затягивайте попеременно
CZ Pokrętła bagażnika dokręcaj dokręcaj
naprzemiennie.
SK
Doťahujte striedavo
SLO
Privijajte izmenično.
HR
Naizmjenično zategnite
HU Egymástól függetlenül szorítandó
GR
Σφγγετε εναλξ
TR
Dönüşümlü sıkın
260 mm 700 mm
All manuals and user guides at all-guides.com
7

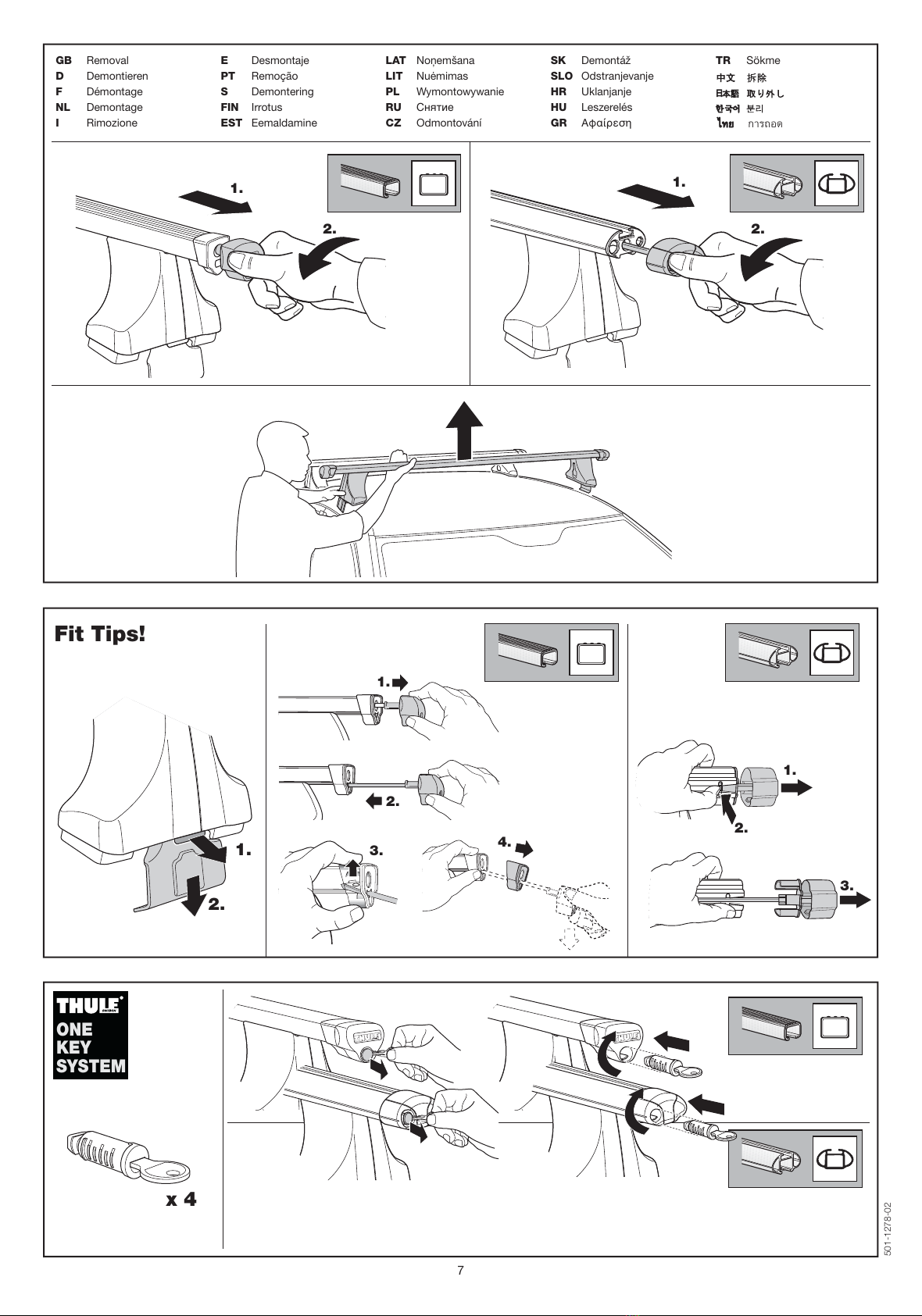

GB
Removal
D
Demontieren
F
Démontage
NL
Demontage
I
Rimozione
E
Desmontaje
PT
Remoção
S
Demontering
FIN
Irrotus
EST
Eemaldamine
LAT
Noņemšana
LIT
Nuėmimas
PL
Wymontowywanie
RU Снятие
CZ
Odmontování
SK
Demontáž
SLO Odstranjevanje
HR
Uklanjanje
HU Leszerelés
GR
Αφαρεση
TR
Sökme
1.
2.
1.
2.
¡Òöʹ
501-1278-02
26
27
28
29
30
31
27
28
29
30
31
1.
2.
3.
4.
Fit Tips!
x 4
1.
2.
ONE
KEY
SYSTEM
1.
2.
3.
All manuals and user guides at all-guides.com
8
501-1278-02
