Thule 301768 Manuale utente

Instructions

Bring your life

thule.com

Adapter Roof

VW Crafter 2017

Prod no.: 301768 / 301771

Doc. no.: ADR912 -03 / 3380048800

Date: 12/11/2018

More information https://www.caravansplus.com.au

2ADR912-03

Bring your life

thule.com

Instructions

Prod no.: 301768 / 301771

Doc. no.: ADR912-02 / 3380048800

Date: 25/06/2018

Adapter Roof

VW Crafter 2017

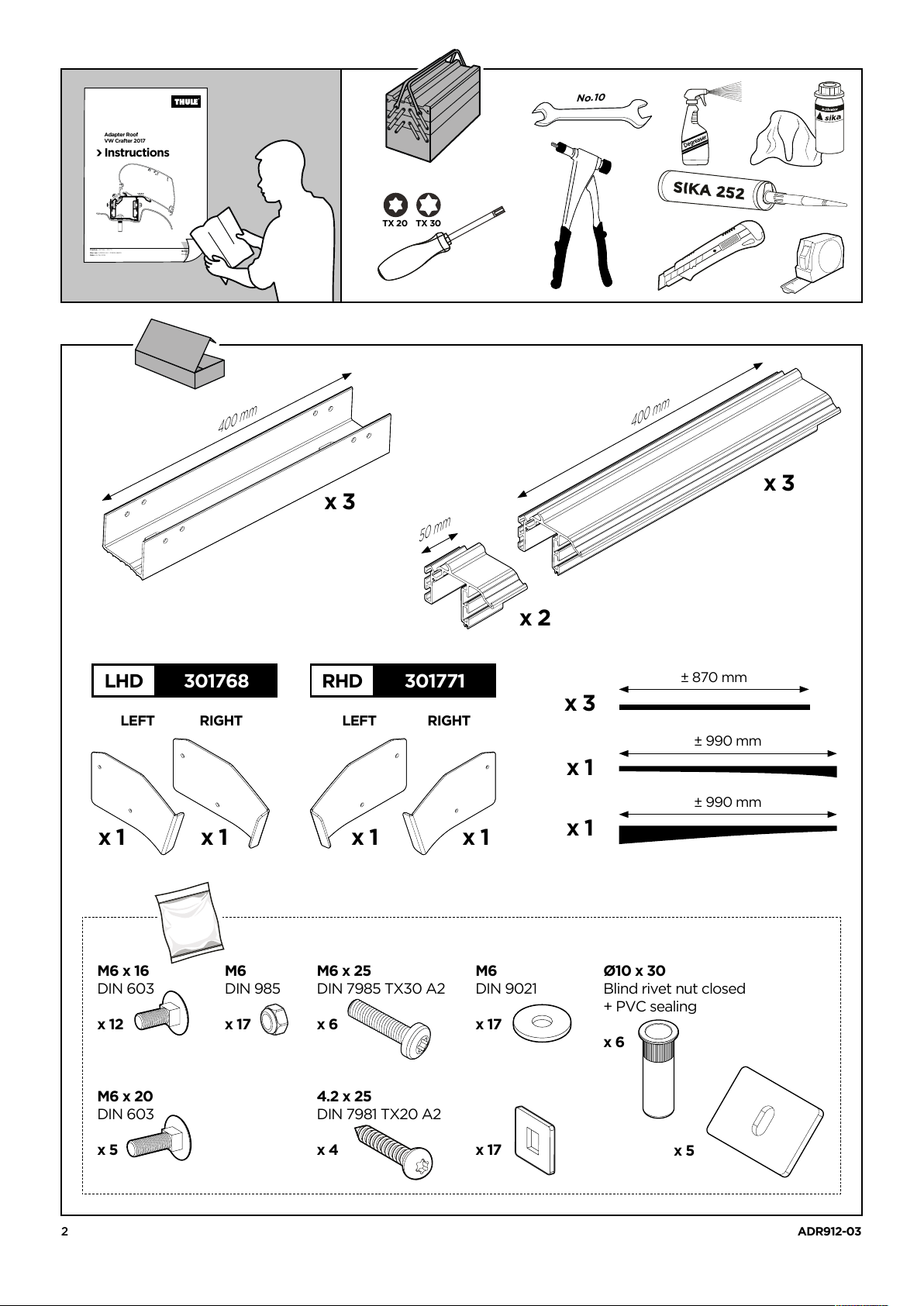

400 mm

50 mm 400 mm

x 3

x 2

x 1 x 1 x 1

x 3

M6 x 16

DIN 603

x 12

DIN 985

x 17

M6 x 25

DIN 7985 TX30 A2

x 6

DIN 9021

x 17

Ø10 x 30

Blind rivet nut closed

+ PVC sealing

x 6

x 5

x 17

M6 x 20

DIN 603

x 5

4.2 x 25

DIN 7981 TX20 A2

x 4

TX 20 TX 30

No.10

x 3

x 1

± 870 mm

LEFT LEFTRIGHT RIGHT

± 990 mm

301768LHD 301771RHD

x 1

More information https://www.caravansplus.com.au

3ADR912-03

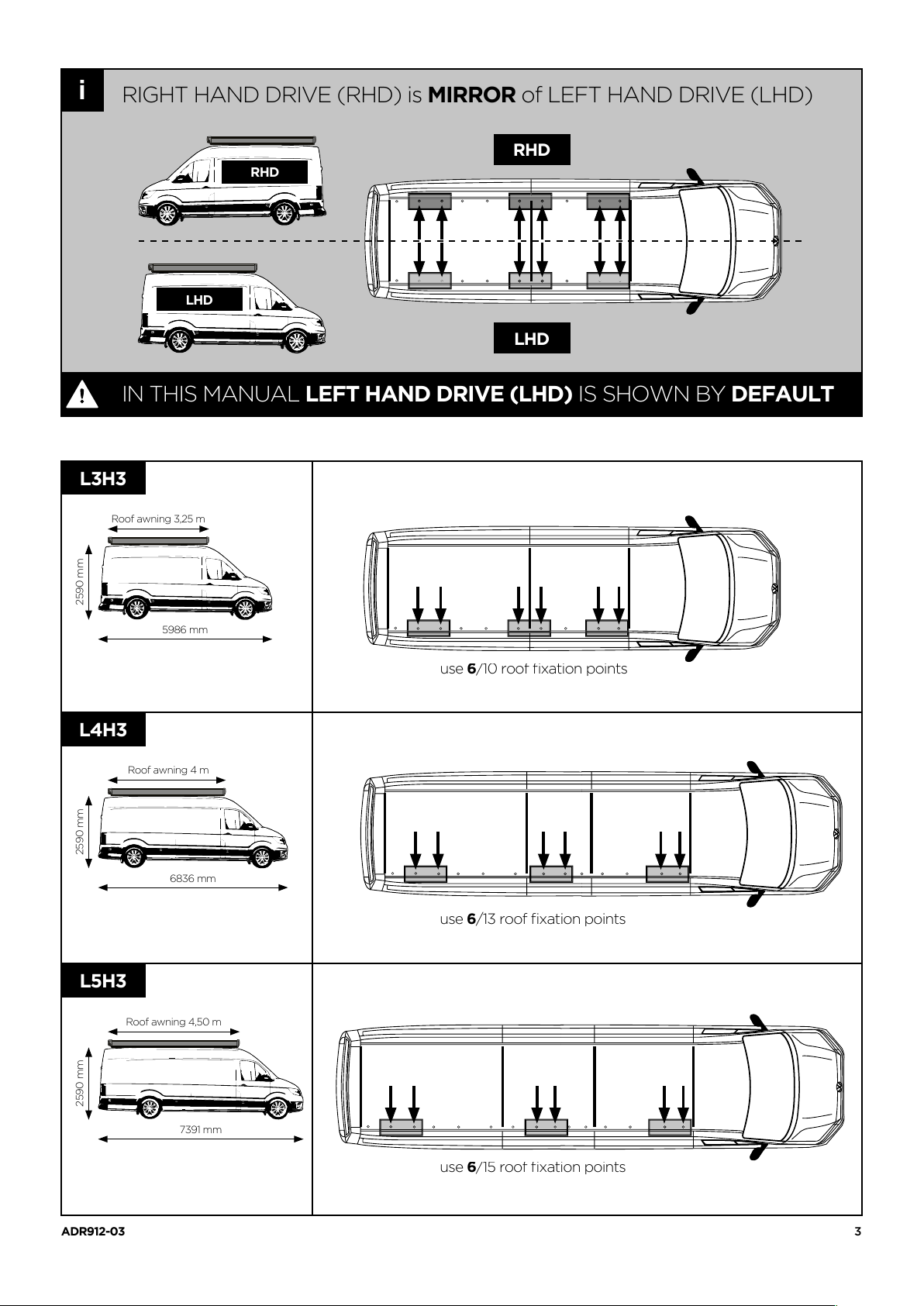

L3H3

L4H3

L5H3

5986 mm

use 6/10 roof xation points

Roof awning 4,50 m

Roof awning 4 m

Roof awning 3,25 m

6836 mm

7391 mm

2590 mm2590 mm2590 mm

use 6/13 roof xation points

use 6/15 roof xation points

iRIGHT HAND DRIVE (RHD) is MIRROR of LEFT HAND DRIVE (LHD)

LHD

RHD

IN THIS MANUAL LEFT HAND DRIVE (LHD) IS SHOWN BY DEFAULT

More information https://www.caravansplus.com.au

4ADR912-03

400 mm

x 3

x 6 x 6

M6 x 16

DIN 603

x 12

DIN 985

x 12

DIN 9021

x 18

9.91 x 30

Blind rivet nut closed

+ PVC sealing

x 6

x 12

L4H3

L3H3 p3

L5H3 p3

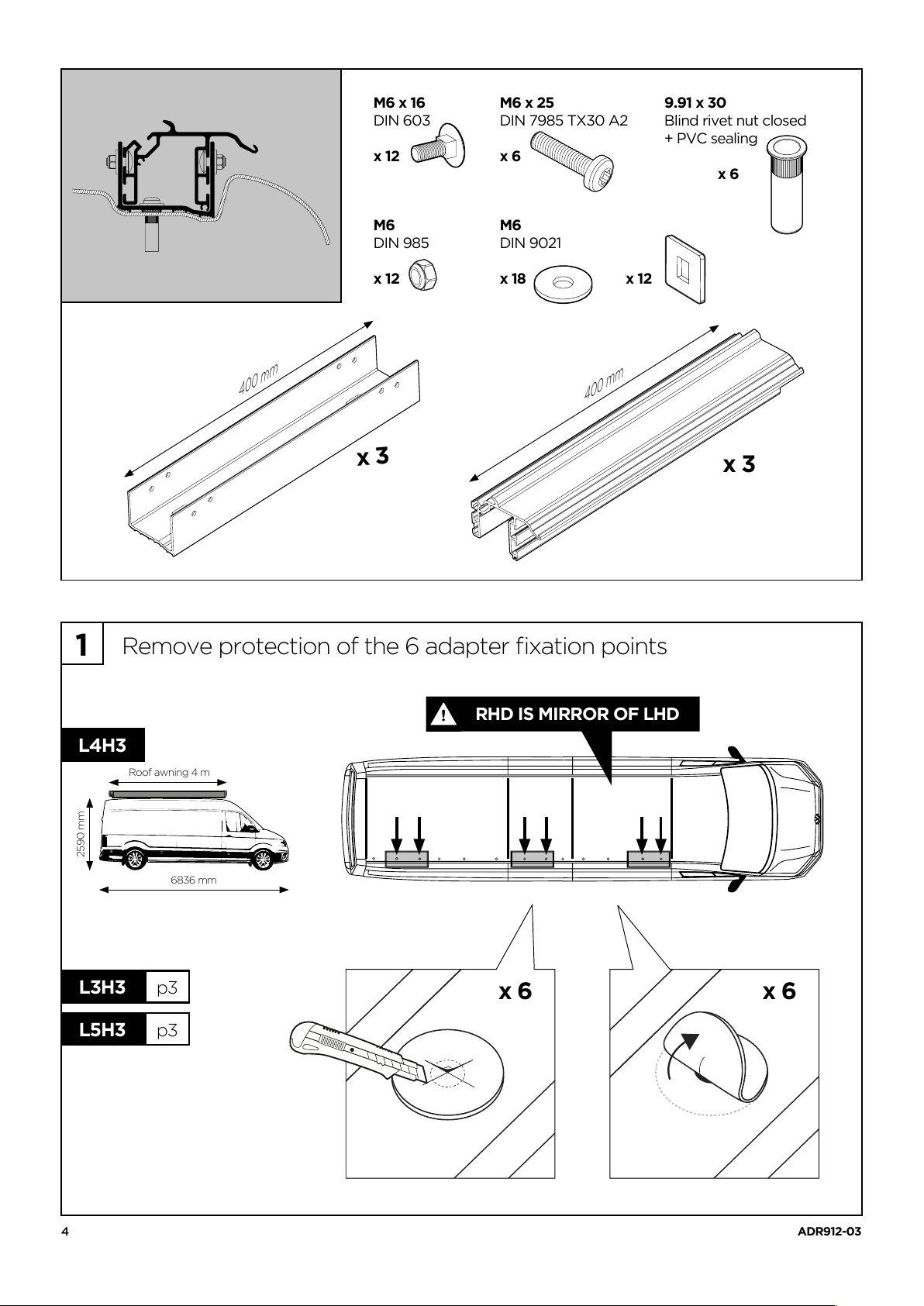

Remove protection of the 6 adapter xation points

M6 x 25

DIN 7985 TX30 A2

x 6

Roof awning 4 m

6836 mm

2590 mm

RHD IS MIRROR OF LHD

400 mm

x 3

More information https://www.caravansplus.com.au

5ADR912-03

x 6

3Assemble the blind rivet nuts

2Degrease the roof

x 3

1 x

RHD IS MIRROR OF LHD

More information https://www.caravansplus.com.au

6ADR912-03

5Mounting the base on the roof

x 3

TX30

A B

Gluing

Glue / Lijmen / Verklebung:

Thule recommends / beveelt aan / empfehlt:

SIKA 252 or Terostat MS937

48 h

Primern und Abdichtung nach Anweisung des Dichtmittelherstellers.

Voorbehandeling en afdichting volgens de voorschriften van de lijmfabrikant.

Preparation and sealing according to the prescripts of the glue supplier.

x 3

M6 x 25

DIN 7985 TX30 A2

x 6

DIN 9021

x 6

RHD IS MIRROR OF LHD

More information https://www.caravansplus.com.au

7ADR912-03

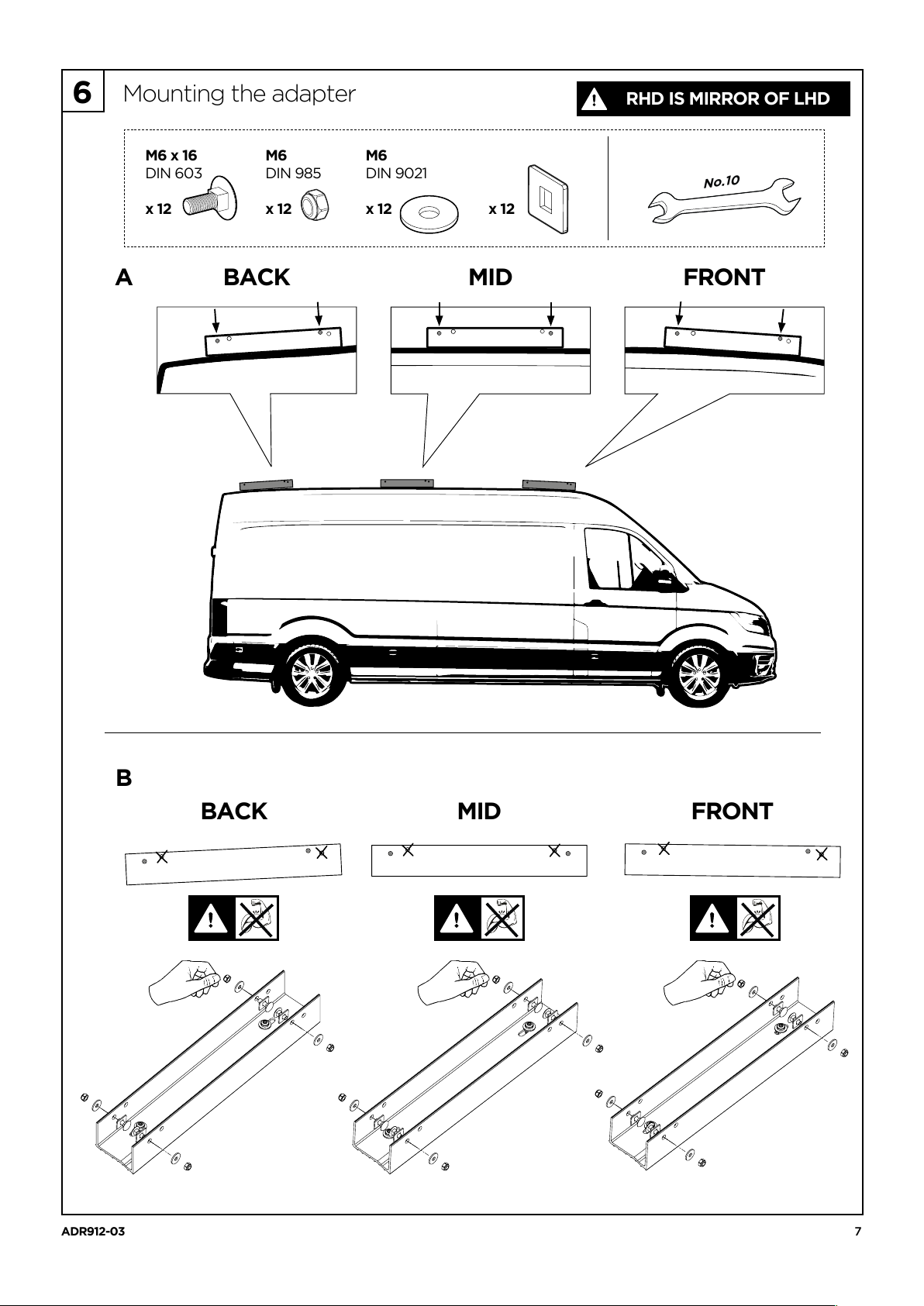

6Mounting the adapter

ABACK MID FRONT

FRONTMID

M6 x 16

DIN 603

x 12

DIN 985

x 12

DIN 9021

x 12 x 12

No.10

BACK

RHD IS MIRROR OF LHD

More information https://www.caravansplus.com.au

8ADR912-03

FRONT

MID

BACK

N°10

4 Nm

N°10

4 Nm

N°10

4 Nm

x 2x 2

More information https://www.caravansplus.com.au

9ADR912-03

x 3

x 1

± 870 mm

± 990 mm

3170 mm

3930 mm

4430 mm

990 mm

880 mm

830 mm

870 mm

870 mm 870 mm

320 mm

990 mm

Degrease the roof

Cut the EPDM

L3H3

L4H3

L5H3

RHD IS MIRROR OF LHD

More information https://www.caravansplus.com.au

10 ADR912-03

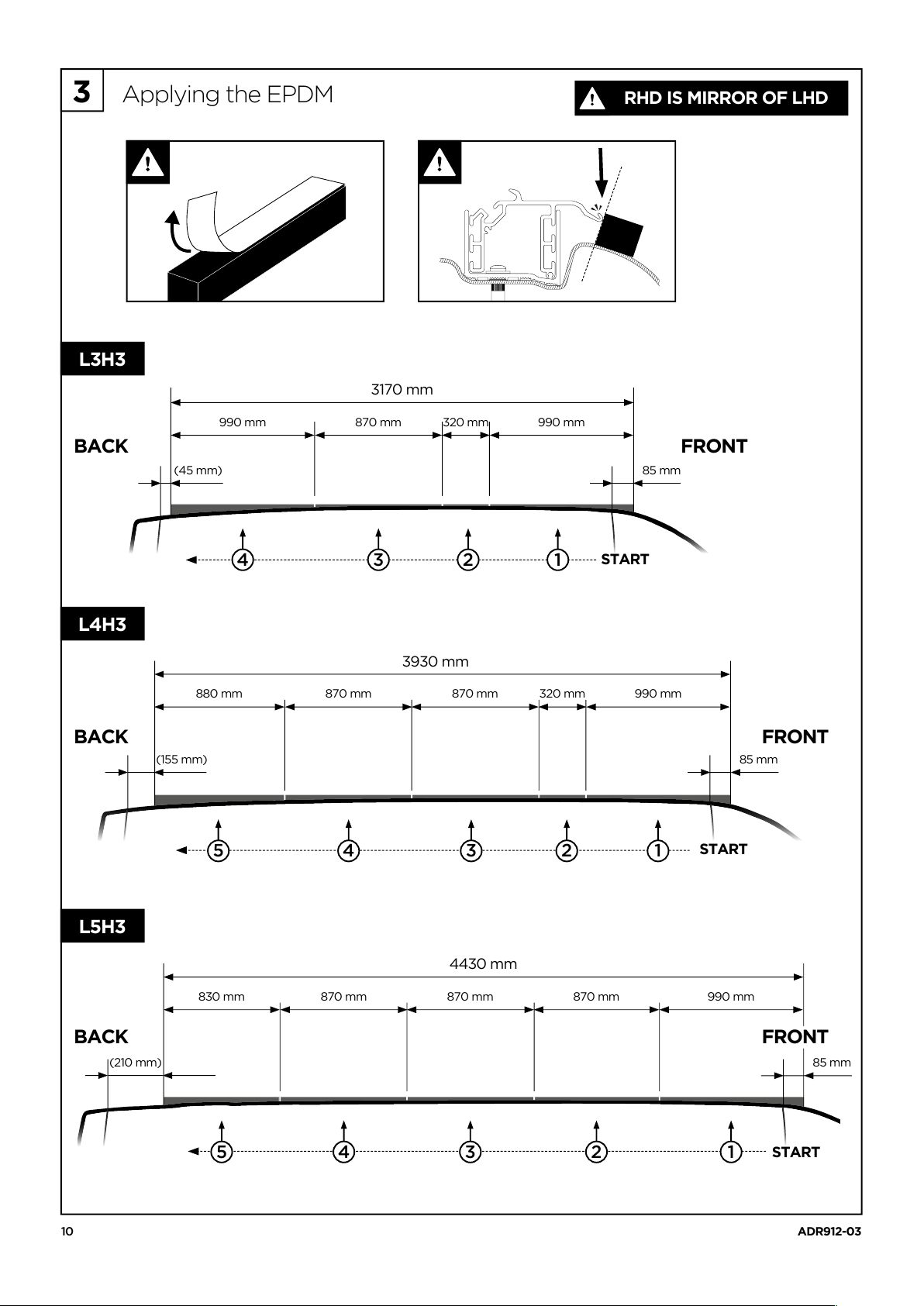

3Applying the EPDM

START

3170 mm

3930 mm

4430 mm

990 mm

880 mm

830 mm

870 mm

870 mm 870 mm

320 mm

85 mm

(45 mm)

(155 mm)

(210 mm)

320 mm

990 mm

L3H3

L4H3

L5H3

4 3 2 1

5 4 3 2 1

FRONT

BACK

BACK FRONTFRONT

RHD IS MIRROR OF LHD

More information https://www.caravansplus.com.au
