Thule XT 3070 Manuale utente
CITROËN Nemo, 3-dr Van, 08–
CITROËN Nemo, 4-dr Van, 08–
CITROËN Nemo, 5-dr Van, 08–
FIAT Fiorino, 3-dr Van, 08–
FIAT Fiorino, 4-dr Van, 08–
FIAT Fiorino, 5-dr Van, 08–
FIAT Qubo, 4-dr MPV, 08–
FIAT Qubo, 5-dr MPV, 08–
PEUGEOT Bipper, 3-dr Van, 08–
PEUGEOT Bipper, 4-dr Van, 08–
PEUGEOT Bipper, 5-dr Van, 08–
ISO 11154-E

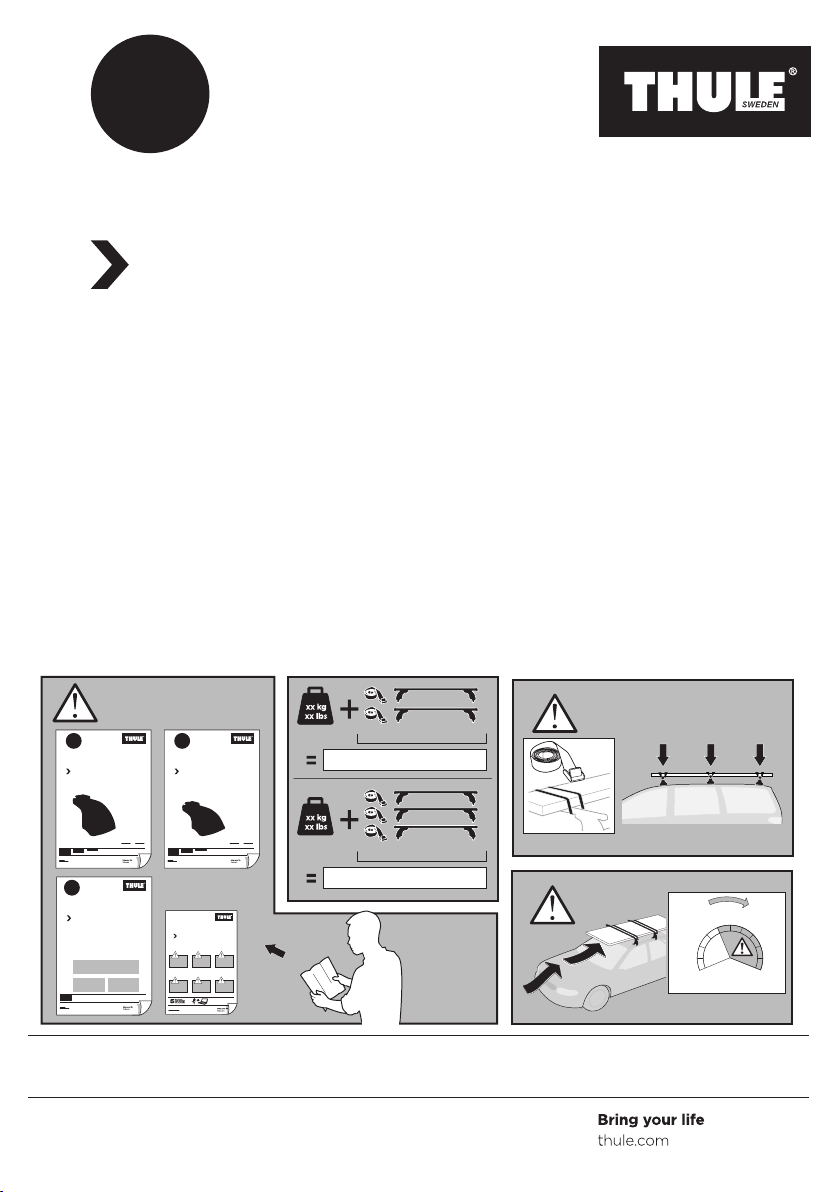

Instructions
B

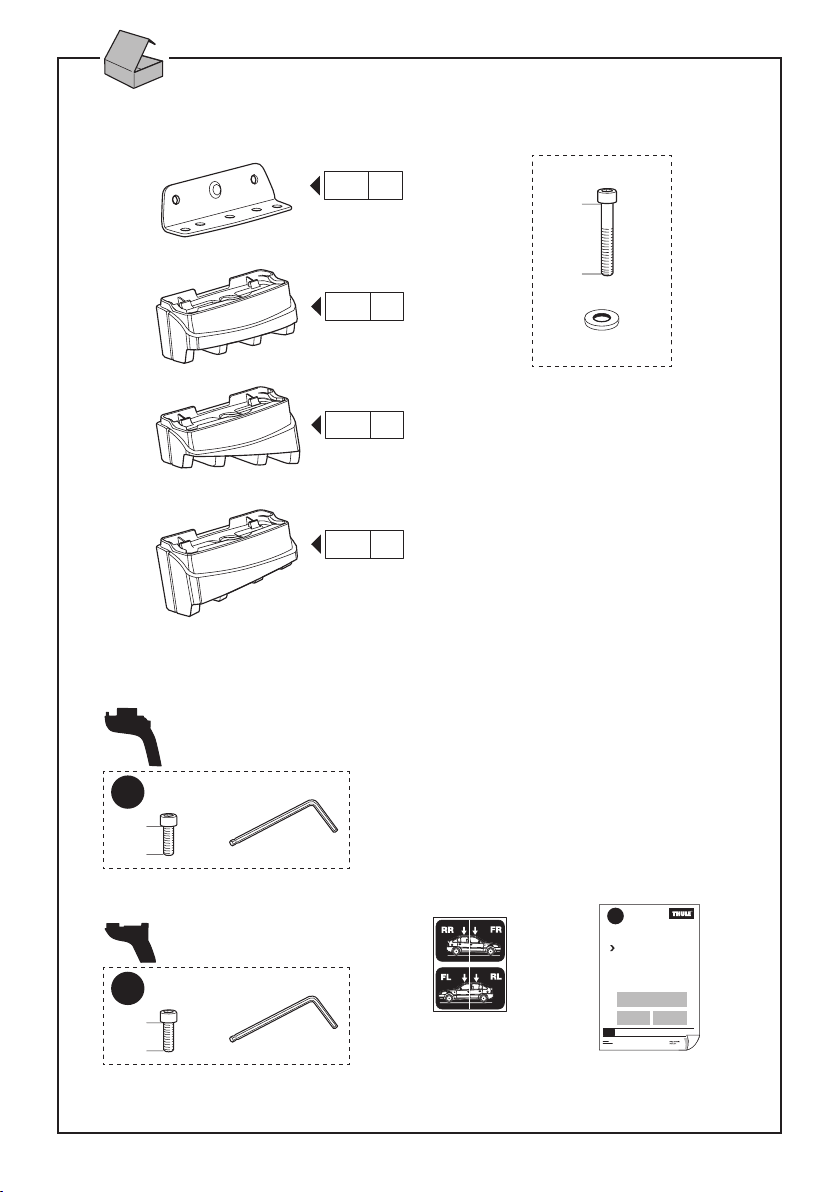

Thule XT Kit 3070
183070
C.20130612
509-3070-01
This kit is only for vehicles with fixpoint mounting.
km/h
Mph
0
80 km/h
50 Mph
40 km/h
25 Mph
130 km/h
80 Mph
Security
___________________________
Instructions
___________________________
___________________________
___________________________
B
___________________________
6 kg / 13 Ibs
9 kg / 20 Ibs
Max. 100 kg / 220 Ibs
Max. 150 kg / 330 Ibs
___________________________

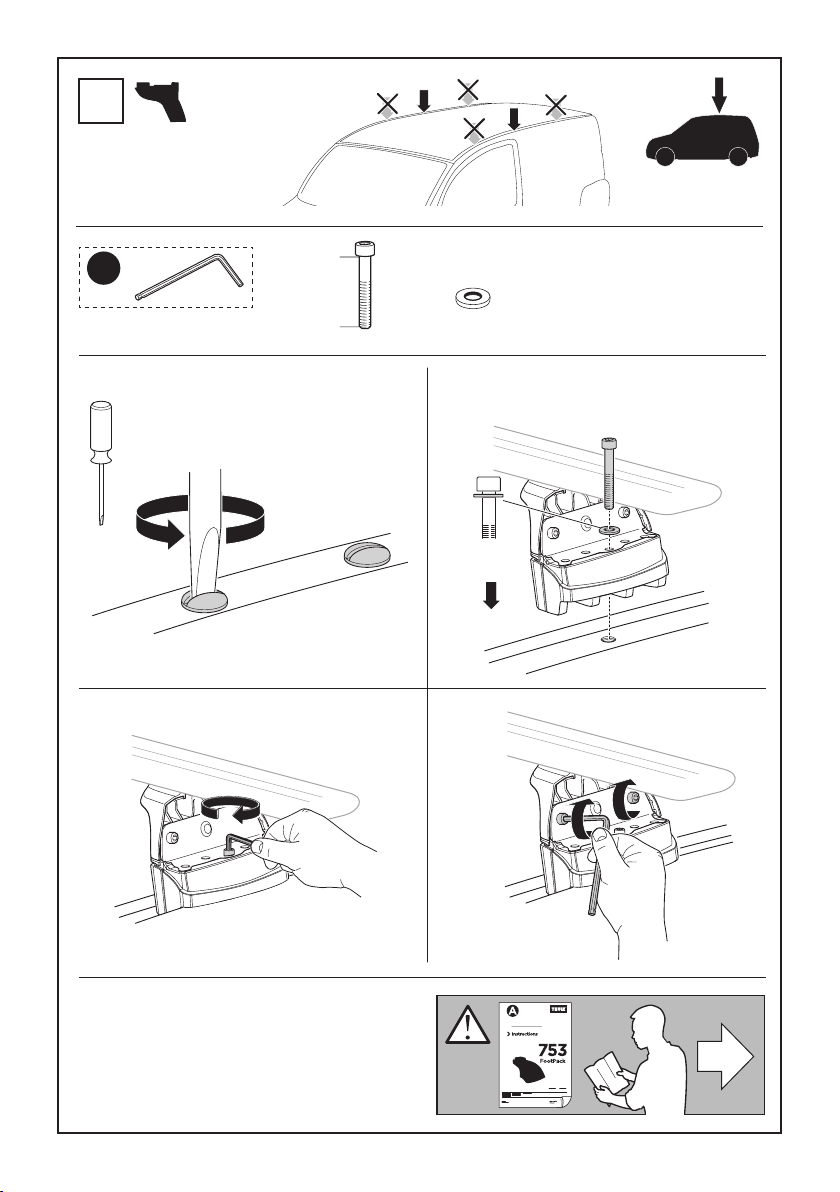

Instructions
A
751
FootPack
___________________________
Instructions
A
753
FootPack
2509-3070-01
3509-3070-01
x8
A
16 mm x1
5 mm
x8
A
12 mm x1
5 mm
x1 x1
___________________________
Instructions
___________________________
___________________________
___________________________
B
___________________________
09 x4
106 x2
107 x1
108 x1
50 mm x4
x4
50985
753
FootPack
751
FootPack
4509-3070-01
1
09 106 09106
09 108 09107
751
FootPack
BA
EN Only a few turns
DE Nur wenige Umdrehungen
FR Quelques tours uniquement
NL Slechts enkele slagen
IT Solo qualche giro
ES Sólo algunas vueltas
PT Noções básicas
SV Endast några varv
DK Kun nogle få omgange
NE Bare noen få omdreininger
FI Vain muutama kierros
ET Ainult mõni pööre
LV Tikai daži apgriezieni
LT Tik keli pasukimai
PL Wystarczy kilka obrotów
RU Только несколько оборотов
UK Лише декілька обертів
BG Само няколкозавъртания
CS Pouze několik otáček
SK Len niekol’ko otáčok
SL Le nekaj obratov
HR/BiH Samo nekoliko okreta
RO Doar câteva rotiri
HU Csak néhány fordítás
EL Μόνο λίγες περιστροφές
TR Yalnızca birkaç tur
طقف تارود ضعب AR
םיבוביס רפסמ קר HE
ZH 仅几圈
JA ２～３回転のみ
KO 몇 번만 돌리면 됨
TH เพียงสองสามรอบ
x8
A12 mm x1
5509-3070-01
1753
FootPack
BA
EN Only a few turns
DE Nur wenige Umdrehungen
FR Quelques tours uniquement
NL Slechts enkele slagen
IT Solo qualche giro
ES Sólo algunas vueltas
PT Noções básicas
SV Endast några varv
DK Kun nogle få omgange
NE Bare noen få omdreininger
FI Vain muutama kierros
ET Ainult mõni pööre
LV Tikai daži apgriezieni
LT Tik keli pasukimai
PL Wystarczy kilka obrotów
RU Только несколько оборотов
UK Лише декілька обертів
BG Само няколкозавъртания
CS Pouze několik otáček
SK Len niekol’ko otáčok
SL Le nekaj obratov
HR/BiH Samo nekoliko okreta
RO Doar câteva rotiri
HU Csak néhány fordítás
EL Μόνο λίγες περιστροφές
TR Yalnızca birkaç tur
طقف تارود ضعب AR
םיבוביס רפסמ קר HE
ZH 仅几圈
JA ２～３回転のみ
KO 몇 번만 돌리면 됨
TH เพียงสองสามรอบ
x8
A16 mm
09 106 09106
6
Ax1
5 mm
6 Nm
6 Nm

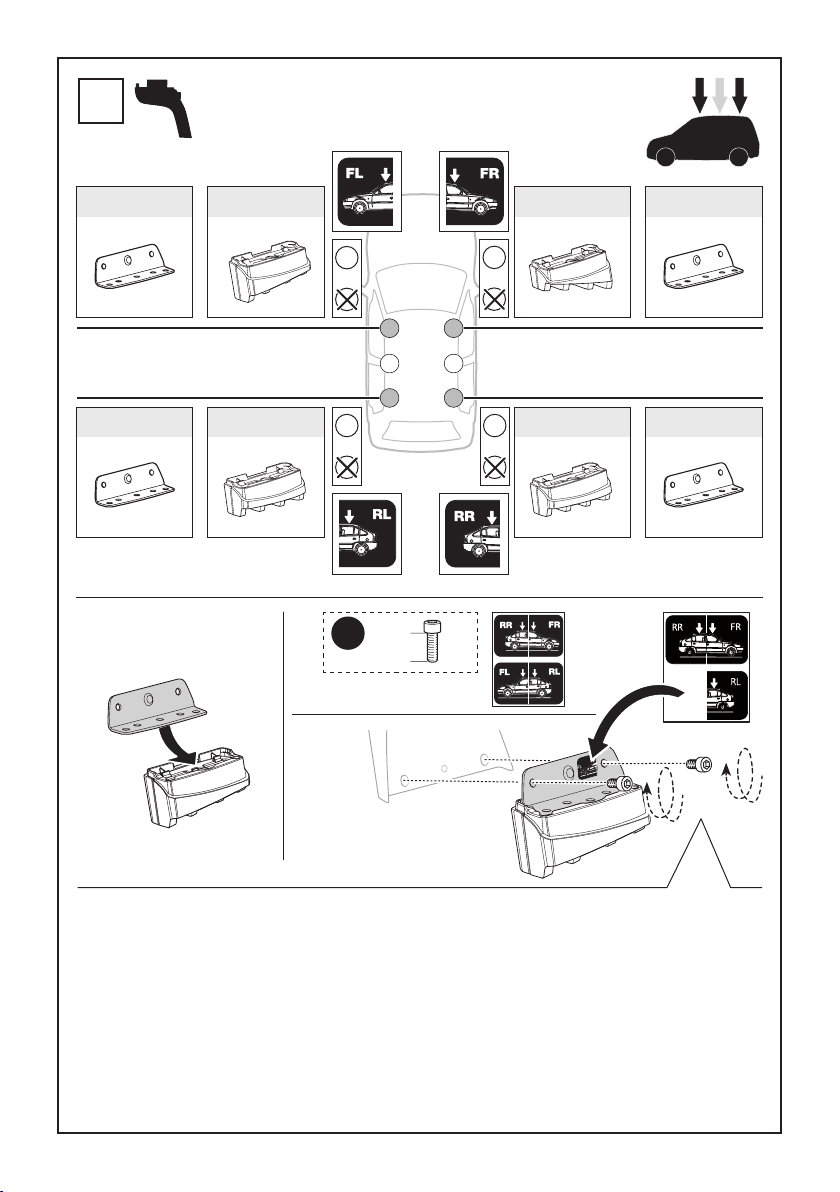

509-3070-01
A
C
B
D
2751
FootPack
x4 x4
50 mm

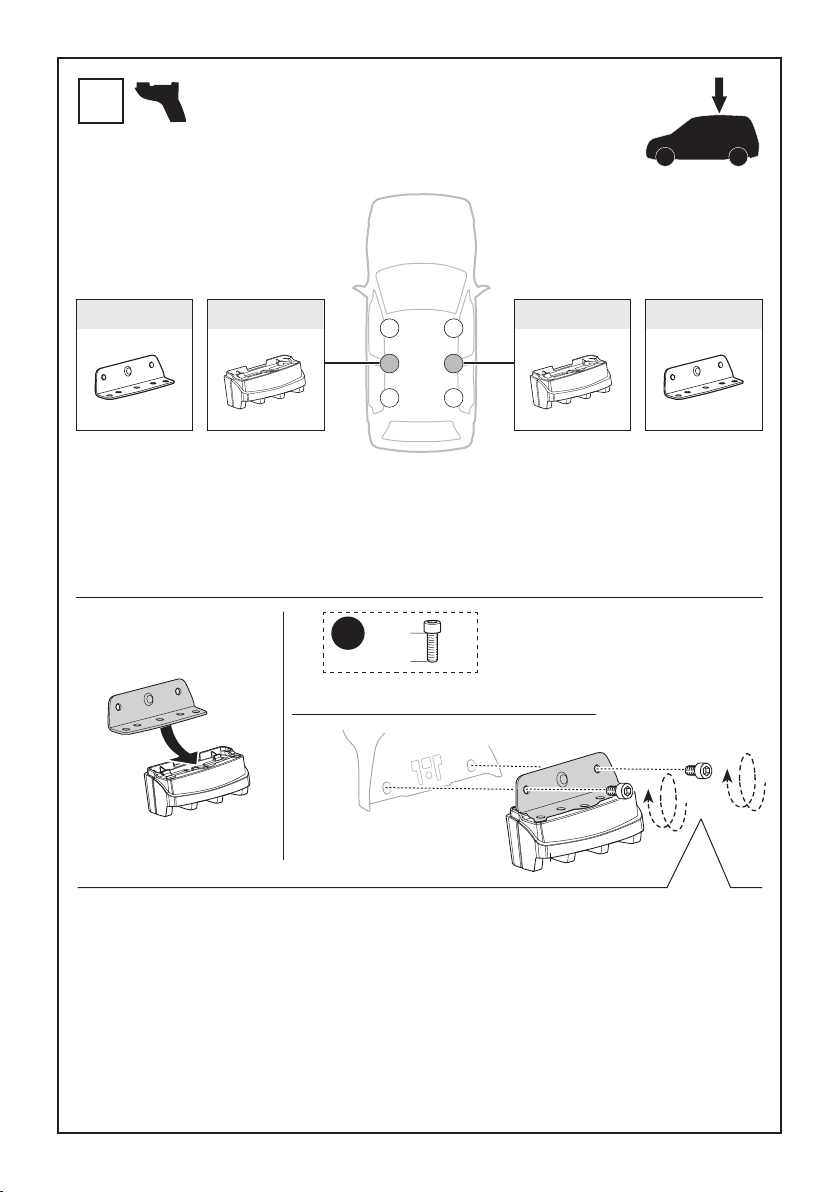

7
Ax1
5 mm
6 Nm 6 Nm
509-3070-01
A
C
B
D
2753
FootPack
x2 x2
50 mm
509-3070-01
ww
NA
Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN
Thule Inc., 42 Silvermine Road, Seymour, Connecticut 06483, USA www.thule.com
Phone: 800-238-2388
