IMPORTANT NOTE: Battery is supplied at 30% charge from the factory for safety compliance.
You must charge the battery before use for accurate readings to be achieved.
Owners Manual
Overview

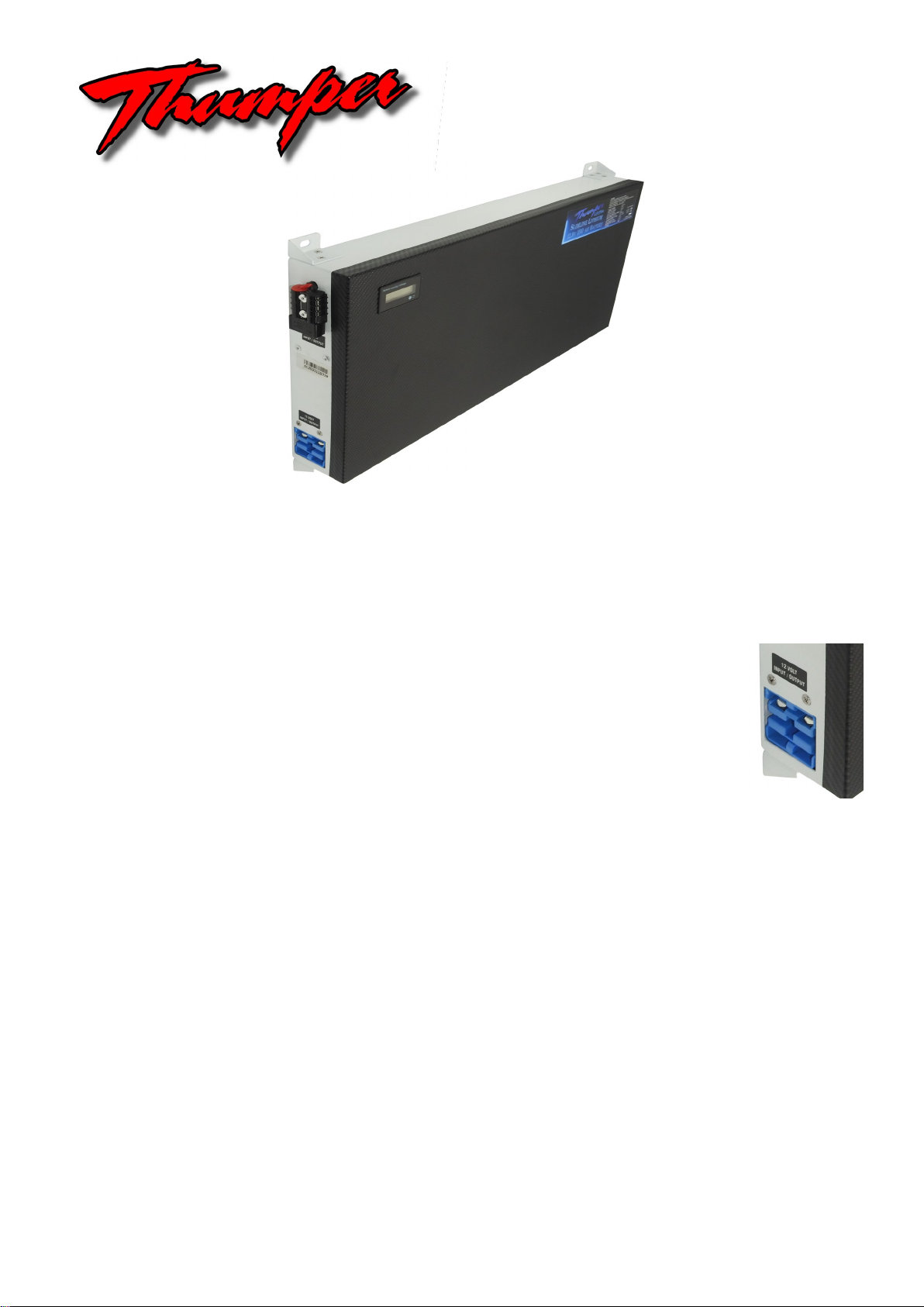

These Thumper slimline lithium iron phosphate (LiFePO4)
batteries are for situations where space is at a premium.
They measure just 75mm high and weigh less than 25kgs.
Each is fitted with 2 x 120A Anderson, wired as both
input and output for easy connection to your equipment
or solar charger
output.
Each size unit utilises the same
battery management system
found in the standard
LiFePO4 battery series for safe operation at all times,
plus a handy voltage & capacity readout.
Warnings
This battery utlises LiFePO4 chemistry which is the safest
type of lithium chemistry for use in mobile vehicle applica-
tions. However you should adhere to the following
warnings:
•
Avoid mechanical shock of the battery.
•
Do not expose the battery to fire or open flame.
•
Do not pierce the battery.
•
Do not disassemble the battery or its housing.
•
Do not drill into or modify the enclosure in any way.
•
Do not expose to moisture or water ingress
•
Do not store the battery below -20°c or above 60°C
Installation
This battery has been designed for permanent installation
in a car, caravan or 4WD as a portable power source for
connected appliances.
The battery must be installed and af-
fixed to a surface using the mounting tabs on the housing to
prevent it from becoming a projectile in a vehicle accident.
The slimline design allows the battery to be mounted behind
or under a seat, into custom cabinets or on the internal walls
of your camper or caravan.
Ensure your installation location will provide adequate
ven
tilation (25mm clear space around the battery), taking
into consideration the operating discharge temperature
of the
TLSL-100
100Ah
TLSL-135
135Ah
battery.
This
battery
is
not
suitable
for
installation
in:
•
Vehicle engine bay or a high heat environment.
•
External/exposed
locations
where
moisture
is
present.
•
Inside
compartments
dedicated
to
carrying
gas.
If in doubt we encourage you to engage a professional to
install the battery into your vehicles power system.
Once installed in a suitable location
the battery can be connected
using the dual 120A input output
terminals on the side of the battery
enclosure. You should use the
included connection cables for this
purpose as the mating connector is
not suitable for use with a genuine
grey
Anderson
120
Amp
connector.
It
does mate with a blue 120 connector, should you wish to
terminate your own cabling). The included cable is 16mm2
(4AWG) gauge and suitable for carrying the full discharge
rating of the battery. Ensure any connected wiring matches
this specification.
It must be suitable for carrying up to 1ODA
current.
Note that there is no internal fuse protection on the
Anderson style output connections. For safety you MUST use
an external in-line fuse rated to 1ODA for each connection.
The BMS is designed for up to 1ODA continuous charge
and discharge.
Please take this into consideration when
connecting your chosen method of charging and your
appliance loads.
Charging
LiFePO4 lithium batteries require slightly different charging
parameters compared to their lead acid counterparts. As
such you should use a AC charger, DC-DC charger or solar
regulator
which
features
a
LiFePO4
compatible
mode.
The
