Operation and Installation Guide

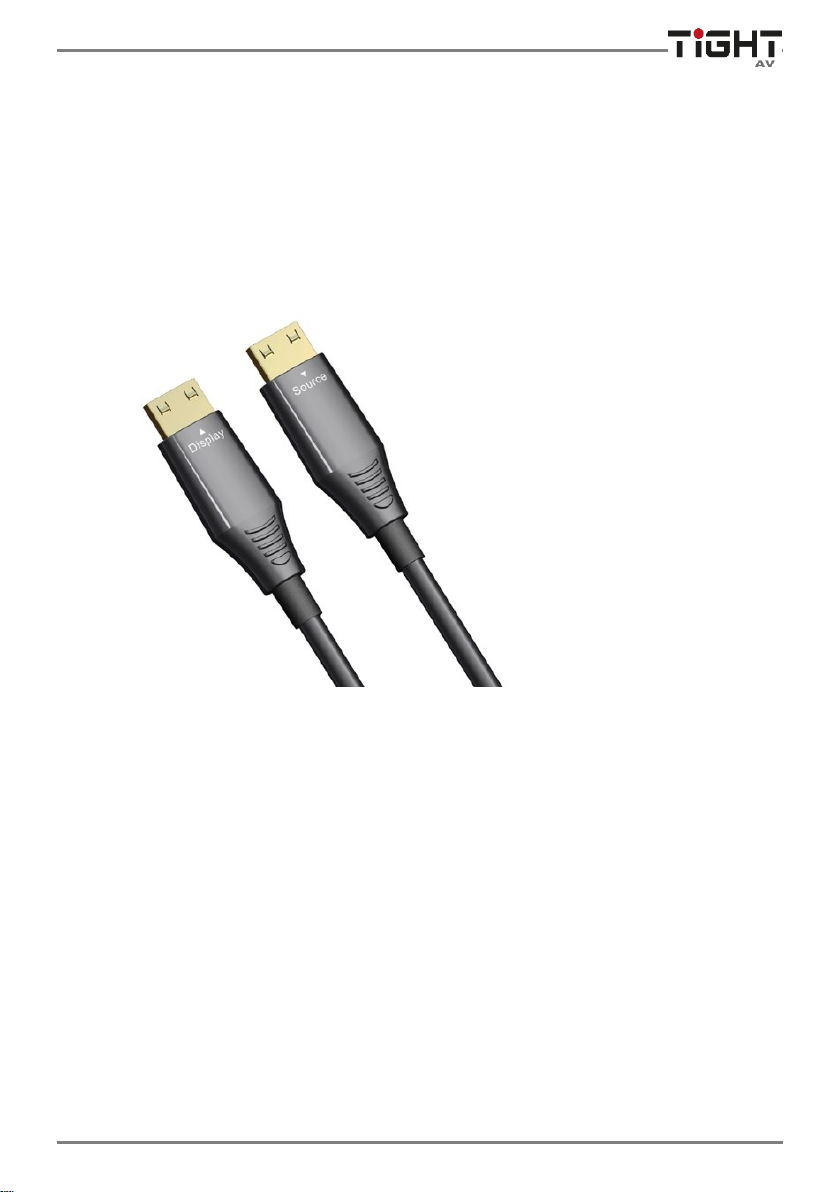

HDMI ULTRA PRO AOC
HDMI 2.1 AOC Cable
The HDMI AOC cables are designed for high-end consumer or professional 4K/8K HDMI
applications while providing a reliable plug-and-play user experience.
Features
4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps.
Proprietary Low Power High Bandwidth Chipset.
EMI (electromagnetic interference) protection.
Powered by the HDMI source device. No external power supply needed.
Connector locking mechanism for secure installation.
Durable and strong.
Variable Refresh Rate (VRR), Auto Low Latency Mode.
(ALLM), Quick Frame Transport (QFT).
Supports Dynamic HDR and eARC.
Specifications
Key Features
Models
HDMI-M/M-AOC-15
HDMI-M/M-AOC-30
HDMI-M/M-AOC-60
Protocol specification
HDMI 2.1 & HDMI 2.0 & HDMI 1.4
Video resolution
Up to 8K@60Hz 4:4:4
Transmission speed
48Gbps(12Gbps per channel)
Connector
Source
HDMI Type A Male (Gold plating)
Display
HDMI Type A Male (Gold plating)
Cable
Cable specifications
1C+(2c*30#+DA)+3C*28#+2C*24#+F+AL+B
Optical fiber specifications
4*Multi-mode optical fiber
Available lengths
HDMI-M/M-AOC-15: 15 meters
HDMI-M/M-AOC-30: 30 meters
HDMI-M/M-AOC-60: 60 meters
Outer sheath material
PVC
Outer sheath color
Black
Outer diameter
5.2mm±0.1mm
Cable bending radius
6mm
Connector max pulling strength
150N (15kg,33lbs)
Cable max pulling strength
500N (50kg,110lbs)
Environment
Operating temperature
-20℃to +70℃
Storage temperature
-40℃to +80℃
Power
Input voltage
+5V
Energy consumption
≤500mW
Attention
Please avoid excessive bending of the optical fiber during use, please refer to the bending
radius for details.

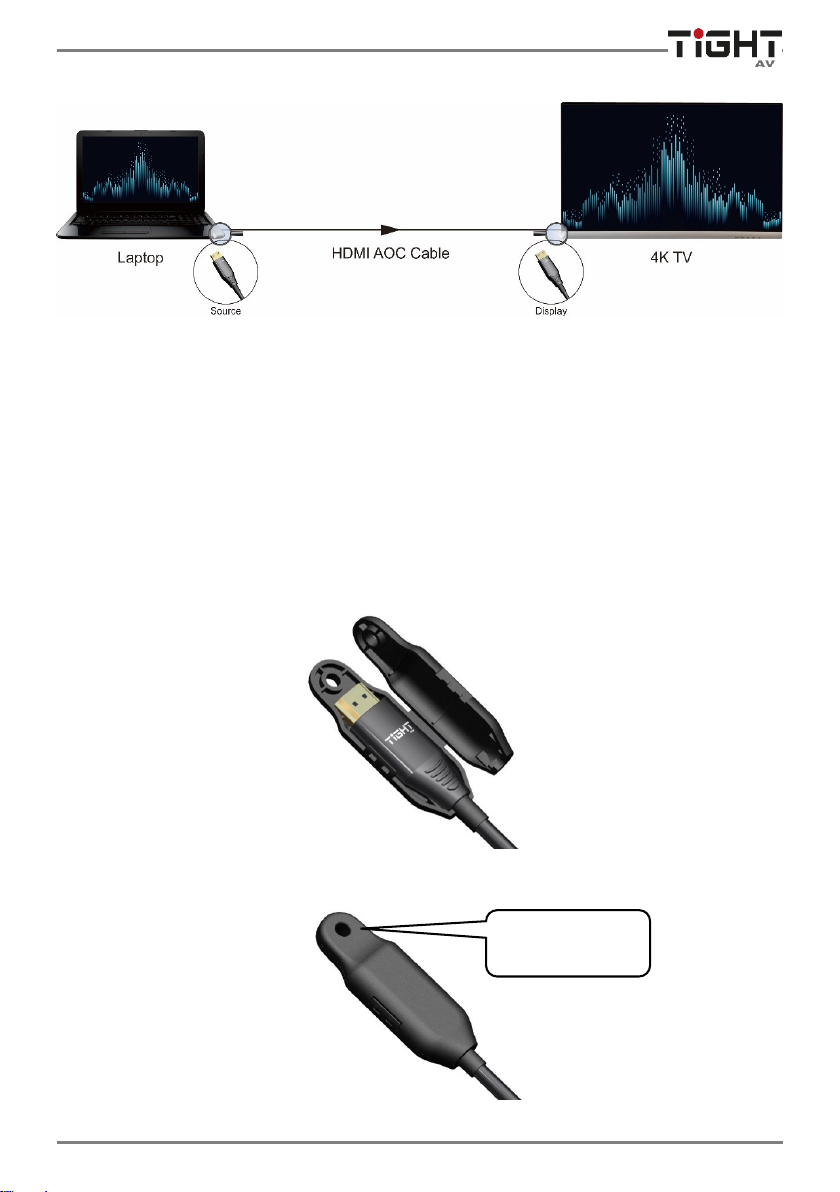

Installing Cable
Note:
Pay attention to the direction of connection.
Do not plug the SOURCE connector to the display device.
Do not plug the DISPLAY connector to the source device.
The source device needs to supply power to the AOC cable.
Do not exceed cable bending radius.
Using Pull Cover
1. Place the HDMI connector inside the pull cover.
2. Close the pull cover and insert the pulling cable through the pull cover ring.
Pull cover ring
3. Do not exceed the maximum connector pulling strength (150N) when installing the cable.
*Exceeding maximum pulling strength specifications voids warranty*

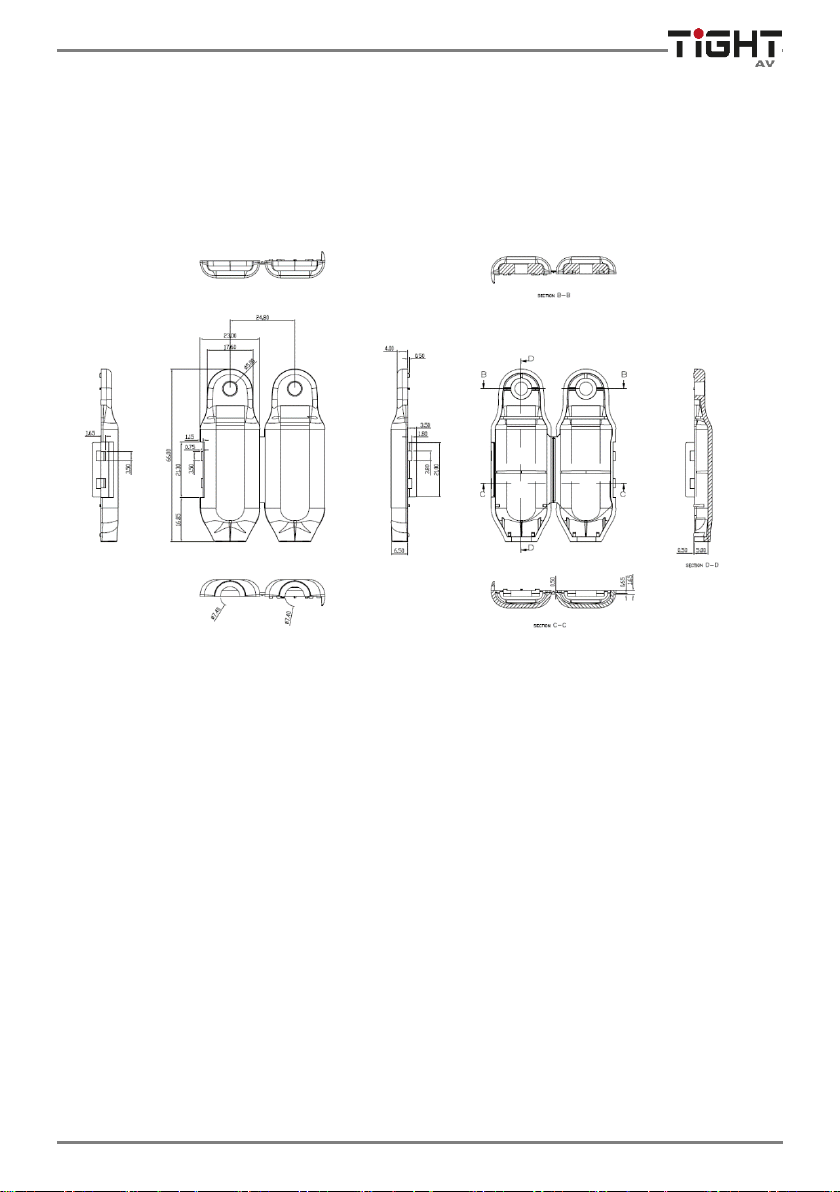

Pull Cover Size
Customer Service
We provide limited warranty for the product within one year counting from date of purchase
(The purchase invoice shall prevail).
