TiGHT AV EXT-H102UETH-HDBT Manuale utente
User Manual
EXT-H102UETH-HDBT
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
All Rights Reserved
Version: EXT-H102UETH-HDBT_2021V1.0
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated by
March, 2020. In the constant effort to improve the product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫Unpack the equipment carefully and save the original box and packing material
for possible future shipment.
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
⚫Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
⚫Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
⚫Do not put any heavy items on the extension cable in case of extrusion.
⚫Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫Keep the module away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
⚫Do not twist or pull by force ends of the cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
to the device before cleaning.
⚫Unplug the power cord when left unused for a long period of time
⚫Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Packing List .......................................................................................................2
1.3 Customer Service ..............................................................................................2
2. Specification ...............................................................................................................3
3. Panel Description........................................................................................................5
3.1 Transmitter.........................................................................................................5
3.2 Receiver ............................................................................................................7
4. System Connection.....................................................................................................9
4.1 ARC System Connection ...................................................................................9
5. Panel Drawing ..........................................................................................................11
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
1
1. Product Introduction
Thanks for choosing the EXT-H102UETH-HDBT HDMI2.0b Extender set, which
consists of a transmitter and a receiver. This set is utilizing the latest HDBaseT 3.0
technology. It can extend 4K or 1080p video to distance up to 100 meters (328 feet)
over a single CAT6A solid core cable without any compression. It supports audio de-
embedding and ARC. It also supports bi-directional IR, USB and RS232 pass-through
control and Ethernet extension. 24V PoC feature allows the transmitter and the receiver
can be powered from each other and only one power adapter is needed in system.
1.1 Features
•HDBaseT 3.0 technology which supports extending HDMI 2.0 without any
compression.
•Supports HDMI 2.0b, 4K@60 4:4:4, HDR10, Dolby Vision, HDCP 2.3.
•Extends up to 4K60 4:4:4 video signals up to 100 meters over a single CAT6A cable
•Supports Bi-directional IR and RS232 pass-through control.
•Flexible USB 2.0 Extension - Transmitter or receiver side can be set as
Host/Device.
•Supports Gigabit full duplex Ethernet extension from either transmitter or receiver.
•Supports audio de-embedding on a balanced analog output on transmitter.
•Supports ARC (Audio Return Channel).
•Features a HDMI loop out on transmitter.
•Supports bi-directional 24V PoC.
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
2
1.2 Packing List
•1x EXT-H102UETH-HDBT Transmitter
•1x EXT-H102UETH-HDBT Receiver
•1x DC power adapter with EU plug(24v1.25A)
•4x Mounting Ears with 4x Screws
•8x Plastic Cushions
•1x 5-Pin terminal block
•2x 3-Pin terminal block
•1x User Manual
1.3 Customer Service
We provide limited warranty for the product within five years counting from date of
purchase (The purchase invoice shall prevail).
Note: Please contact your distributor immediately if any damage or defect in the
components is found.
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
3
2. Specification
Transmitter
Receiver
Video
Input
(1) HDMI IN
(1) HDBT IN
Input Connector
(1) Type-A female HDMI 2.0b
(1) RJ45
Input Resolution
Up to 4K@60Hz 4:4:4
Up to 4K@60Hz 4:4:4
Output
(1) HDBT OUT, (1) HDMI LOOP OUT
(1) HDMI
Output Connector
(1) RJ45, (1) Type-A female HDMI
(1) Type-A female HDMI
Output Resolution
Up to 4K@60Hz 4:4:4
Up to 4K@60Hz 4:4:4
Audio
Input
-
(1) ARC IN
Input Connector
-
(1) Toslink Connector
Output
(1) ARC OUT, (1) AUDIO OUT
-
Output Connector
(1) Toslink connector
(1) 5-pin terminal block
-
Audio Format
Toslink (ARC): PCM, Dolby Digital, DTS 5.1CH
5-pin terminal block: PCM 2CH
Frequency Response
20Hz ~ 20KHz, ±3dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal
consumer line level signal
THD+N
< 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFS level (or
max level)
SNR
> 85dB, 20Hz-20kHz bandwidth
Crosstalk Isolation
> 70dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation
< 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
Frequency Response
Deviation
< ± 0.5dB, 20Hz –20kHz
Output Load Capability
1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Stereo Channel Separation
>70dB@1KHz
Control
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
4
Control Part
(4) DEVICE,
(1) HOST,
(1) USB Switch,
(1) IR IN,
(1) IR OUT,
(1) RS232,
(1) ETHERNET
(4) DEVICE,
(1) HOST,
(1) ARC Switch,
(1) USB Switch,
(1) IR IN,
(1) IR OUT,
(1) RS232,
(1) ETHERNET
Control Connector
(4) Type-A USB 2.0,
(1) Type-B USB 2.0,
(1) 2-pin DIP Switch,
(2) 3.5mm Jacks,
(1) 3-pin Terminal Block,
(1) RJ45
(4) Type-A USB 2.0,
(1) Type-B USB 2.0,
(1) 3-pin DIP Switch,
(1) 2-pin DIP Switch,
(2) 3.5mm Jacks,
(1) 3-pin Terminal Block,
(1) RJ45
General
HDCP Version
Input: HDCP 2.3, HDCP 2.2, HDCP 1.4 compliant
Loop out: Follows the display’s HDCP version.
RX Output: Follows the source’s HDCP version.
CEC
Pass-through (when ARC switch is selected to PASS or SPDIF)
Bi-directional PoC
Supported
HDMI 2.0 Cable Length
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m
Transmission Distance
4K/1080p ≤ 100 meters (328 feet)
USB 2.0 Bandwidth over
HDBaseT
Up to 272Mbps
Operation Temperature
-5 to +55℃(+23° to +131°F)
Storage Temperature
-25 to +70℃(-13° to +158°F)
Relative Humidity
10% to 90%, non-condensing
Power Supply
Input:100V~240V AC; Output:24V DC 1.25A
Power Consumption
17W(Max)
Dimension (W*H*D)
212mm x 25mm x 100mm
Net Weight
570g(TX), 555g(RX)
Note: Please use high-qualified HDMI cable fully compliant with HDMI v2.0 for reliable
transmission and connection.
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
5
3. Panel Description
3.1 Transmitter
Transmitter Front Panel
①POWER LED: Illuminates green when power is applied, or blinks when in firmware
upgrade mode.
②LINK LED: Illuminates when there is a valid HDBaseT link between the transmitter
and the receiver.
③HDCP LED: Illuminates when the video contains HDCP content, or blinks when the
video has no HDCP content.
④IN LED: Illuminates when there is an HDMI source device is connected to HDMI
input port.
⑤LOOPOUT LED: Illuminates when both HDMI source device and HDMI display
device (HDMI loop out port) are connected.
⑥USB: DIP switch for DEVICE or HOST mode selection.
⚫DEVICE: The USB devices at transmitter position are used to control the
HOST PC at receiver position.
⚫HOST: The HOST PC at transmitter position is controlled by the USB
devices at receiver position.
⑦DEVICE: Four type-A USB 2.0 ports for USB devices (e.g. Mouse, Keyboard and
USB Camera) connection to control the PC which is connected to the HOST port of
receiver.
⑧HOST: Type-B USB 2.0 port for PC connection. The PC can be controlled by the
USB devices which are connected to type-A USB 2.0 ports of receiver.
IN
1 2 3 4 5 6 7 8
HDMI 2.0 Extender over HDBaseT 3.0 with USB 2.0
6

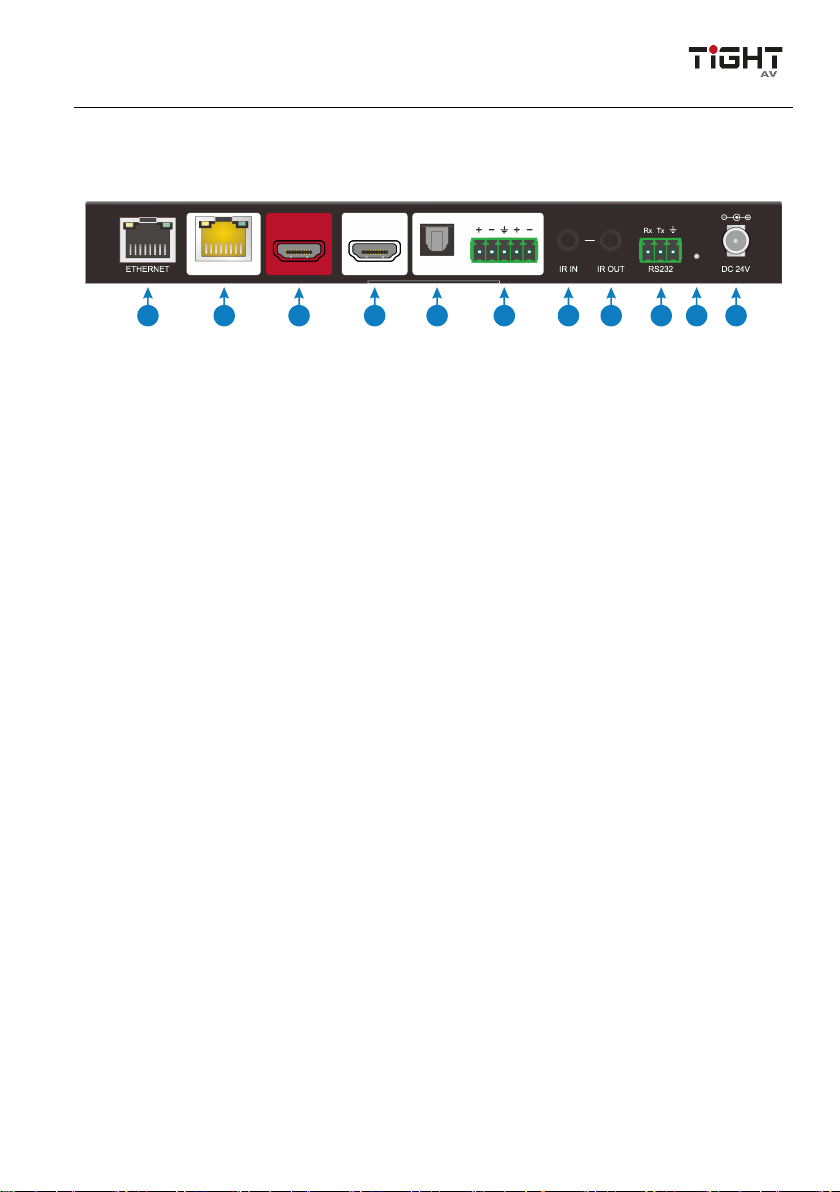

Transmitter Rear Panel
①ETHERNET: Used for Gigabit Ethernet extension together with the ETHERNET port
of receiver.
②HDBT OUT: RJ45 port to connect the HDBT input port of receiver by CAT6A
Ethernet cable. The LINK LED illuminates when there is a valid HDBaseT link between
the transmitter and the receiver. The HDCP LED illuminates when the video contains
HDCP content.
③HDMI IN: Connects to HDMI source device.
④LOOPOUT: Connects to HDMI display device.
⑤ARC OUT: Connects to audio system (e.g. amplifier) for ARC audio output.
⑥AUDIO OUT: Connects to audio system (e.g. amplifier) for audio de-embedding
from HDMI input.
⑦IR IN: Connects to the IR receiver for IR pass-through.
⑧IR OUT: Connects to the IR emitter for IR pass-through.
⑨RS232: Connects to RS232 control device (e.g. PC) or a third-party device for
RS232 control.
⑩FIRMWARE UPGRADE BUTTON: Press the button with paper clip or other sharp
tool for 3s to enter firmware upgrade mode. Update Valens IC program, connect a PC
to the RS232 port, and then double-click the update file (.bat). Press the button for 3s
again to exit the mode.
⑪DC 24V: DC connector for the power adapter connection.
HDBT OUT
HDCP
LINK
HDMI IN LOOPOUT ARC OUT AUDIO OUT
L R
ARC
1 2 3 4 5 6 7 8 91110
