Time Gaurd SLB500-Black Istruzioni per l'installazione

INSTALLATION & OPERATING

INSTRUCTIONS

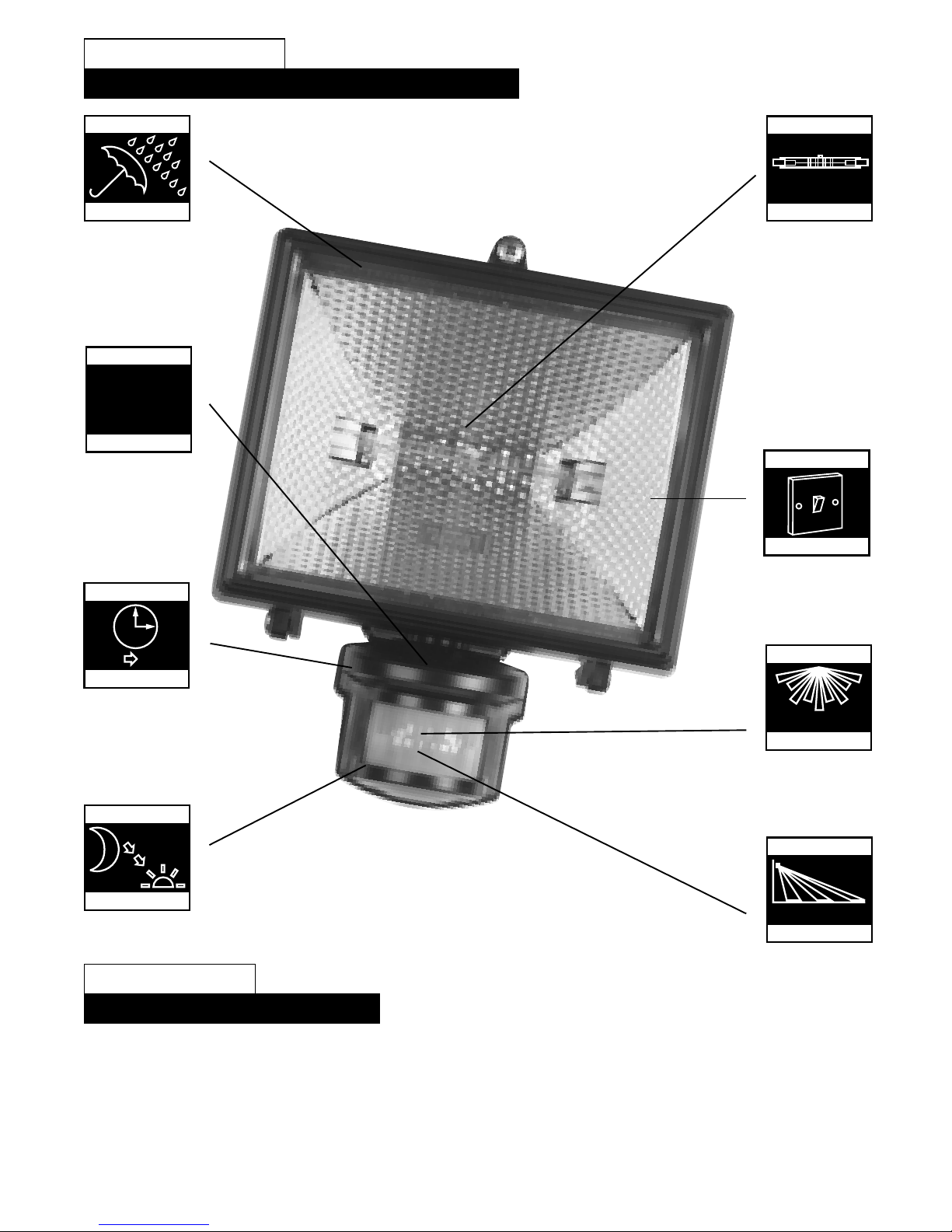

500W PIR HALOGEN

FLOODLIGHT

SLB500-Black/SLW500-White

150W PIR HALOGEN

FLOODLIGHT

SLB150-Black/SLW150-White

WEATHERPROOF

IP44

LAMP TYPE

MAXIMUM

500w

MANUAL ON/OFF

OVERRIDE

DETECTION ANGLE

ADJUSTABLE

140°

DETECTION RANGE

ADJUSTABLE

12m

PIR SWITCHING

MAXIMUM

2000w

TIME ON

ADJUSTABLE

5sec 5min

DUSK TO DAWN

ADJUSTABLE

In the unlikely event of this product becoming faulty due to defective material

or manufacture, within 3 years of the date of purchase, please return it to your

supplier with proof of purchase and it will be replaced free of charge.

Should you encounter any difficulty please contact

our helpline on 020 8450 0515.

3 YEAR

GUARANTEE

SLB500/SLW500

500W PIR HALOGEN FLOODLIGHT

LAMP TYPE

MAXIMUM

150w

In the unlikely event of this product becoming faulty due to defective material

or manufacture, within 3 years of the date of purchase, please return it to your

supplier with proof of purchase and it will be replaced free of charge.

Should you encounter any difficulty please contact

our helpline on 020 8450 0515.

3 YEAR

GUARANTEE

WEATHERPROOF

IP44

MANUAL ON/OFF

OVERRIDE

DETECTION ANGLE

ADJUSTABLE

140°

DETECTION RANGE

ADJUSTABLE

12m

PIR SWITCHING

MAXIMUM

2000w

TIME ON

ADJUSTABLE

5sec 5min

DUSK TO DAWN

ADJUSTABLE

SLB150/SLW150

150W PIR HALOGEN FLOODLIGHT

SECTION ONE

GENERAL INFORMATION

The unit utilises passive infrared technology to detect heat radiation of moving human bodies.

Upon detection, the lamp will illuminate for a user-determined time period.

An integral daylight sensor ensures night-only operation.

PARTS INCLUDED

- Luminaire c/w PIR Sensor unit.

- Instruction manual. Please keep safe for future reference.

- Accessory Pack.

- Tungsten halogen bulb

TOOLS & PARTS NEEDED

- Electric/hand-held drill & bits.

- Terminal or Electricians screwdriver

- Large slotted/philips screwdriver

- Wire cutters

Unit is for outdoor use only. Unit must be mounted on a non-flammable surface as a fixed

luminaire, and is not suitable for portable use.

The unit can get very hot during use. Ensure the unit has cooled before handling.

Ensure adequate ventilation space is allowed between the unit and any object above, in front or

to either side of the unit. Suggested space is 0.5m above, 0.3m to either side & 1.0m in front.

If in any doubt, consult a qualified tradesperson or electrician.

SECTION TWO

SELECTING THE LOCATION

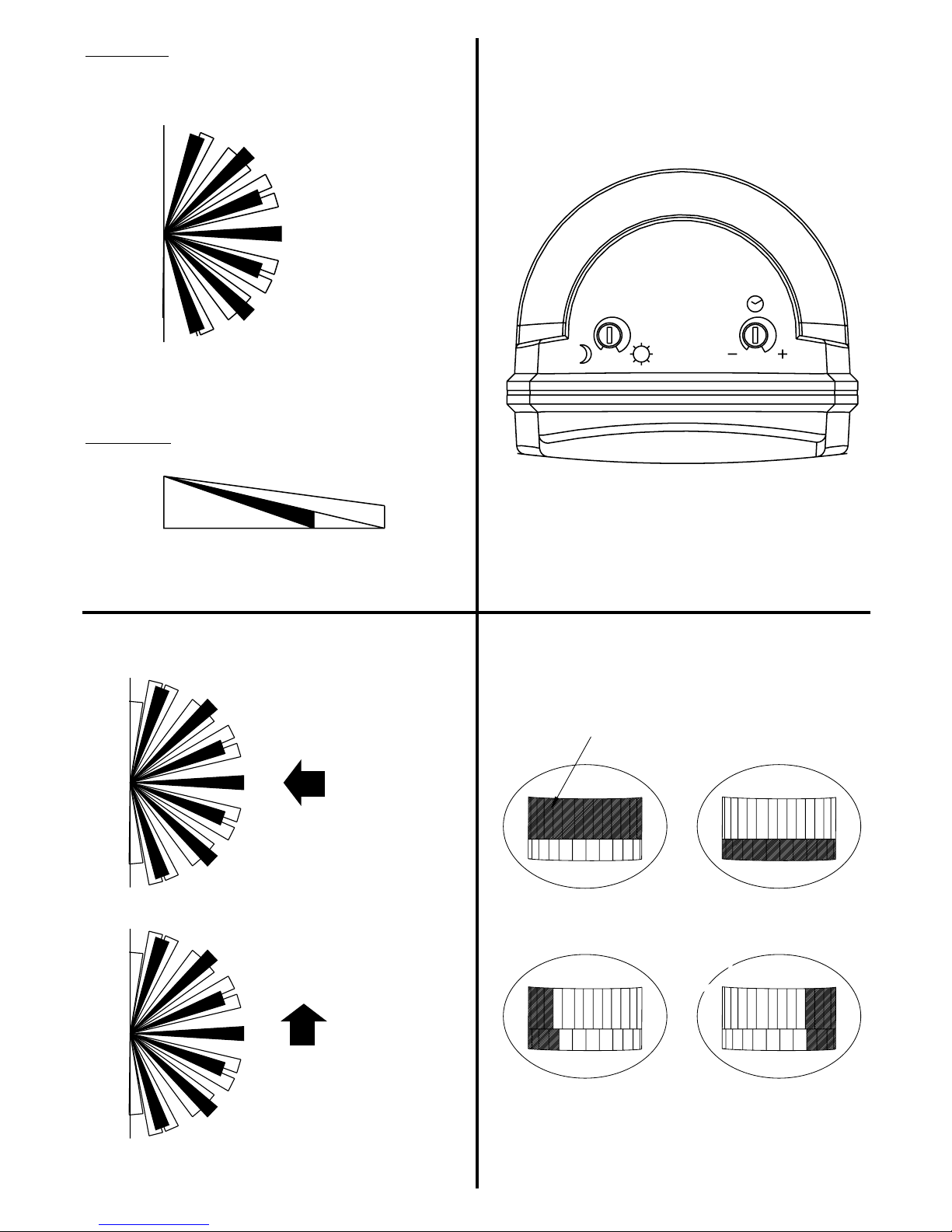

The motion detector has a number of detection zones, at various vertical and horizontal

angles as shown (see diagram A).

A moving human body needs to cross/enter one of these zones to activate the sensor. The

best all-round coverage is achieved with the unit mounted at the optimum height of 2.5m.

Careful positioning of the sensor will be required to ensure optimum performance. See

diagram A detailing detection range and direction.

The sensor is more sensitive to movement ACROSS its field of vision than to movement

directly TOWARDS (see diagram B). Therefore position the unit so that the sensor looks

ACROSS the likely approach path.

Avoid positioning the sensor where there are any sources of heat in the detection area

(extractor fans, tumble dryer exhausts etc.).

Reflective surfaces (ie pools of water or white-painted walls) and overhanging branches may

cause false activation under extreme conditions.

During extreme weather conditions the motion sensor may exhibit unusual behaviour. This

does not indicate a fault with the sensor. Once normal weather conditions return, the

sensor will resume normal operation.

SECTION THREE

INSTALLATION

After choosing a suitable location

(see previous section)

install the unit as follows:

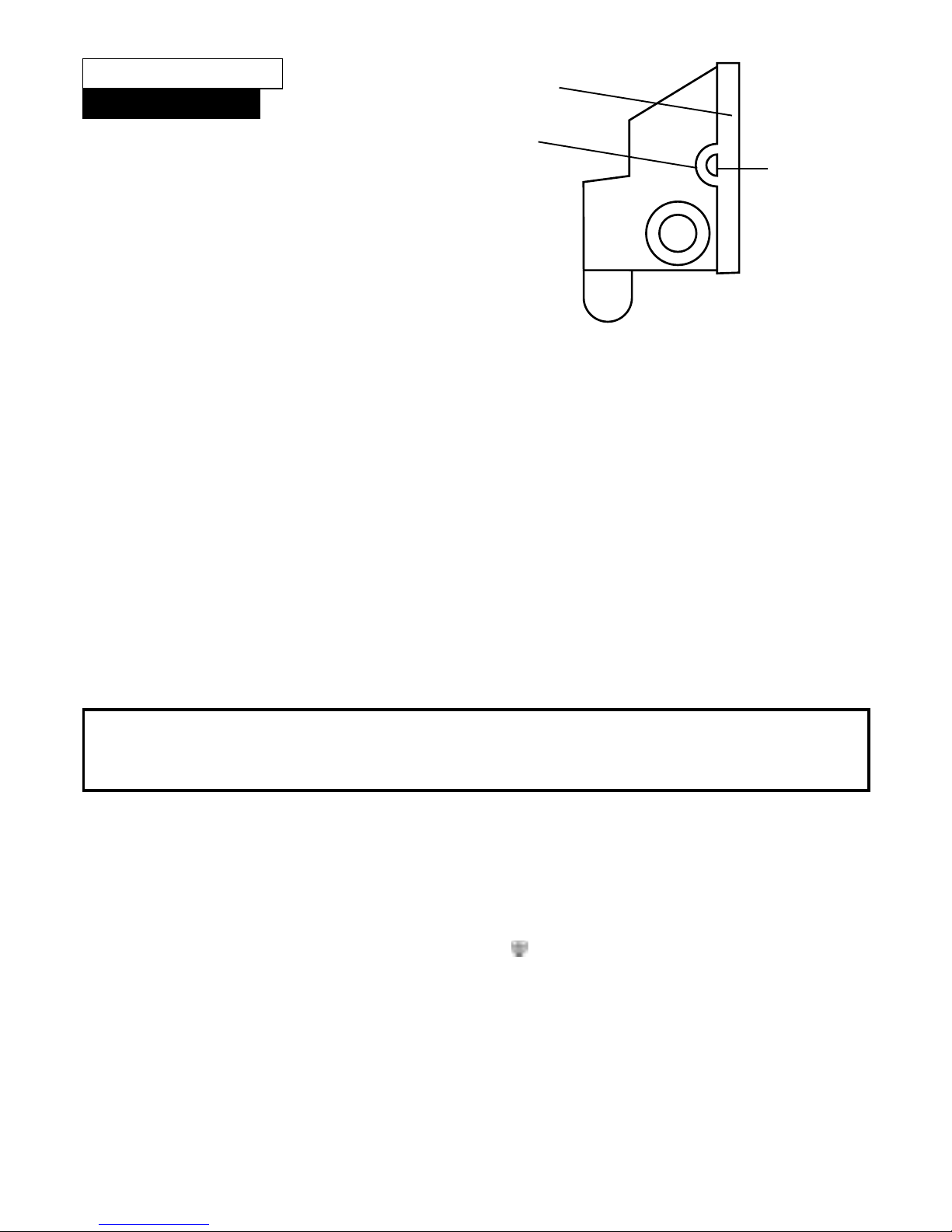

Remove the wiring box cover by gently pushing the

side retaining lugs inwards and lift off.

The unit is suitable for connection to a 230 V ac 50Hz electricity supply. It is suggested that

3-core round flexible cable of 1mm2gauge is used. A isolating should be installed to switch

the power to the unit ON & OFF. This allows the sensor to be easily switched off when not

required or for maintenance purposes.

Unfasten the screw on the top of the floodlight. Install the halogen bulb, making sure not

to touch the bulb with bare hands. It is suggested that the bulb is handled using a dry

cloth.

Ensure the bulb is correctly fitted in the lampholder before use.

Re-attach the front cover, do not overtighten the fixing screw.

Mark the position of the fitting holes from the wall bracket.

Drill the holes. Insert the rawl plugs into the holes.

Fix the bracket to the wall.

*** IMPORTANT ***

Switch off the electricity at the fuse box by removing the relevant fuse or

switching off the circuit breaker before proceeding with the installation.

CONNECTION

PIERCE & PASS THE CABLE THROUGH THE GROMMET BEFORE PROCEEDING.

Connect the cable to the terminal block on the unit as follows (see connection diagram):

NEUTRAL (Blue) N

EARTH (Green/Yellow)

LIVE (Brown) L

Ensure that the connections are secure.

For details of override connections, please see later sections.

Secure the cable using the cord grip provided.

Re-attach the wiring box cover, ensuring a weatherproof seal is obtained.

Fix the floodlight to the bracket

Retaining Lugs Insert small

screwdriver

and gently

push and lift

cover off.

Wiring Box Cover

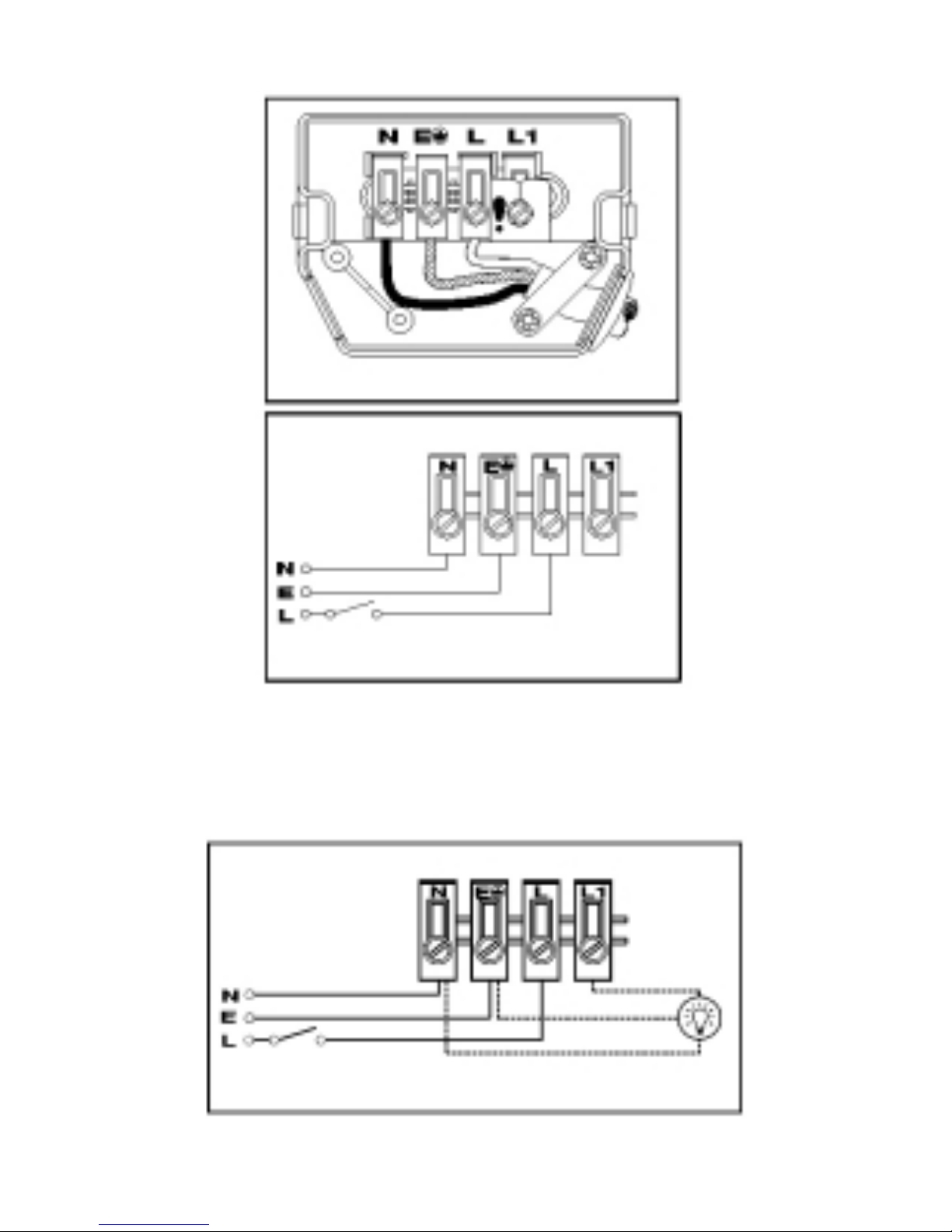

CONNECTION DIAGRAM

Mains

Supply

Isolation

Switch

The diagram below also shows the required connections for the addition of slave luminaires.

When adding slaves, be sure not to exceed the maximum switchable load (see Technical

Specifications).

WALK TEST PROCEDURE

The sensor will rotate from left to right, and tilt forward or backward. Adjust the sensor to

point in the required direction.

The unit can be set up in daylight or at night.

Set the time adjustment to minimum (fully anti-clockwise).

Turn the power to the unit on. The lamp will illuminate for approximately 30 seconds. This

indicates the unit is wired correctly.

After approximately 30 seconds the light will turn off.

The unit is now in Test Mode.

TEST MODE

The lamp will now illuminate for approximately 5 seconds every time movement is detected.

Walk across the detection area approximately 5 metres from the unit. Each time you are

detected the lamp will illuminate. Now stand still until the lamp extinguishes (this should

take approx. 5 seconds).

Start moving again, when you are detected again, the lamp will illuminate.

Repeat the above, walking at various angles and distances to the unit. This will help you to

establish the detection pattern.

If the detection area is too small for your requirements, try angling the sensor head up. This

will increase the detection area. Angling the head downwards will reduce the detection

area should a smaller coverage be required.

SETTING UP FOR AUTOMATIC OPERATION

When walk tests are complete, the unit can be automatically switched into Automatic Mode.

If you simply cease movement within the detection area for approximately 60 seconds, the

unit will then switch to Automatic Mode.

The TIME setting controls how long the unit remains illuminated following activation and

after all motion ceases. (See diagram C, the time adjustment knob is indicated by the

"Clock" symbol).

The minimum time (fully anti-clockwise) is approx. 5 seconds, whilst the maximum time (fully

clockwise) is approx. 5 minutes. Set the control to the desired setting between these limits.

The DUSK control determines the level of darkness required for the unit to start operating.

The setting is best achieved by the procedure below:

Set the DUSK control knob fully anti clockwise (See diagram C, the DUSK adjustment knob is

indicated by the "Moon" and "Sun" symbols).

Wait until darkness falls.

When the ambient light level reaches the level of darkness at which you wish the lamp to

become operative (i.e.: at dusk) SLOWLY rotate the control in a clockwise direction until a

point is reached where the lamp illuminates. Leave the control set at this point.

At this position the unit should become operative at approximately the same level of

darkness each evening. Observe the operation of the unit. If the unit is starting to operate

too early (i.e.: when it is quite light) adjust the control slightly anti-clockwise. If the unit

starts to operate too late (i.e.: when it is very dark). Adjust the control slightly clockwise.

Continue to adjust until the unit operates as desired.

SECTION FOUR

OPERATION AND TESTING

SECTION FIVE

TECHNICAL SPECIFICATIONS

Detection Range

Detection Angle

Power Supply

Maximum Switchable Load

(Including fitted lamp)

Lamp Type

Time On Adjustment

Dusk Level Adjustment

Environmental Protection

EC Directives

Up to 12 metres

140º

230 V AC ~ 50Hz

2000W (4 x 500W) Tungsten Halogen

1000W (10 x 100W GLS) Incandescent

SLB/W150 230V Linear Tungsten Halogen 150W max

(R7S cap)

SLB/W500 230V Linear Tungsten Halogen 500W max

(R7S cap)

5 seconds - 5 minutes

Day & night or night only operation

IP44 (suitable for outdoor use)

Conforms to 73/23/EEC, 89/336/EEC

In the event of the cover glass shattering, do not replace with normal household glass.

Contact the helpline for replacement details.

If you experience problems refer to Troubleshooting Guide.

If problems still exist, do not immediately return the unit to store.

Telephone the Timeguard Customer Helpline

020 8450 0515

Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.

MASKING THE SENSOR LENS

To restrict the sensor coverage, preventing detection in unwanted areas, mask the sensor lens

using the masking label provided (see diagram D). For your information, the top section of

the lens covers long range detection, the bottom covers short range. Similarly the left and

right lens sections cover the left and right detection areas respectively. (see diagram E)

MANUAL OVERRIDE MODE

The light can be switched on for longer time periods by use of the Manual Override Mode.

This can be activated at night by using the internal wall switch or circuit breaker.

Switch the internal wall switch/circuit breaker twice (off/on off/on) within 2 seconds. The unit

will now illuminate continuously until dawn or until switched back into Auto Mode.

To switch the unit back into Auto Mode, flick the internal wall switch/circuit breaker once

(off/on) within one second. The unit will return to its Auto mode and will operate as set up

during the walk test period.

SECTION SIX

TROUBLESHOOTING GUIDE

PROBLEM

❏Lamp stays ON all the time

at night.

❏PIR keeps activating for no

reason / at random.

❏PIR sensor will not operate

at all.

❏The PIR sensor will not

operate at night.

❏Unit activates during the

daytime

❏PIR coverage is

poor/sporadic

❏ Detection range varies from

day to day

SOLUTION

The unit may be suffering from false activation. Cover the

sensor lens completely with a thick cloth. This will prevent

the sensor from "seeing" anything. If the unit now

switches off after the set time duration and does not re-

activate, this indicates that the problem was caused by

false activation. The problem may be solved by slightly

adjusting the direction/angle of the sensor head (see

previous section).

You may not be allowing the unit time to complete it's

warm-up period. Stand well out of the detection range and

wait (the warm-up period should never exceed 5 minutes).

Occasionally, winds may activate the sensor. Sometimes passages

between buildings etc. can cause a "wind tunnel" effect.

Ensure the unit is not positioned so as to allow detection of

cars/people using public thoroughfares adjacent to your property.

Check that the power is switched ON at the circuit

breaker/internal wall switch.

Turn OFF the power to the unit and check the wiring

connections as per the diagram (see previous section 3).

Ensure no connections are loose.

Check the lamp. If the lamp has failed, replace. Ensure that

the lamp is seated correctly in the lampholder.

The level of ambient light in the area may be too bright to

allow operation at the current DUSK setting. During the

hours of darkness, adjust the DUSK control slowly

clockwise until the lamp illuminates. Refer to previous

section for more details.

The level of ambient light in the area may be too dark for

the current DUSK setting. During daylight, adjust the DUSK

control slightly anti-clockwise. When the lamp load

extinguishes, enter the detection area. If the PIR still

activates, the setting is still too high. Repeat the above

procedure until the PIR does not activate when you enter

the detection area. Refer to previous section for more

details.

Unit may be poorly located. See previous section -

‘Selecting The Location’ and re-locate the unit.

PIR sensors are influenced by climatic conditions. The colder

the ambient temperature, the more effective the sensor will

be. You may need to make seasonal adjustments to the sensor

head position to ensure trouble-free operation all year round.

Less

sensitive

TOP VIEW

140º

SIDE VIEW

12m

2.5m

A C

Lens Mask

Restrict long detection Restrict short detection

Restrict RHS detection Restrict LHS detection

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Time Gaurd Proiettore

Time Gaurd

Time Gaurd TLRX150B Manuale

Manuali Proiettore popolari di altre marche

VIZULO

VIZULO Micro Martin Guida utente

EuroLite

EuroLite LED IP FL-100 SMD Manuale utente

Cooper Wheelock

Cooper Wheelock XB12 Manuale utente

Allen + Roth

Allen + Roth 17624-000 Manuale utente

ADJ

ADJ 4 STAGE PAK Manuale utente

Cooper Lighting

Cooper Lighting EGL91SW233 Manuale utente

Max

Max 37496 Manuale utente

BEGA

BEGA 85 143 Manuale utente

Beamz

Beamz 151.226 Manuale utente

EuroLite

EuroLite LED IP FL-8 Manuale utente

Ledj

Ledj PERFORMER 36 RGB Manuale utente

Perel

Perel ELS3 Manuale utente

Perel

Perel ELS3WD Manuale utente

LumX

LumX LM 36130 Manuale utente

Xtricity

Xtricity 4-80053 Manuale utente

Stahl

Stahl 6521/4 Series Manuale utente

Ecosense

Ecosense EcoSpec Manuale utente

Ayrton

Ayrton minipanel FX Manuale utente
