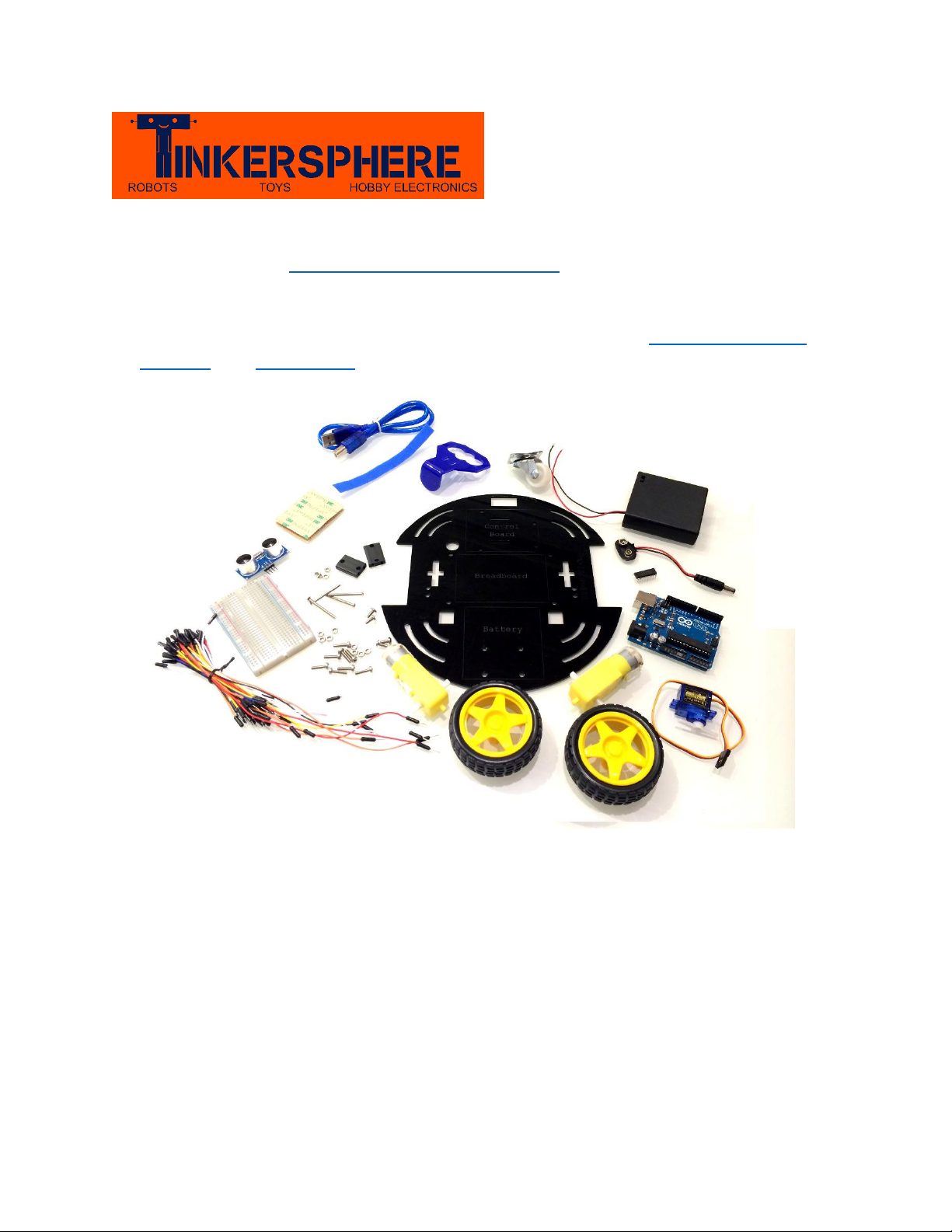

TINKERSPHERE TS-427 Manuale utente
Assembly Instructions:

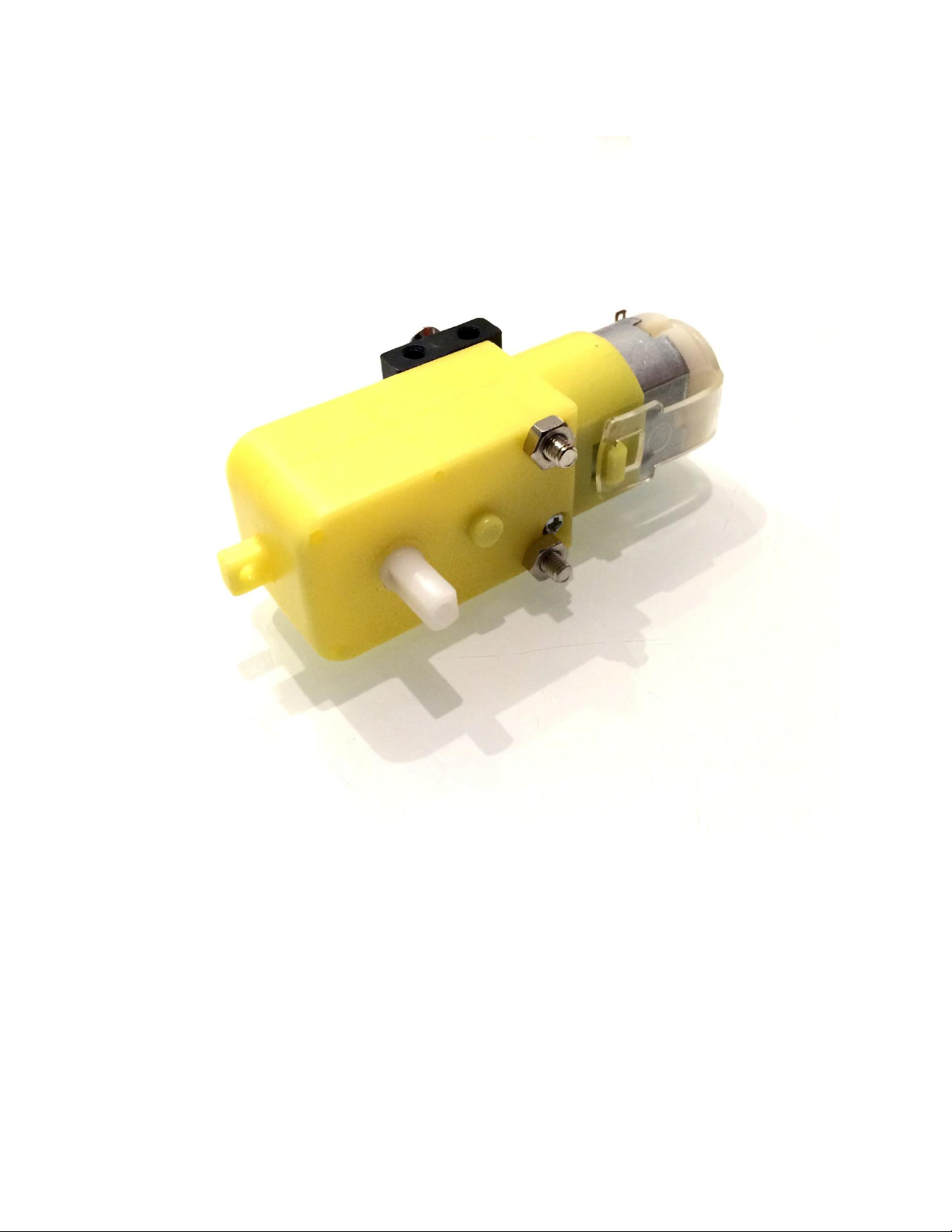

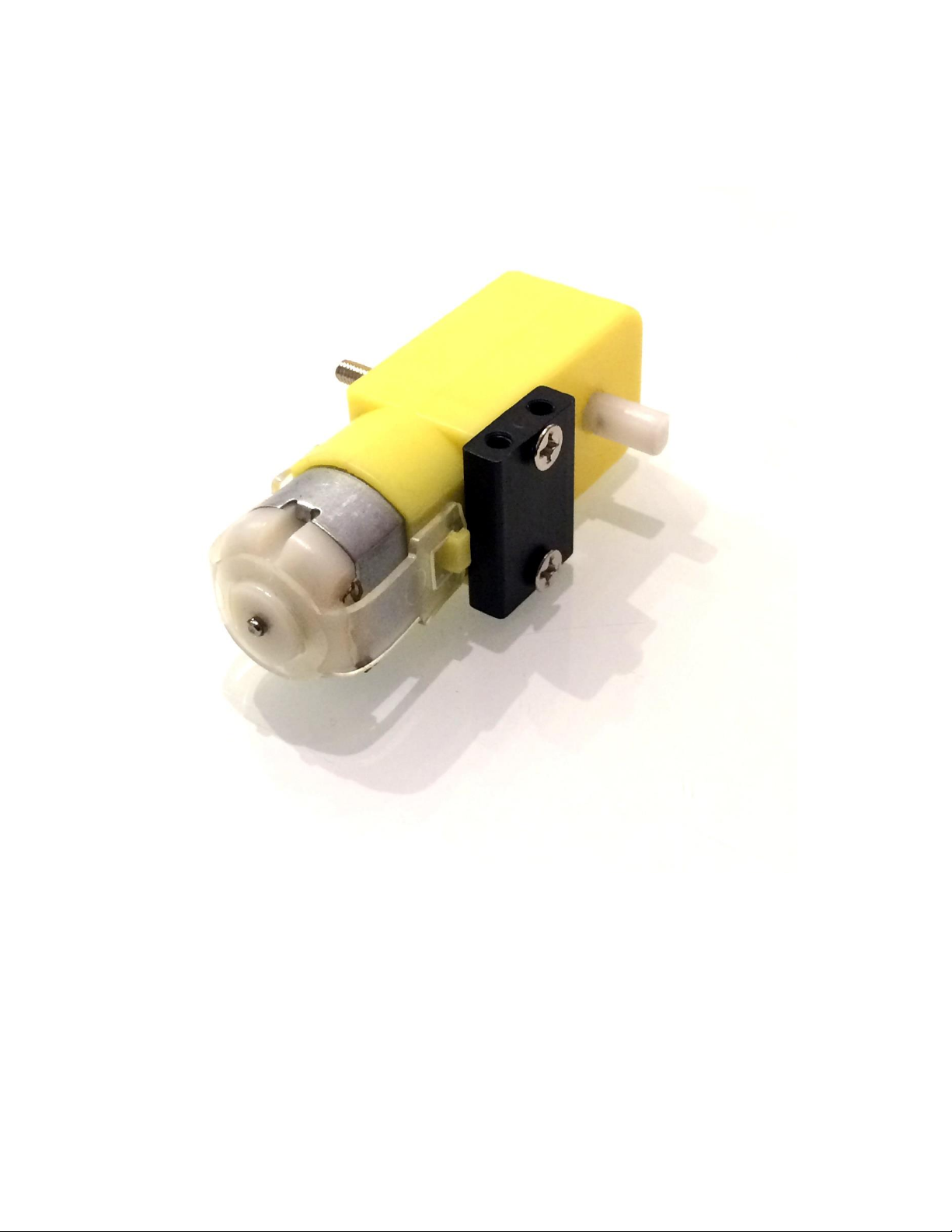

Slide the long Motor Mount Screws through the 2 holes in the Gearbox Motor
Attach with Nuts. Repeat for the other motor.

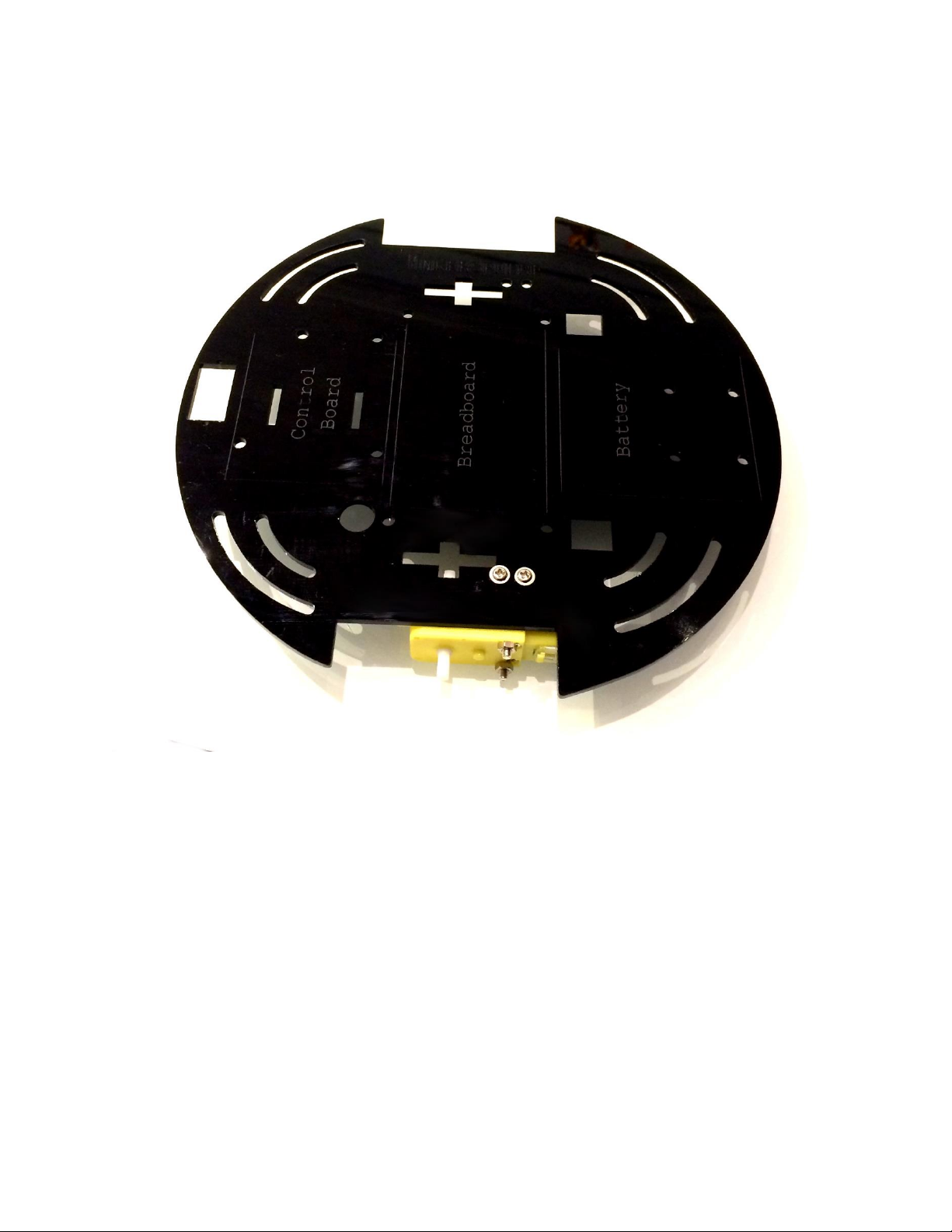

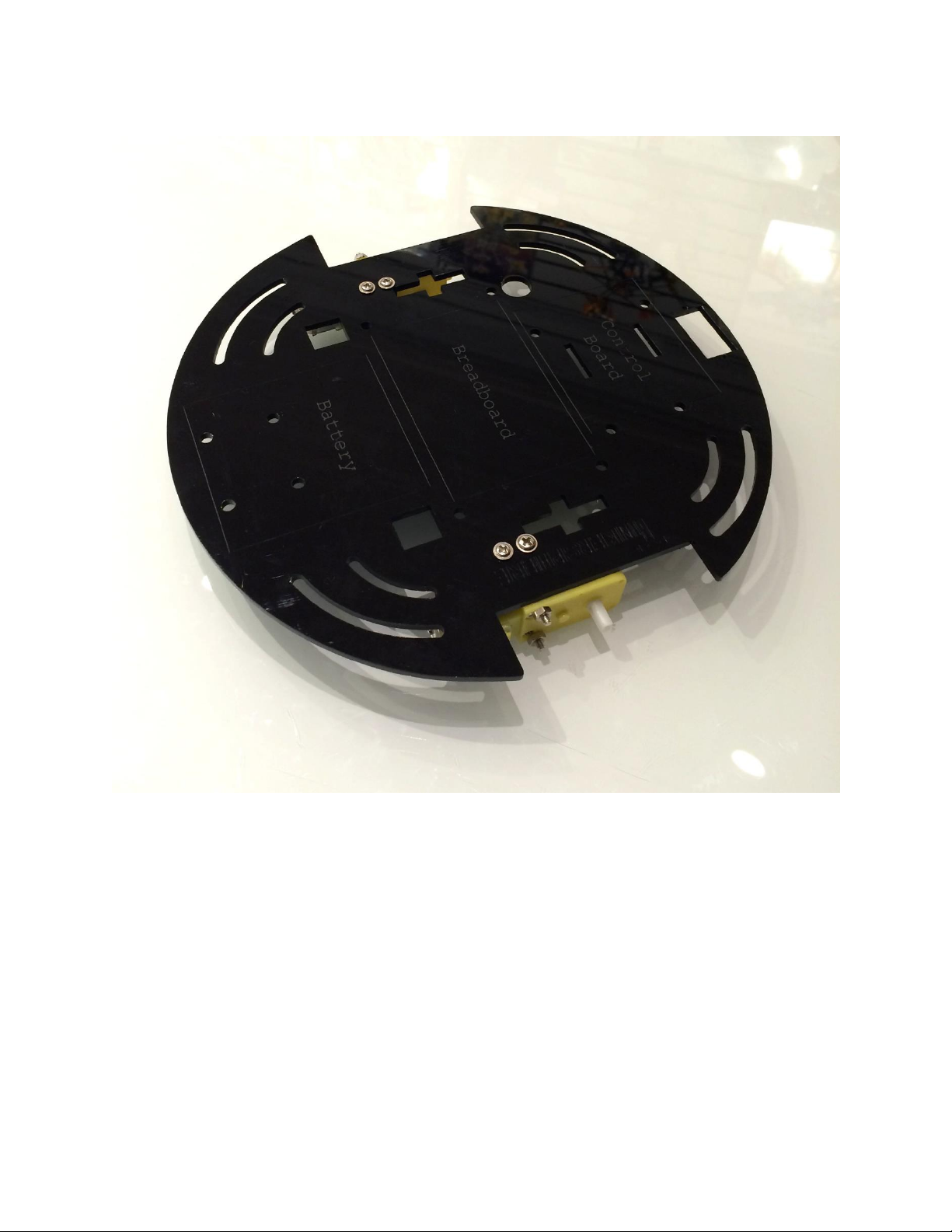

Mount the first motor on the frame using 2 screws from above.
Repeat for the other motor and add the wheels.

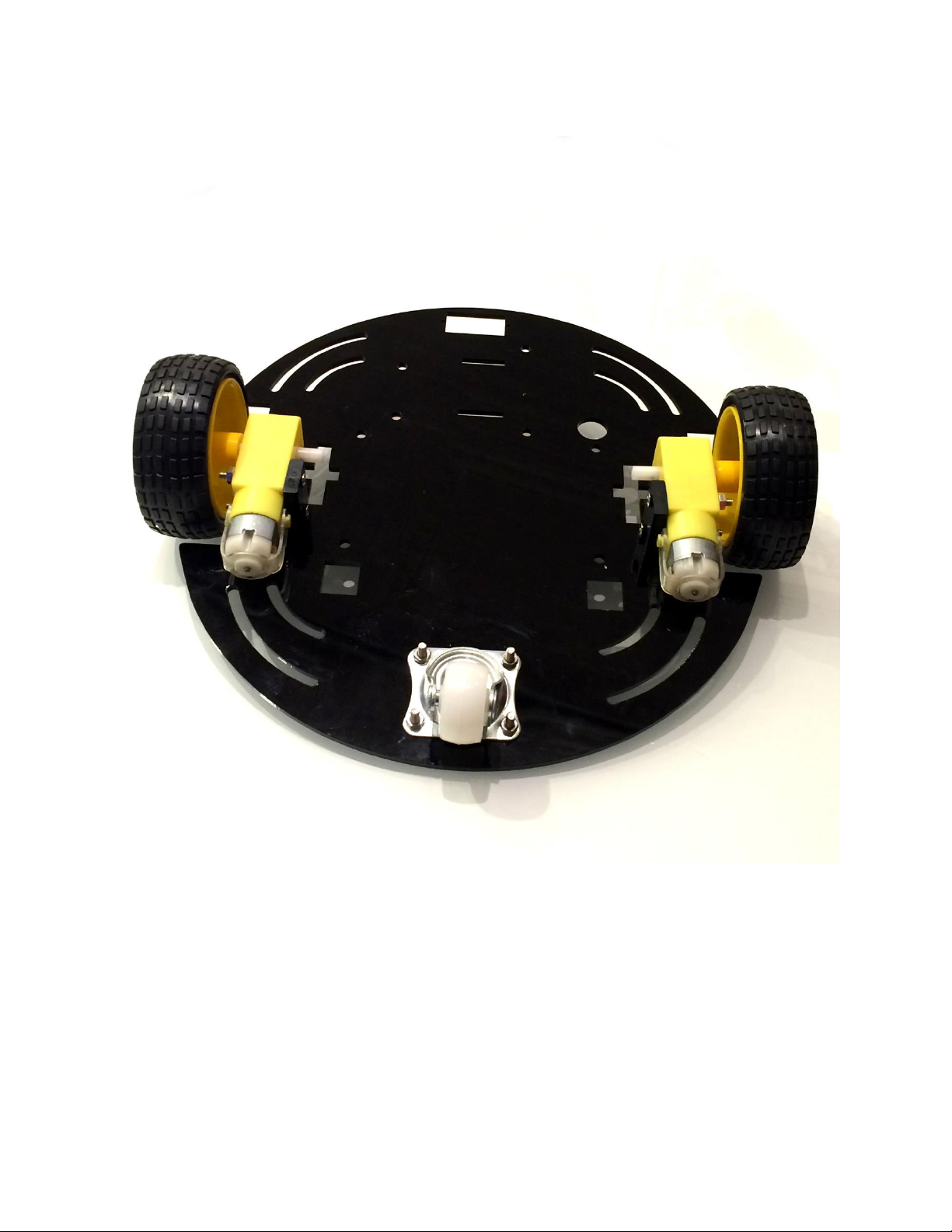

Turn the frame over and place the caster in place over the holes.

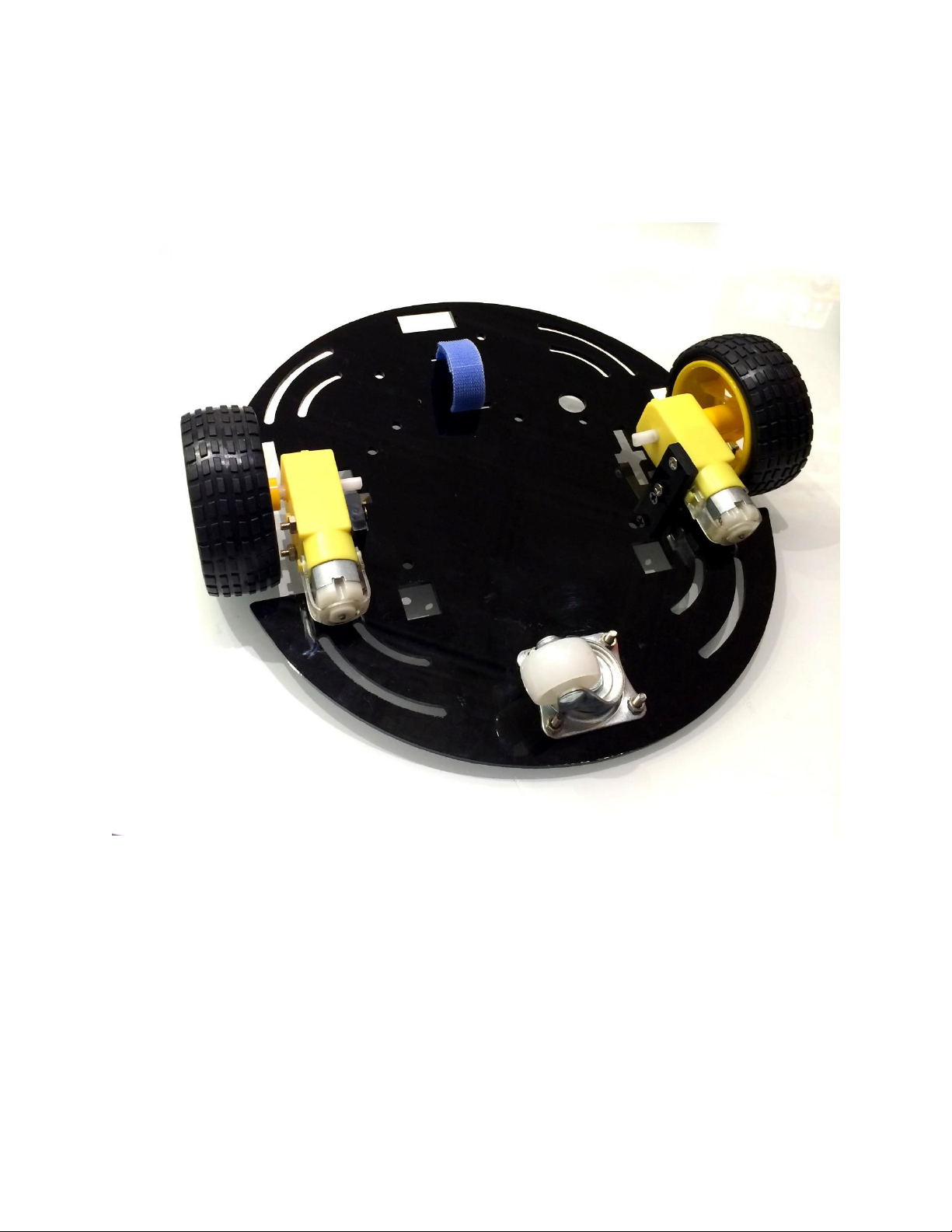

Attach the battery strap through the slots as shown. (After you’re done with assembly, this is
where you will strap your standard 9V battery (not included) to power your Arduino UNO here
and attach it with the Arduino Battery Adapter provided to your Arduino UNO. Slide the
Arduino Battery Adapter through the round slot beside the Arduino for easy connecting.)

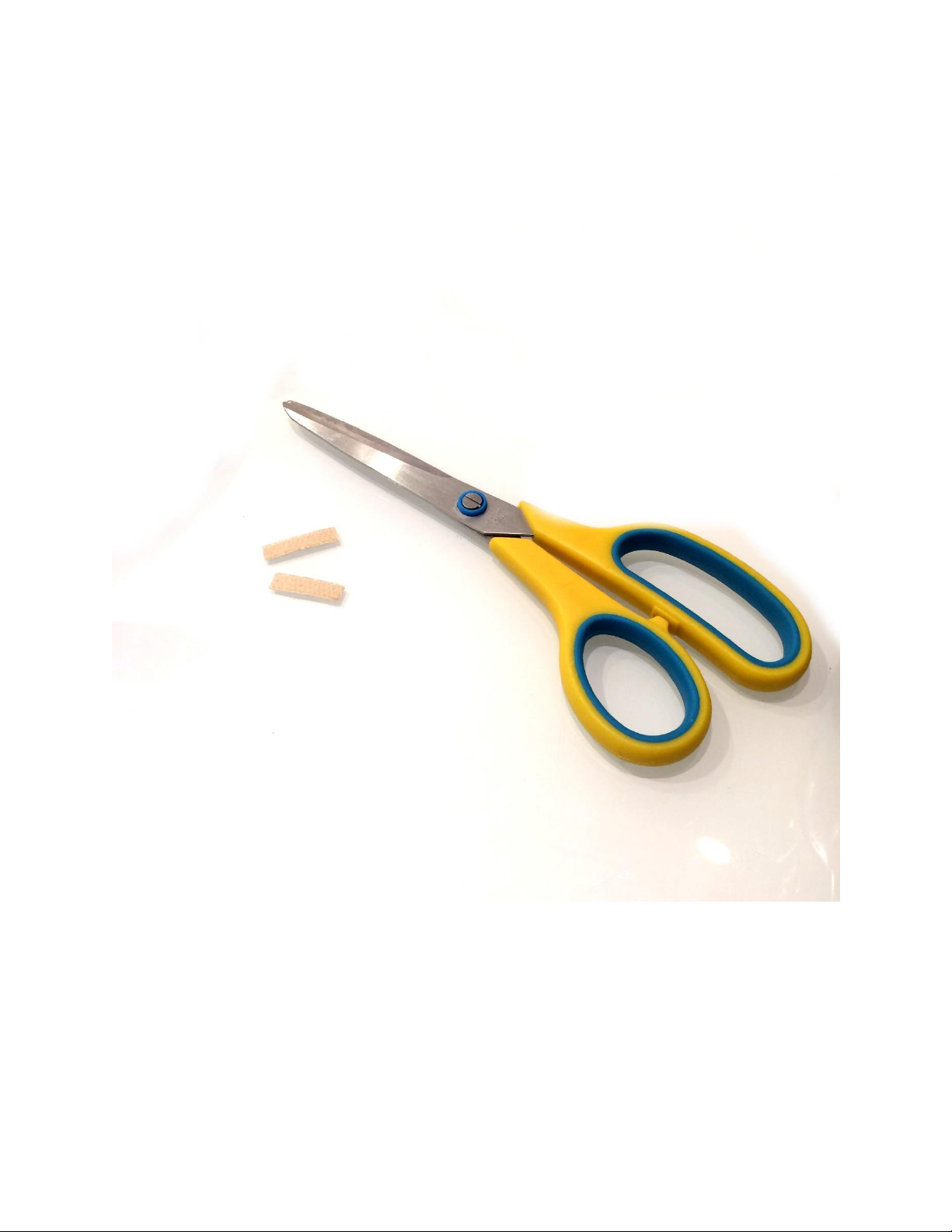

Cut a 1/8” thick strip from your dual lock and cut it in half as shown using scissors. This will be
used later on.

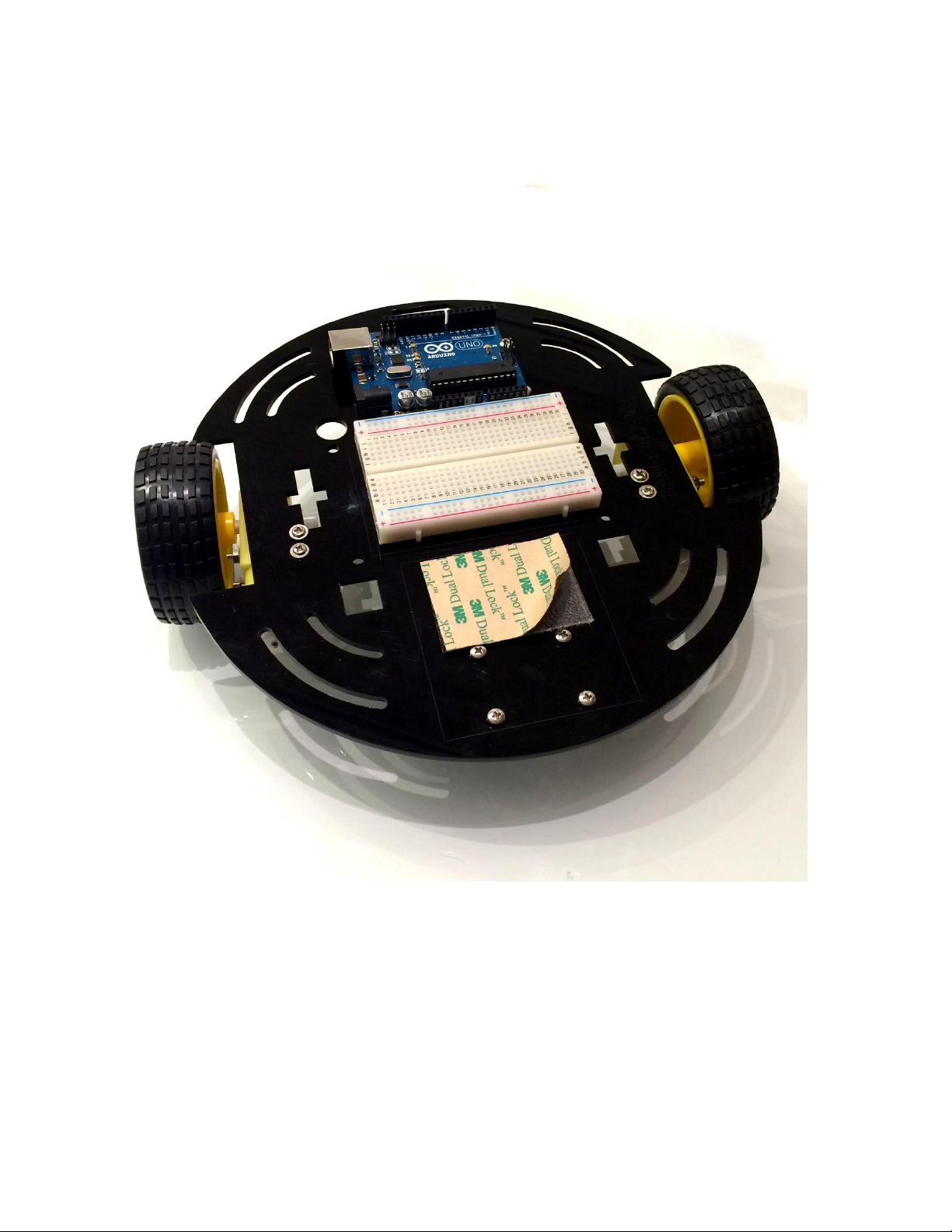

Mount the Arduino using 3 screws, Remove the double stick tape off the back of the
breadboard and place in place then, take the remaining dual lock and adhere one side to the
chassis as shown.

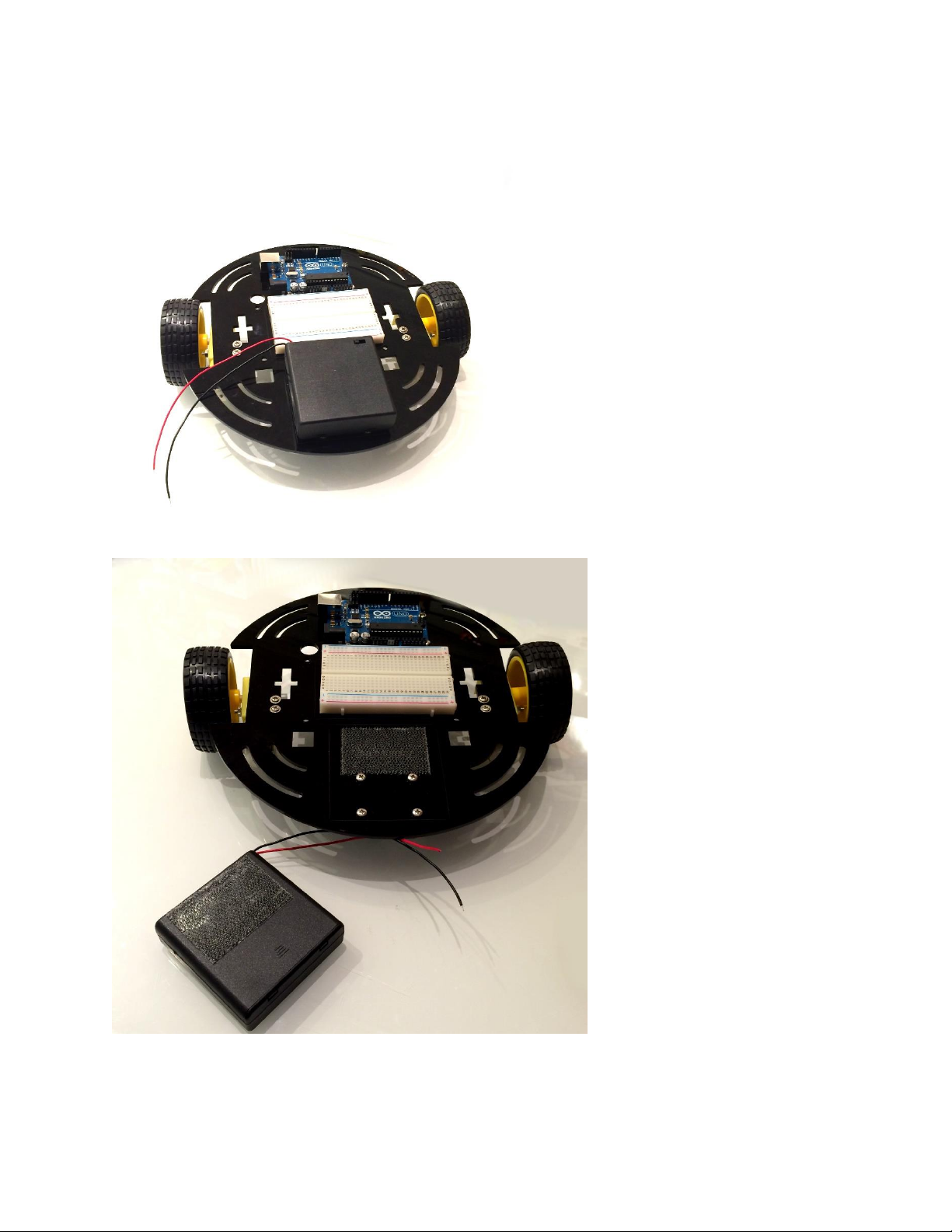

Attach the battery box to the other side of the dual lock for a permanent bond.
