USER MANUAL

Air quality monitoring Module СО2+ MagicAir

Model: Tion SP320

User Manual

CONTENTS

GENERAL INFORMATION

PACKAGE CONTENTS

SAFETY MEASURES

SPECIFICATIONS

PREPARATION TO OPERATION

ARRANGEMENT AND OPERATING PRINCIPLE

MAINTENANCE

STORAGE, TRANSPORTATION AND DECOMMISSIONING

WARRANTY

Module СО2+ MagicAir

Air quality monitoring Module СО2+ MagicAir, model: Tion SP320 (hereinafter referred

to as module or device) is a compact device designed to monitor air quality in a room

where the MagicAir Base Station (hereinafter referred to base station) is not installed.

The module operates within the MagicAir system if the base station is connected.

Basic functions:

• measurement of air parameters (carbon dioxide concentration, humidity

and temperature) using a sensor system;

• collection and transmission of air condition data to the base station;

• display of air quality in the operating mode using the light indication.

Before using the device, carefully read the User Manual, warranty conditions and

check the completeness and appearance.

The device meets the requirements:

• ТU 4257-004-66248641-2016;

• directive 2014/30/EU EMC;

• directive 2014/35/EU LVD;

• directive 2014/53-EU RED;

• directive 2011/65/EU and amendment directive 2015/863/EU RoHS.

The Certificate of Conformity is available on tion.global/doc

Developed and manufactured by Tion Smart microclimate JSC.

112, 20, Inzhenernaya str., Novosibirsk, 630090, Russia.

Factory: Tion Smart microclimate, JSC 112, 20 Inzhenernaya st., 630090,

Novosibirsk, Russia

tion.global

1. GENERAL INFORMATION

Dear Customer!

Thank you for purchasing Air quality monitoring Module СО2+ MagicAir, model: Tion

SP320! This Manual contains full information about the device, adjustment proce-

dures and maintenance rules.

User Manual

The full package contents are shown in Table 2.1.

The following notations are used in this User Manual:

Table 2.1 — Package contents

2. PACKAGE CONTENTS

3. SAFETY MEASURES

List of items and accessories Quantity, pcs

Device 1

Power supply unit 100–240 V~, 50/60 Hz 1

Quick Start Guide 1

Warranty card 1

DANGER! Requirements, non-observance of which may result

in failure of the device or dangerous conditions for health and life.

CAUTION! Requirements, non-observance of which may result

in failure of the device or dangerous conditions for health and life.

The device is not intended for use by children and people with special

physical, sensory or mental development, except when the operation is

carried out under the control of persons responsible for their safety.

Do not leave the power cord in the reach of children or pets, even when the

device is turned off.

Do not repair or modernize design of the module. If you find any damage or

signs of abnormal operation, contact the service organization of the seller

for advice on the possibility of further operation of the device.

Do not operate the device if the insulation of the power cord or the parts

is damaged.

Do not use power supplies with an output voltage exceeding value

indicated on power unit included into scope of supply. Excessive voltage

or current supply to the module can lead to a fire hazard.

To prevent fire or electric shock, do not expose the device to atmospheric

precipitation, vapors and liquids, open flames or direct heat radiation from

heating devices.

Module СО2+ MagicAir

The device is intended for use at temperatures from 0 to +45 °C, relative

humidity from 0 to 95% and for storage at temperatures from -20 to +45 °C.

Do not cover or subject the module to shock: this may lead to incorrect

measurements of air parameters and damage to the device.

Do not connect the device to power using the USB port of a personal

computer: this can result in unstable operation of the module.

Do not install the module in places where animals and humans are

permanently located: near a computer, on a desktop, or in a recreation

area. This can lead to excessively high readings of the device of carbon

dioxide concentrations an increase in the load on controlled climate

devices.

It is necessary to turn off and disconnect the device from the power

supply during a thunderstorm.

The device is designed for indoor use only. Do not use it in rooms

with sources of water and steam: pools, baths, saunas, bathrooms or

sanitary rooms.

User Manual

Specifications of the module are shown in Table 4.1.

Table 4.1 — Specifications

4. SPECIFICATIONS

Parameter Value

Overall dimensions (H×W×D) 100×100×27 mm

Weight (net) (128±3) g

Power voltage (5±0,1) V

Current consumption NMT 1 А

Concentration of carbon dioxide measurement range 0–5000 ppm1

Concentration of carbon dioxide measurement accuracy ±(50 ppm + 5% of measured

value)

Temperature measurement range 0–45 °С

Temperature measurement accuracy ±1,5 °С

Relative humidity measurement range 0–95% (free of condensate

formation)

Relative humidity measurement accuracy2±4%

Compatibility with Wireless Technology Standards TIONMA-868 (proprietory pro-

tocol for RF channel 868 MHz)

RF-module frequency band 868.8-869.1 MHz

RF-module maximum ERP 25 mW

Warranty operating life 1 year

Lifetime 10 years

1ppm (parts per million) — is measurement unit for carbon dioxide concentration.

2 Measurement accuracy is indicated in absolute values (%). For example, at relative humidity of 80%, the actual

humidity is in the range of 76–84% or (80 ± 4)%.

Module СО2+ MagicAir

5.1 Unpacking and pre-examination

Remove the device from the packaging bag, carefully inspect it and make sure that

there is no damage. Possible defects include the following: scratches, chips, uneven

color of plastic on the device’s case, as well as similar damage to the power supply unit

and violation of the integrity of the USB cable. If you find any defects, ask the supplier

to provide written confirmation of the damage.

If the device has been stored or transported at an air temperature below +10 °C, let it

stay in the packaging bag in the room for 2 hours to warm it to the room temperature.

It is required for eliminating condensation, damage of plastic parts while assembling

and malfunction of the device.

5.2 Installation

The device is designed for indoor use only. When choosing place of installation, make

sure that all the safety requirements specified in section 3 of this User Manual are met.

The device can be located on any horizontal surface or on a wall. Eyelet designed for

hanging on the bottom side is used for this purpose.

The module should be protected from exposure to liquids, steam or other abundant

moisture. Do not place the device in bathrooms or sanitary rooms. Do not use the

device in the immediate vicinity of a cooking place or humidifier.

Do not install the device near any heat sources such as radiators, heaters, or stoves.

Do not place it near radiators of household appliances (for example, acoustic devices,

refrigerators, etc.).

Place USB-cable so that it does not twist, jam or bend excessively. Do not leave it in

places accessible for children or pets.

5.3 Set up

To ensure operation of Smart Microclimate Control System MagicAir, you should first

connect the base station on MagicAir mobile application

The application is developed for mobile devices based on iOS (10.0 and later) and

Android (4.4 and later) operating systems. For installation, it is necessary to have

smartphone, which ensures access to the Internet. The application is available free at

and .

5. PREPARATION TO OPERATION

User Manual

Choose any way to install the application:

1.Scan the QR code below to proceed with downloading the application.

Then click Install.

2.Follow the direct link on your smartphone:

https://play.google.com/store/apps/details?id=com.tion.magicair

https://apps.apple.com/us/app/magicair/id1111104830

Once the base station is connected, press the button on the application’s main screen

to add the module, or go to “Home Settings” → Add. Follow further instructions in

the application to connect the device.

Module СО2+ MagicAir

6. ARRANGEMENT AND OPERATING PRINCIPLE

6.1 Arrangement

Module СО2+ is a solid block (Fig. 6.1, p. 1), which contains the following:

• sensors (temperature, humidity, concentration of carbon dioxide);

• microprocessor;

• RF-channel module for connection with the base station;

• light indicating system.

The light indication (Fig. 6.1, p. 2) helps to evaluate the state of connection to the

MagicAir system and the level of CO2 concentration in the room where the base station

is not installed.

The brightness of the light indication is automatically adjusted

depending on the illumination of the room. In the daytime, the

brightness level is maximum, and at night it is minimal. You can

turn off the light indication only in the MagicAir application in the

settings of the module.

The device is equipped with a built-in power cable (Fig. 6.1, p. 3) with a standard USB-A

output. Power supply unit (Fig. 6.1, p. 4), which is included in the delivery package, is

used to connect the module to a power supply network of 230 V, 50 Hz.

Figure 6.1 — The device kit

1 — module CO2+ (front side); 2 — light indication; 3 — power cable;

4 — power supply unit.

User Manual

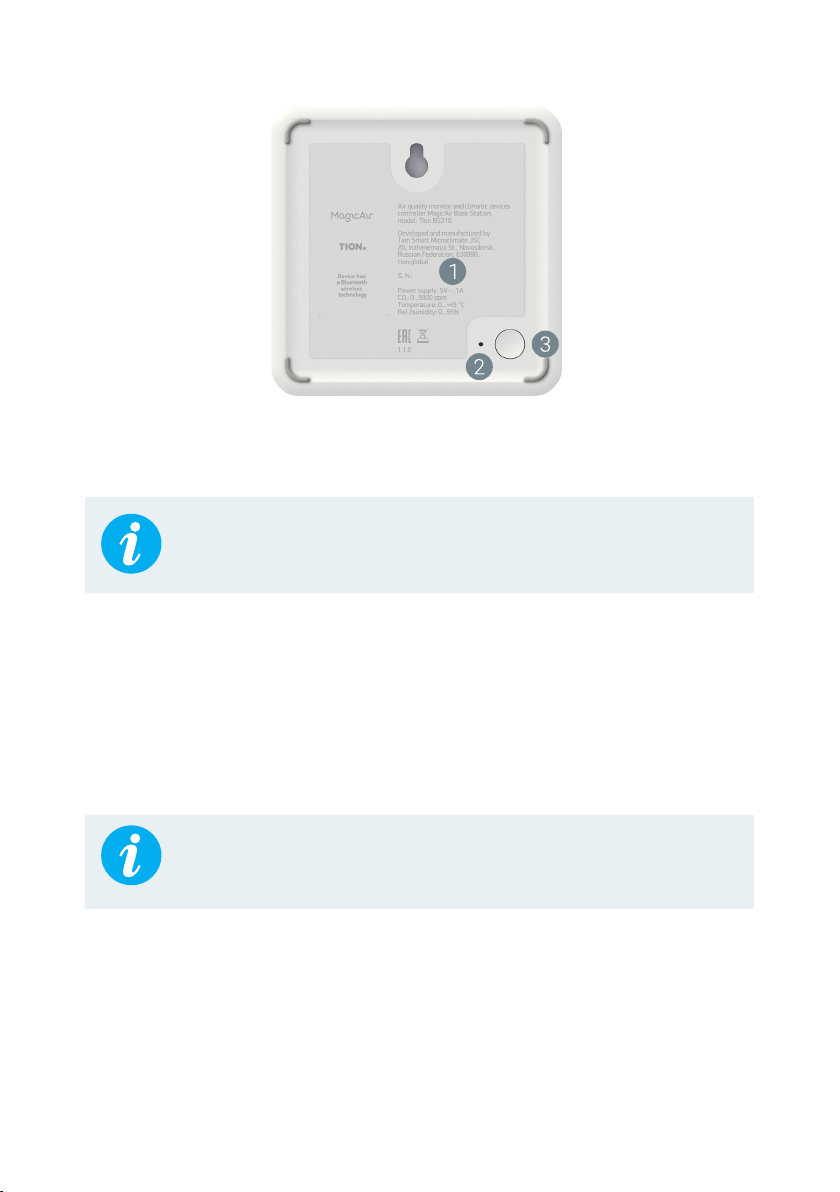

Figure 6.2 — The bottom side of the module

1 — serial number; 2 — “Reset” button; 3 — “Mode” button.

When contacting an authorized service center or service organization

of the seller, please be ready to tell serial number of the device. It is

located on the bottom side of the module (Fig. 6.2, p. 1).

“Mode” button (Fig. 6.2, p. 3) is used to activate the module when connecting to the

MagicAir system. Press “Reset” button to return to default settings (Fig. 6.2, p. 2).

6.2 Operating principle

Module СО2+ is a part of the MagicAir system (Fig. 6.3). It acts as a controlled device

and connects to the base station. Using sensors, the module measures the CO2

concentration level, temperature and air humidity in the room where the base station is

not installed, and transmits the data to the base station via RF-channel.

The devices (breezer, air purifier, infrared module and conditioner

etc.) can be controlled via the MagicAir system after they are

connected to the base station.

Using MagicAir mobile application you can monitor and control microclimate anytime

from anywhere in the world via the Internet.
