Titan Attachments ADJDISCP2 Manuale utente

ADJUSTABLE DISC PLOW

ADJDISCP2, ADJDISCP3

191421, 191422

Operator’s Manual

Read the Operator’s Manual entirely. When you see this

symbol, the subsequent instructions and warnings are

serious follow without exception. Your life and the lives

of others depend on it!

USING THE INSTRUCTION MANUAL

This handbook contains the use and maintenance instructions with a list of the spare parts of the

implement.

Regular and satisfactory operations together with economic and long-lasting use of the implement

depend on the compliance with instructions given in this handbook.

Compliance with the instructions in this handbook is also important since Manufacturer declines all

and every responsibility for damage to persons or property caused by negligence and failure to

comply with these instructions.

This instruction and maintenance manual should be kept in a safe place. It should

always be available for consultation. It should accompany the implement during

changes of ownership unit the implement is scrapped.

This manual reflects the technical features of the implement at the time of purchase. The

manufacture reserves the right to change the instruction manual without prior notice to the

customers. The manufacturer also reserves the right to modify machinery without updating the

instruction manual or previous publications.

The manufacture is not liable for any breakdown, problems, direct or indirect injuries or damage,

which may result from the following.

1. Use of the implement by untrained individuals.

2. Improper use of the implement.

3. Non-compliance with the instruction.

4. Incorrect assembly onto the tractor.

5. Lack of proper maintenance.

6. Unauthorized modification or service.

7. Non-compliance with the instruction for the hydraulic connection (if any)

8. Non-compliance with the instruction for road transport.

9. Improper maintenance of the hydraulic and electrical supply system (if any)

10. Use of spare parts which are not genuine or not specified for the particular model of the

implement.

11. Non-compliance with special governmental regulations.

12. Disasters or unusual occurrences.

USE OF THE IMPLEMENT

BEFORE USE: Before mounting of disc plough make sure that all nuts and bolts are properly secured.

ATTACHING THE PLOUGH TO THE TRACTOR

1. Place the plough duly leveled on the flat piece of land.

2. Reverse the tractor to the plough (Do not drag the plough up the tractor)

3. Attach the left arm of the tractor to the plough first.

4. Attach the central arm to the plough. To attach, turn the screws on both sides to an equal

length. If the arm is too short or too long, turn the screw to adjust both at the same time

until aligned with the hole on the central arm.

5. To attach the lower right arm, turn the screw until the mounting pin is at the same level as

the hole on the tractor arm. If the gap between hole and mounting pin is too close or too

distant, turn the control arm in or pull it away to an appropriate distance. You may have to

adjust both height and distance at the same time. When the hole at tractor arm and

mounting pin are even, insert the pin in the hole and lock it with the lynch pin.

6. After attaching the plough lift it and adjust the control arm parallel to the ground. When you

look from both rear and sideways, the discs should all be touching the ground uniformly.

NOTE

1. The plough will work best when the right wheel of the tractor is inside the previously

ploughed furrow. Readjust the plough alignments again if necessary.

2. To get good results from the plough discs should be replaced when their diameter is reduced

to 22".

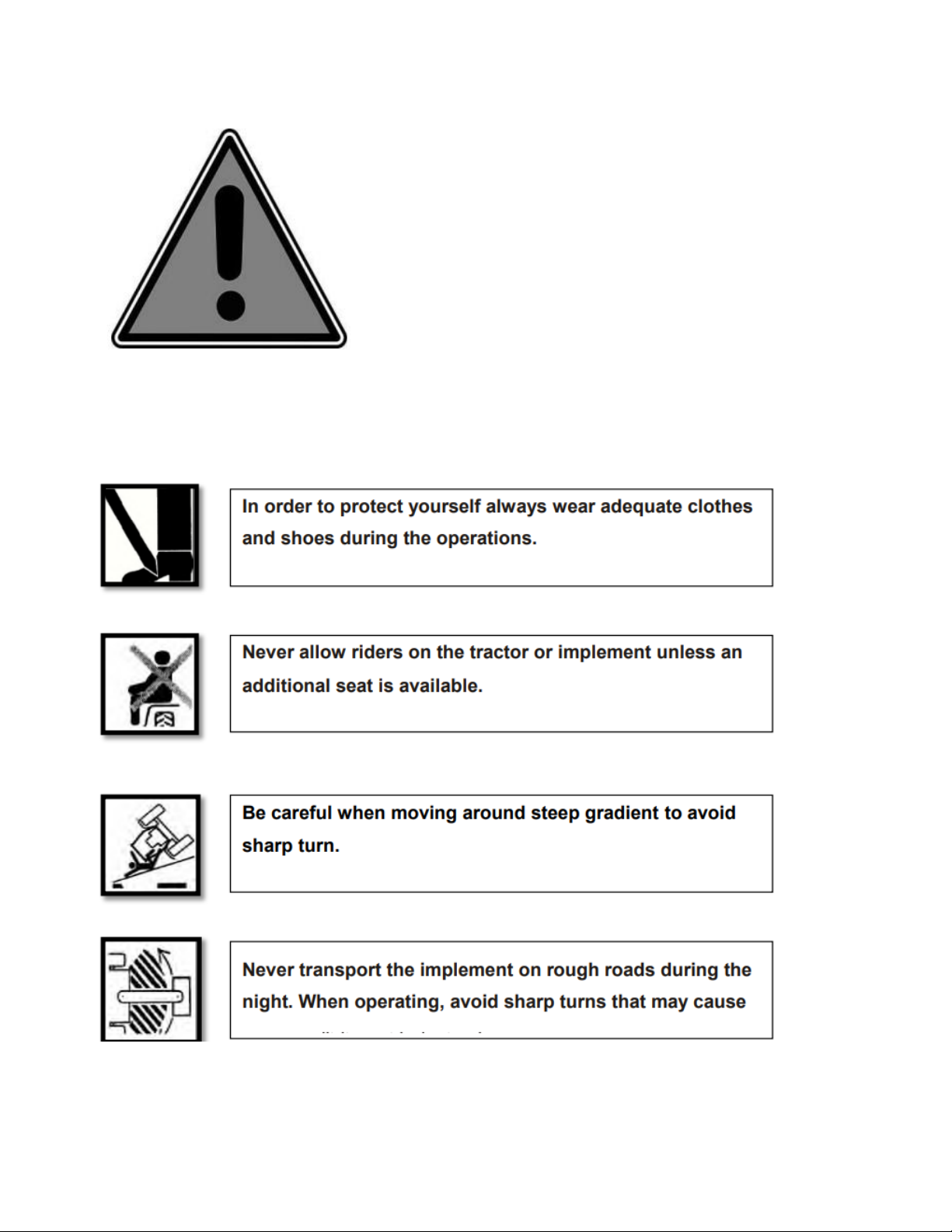

WARNINGS

The machine safety labels shown in this section are placed in

important areas on your machine to draw attention to potential

safety hazards.

On your machine the words DANGER, WARNING and CAUTION

are used with this safety-alert symbol.

DANGER identifies the most serious hazards.

The operator’s manual also explains any potential safety hazards whenever necessary.

Before operating the disc plough take care that nobody stands near it.

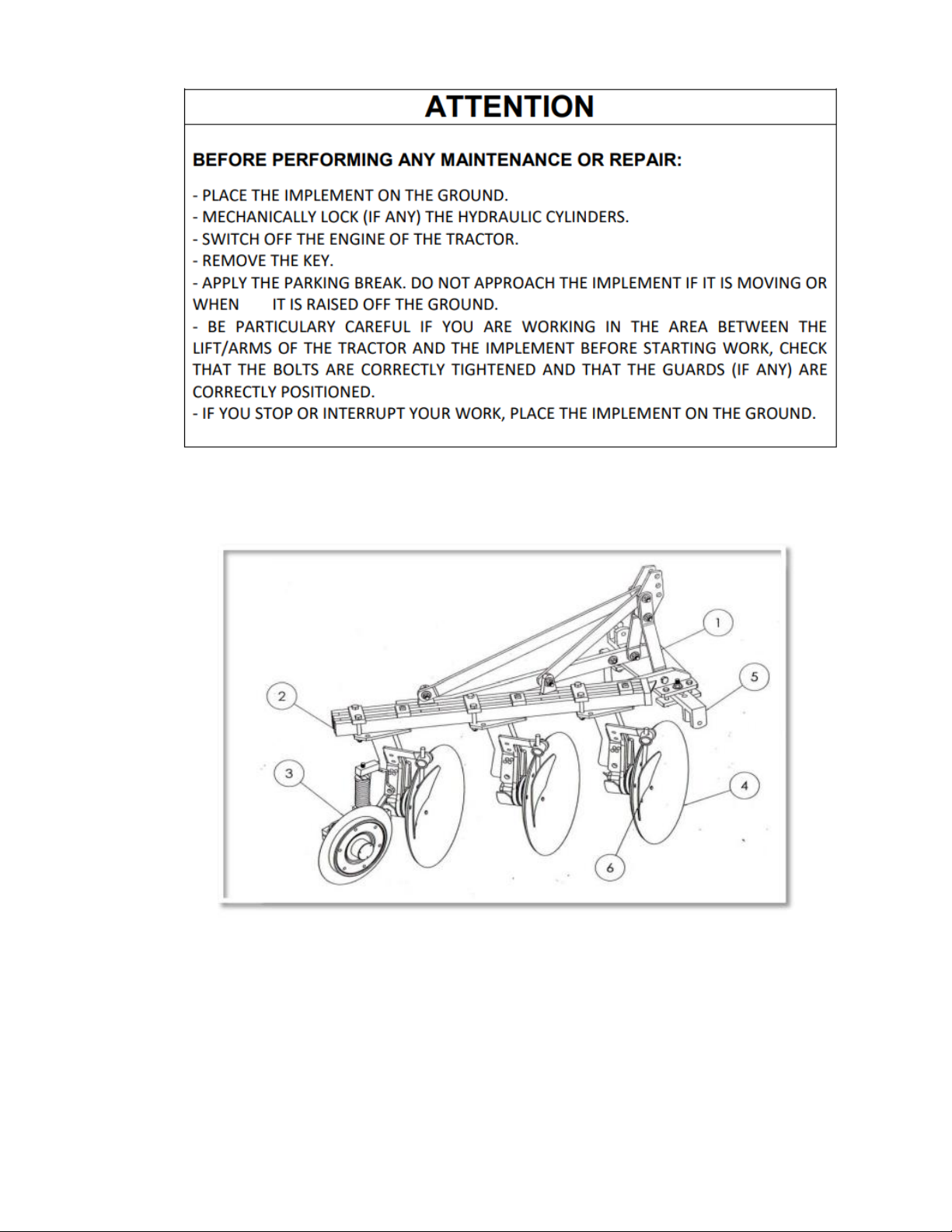

TECHNICAL DETAILS OF THE IMPLEMENT

1. Three –Point Hitch

2. Frame

3. Coulter Wheel

4. Disc

5. Drawbar

6. Scrapper

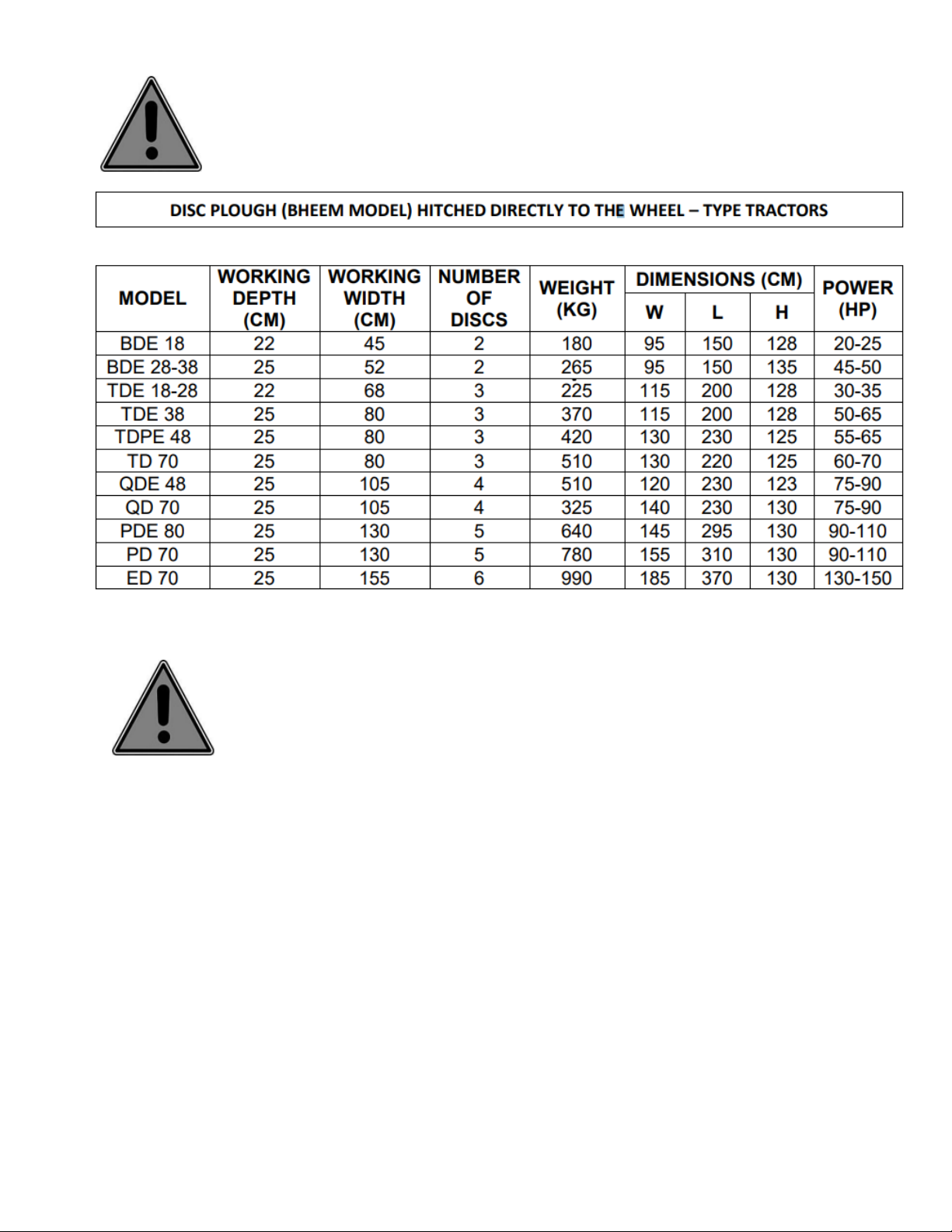

To calculate the total weight of the implement, add together the weight of all the

accessories to be mounted. Any accessory which does appear below is specific and

so no weight as been given.

MOVING THE IMPLEMENT

To calculate the total weight of the implement, include the weight of any

accessory.

When lifting or moving the implement, we recommend that you attach it with chains or belts, so that

it is correctly balanced and to avoid damaging the structure. The implement should be moved by an

experienced person.

SETTING UP THE IMPLEMENT

When working with disc ploughs, it is very important that the first furrow you create should be

perfectly straight and even. And since the tractor has a tendency to slip during the first pass. We

recommend that you adjust the lift arms so that only the real disc creates the furrow, thus creating

the minimum force of traction, and reducing slippage. Once the first furrow has been created, adjust

the lift arms and the three-point hitch tie rod so that the discs all work at the same depth during

subsequent passes.

Once you have obtained the desired depth. Check that the pins on the tractor and the pins on the

plough are all equidistant from the ground. And the three-point hitch pin on the plough is

approximately 1-5 cm higher than the three-point hitch-pin on the tractor.

ADJUSTMENTS

Before starting work with implement. You must perform the following adjustments:

1. ADJUSTING THE IMPLEMENT WIDTHWISE: The purpose of the adjustment is to ensure that

the implement is level with the ground horizontally so that all the discs work at the same

depth. Perform this adjustment with adjustable tie rod of the right hydraulic power lift arm.

2. ADJUSTING THE IMPLEMENT LENGTHWISE: The purpose of this adjustment is to ensure that

the implement is level with the ground lengthwise so that all the discs work at the same

depth. Perform this adjustment by lengthening the adjustable top link arm of the tractor.

3. ADJUSTING THE WORKING DEPTH: Perform this operation with hydraulic control lever of the

tractor power lift, or by adjusting the depth wheel.

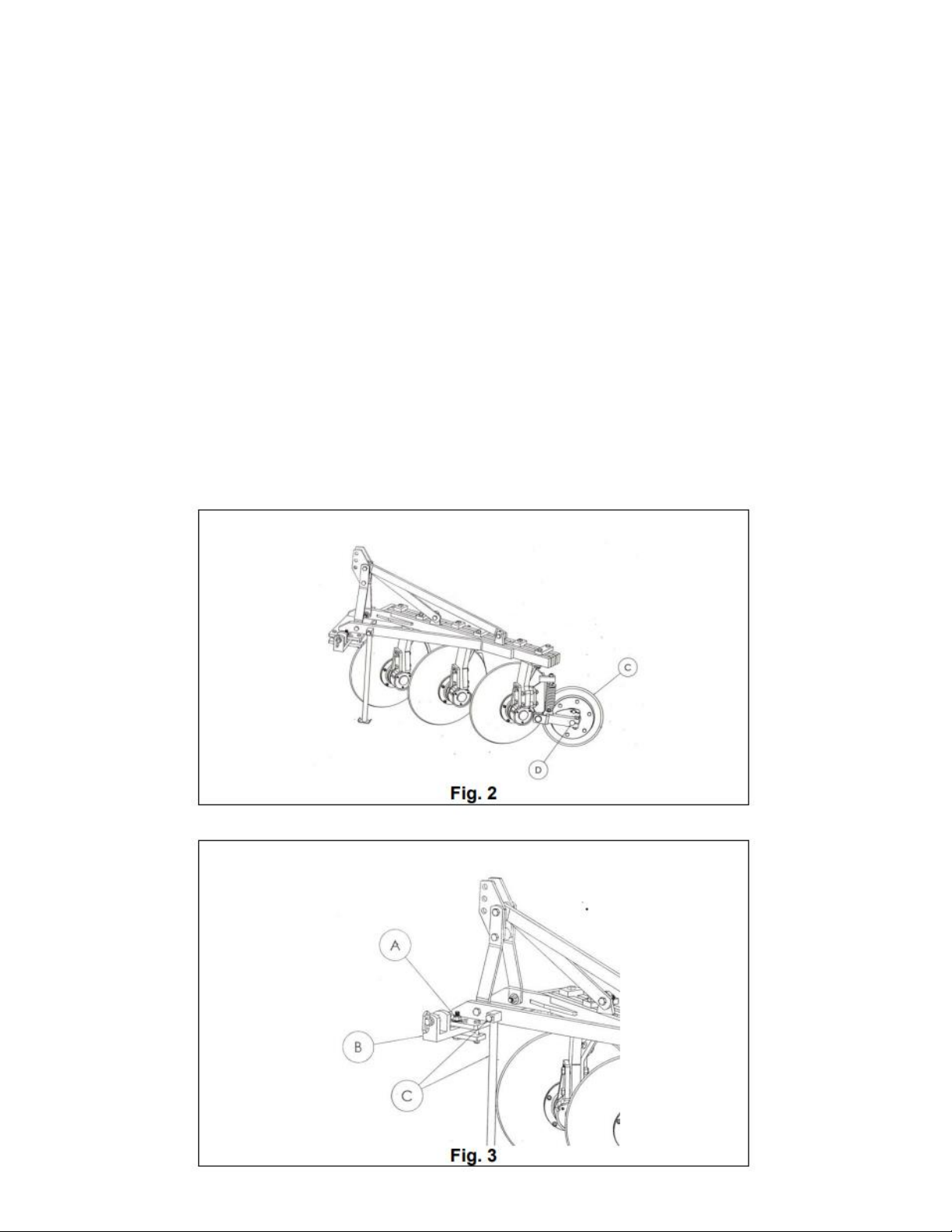

4. ADJUSTING THE COULTER WHEEL: The purpose of this adjustment is to equalize the thrust of

the implement from the discs reacting to the conditions of the ground, which tends to make

the tractor pull to the right. Perform this adjustment by changing the angle of rear coulter

wheel (Fig. 2) Ref. C as follow.

•Change the angle of the drawbar (Fig. 3) Ref. B by selecting another slot Ref. A to lock it.

•Turn and/or move the eccentric axle (Fig. 2) Ref. D on which the wheel is mounted. Remove

the lock plate first.

Note: If the coulter wheel is pitched too far, it could shorten the life of the bearings.

5. ADJUSTING THE WORKING WIDTH OF THE FIRST DISCS: The purpose of this adjustment is to

ensure that the implement works at the same width during each pass of the tractor. Perform

this adjustment by moving the drawbar to the right or left (Fig. 3) Ref. B. Once you have

made this adjustment, make sure that the stabilizer chains of the lower lift arms allow the

implement to sway from side to side approximately 5-8 cm.

Note: If moving the drawbar is not enough to adjust the working width of the first disc. Change the

tread of the tractor.

6. ADJUSTING THE COULTER WHEEL SPRING: The purpose of this adjustment is to ensure that

the disc is correctly loaded (Fig. 4) Ref. C, to allow it to penetrate the soil up to the circle,

thus creating an effective lateral support on the wall. Make this adjustment with the spring

(Fig. 4) Ref. A, loosening first the lock nut Ref. B and then tightening it again once you have

made the adjustment.

Note: Be careful not to overload the coulter wheel spring, which may cause penetration of the

implement to be too shallow and cause the tractor to slip.

7. ADJUSTING THE VERTICAL POSITION OF THE DISC DURING WORK: The purpose of this

adjustment is to make sure that the disc penetrates the ground. The vertical angle of each

disc can be adjusted by means of a series of holes or a rack (Fig. 7) Ref. A. The vertical angle

should be at its maximum if the plough has to work in very hard ground which is difficult to

penetrate and it at its minimum if working in soft ground. (Fig. 5)

8. ADJUSTING THE CUTTING ANGLE OF THE DISC: The purpose of this adjustment is to make

sure that the discs penetrate the ground. Perform this operation by changing angle “α” (Fig.

6),which should be small for very hard ground and big for soft ground.

9. ADJUSTING THE DISC SCRAPERS: The purpose of this adjustment is to bring the scrapers (Fig.

4) Ref. E closer to the disc and compensate for the play which appears between them due to

wear and tear. Make this adjustment by moving the scraper closer to the disc first loosening

the scrapper bolt (Fig. 4) Ref. D and tightening it again once the adjustment has been made.

PARKING THE IMPLEMENT

Perform the following operations when parking/storing the implement:

1. Select a firm, flat area.

2. Place the implement, which is still hitched to the tractor, on the ground.

3. Switch off the engine, apply the parking brake, remove the keys, and release the pressure in

the hydraulic lines, if any, by manipulating the control lever(s) a few times.

4. Place the stabilizers(s) on the ground, making sure that they are firmly in place. Lock them

into the correct position with the pains or screws (Fig. 3) Ref. C

5. Remove the pin from the three-point hitch of the plough.
