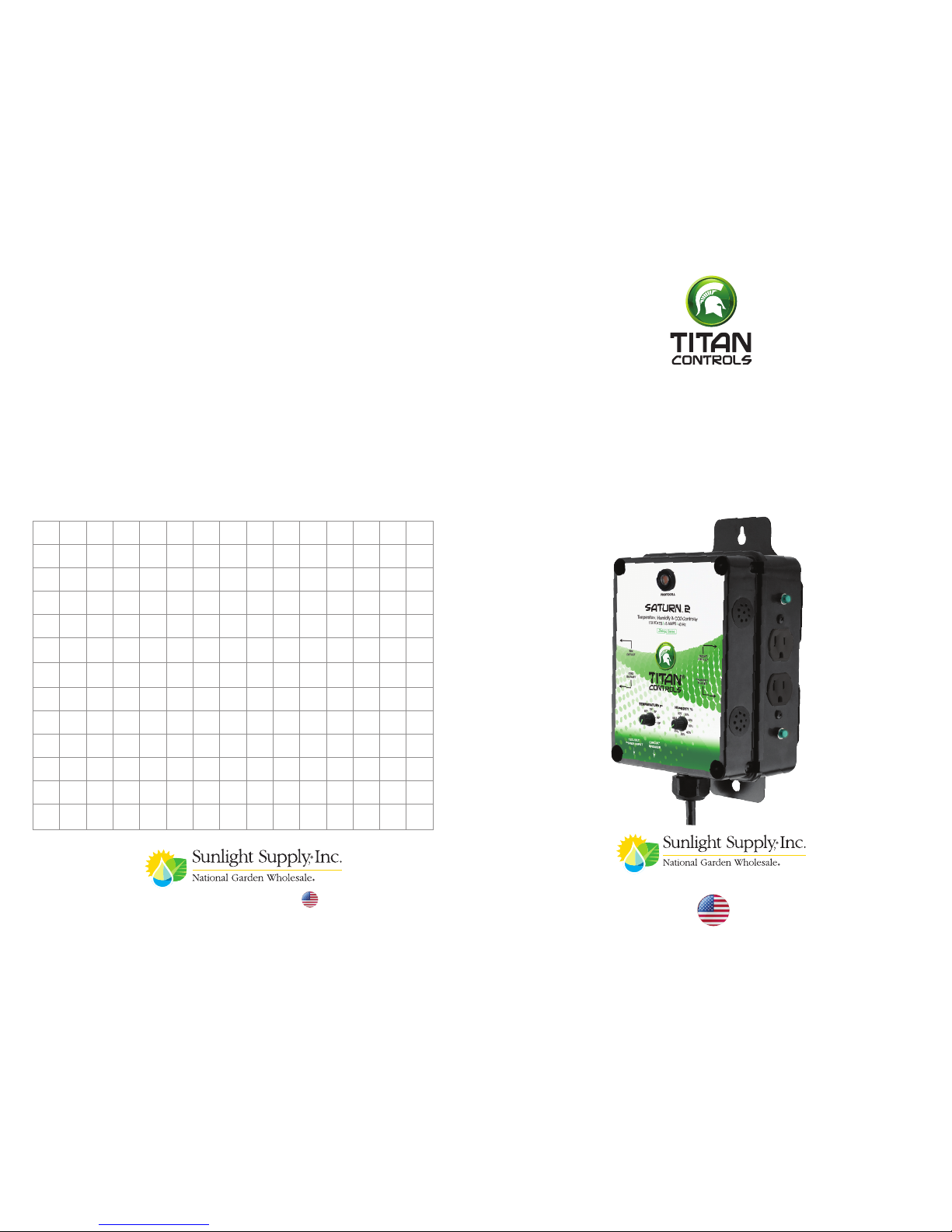

Saturn™2

Day/Night Temperature, Humidity

& CO2 Integration Controller

Instruction Manual

www.titancontrols.net

Notes:

_________________________________________________

________________________________________________

1 Square = ____ Foot/Feet

VANCOUVER, WASHINGTON U.S.A.

Revision C – 4/23/2012 © Titan Controls®

Saturn™2

• Warnings&Cautions

• Saturn™2- Day/Night Temperature, Humidity & CO2 Integration Controller Overview

• InstructionsforOperation

• TroubleshootingTips

• ControllerSpecications

• InstallationExample

• WarrantyInformation

•ServiceandRepairProgram

Warnings & Cautions

• Readallinstructionsbeforeoperatingcontroller.

• Donotputyourcontrollerinanareawhereitcangetwetorsprayed.

• Mountyourcontrollersecurelytothewallusinghardwareprovided.

• Whenusing“bugbombs”inarea,covercontrollercompletelytoavoidcorrosion.

• Therearenoserviceablepartsincontroller.Donotattempttorepairtheunit.

• Breakingtamperproofsealwillvoidyourwarranty.

• Donotputpaperclips,tools,etc.intounit.Possibleelectrocutionmayoccur.

• Plugcontrollerintosurgeprotectortoavoidpotentialdamagetotheunit.

• Conrmthatyourpowersourceis120Volts/15Ampspriortopluggingcontrollerintooutlet.

• Checkthatallequipmentthatwillbeactivatedbythiscontrolleristhepropervoltage(s).

• Verifythattheequipmentyouarecontrollingdoesnotexceedatotalof15amps.

• Thiscontrollerisdesignedfor“insideuse”only.

• AvoidplacingthecontrollernearheatgeneratingsourcessuchasaCO2Generatororheater.

• Usecautionifoperatingcontrollerinextremelyhumidenvironments(90%andabove).

• Donotusecontrollerforpurposesotherthantheunitwasdesignedtofunction

• Usecontrollerwithindenedenvironmentalspecications.

• AskyourDealerfortipsandtechniquesregardingtheuseofthiscontroller.

• Beconscientiouswhendisposingofanyproducts.

• EnjoyyourTitanControlsenvironmentalcontrollerforyearstocome!

Saturn™2 Day/Night Temperature,

Humidity & CO2 Integration Controller Overview

TheSaturn™2isintendedforuseinmaintainingthetemperature,humidityandtoprovideCO2

inyourgrowingenvironment.Boththetemperatureandhumiditycanbeadjustedbysetting

thedialsonthefrontofthecontrollertoyourpreferredsettings.Duringthedaytimehoursthe

WARRANTY SERVICE: Please read warranty information ﬁrst

Ifafterreviewingthetroubleshootingtipstheunitwillstillnotwork,youshouldreturnittothe

Dealerwhereyoupurchasedit.Theymaybeabletofurtherevaluatetheunitandtestitsvarious

componentsandquitepossiblywillbeabletoidentifyand/orxanyproblems.IftheDealeris

unabletoxtheunit,theywillreturnittousforfactoryrepair.

IftherearenoDealersinyourarea,youmaycontactusdirectlyfortechnicalsupport.Ifwe

cannothelpyouresolvetheproblemoverthephone,wewillissueyouaReturnMerchandise

Authorization(RMA)numberauthorizingyoutoreturntheunittousforfactoryreconditioning

(ifthecontrolleriscurrentlyunderwarranty).ContactthenumberbelowforaRMAnumberand

shippingaddress.Pleasecompletetheformbelowandincludeitwithyourunit,andwritethe

RMAnumberclearlyontheoutsideofthebox.

Pleasepackagetheunitinitsoriginalpackaging.Ifitisdamagedinshipmentwecannotbeheld

responsible.Insuringtheparcelisrecommended.

Oncewereceivetheunitback,wewillrepairitwithin48hours(business)andreturnittoyou

freightprepaidviaUPSgroundshipment.

IncludethefollowingifreturningdirectlytoTitanControls®

•Proofofpurchase•Thiscompletedform•RMA#ontheoutsideofthebox

ReturnMerchandiseAuthorizationNumber(Required)____________________________________________

Dealer/Customer’sName:___________________________________________________________________________

Dealer/Customer’sContactName:___________________________________________________________________

ShippingAddress:___________________________________________________________________________________

_____________________________________________________________________________________________________

Phone#:____________________________________________________________________________________________

Emailaddress:_______________________________________________________________________________

What is the nature of the problem? Please provide as much information as possible. ________

____________________________________________________

Sendtoyournearestlocation–shippingaddresswillbegivenwhentheRMA#isissued.

www.titancontrols.net

For technical assistance call us at 1-888-80-Titan or 1-888-808-4826.

CUT HERE

controllerleavesthe‘CO2OUTLET’activeuntilthetemperaturesetpointisexceeded.When

thisoccurs,the‘CO2OUTLET’isdeactivatedandthenthe‘FANOUTLET’isactivated;and

yourexhaustfanwillrununtilthetemperatureislowerthanyourpreferredsetting.After

thetemperaturehasloweredbelowtheselectedtemperaturelevelthe‘FANOUTLET’is

defeatedandthe‘CO2OUTLET’isactivatedandcanbegindosingyourgardenwithCO2

again,ifrequired.Thisinnovativefunctionservestwopurposes:One,thisallowsmaximum

CO2coveragewithminimumCO2waste;Two,yourexhaustfanisworkingonlywhenitis

required-savingpowerandwear&tearonyourgear.Atanytimeifthehumiditysetpointis

exceeded,thecontrollerwillactivatethe‘HUMIDITYOUTLET’andreducethehumiditylevel

tobelowyourpreferredhumiditysetting.Duringthenighttimehoursthecontrollerdefeats

the‘CO2OUTLET’(NoneedforCO2atnight)andactivatesthe‘NIGHTOUTLET’.The

‘NIGHTOUTLET’maybeusedtooperateacirculationfan,CO2exhaustfanusingashort

cycletimer,gardenmaintenancenightlightoranyotherdevicethatyouwouldlikeonlyto

runduringthenighttimehours.Ifduringthenighttimehoursthetemperatureexceedsyour

preferredsetting,thenthe‘FANOUTLET’isactivatedtolowerthetemperaturetodesired

levels.Ifthehumiditysetpointisexceededduringthenighttimehours,thenthe‘HUMIDITY

OUTLET”isactivatedandwilllowerthegardenshumiditytodesiredlevels.Thisprovides

thegrowerwith24hourtemperatureandhumiditycontrol.TheSaturn™2isbuiltwiththe

highestqualitycomponentstoprovidetheuserwithyearsoftroublefreeservice.Controllers

createdforourindustry,byourindustry!

Instructions for Operation

• SecurelymountyourSaturn™2inyourgrowareaandawayfromanymoisture,spray,

pesticides,etc.usingthemountingbracketsandhardwareprovided.

• Plugtheexhaustfanintothe‘FANOUTLET’.

• Turnthefan‘ON’tothehighestsettingpossible,ifadjustable.

• PlugtheCO2Controller(Atlas®SeriesCO2Controller)orarepeatcycletimer(Apollo™

seriestimers)intothe“CO2OUTLET’.Then,plugyourCO2GeneratororCO2Regulator/

TankintotheCO2controllerorrepeatcycletimer(SeeInstallationExamplesectionfor

moreinformation)

• TheintegratedphotocellensuresthattheCO2generatororCO2tankonlyactivatewhen

yourgardenisinthedaytimehours(lightsare‘ON’).ThisiswhenyourplantsuptakeCO2

andcangainthemostbenetsfromenrichingtheenvironmentwithCO2.Topreserve

yourCO2,the‘CO2OUTLET’isautomaticallydisabledwhenyour‘FANOUTLET’isactive

orinyourgarden’snighttimehours.

• Whenthe‘CO2OUTLET’isdisabledduringdaytimehoursbecauseofexcessive

temperature,theventilationprocessbeginsandcontinuesuntilthetemperaturelevelhas

loweredtobelowyourpreferredsettingonthetemperaturedial.Afterthetemperature

dropstobelowthepreferredtemperaturesetting,thenthe‘CO2OUTLET’isreactivated

andresumesnormalfunctioning.

• Plugyourcirculationfan,shortcycletimerforCO2exhaustfan,orgardenmaintenance

nightlightintothe“NIGHTOUTLET’.

• Plugthedehumidierintothe‘HUMIDITYOUTLET’

• Turnthedehumidier‘ON’tothelowestsetting.Thisallowsthecontrollertomaintain

precisecontrolofthehumidityinyourgarden.

• Setthe‘Temperature’and‘Humidity’dialsatthepreferredtemperatureandhumidity

levelsforyourgarden.

Warranty Information

•TitanControls®warrantstheoriginalpurchaseofthisproductagainstdefectsinmaterial

andworkmanshipundernormaluseforthree(3)yearsfromthedateofpurchase.

•Duringthewarrantyperiod,TitanControls®will,atouroption,andwithoutcharge,repairor

replacethisproductifthecontrolleroranyofitscomponentsfailormalfunction.

•AllreturnsorrepairsmustbeaccompaniedbyaReturnMerchandiseAuthorization(RMA)

numberpriortoanyserviceoftheproduct.

•Thiswarrantyisinlieuofallotherwarranties,expressedorimplied,includingthewarranties

ofmerchantabilityandtnessforuse,andofallotherobligationsorliabilitiesonthepartof

theseller.

•Thiswarrantyshallnotapplytothisproductoranypartthereofwhichhadbeendamaged

byaccident,abuse,misuse,modication,negligence,alterationormisapplication.

•Controllerswithserialnumbersordatetagsthathavebeenremoved,alteredorobliterated;

brokensealsthatshowevidenceoftampering;mismatchedboardserialnumbersor

nonconformingparts,areexcludedfromcoverage.

•TitanControls®makesnowarrantywhatsoeverinrespecttoaccessoriesorpartsnot

suppliedbyTitanControls®.

•Monetaryrefundsofthewarrantywillnotbegiven.

•TheBuyerassumesallresponsibilityregardingtheproperuse&installationofthis

controller.

•AllwarrantyserviceisprovidedthroughtheTitanControls®factory.

•ThiswarrantyshallapplyonlytotheUnitedStates,includingAlaska,Hawaiiandterritories

oftheUnitedStates.

•Defectivecontrollersarerequiredtobereturnedwiththe“proofofpurchase/receipt”for

warrantycoverage.

•Foradditionalwarrantyinformation,contacttheTitanControls®TechnicalService

RepresentativeoryourlocalDealer.

•NOTE:TitanControls®isaManufacturerofenvironmental,timing,lighting,ventilationand

CO2controls.Allsalesofferingstothepublicaredonethroughanationwidegroupof

Dealers.Nosalesofferingswillbemadedirectlytothegeneralpublic.

Service and Repair Program

• Forallserviceandrepairs,pleasecontactbyourTechnicalServiceRepresentativefor

troubleshootingyourgearandattainingaReturnMerchandiseAuthorization(RMA)number,

ifapplicable.

• Allfactoryservice&repairswillbecompletedwithin48hoursofreceiptofcontrolleratthe

factory.

• TitanControls®will,atitsdiscretion,repairorreplacethecontroller.

• FactorycalibrationservicesareavailableforallTitanControls®.

• ReturningUnits:Pleasecontactyourretailstoreforinformationregardingreturns.

• Finally,plugtheSaturn™ 2intoadedicated120Volt–15Amppowersource.

• UseofasurgeprotectiondeviceisrecommendedtoprotectyourSaturn™2frompotential

powerdamageinareaswherethismaybeanissue.

• YourSaturn™2willnowcontrolyourequipmentatthedesiredsettings.

Troubleshooting Tips

IftheSaturn™2isnotperformingasexpected,trythefollowing:

a.Conrmthatyourpowerinputsourceisactivebyusingavoltagetestmeter,andverifythat

thepowerinputsourceisproviding120VoltsofpowertotheSaturn™2.

b.ValidatethatthepoweroutletsoftheSaturn™2areactivebysettingthetemperature

andhumiditydialstothelowestsettings.Thenuseavoltagetestmetertoverifypoweris

owingthroughthecontrollertothepoweroutlets.

c.Ensurethattheexhaustfananddehumidierare‘ON’andsettothelowesttemperature

andhumiditylevels.

d.VerifythattheSaturn™2issetatthepropertemperatureandhumiditylevelstoactivate

anddeactivateequipment.

e.Ifyourventilationordehumidicationequipmentdoesnotturnoff,verifythatyourexhaust

fananddehumidierarethecorrectsizeforyourgrowarea.Increasesizeofexhaustfanor

dehumidier(ifnecessary)tocoolanddehumidifythegardenasquicklyaspossible.

f. IfyouarestillhavingproblemswithyourSaturn™2,pleasecontactourTechnicalService

Representativeat888-808-4826toassistyoufurther.

Controller Speciﬁcations:

• Size=8”Hx6”Wx4”D

• Weight=3lbs.

• InputVoltage=120Volts/AC

• OutputVoltage=120Volts/AC

• MaximumAmperage=15Amps

• OperatingHertz=60Hz

• Minimum/MaximumHumidityControlLevels=20%to80%(non-condensing)

• HumidityAccuracy=±5%ofdesiredsetting

• Minimum/MaximumTemperatureControlLevels=40°to100°F(5°Cto38°C)

• TemperatureAccuracy=±3°Fofdesiredsetting

• Cordset=8feet-14/3SWJ

• StorageTemperature=32°to135°F(0to58°C)

• OperatingTemperature=45°to95°F(7to35°C)

Installation Example

Indice

Altri manuali Titan Controls Regolatori di temperatura

Titan Controls

Titan Controls Kronus 1 Manuale utente

Titan Controls

Titan Controls Eos 1 Scheda informativa del prodotto

Manuali Regolatori di temperatura popolari di altre marche

Swegon

Swegon LUNAd MB Manuale utente

Lucky Reptile

Lucky Reptile Thermo Control II Manuale utente

SENSORMETRIX

SENSORMETRIX Argon 100 Manuale utente

Fuji Electric

Fuji Electric PXE4 Manuale utente

Yuyao gongyi

Yuyao gongyi XMT-808 series Manuale utente

Selec

Selec TC544C Manuale utente

P.W. KEY

P.W. KEY rt-208gt Manuale utente

Future Design

Future Design FDC-9200 Manuale utente

BH Thermal

BH Thermal BriskONE Manuale utente

Omron

Omron E5EX-H Manuale utente

West Control Solutions

West Control Solutions KS 45 Guida rapida

MCS

MCS RITC-15B Manuale utente

SMC Networks

SMC Networks Thermo-con INR-244-639 Manuale utente

eltherm

eltherm Ex-TC It Series Manuale utente

Omron

Omron C200H-TV Series Manuale utente

industrie technik

industrie technik CA1 Manuale utente

KRAL

KRAL EET 32 Manuale utente

dixell

dixell XR420C Schema elettrico
