TMEZON A233 Manuale utente

TTLOCK VERSIONUser Manual-Smart Digital LockIC CardPasswordeKeyAPPFingerprintOfficial Website: http://www.tmezon.comSupport email: support@tmezon.com SCAN & FOLLOW USWelcome to send email if any problem.Scan QR code for Video tutorialScan QR code below to download TTLOCK APP

ContentEnglish ............................................................1-22 Español..........................................................23-44

3Card:200 /password:150 /Fingerprint: 100 groups, one adminSYSTEM INTRODUCTIONPACKING ACCESSORIESKeypadKeycard AreaCylinderBattery BoxBack HandleMicro-USBPrivacy ButtonLatch BoltBack Panel Front Panel Strike Plate1 Pc1 Pc1 Pc1 Pc1 PcStrike BoxManual Key 2 PcsfghijkPlease check the packing box and accessories when you got the lock in hand.PRODUCT SPECIFICATIONFingerprint SensorDoor Bell21Keycard2PcsSmart KeycardFront PanelBack Panel***35-39mm

Door Thickness

40-50mm51-60mm*M5x40:1M5x50:1M5x60:1M5x20:18x8x60:14x20:4M5x30:1M5x40:18x8x60:18x8x80:14x20:44x20:4

Quantity

Indicator LightPull slotAluminum Alloy,ABS,GlassFingerprint, IC Card, Password,APP,Manual keyStandard adjustable single latch, 5050/5572/5070/4585/6085 mortiseAvailableFactory master password:123456,after configuration,it will be invalid10%~95%-20~50 degree1~1.5 seconds<55uADC6V:4pcs AA alkaline batteries Black/Satin Nickel(10-12 months) by 10 times normal unlock35-60mmBLE 5.0iOS 7.0 or above, Android 4.4 or aboveVirtual PasswordUser CapacityMaterialColorDoor ThicknessCommunicationSupport OSBattery LifePower SupplyStatic CurrentDynamic CurrentUnlock WayUnlock TimeWorking TemperatureWorking HumidityFactory PasscodeMortise Type<200mAEN - 1 support@tmezon.comEN - 2 support@tmezon.com9.f-Screws10.b-Back Panel with handle12.b-Back Panel Cover8.b-Base Plate+Silicone Pad11.g-Screws6. a-Front Panel h-Spindle1.c-Latch Bolt2.i-ST4x20 Screws3.i-ST4x20 Screws4.d-Strike Plate5.e-Strike Box

4There is one Reset button on the back of rear panel.you can press this button for 3 seconds with sound tip,”please input initialization passcode,”enter: , with sound: “Successful”.000#Then the lock is under factory state, the default master password is: 123456you can open the door with any fingerprint or default master password. RESET TO FACTORY STATE123Reset ButtonPull ATTENTIONThere is one privacy button on the back panel.You can pull downward this button with sound tip “Secure Lock is on”, then the lock is dead locked inside, only the administrator can access the door, other user password or card will be invalid. And you can pull upward the button one more time with sound tip“Secure lock is off” to cancel this function. Notice even it is dead locked, you can still press handle inside to unlock the door without limit.Privacy ButtonDEAD LOCK FUNCTIONATTENTION

PASSAGE MODE &BELL FUNCTIONEnter the valid password or touch the IC card or press the finger to open the door.After unlock the door, you can press the number “ to activate the passage 123#”function. The lock will be under always open state, you can press any valid password to cancel the passage mode and lock the door.Bell function: You can press the button“#”to ring the bell.6PREPARING TO INSTALL6.1 Line DrawingDrawing Center LineDrill hole for StrikeTest with MortiseStep 1Step 2Step 3Draw a horizontal center line inside and outside the door at 1 meter from the ground. Fold the hole template, make the handle center line align at the door horizontal center line, then draw out the hole lines at front and side.Drill Hole with Template "[45mm]Thick doorTempla te-60 /70# LATC HInstallation฀TemplatePlan tilla d e Insta lació n฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀설치 템플릿تﯾﺑ ﺛﺗﻟا ب ﻟﺎﻗDOOR SIDEARR OW UP "[60MM]Backset "[70MM]BacksetFO LDALON G DOOR FR AME ▶ "[35mm]Thick door2"[50mm]Thick doorDOOR FRONT/BACKDiameter:1"[25mm]holeDepth:4"[100mm]8314314328322" 5 0inches81mmiiEN - 3 support@tmezon.comEN - 4 support@tmezon.com

6.2 Adjust DirectionDouble LatchSingleMake sure the arrow point to the right position according to the different mortise.6.2.1.Adjust from Right to Left Direction(Front Panel)1. Turn the handle with 45 degree.2.Use the allen key to take off the screw like the photo.3. Turn the handle to 270 degree counterclockwise.4. Tighten the screw in left position.241345°270°6.2.2.Adjust from Right to Left Direction(Back Panel)1. Use the allen key to take off the screw on the right position.2. Turn the handle to 180 degree counterclockwise.3. Tighten the screw in left position.132180°EN - 5 support@tmezon.comEN - 6 support@tmezon.com77.1 Assemble the MortiseAssemble the latch bolt() into the cslot which is drilled according to the template.7.2 Assemble the Front Panel7.2.1 Tighten the two posts with front plate7.2.2 Press hard the spindle (h) into the handle hole.7.2.3 Cross the cable through the hole and fix the front panel(a) on the door.INSTALLATION STEPS:127.3 Fix Back PlateFix the back plate on the back, cross the cable through the hole and connect with the PCB board.7.4 Fix the Back PanelTight the back panel with front panel with the long screws as the photo.fg

7.5 Assemble the Battery BoxPut 4pcs AA alkaline batteries into the batterybox and buckle the battery box cover.7.6 Test Lock and Unlock by Manual KeyAfter finishing installation, please test with password: 123456 and turn the manual key and then press the handle to open.b21EN - 7 support@tmezon.comEN - 8 support@tmezon.comAPP Operation Steps81. Download the app “TTLock”Search "TTLock" app from Google Play Store or APP Store.2. Register and Login the Account3. Add the Lock to the APPFollowing the prompt steps of the program, you need to touch the screen after installingthe lock and installing the battery, match the blue icon lock, and set the name for the lock.NOTE: If the smart lock is in a non-addable state, take off the battery cover and press the reset button and enter the initialization password: “000#”, then add lock again.

2. Lock /UnlockPress for unlock, long press for lock. It requires your smart phone and bluetooth lock to be within a certain range.Note: If you want remote control, you need to connect to the Gateway (not included in the package, purchased separately).3. Send ekeyYou can add another account on the app.This way your family can also control the Bluetooth lock via the app. Supportauthorized users to Limited time, Permanent, One-time.Recurring control smart lock.4. Generate PasscodeGenerate or customize the passcode of the Bluetooth lock. Generate or customizepermanent one-time, time-limited, recurring passcode.Note: Generate the passcode to clear the passcode that Bluetooth lock stored by“Erase”. Once used, in addition to the admin passcode, other passcode will be cleared.EN - 9 support@tmezon.comEN - 10 support@tmezon.comTTLock APP Operation91. Account information Change1.1 When logging in “TTLock” App, you need set up an account and account password. Each account can be added with multiple smart device locks for management. Once the smart lock is added, it will become the admin account for the lock.

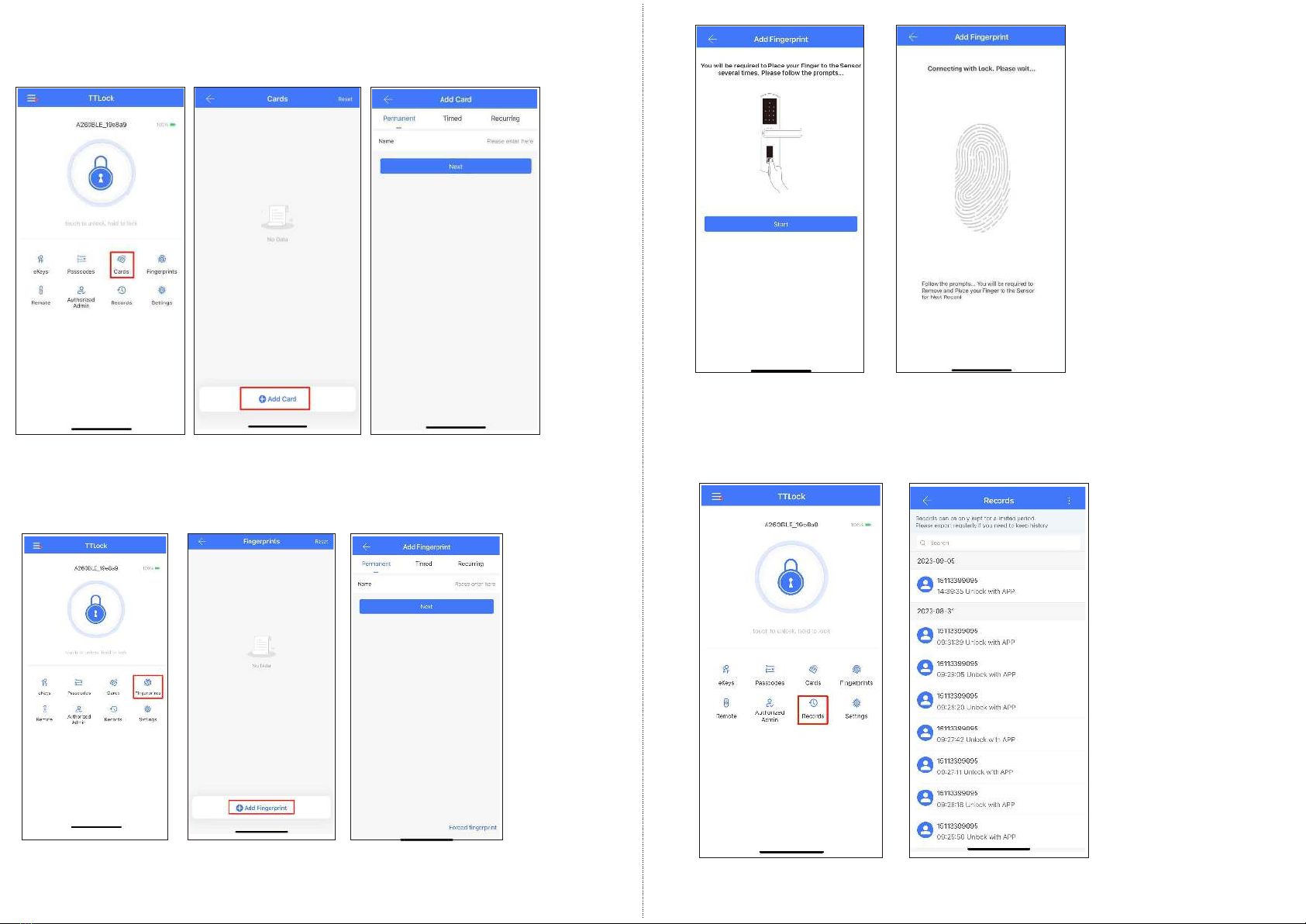

5. IC CardsYou can match two types of IC Card: Permanent or Timed.Place the card against the card reader sensor on the smart lock (keypad panel)6. FingerprintsYou will be required to Place and Remove your finger to the sensor several times, please follow the prompts. 7. RecordsIt records the time and manner of the smart lock when someone opening or closing.Manage your Bluetooth lock safely and efficiently.EN - 11 support@tmezon.comEN - 12 support@tmezon.com

8. SettingsIt has the function about the Bluetooth lock function setting, lock information setting.Like remote unlocking, auto-off time, lock sound, time proofread, record reading, etc.8.1. Function DefinitionMaster PIN CodeRequired for programming and adjusting settings. The Master PIN Code can be used to unlock the deadbolt in away mode and privacy mode. The default Master PIN code must be changed before programming. The owner / manager should keep thisinformation confidential.Auto LockThe unit will automatically lock after it has been unlock. This function is disabled by default. The time delay can be set from 1 to 180 seconds.Wrong Code Entry LimitAfter 10 unsuccessful attempts to enter a PIN code, the keypad will shut down and be unusable for 3 minutes.The sounds can be muted when pressing keypad. However, you will still hear low batterywarnings and system alerts.Silent modeThis is a safety feature when you leave your house for a vacation or long trip. Away mode disables all user codes until the Master Pin Code is entered on the keypad. When the lockis unlocked by the thumb turn, an alarm will sound for 1 minute, by entering the Master PIN Code on the keypad you can disable to alarm and away mode.Away modePush and hold the privacy button on the inside escutcheon for 3 seconds to activate privacymode. This will disable all user PIN code access. Privacy mode will be disabled automaticallyafter unlocking the door with the thumb turn or master code.Privacy modeWhen the batteries are running low, the battery indicator will flash and a voice will announceLow Battery. Please replace batteries as soon as possible “Replace the low batteries” withfour new AA alkaline batteries.Low battery alarmGenerated by TTLock APP, this PIN code can only be used once.One Time User CodeEN - 13 support@tmezon.comEN - 14 support@tmezon.com

Programming Instruction3secPress *39 #123456#2#Change to English voice tipPress the reset button and hold 3 secondsPlease input initialization passcode,enter: , with sound : “Successful”000#Please enroll the administrator before you start to use this lock. you can follow the operation steps as below. The APP for this device is TTLOCK, please download it to get more installation guide.1.Initialization2.Change Language000#2.Enroll Mobile AdministratorFactory state: Default master passcode is:.123456orPress *39 #123456#1#Change to Chinese voice tipTouch screen, light on, Voice tip:”please add Bluetooth administrator”.2.1 Factory state: press .*12#123456#new passcode#new passcode#2.2 You can use the mobile APP to add the Bluetooth administrator. When adding the door locks, operations must be completed near the lock.Step 1: Click “+” buttonStep 2: Select the lockStep 3: Click the device namePlease input Administrator passcodeFor sample: 123123Input new Master passcodeSuch as:654221Please enter fingerprint or passcode:Press your finger

please input againOperation successful!You can test the new passcodeEnter same password3.Change Master Passcode4.Enroll User Fingerprint“Please Input Administrator passcode”Press *12 #you can find the new master passcode in the mobile APP under “Settings”.also you can edit the master passcode on App and upload Admin passcode to the lock like the photo.you can also change the master passcode on the lock directly.Please find the operation steps below:Press *80 # button

please press again
