TMG TMG-SP08X Manuale utente
Snow Plow Pusher
MODEL: TMG-SP08X
PROFUCT MANUAL
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your requests
WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819
8.5 FT, U/V Angle Blade, with Q/C Lugging
CONTENTS
Safety operation warning ..................................................................................................................03
1. safety instructions
Preparations before operation.............................................................................................................04
During operation..................................................................................................................................05
After operation.....................................................................................................................................06
2. Machine introduce
Product parts name and function........................................................................................................07
Product specifications.........................................................................................................................08
3. Assembly work instruction
Check after unpacking................................................................................................................................10
Installation of left shovel assembly and support adjustment assembly......................................................12
Installation of right shovel assembly and support adjustment assembly............................................. ......13
Installation of bracket component ..............................................................................................................14
Installation of suspension assembly............................................................................................................15
Installation of hanger assembly...................................................................................................................17
Installation of rubber as-protection.............................................................................................................18
Cylinder and oil pipe connection.................................................................................................................19
Electrical circuit connection........................................................................................................................ 21
Lubricating grease........................................................................................................................................22
4. Explosion diagram and Product Parts.............................................................................................23
WWW.TMGINDUSTRIAL.COM P02/31 Toll Free:1-877-761-2819
Warning instructions for safe operation

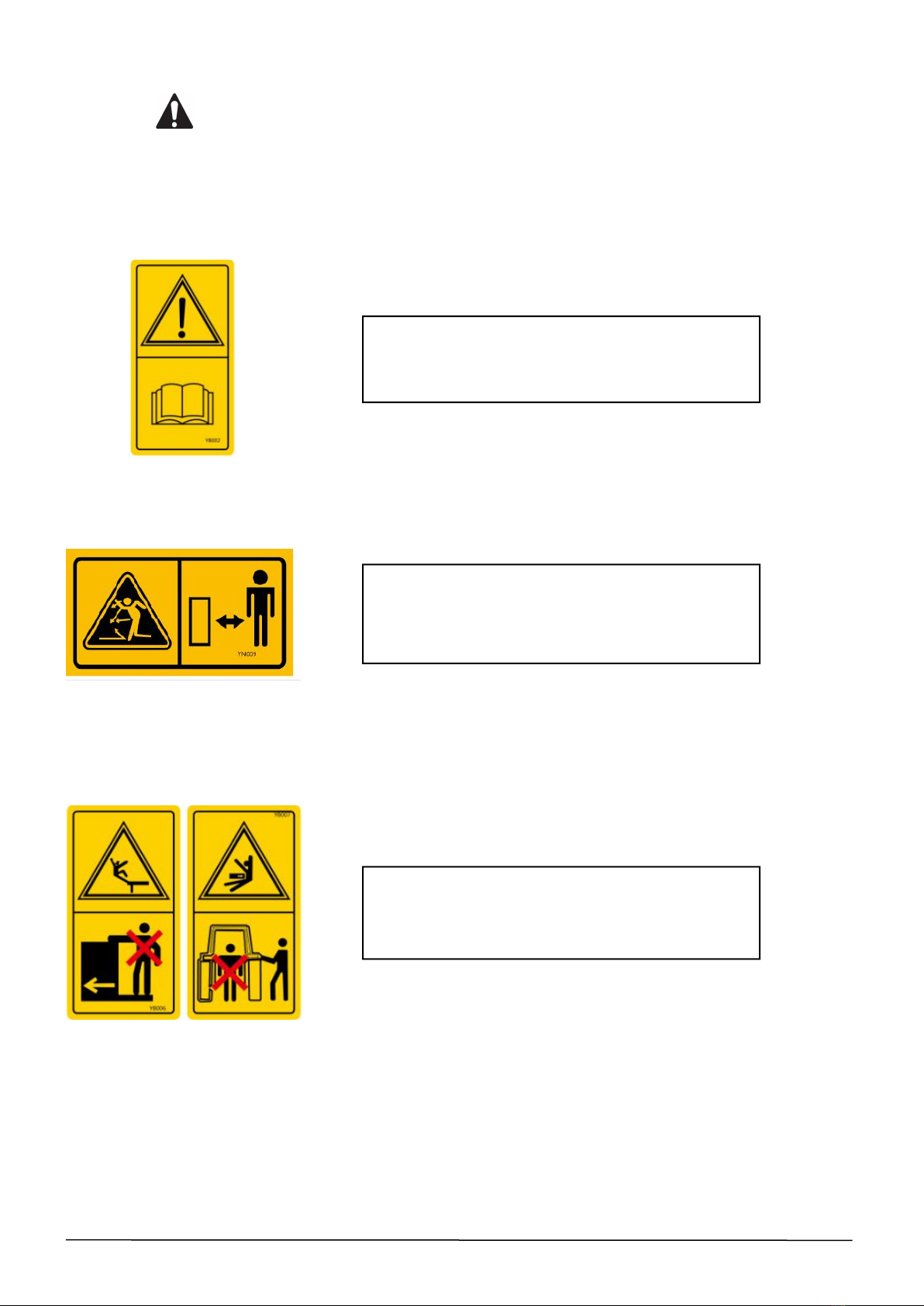

Meaning of warning labels
NOTICE! Read the instruction manual carefully
before using the machine. Failure to follow this
warning may cause injury.
WARNING ! Keep away from the cutting area of the
running machine. If this warning is not followed, a
personal injury accident may occur
WARNING ! Keep a safe distance while driving the
machine. If this warning is not followed, a personal
injury accident may occur
WWW.TMGINDUSTRIAL.COM P03/31 Toll Free:1-877-761-2819
1.Precautions for safe operation
Read the operating instructions of the machine carefully, and be familiar with the performance and how
to operate all the control devices!
Understand all the safety labels on the equipment, and keep the labels clean. Please do not paint or
move any safety labels casually. If they are damaged, they should be replaced immediately!
A warning sign should be set up in the work area where the operator is to tell others not to approach
it to prevent splashing!
Do not clean up close to people, buildings, vehicles or other objects that may be damaged by flying
debris!
Notice! Failure to follow this warning may cause injury.
Preparations before operation
NOTICE !
★If you do not know how to operate the
machine, because the instruction manual is not
placed around the product, if you use your own
judgment to deal with it, unexpected accidents
may occur and cause injuries. Make sure that
the instruction manual is kept around the
product, and you can read it at any time when
you don't know how to use it.
Place the instruction manual
around the product
WARNING !
★If you wear inappropriate clothing to
operate the machine, a part of the clothing will
be caught by the machine and cause injury. In
severe cases, a major fatal accident may
occur.
Please operate according to the clothes
suggested below:
● Do not wear oversized tops and pants.
● The sleeves and hem should not be too fat.
● Wear a safety helmet.
Do not wear banded or flocculent items such
as turbans or towels on the head and waist.
Clothing selection during operation
NOTICE !
★If you do not fully understand the safety
precautions and use essentials described in the
instruction manual, unexpected accidents may
occur. before operation, please fully understand
the warning signs affixed to the product, the
safety precautions and the essentials in the
instruction manual before proceeding.
Read the instructions carefully
before doing the homework
WARNING !
★Unexpected accidents may occur when
operating in situations where the body is
uncomfortable or the machine operation is
unfamiliar.
Do not operate under the following
conditions:
● When over-fatigue, sickness, drug
influence, and other reasons make it
impossible to concentrate on work.
● After drinking alcohol.
● Personnel who are unskilled in
mechanical operation.
Do not operate under the following
conditions
WWW.TMGINDUSTRIAL.COM P04/31 Toll Free:1-877-761-2819
During operation
Before operation
DANGER !
★Press the button on the remote control before starting to remove snow. Place the snow
shovel at an appropriate angle.
★Use the up and down buttons of the remote control to adjust the snow shovel to Fe
parallel to the road surface.
★After adjusting the up and down and angle of the snow shovel, you can start the vehicle to
move forward and perform snow removal operations.
★When walking on the slope at high speed, it may cause side slip or rollover. Please
downshift and slow down before entering the slope and cross the slope smoothly.
★Be sure to concentrate and drive carefully when working.
★If someone approaches when lifting the shovel, it may cause injury. Please stay away.
★When making machine adjustments and removing debris, be sure to cut off the engine.
Otherwise, due to the carelessness of a third party, the work machine suddenly starts, which
may cause unexpected things to happen.
★After the snow removal operation is completed, the shovel must Fe lifted up and allowed
to enter to avoid damage to the road surface.
DANGER !
★Make sure that the snow shovel and the car (other) connecting frame have been connected.
★Operate in a safe area.
★Ensure that the snow shovel is installed firmly.
★Ensure that all hydraulic joints and hydraulic devices are firmly connected.
★Replace vulnerable devices and hoses.
★Determine the power supply voltage. If the voltage is less than the required voltage, it will
affect the performance of the snow shovel.
★If people or objects are loaded on the working machine, it will cause injury accidents after
falling. Do not carry people or anything on the working machine.
WWW.TMGINDUSTRIAL.COM P05/31 Toll Free:1-877-761-2819
作业后
After operation
Storage instructions
NOTICE !
★After the machine is used, the shovel body and joints should Fe cleaned with a
high-pressure water gun.
★Grease the exposed cylinder rod
★Thoroughly remove all dirt, dirt and grease on the clean surface.
★The interfaces of hydraulic oil pipes, cylinders and battery valves are capped and sealed
★Check the connecting bolts and tighten all loose bolts and nuts.
★Fill all lubrication points with butter.
★Replace damaged or obscure identification labels.
NOTICE !
★The snow shovel must be cleaned up before storage to prevent rainwater and hemolytic
agent from corroding the shovel body.
★In storage, the support frame of the snow shovel must be lowered, and the jack must be
placed at the lowest level.
★Cover the electrical parts with rain-proof cloth to prevent aging due to exposure to the sun.
WWW.TMGINDUSTRIAL.COM P06/31 Toll Free:1-877-761-2819
2.Machine introduce

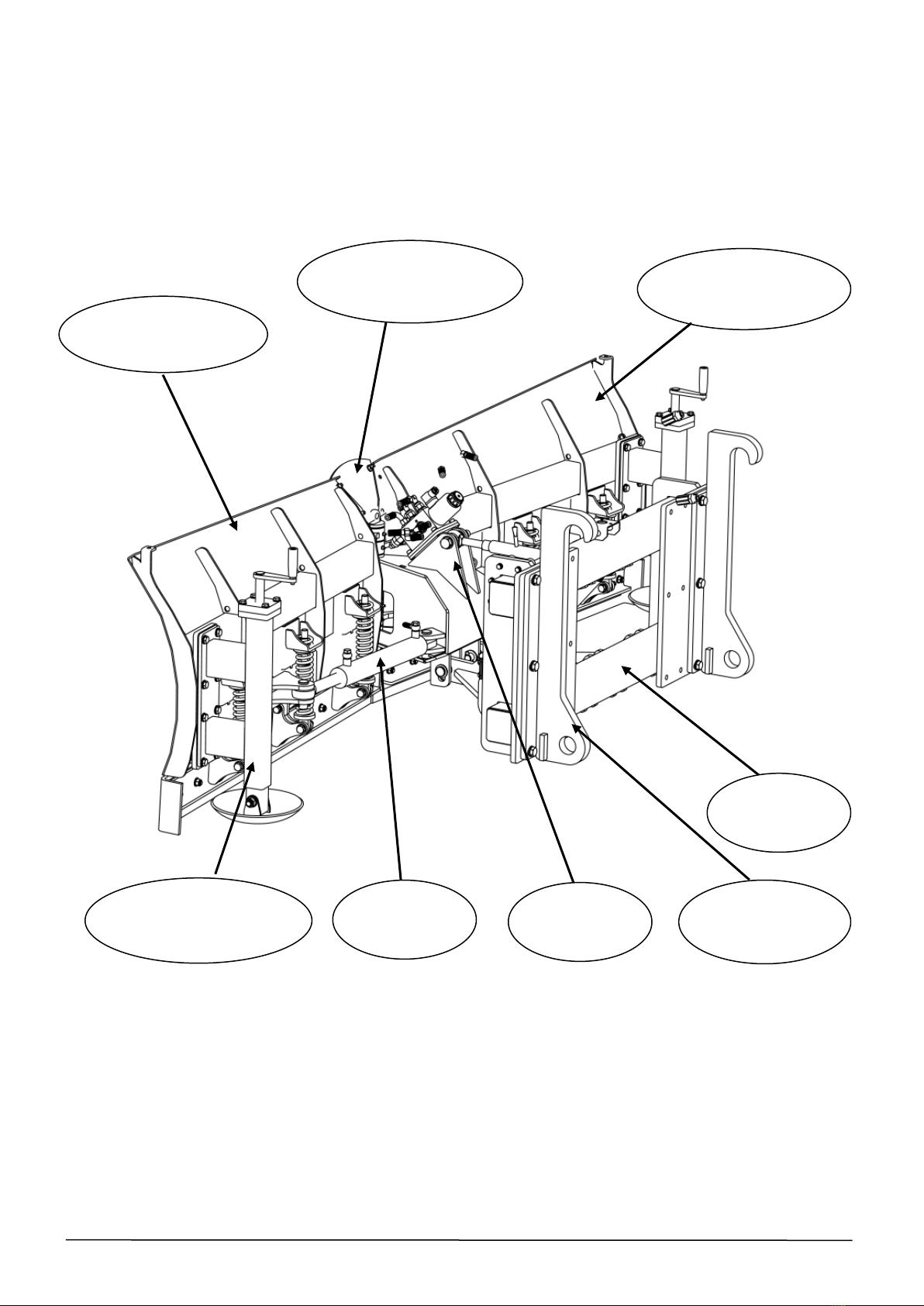

Products part names and functions
Right main shovel
assembly
Protect the rubber
components
Left main shovel
assembly
Hanging board
components
Bracket
assembly
Support adjustment
components
WWW.TMGINDUSTRIAL.COM P07/31 Toll Free:1-877-761-2819
Bracket
assembly
Hydraulic
components
Model No.
TMG-SP08X
Max Working Pressure
3050PSI
Max Working Flow
8.0GPM
Working Width
8.5ft(102”)
Working Voltage
DC 12V
U blade
up to 140 degree
V blade
up to 215 degree
Blade Angle
22 degrees left or right
Hydraulic Hose Diameter
3/8”(I.D)/1”(O.D)
Fitting
1/2” NPT
Shipping Weight
1280 lb
Shipping Size
75”x36”x24”
WWW.TMGINDUSTRIAL.COM P09/31 Toll Free:1-877-761-2819
U
V
3.Assembly work instruction
1. After unpacking, check the following components
*All numbers are not part numbers in
the drawings. For correct part
numbers, see explosive diagram
WWW.TMGINDUSTRIAL.COM P10/31 Toll Free:1-877-761-2819
